Высокоточная машина для осмотра SMT автономная AOI
- Категория: >>>
- Поставщик: Zhejiang Neoden Technology Co. Ltd.
Сохранить в закладки 1600410736860:
Описание и отзывы
Характеристики

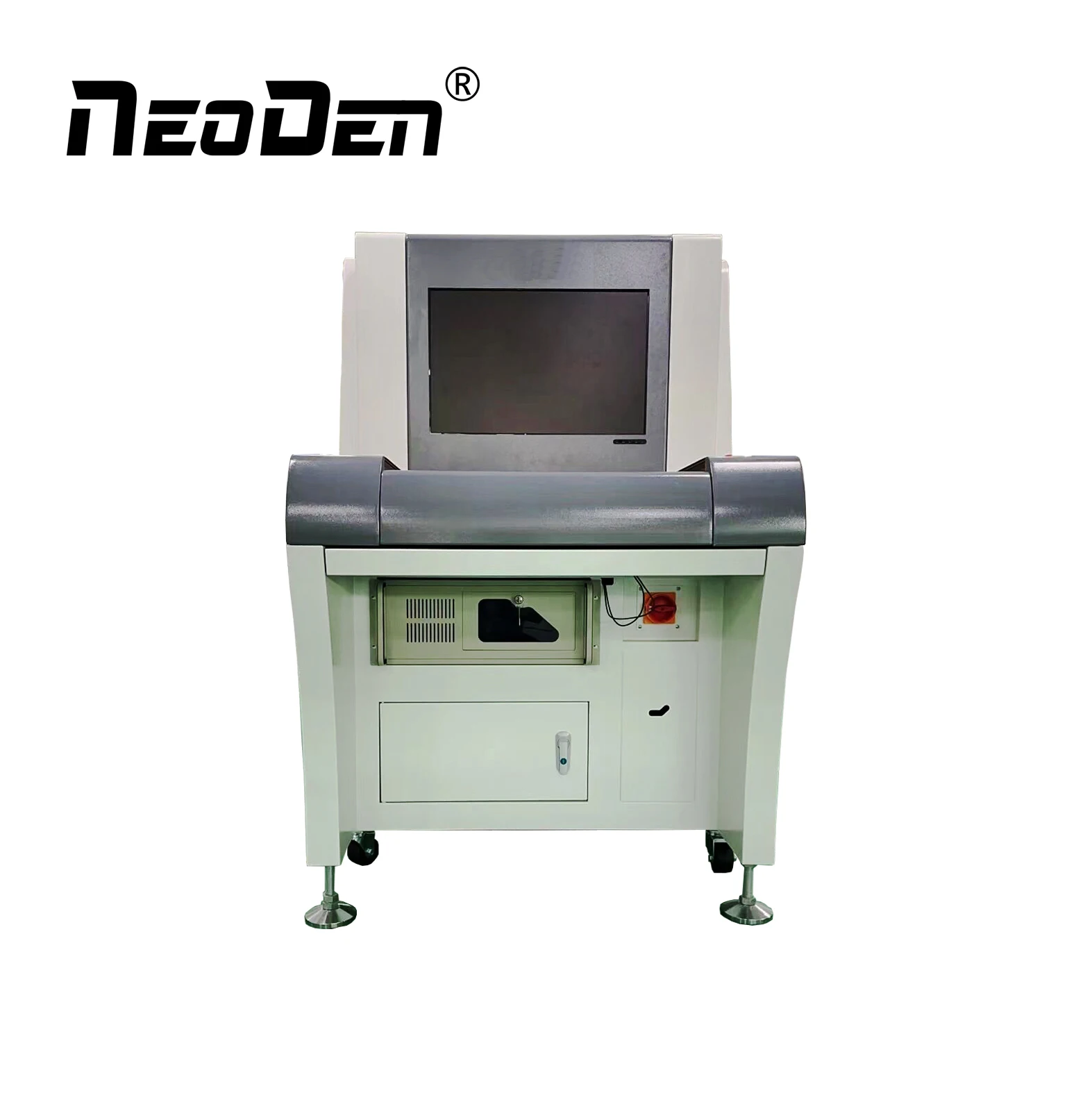

High quality SMT Production Line SMT inspection machine Offline AOI machine
Product Description
This equipment is a professional product used to inspect the welding quality and installation status of mounted components on SMT production line and the printing effect of solder paste, and to output the defects through the display terminal.
Programming mode: Automatic programming, manual programming, CAD data import, and automatic corresponding to component library.
Test mode: Optimized detection technology covering the whole circuit board. Jointed board and multiple marks, with Bad Mark function.
Detection type: Component defects such as whether there is solder paste, offset, insufficient solder, excess solder, open circuit and contamination; mounting defects such as missing part, offset, skewing, tombstone, mounting on side, turnover, wrong parts, damage and reversal, etc.; solder joint defects such as excess solder, insufficient solder, pseudo soldering, and solder bridge, etc.; and PCB defects such as copper foil contaminated, black pad, de-lamination, copper foil missing, and oxidation, etc.
Image recognition: Automatically set the parameters (e.g. shift, polarity, short circuit, etc.) according to different inspection requirements.
SPC statistical function: Record the test data in the whole process and carry out statistics and analysis, and production status and quality analysis can be viewed in any area.
PCB dimension: 50*50mm(Min) - 400*360mm (Max)
PCB degree of curvature: < 5mm or 3% of the diagonal length of PCB.
PCB component height: above: < 30mm, below: < 50mm
PCB transmission system: Bottom-up fixing, automatic compensation of PCB deformation, automatic getting in and out of board, and automatic adjustment of width.
Positioning accuracy: <16um
Movement speed: 800mm/sec
Image processing speed: 0402chip < 12ms
Camera and lighting system: Full-color high-speed digital CCD camera, with resolution of lens of 10, 15, 18 and 20um, three-channel RGB light source
Driving system: AC servomotor system, precision grinding ball screw
Minimum part test: 0402chip & 0.4 pitch IC
Software system: Windows XP
Calculation method: Color operation, color extraction, gray level operation, image contract, etc.
Output display: 22-inch wide-screen ((16:10, 1680*1050 resolution) monitor
Output signals: OK / NG signal, equipment running state signal, alarm signal
Network communication: Supported
Data transmission tool: Support multiple common formats such as CAD, Excel and Txt
Equipment weight: 560KG
Overall dimension of equipment: 1000*950*1580mm
Air pressure requirement: pipeline compressed air,≥0.49MPa
Test mode: Optimized detection technology covering the whole circuit board. Jointed board and multiple marks, with Bad Mark function.
Detection type: Component defects such as whether there is solder paste, offset, insufficient solder, excess solder, open circuit and contamination; mounting defects such as missing part, offset, skewing, tombstone, mounting on side, turnover, wrong parts, damage and reversal, etc.; solder joint defects such as excess solder, insufficient solder, pseudo soldering, and solder bridge, etc.; and PCB defects such as copper foil contaminated, black pad, de-lamination, copper foil missing, and oxidation, etc.
Image recognition: Automatically set the parameters (e.g. shift, polarity, short circuit, etc.) according to different inspection requirements.
SPC statistical function: Record the test data in the whole process and carry out statistics and analysis, and production status and quality analysis can be viewed in any area.
PCB dimension: 50*50mm(Min) - 400*360mm (Max)
PCB degree of curvature: < 5mm or 3% of the diagonal length of PCB.
PCB component height: above: < 30mm, below: < 50mm
PCB transmission system: Bottom-up fixing, automatic compensation of PCB deformation, automatic getting in and out of board, and automatic adjustment of width.
Positioning accuracy: <16um
Movement speed: 800mm/sec
Image processing speed: 0402chip < 12ms
Camera and lighting system: Full-color high-speed digital CCD camera, with resolution of lens of 10, 15, 18 and 20um, three-channel RGB light source
Driving system: AC servomotor system, precision grinding ball screw
Minimum part test: 0402chip & 0.4 pitch IC
Software system: Windows XP
Calculation method: Color operation, color extraction, gray level operation, image contract, etc.
Output display: 22-inch wide-screen ((16:10, 1680*1050 resolution) monitor
Output signals: OK / NG signal, equipment running state signal, alarm signal
Network communication: Supported
Data transmission tool: Support multiple common formats such as CAD, Excel and Txt
Equipment weight: 560KG
Overall dimension of equipment: 1000*950*1580mm
Air pressure requirement: pipeline compressed air,≥0.49MPa

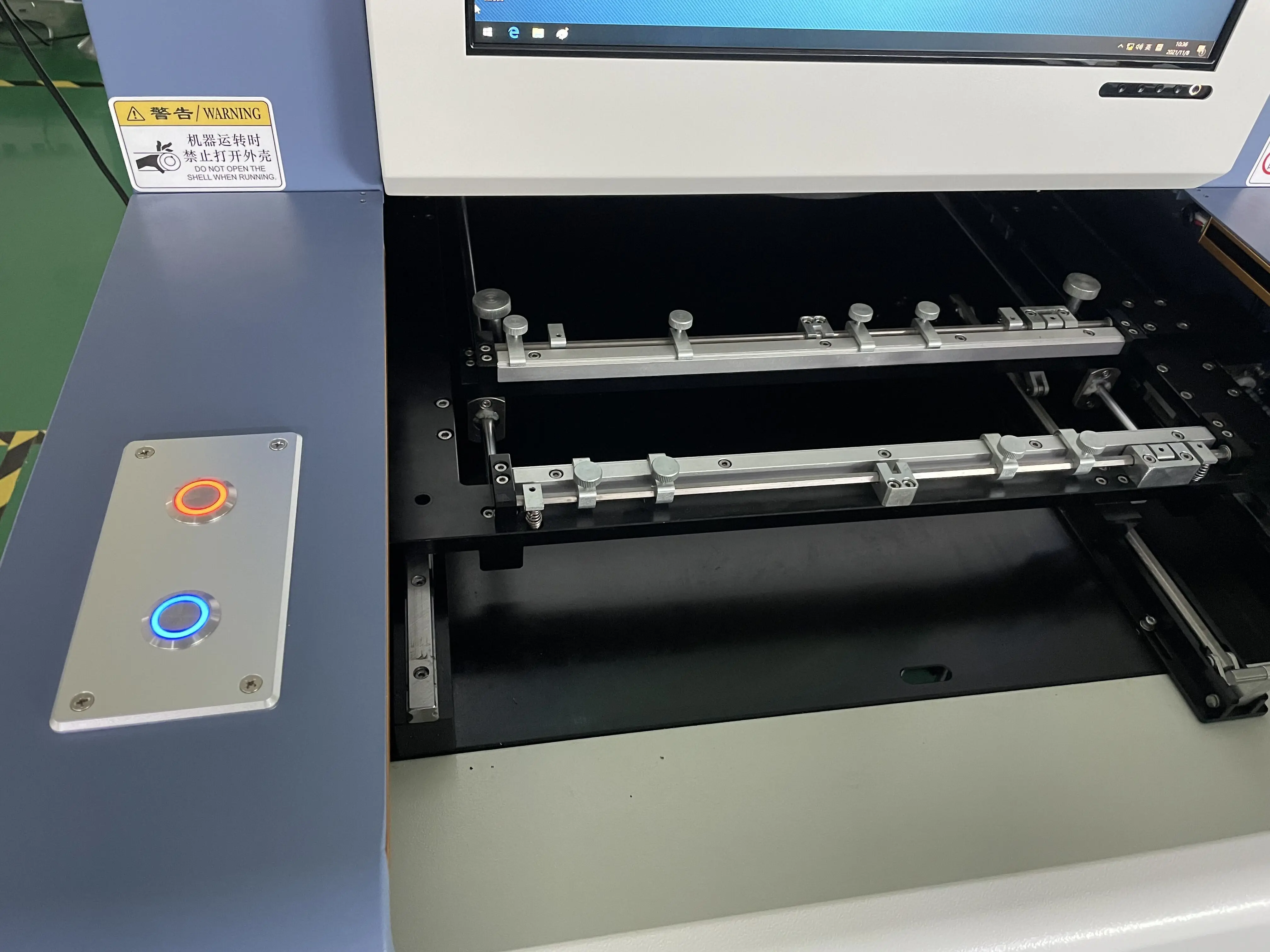

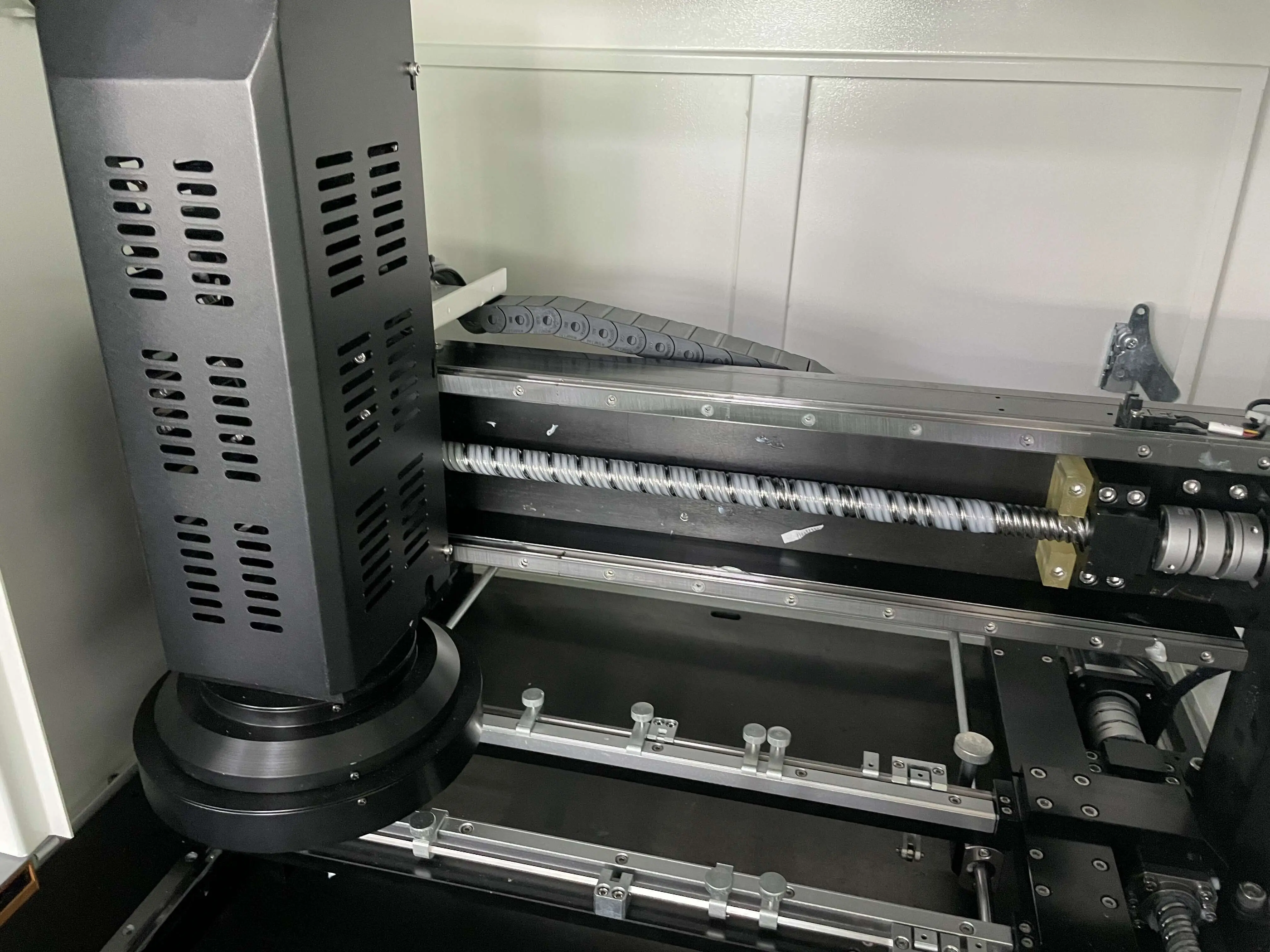

Detailed Pictures
