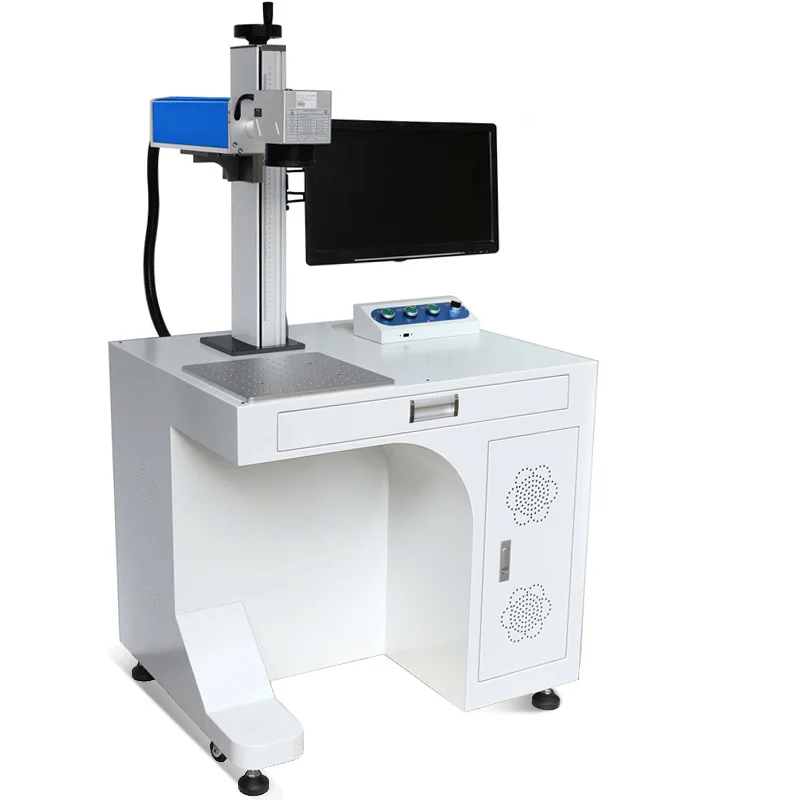

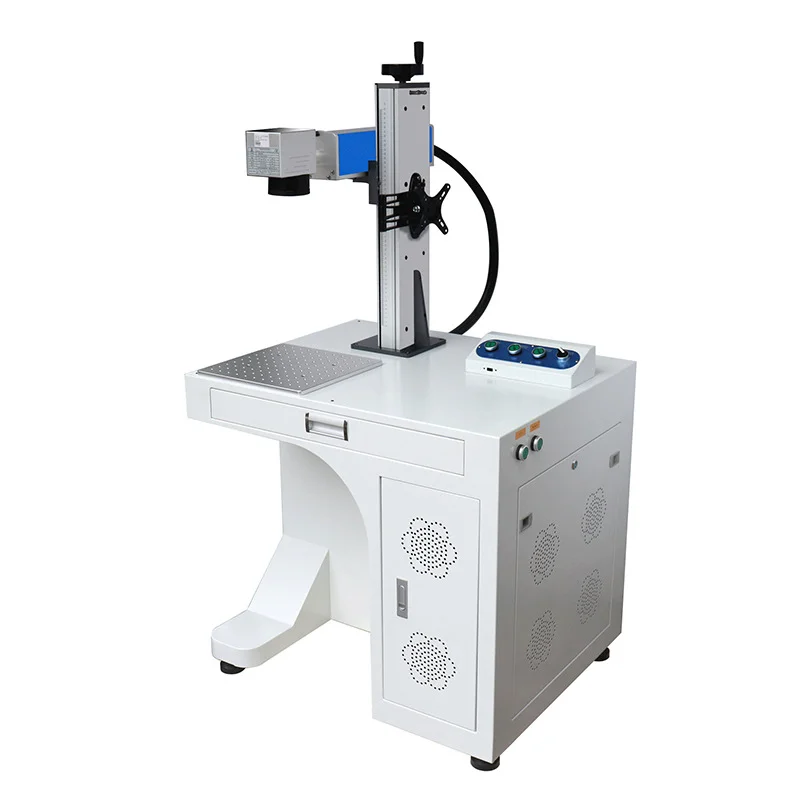

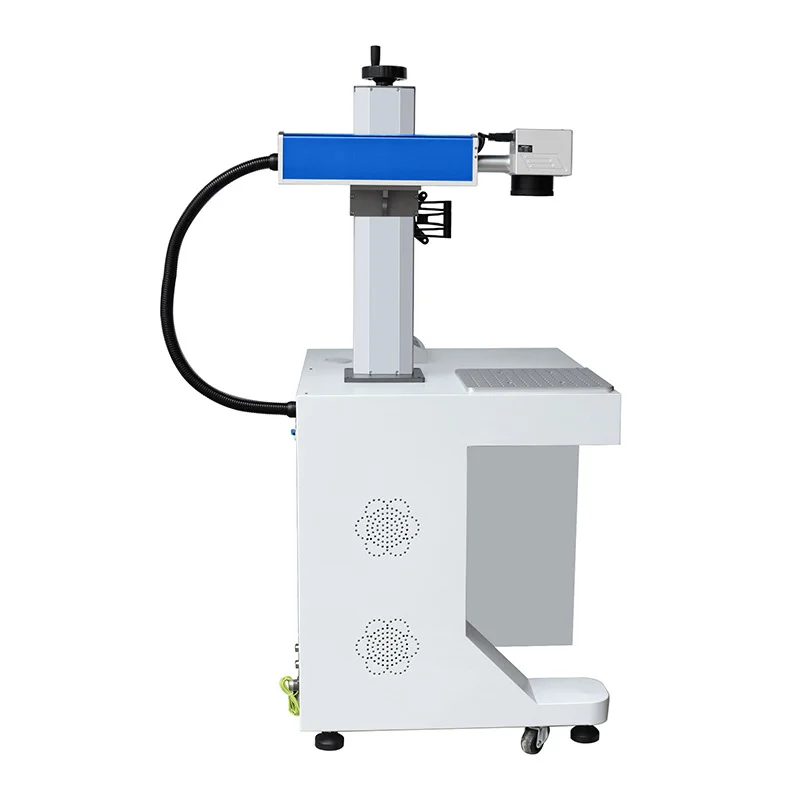

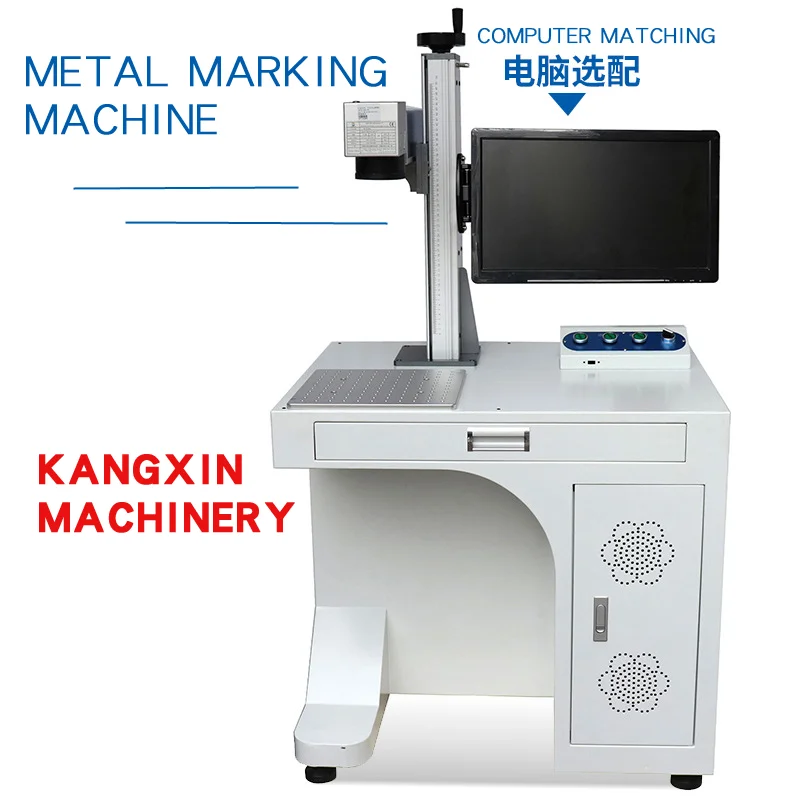

 China production cnc yag 3d mini portable optical fiber laser marking machine for metal 10W 20W 30W cheap price lase

Product Description

1. It adopts an integrated structure and is equipped with an automatic lifting column, which can carry out laser marking and engraving on products of different high and low surfaces.

2. Using 20W/30W/50W brand pulse fiber laser, with fine spot and stable light output, it can meet the needs of the factory for 24-hour continuous production and processing.

3. Low power consumption, the power consumption of the whole machine is about 0.7 kWh per hour, which greatly saves the cost of use.

4. The marking software is powerful, compatible with Coreldraw, AutoCAD, Photoshop, AI and other software; supports PLT, AI, DXF, BMP, JPG, TIF and other formats, and can directly use SHX and TTF fonts; supports automatic encoding and printing serial numbers , Batch number, date, barcode, two-dimensional code, automatic number skipping, etc.

Laser power
20W,30W,50W (optional RAYCUS/MAX LASER DEVICE)
Laser wavelength
1064nm
Laser type
Fiber Laser
Laser beam quality
M2:1.5
Repeat Frequency
20KHz-80KHz
Repeat Positioning Accuracy
0.005mm
Min linear width
0.01mm
Marking Depth
0.01-0.5mm
Standard Marking Area
110×110mm
Optional Marking Area
70×70mm/175×175mm
Rated Power Consumption
less 500W
Operating Voltage
220V/50Hz/15A
Graphic formate supported
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc
Working temperature
5-35 centigrade
Cooling
Air Cooling
