Коммерческая УФ пластиковая недорогая Однопролетная сельскохозяйственная теплица MYXL пластиковая пленка
- Категория: Agricultural Equipment >>>
- Поставщик: Myxl Greenhouse Tech And Dev Co. Ltd.
Сохранить в закладки 1600411142515:
Описание и отзывы
Характеристики
Products Description
Width | 6m-12m,,customized |
Height | 3m-7m,,customized |
Length | 20m-100m,customized |
Frame | Hot-dip galvanized skeleton |
Cover | Plastic Film(PE/PO) |
Material thickness | Thickness is 2mm , or 1.5mm |
Arch | 40x1.5mm, 48X1.5mm |
SnowLoad | 0.4KN/M2 |
Wind Load | 0.5KN/M2 |
Rainfall load | 140mm/h |

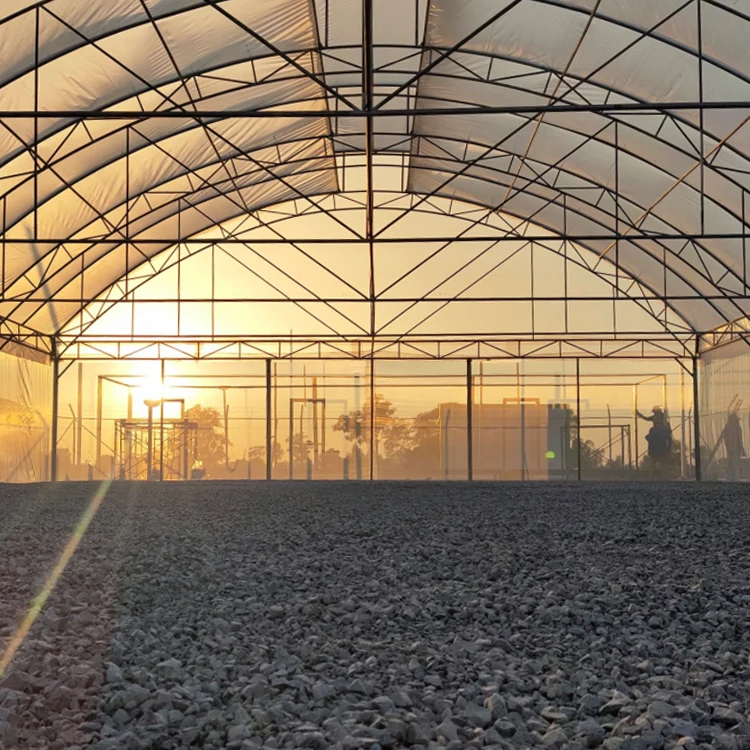

Single span plastic tunnel greenhouse is composed by hot galvanized pipe with three layers film for the covering material. The frame structure is simple, cheap cost and easy to install.
Affordable use of a wide range generally do 6m-12m span, the top covering materials generally use plastic film,surrounded by the membrane is not limited to film,can also be used of PC panel or glass and other covering materials.
Advantage of Single-Span Greenhouses
1. Economical, easy to install, sturdy and durable.
2. Reasonable design and processing, rain and snow will not collapse.
3. Cheap construction cost, low customer investment, big return on small investment.
1. Economical, easy to install, sturdy and durable.
2. Reasonable design and processing, rain and snow will not collapse.
3. Cheap construction cost, low customer investment, big return on small investment.
Feature of film greenhouse
1. Greenhouse structure is made of hot galvanized steel, the diameter of column is optional
2. Greenhouse covering material have poly film. insect net, shade net.etc.
3. Plastic is fasten to greenhouse structure by locking profile with wiggle wire
4. Greenhouse spans can be connected by gutter.
5. It is used for large area
6. Manual or electric side ventilation is optional
6. Manual or electric side ventilation is optional
7. All connection is by spring clip,clamp,screw.etc
Advantage of Greenhouse Film:
1.PE film (anti-UV, anti-drip), three years’ guarantee2.Excellent light transmittance and aging resistance
3.Aesthetic appearance economical and practical
4.Large ventilating area good natural ventilation effect
3.Aesthetic appearance economical and practical
4.Large ventilating area good natural ventilation effect
5.Good insulation performance with great appearance
6.Cost is lower, economical and practical
7.Uniform operation, scientific and efficient
Details Images

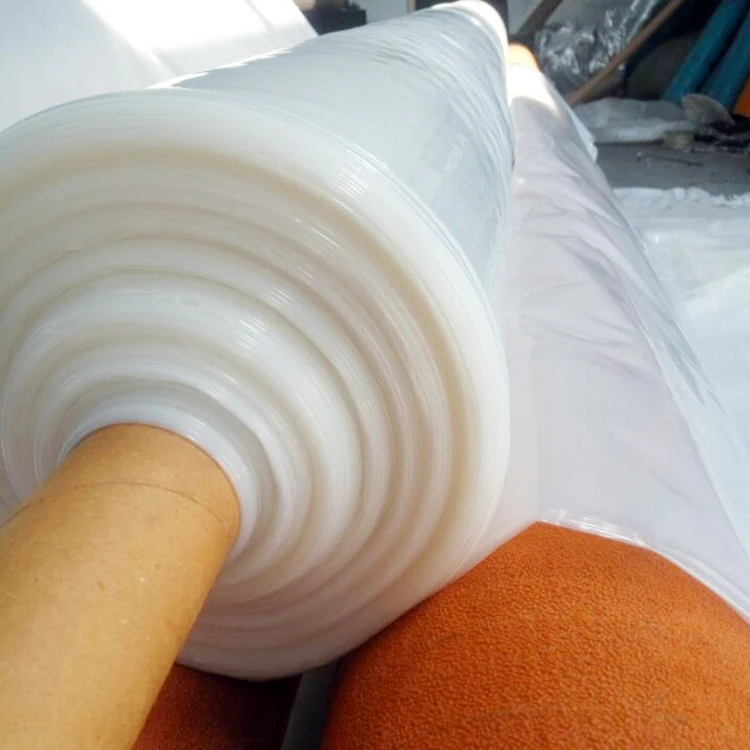

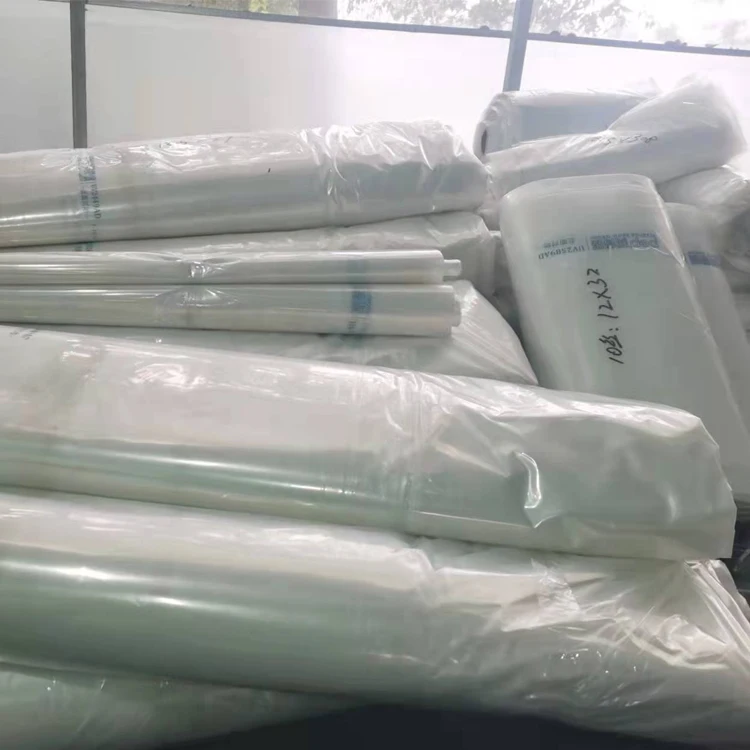

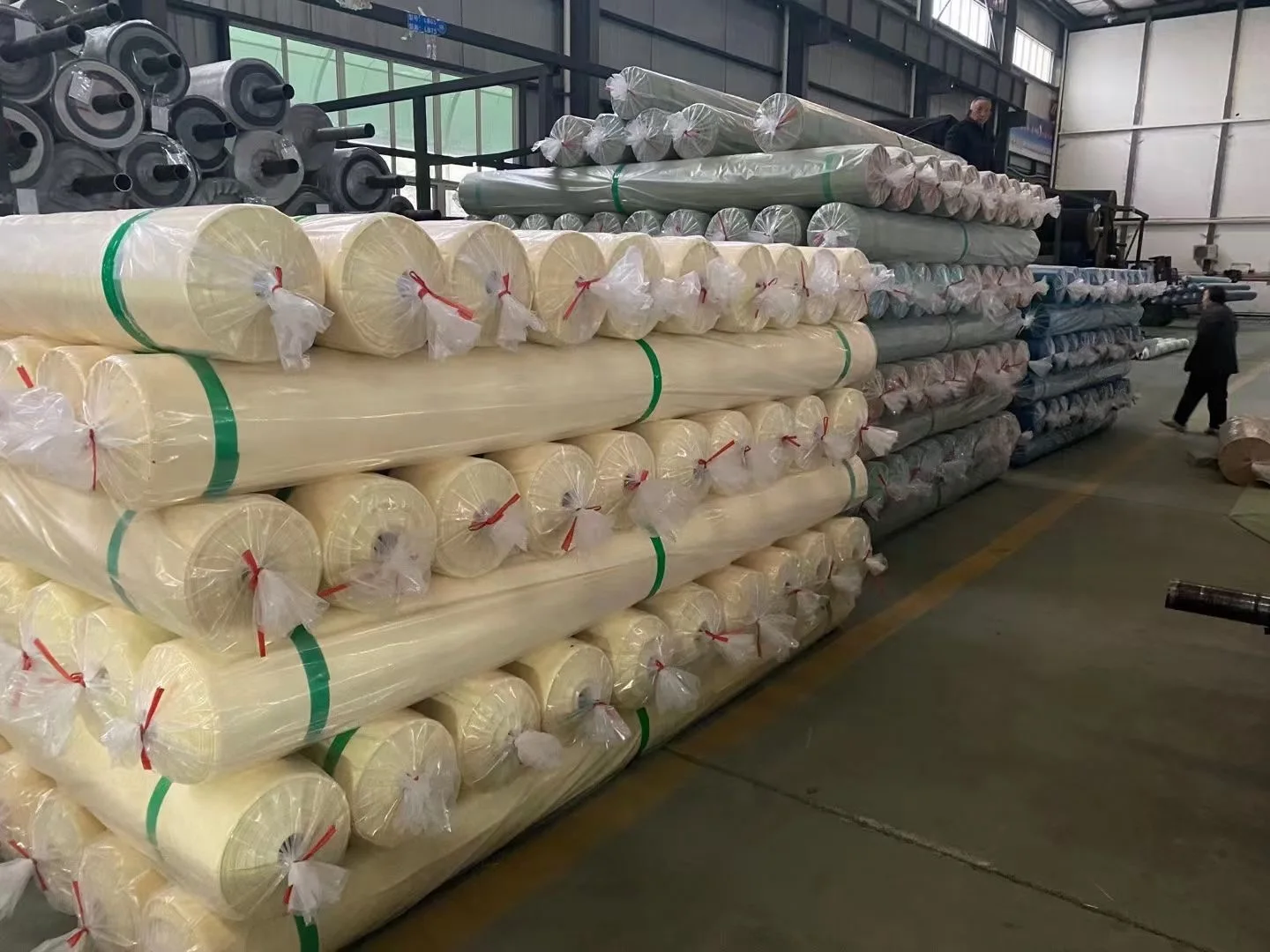

Cover Material
The special plastic film used for the construction of agricultural production facilities is superior to ordinary plastic films in terms of light transmittance, insulation, tensile strength, and aging resistance.
Frame Material
Hot-dip galvanized steel,The greenhouse frame is made of hot-dip galvanized steel pipe, no welding points, not easy tom rust, extend service life.Excellent hot-dip galvanized steel structure and accessories, anti-corrosion
Hot-dip galvanized steel,The greenhouse frame is made of hot-dip galvanized steel pipe, no welding points, not easy tom rust, extend service life.Excellent hot-dip galvanized steel structure and accessories, anti-corrosion
Complentary System
Completed environment-controlled greenhouse is available based on the different regions and its climates, which includes shading,natural ventilation, cooling or heating, fertigation, Irrigation, cultivation, hydroponic and auto-control systems etc.
Shading system
shade net/shading net/sunshade net
color:black,white,green
1. Using high-density HDPE raw materials, anti-ultraviolet, anti-radiation, shading rate up to 95%.
2. The mesh surface is flat, no broken wires, no voids, and encrypted edges.
3. Sunshade and sun protection, wind and wind resistance, heat preservation and moisturizing.
3. Sunshade and sun protection, wind and wind resistance, heat preservation and moisturizing.
Bench and Grow Lights
1.Bench/Seedbed:fixed bench,rotary bench and ebb&flow bench system.High space effiency,convenient for planting and high productive for crops.
2.LED Grow lights:Full-spectrum light output.DLC/ ETL Listed.High efficiency (2.7umol s -1 per watt).High output for high intensity.Ambient temperatures from 0°C（32°F) to 35°C (95°F)
Cooling system
cooling pad and cooling fan
When cooling pad and fan are used simultaneously,fan discharge the heat air which have smell, dust and dirty air to the outside, Fresh cold air through the cooling pad into the greenhouse and replace the hot air, achieve the purpose of the ventilation, cooling, humidification, romove dust, get rid of the stink, and adding lots of oxygen content.
Irrigation System
Sprinkler Irrigation Systems and Drip Irrigation Pipes/Drip Tapes
1.Drip,impulse sprinkler, micro sprinkler and fog spray irrigation system.
2.Water saving and smart.
2.Water saving and smart.
Heating system:
1.Coal-fired heating system, fuel oil heating system, gas heating system, electrical heating system, hot water
heating and etc.2.Energy saving.
1.Coal-fired heating system, fuel oil heating system, gas heating system, electrical heating system, hot water
heating and etc.2.Energy saving.

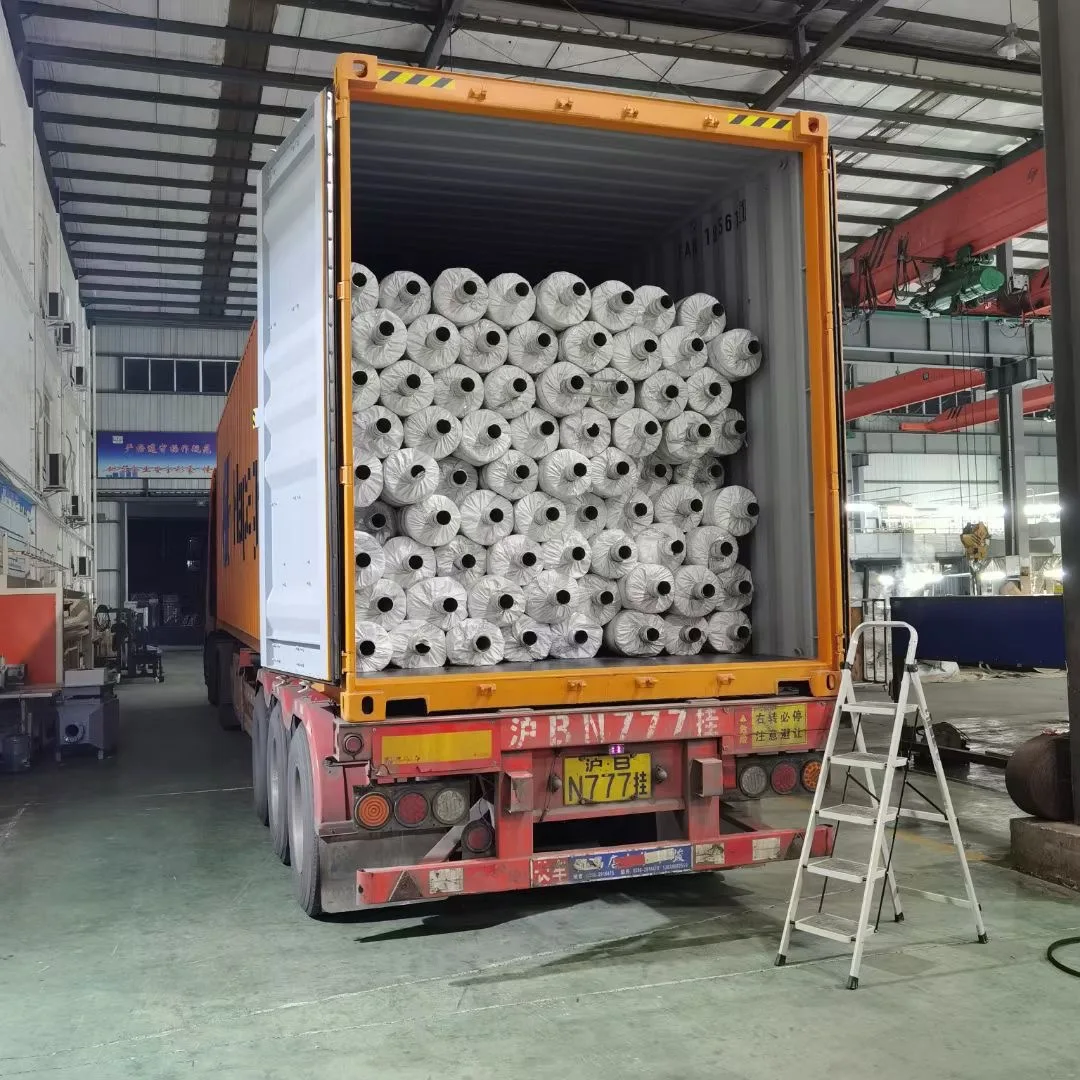

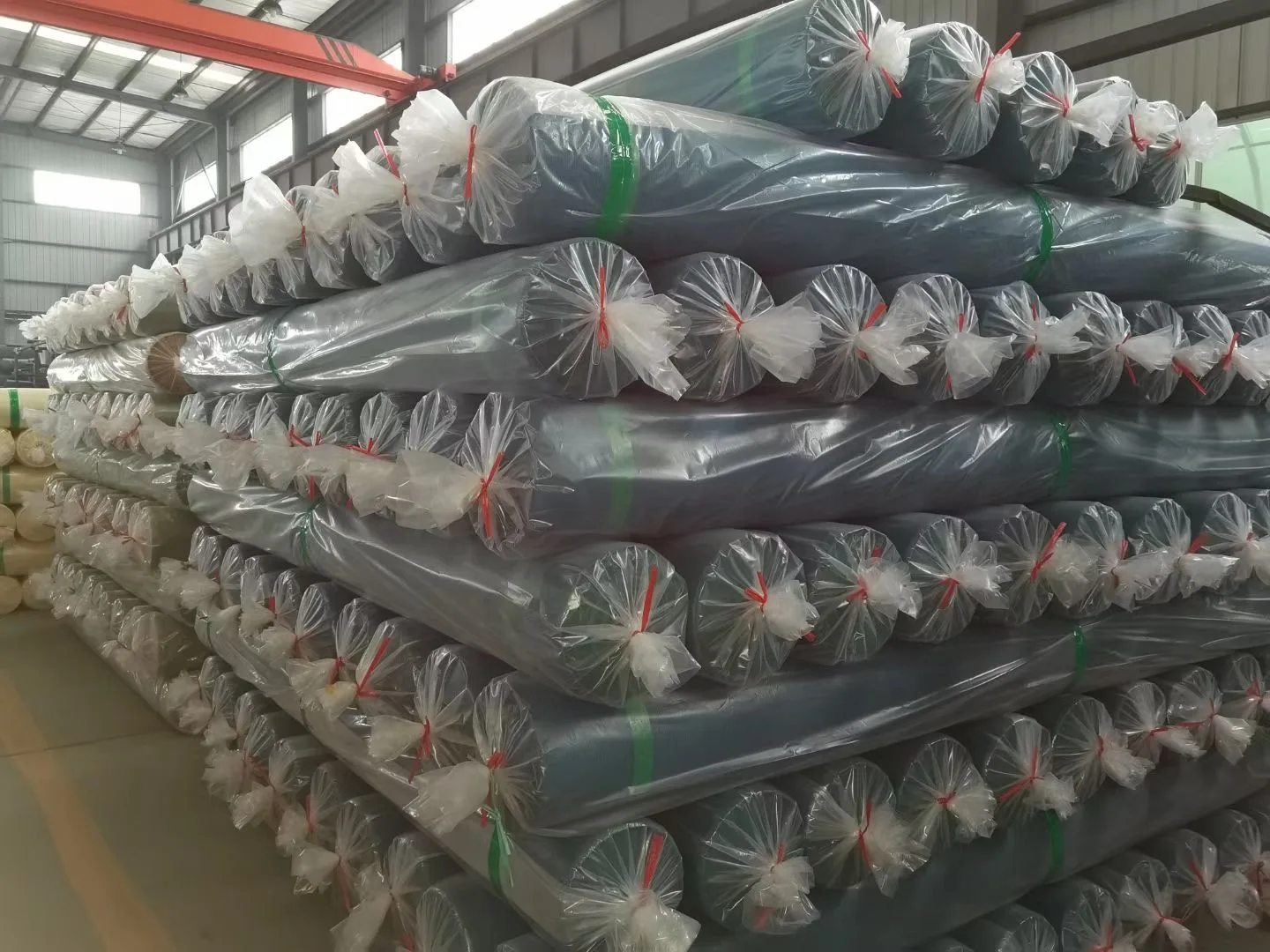

Packaging & Delivery
Step 1: Design greenhouse drawings and plans

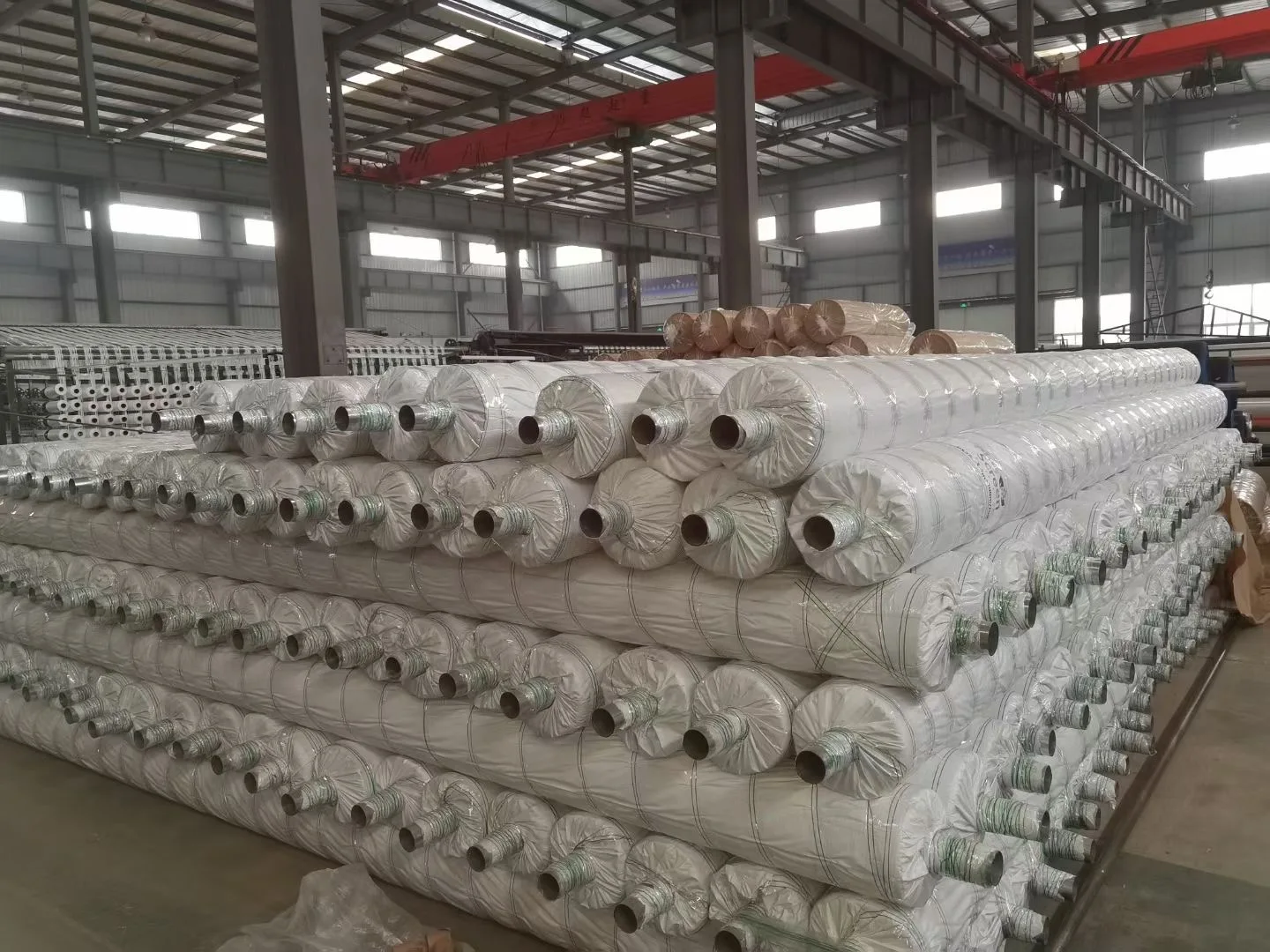

Step 2: Pack the greenhouse covering materials in woven bags
Step 3: Provide an introduction to the greenhouse in English
Step 4: Check the waterproof index for suitable and practical packaging
Step 5: Communicate with logistics to check appropriate details
Step 6: Control the delivery of each line.
According to customer requirements.

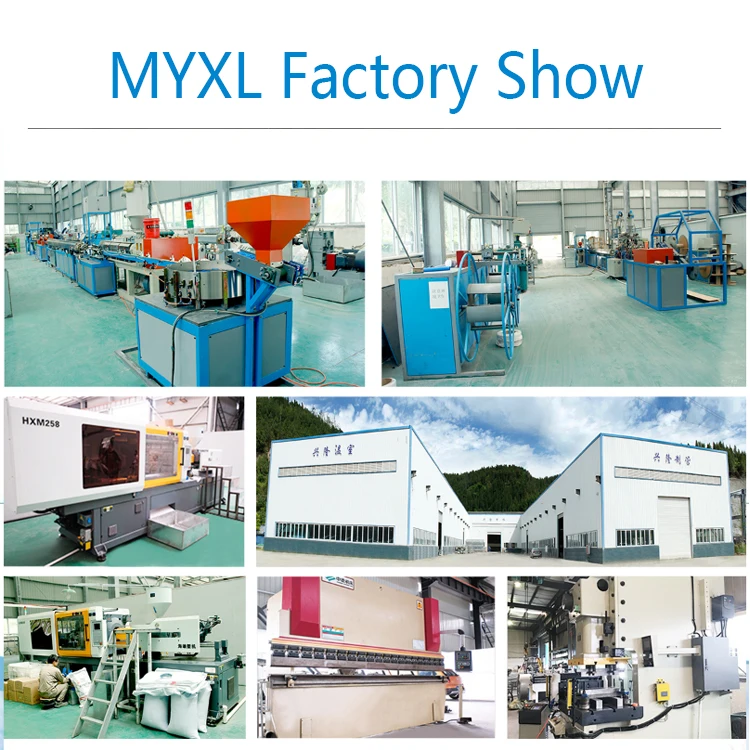

Company Profile
Certifications
FAQ
1.The land area is large. Should we use single sheds or multi-span sheds?
If it is related to the plant and can be used, the multi-span shed is more expensive and saves space, and the single shed is simpler and more economical.
2.How to determine the size of the greenhouse?
2.How to determine the size of the greenhouse?
If there is a fan water curtain, it is best not to exceed 60m
Shading and shading system, need to pay attention to the reasonable allocation of bays
Span width 8, 9, 9.6, 10, 12m
It is highly necessary to consider the climatic conditions and the growth requirements of the planted plants"
3.Should you choose a round arch or a pointed roof?
The round arch is better against wind. The spire is better against snow. Round arch is cheaper
4.How to install the greenhouse?
Can send out drawings to send workers, single shed recommends that customers install by themselves, can produce a detailed installation guide manual
5.How many 300-square-meter greenhouses can be installed in a cabinet?
It can be installed with about 18 seats of 32 arches and about 10 seats of 60
6.Thickness of zinc layer of hot-dip galvanizing/thickness of zinc layer of galvanized zinc
220-275g, 20μ/150g, 15 -18μ
7.How do we guarantee quality?
It is always a pre-production sample before mass production; it is always a final inspection before shipment;
8. What can you buy from us?
Glass greenhouse, hydroponic greenhouse, garden greenhouse, commercial greenhouse, film greenhouse
9.Why choose us?
Greenhouse manufacturer, ex-factory price, good quality, overall solution for greenhouse engineering. Will export to the market with rich experience, professional design, various irrigation products, good after-sales service, installation supervision.
Shading and shading system, need to pay attention to the reasonable allocation of bays
Span width 8, 9, 9.6, 10, 12m
It is highly necessary to consider the climatic conditions and the growth requirements of the planted plants"
3.Should you choose a round arch or a pointed roof?
The round arch is better against wind. The spire is better against snow. Round arch is cheaper
4.How to install the greenhouse?
Can send out drawings to send workers, single shed recommends that customers install by themselves, can produce a detailed installation guide manual
5.How many 300-square-meter greenhouses can be installed in a cabinet?
It can be installed with about 18 seats of 32 arches and about 10 seats of 60
6.Thickness of zinc layer of hot-dip galvanizing/thickness of zinc layer of galvanized zinc
220-275g, 20μ/150g, 15 -18μ
7.How do we guarantee quality?
It is always a pre-production sample before mass production; it is always a final inspection before shipment;
8. What can you buy from us?
Glass greenhouse, hydroponic greenhouse, garden greenhouse, commercial greenhouse, film greenhouse
9.Why choose us?
Greenhouse manufacturer, ex-factory price, good quality, overall solution for greenhouse engineering. Will export to the market with rich experience, professional design, various irrigation products, good after-sales service, installation supervision.
