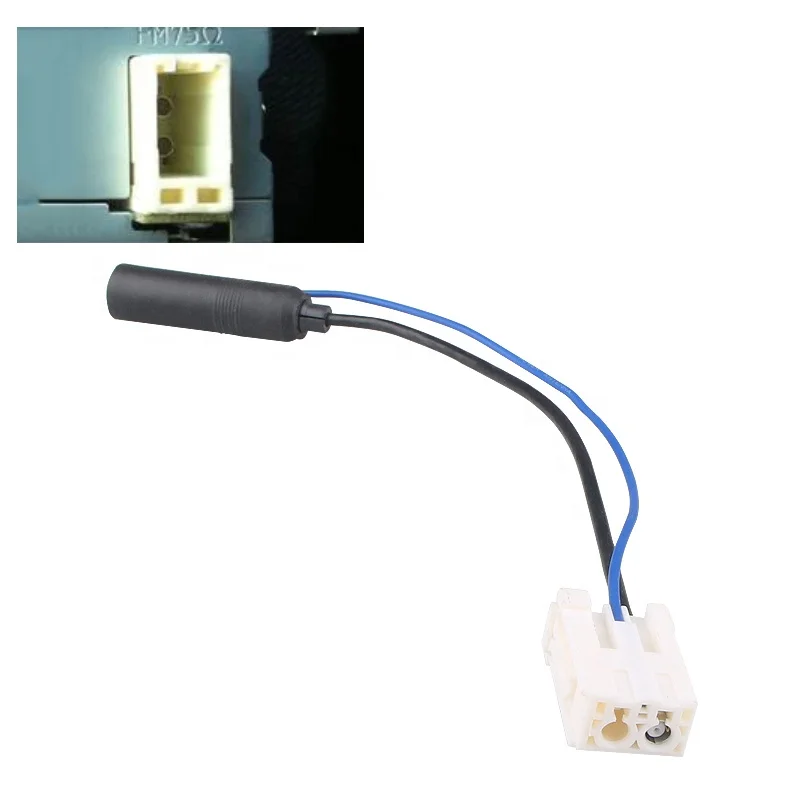

Автомобильный аудио стерео жгут проводов адаптер штекер для Toyota/Scion завод OEM радио CD/DVD ЖГУТ
108,01 ₽ - 152,10 ₽
JCG824 Высокое качество T Тип Автомобильная антенна Gsm
- Категория: >>>
- Поставщик: Zhejiang JC Antenna Co. Ltd.
Сохранить в закладки 1600413584889:
Описание и отзывы
Характеристики

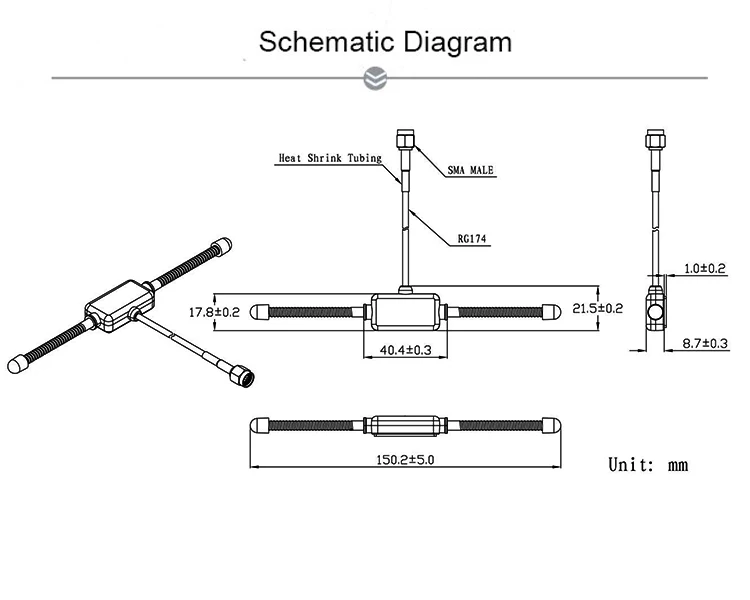

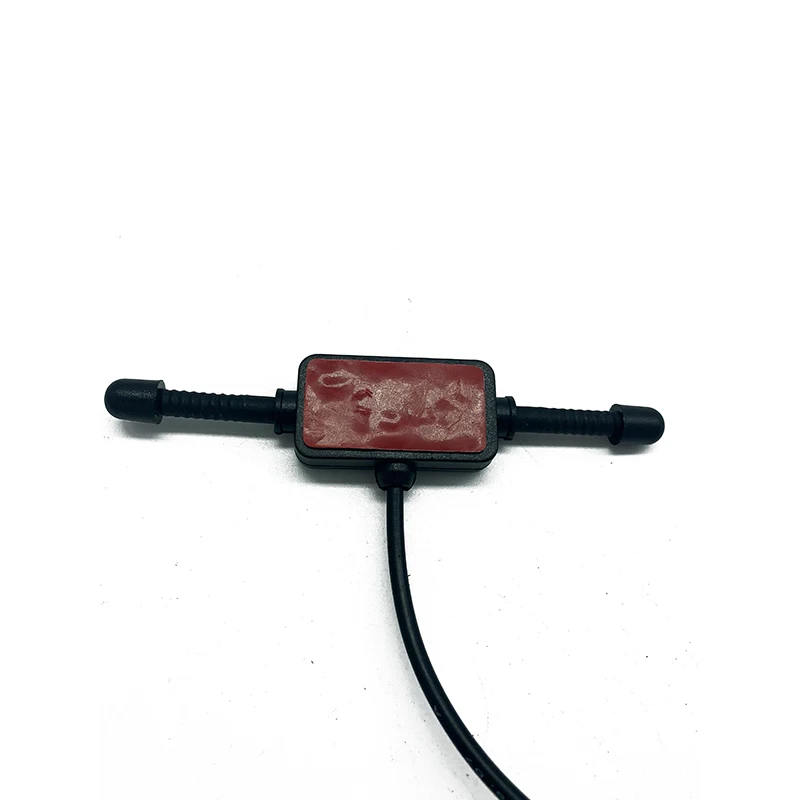

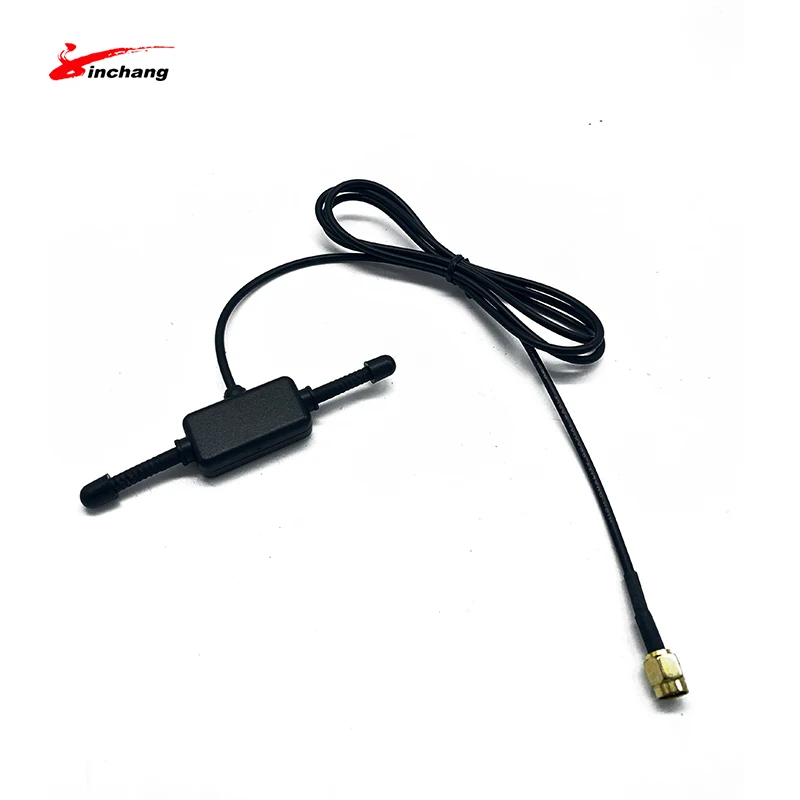

JCG824 High Quality T Type Car Antenna Gsm
Specification
Item | Specifications | ||
Antenna | Frequency Range | 824~960/1710~2170MHz | |
Polarization | Linear | ||
Gain | 3dBi | ||
V.S.W.R | ＜2.0 | ||
Impendance | 50Ω | ||

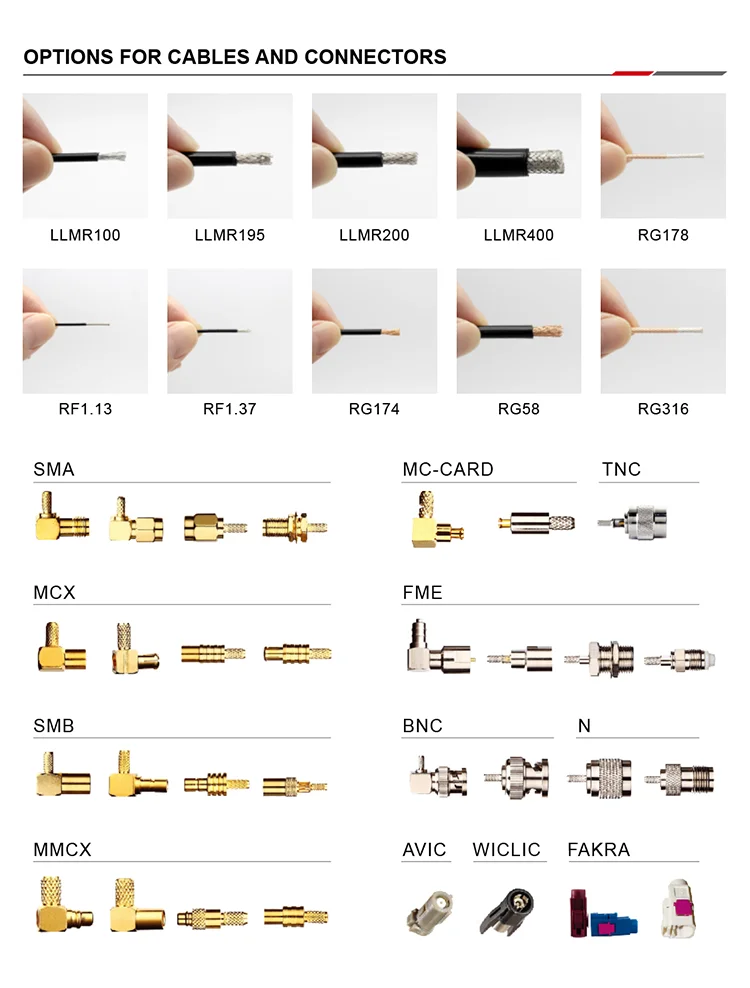

Mechanical | Cable | RG174 | |
Connector | SMA/FAKRA or others | ||
Radome Material | ABS | ||
Mounting Method | Adhesive | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
JC ANTENNA is a high-tech enterprise of national.During the past 20 years,our more than 40 engineers and 400 staffs have helped us develop our current selection and trained us in R&D and manufacture. We have whole sets of antenna test equipment including network analyzers,noise figure meters,spectrum analyzers and 2000 sqm microwave anechoic chamber.We also have full experience in working with national renowned research institutes to develop and assemble antennas for world-renowned large enterprises.
Leading manufacturer
We support free sample supply (freight is at your own expense).
Provide packaging customization services.
100+high-level professional sales/after-sales team personnel.
Provide packaging customization services.
100+high-level professional sales/after-sales team personnel.
Cooperative partners
We have more than 120 global partners, and our products are widely used
in vehicle positioning and navigation, automatic driving, instrument mapping,
UAV flight control, high-precision positioning and other fields.
in vehicle positioning and navigation, automatic driving, instrument mapping,
UAV flight control, high-precision positioning and other fields.
Adequate quality assurance Certificates
We have 65 patents till now.Our antenna serial products acquired new
technology prize of Zhejiang Province,and won National New Production
Creation Fund.We have passed IATF 16949,ISO9001 and ISO14001
certifications while the products passed CE Certification, and comply with
ROHS,RED,REACH directive.
technology prize of Zhejiang Province,and won National New Production
Creation Fund.We have passed IATF 16949,ISO9001 and ISO14001
certifications while the products passed CE Certification, and comply with
ROHS,RED,REACH directive.
Highly recognized by domestic and foreign customers, with a favorable rate of 99%
Quality inspection: standardized 3-round quality inspection process.
Strong production capacity Rich OEM/0DM experience.
Strong production capacity Rich OEM/0DM experience.
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-5 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up
with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-5 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up
with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
