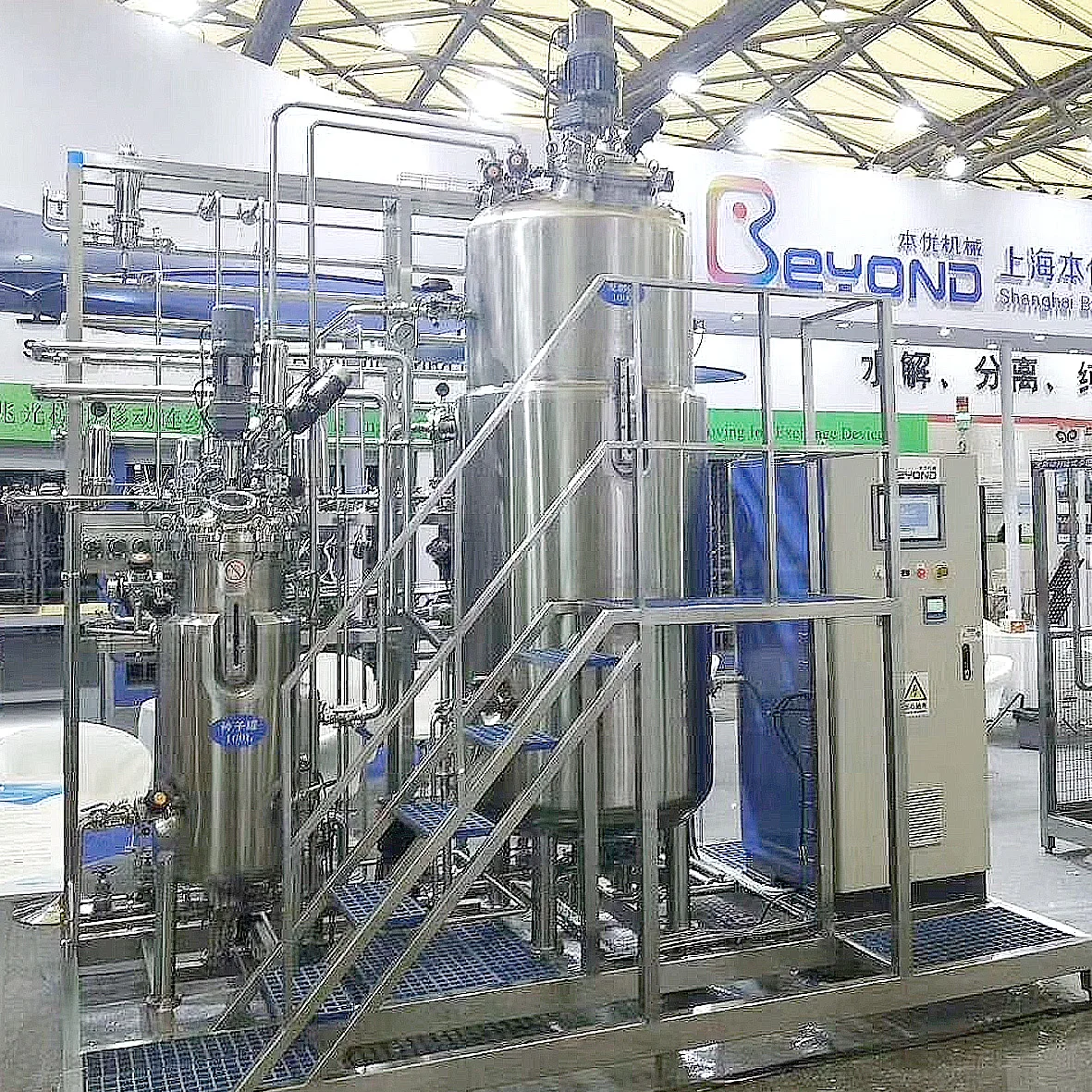

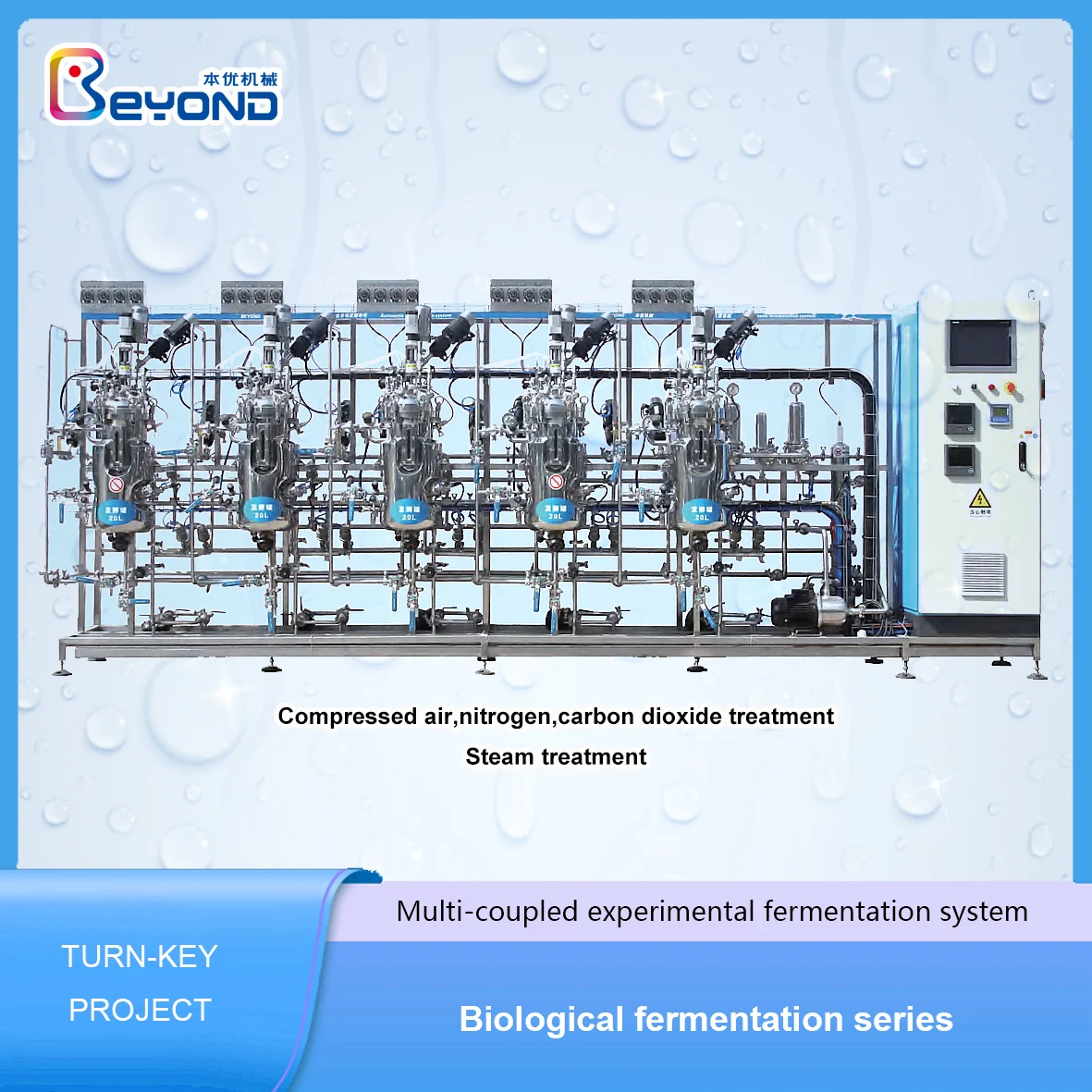

Автоматический промышленный ферментер 15 л 100 с охлаждением стандарт Ce
- Категория: Reactors >>>
- Поставщик: Shanghai Beyond Machinery Co. Ltd.
Сохранить в закладки 1600415228408:
Описание и отзывы
Характеристики
Hot sale automatic control system stainless steel fermenting equipment
Product Description
The fermentation tank uses mechanical stirring to stir the materials to produce axial and radial flow, so that the materials in the tank are well mixed, and the solids in the liquid remain suspended, which is conducive to the full contact between solids and nutrients and facilitate nutrient absorption. On the other hand, the fermentation tank uses the rotor immersed in the fermentation liquid to rotate rapidly, resulting in the outward edge movement of liquid and air under the action of centrifugal force, which will slowly lead to increasing pressure near the rotor, so the rotor of the universal fermentation tank rotor becomes faster.
Material | AISI304/316 |
Processing type | Microbial fermentation;antibiotic fermentation;nucleic acid fermentation,enzyme fermentation,yeast fermentation;starter fermentation |
Reducer motor | RF helical gear,FAF parallel shaft helical gear,SAF turbine helical gear,two stage energy effciency viriable frequency motor |
Control type | Siemens PLC full-automatic touch screen control; |
PH control precision | ＜0.2 |
Temperature control precision | ±0.1 |
Gas treatment
Compressed air,nitrogen,carbon dioxide treatment
1μm gas total filter,0.1μm gas prefilter,0.01μm gas precision filter,three-level aseptic filtraction.The material of filter
membrane is PTFE.
Steam treatment
1μm total filter,0.5μm ultimate filter,two-level filtration,The filter material is titanium rod.

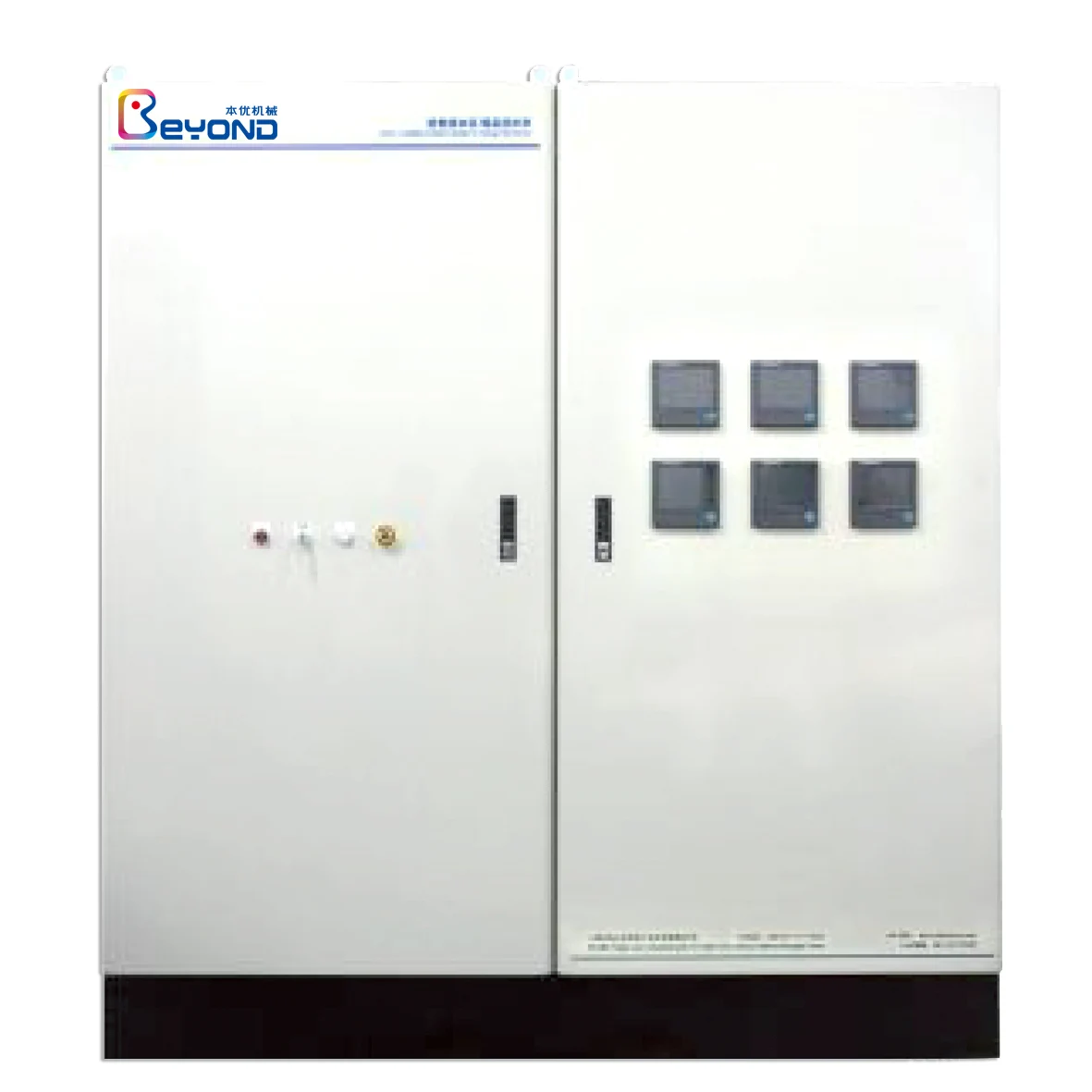

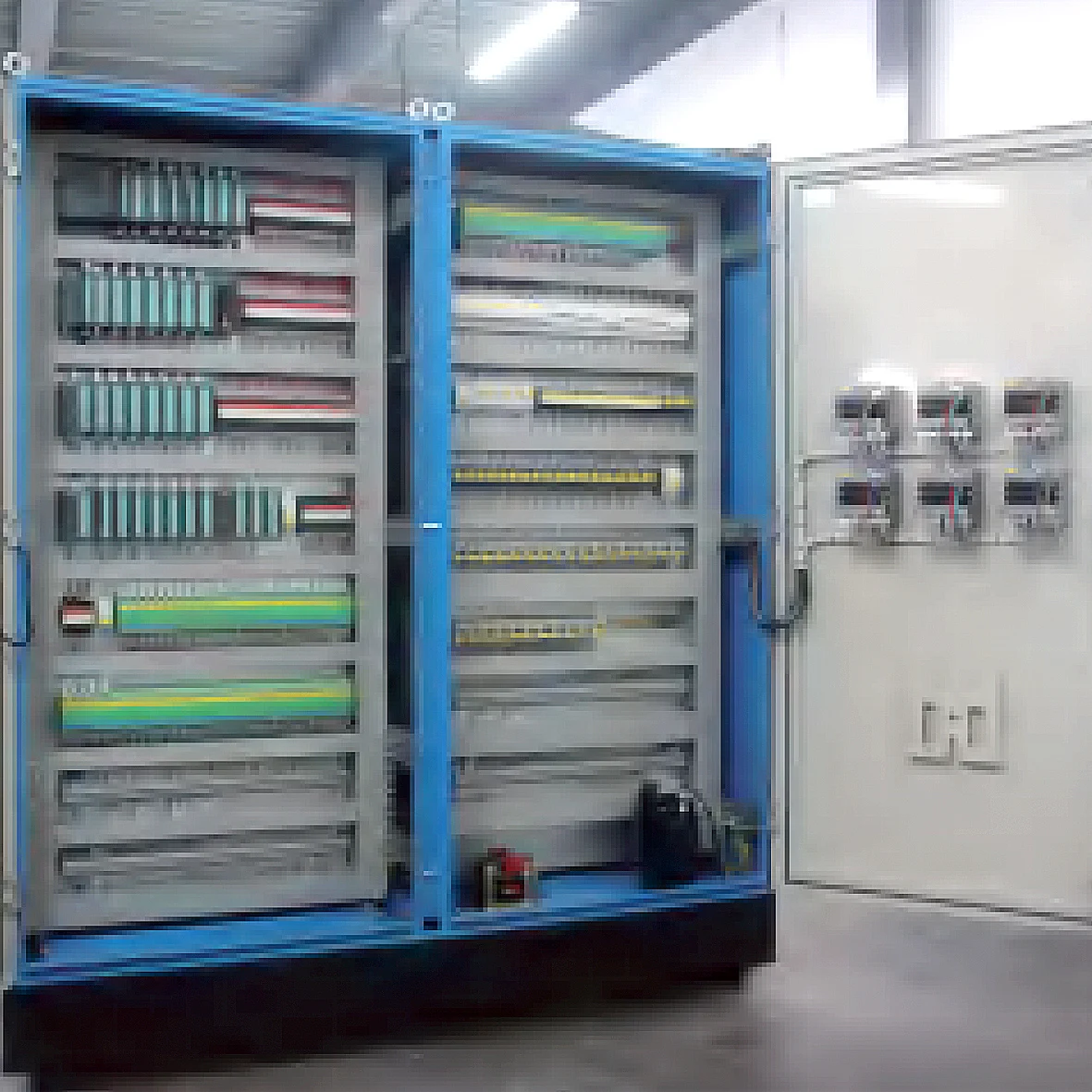

Control system
Temperature control
Temperature control:There are temperature sensors on the tanks,automatic control valve of cooling water and thermostatic water at
the inlet and outlet of the jacket or inner coil pipe.Control temperature,start and stop temperature of cooling water and the
thermostatic water can be set on automatic control touch screen.Under the self-control condition,the control modular can be
switched and adjusted according to the control program.Temperature control precision is ±0.1℃
PH control
There is the PH electrode on the tank.User can set the fermentation PH value,and the PH value of acid and alkai refilling's start
and stop,at the same time,user can set the speed of acid and alkali peristaltic pump.Under the condition of self-control,the
control modular controls acid and alkali peristaltic pump to adjust the PH according to the control program.
Control precision
Control precision is <0.2
Do control
1、There is DO(dissowed oxygen)electrode on the tank;
2、The mixing motor is adopting variable-frequency and with the mixing speed testing;
3、The gas pipe is loaded with automatic control regulating valve and vortex flowmeter;
4、Exhaust gas pipe is loaded with venting regulating valve.
Sequences asjustment
Adjust the frequency(speed)of mixing motor,ventilation flow,venting flow(the pressure of tanks).
User can set the power supply frequency of default mixing motor on automatic control touch screen.The frequency is usually between 35 and 40 Hz.Under the condition of self-control,the control modular can automatically adjust power supply frequency of mixing according to the control program.
Compressed air,nitrogen,carbon dioxide treatment
1μm gas total filter,0.1μm gas prefilter,0.01μm gas precision filter,three-level aseptic filtraction.The material of filter
membrane is PTFE.
Steam treatment
1μm total filter,0.5μm ultimate filter,two-level filtration,The filter material is titanium rod.
Control system
Temperature control
Temperature control:There are temperature sensors on the tanks,automatic control valve of cooling water and thermostatic water at
the inlet and outlet of the jacket or inner coil pipe.Control temperature,start and stop temperature of cooling water and the
thermostatic water can be set on automatic control touch screen.Under the self-control condition,the control modular can be
switched and adjusted according to the control program.Temperature control precision is ±0.1℃
PH control
There is the PH electrode on the tank.User can set the fermentation PH value,and the PH value of acid and alkai refilling's start
and stop,at the same time,user can set the speed of acid and alkali peristaltic pump.Under the condition of self-control,the
control modular controls acid and alkali peristaltic pump to adjust the PH according to the control program.
Control precision
Control precision is <0.2
Do control
1、There is DO(dissowed oxygen)electrode on the tank;
2、The mixing motor is adopting variable-frequency and with the mixing speed testing;
3、The gas pipe is loaded with automatic control regulating valve and vortex flowmeter;
4、Exhaust gas pipe is loaded with venting regulating valve.
Sequences asjustment
Adjust the frequency(speed)of mixing motor,ventilation flow,venting flow(the pressure of tanks).
User can set the power supply frequency of default mixing motor on automatic control touch screen.The frequency is usually between 35 and 40 Hz.Under the condition of self-control,the control modular can automatically adjust power supply frequency of mixing according to the control program.
User can set tje pressure of fermentation tank on the automatic control touch screen.The pressure is usaually between 0.02 and 0.05MPa.Under the condition of self-control,the control modular can automatically adjust regulating valve of ventilation to control exhaust gas flow according to the control program.
Control setting
Three levels permission is set in the system.
Junior-level permission:Operating foreman can only set the parameters of present manufacturing;
Senior-level permission:production technical manager can only set the manufacturing parameters of present batch;
Superior-level permission:chief technical engineer can fully set process parameters.
Review management
All production process parameters are automatically saved and can be read and printed according to the authority.
System protection
Automatic control system uses UPS for uninterrupted power supply.
Control setting
Three levels permission is set in the system.
Junior-level permission:Operating foreman can only set the parameters of present manufacturing;
Senior-level permission:production technical manager can only set the manufacturing parameters of present batch;
Superior-level permission:chief technical engineer can fully set process parameters.
Review management
All production process parameters are automatically saved and can be read and printed according to the authority.
System protection
Automatic control system uses UPS for uninterrupted power supply.
Direction for use
From the perspective of the biological reaction process, the reactor used in the fermentation process is called a fermentor; the reactor used in the enzyme reaction process is called an enzyme reactor. Plant cell culture device.
Description of application effect
Fermentation tanks can be distinguished according to their use objects, including: anaerobic fermentation tank, aerobic
fermentation tank, sewage biological treatment device, etc. Among them, the anaerobic fermentation tank is the simplest, it does not need to introduce air during production, only a vertical or horizontal cylindrical container, and the tank can be stirred by the carbon dioxide generated during fermentation.
fermentation tank, sewage biological treatment device, etc. Among them, the anaerobic fermentation tank is the simplest, it does not need to introduce air during production, only a vertical or horizontal cylindrical container, and the tank can be stirred by the carbon dioxide generated during fermentation.

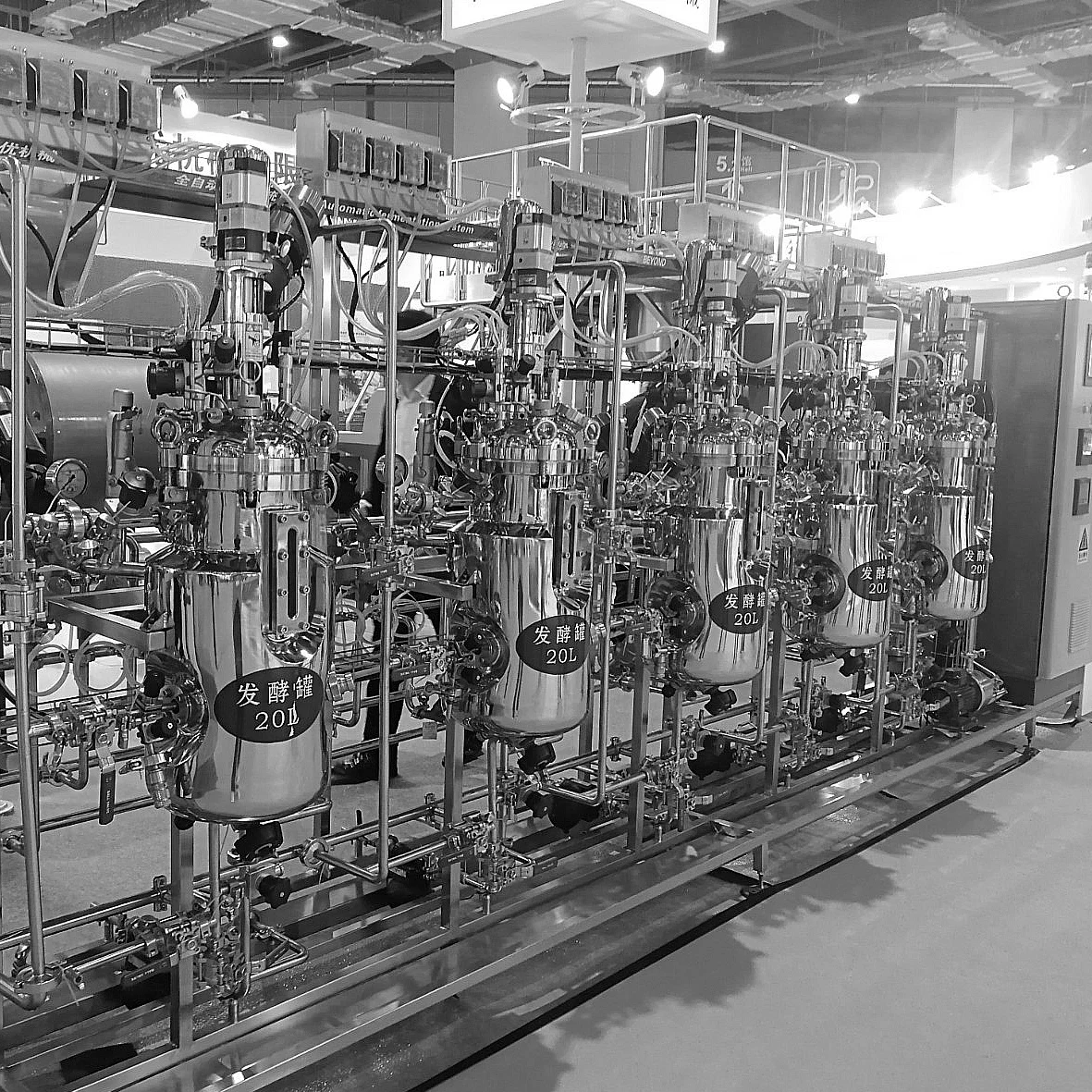

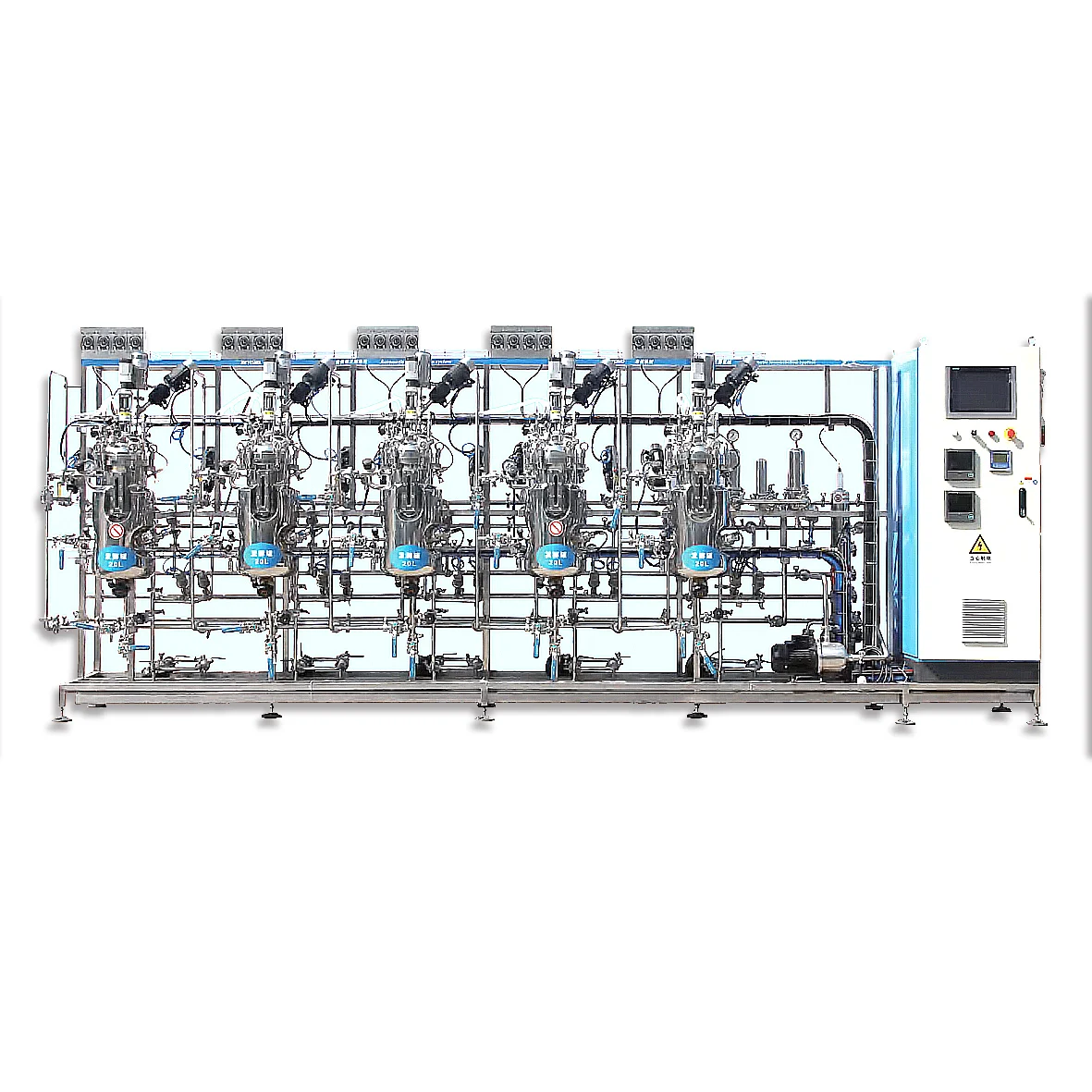

Detailed Images
Fermentation tanks are distinguished by operating modes, which are divided into batch operation and continuous operation. The former generally uses a kettle reactor, and the latter can use a continuous stirred reactor or a tube and tower reactor. Aerobic fermentation tanks are based on energy input methods: fermentation tanks with mechanical agitators and air distributors,circulation pump fermentation tanks, and bubble tower fermentation tanks.
After Sales Service
After Sales Services
1.Installation and commission on site;
2.Online technical video support;
3.Spare parts;
4.Maintenance services
2.Online technical video support;
3.Spare parts;
4.Maintenance services
Package and Delivery
Company Profile
Shanghai Beyond Machinery Co., Ltd. is a professional technology developing enterprise which mainly engaged in healthy equipment fields. Combined with R& D, procedure design service, turnkey base project,equipment manufacturing, installation, commissioning and training, our company is specialized in turnkey projects services widely applicable to food industry such as fruit and vegetable juice, dairy product and beverage, meat and bone, egg product etc, and others include pharmaceuticals and fine chemicals as well. Beyond acted as pioneer to introduce and absorb advanced international technology and procedures, continuously innovate and positively promote deep communication and cooperation inside industry, which high effectively push industry develop healthily and orderly.
Beyond’s company culture of Honesty, practicality, innovation,happiness gathered many excellent professional technical talents who is rich of practical experience. The predominant team with tactical management and advanced innovation achieve perfect product quality for BEYOND. Shanghai Beyond Machinery Co.,Ltd. warmly welcome our new and old customers come to visit our company and have business talks.
Beyond’s company culture of Honesty, practicality, innovation,happiness gathered many excellent professional technical talents who is rich of practical experience. The predominant team with tactical management and advanced innovation achieve perfect product quality for BEYOND. Shanghai Beyond Machinery Co.,Ltd. warmly welcome our new and old customers come to visit our company and have business talks.
Exhibition
Certifications
FAQ
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.
7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
