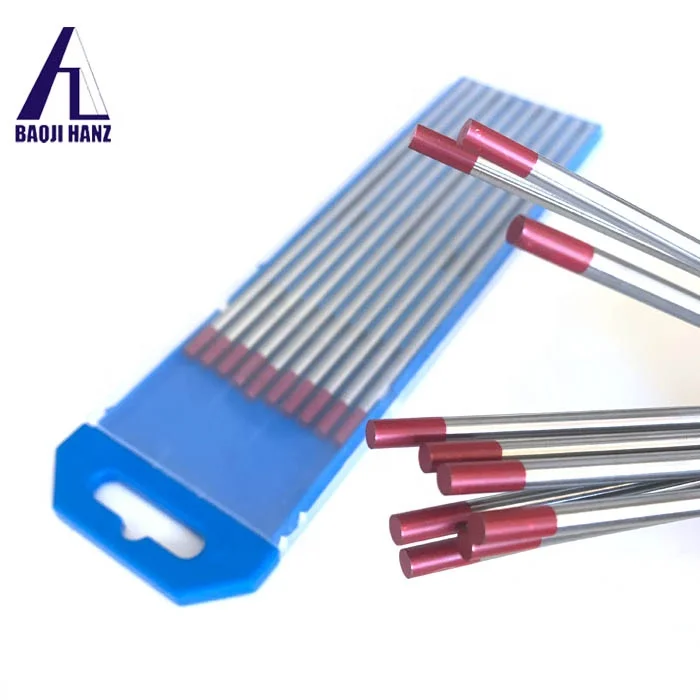

Аргоновая Сварка Вольфрамовая игла tig сварочный стержень wt20 вольфрамовые электроды
- Категория: >>>
- Поставщик: Baoji Hanz Metal Material Co. Ltd.
Сохранить в закладки 1600417204243:
Описание и отзывы
Характеристики

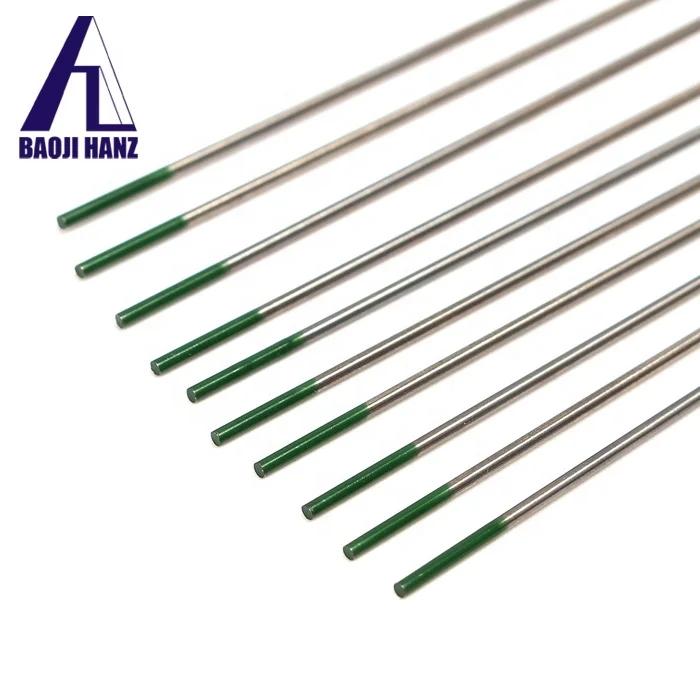

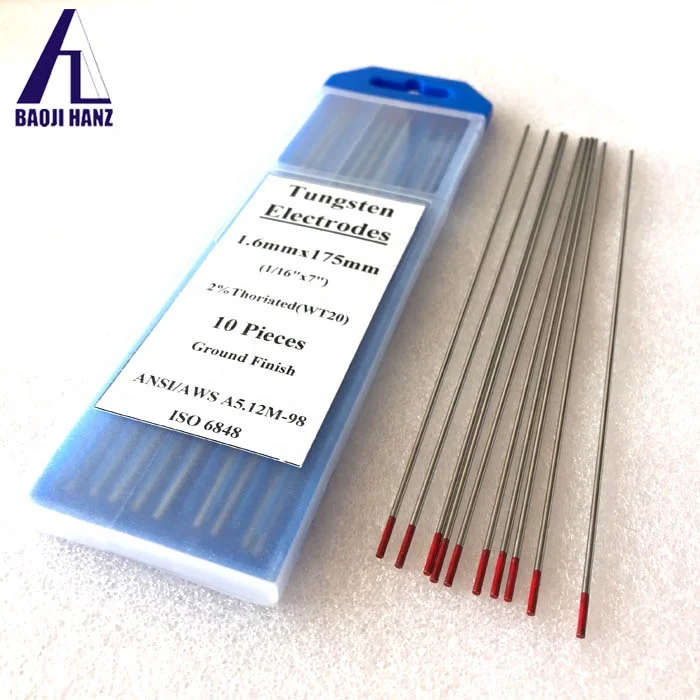

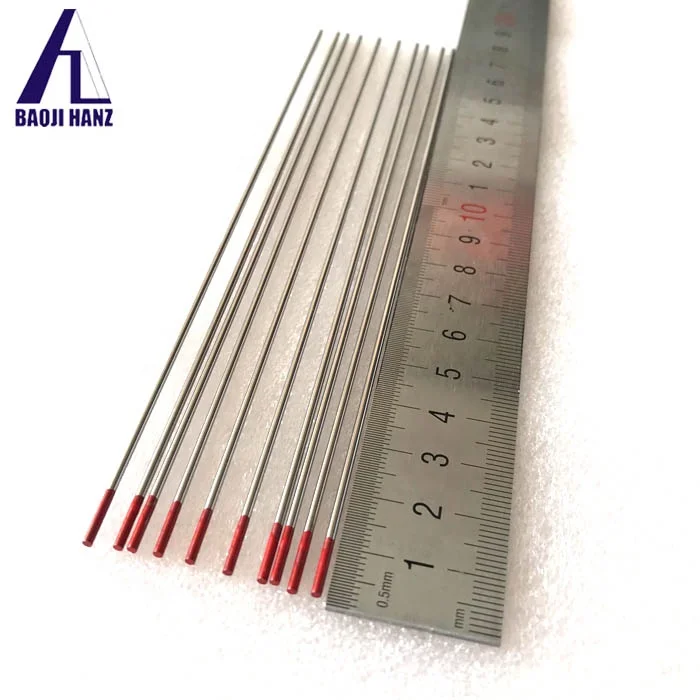

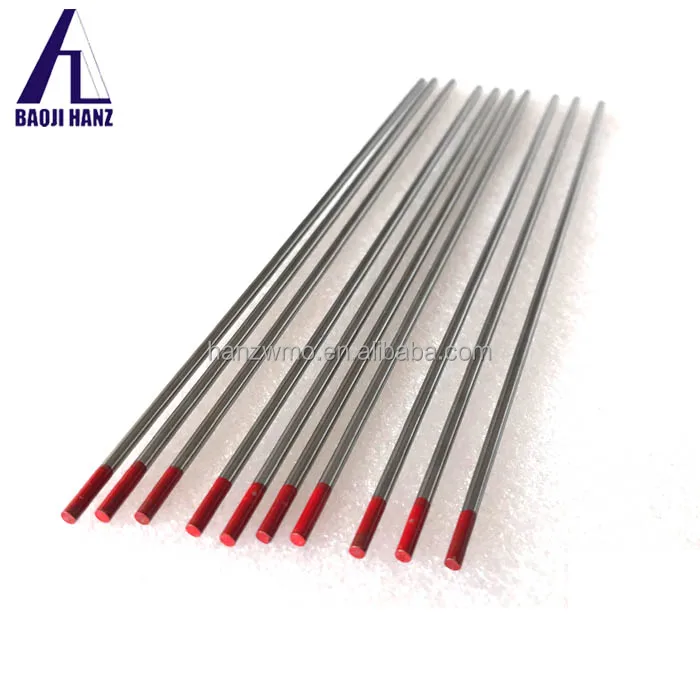

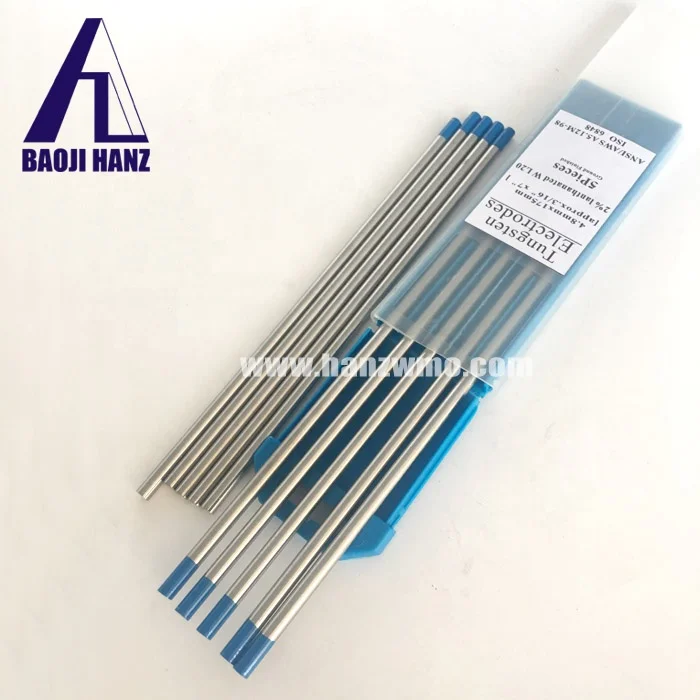

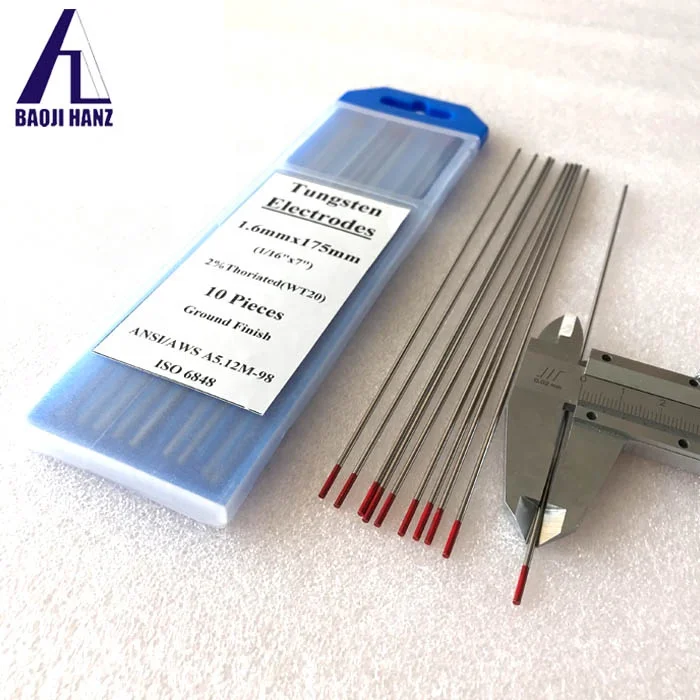

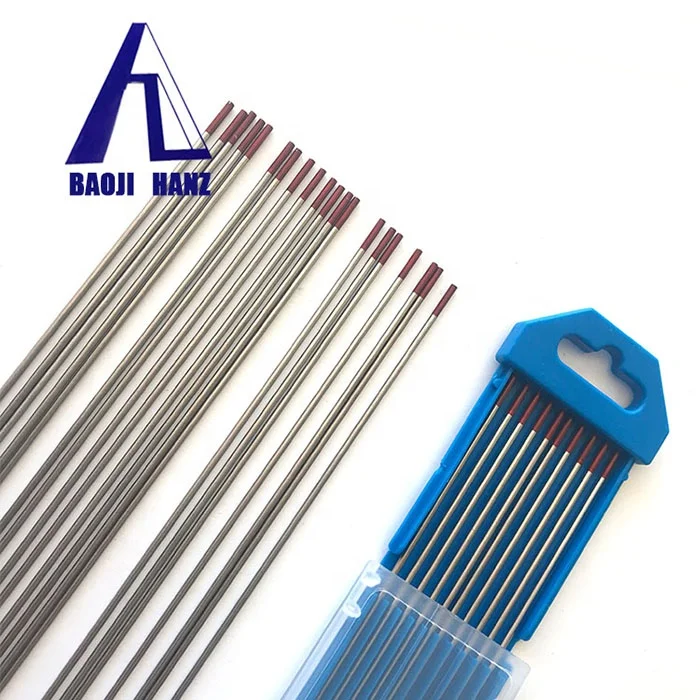

Product Show
Specification
Name | Argon welding wolfram needle tig welding rod wt20 tungsten electrodes |
Material | Pure tungsten , tungsten alloy powder |
Diameter | 1.0mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4..0mm, 6.3mm |
Length | 150mm, 175mm , or as request |
Process condition | Drawing |
Operating current | 80--500A |
Welding current | 50--240A |
Operating Temperature | Standard temperature |
Usage | TIG welding |
Package | 10pcs in a box |

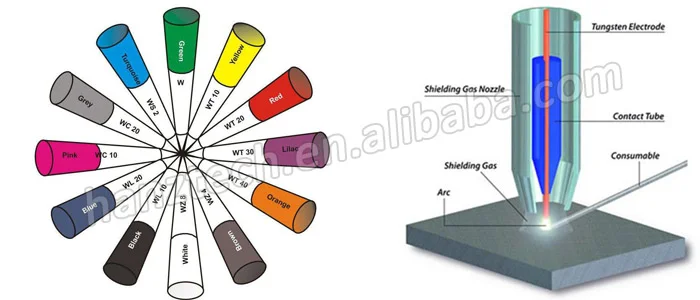

Type | Compositions | Color | ||||||
added oxide% | substances | substances% | tungsten% | |||||
W | <0.20 | 99.8 | green | |||||
WT4 | 0.35--0.55 | THO2 | <0.20 | remaining | blue | |||
WT10 | 0.8--1.20 | THO2 | <0.20 | remaining | yellow | |||
WT20 | 1.70--2.20 | THO2 | <0.20 | remaining | red | |||
WT30 | 2.80--3.20 | THO2 | <0.20 | remaining | violet | |||
WT40 | 3.80--4.20 | THO2 | <0.20 | remaining | orange | |||
WZ3 | 0.15--0.50 | ZrO2 | <0.20 | remaining | brown | |||
WZ8 | 0.70--0.90 | ZrO2 | <0.20 | remaining | white | |||
WL10 | 0.90--1.20 | LaO2 | <0.20 | remaining | black | |||
WC20 | 1.80--2.20 | CeO2 | <0.20 | remaining | grey | |||
Diameter/mm | Package | DC(A) | AC(A) | ||
Positive Electrode | Negative Electrode | ||||
1.6 | 10pcs/set | 60--150 | 10--20 | 60--125 | |
2.0 | 10pcs/set | 100--200 | 15--25 | 85--160 | |
2.4 | 10pcs/set | 150--230 | 16--28 | 105--195 | |
3.0 | 10pcs/set | 200--310 | 18--32 | 130--220 | |
3.2 | 10pcs/set | 225--330 | 20--35 | 150--250 | |
4.0 | 10pcs/set | / | / | / | |
Features
Argon welding wolfram needle tig welding rod wt20 tungsten electrodes1. Great arc starting capacity with good arc stability
2. Low electrode burning loss,
3. Long service life
4. Free of slag and splashing and high welding quality
2. Low electrode burning loss,
3. Long service life
4. Free of slag and splashing and high welding quality
5. Can be operated easily,
6. high current load and produces arc easily and steadily
1. It used when arc welding with the Tungsten Inert gas (TIG) process or when plasma welding.
2. In both processes the electrode, arc and weld pool are protected from atmospheric contamination by an inert gas.
3. It widely used because it can withstand very high temperatures with minimal melting or erosion.
2. In both processes the electrode, arc and weld pool are protected from atmospheric contamination by an inert gas.
3. It widely used because it can withstand very high temperatures with minimal melting or erosion.
Painting automatilly
Detection
Each electrode has been detected by automatic flaw of detection equipment
Professional product welding performance testing lab: each batch of materials need to be tested in the lab before production
Packing & Delivery

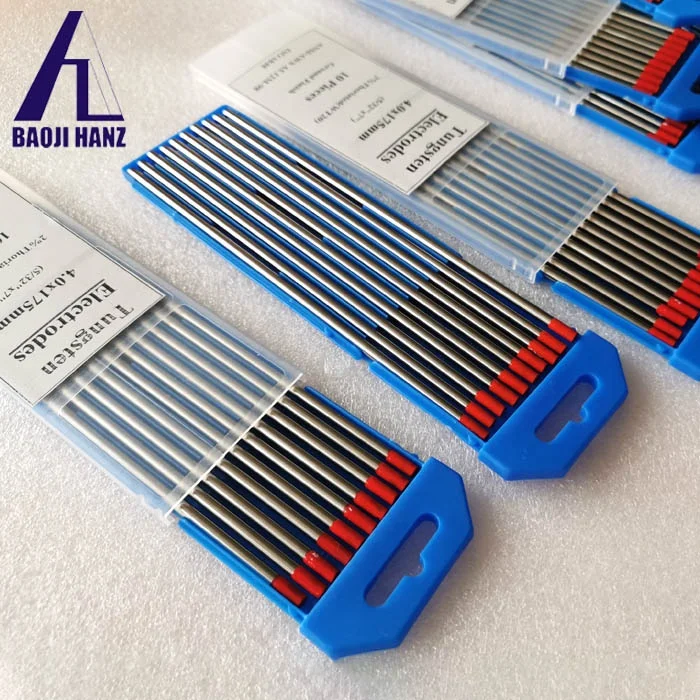

Packing Argon welding wolfram needle tig welding rod wt20 tungsten electrodes
1. 10pcs in plastic case, one carton box with 1000pcs inside
2. Protective bubble inside
4. Put into standard wooden case
5. Send pictures at once packing well
6.According to customer's requirement
Shipping Argon welding wolfram needle tig welding rod wt20 tungsten electrodes
Various shipping way to choose:
1. Air transportation
2. Sea transportation
3. Express: TNT, UPS, FedEX, SF-Express, etc.
4. Tracking number would be sent to customers in time and we will also keep checking the information until customers received goods.
Company Profile
FAQ
Q: Do you offer the free sample?
A: Yes, our company can offer free sample but we hope our customer pay the freight. When you put us the batch order,we will return the sample freight to you.
Q: What is the MOQ of your product?
A: Our MOQ is 100pcs. But we can sell as per your quantity, if they are in ready stock. All details we can discuss in advance.
Q: What is your Payment Terms?
A: Our company payment terms is by T/T, Paypal, Western Union. All will be talked with you before your order.
Q: What information should I let you know if i want to get a quotation?
A: The required material dimension (diameter*length).
The required more information, such as Surface Condition, Tolerance Request, The Quantity, and other mechanical and technical details. If it is possible, please also provide the application of products, we will recommend the most suitable products with details for confirmation.
Q: What is the shipping cost?
A: The shipping cost is determined by the destination port, weight, packing size, total CBM of the products, we will try best to get the most reasonable shipping cost from the forwarders or express couriers to help you save more money.
Q: What is the transportation way?
A:If the Gross Weight ≤45kg, it's better by express such as TNT, DHL, FedEx,, etc.
If the Gross Weight between 45kg to 100kg, by express or by air to your nearest airport can be both considered.
If the Gross Weight ≥ 100kg ,you can choose by Air or Sea to the nearest port.
A: Yes, our company can offer free sample but we hope our customer pay the freight. When you put us the batch order,we will return the sample freight to you.
Q: What is the MOQ of your product?
A: Our MOQ is 100pcs. But we can sell as per your quantity, if they are in ready stock. All details we can discuss in advance.
Q: What is your Payment Terms?
A: Our company payment terms is by T/T, Paypal, Western Union. All will be talked with you before your order.
Q: What information should I let you know if i want to get a quotation?
A: The required material dimension (diameter*length).
The required more information, such as Surface Condition, Tolerance Request, The Quantity, and other mechanical and technical details. If it is possible, please also provide the application of products, we will recommend the most suitable products with details for confirmation.
Q: What is the shipping cost?
A: The shipping cost is determined by the destination port, weight, packing size, total CBM of the products, we will try best to get the most reasonable shipping cost from the forwarders or express couriers to help you save more money.
Q: What is the transportation way?
A:If the Gross Weight ≤45kg, it's better by express such as TNT, DHL, FedEx,, etc.
If the Gross Weight between 45kg to 100kg, by express or by air to your nearest airport can be both considered.
If the Gross Weight ≥ 100kg ,you can choose by Air or Sea to the nearest port.

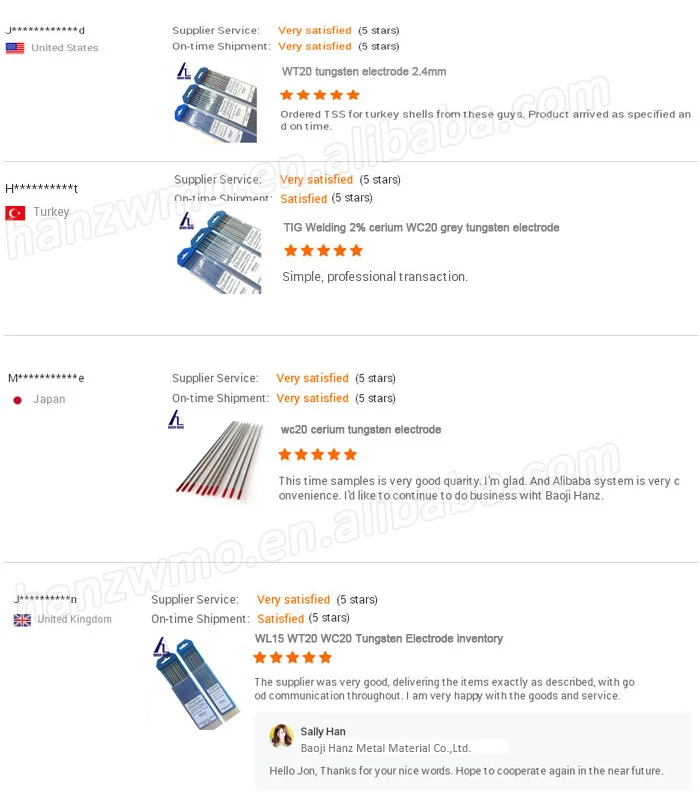

Customer Feedback
Related Products
Contact us
Baoji Hanz Metal Material Co., Ltd
Gaoxin Avenue,Baoji City,Shaanxi Province,China
Website:www.hanzwmo.com
Tel: 86-917-3258886
Fax: 86-917-3258889
WhatsApp/Wechat:+86-18329678518
Email/Skype:baojihanz-06(@)hanztech.cn
