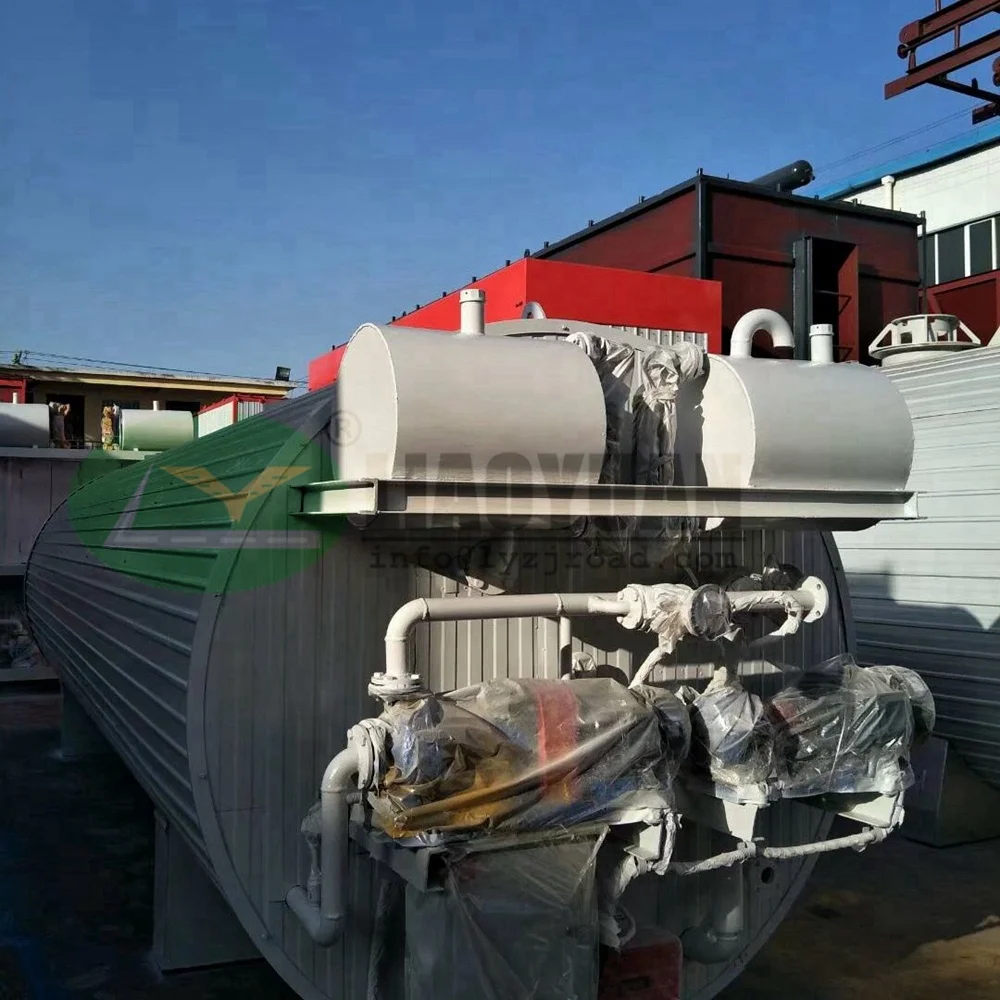

Liaoyuan запчасти для смешанного асфальта битумный резервуар распродажа
- Категория: >>>
- Поставщик: Nanyang Liaoyuan Road Construction Machinery Co. Ltd.
Сохранить в закладки 1600417366166:
Описание и отзывы
Характеристики
Liaoyuan asphalt mixing plant mini hot asphalt mxier parts
Product Overview

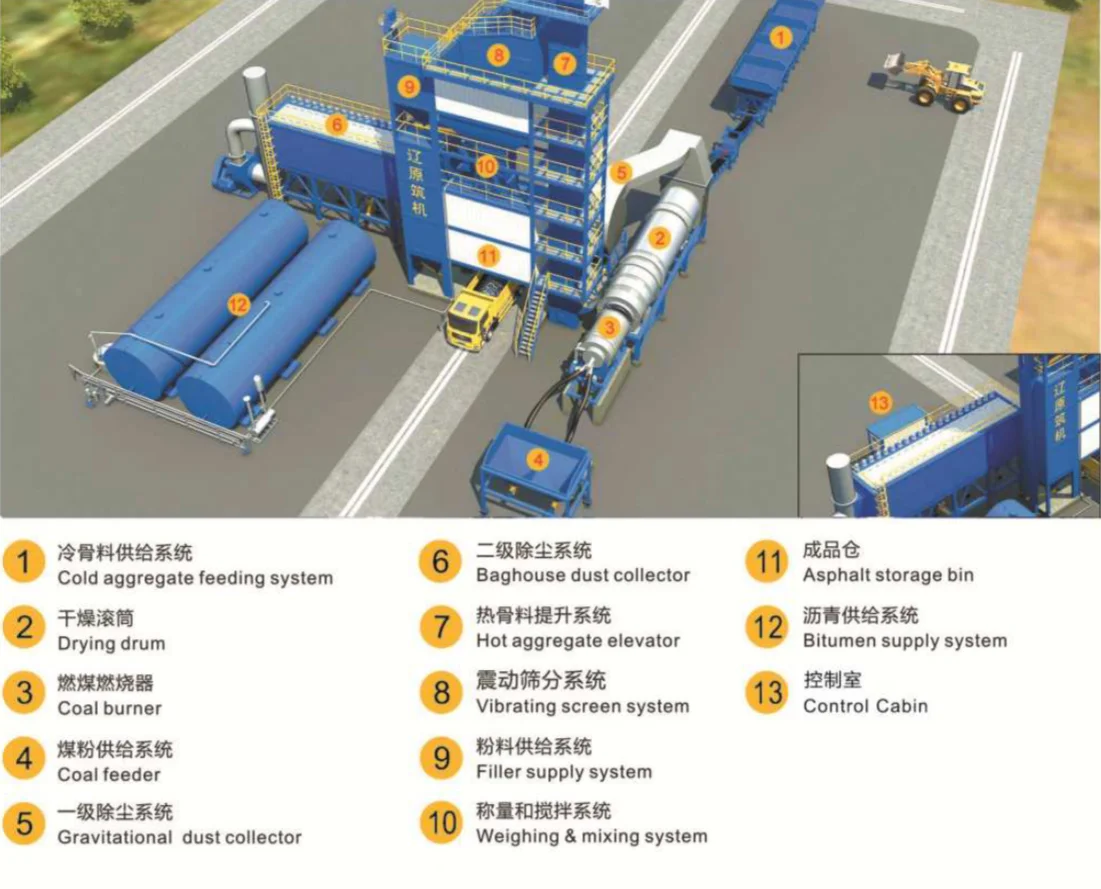

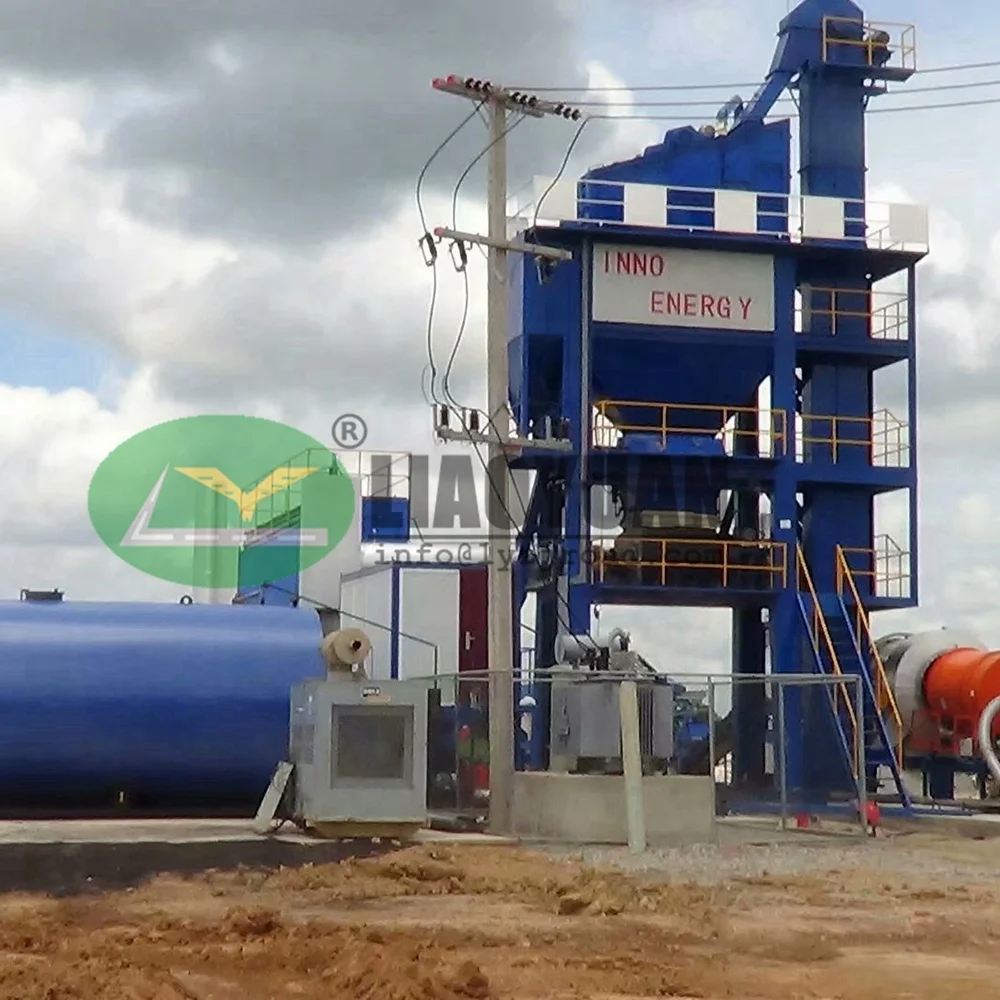

Liaoyuan Asphalt Mixing Plant LB Series（Batching Type）
Supply to Uzbekistan LB1000 batch type asphalt mixing plant.
In 2018, Supply to Russia Federation LB1200 batch type asphalt mixing plant.
1. Exquisite modularized design and integrated steel structure foundation, more reasonable layout, more fast and convenient disassembling-transport-installation.

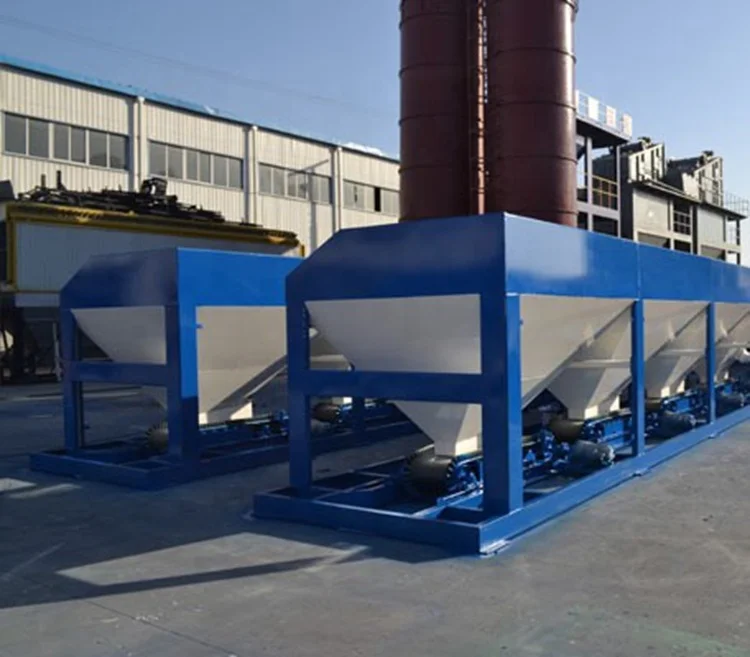

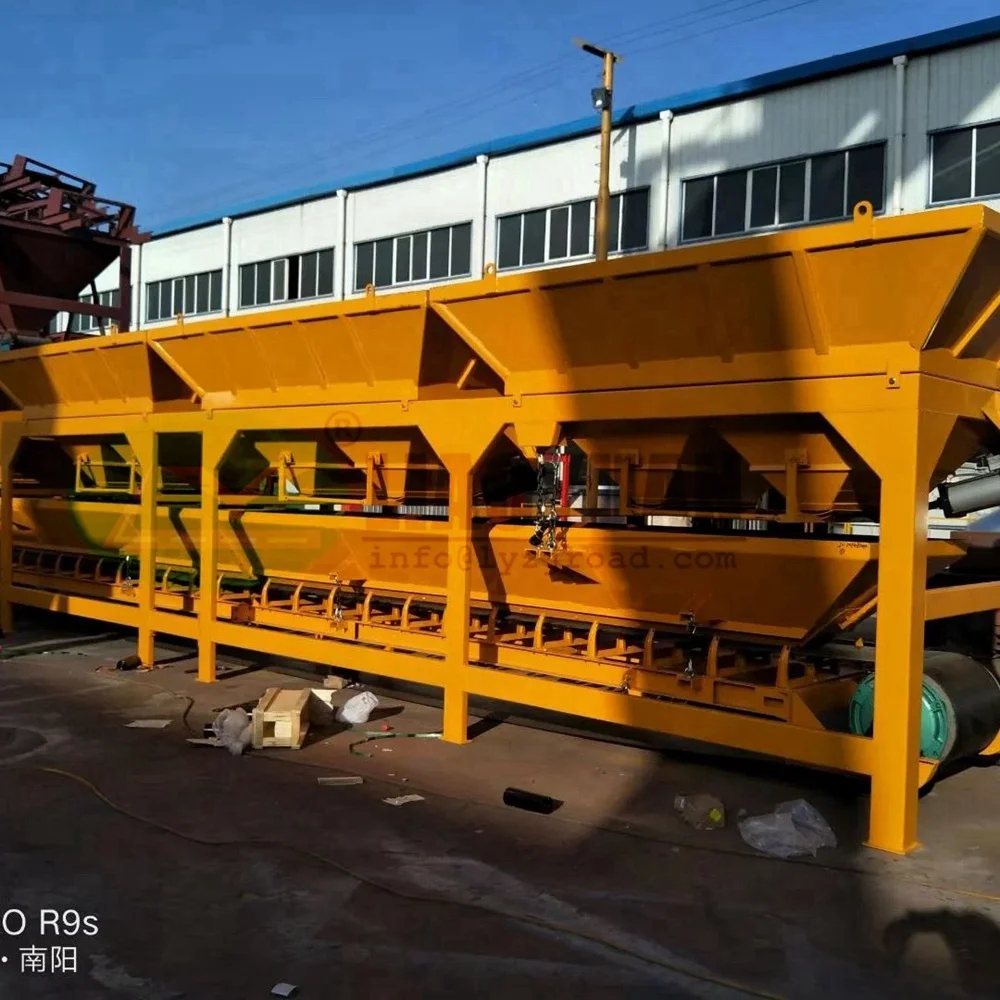

2. Skirt type feeding belt, guaranteeing more stable and reliable supply.

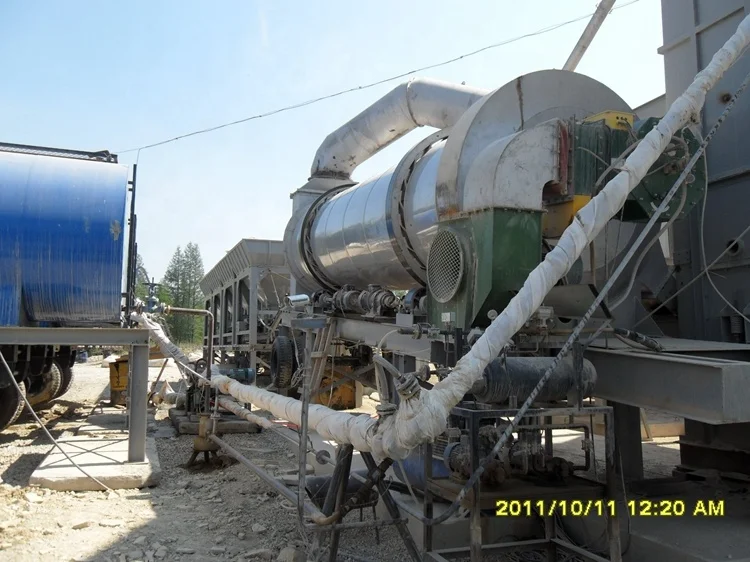

3. Special drying drum plate design and advanced independently researched and developed burning heating technology, improving efficiency and reducing energy consumption.
2. Skirt type feeding belt, guaranteeing more stable and reliable supply.
3. Special drying drum plate design and advanced independently researched and developed burning heating technology, improving efficiency and reducing energy consumption.
Product Features
Item/Model | LB500 | LB800 | LB1000 | LB1200 | LB1500 | LB2000 | LB3000 | ||||||
Rated capacity (t/h) | 40t/h | 64t/h | 80t/h | 100t/h | 120t/h | 160t/h | 240t/h | ||||||
Water content | ＜5% | ||||||||||||
Drying drum size (m) | 1.2x5.2 | 1.2x5.2 | 1.5x6.65 | 1.6x7.8 | 1.8X7.9 | 2.2X9 | 2.55X10 | ||||||
Drying drum capacity | 65t/h | 65t/h | 80t/h | 100t/h | 120t/h | 160t/h | 240t/h | ||||||
Burner | Diesel/diesel-heavy oil purpose/pulverized coal/gas/fuel-gas purpose (optional for clients) | ||||||||||||
Maximum burning capacity of burner | 300kg/h | 450kg/h | 550kg/h | 750kg/h | 1000kg/h | 1250kg/h | 1700kg/h | ||||||
Dust collection system | Level I cyclone/gravity dust collector + Level II bag dust collector | ||||||||||||
Filtering area of bag dust collector (m2) | 256 | 384 | 448 | 624 | 896 | ||||||||
Hot aggregate hoister | Board chain hoisting /td> | ||||||||||||
Maximum capacity of hot aggregate hoister | 70t/h | 70t/h | 90t/h | 105t/h | 125t/h | 175t/h | 260t/h | ||||||
Maximum capacity of vibrating screen | 70t/h | 70t/h | 90t/h | 105t/h | 125t/h | 175t/h | 260t/h | ||||||
Mixer (dual-horizontal shaft batch type) | 500kg/batch | 800kg/batch | 1000 kg/batch | 1200 kg/batch | 1500 kg/batch | 2000 kg/batch | 3000 kg/batch | ||||||
Mixing drum drive | Driven by dual-gear-motor (gear synchronization) | ||||||||||||
Filler supply system | Bucket hoisting | ||||||||||||
Maximum capacity of filler hoister | 20t/h | 40t/h | |||||||||||
Weighing accuracy /td> | Aggregate: ±0.5% filler: ±0.25% Bitumen: ±0.25% | ||||||||||||

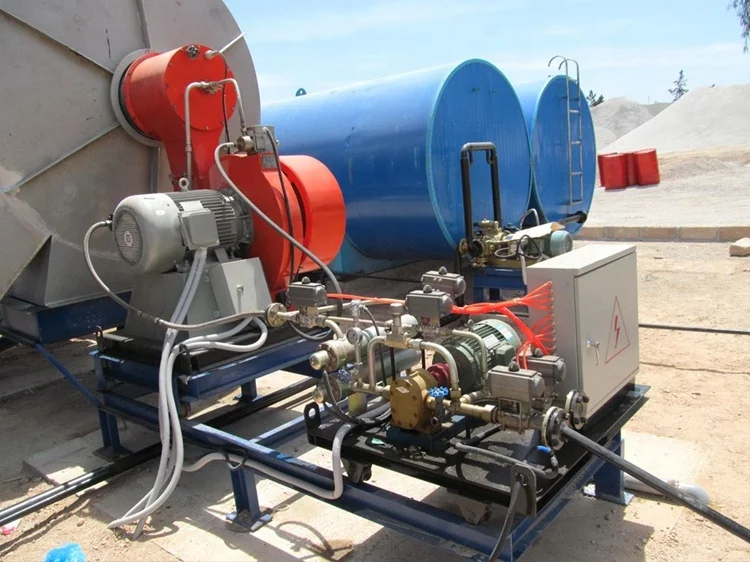

Bitumen supply system | Instantaneous electric heating/Heat transfer oil heating type (optional coal/fuel/gas) | ||||||||||||
Fuel supply system | Optional coal/fuel/gas | ||||||||||||
Overall power | 190kw | 202kw | 250kw | 270kw | 340kw | 500kw | 650kw | ||||||
4. Board chain type hot aggregate and filler hoisting design, improving service life of the hoister.
5. Heightened hot aggregate bin design of asphalt mixing plant, increasing hot aggregate stock, no need to wait for aggregate and increasing output.
6. Adopt currently advanced pulse bag type dust collection technology worldwide, fume emission below 20mg/Nm3, meeting international standard for high environmental protection.
5. Heightened hot aggregate bin design of asphalt mixing plant, increasing hot aggregate stock, no need to wait for aggregate and increasing output.
6. Adopt currently advanced pulse bag type dust collection technology worldwide, fume emission below 20mg/Nm3, meeting international standard for high environmental protection.

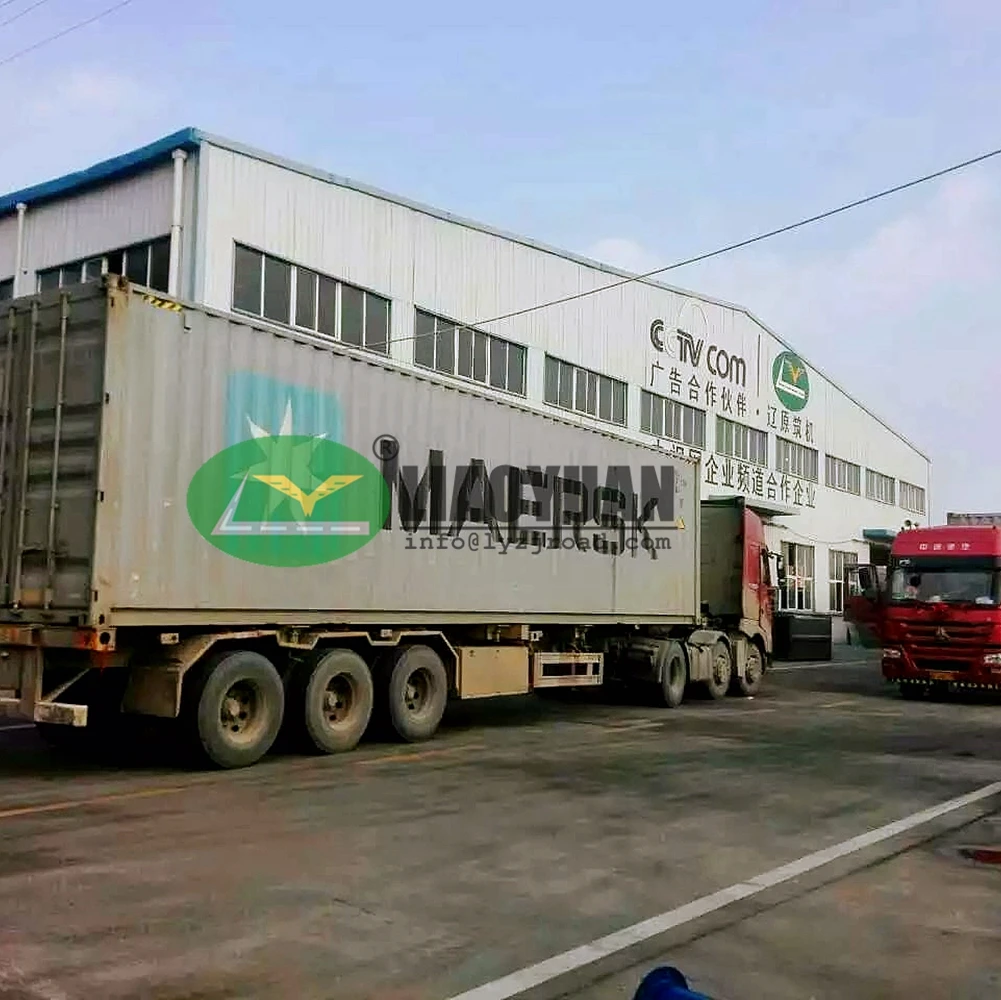

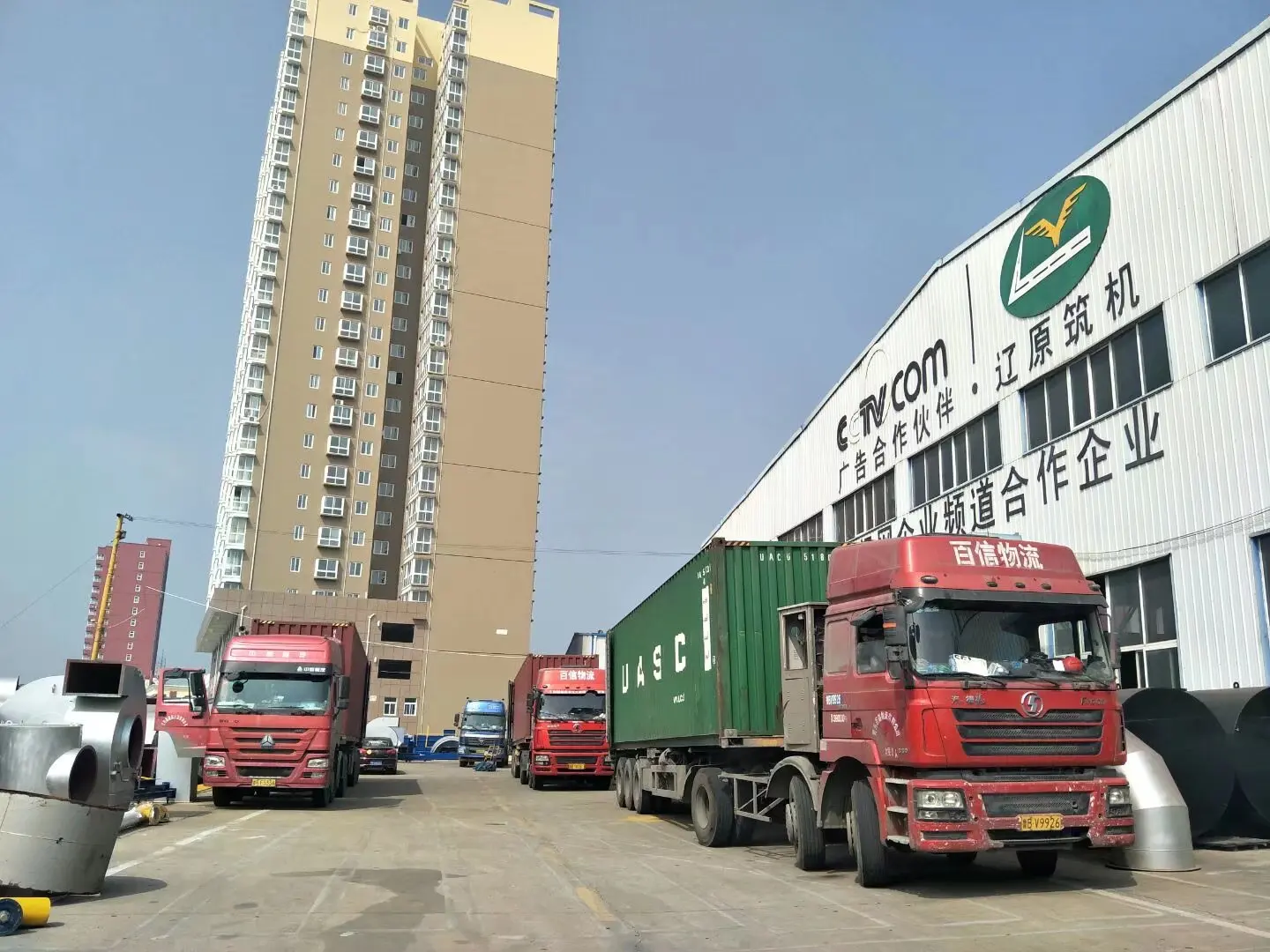

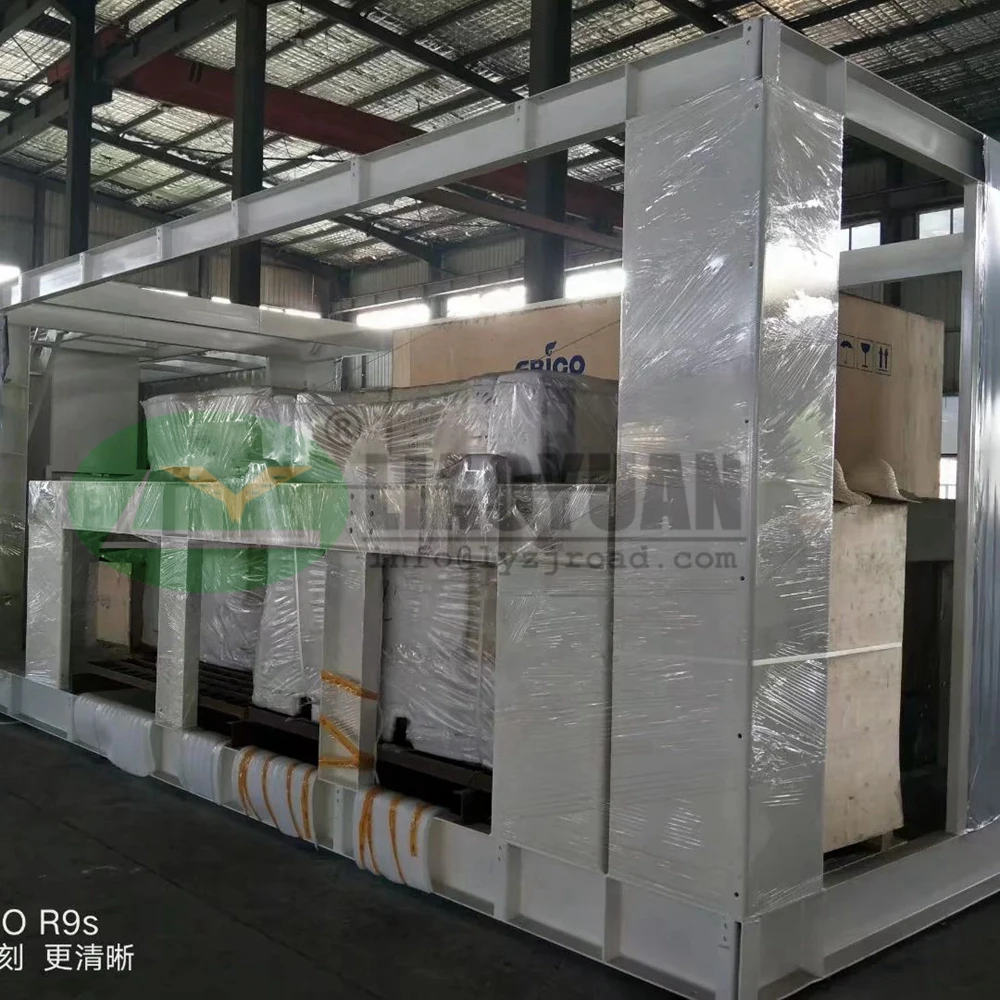

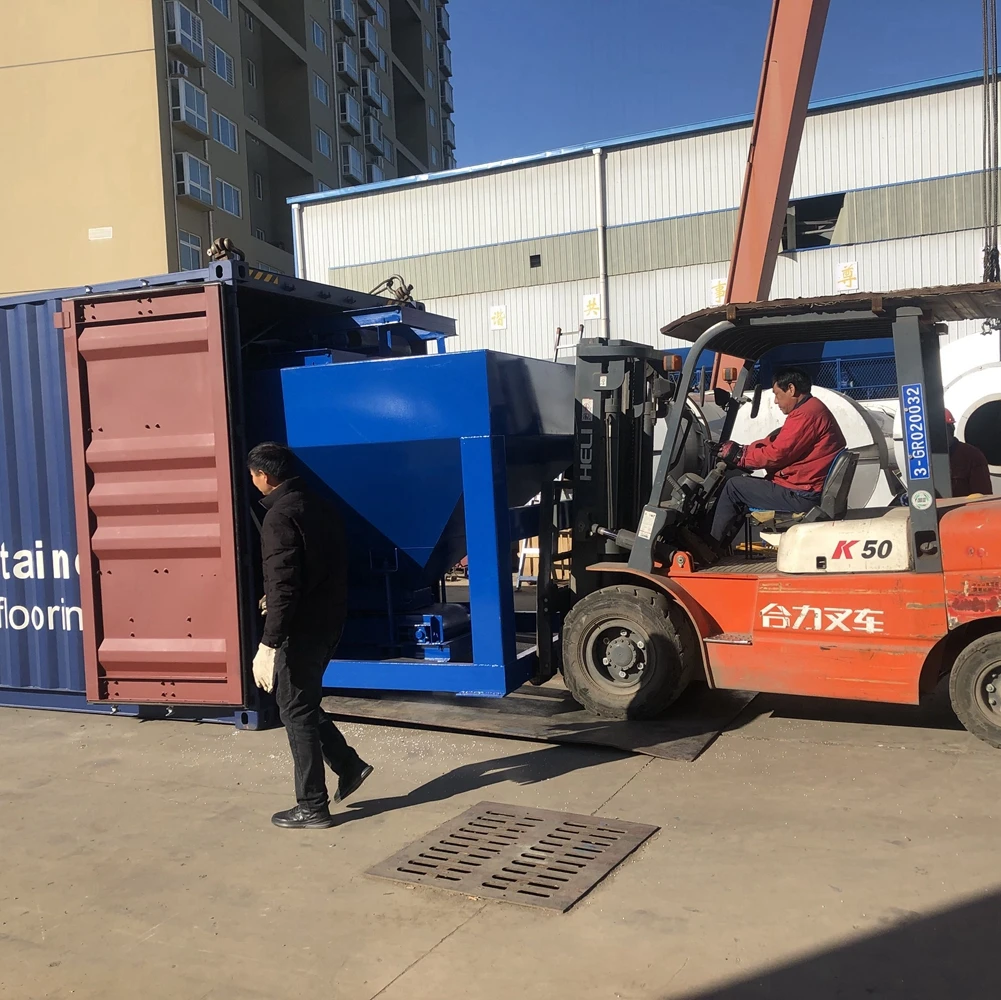

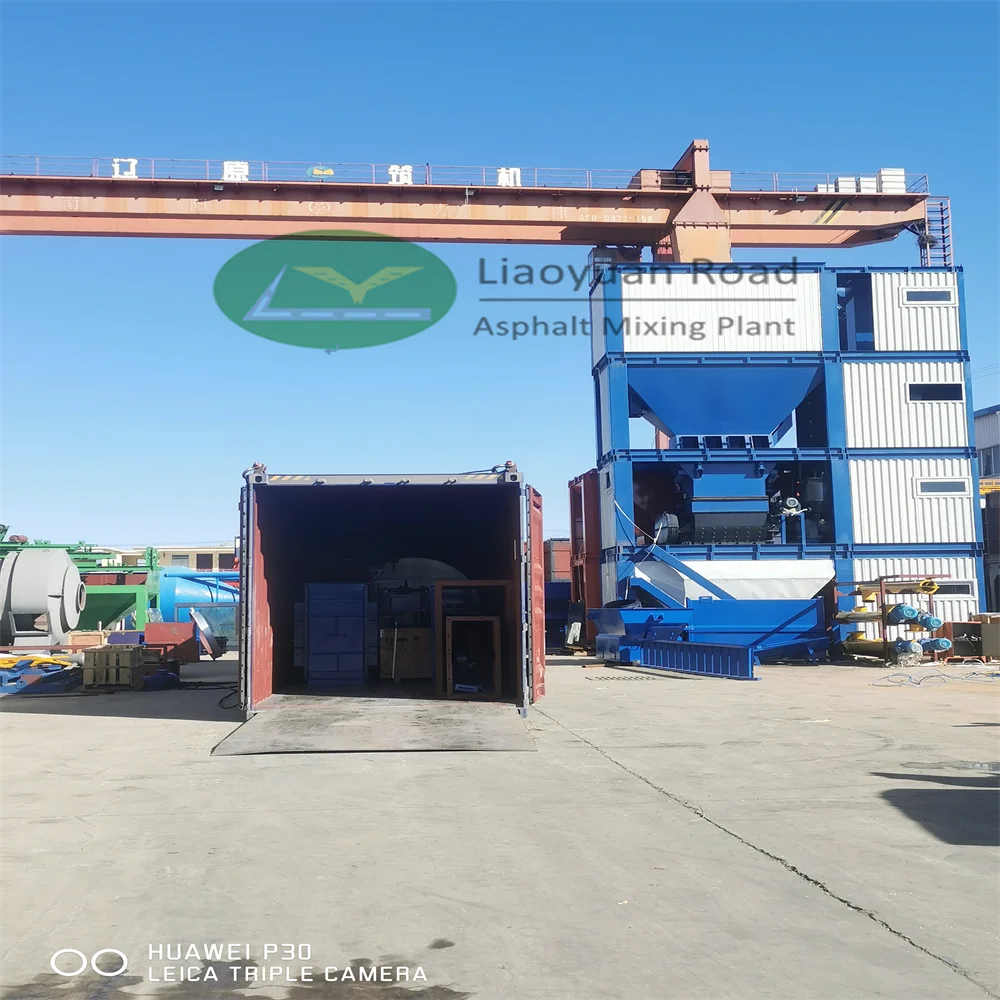

Packing and shipping
The asphalt mixing plant equipment can all be loaded into containers, that guaranteeing safe delivery of the goods. In the meantime, you can also choose other packing and transport options.

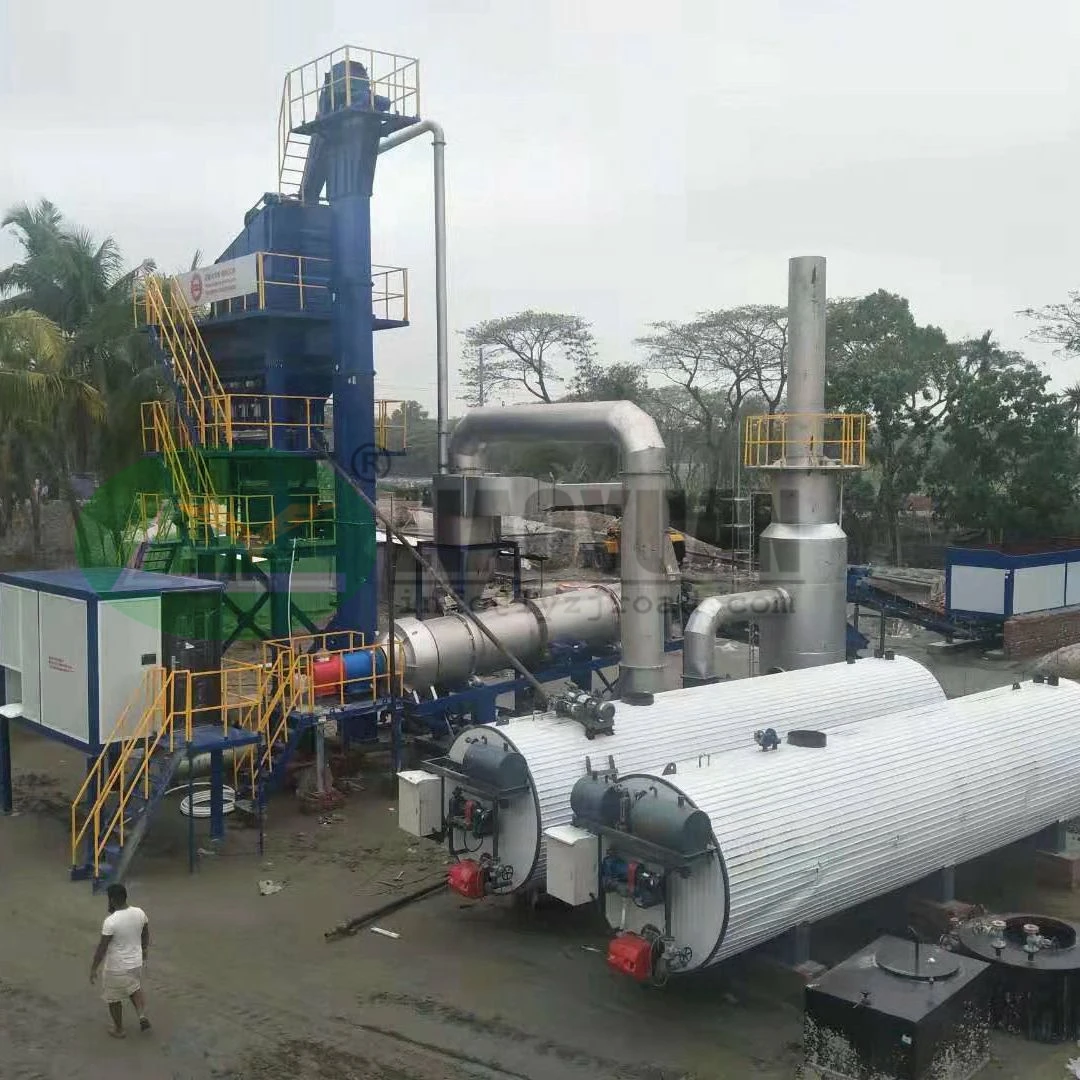

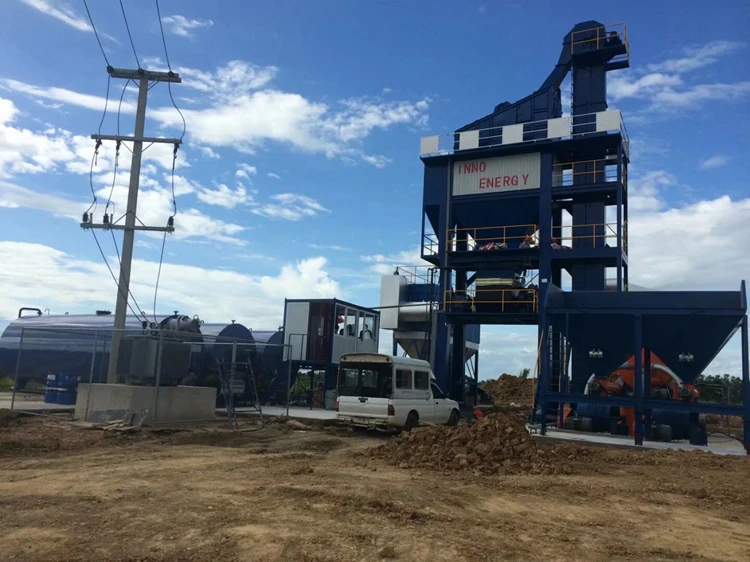

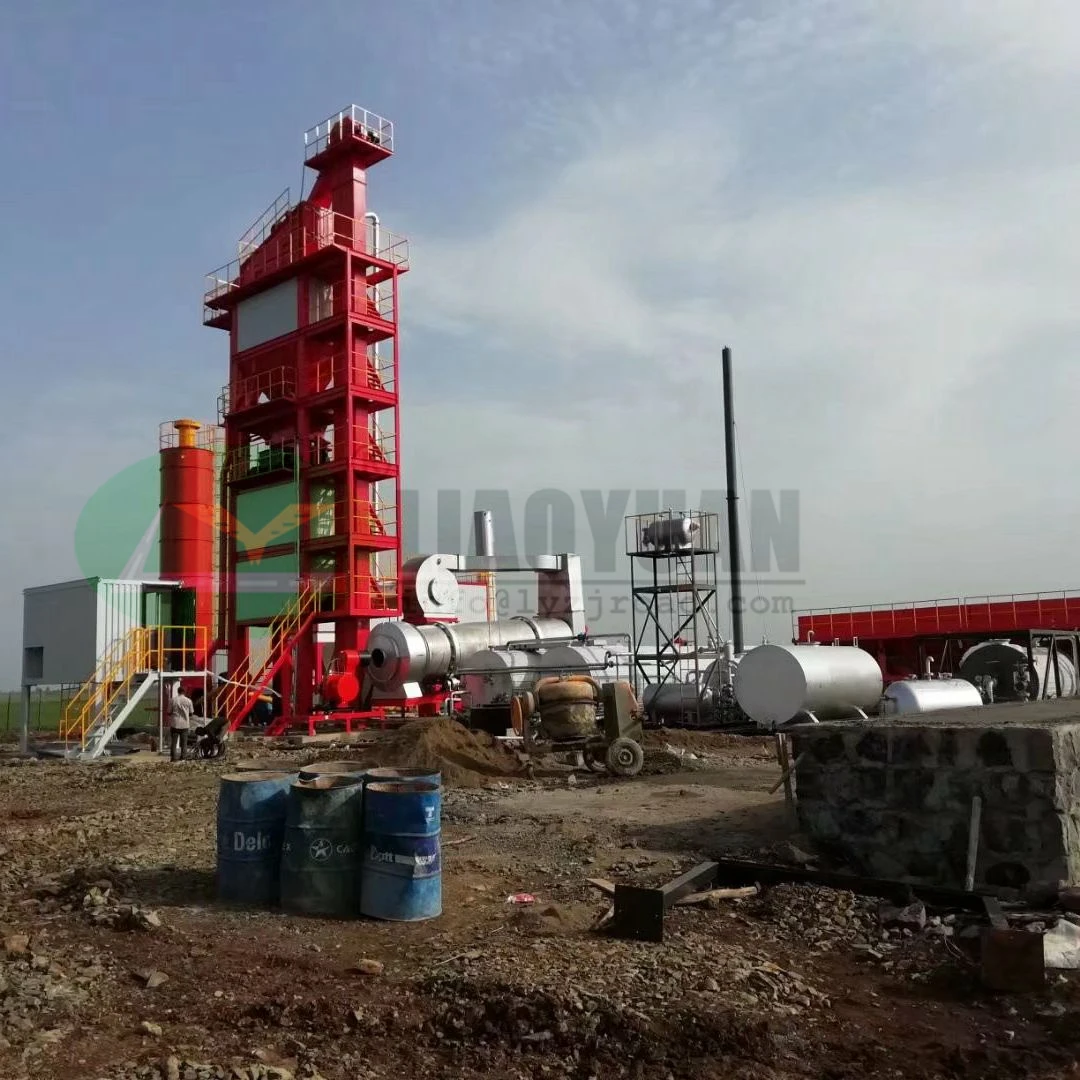

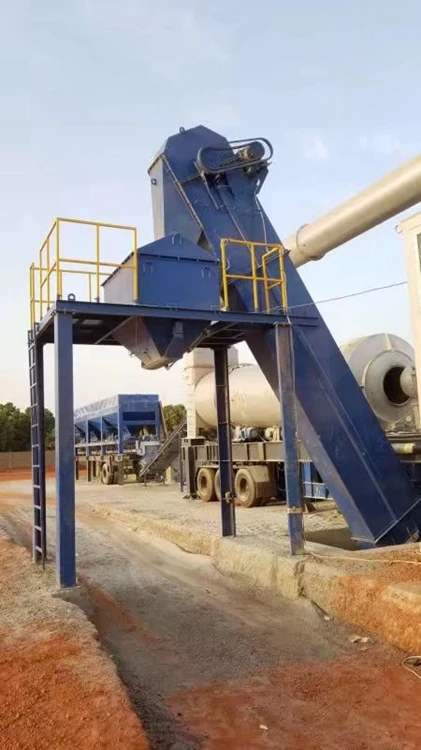

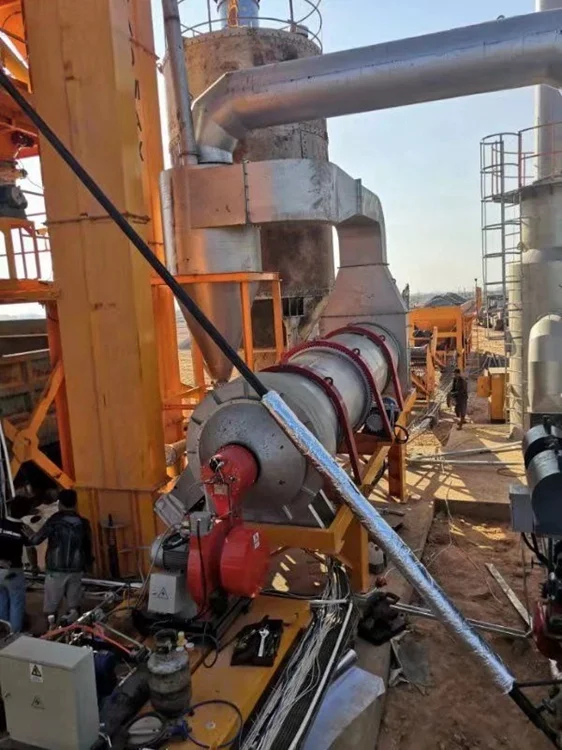

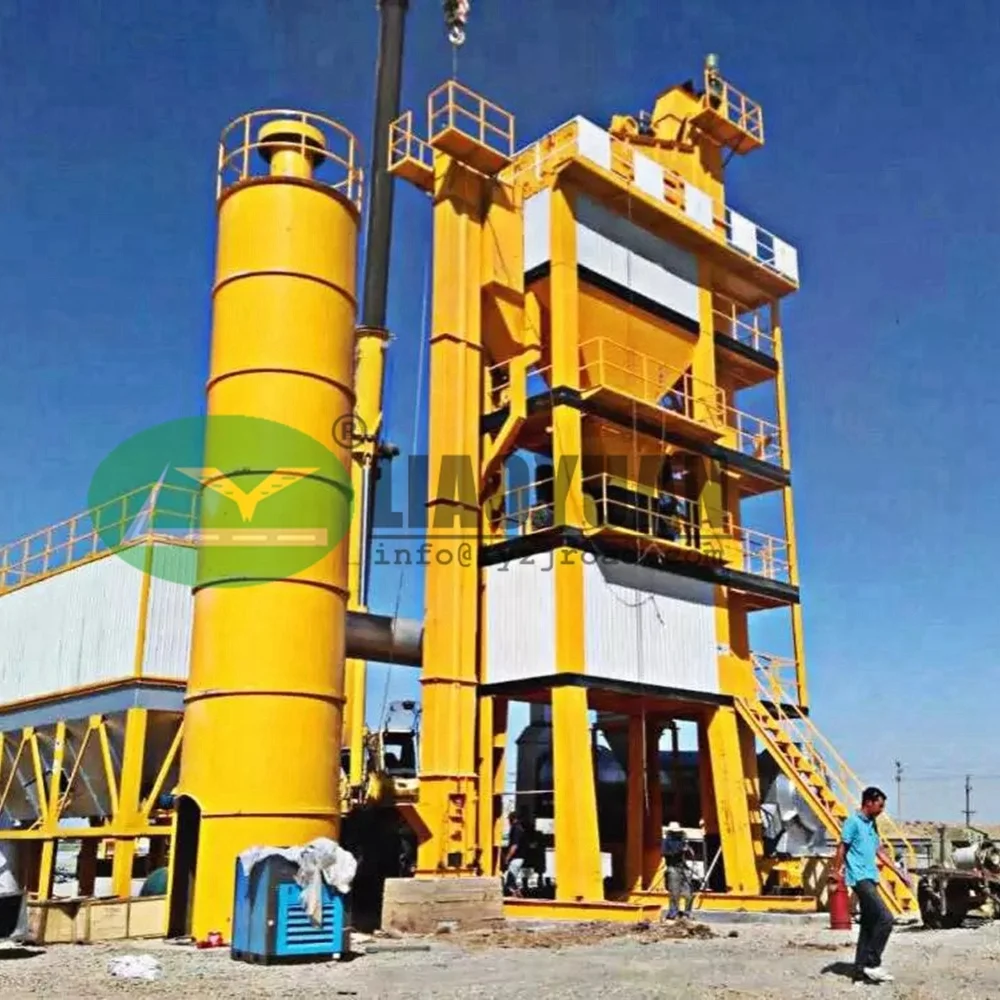

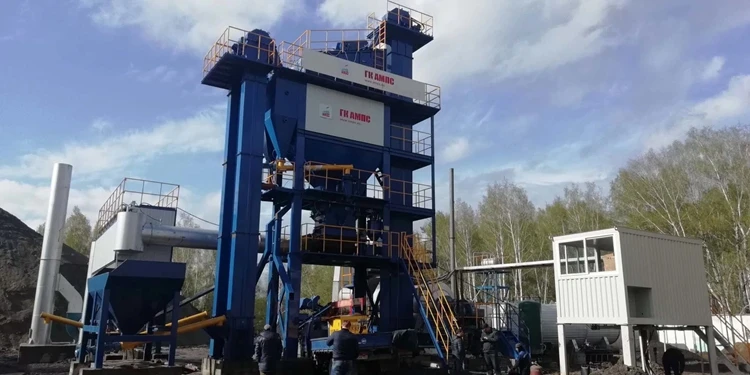

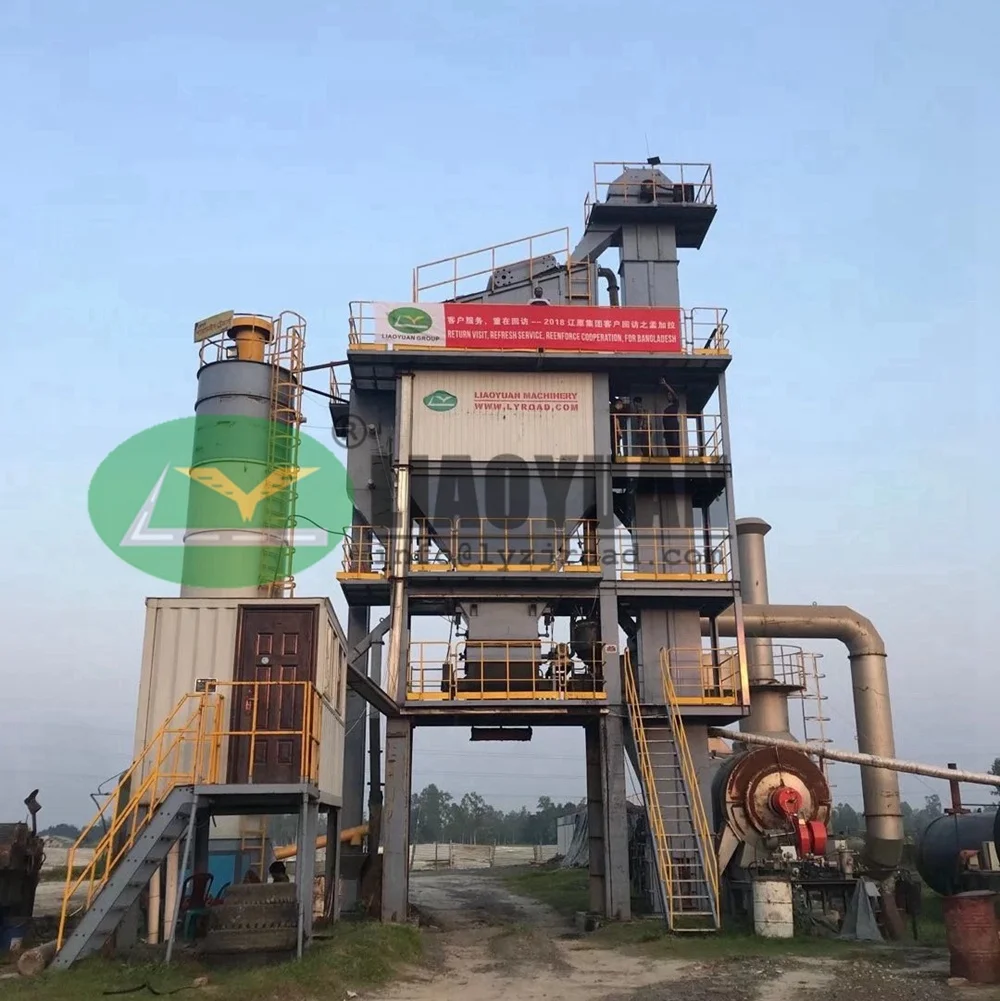

Project Case

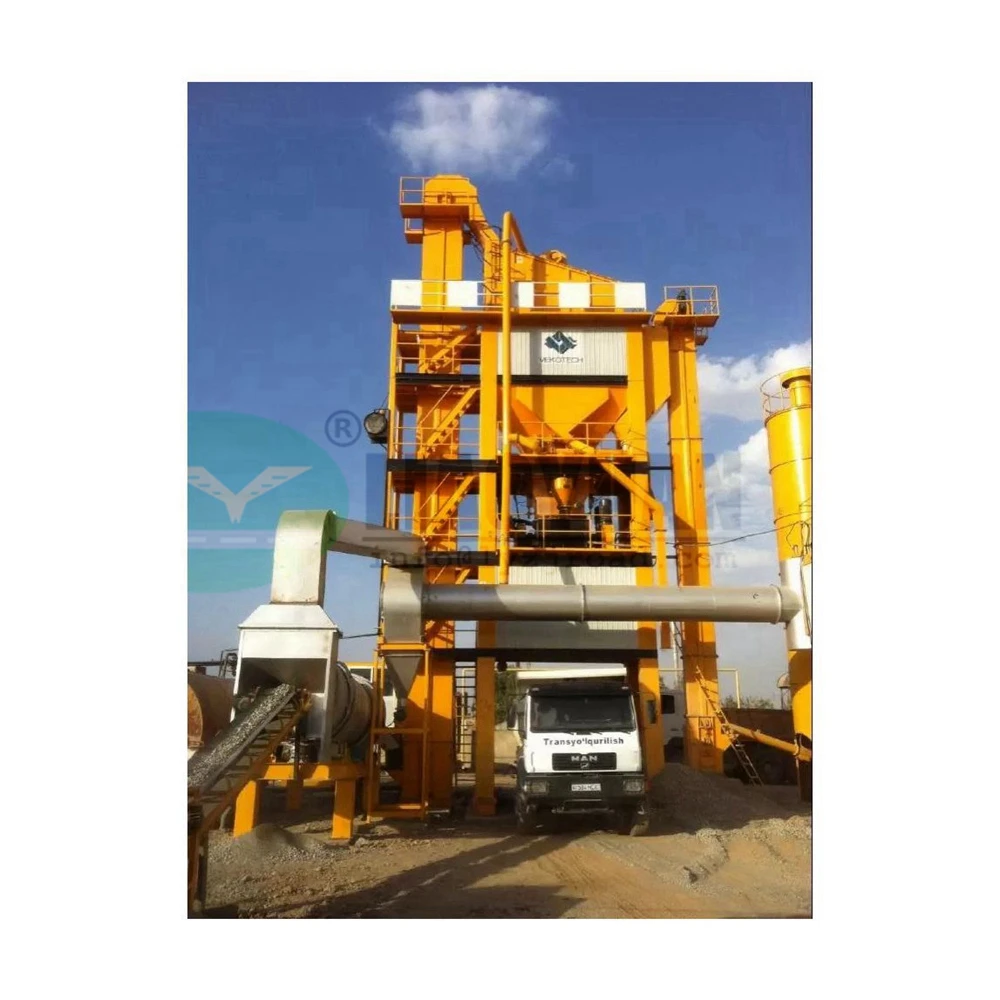

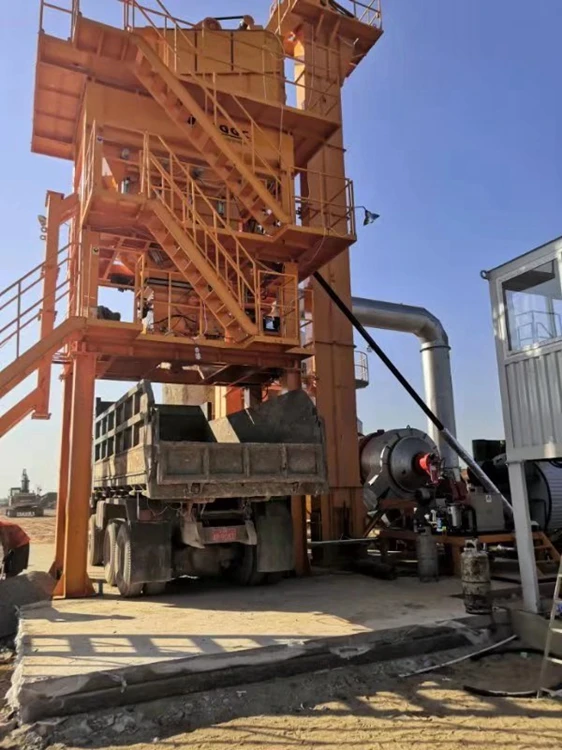

Liaoyuan LB2000 asphalt plant 160t/h in Syria
Liaoyuan LB1200 asphalt plant 100t/h in Thailand
Liaoyuan LB1500 asphalt plant 120t/h in Indonesia
Liaoyuan LB1500 asphalt plant 120t/h in Russia
Liaoyuan LB1200 asphalt plant 100t/h in Indonesia
Liaoyuan LB2000 asphalt plant 160t/h in Uzbekistan
Liaoyuan Road Machinery has supplied asphalt mixing plants in over 90 countries around the world for 17 years, we continue providing excellent construction solutions and perfect after-sales maintenance services.

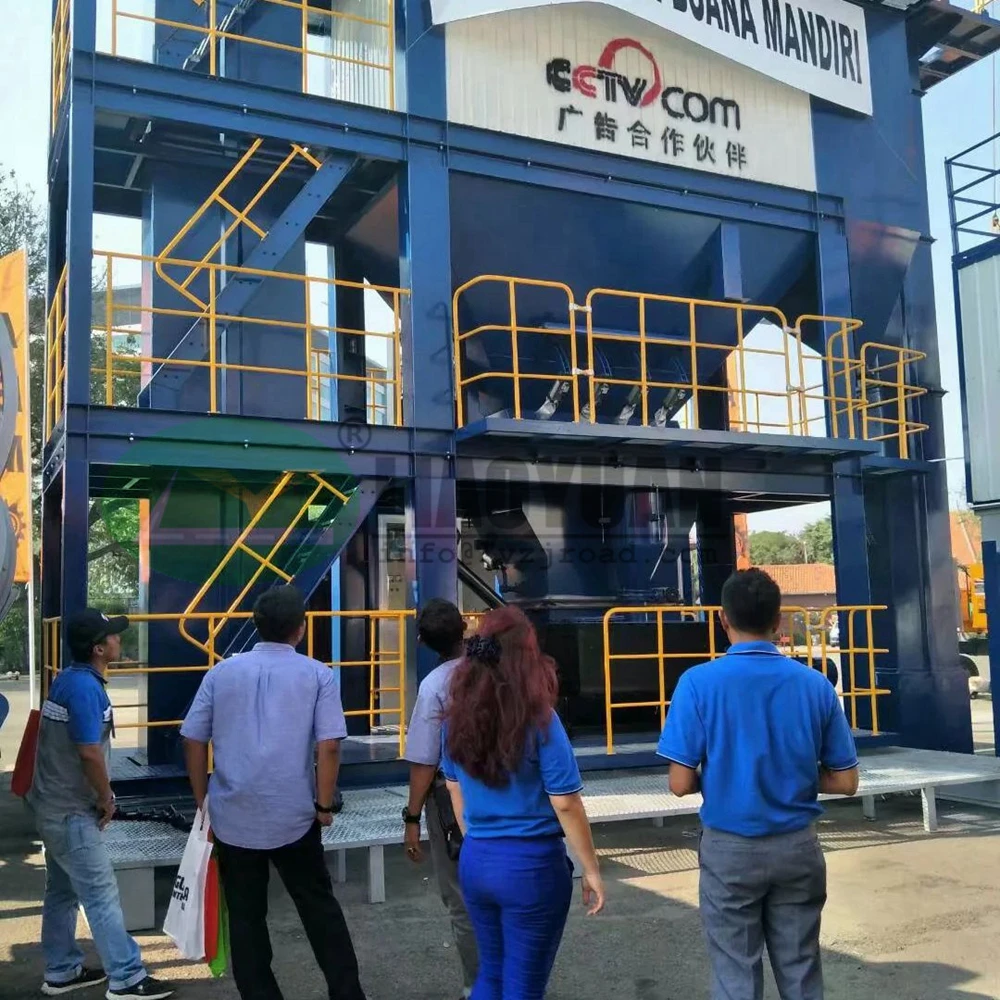

Customer Photos
2014 Liaoyuan Road Machinery won the bid of UN aid road construction project in Myanmar.
2016 Australia fishers asphalt Inc visited our company to discuss cooperation.
Customers from the African visited our company to buy asphalt plant.
Customers from the Middle East visited our company to buy asphalt plant.
The second largest road construction machinery trader in São Paulo, Brazil visited our company to buy asphalt plant.
Russian road construction machinery traders in Moscow visited our company and bought asphalt plant.
Southeast Asian customers visit our company and buy asphalt plant.
Customers from Ethiopia visited our company to buy asphalt plant.
Exhibition
Liaoyuan company was in the 2019 Germany Bauma Construction Machinery EXPO.
Liaoyuan company was in the 2018 Russia International Road Construction Machinery EXPO.
Liaoyuan company was in the 2018 Shanghai Bauma International Road Construction Machinery EXPO.
Liaoyuan company was in the 2017 Indonesia International Road Construction Machinery EXPO.
Liaoyuan company was in the 2016 Thailand International Construction Machinery EXPO.
Liaoyuan company was in the 2017 Thailand International Construction Machinery EXPO.

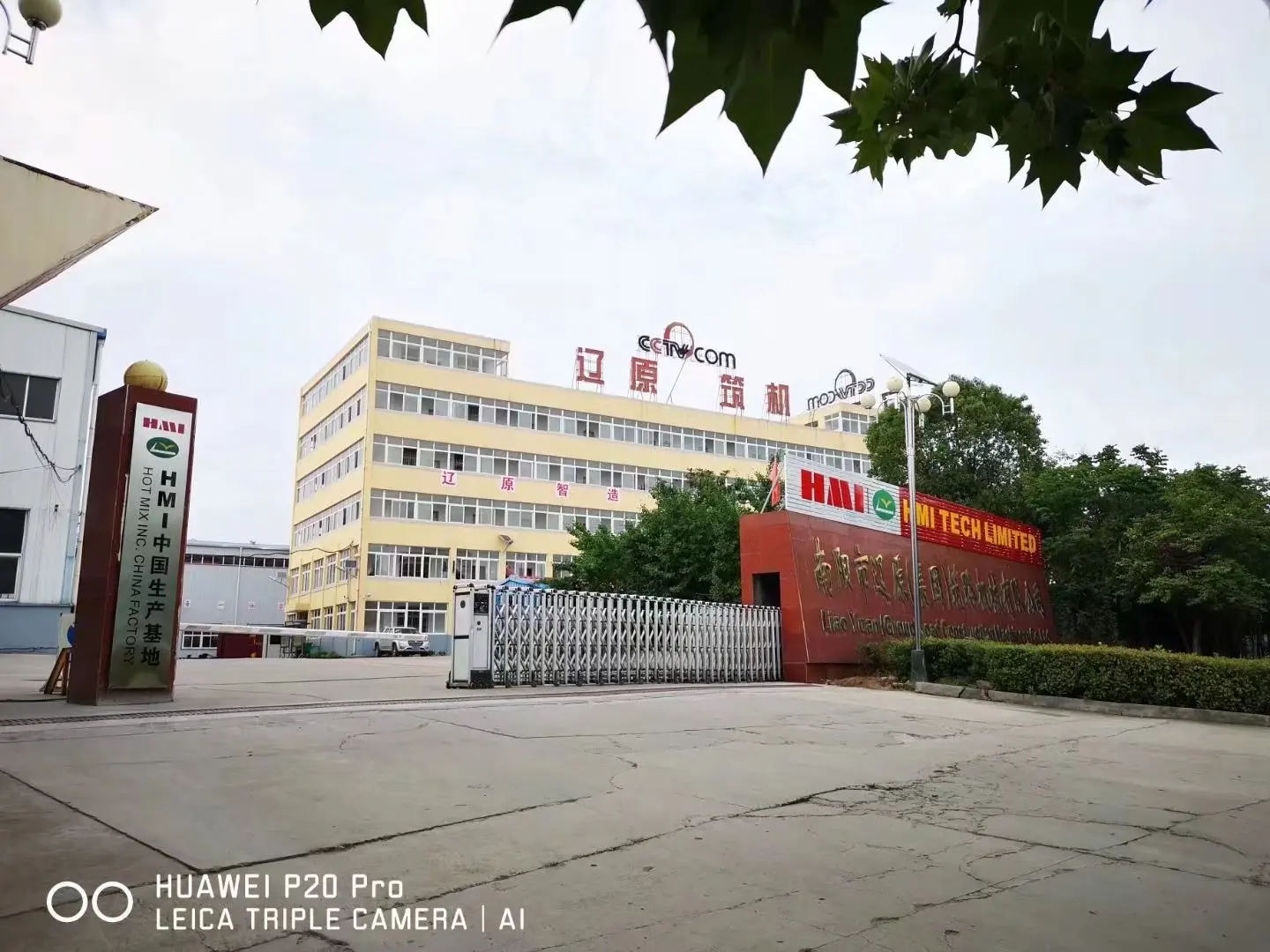

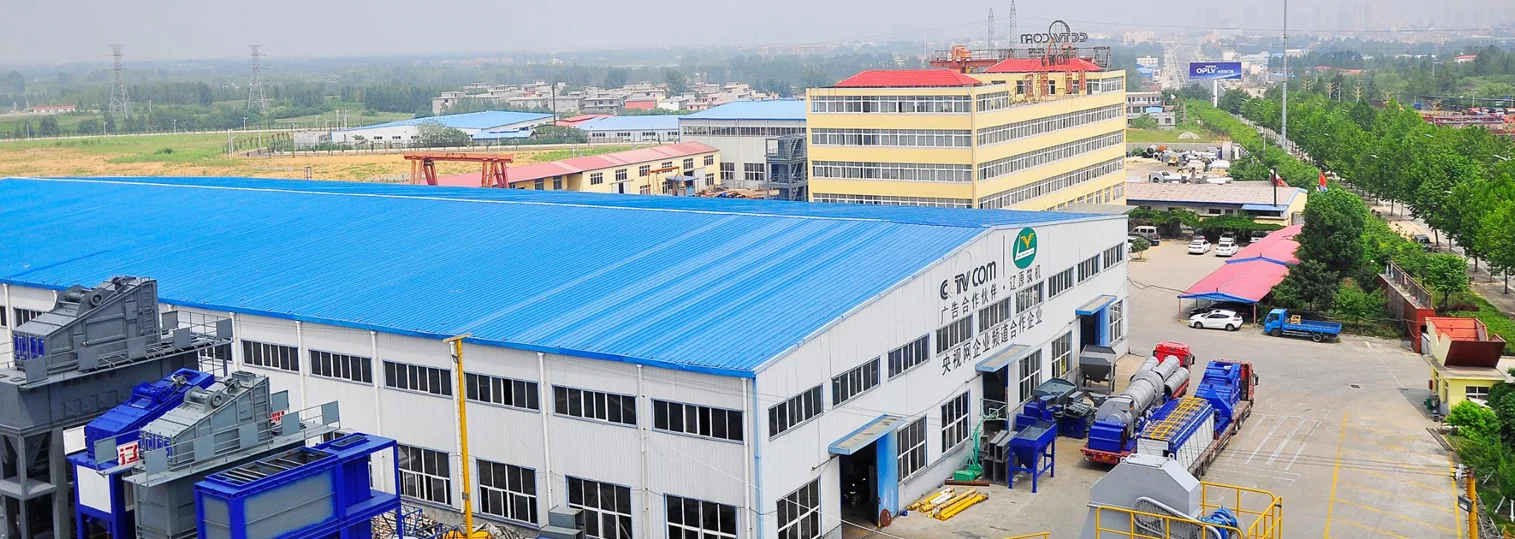

Company Profile
Liaoyuan Road Machinery
Nanyang Liaoyuan Road Construction Machinery Co., Ltd. officially founded in 2004, with a registered capital of 50 million yuan. We specialize in the R&D, manufacture, sales and service of batch asphalt mixing plant/mobile asphalt mixing plant/drum type asphalt mixing plant/stabilized soil mixing plant. Liaoyuan company has developed into a domestic leading and international famous asphalt mixing plant manufacturer.
Liaoyuan Road Machinery
Advantage:
1. Good quality control, CE/EAC/ISO/PONY certified.
2. Smooth communication, with completely technique support and staff training, continue equipment maintenance and after-sales service.
3. Construction projects in over 90 countries, complete experience in bidding and building construction programs.
4. The best price available in China.
5. Thorough OEM experience, high production effective.
6. We have long-standing relationships with many of the world's leading builders.
1. Good quality control, CE/EAC/ISO/PONY certified.
2. Smooth communication, with completely technique support and staff training, continue equipment maintenance and after-sales service.
3. Construction projects in over 90 countries, complete experience in bidding and building construction programs.
4. The best price available in China.
5. Thorough OEM experience, high production effective.
6. We have long-standing relationships with many of the world's leading builders.
FAQ
Q1:Are you trading company or manufacturer?
A: We are manufacturer, we have completely production lines and R&D team.
Q2: How is the quality of your products?
A: CE/EAC/ISO/PONY certified, manufactured strictly according to national and intemational standards.
Q3: What's the payment terms？
A: T/T. L/C are all accept. 30% advance payment; 70% balance payment should be paid before delivery.
Q4: What's the delivery time？
A: 20-50days after receiving advance payment. there will be a delay during the epidemic.
Q5: Did you provide equipment operation and staff training?
A: We'll send engineers to the working site for equipment installation, adjustment, and training. English language communication.
Q6: Did you have any project cases worldwide?
A: we had construction projects in over 90 countries, complete experience in bidding and building construction programs.
A: We are manufacturer, we have completely production lines and R&D team.
Q2: How is the quality of your products?
A: CE/EAC/ISO/PONY certified, manufactured strictly according to national and intemational standards.
Q3: What's the payment terms？
A: T/T. L/C are all accept. 30% advance payment; 70% balance payment should be paid before delivery.
Q4: What's the delivery time？
A: 20-50days after receiving advance payment. there will be a delay during the epidemic.
Q5: Did you provide equipment operation and staff training?
A: We'll send engineers to the working site for equipment installation, adjustment, and training. English language communication.
Q6: Did you have any project cases worldwide?
A: we had construction projects in over 90 countries, complete experience in bidding and building construction programs.
Похожие товары
Битумная смесительная установка Yima 240 т/ч, стационарный мобильный завод, бак для горячего асфальта
937 500,00 $
Лидер продаж, белые крышки из ПВХ для пластиковых порогов

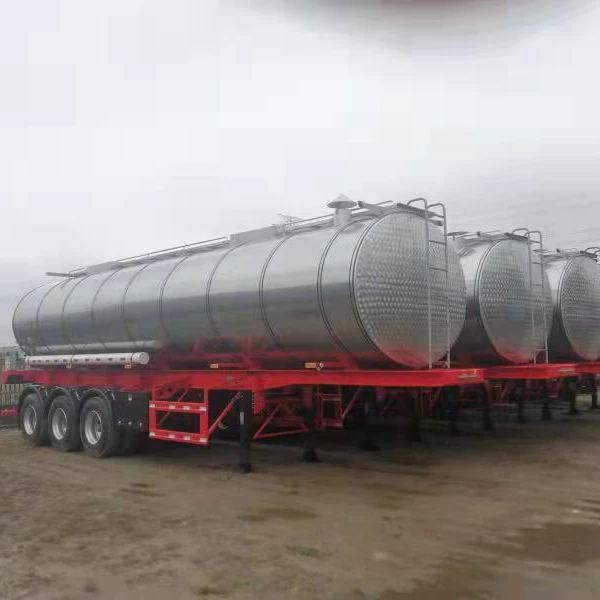

Бак для перевозки асфальта битума
