Комплект Уплотнений шестеренки для перекачки химических веществ Шестеренчатый насос высокого давления из нержавеющей стали чугун
- Категория: >>>
- Поставщик: Hangzhou Qinjie Electromechanical Co. Ltd.
Сохранить в закладки 1600417678442:
Описание и отзывы
Характеристики
Product Description

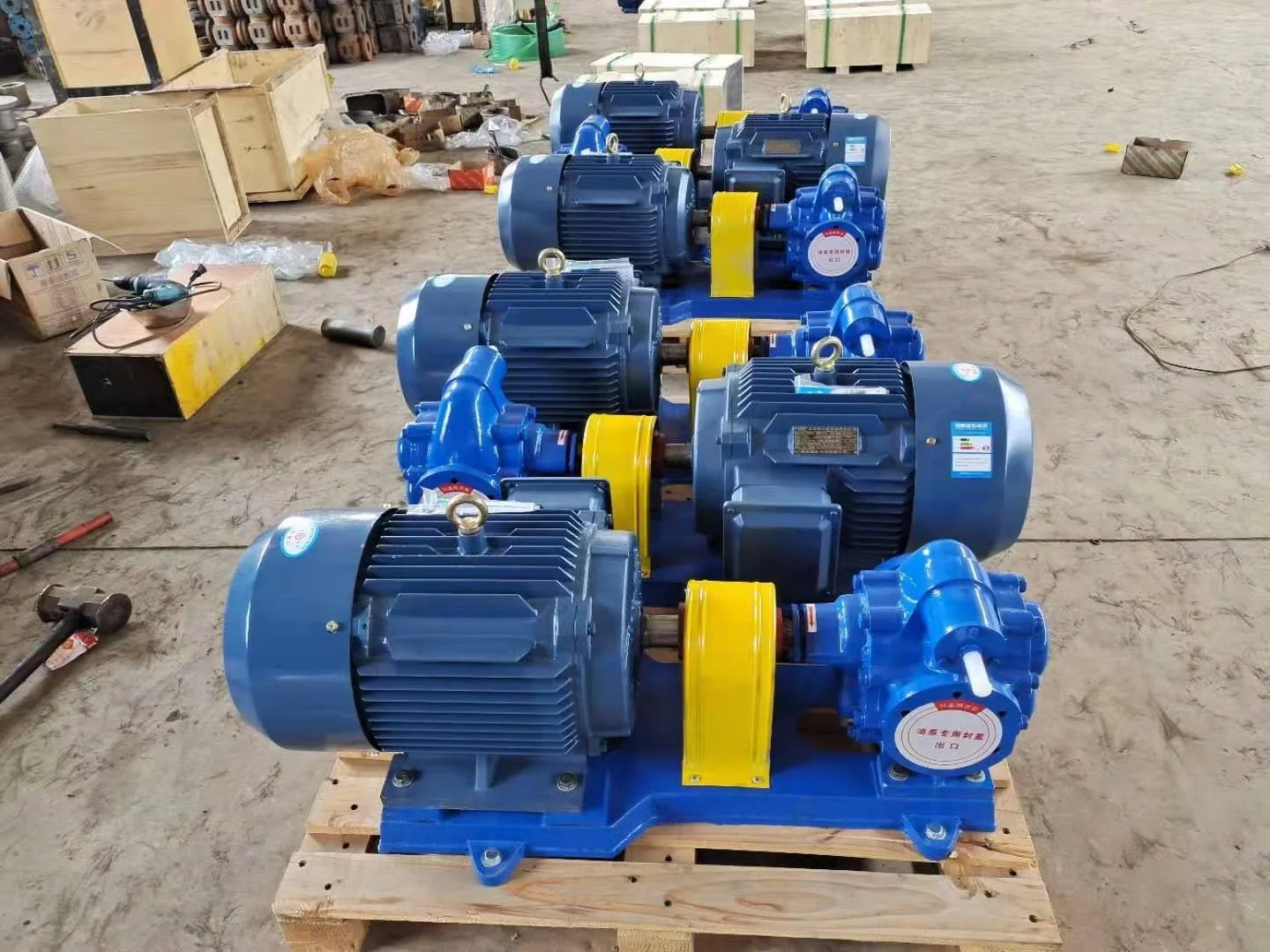

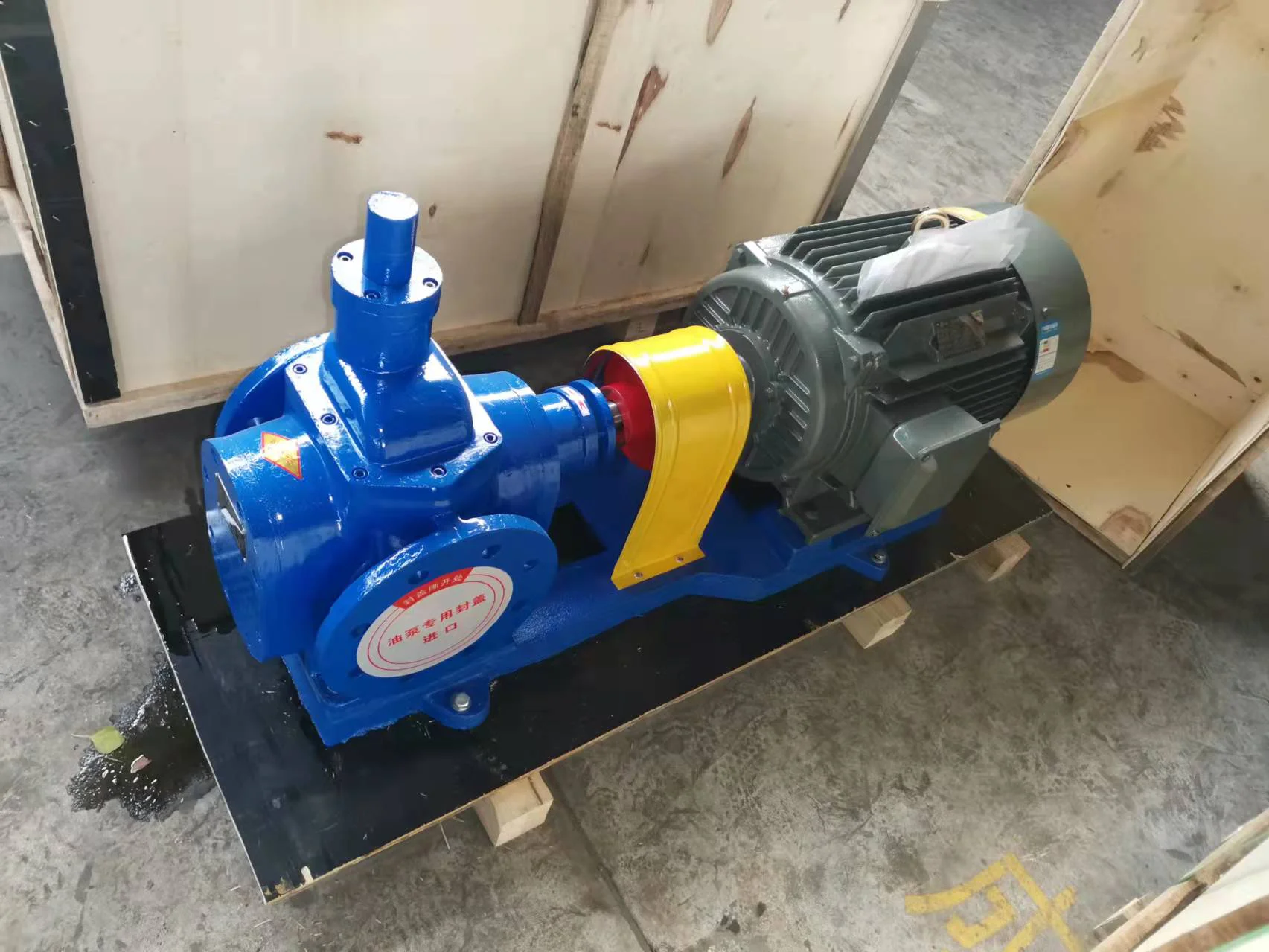

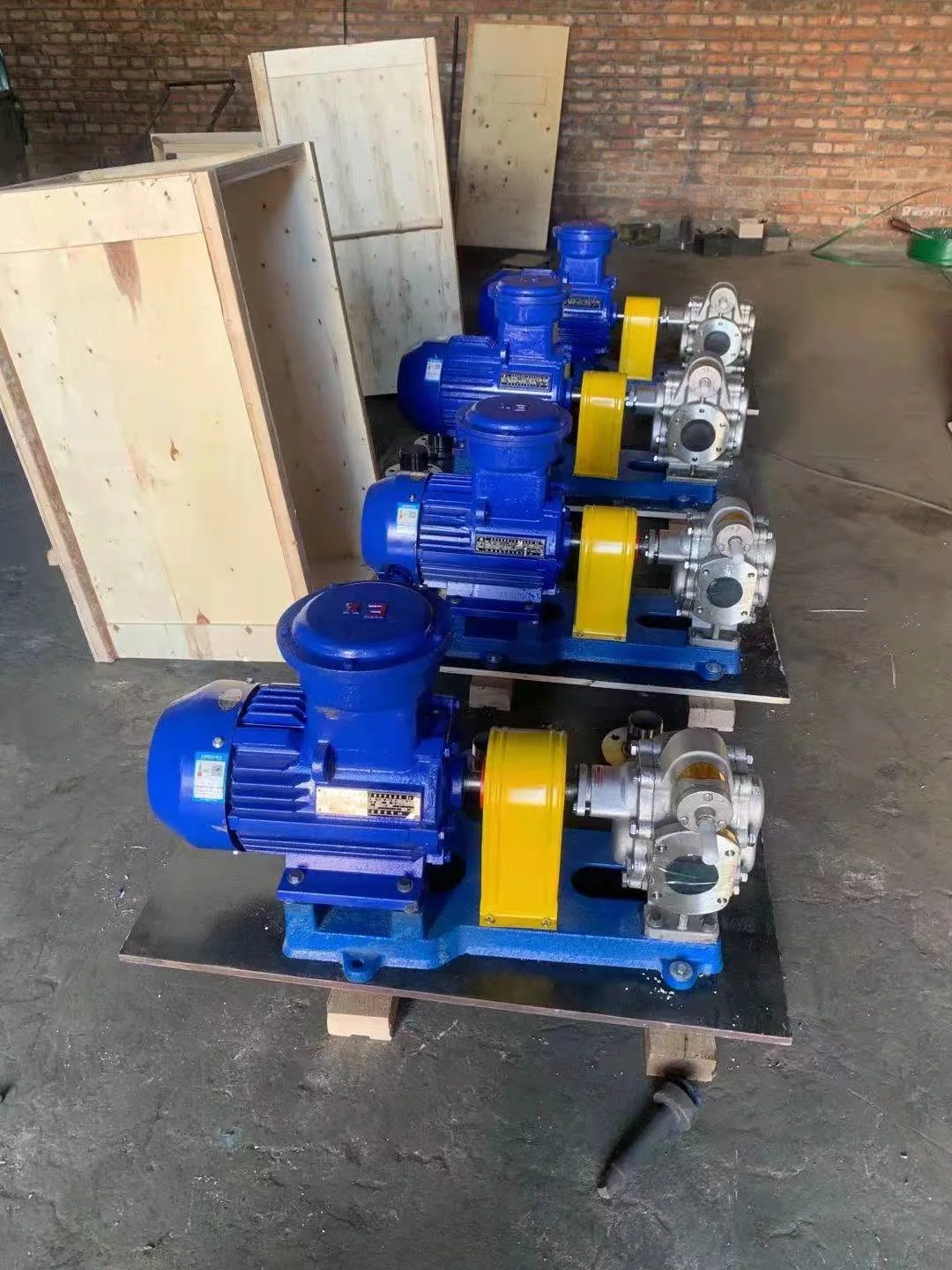

Stainless steel KCB gear pump is mainly consists of pump body, shaft, pressure protection valve, driving gear, passive gears and seal kits. The gear has higher hardness and strength after heat treatment, which is installed in the replaceable shaft sleeve with shaft. to operate. When the pump is working with the output medium, all parts of the pump can be lubricated. There are well-designed oil drain and oil return grooves in the pump, it can make the gear bear the smallest torque force during work, so the bearing load is small, the wear is small, and the pump efficiency is high.

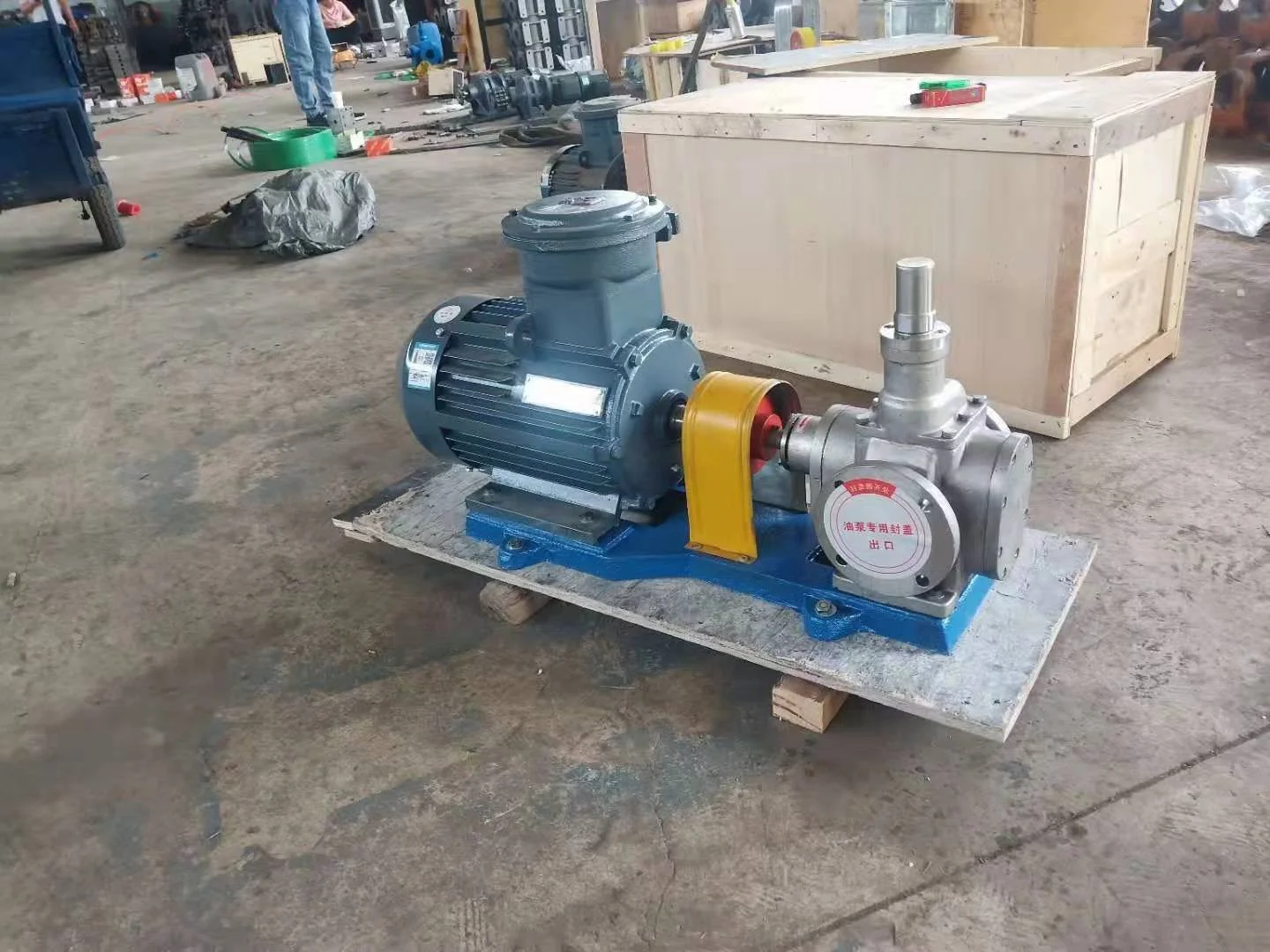

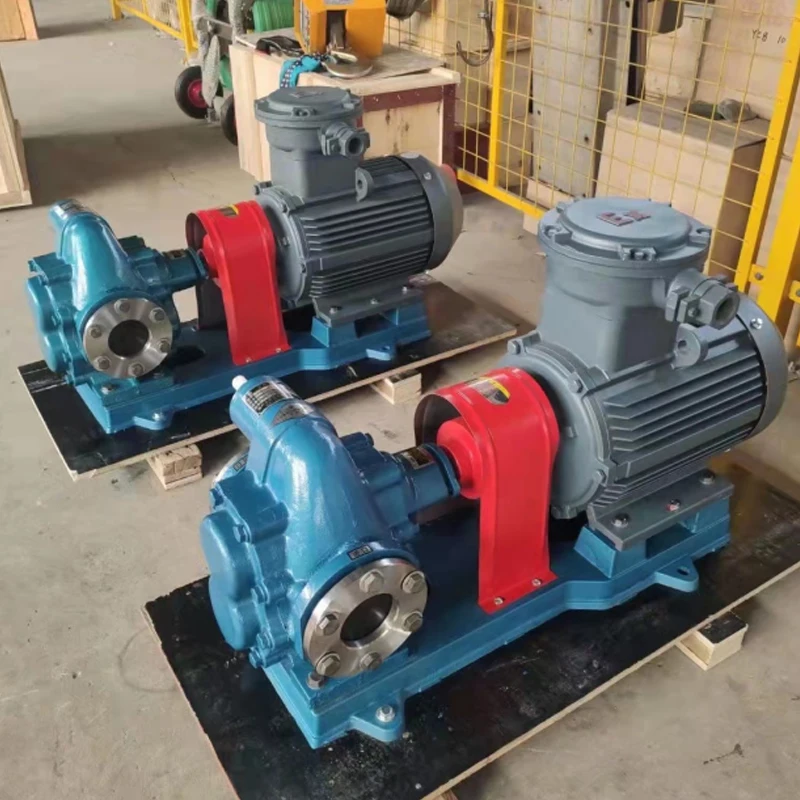

Details Images
Structure:
(1) This model is a horizontal rotary pump, which is mainly composed of pump body, gear, bearing seat, safety valve bearing and sealing device.
(2) The pump body, bearing seat, etc. are made of gray cast iron, the gear is made of high-quality carbon steel, and can also according to the special needs of users to use cooper or stainless steel material.
(3) There is a stuffing box chamber on the bearing seat, which acts as an axial seal. KCB-300~960 type pump adopts mechanical seal device, bearing use Single-row radial ball. KCB-18.3~83.3 pump adopts two oil-resistant rubber rings and a retaining ring group with intermediate lining. Adjust the two nuts on the compression cover to adjust the degree of sealing. The bearing adopts copper-based powder oil-impregnated bearings. In addition, these series pumps all can use flexible graphite with good elasticity, high temperature resistance, low temperature resistance, stable chemical properties and self-lubricating properties as filler seal.
(4) The pump is equipped with a safety valve. When the pump or the pipeline no work or the discharge valve is completely closed by mistake case high pressure, the safety valve will automatically open to remove part or all of the high-pressure liquid back to the low-pressure chamber, so that can protect of pump and pipeline safetly. (5) Directly connect with the drive motor with an elastic coupling, and install it on a common cast iron chassis.
(2) The pump body, bearing seat, etc. are made of gray cast iron, the gear is made of high-quality carbon steel, and can also according to the special needs of users to use cooper or stainless steel material.
(3) There is a stuffing box chamber on the bearing seat, which acts as an axial seal. KCB-300~960 type pump adopts mechanical seal device, bearing use Single-row radial ball. KCB-18.3~83.3 pump adopts two oil-resistant rubber rings and a retaining ring group with intermediate lining. Adjust the two nuts on the compression cover to adjust the degree of sealing. The bearing adopts copper-based powder oil-impregnated bearings. In addition, these series pumps all can use flexible graphite with good elasticity, high temperature resistance, low temperature resistance, stable chemical properties and self-lubricating properties as filler seal.
(4) The pump is equipped with a safety valve. When the pump or the pipeline no work or the discharge valve is completely closed by mistake case high pressure, the safety valve will automatically open to remove part or all of the high-pressure liquid back to the low-pressure chamber, so that can protect of pump and pipeline safetly. (5) Directly connect with the drive motor with an elastic coupling, and install it on a common cast iron chassis.
Characteristic:
(1) This series of pumps has a simple and compact structure, is easy to use and maintain.
(2) This series of pumps has good self-priming fuction, so it is not necessary to pour liquid into the pump every time before starting the pump.
(3) The lubrication of this series of pumps is automatically achieved by the conveyed liquid, so there is no need to add
lubricating liquid during daily work.
(4) Using elastic coupling to transmit power can compensate for small deviations caused by installation. When pump working is subject to the inevitable hydraulic shock, it can play a good buffering effect.
(2) This series of pumps has good self-priming fuction, so it is not necessary to pour liquid into the pump every time before starting the pump.
(3) The lubrication of this series of pumps is automatically achieved by the conveyed liquid, so there is no need to add
lubricating liquid during daily work.
(4) Using elastic coupling to transmit power can compensate for small deviations caused by installation. When pump working is subject to the inevitable hydraulic shock, it can play a good buffering effect.
Product Parameter
Model | Flow(m3/h) | Speed(r/min) | Pressure(Mpa) | Cavitation margin(m) | Efficiency(%) | Power(KW) |
KCB-18.3 | 1.1 | 1400 | 1.45 | 5 | 44 | 1.5 |
KCB-33.3 | 2 | 1420 | 1.45 | 5 | 44 | 2.2 |
KCB-55 | 3.3 | 1400 | 0.33 | 7 | 41 | 1.5 |
KCB-83.3 | 5 | 1420 | 0.33 | 7 | 43 | 2.2 |
KCB-135 | 8 | 940 | 0.33 | 5 | 46 | 2.2 |
KCB-200 | 12 | 1440 | 0.33 | 5 | 46 | 4 |
KCB-300 | 18 | 960 | 0.36 | 5 | 42 | 5.5 |
KCB-483.3 | 29 | 1440 | 0.36 | 5.5 | 42 | 11 |
KCB-633 | 38 | 970 | 0.28 | 6 | 43 | 11 |
KCB-960 | 58 | 1470 | 0.28 | 6.5 | 43 | 18.5 |
KCB-1200 | 72 | 740 | 0.6 | 7 | 43 | 37 |
Model | L | H | B | A |
KCB-18.3 | 566 | 230 | 259 | 52 |
KCB-33.3 | 618 | 285 | 279 | 52 |
KCB-55 | 592 | 230 | 259 | 70 |
KCB-83.3 | 652 | 285 | 279 | 78 |
Application
Packing & Delivery
Our company
FEILI PUMP CO.,LTD was established in 2009. The company mainly produces submersible pumps, slurry pumps, pipeline pumps, solar pumps, fountain pumps, self-priming pumps, etc. We introduced the ISO9001 quality system to strictly control incoming materials quality , have promoted mid-to-high-end products to the global market, gain a lot of International Certification such as CE, CB and gobtained multiple patent certificates, while cultivating a group of outstanding technical backbone and skilled workers. Our Company Vision is: The world knows what I do, we hope can change life. Continuously provide high-quality, cost-effective water pumps to all groball customers used to solve water and sanitation problems.
Other products
Похожие товары

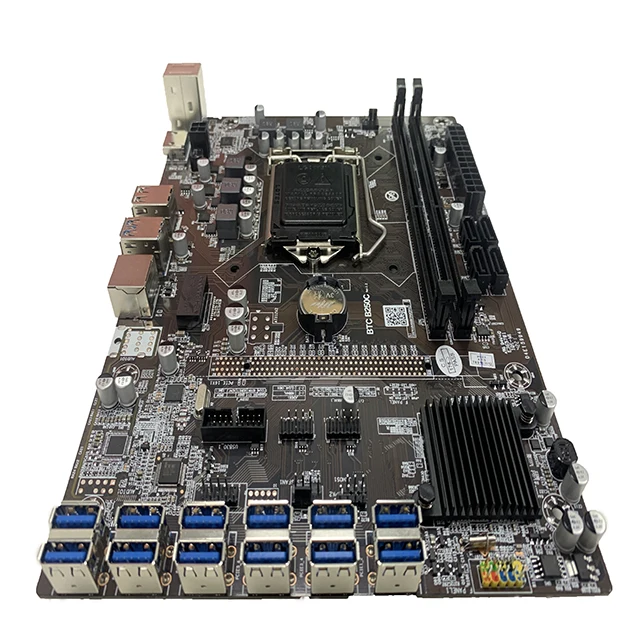

2021 профессиональная видеокарта материнская плата B250 поддерживает 12 слотов
80,00 $ - 90,00 $
Пластиковый протеиновый шейкер с аккумулятором 22 унции для вихревого смесителя, перезаряжаемый через USB Электрический шейкер, оптовая продажа
8,49 $ - 10,49 $
Оптовая продажа, пластиковые шейкеры OLERD 400 мл, шейкер для протеина, экологичный шейкер для тренажерного зала, бутылка с смешивающим шариком
0,57 $ - 1,29 $
Мужская Ночная рубашка средней длины с катионным коралловым флисом, Женский фланелевый теплый халат для мужчин
4,00 $ - 4,50 $
Спортивный шейкер YXJ012 Hello Master, белая матовая бутылка для питья, стеклянная бутылка для воды, оптовая продажа
0,99 $ - 5,00 $
Оптовая продажа 304 нержавеющая сталь Индивидуальные Логотип Спортивный порошок встряхивания металла 25 унц. Бутылки белка Smart тренажерный зал шейкер бутылки
2,46 $ - 3,52 $

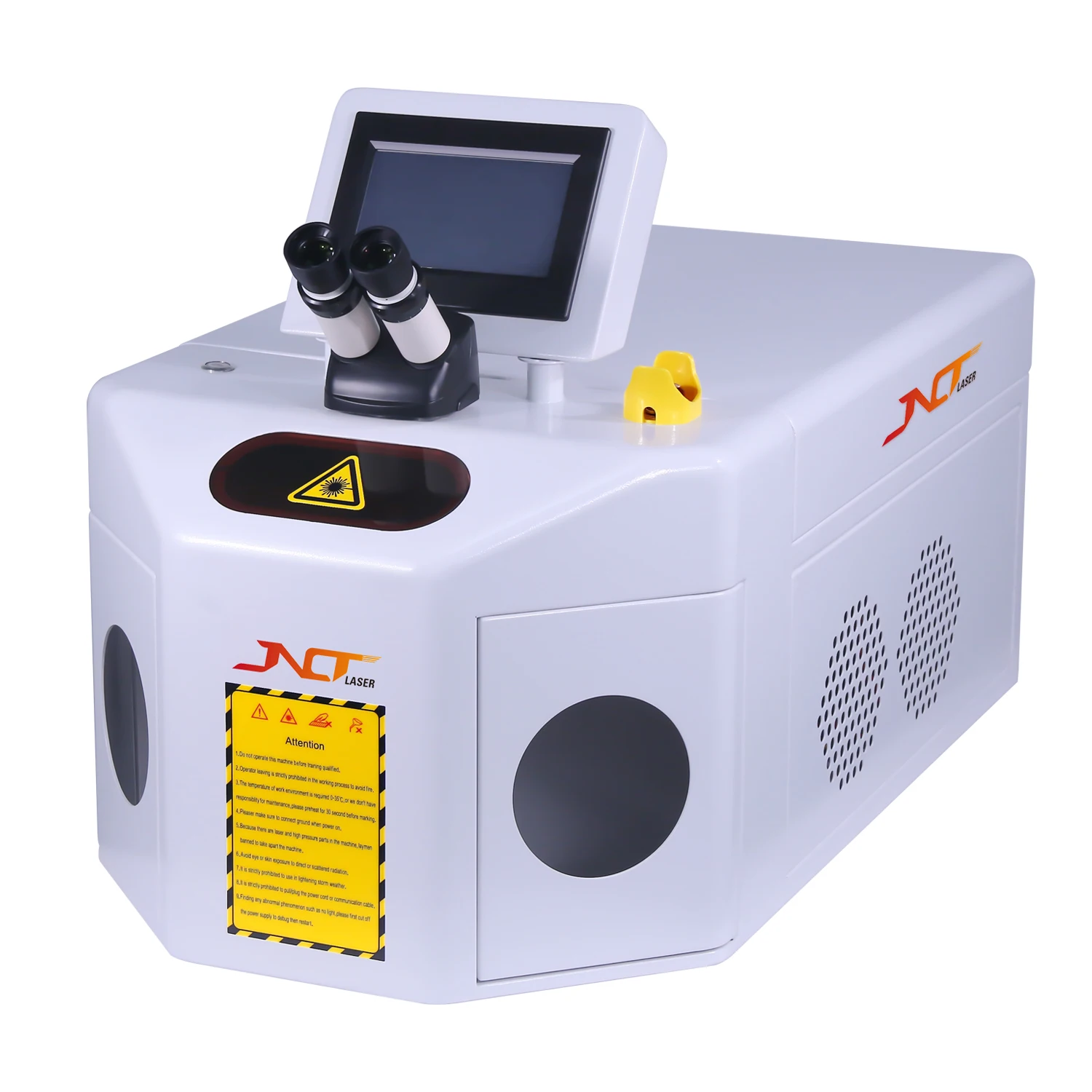

Цзинань 200 Вт Yag метал покрытый золотом серебром стоматологическая украшений для ремонта ювелирных изделий Настольный лазерный сварочный аппарат точечной сварки накопленной энергией
