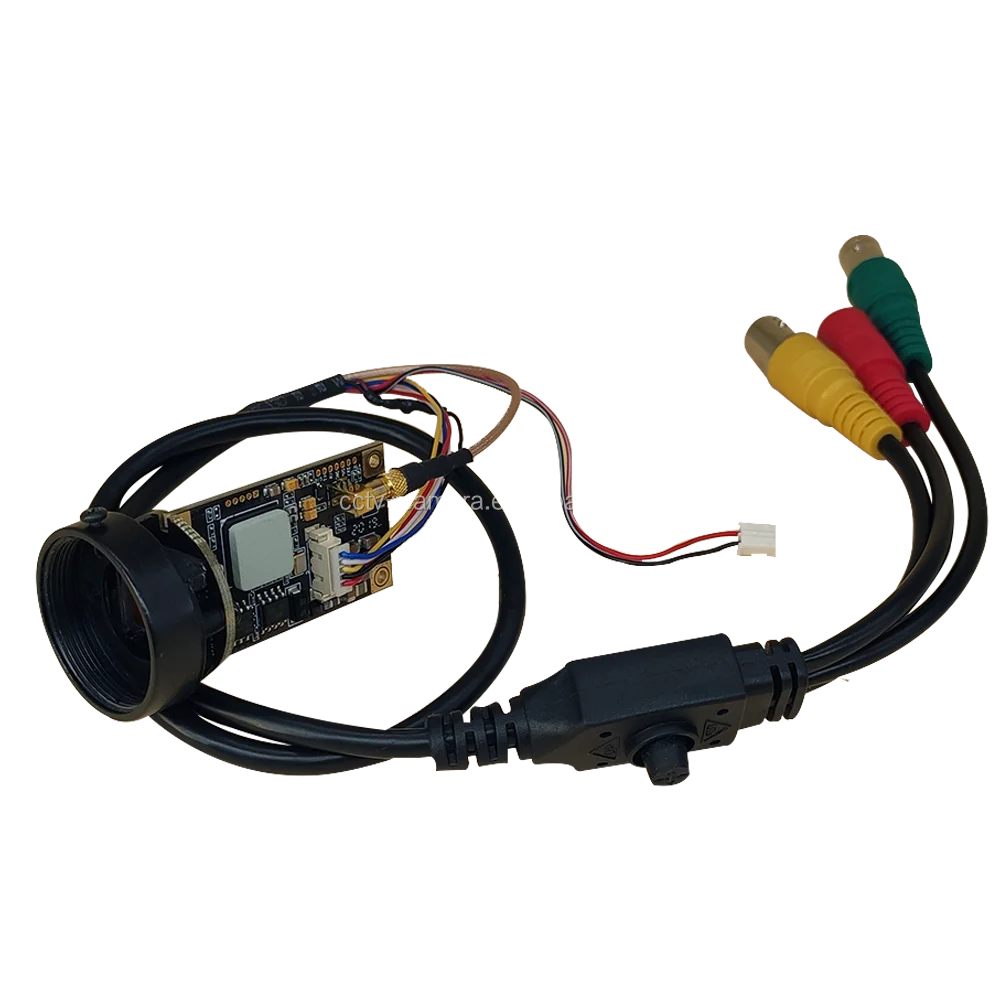

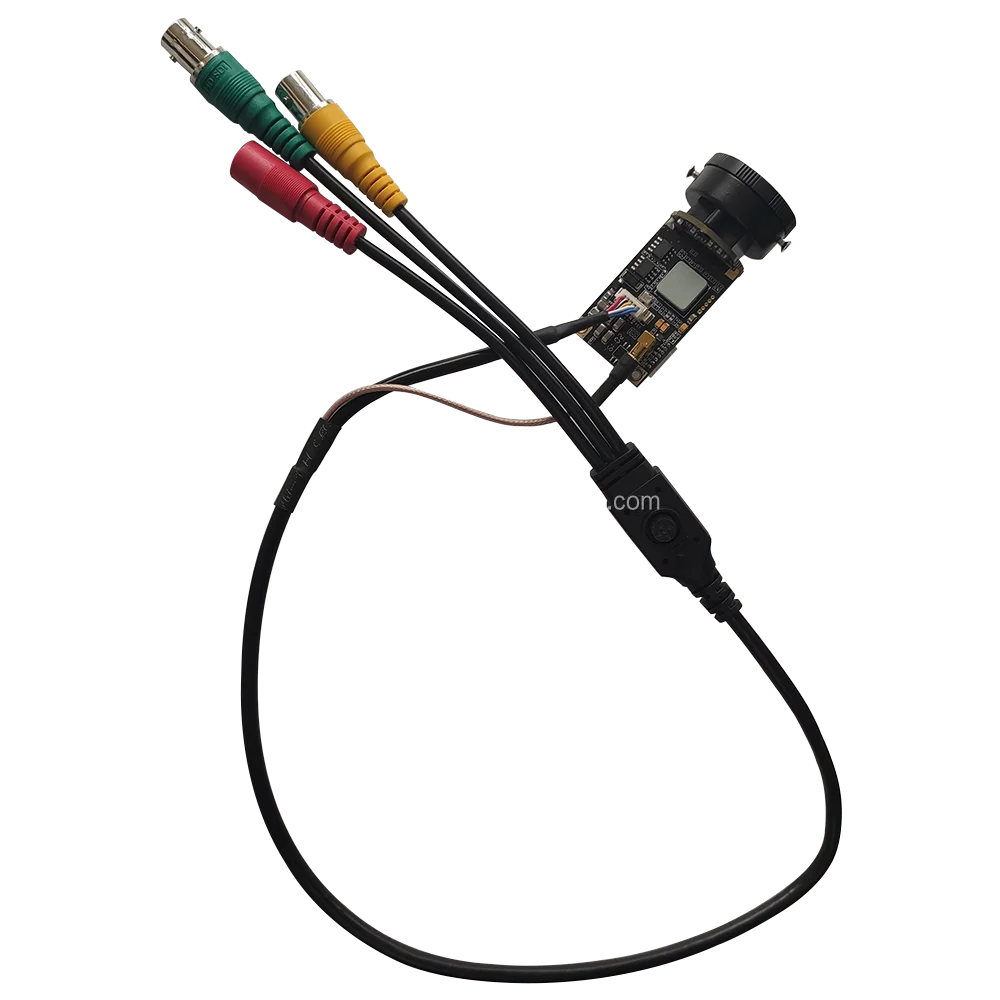

Эндоскоп для профессионального использования в больницах EX 3G HD SDI 120fps с одним нажатием на баланс белого система эндоскопической камеры
- Категория: >>>
- Поставщик: Htw Tech Limited
Сохранить в закладки 1600417869302:
Описание и отзывы
Характеристики
Product Description
Product Name | Endoscope Camera Module |
Model | TT-7838MD |
Function / Application | Medical Endoscope Camera such as Urology Endoscope, Vagina Endoscope, Nose Endoscope, Ear Endoscope, ENT Endoscope Camera |
Major Features

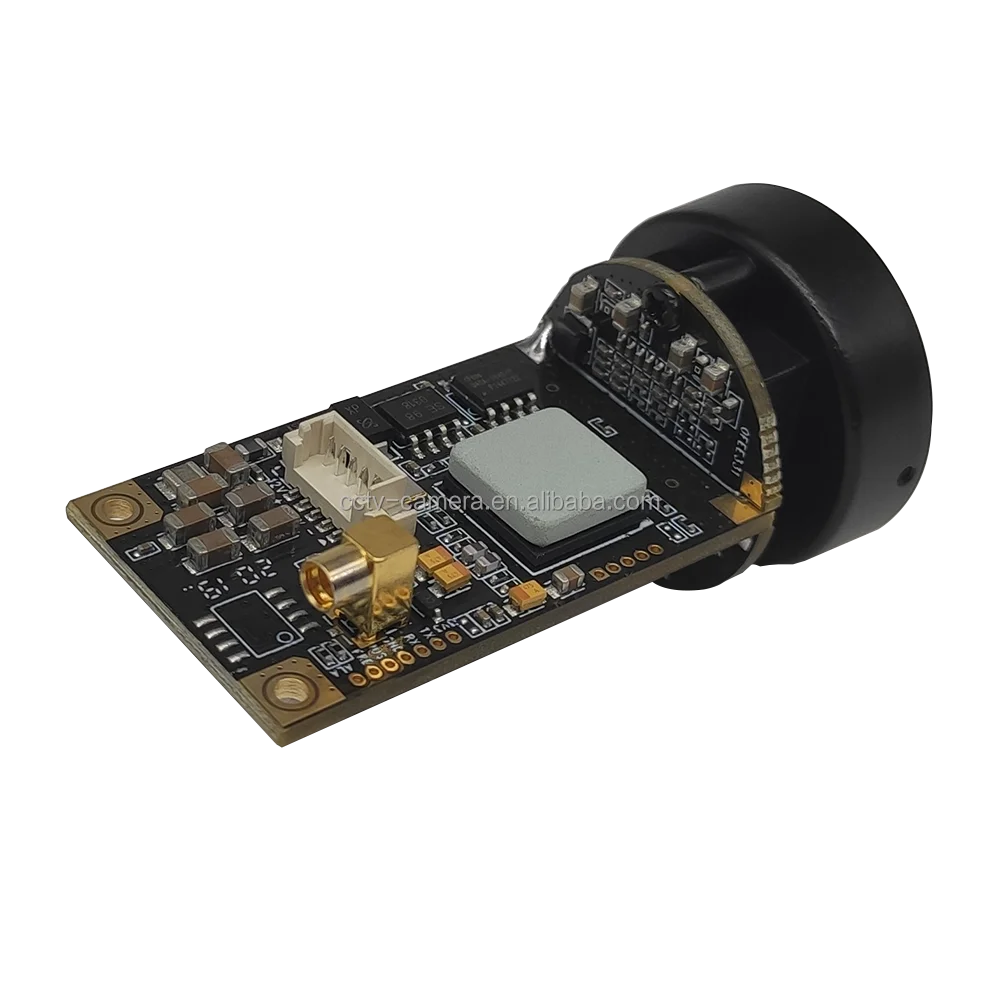

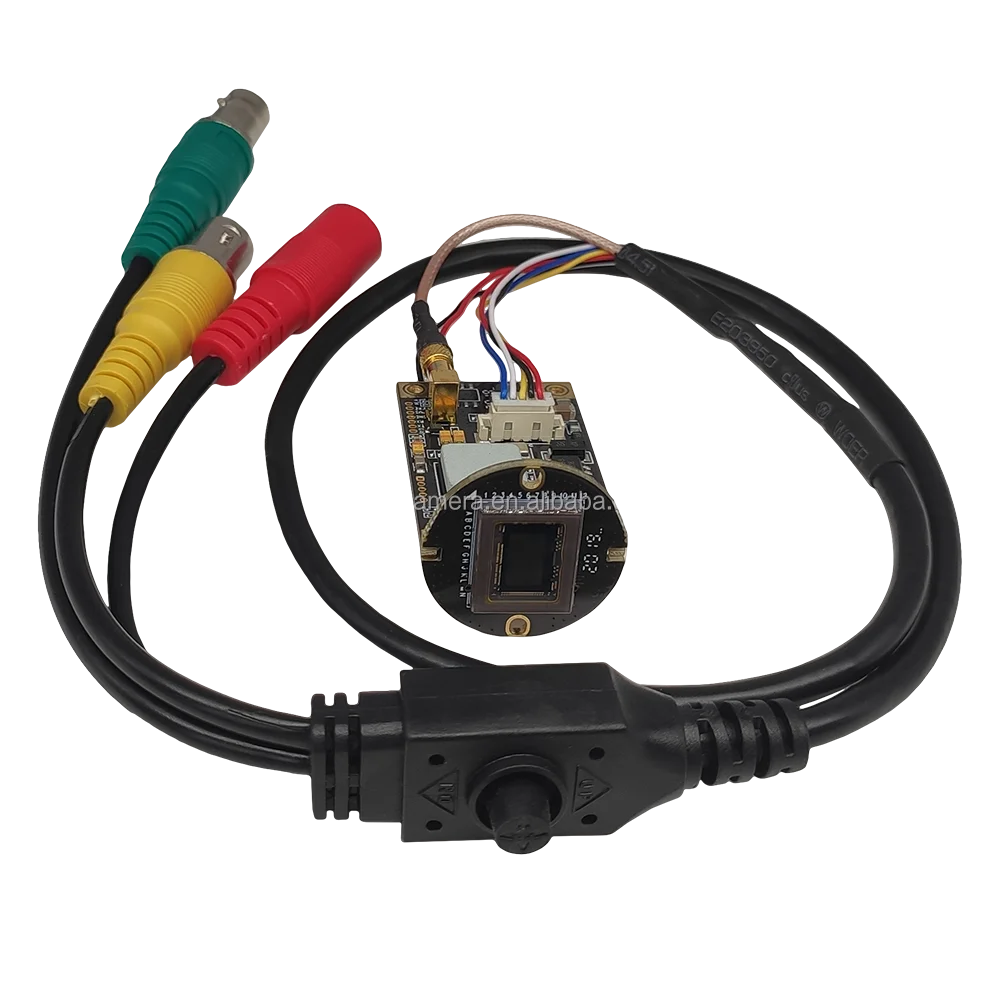

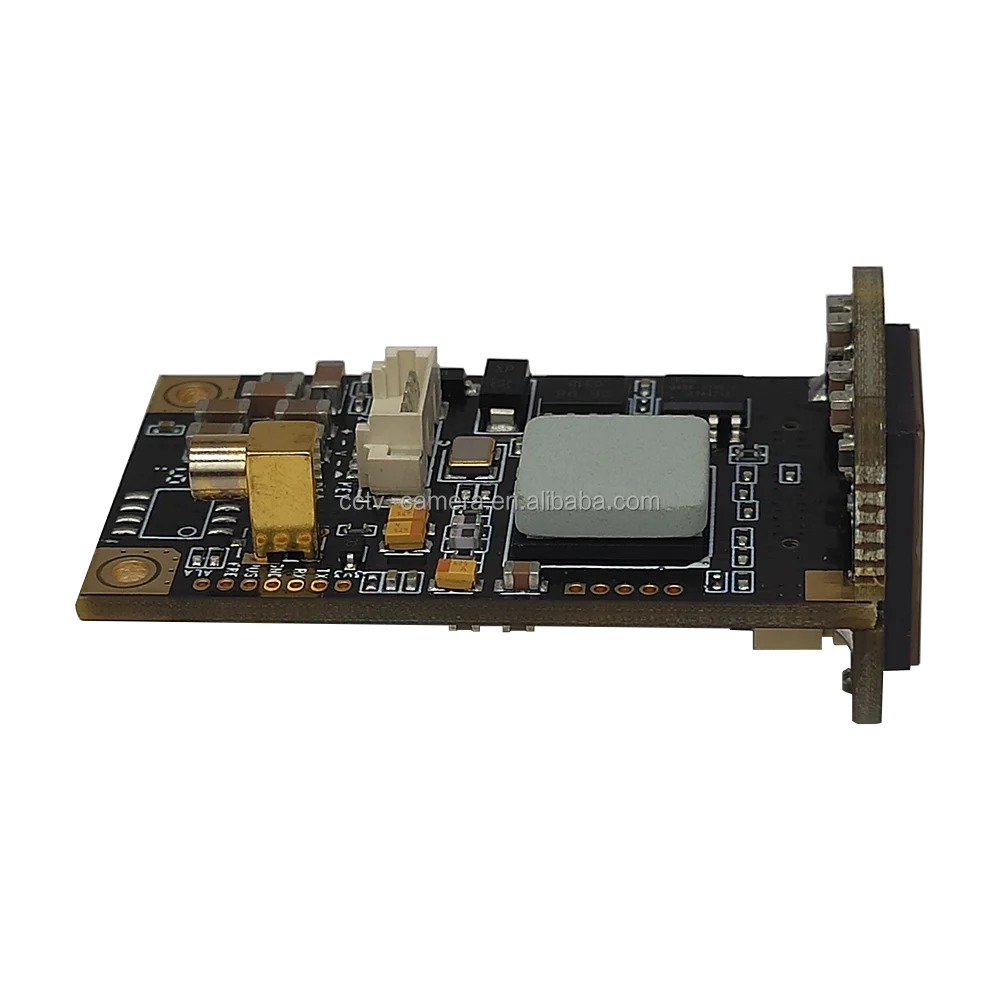

Medical Endoscope Camera Module
Color 1/2” Sony CMOS Sensor
2.0MP 1080P 60FPS
Output: 3G-SDI, EX-SDI, HD-SDI
Sensor: Star-light Camera Board
Color 1/2” Sony CMOS Sensor
2.0MP 1080P 60FPS
Output: 3G-SDI, EX-SDI, HD-SDI
Sensor: Star-light Camera Board
AWB WDR DNR Sense up Electric Shutter Mirror
Application: Medical Endoscope Camera such as Urology Endoscope, Vagina Endoscope, Nose Endoscope,
Application: Medical Endoscope Camera such as Urology Endoscope, Vagina Endoscope, Nose Endoscope,
Ear Endoscope, ENT Endoscope Camera
Detailed Images
Product Specifications
Image Sensor | Color 1/2” Sony CMOS Sensor |
Total Pixels | 1952 (H) * 1241 (V) Approx. 2.42 Mega Pixel |
Effective Pixels | 1945 (H) * 1225 (V) Approx. 2.38 Mega Pixel |
Scanning System | Progressive |
Resolution | Digital: 1080P (60fps/30fps) / 720P (60fps/fps) |
Min-Illumination | Color: 0.00001Lux, Color: DSS: 0.000001Lux. |
Video Output | Digital Output: EX-SDI (1080p); Analog Output: HD-ADH (1080P), CVBS (960H) |
S/N Ratio | More than 42dB (AGC off) |
ACE & WDR | Off/Low/Middle/High; WDR SNR: 120dB |
Lens | Motor/DC/Manual/Fixed |
Brightness | 0-20 |
AGC | 0-10 steps |
Sens-up | Off/X2/X4/X8/X16/X32 |
Shutter Speed | AUTO/MANUAL (1/50\\60-1/60,000 sec) |
Defog | Off/On, Low/Middle/High |
Shading | Off/On |
BLC | Off/BLC |
Day & Night | Off/HLC |
Color (AWB) | Auto/Color/B&W/EXTERN |
DNR | Auto/Auto Ext/Preset/manual |
Mirror | Off/On |
H-V-REV | Off/On |
Sharpness | 0-10 Steps |
Digital Zoom | 1.0X-16.0X |
Motion | Off/on, Alarm Output |
Privacy Mask | 24 Masks |
Language | English/Chinese |
Power (Max.) Supply | DC12V+-10% less 1.8W |
Video Output | 3G-SDI, EX-SDI, HD-SDI, TVI, AHD, CVI, CVBS |
EX-SDI Distance | BNC Cable 75-3 can transmit 500 meters or above. |
Size | 25*45mm |
Company Introduction
TT INT'L / HTW has performed a remarkable achievement in Security Field since its established in 2004, based in Shenzhen China over the decades, we experienced from the traditional CCD CVBS/SDI Analogue Camera period went through to the HD CMOS Camera period, and till current popular 4K IP Camera and Face Camera System, HD Cloud Home Wi-Fi Camera and HD USB Webcam.
Our Services & Strength
With 15 years of manufacturing and exporting experiences in surveillance monitoring, TT/HTW has been focusing on its quality and services with best competitive prices ever since, with highly experienced R&D team, advanced SMT machines and professional management teams, combined together to guarantee the quality control system in order to deliver the only qualified products to our customers.
Certifications
FAQ
1. What's the MOQ?
No MoQ
2. What is your quality warranty?
2-year warranty.
3. Should we use our logo/brand?
Yes, of course. OEM is absolutely supported.
4. What certifications do you have?
All our products are with CE and RoHS certificates.
5. What’s the lead-time?
2-3 working days for sample orders, and 5-7 working days for regular small orders, 10-15 working days for large quantity orders.
6. Are you factory or trade company?
We are security camera NVR and DVR manufacturer since 2004 located in Shenzhen, Guangdong, China.
7. Do you hold quantities in stock ready to ship?
Some model read to ship, some we have raw materials
8. What about your after-sale services?
as you can see from our Alibaba shop that we have 5 star review and on time response
No MoQ
2. What is your quality warranty?
2-year warranty.
3. Should we use our logo/brand?
Yes, of course. OEM is absolutely supported.
4. What certifications do you have?
All our products are with CE and RoHS certificates.
5. What’s the lead-time?
2-3 working days for sample orders, and 5-7 working days for regular small orders, 10-15 working days for large quantity orders.
6. Are you factory or trade company?
We are security camera NVR and DVR manufacturer since 2004 located in Shenzhen, Guangdong, China.
7. Do you hold quantities in stock ready to ship?
Some model read to ship, some we have raw materials
8. What about your after-sale services?
as you can see from our Alibaba shop that we have 5 star review and on time response
Похожие товары

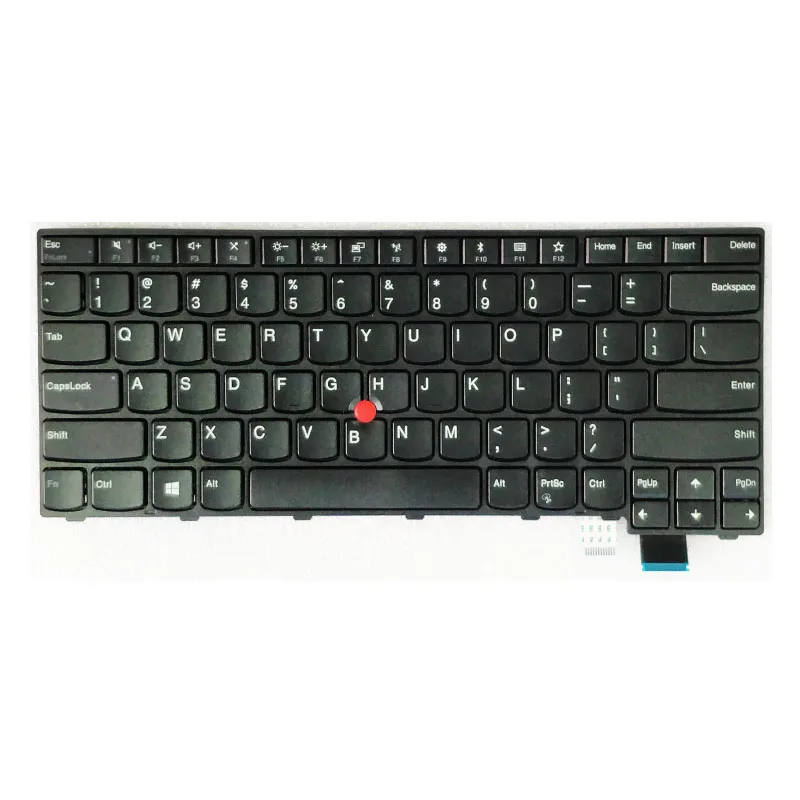

Новая/Оригинальная клавиатура ThinkPad T470S US Wo/с подсветкой 01EN600
29,00 $ - 39,00 $
Высококачественный плоттер для Контурной Резки 72 дюйма, оптом, по индивидуальному заказу, китайский большой производитель, хорошая цена
610,00 $ - 630,00 $
Moosun красота цифровой двойной восковой горшок для удаления волос двойной восковой обогреватель
50,00 $
ЖК-панель, крышка, клавиатура 0005-4050-710
180,00 $ - 198,00 $

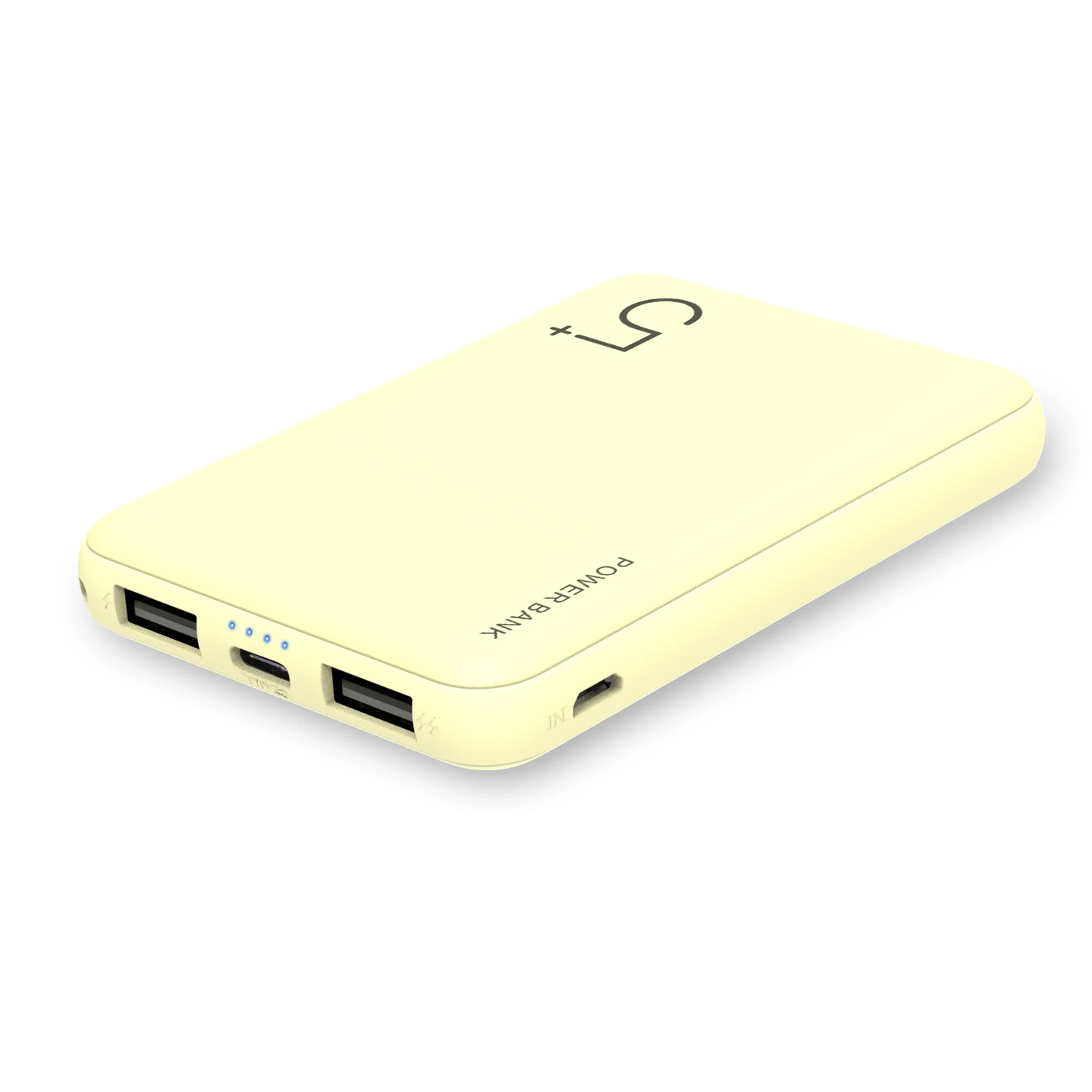

HDF 12 лет завода 5000mAh универсальный портативный внешний аккумулятор

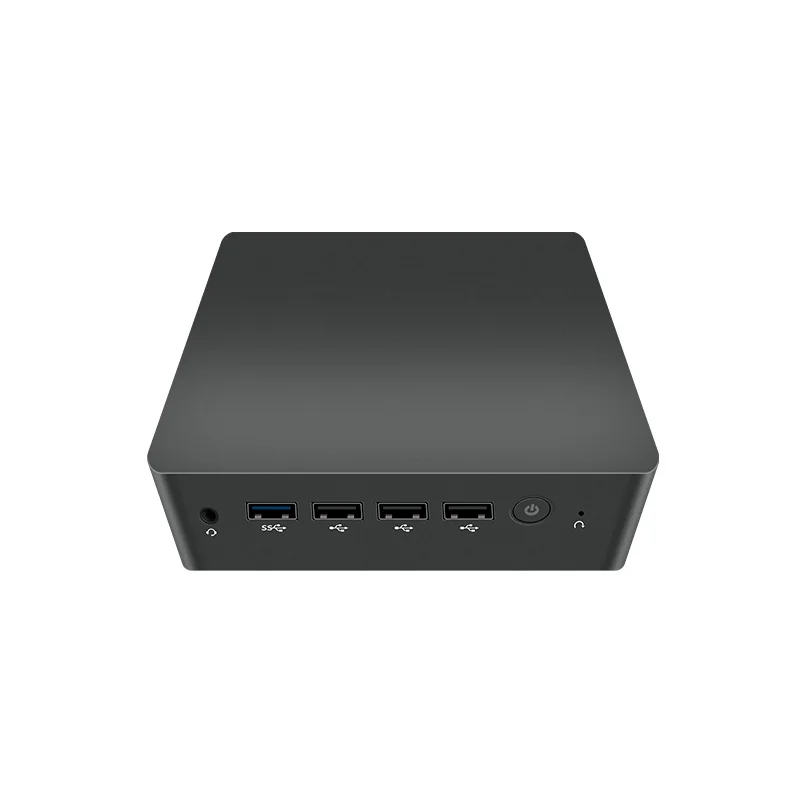

2023 Новый мини-ПК 12-го поколения Windows11 процессор Intel N100 8 ГБ Ddr5 4800 мГц 256 карман 12 В двойной Lan Мини

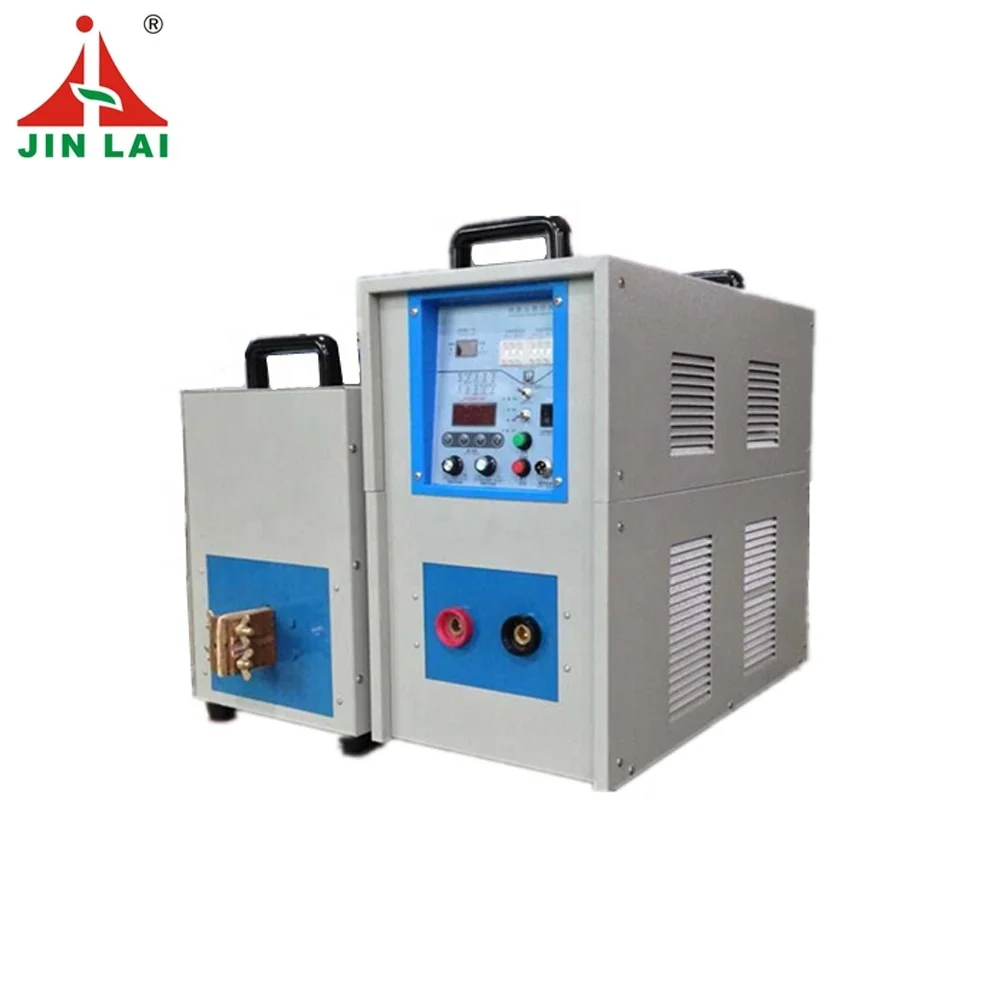

Цена производителя, высокочастотный подшипник, индукционный нагреватель (JL-40)
