Product Description
Specification
Mode | GD-1325 |
XY working area | 1300*2500mm(customized) |
Z axis | 200mm |
Transmission system | XY axis: Helical gear rack Z: Taiwan TBI ball screw |
Guide rail | Taiwan Hiwin/PMI linear square rail |
Working Table | Vacuum adsorption |
Repositioning Accuracy | ±0.03mm |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle | 9.0kw ATC air cooling spindle |
Control system | Taiwan SYNTEC control system |
Command | G-code |
Drive system | Japan YASKAWA servo motor and driver |
Inverter | Delta |
Spindle Speed | 0-24000rpm/min |
Working Voltage | AC380V±10%, 50/60Hz |
Warranty | One year |
Payment | 30% T/T in advance, the balance to be paid before shipment |
Package | wooden case |
Product features:
1.This ATC CNC router machine adopts automatic tool changer spindle makes machine with high precision, long service time and stable movement.
2. Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
3.Vacuum worktable in European standard are used in this atc router table cnc for carpentry, positioning cylinder can be added which make material positioning easily and fast.
4.With high-performance Japan YASKAWA servo motor, the Machine can work in high precision.The servo motor runs smoothly,no
vibration phenomenon even in the low speed.And it has a strong ability of overload.
5. Syntec controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
6. Z axis adopt Taiwan TBI ball screw transmission, X/Y/Z axis adopt Taiwan Hiwin square rail high precision, the structure is
more stable.
7. Delta inverter, is one of the best inverter over the world,in addition to the advantage of Fuling inverter, the life time of Delta inverter is more longer and it can guarantee higher precision.
2. Configured with Linear tool magazine of 10, 12 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
3.Vacuum worktable in European standard are used in this atc router table cnc for carpentry, positioning cylinder can be added which make material positioning easily and fast.
4.With high-performance Japan YASKAWA servo motor, the Machine can work in high precision.The servo motor runs smoothly,no
vibration phenomenon even in the low speed.And it has a strong ability of overload.
5. Syntec controller—enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
6. Z axis adopt Taiwan TBI ball screw transmission, X/Y/Z axis adopt Taiwan Hiwin square rail high precision, the structure is
more stable.
7. Delta inverter, is one of the best inverter over the world,in addition to the advantage of Fuling inverter, the life time of Delta inverter is more longer and it can guarantee higher precision.
Show details

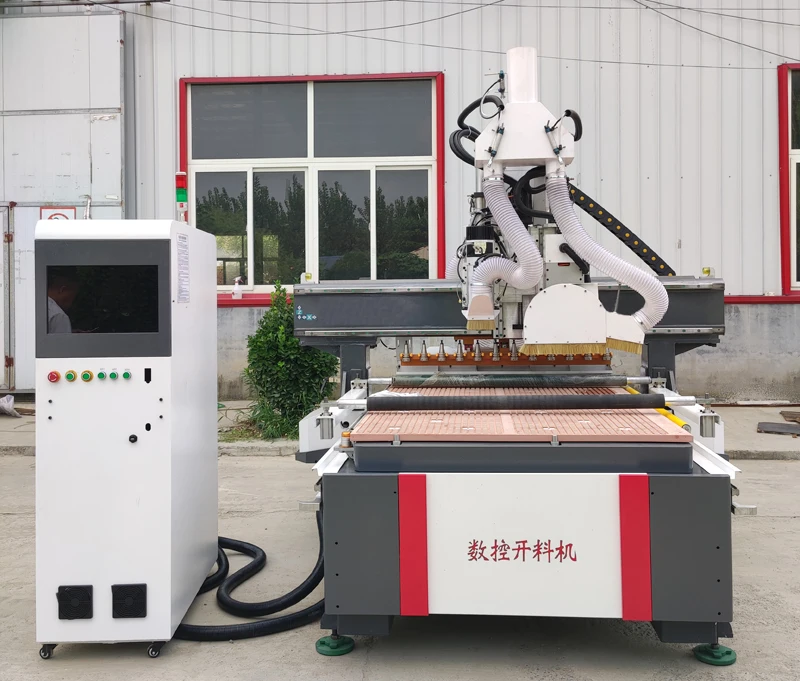

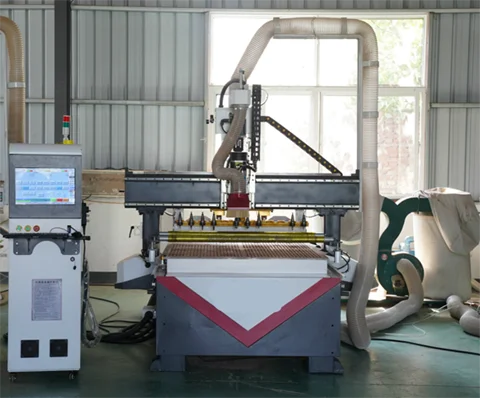

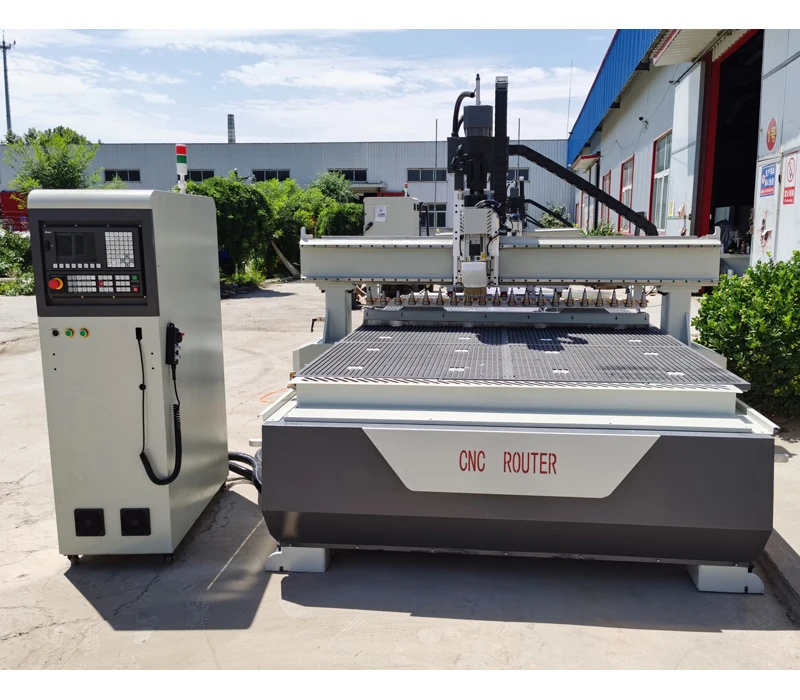

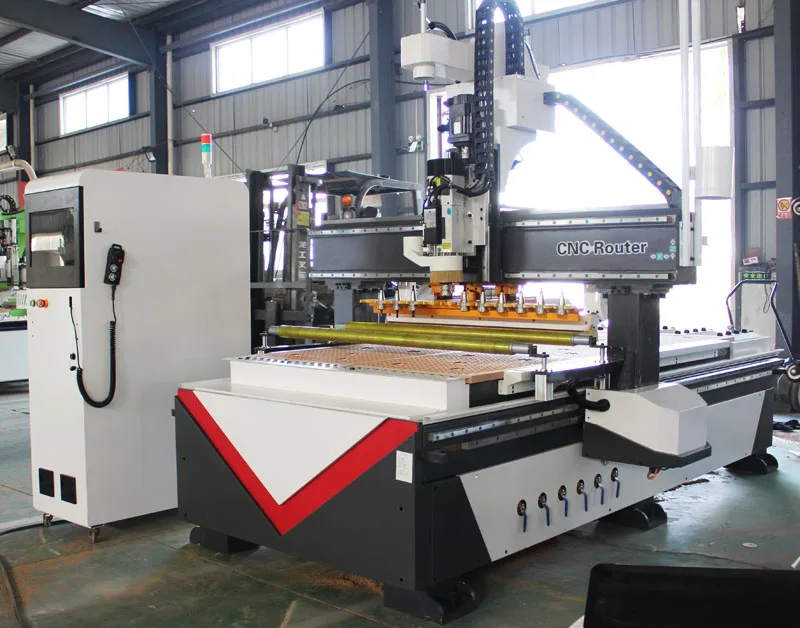

Samples Display
Packing & Delivery

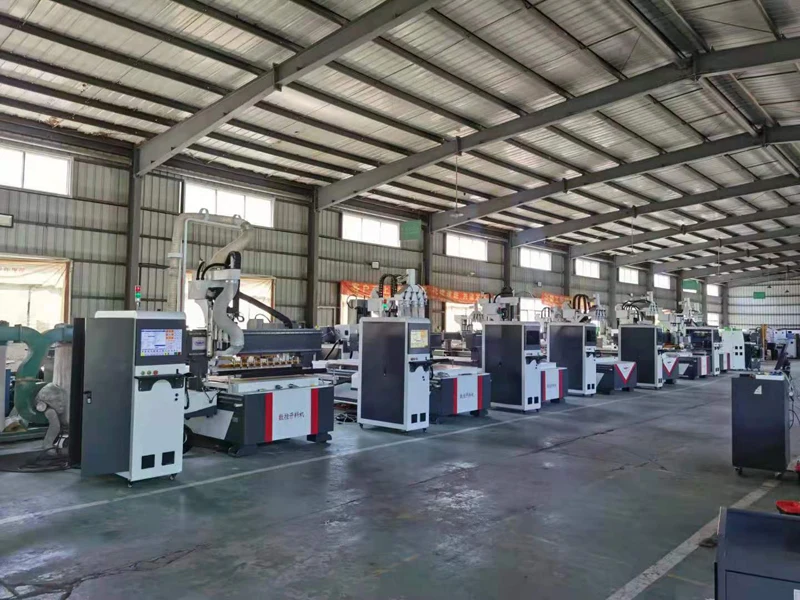

Company Profile
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
Our Service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate..
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate..
