Высокочастотный импульсный измеритель воды lorawan с сенсорным экраном

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..

System structure diagram as follows

· server send commands to the data concentrator through network;

· concentrator transforms the received commands into radio signal and send the signal to the water meters;

· water meters respond and execute the commands accordingly;

· Water meters deliver the result or data back to the management center as per the original route after the actions finished.

Service

· Quality Gurantee: Water meter for 1 year;

· Support install guide & test in site;

· Date sheet can be sent to other management system easily.

Overview

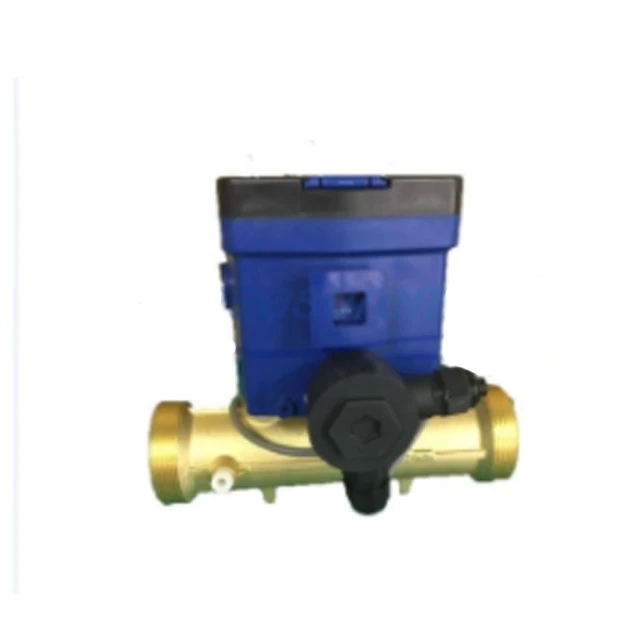

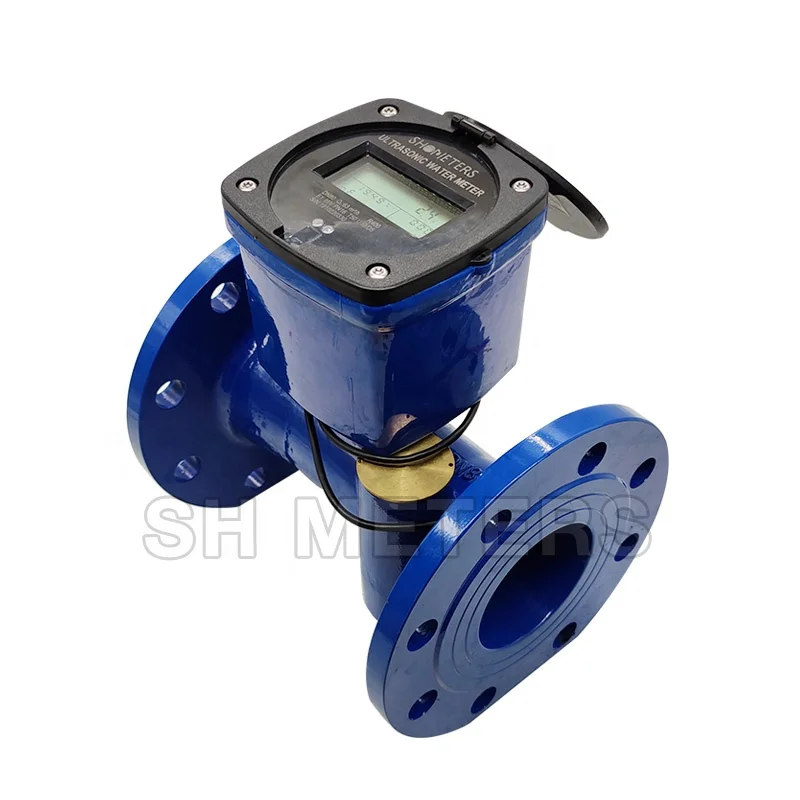

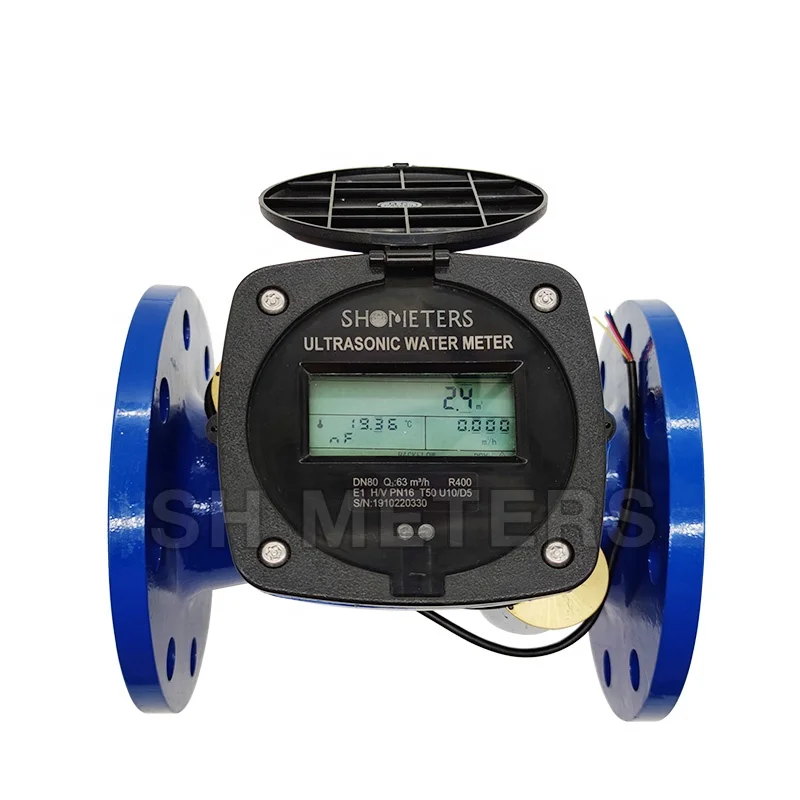

·Ultrasonic water meter's intelligent measuring instrument is consist by the temperature sensor , flow sensors and calculators.

·Could provide important application and data for many applications in the pipeline.

·Ultrasonic water meter is suitable for application environments requiring high range ratio(Q3/Q1)and forward and reverse metering.

·Calculator used sensor and through the time difference to collect temperature differences and sound waves to complete accurate measurement of water flow. And can provide important application and data for many applications.

·Features long service time and high accuracy

·Double-flange dry-type digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output

·With remote transmission system software to support reading and monitoring

·Provide a complete software metering and charging solution

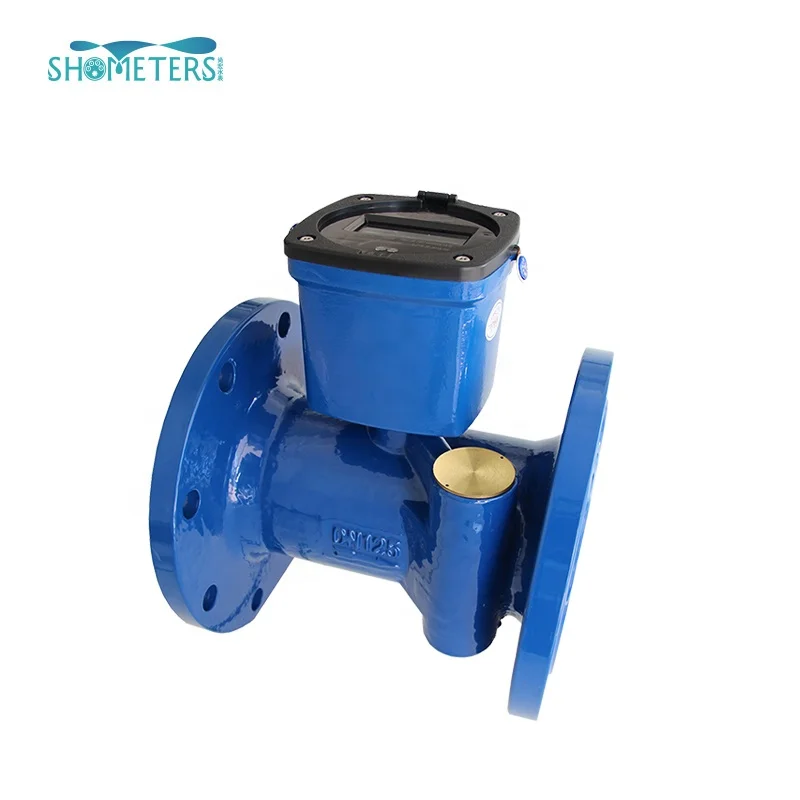

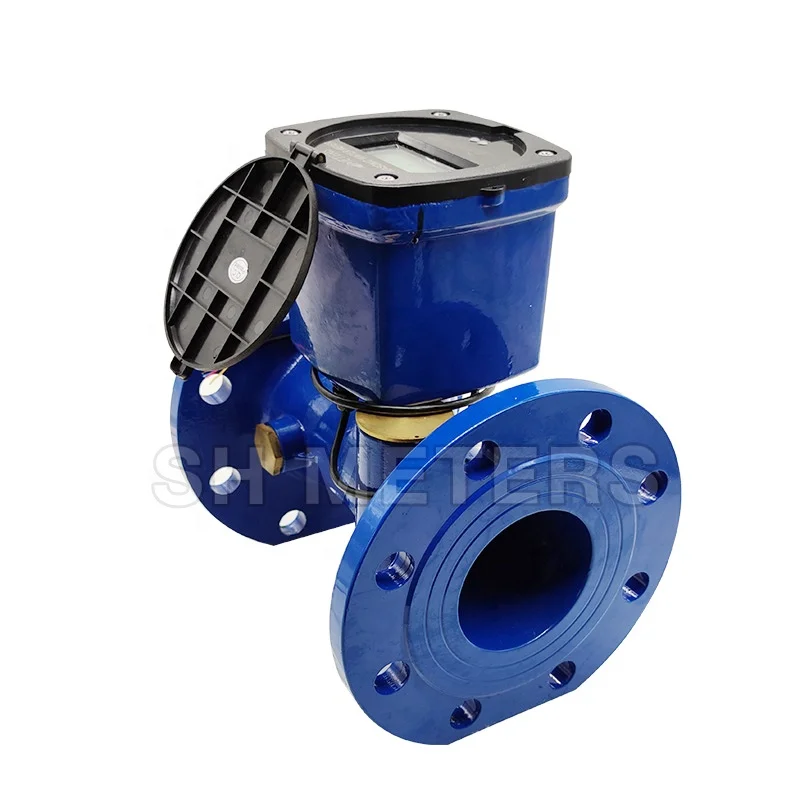

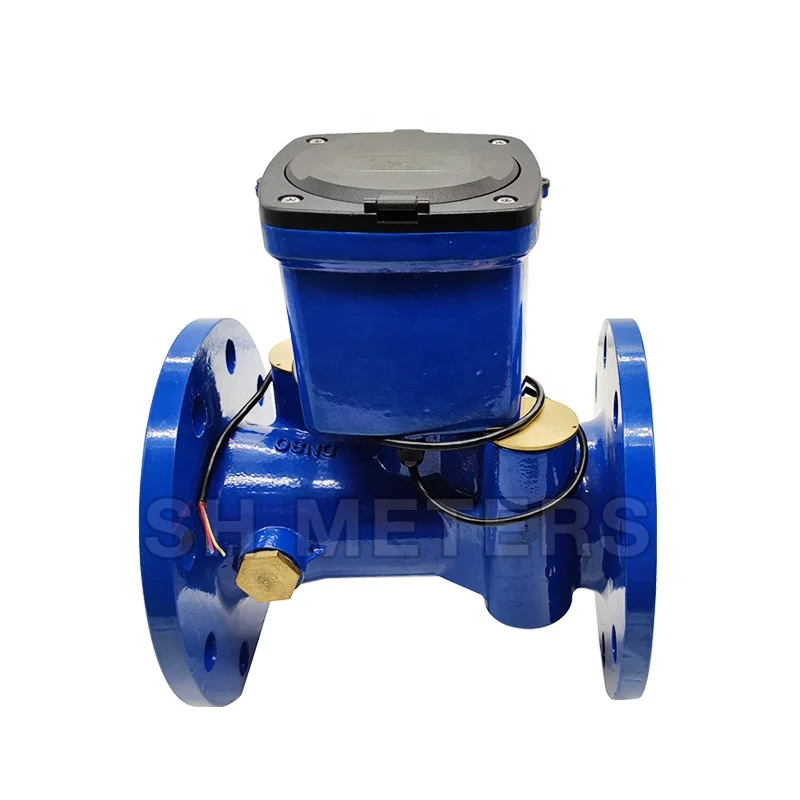

·Bulk Water Meter

Automatic leak measurement

Features

·Material:cast iron/ductile iron

·Applicable scene:home main pipe/apartment main pipe/domestic residential water supply main/leak/treatment plant/domestic residential/agriculture/irrigation/agricultural/irrigation /ground/aquaculture/commercial/general household/residential building/industrial/school/potable

·Technical data conform to international standard ISO 4064.

·communication:rs485 modbus/GPRS

·fitting:Pressure sensor/battery/lcd display/reading device/data logger/Flange set/liquid turbine/user interface unit

Working principle

The meter comprises the quality temperature sensor ,the flow sensor and the calculator. The temperature sensor to measure the temperature of water and the flow sensor to measure the volume of water that flow through the pipelines by the transit time difference.

The two data is sent to the calculator after being collected, the consumption water quantity is worked out, stored and indicated on the LCD finally.

Outline dimensional drawing

Outline dimension

Technical parameter

REMOTE WATER METER COMPARISON CHART

FREQUENTLY ASKED QUESTIONS

Water meter

1. How long is the battery life?

Using ER26500 batteries with a capacity of up to 9000 mAh and the frequency of reading meters once a day, the battery life can reach up to 8 years.

2. Waterproofing grade?

At present, the LoRa wireless water meter adopts the technology of full encapsulation and sealing. It uses the silicon gel packaging circuit board part, and the battery plug and socket is also sealed to reach the IP68 protection level.

3.Can your product run underwater?

This product can be soaked in water, but soaking in water will affect the stability of signal transmission, because the signal transmission in water will be greatly affected

4. Can you make Lora ultrasonic valve-controlled water meter?

No, because the built-in valve will have a greater impact on the stability of the ultrasonic measurement, the higher the frequency of the switch valve, the greater the impact on the accuracy of measurement.

5. If the valve cannot be closed or opened, how can it be found and handled?

If the valve is blocked by sand and gravel flowing into the pipeline, the program in the water meter will try to execute the action of the on-off valve within 40S.

If the valve can not be switched normally, the water meter will give up the instruction and return the failure data to theplatform.

On the platform, the relevant information of the water meter can beviewed for the convenience of the management.

Pre-sales and after-sales service

1. Pre-sales service

Patient product introduction.

AMR system demonstration.

Project cases introduction.

Supporting sample order.

2. After-sales service

Instalation intructions, include software parts and water meters parts;

Support data butt to the third management system;

installation supervision, commissioning ad training on site;

Keep long time follow up & services even beyond warranty time.

Communication and serve platform

1. Does the GPRS wireless water meter need a concentrator or a collector?

No, because the GPRS wireless water meter uses the existing GPRS communication tower for data transmission, which is similar to the mobile phone signal transmission.

2.How many Lora water meter can be connetted into one concentrator?

At present, the maximum carrying capacity of one concentrator is

500 pieces.

Considering the actual installation density of the community, generally speaking, it will be much lower than this number.

3.What data can the platform collect from water meters?

At present, our platform can collect accumulative flow rate, battery voltage, upload time on the water meter, and ultrasonic LoRa can also collect instantaneous flow rate.

4. How does the concentrator transmit data?

The concentrator needs 220V power supply and uses GPRS to transmit data to the PC platform.

5. How about the transmission distance?

The distance of LoRa data transmission is mainly affected by the actual installation environment. In relatively spacious transmission environment, the transmission distance can reach 1000-1500 meters.

Generally speaking, the concentrator will be installed at the commanding heights of the community.

GPRS water meter Under the GPRS signal, the data uploaded by GPRS water meter is not affected by distance.

6.How do you know that the water meter is out of order and there is no data to return?

First, we can check the alarm function on the platform to see that the water meter has no data return, and then check the installation environment to see if there is obvious damage, and can use the initiative to trigger the water meter to be on-line way.

7. Is the platform free? Can it pay in advance?

It is free, and the administrator can pre-charge the amount of money

It is free, and the administrator can pre-charge the amount of money

on the platform and set up user information files for each useron the platform and set up user information files for each user.

8. Warranty?

All meters will be guaranteed against defects in workmsnship and meterials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the SHMETERS.
