9290 021 28506 Xi FP 75W 0 3 1.0A snldae 230V S240 sXt площадь освещения туннеля

9290 021 28506 Xi FP 75W 0 3 1.0A snldae 230V S240 sXt площадь освещения туннеля

Категория: >>>
Поставщик: Shanghai Bipeng Lighting Company LimitedShanghai Limited

Цена:2 910,46-3 632,26 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

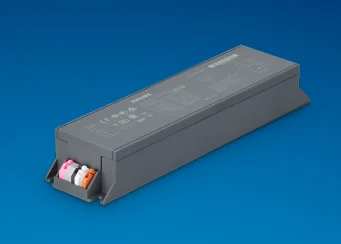

Xitanium FULL Prog LED Xtreme drivers

Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and
configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2
reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime.

In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and
will bring significant improvement in programming, assembly into a luminaire and electrical performance

Benefits

• Ultimate robustness, offering peace of mind and lower maintenance costs

• Fully programmable LED-drivers designed for the new
digital and connected lighting world

• Extended diagnostics via MultiOne

• Easy to design-in, configure and install for Class I
and Class II applications

• Energy savings through high efficiency and via multiple dimming options

Features

• High surge protection (CM/DM)

• Long lifetime and robust protection against moisture, vibration and temperature

• Configurable operating windows (AOC)

• Multiple control interfaces: DALI, AmpDim, 1-step and 3-step LineSwitch • Autonomous dimming via
integrated DynaDimmer

• Adjustable thermal protection for driver (DTL) and LED module (MTP)

• Constant Light Output (CLO)

• Adjustable Start-up Time (AST)

• Adjustable Light Output (ALO)

• End-Of-Life indicator (EOL)

• Communication through mains via
coded commands

• Compliant per DALI Part 251/252/253 (select models)

Application

• Road and street lighting

• Area lighting

• Tunnel lighting

• Industrial lighting

Specification item	Value	Unit	Condition
Rated input voltage range	202...254	Vac	Performance range
Rated input voltage	230	Vac
Rated input frequency range	47...63	Hz	Performance range
Power factor	0.99		@ rated output power @ rated input voltage
Rated input voltage DC range	186...250	Vdc	Performance range, no external DC-rated fuse required
Input voltage AC range	80...264	Vac	Safety operational range, see MainsGuard graph
Input frequency AC range	45...66	Hz	Safety operational range
Input voltage DC range	168...275	Vdc	Safety operational range
Standby Power	0.45	W
Isolation input to output	Double
Regulation method	Constant Current
Output current tolerance	± 3	%
Output current ripple LF	≤ 4	%	Ripple = peak / average @ < 3kHz
Control method	AmpDim, Coded Mains, DALI, Dynadimmer, LineSwitch 3-step, LineSwitch single-step		Output current amplitude dimming. Please refer to design-in guide at www.philips.com/oem for more controllability details.
Dimming range	10...100	%	For latest DALI certification status please visit www.digitalilluminationinterface.org/products; LineSwitch: Vlow: < 160Vac Vhigh: 170 ... 264Vac
Isolation controls input to output	Double		acc. IEC61347-1
Ambient temperature	-40...+55	ºC	Higher ambient temperature allowed as long as Tcase-max is not exceeded
Maximum housing temperature	130	ºC	In case of a failure, inherent by design
Relative humidity	10...90	%	Non-condensing
Driver lifetime	100,000	hours	Measured temperature at Tcase-point is Tcase-life. Maximum failures = 10%
Ambient temperature	-40...+85	ºC
Relative humidity	5...95	%	Non-condensing
Mains surge immunity (diff. mode)	6	kV	L-N, Ls-L, Ls-N, acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us
Mains surge immunity (comm. mode)	10	kV	L/N/Ls - EQUI 10kV acc. EN61547; 8kV acc. IEC61000-4-5, 12 Ohm 1.2/50us,8/20us
Control surge immunity (diff. mode)	0.9	kV	DALI - DALI, acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us
Control surge immunity (comm. mode)	8	kV	DALI - L/N/Ls acc. IEC61000-4-5. 12 Ohm, 1.2/50us, 8/20us
Approval marks	CCC / CE / DALI 2 / Double-insulated Built-In / EAC / EL / ENEC / RCM / TISI / UA / WEEE

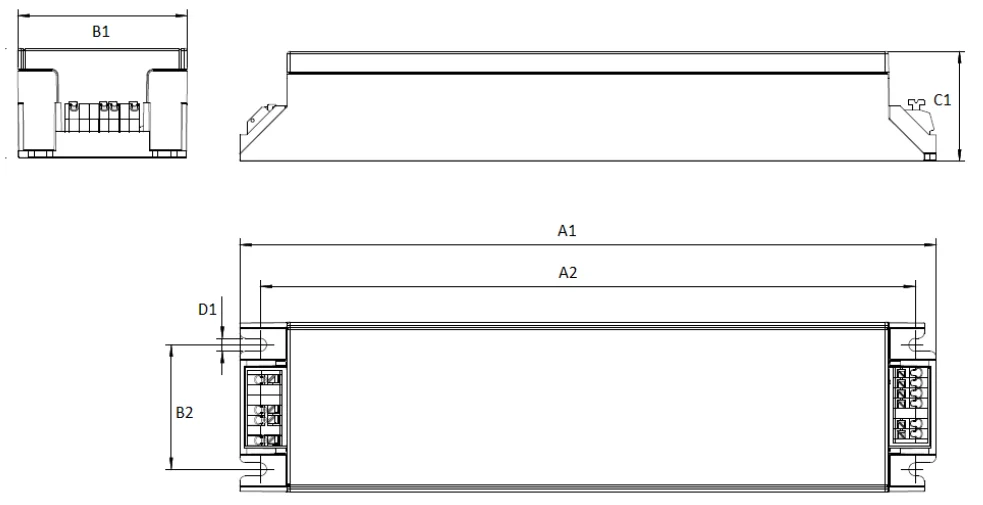

12NC	A1	B1	C1
929002128606	240.5 mm	58.6 mm	37.8 mm
929002128706	240.5 mm	58.6 mm	37.8 mm
929002128406	240.5 mm	58.6 mm	37.8 mm
929002128506	240.5 mm	58.6 mm	37.8 mm
929002172506	175 mm	46 mm	34 mm
929002128306	175 mm	46 mm	34 mm
929002172306	175 mm	46 mm	34 mm

FAQ

Q1. Are you Philips Authorized agents?
A:Yes, we can offer Philips Authorized Certificate.

Q2: What's your main products?
Led Drivers and modules. Road Light, Street Light and Highbay Lights.
We still can offer one step lighting Solution, depending on good cooperation relation with China(mainland) Lighting Manufacturers.

Q3. How about the delivery time ?
LED driver and modules Sample: 5-7days
LED driver and mudules Bulk Order: need recheck with us, usually 30-40 days.
LED Lights(sample& Bulk Order): need recheck with us, usually 30-40 days.

Q4. What is the Transaction terms ?
A: Samples: Cash before shipping.
B: Bulk Order: 50% in advance(deposit), 50% of the balance should be paid before shipping.

Q5. How is the Logistics and Transportation time ?
A Samples: International Express Service- DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
B.Bulk order : Airline and Sea shipping are available. Transportation time: need recheck with logistic company.

Q6. Do you have a minimum order?
Bulk order: Philips Original MOQ Packing(usually, 10pcs -12pcs in one carton).

Q7: How Long is the Quality assurance Time?

Philips Official Quality Assurance Time(Usually, 3-5years depend on products.)

Exhibition

Xiaobing Gao

Mob:+86 18616596457

E-mail: bean@bp-light.com

whatsapp:+86 18616596457

Kelly Tang

Mob:+86 18917790116
E-mail:sales@bp-light.com

whatsapp:+86 18917790116

Web: www.bp-light.com

Новые поступления

Новинки товаров от производителей по оптовым ценам

9290 021 28506 Xi FP 75W 0 3 1.0A snldae 230V S240 sXt площадь освещения туннеля

Описание и отзывы

Характеристики

Похожие товары

Средне хорошо XLG-75-L-A Постоянный режим выходного сигнала металлический корпус IP67 Светодиодный драйвер

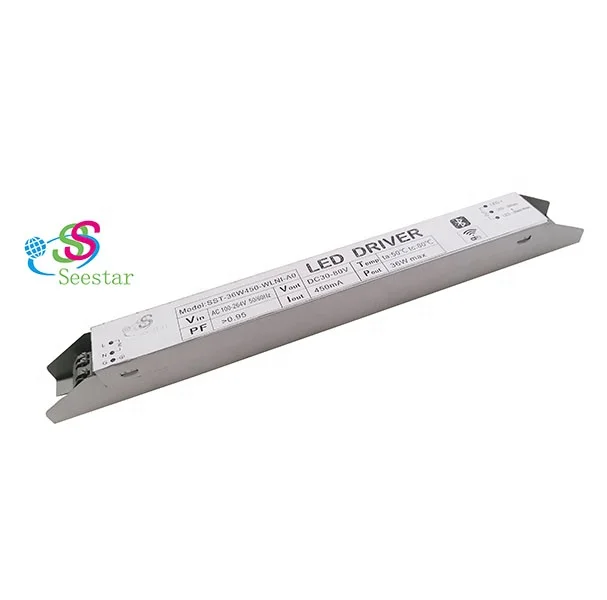

Seestar Tuya Wi-Fi синий зуб CCT настраиваемая с регулируемой яркостью linearled водителя 36W non-изолировало AC100-264V DC30-80V 450mA 3 года гарантии

Водонепроницаемый Ip65 Ip67 40w 50w 60w 75w 100w 150w 200w 240w 300w Постоянный ток 600ma 700mA 1500mA Светодиодный драйвер для светодиодной лампы

Светодиодный драйвер triac с регулируемой яркостью 150 мА 8 Вт светодиодный источник питания постоянного тока

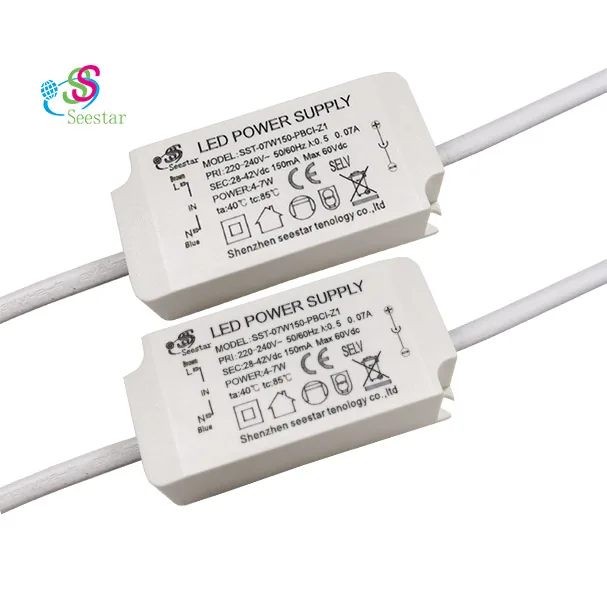

Изолированный AC220-240V DC28-42V 150 мА 5 Вт 6 7
