Калибровка зажимного измерителя для калибровочного

Описание и отзывы

Характеристики

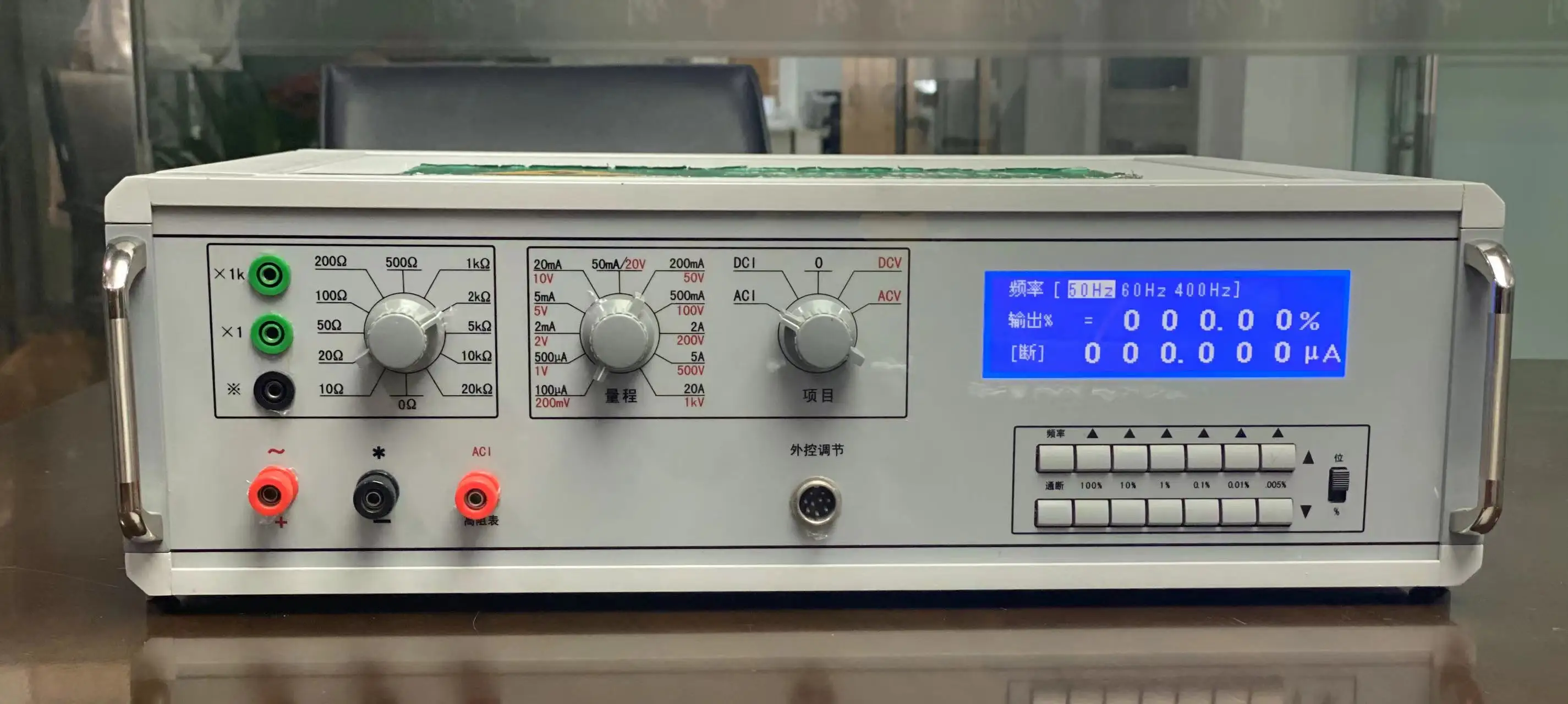

ET-30B multi-function calibrator is a digital AC and DC standard voltage and current generator with LCD display. The whole machine adopts "closed loop" control, with high output stability, which can be used to verify digital and various pointer types. Three-purpose meter and various types of meter heads with DC level 0.1 and AC level 0.2. The voltage output of this instrument is 11 files (0 ~ 1000V); the current output is 11 files (0 ~ 20A); the median resistance is 11 × 2 files (0Ω ~ 20MΩ); the AC frequency is 50Hz, 60Hz, 400Hz (digital synthesis, key selection) The above items and range conversion are converted by internal precision switches. The three windows simultaneously display the actual output value, percentage, and frequency. The output adjustment can be adjusted either "bitwise" or "percent". Using the latest 16-bit A / D conversion chip, the conversion speed and accuracy have been greatly improved; AC / DC uses a true effective value conversion chip to ensure the accuracy of the AC output. A new type of composite high-power amplifier is adopted, which has high output power, high reliability and low distortion. It has the advantages of digital display, wide range, fine division, high precision, good stability and convenient use.

main feature:

  1.1. The whole machine adopts "closed loop" control with high output accuracy and stability.

1.2. Digitally synthesized sine wave signal generator with low distortion and high reliability.

1.3, LCD screen display.

1.4. The output adjustment can be adjusted "by bit" or "percent".

1.5. AC and DC voltage output range 0 ~ 1000V.

  1.6 The output range of AC and DC current is 0 ~ 20A.

1.7. There are four AC frequency options: 50Hz, 60Hz and 400Hz.

1.8. Automatic protection of voltage short circuit and current open circuit.

 Technical indicators:

1.1 Stability: AC <0.02% / 5min of full scale DC <0.005% / 5min of full scale

            8-hour stability: 30% accuracy

1.2. Resolution: 20ppm (0.002%)

1.3, AC distortion: <0.5%, 20A <2%

1.4, DC ripple coefficient: <0.1%; 20A <1%

1.5, output frequency accuracy <0.1%

1.6. Dimensions: 460 × 460 × 130 (mm) Weight: about 18Kg

1.7. Range and accuracy of output voltage, current and median resistance:
