Фрезерный станок с ЧПУ вращающийся фрезерный двойным столом и 5 осями 9 кВт ATC для гравировки резки древесины пенополистирола
- Категория: >>>
- Поставщик: Shandong Lintianzhiyuan CNC Equipment Co. Ltd.
Сохранить в закладки 1600424352539:
Описание и отзывы
Характеристики
Products Description

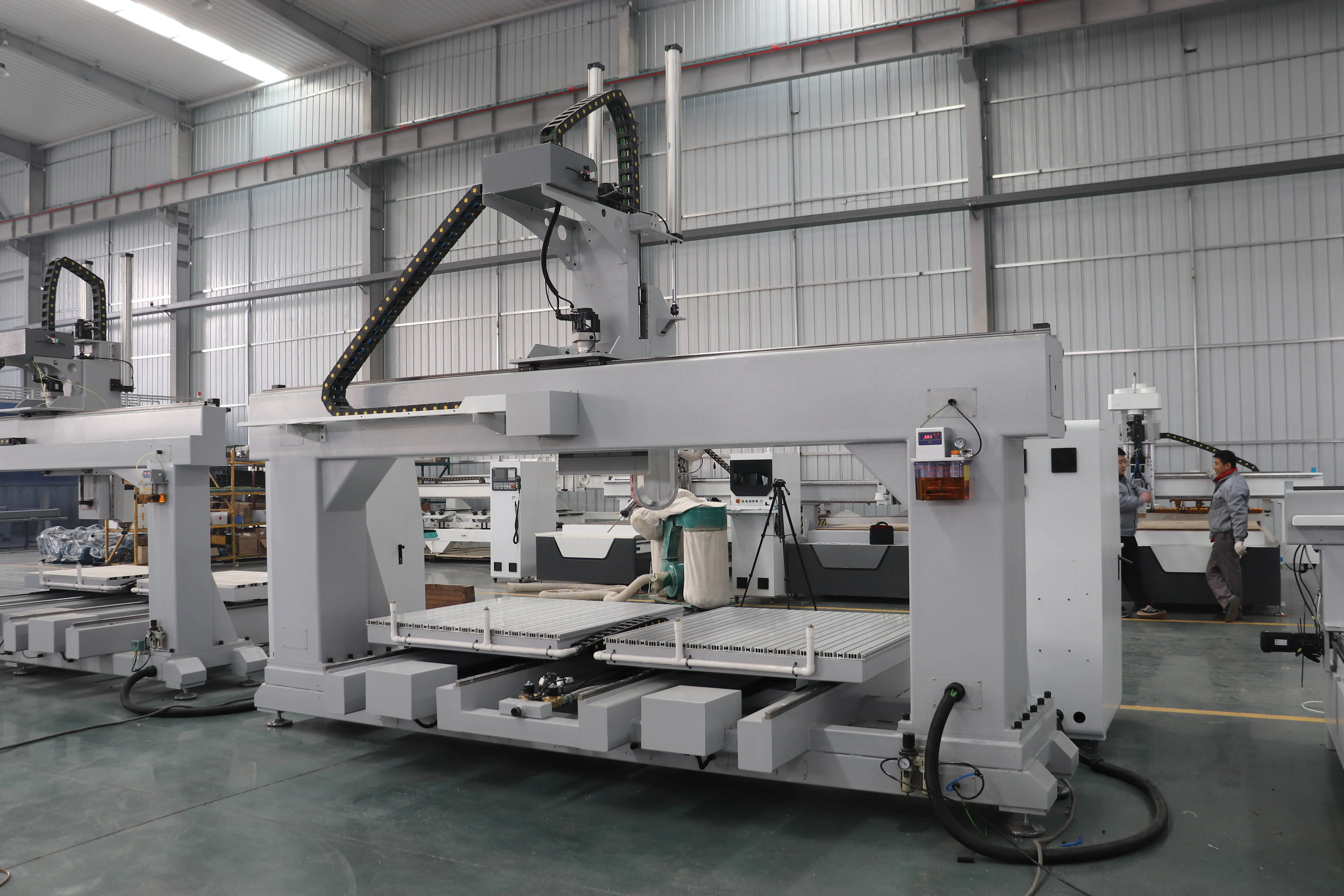

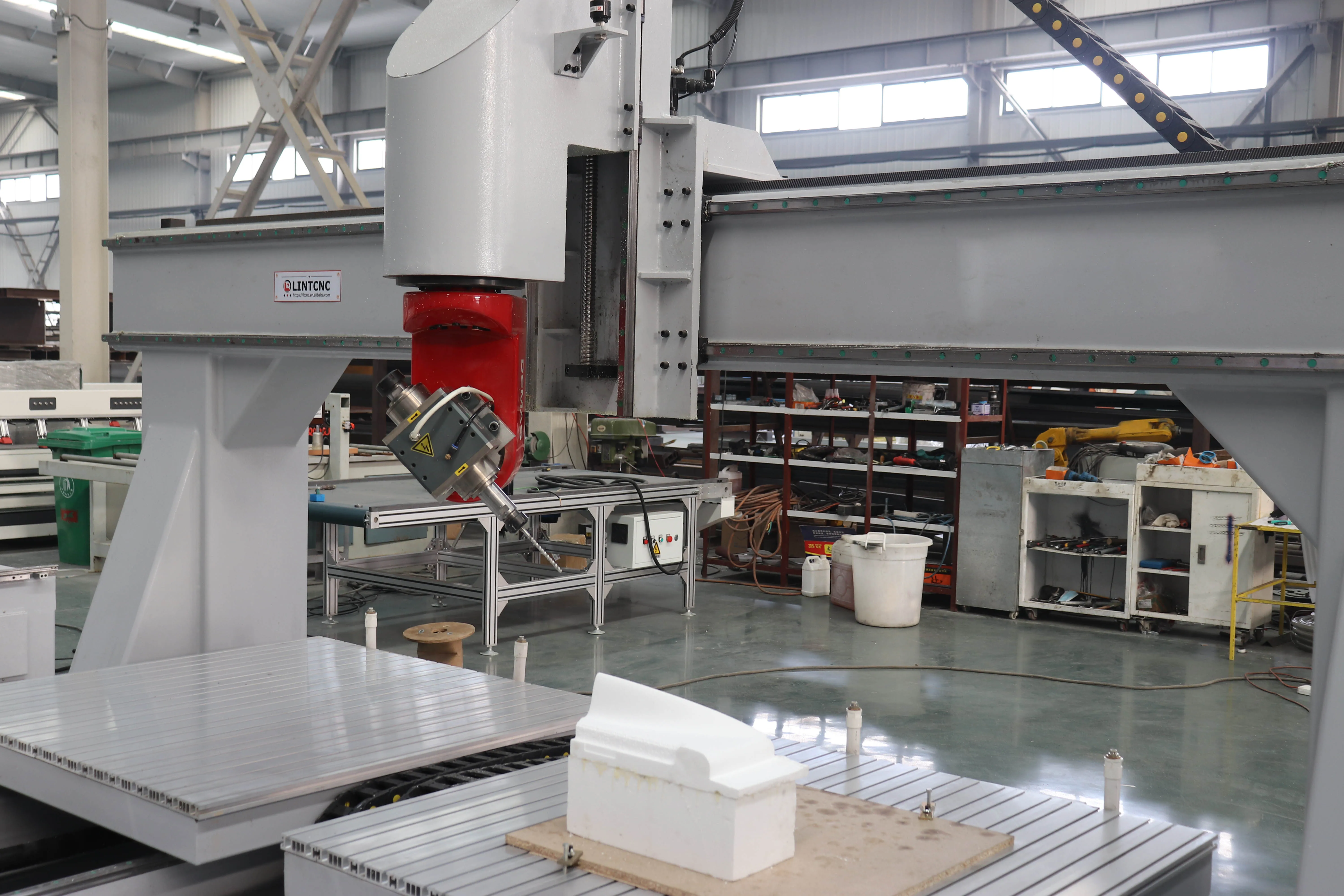

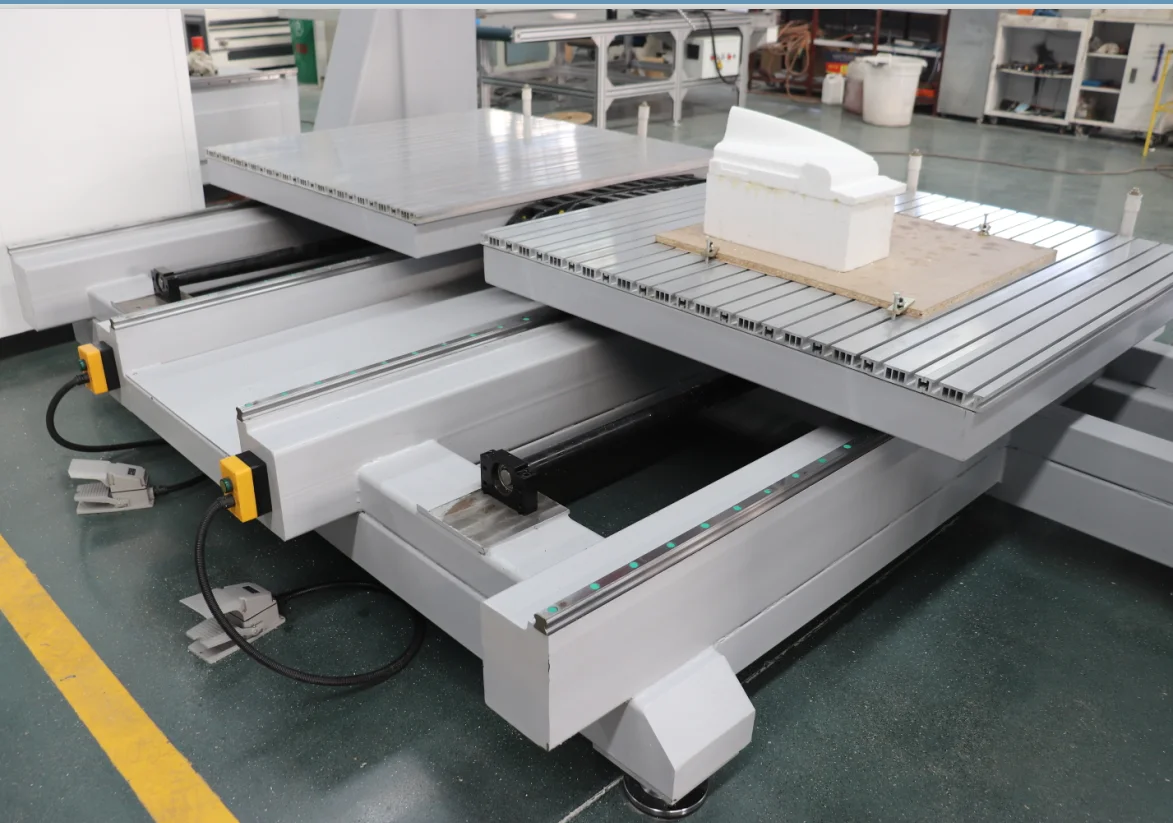

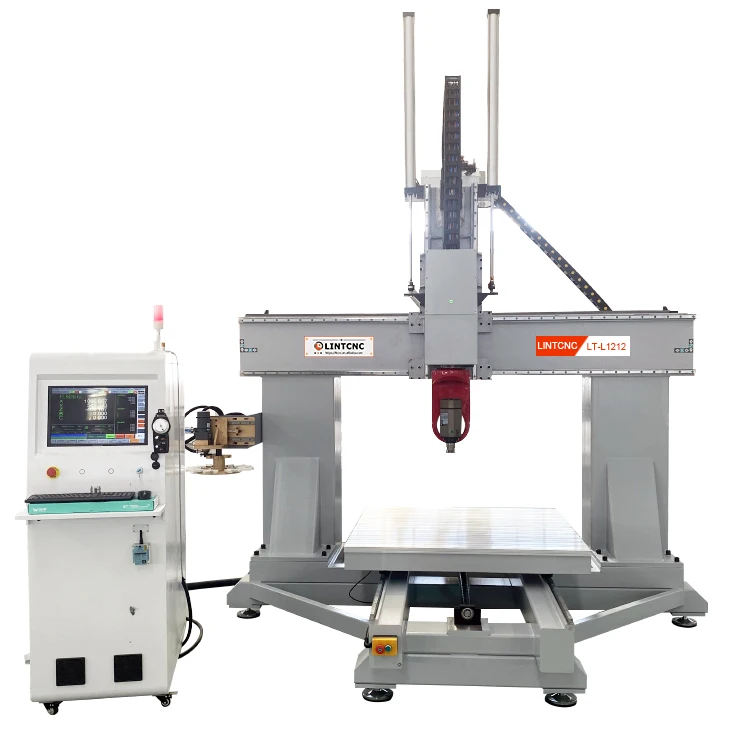

Double Table Moving 5 Axis CNC Router Machine With 9kw ATC Rotating Spindle For Alien Wood EPS Foam CNC Cutting Engraving
Economical 5 Axis CNC Router Machine for Foam EPS Styrofoam Wood Mold, Sculpture 5 axis 5D CNC Milling Machine
Features:
1. The top control system SYNTEC 610MA 5 Axis linkage , powerful, high precision and speed.
2. The components use world-class brands.
3. 5 Axes 5 linkages, with RTCP function (real axis interpolation) for large three-dimensional surface model processing.
4. Diversification of control can control processing speed, idling speed, cutting speed, greatly improving the quality of processed products and processing efficiency.
Features:
1. The top control system SYNTEC 610MA 5 Axis linkage , powerful, high precision and speed.
2. The components use world-class brands.
3. 5 Axes 5 linkages, with RTCP function (real axis interpolation) for large three-dimensional surface model processing.
4. Diversification of control can control processing speed, idling speed, cutting speed, greatly improving the quality of processed products and processing efficiency.
Technical Parameters | ||
Model | LT- 1211/L1212 5 Axis Styrofoam cnc router | |
Effective working area | 1200*1100*800mm/1200*1100*800mm*2 | |
Bed structure | 10mm welded steel bed, 10mm steel gantry & strip steel; | |
Fixing method | Aluminum alloy fixture table, also equipped with vacuum absorption device | |
5 axis head | Standard high precision imported DEMAS 5 axis head | |
Spindle | 9.0kw ATC water cooling spindle (8 tools disc magazine) | |
Spindle rotating speed | 0-24000 rpm | |
Guide rail | Hiwin linear square guide rail 30mm | |
Driving method | X,Y axis by 2.0 mode helical gear rack, Z axis by TBI ball screw | |
Motors and drivers | SYNTEC driver & control integrated absolute value motor & driver | |
Reducer | Japan SHIMPO reducer; faster speed | |
Inverter | Fuling dedicated intelligent inverter | |
Lubrication system | Automatic oil lubrication system for gear rack | |
Max. working speed | 0-20m/min | |
Working Accuracy | <0.02mm | |
Instruction formate | G code *.u00 *.mmg *.plt | |
Electric parts | France Schneider, Japan Omron, Chint | |
Working voltage | 380V 3 phase ,50/60HZ | |
Environment temperature | 0-45℃ | |
Environment humidity | 30%-75% No coagulate water | |
Too sensor | Yes | |
Others | English manual,Tool box,Tool sensor,etc. | |
1. 9KW ATC water cooling Spindle
2. 5 axis rotary spindle, DEMAS brand ;3.Taiwan Syntec MA610 5 axis linkage control system;
4. Japan Shimpo reducer;
5.Taiwan TBI higher precision ball screw for Z axis;
6. Taiwn square linear guide rail 30mm
7. Automatic oil lubrication system for gear rack;
8. 1.5 mode helical gear rack for X Y axis;
9. Other electrical components use France Schneider, Japan Ormon, Chint;
2. 5 axis rotary spindle, DEMAS brand ;3.Taiwan Syntec MA610 5 axis linkage control system;
4. Japan Shimpo reducer;
5.Taiwan TBI higher precision ball screw for Z axis;
6. Taiwn square linear guide rail 30mm
7. Automatic oil lubrication system for gear rack;
8. 1.5 mode helical gear rack for X Y axis;
9. Other electrical components use France Schneider, Japan Ormon, Chint;
Product Application
1. V-method casting foam model, casting wood mold, sculpture engineering, industrial design, etc.
2. Casting foam disappearing model of various mechanical parts such as automobile cover moulds, inspection tools, fixtures,
cylinders and machines.3. Casting wood models of various mechanical castings such as ships, wind power, machines, pump valves,
injection molding machinery, and printing machinery.
4. Industrial design for automobiles, yachts, airplanes, sculpture projects, etc.
5. Rotomolding mold, injection mold, GRG/GRC exterior wall decoration material processing.
1. V-method casting foam model, casting wood mold, sculpture engineering, industrial design, etc.
2. Casting foam disappearing model of various mechanical parts such as automobile cover moulds, inspection tools, fixtures,
cylinders and machines.3. Casting wood models of various mechanical castings such as ships, wind power, machines, pump valves,
injection molding machinery, and printing machinery.
4. Industrial design for automobiles, yachts, airplanes, sculpture projects, etc.
5. Rotomolding mold, injection mold, GRG/GRC exterior wall decoration material processing.
Q: When I got this machine, but I don’t know how to use it. What should I do?
Q: After an order is placed,when to deliver?
A:Generally about 10-25days,lf we have inventory,we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST.we can help you to repair your problem controller freely.even it's not from our factory.After the warranty,the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need.
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q: After an order is placed,when to deliver?
A:Generally about 10-25days,lf we have inventory,we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST.we can help you to repair your problem controller freely.even it's not from our factory.After the warranty,the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need.
Contact us
Sophy Jia
Whatspp/wechat: +86 132 0540 8763
Email: sales10@ltcnc.cn
