Product Overview

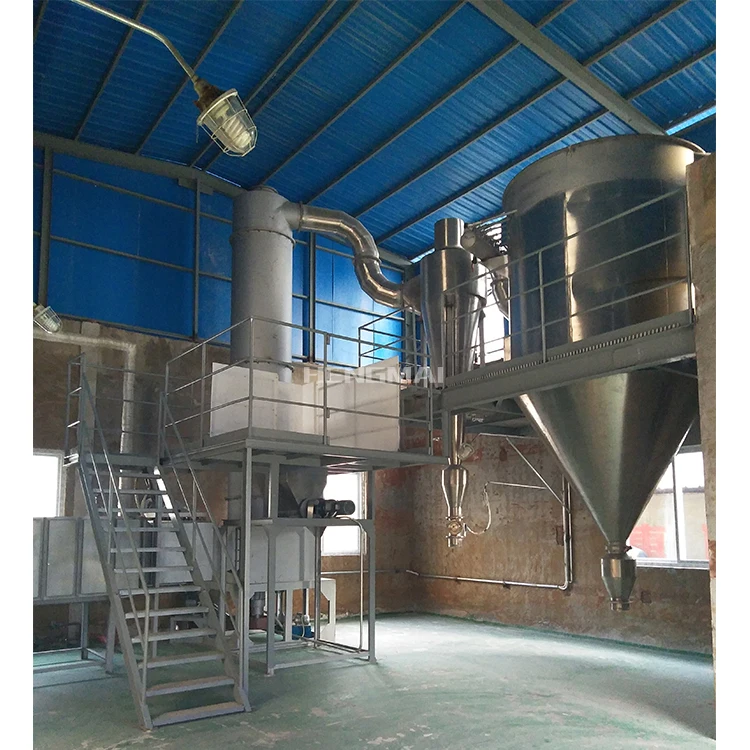

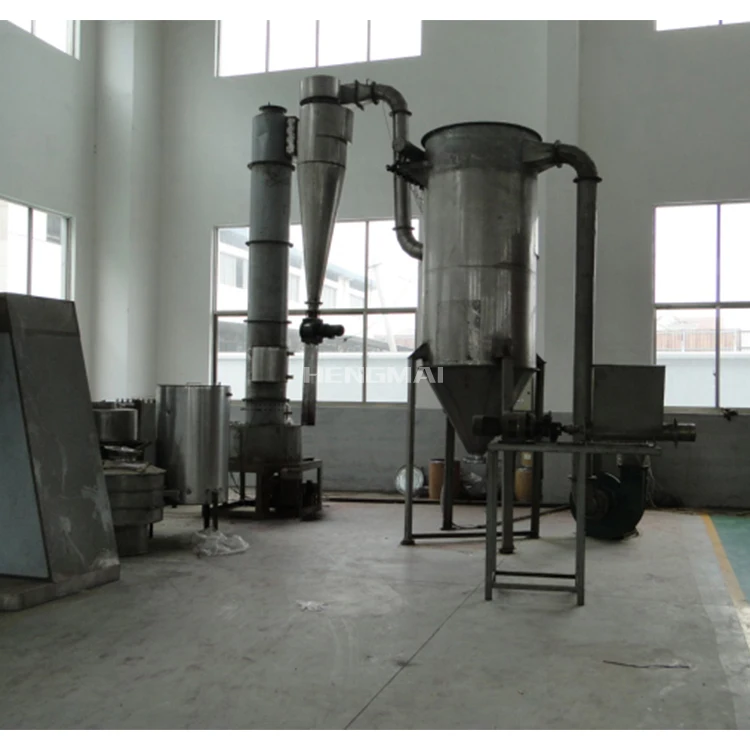

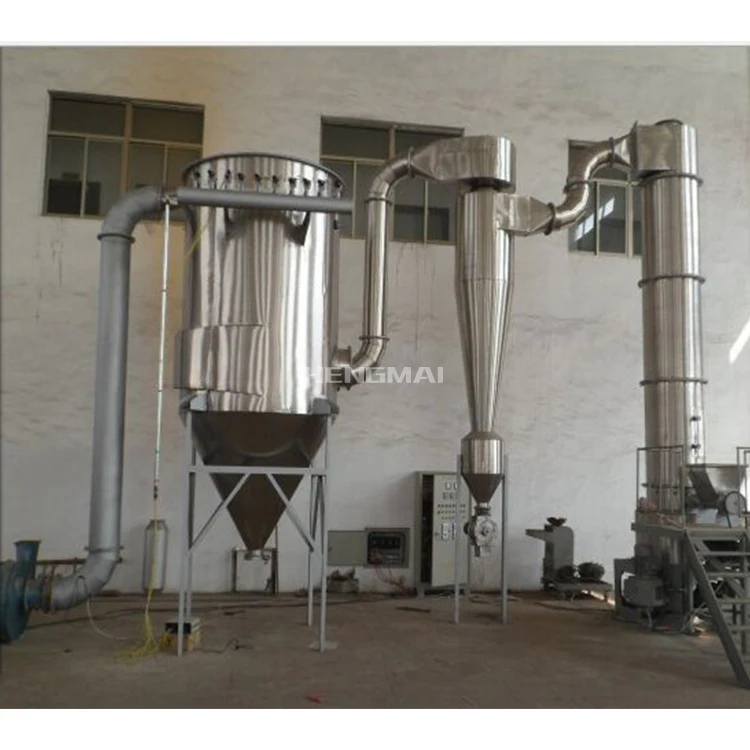

XSG spin flash dryer is widely used in chemical industry, medicine, building materials, food and other industries for the
dispersion and drying of granular, powder, paste and filter cake like false agglomerates. It has the advantages of small floor area, low energy consumption, high thermal efficiency, and can be produced continuously and in large quantities. The drying machine is equipped with a rotary cutting device. The drying materials are crushed and refined by shearing, rotating, colliding and friction, and the materials are highly dispersed to achieve the effect of efficient and rapid evaporation of water.
dispersion and drying of granular, powder, paste and filter cake like false agglomerates. It has the advantages of small floor area, low energy consumption, high thermal efficiency, and can be produced continuously and in large quantities. The drying machine is equipped with a rotary cutting device. The drying materials are crushed and refined by shearing, rotating, colliding and friction, and the materials are highly dispersed to achieve the effect of efficient and rapid evaporation of water.
Main Feature
1. Due to the fact that the material is granulated by centrifugation, shearing, collision and friction, it is highly dispersed, and the relative velocity between solid and gas is relatively large, which strengthens the mass transfer and heat transfer and makes the production intensity of the machine high.
2. When the dry gas enters the bottom of the dryer, it will produce a strong rotating airflow, which will scour the materials on the wall and eliminate the wall sticking phenomenon.
3. In the high temperature zone at the bottom of the dryer, the heat sensitive materials do not directly contact with the hot
surface, and a special cooling device is installed to solve the coking discoloration problem of mature sensitive materials.
4. Due to high circumferential gas velocity and short material retention time in the drying room, it can achieve high efficiency, high speed, small equipment and mass production.
5. The upper part of the drying chamber is equipped with a ceramic cyclone to control the particle size and humidity of the
outlet materials, so as to meet the requirements of final moisture and particle size of different materials.
2. When the dry gas enters the bottom of the dryer, it will produce a strong rotating airflow, which will scour the materials on the wall and eliminate the wall sticking phenomenon.
3. In the high temperature zone at the bottom of the dryer, the heat sensitive materials do not directly contact with the hot
surface, and a special cooling device is installed to solve the coking discoloration problem of mature sensitive materials.
4. Due to high circumferential gas velocity and short material retention time in the drying room, it can achieve high efficiency, high speed, small equipment and mass production.
5. The upper part of the drying chamber is equipped with a ceramic cyclone to control the particle size and humidity of the
outlet materials, so as to meet the requirements of final moisture and particle size of different materials.
Spin flash dryer | ||||||||||||||||
Model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 | ||||||||
ID of main machine(mm) | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | ||||||||
Air amount(m3/h) | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-18000 | 18000-30500 | 50000-78000 | ||||||||
Evaporated(kg/h) | 12-17 | 40-70 | 80-150 | 150-250 | 230-420 | 300-600 | 600-1000 | 1000-1500 | ||||||||
Max equipped power(kw) | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 | ||||||||
Max height(m) | 4.0 | 4.8 | 5.8 | 6.4 | 7.1 | 7.8 | 8.5 | 10.1 | ||||||||
Occupied area(m2) | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 | ||||||||
Different product parameters, freight cost different, please consult before ordering.Support non-standard customization.
Applications
Medicine: amidopyrine, 4-aminobenzoic acid, 4-aminobenzyl ester, bismuth plumbate, chloramphenicol intermediate
Pesticides: atrazine, Bordeaux solution, fungicide, herbicide, insecticide and triacetic acid
Ceramics: alumina, clay, kaolin, silica, zirconium silicate
Food: T-shirt powder, bran, wine trough, sugar, soybean protein, gelatinized starch, wheat, wheat starch, wheat, glucose, corn oil residue, adzuki bean paste.
Waste: biological mud, iron manganese residue, manganese residue, sugar aldehyde residue.
Pesticides: atrazine, Bordeaux solution, fungicide, herbicide, insecticide and triacetic acid
Ceramics: alumina, clay, kaolin, silica, zirconium silicate
Food: T-shirt powder, bran, wine trough, sugar, soybean protein, gelatinized starch, wheat, wheat starch, wheat, glucose, corn oil residue, adzuki bean paste.
Waste: biological mud, iron manganese residue, manganese residue, sugar aldehyde residue.
Organic compounds: aceguanidine, barium laurate, cadmium laurate, benzoguanidine, benzoic acid, calcium stearate, cellulose acetate, lead acetate, diphenylguanidine, lignin, polyvinyl chloride, sodium oxalate, carbon black, water repellent powder, rose essence, bromic acid, dsdq, J acid, dicarboxylic acid, carboxymethyl cellulose, etc.
Inorganic substances: aluminum hydroxide, lead phosphate, aluminum phosphate, zinc phosphate, aluminum silicate, silica gel, barium carbonate, calcium carbonate, manganese carbonate, nickel carbonate, potassium carbonate, strontium carbonate, carbon powder, copper sulfate, lead sulfate, manganese sulfate, barium sulfate, sodium thiosulfate, sodium tribasic sulfate, lime, antimony trioxide, antimony pentoxide, chromium dioxide, manganese oxide, manganese oxide, iron oxide Iron disulfide, ammonium polyborate, bismuth plumbate borax, boric acid, white ink, cryolite, dolomite, jarosite, potassium nitrate, silver halide, sodium antimonate, sodium fluosilicate, zeolite, titanium dioxide.
Pigments and dyes: anthraquinone, aminoanthraquinone, H acid, t acid, monoazo dye, diazonium dye, triazine dye, fluorescein s, indigo pigment, iron oxide black, iron oxide red, iron oxide yellow, chrome orange, Dajie black, zinc chromate, lead chromate, lithopone, nitro dye, nitroso dye, black iron oxide, butyric acid, hydroxide, Titanium, zinc sulfide, strontium chromate, titanium dioxide, ultramarine, zinc sulfide, reactive brilliant red, X-3B, acid mordant black T, reactive brilliant blue-r, phthalocyanine blue, phthalocyanine green,Copper phthalocyanine, lemon yellow, Russell red, cationic Brilliant Blue RL, various azo dye intermediates.
Inorganic substances: aluminum hydroxide, lead phosphate, aluminum phosphate, zinc phosphate, aluminum silicate, silica gel, barium carbonate, calcium carbonate, manganese carbonate, nickel carbonate, potassium carbonate, strontium carbonate, carbon powder, copper sulfate, lead sulfate, manganese sulfate, barium sulfate, sodium thiosulfate, sodium tribasic sulfate, lime, antimony trioxide, antimony pentoxide, chromium dioxide, manganese oxide, manganese oxide, iron oxide Iron disulfide, ammonium polyborate, bismuth plumbate borax, boric acid, white ink, cryolite, dolomite, jarosite, potassium nitrate, silver halide, sodium antimonate, sodium fluosilicate, zeolite, titanium dioxide.
Pigments and dyes: anthraquinone, aminoanthraquinone, H acid, t acid, monoazo dye, diazonium dye, triazine dye, fluorescein s, indigo pigment, iron oxide black, iron oxide red, iron oxide yellow, chrome orange, Dajie black, zinc chromate, lead chromate, lithopone, nitro dye, nitroso dye, black iron oxide, butyric acid, hydroxide, Titanium, zinc sulfide, strontium chromate, titanium dioxide, ultramarine, zinc sulfide, reactive brilliant red, X-3B, acid mordant black T, reactive brilliant blue-r, phthalocyanine blue, phthalocyanine green,Copper phthalocyanine, lemon yellow, Russell red, cationic Brilliant Blue RL, various azo dye intermediates.
Company Profile
Changzhou Hengmai Drying Equipment Co., Ltd. located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. We specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
Raise requirement
Customer drawings, samples, ideas
Provide design scheme
Give solutions as required and confirm quotation
Sign contract
Confirm cooperation, sign contract, pay advance payment
Production
Arrange production and delivery inspection
Delivery
Pay the balance and deliver the goods
After-sale service
One year warranty, video service, on-site solution

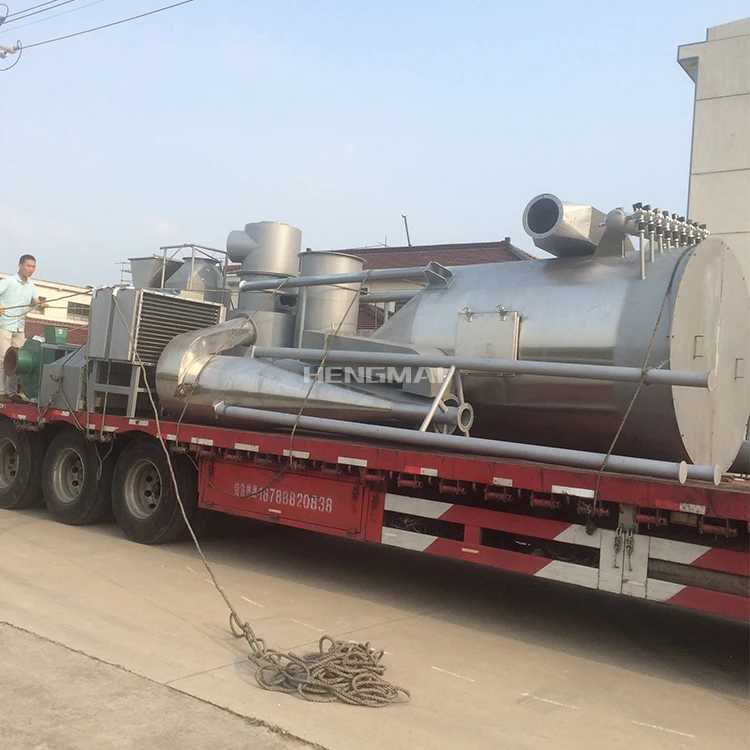

Product packaging and delivery
Recommend Products
FAQ
Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Похожие товары
E6A2-CWZ3C 200P/R 2M 2M инкрементный кодовый датчик угла поворота
Оптовая продажа с фабрики, конкурентоспособное преимущество, OEM Лучшие воланы для бадминтона, OEM Индивидуальные для спортивных тренировок
11,10 $

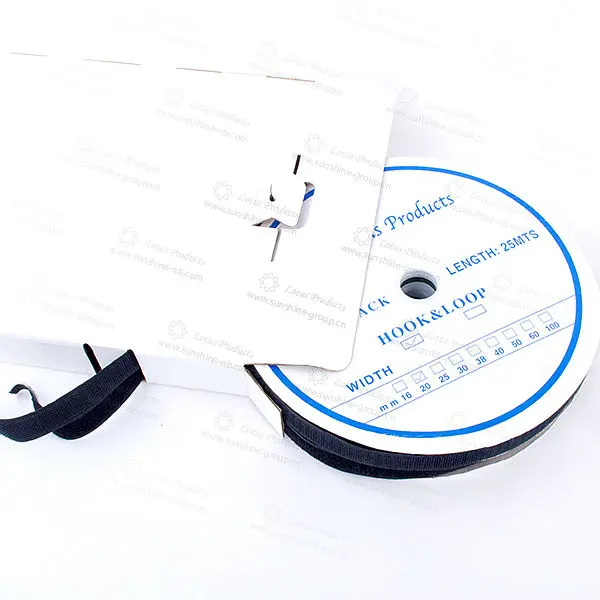

велкро крюк и петля 20mm черный цвет

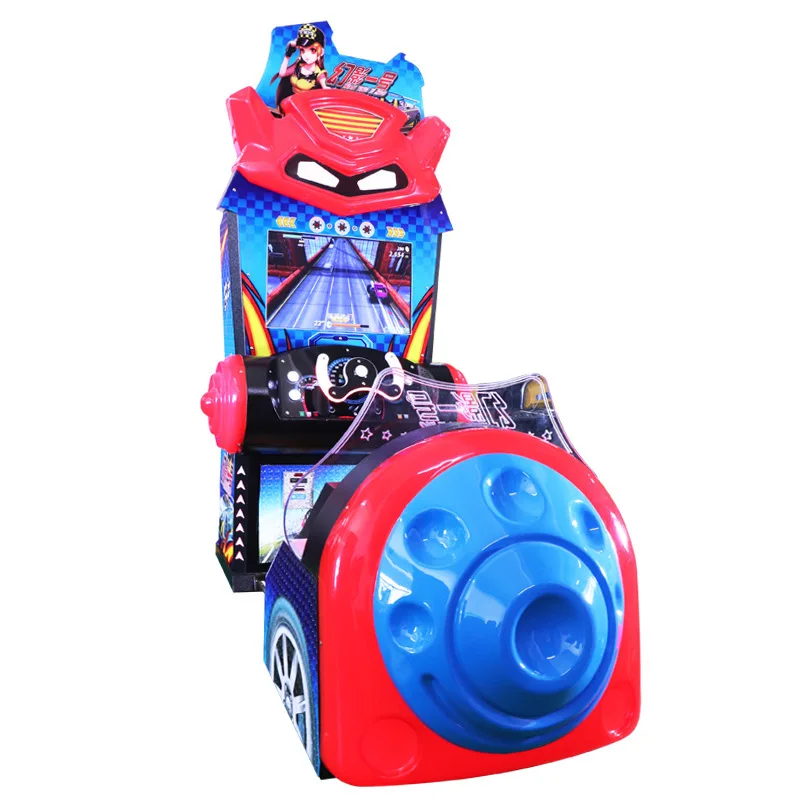

В помещении с управлением помощью монетного Phantom 1 гоночный симулятор машины для детей видео аркадных игровых
550,00 $ - 939,00 $

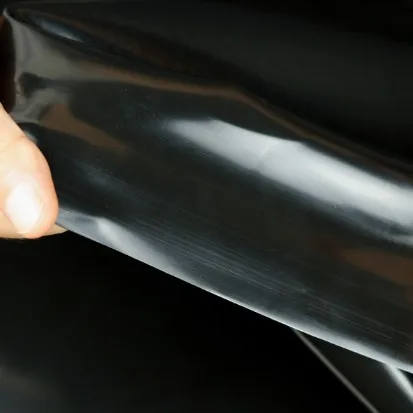

Гидроизоляционная мембрана Jinba, геомембрана, синяя подкладка для пруда, геомембрана 0,5 мм, 1,0 мм
0,32 $ - 0,56 $

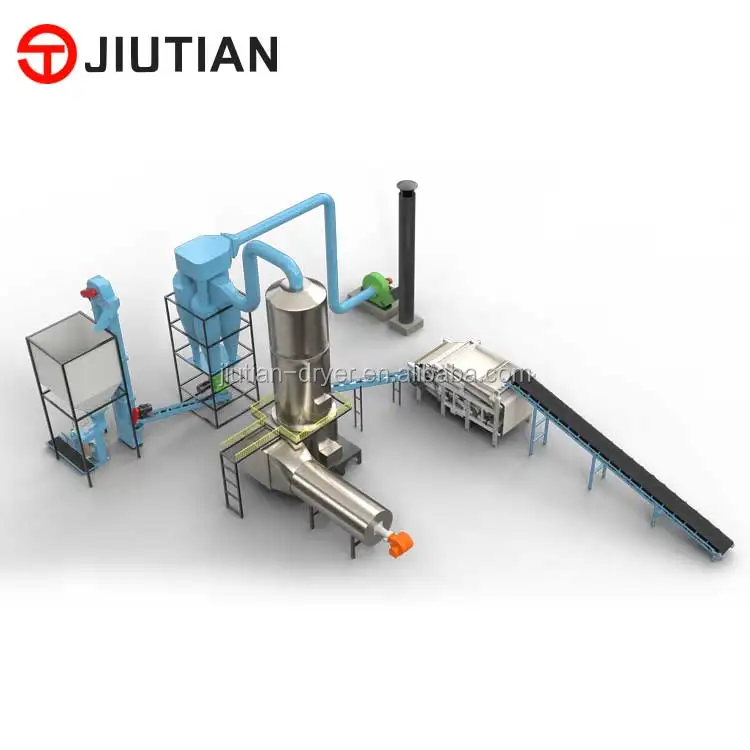

Китай, химический каолин, спин, флэш-сушилка
19 800,00 $

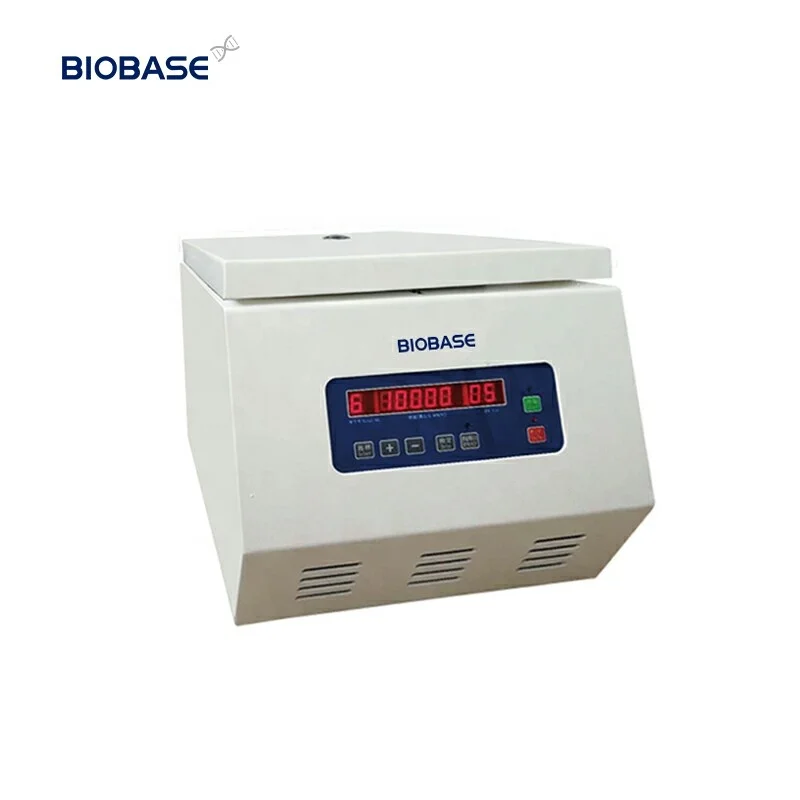

BIOBASE китайская фабричная центрифуга для гладкой работы 4*100 мл 16600 об/мин высокоскоростная Защитная настольная
