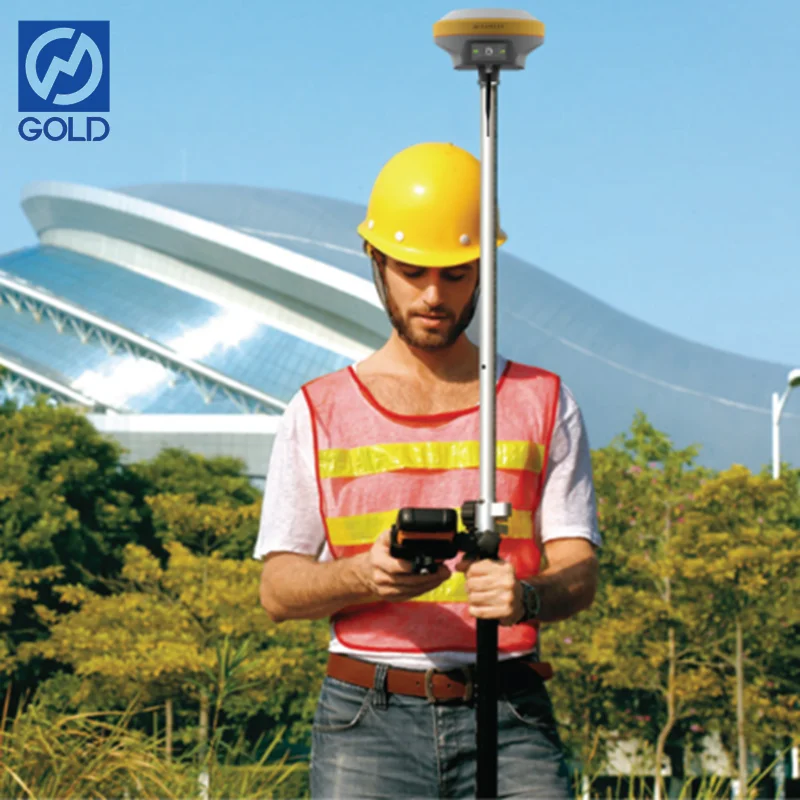

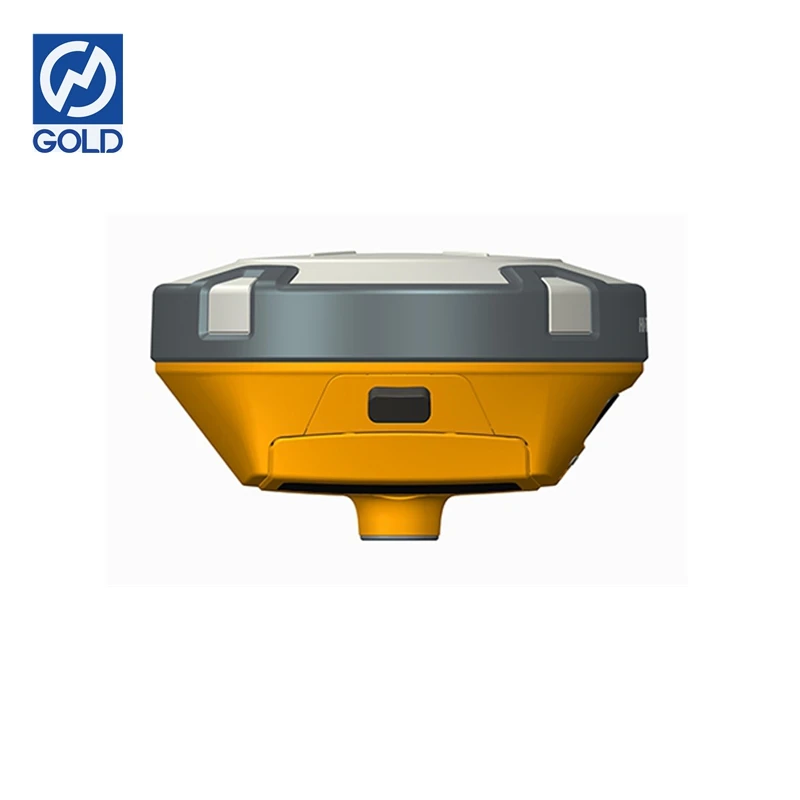

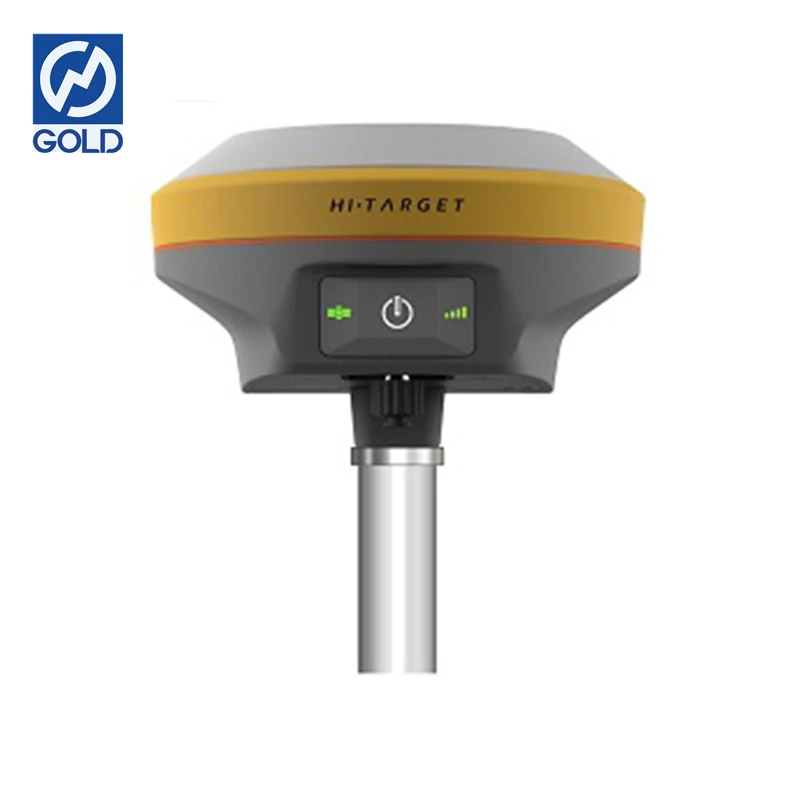

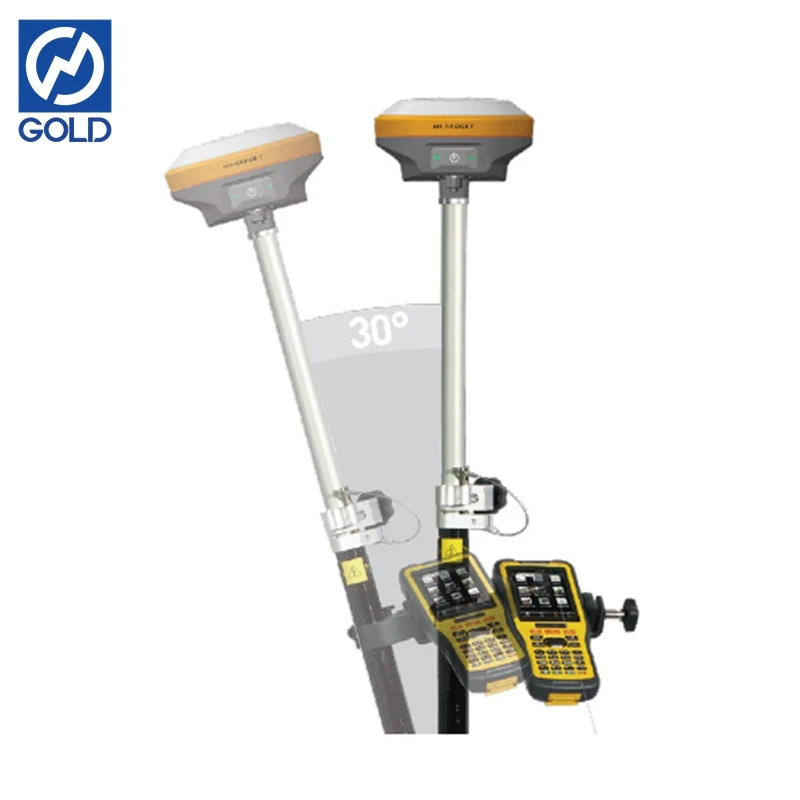

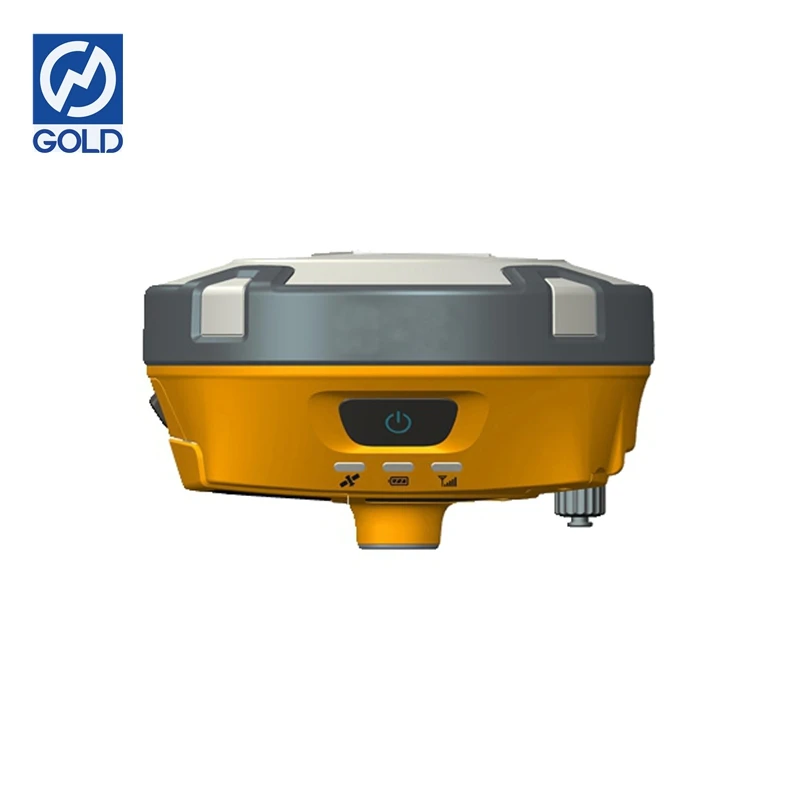

Наружный приемник GPS RTK DJI GNSS для отображения и съемки
- Категория: >>>
- Поставщик: Chongqing Gold Mechanical & Electrical Equipment Co. Ltd.
Сохранить в закладки 1600424601302:
Описание и отзывы
Характеристики
Outdoor GPS RTK Receiver DJI RTK GNSS for
Mapping and Surveying
This kind of GNSS RTK GPS is widely used in surveying and mapping in engineering construction and geological.For it's advantages of the good qualilty,competitive price,high precision,light weight...,it's popular in the market.

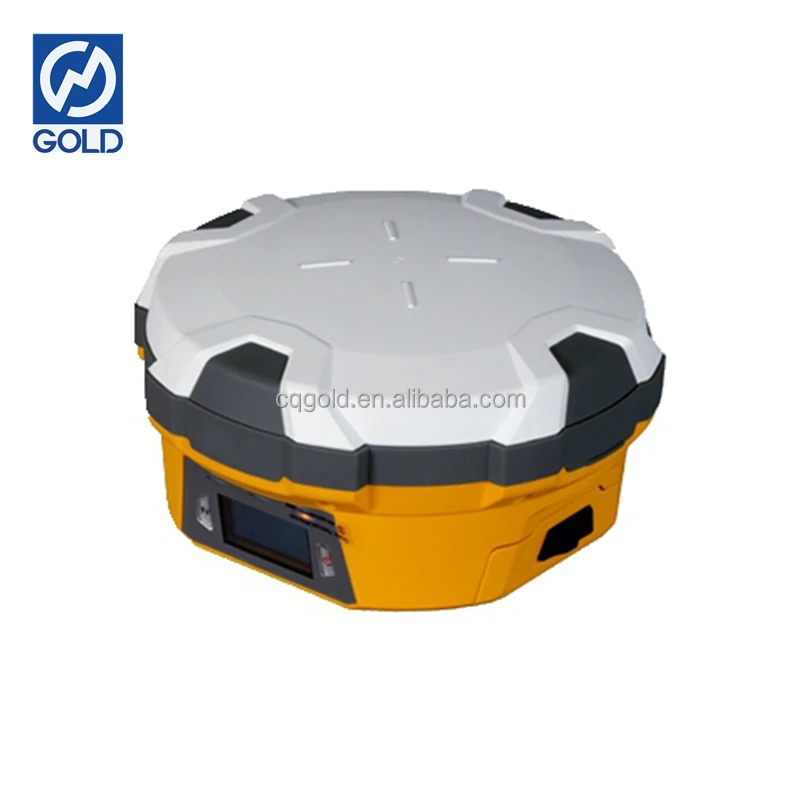

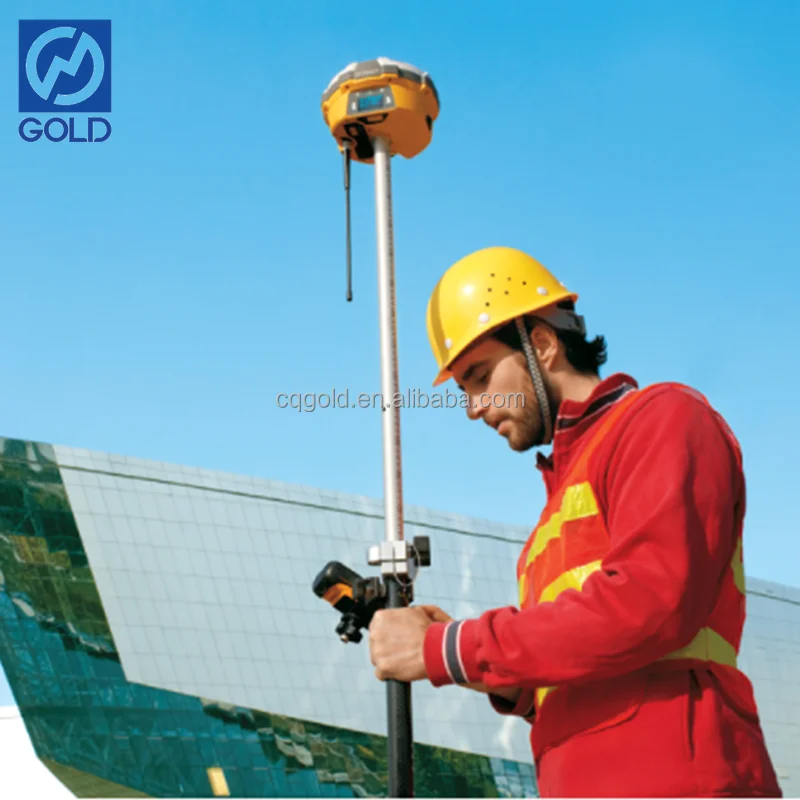

*The Technical Parameter of Geodetic Survey V60 GNSS Receiver:
Measurements | 220 channels | |
| Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology | ||
| High precision mulciple correlator for GNSS pesudo range | ||
| Unfiltered,low noice,low multipath error,low time domine correlation | ||
| Very low noise GNSS carrier phase measurements with<1mm precision(1 Hz) | ||
| Signal-to-Noise ratio reprted in dB-Ha | ||
| Proven Pacific Crest low elevation travking technology | ||
| Satellite Singnals Tracked | GPS: L1C/A,L2C,L2E,L5 | |
| Simultaneously | GLONASS: L1C/A,L1P,L2C/A(GLONASS M only),l2p | |
| SBAS: L1 C/A,L5 | ||
| Galileo: L1 BOC,E5A,E5B,E5ALtBOC | ||
| BDS/Compass: B1,B2 | ||
| QZSS: L1 C/A, L1 SAIF,L2C,L5 | ||
| Positioning performance | Static and Fast Static | Horizonta:l2.5mm+0.5ppm RMS |
| GNSS surveying | Vertica:l5mm+0.5ppm RMS | |
| Post Processing Kinematic | Horizontal:1cm+1ppm RMS | |
| (PPK/Stop&Go) GNSS surveying | Vertical:2.5cm+1ppm RMS | |
| Initialization time:typically 10 minutes | ||
| For base while 5 minutes for rover | ||
| Initialization reliability:typically>99.9% | ||
| Realtime Kinematic(RTK) surveying | Horizontal.8mm+1ppm RMS | |
| Vertical.15mm+1ppm RMS | ||
| Initialization timetypically < 8seconds | ||
| Initialization reliability.typically > 99.9% | ||
| Code Differential GNSS postioning | Horizontal.25cm+1ppm RMS | |
| Vertical.50cm+1ppm RMS | ||
| SABS:0.50m Horizontal, 0.85m Vertical | ||
| Hardware | Physical | Dimensions(W × H):18.20cm×9.80cm(7.17 in.×3.86 in.) |
| Weight:1.25kgs(2.76lbs)without internal battery | ||
| Operating:-45°C to+65°C(-49°F to+149°F) | ||
| Storage temperature.-55°C to+85°C(-67°F to+185°F) | ||
| Humidity:100%,considering | ||
| Water/dustproof.IP67 dustproof,protected from | ||
| Temporary immersion to depth of 1 m(3.28ft) | ||
| Shock and Vibration.Designed to survive | ||
| a 3m(9.84ft) nature fall onto contrete. | ||
| Electrical | Power 6V to 28V DC external power input | |
| Power consumption ≤3.5w | ||
| Automatic Switching between internal power and external power | ||
| Rechargeable, removable 7.4V,5000mAh Lithium-Ion | ||
| Battery in internal battery compartment | ||
| Internal battery life | Static 13-15 hours | |
| RTK Rover(UHF/GPRS/3G)10-12 hours | ||
| RTK Base 8-10 hours | ||
| I/O interface | 1×Blue tooth | |
| 1×standard USB2.0 port | ||
| 1×TNC UHF connector | ||
| 2×RS232 serial port | ||
| 2×DC power input(8-pin & 5-pin) | ||
| 1×Micro SD card port | ||
| Communication & data storage | 3G Communication | Fully integrated, fully sealed internal 3G, |
| compatabile with GPRS | ||
| Network RTK(via CORS) range 20-50km | ||
| HI-TRAGERT internal UHF radio(standard) | Frequency:450~470MHz with 116 channel | |
| Transmitting Power:1W,2W,5W,adjustable | ||
| Transmitting Speed:9.6Kbps,19.2Kbps | ||
| Working Range:5km typical,8-10km optimal | ||
| Pacticic Crest XDL Micro internal UHF RADIO | Frequency:403-473MHz | |
| Transmitting Power:0.5W,2W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:3-5km typical,8-10km optimal | ||
| Hi-Target external UHF radio(standard) | Frequency:460MHz with 116 channels | |
| Transmitting Power:5W,10W,20W,30W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:8-10km typical,15-20km optimal | ||
| Pacific Crest ADL vantage Pro External UHF radio | Frequency:390-430MHz or 430-470MHz | |
| Transmitting Power:4W to 35W adjustable | ||
| Transmitting Speed:Up to 19.2Kbps | ||
| Working Range:8-10km typical,15-20km optimal | ||
| Support other external Communication device | For example, external GSM moderm. | |
| Data formats | CMR:sCMRx,CMR, CMR+ input and output | |
| RTCM:RTCM2.1 2.2 2.3 3.0 3.1 3.2 input and output | ||
| Navigation outputs ASCII:NMEA-0183 | ||
| Navigation outputs Binary:GSOF | ||
| 1 Pules Per Second Output | ||
Outdoor GPS RTK Receiver DJI RTK GNSS for Mapping and Surveying
*The Features of the Geodetic Survey RTK GPS Base and Rover:
Linux Operation System
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
Gnss Receiver Rtk GPS Base and Rover Rtk GPS Land Survey Device
Intelligent Operation
*Equipped with smart speaker guiding during the whole operation. Voice assistance can help you master V60 operation quickly. Language can be customized.
*Industrial LED display screen on its front control panel to show all information and status of the work.
*Many one-button operations make your work easily. Base setup by one button can choose base coordinate from base list automatically.
*Automatic recording system log makes receiver diagnosis easy.
RINEX Storage
The static data can be saved directly in RINEX format. The V60 is fully compatible with other brands' receivers.
Quick Upgrade
Just copy the updated firmware to the V60, then restart to finish the upgrade in a few seconds.
Multi Constellation Tracking
*220 tracking channels.
*Supports GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS Approved Antenna.
High Power Transceiver UHF Radio
*The transceiver UHF radio enables the working mode switchable between base and rover.
*5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional
*Pacific Crest TrimTalk© internal UHF radio is compatible with other RTK.
Seamlessly Operation in CORS System
*Built-in GPRS/GSM/3G module makes V60 work perfectly with network RTK positioning.
Long-life Battery
*Powered by 5000mAh Li-Ion battery.
*Static working time 13 - 15 hours
*RTK Rover(UHF/GPRS/3G) working time 10 - 12 hours
*RTK Base working time 8 - 10 hours
Rugged Design, IP67
*IP67 dust/water protection.
*Withstands 3 meters natural fall onto concrete.
*Rapidly track and perfectly avoid or lessen obstruction and multipath effect to ensure superior positioning capability.
Outdoor GPS RTK Receiver DJI RTK GNSS for Mapping and Surveying
