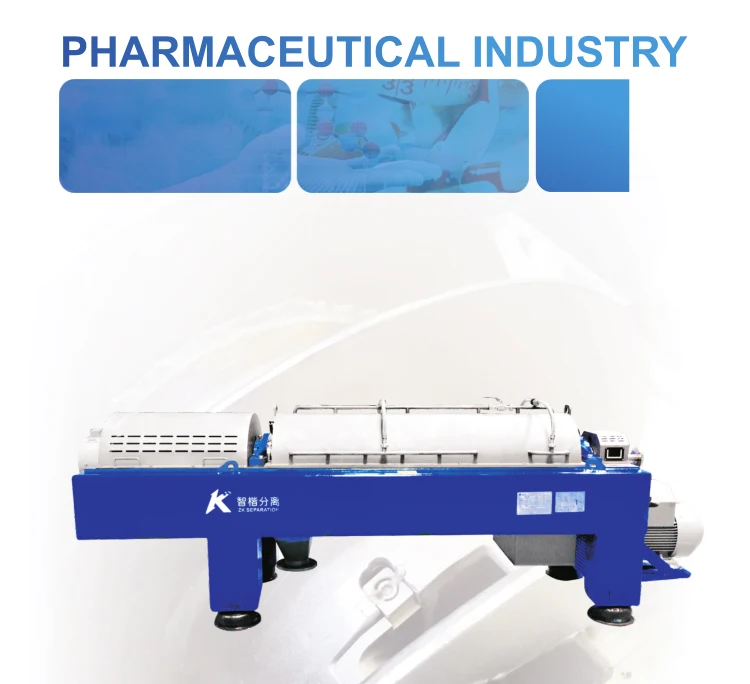

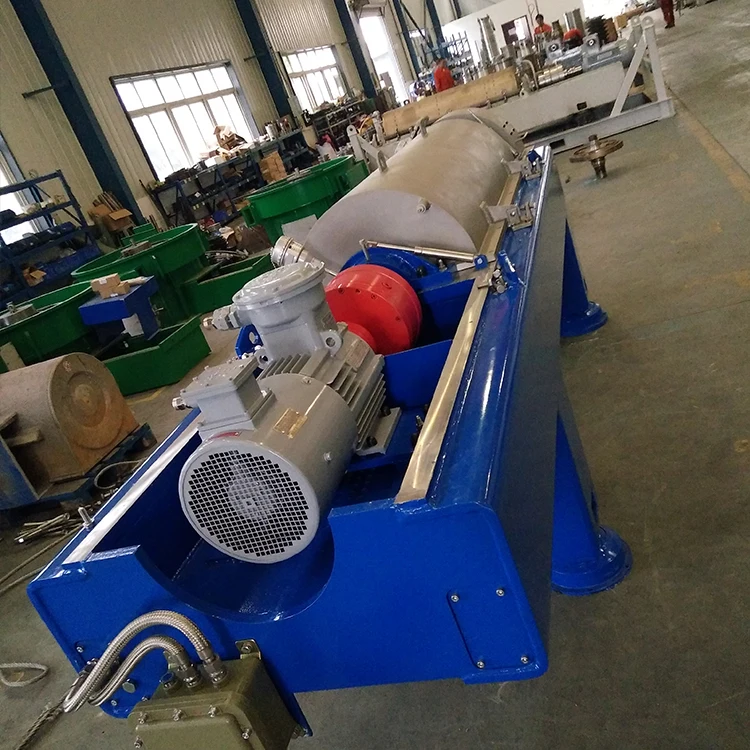

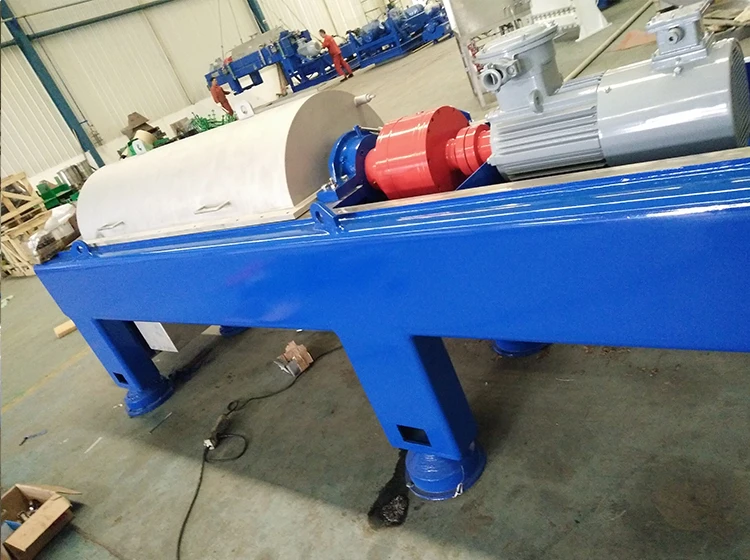

Small decanter centrifuge Medizinische Zentrifuge China ccm horizontal centrifugal motor for medical
Product Description
I. The role of medicine & health grade centrifuges

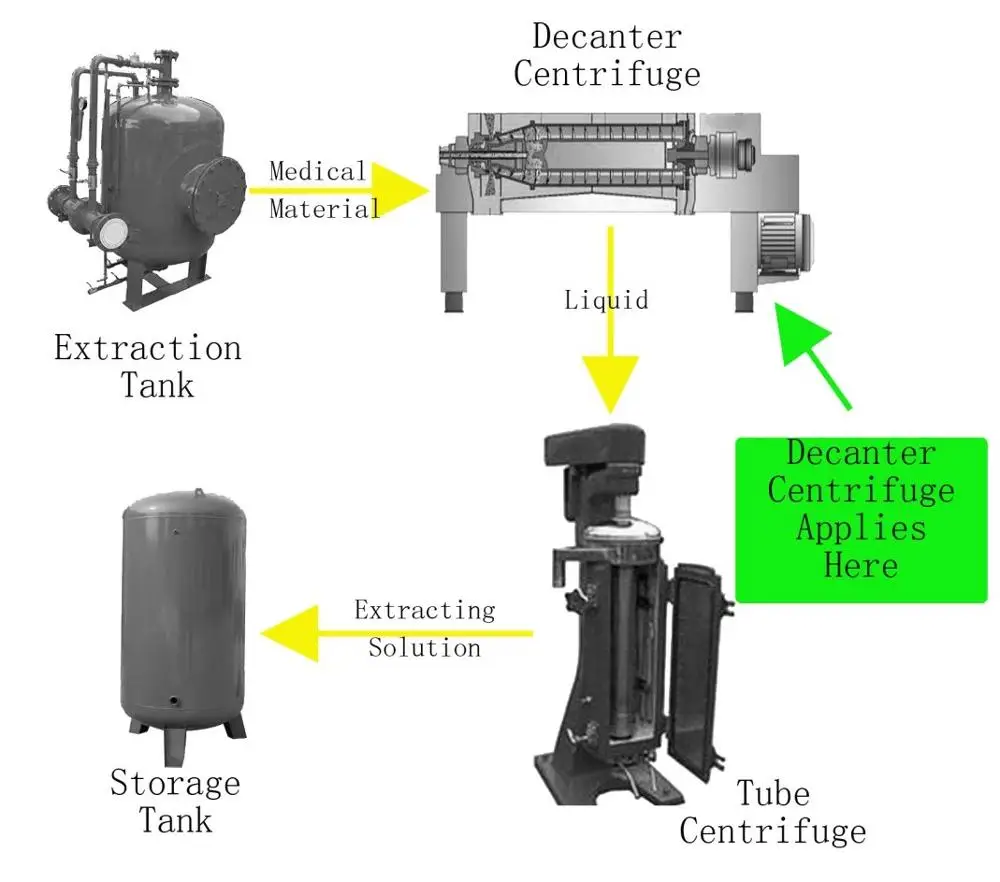

The TCM formula granules are prepared by extracting and concentrating the single-flavored TCM decoction pieces for clinical formula of Chinese medicine. Chinese medicinal herbs are extracted, concentrated, dried, granulated, packaged, and processed into a new formulation of uniform specification, uniform dosage, and uniform quality standard.
[ZK Separation], to meet the requirements and understanding of equipment used in the medical field, has developed a “medicine & health grade centrifuge”. At the separation section, the centrifuge is gradually replacing, by virtue of its closed production, high efficiency and high recovery rate, conventional three-legged centrifuges and other filtration-type separation devices.
II. Characteristics of medicine & health grade centrifuges
The key to production equipment is to avoid external pollution, mixed batch pollution of drugs, and mixed pollution and cross-contamination of different varieties of drugs.
*Material selection

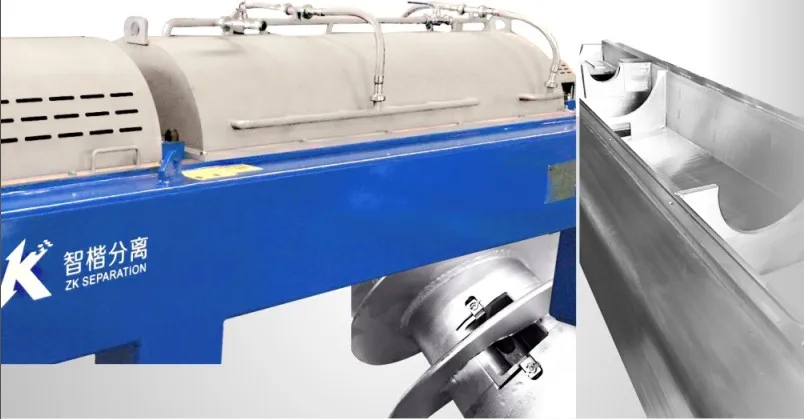

*Design of equipment sanitation level
1.The structure is designed to avoid the precipitation zones of gaps and fine particles that are difficult to wash and remove;
2.The gross finish of the surface in direct contact with the material: the unevenness is at most 0.8 μm (sanitary level polishing);
3.The CIP washing system sprays water directly onto the drum surface, the buried spin, the hood, and the inner wall of the pedestal.
*Material selection
*Design of equipment sanitation level
1.The structure is designed to avoid the precipitation zones of gaps and fine particles that are difficult to wash and remove;
2.The gross finish of the surface in direct contact with the material: the unevenness is at most 0.8 μm (sanitary level polishing);
3.The CIP washing system sprays water directly onto the drum surface, the buried spin, the hood, and the inner wall of the pedestal.
*Full-automatic cleaning system and advanced cleaning procedure
The centrifuge control system is arranged with a fully automatic cleaning procedure. The multi-step mode of high-speed cleaning→low-speed cleaning (multi-stage)→high-speed multi-level cleaning ensures that it is thoroughly washed per mechanical cleaning.
Based on the characteristics of the above centrifuge, a complete set of inert gas protection device is also provided, which, in the production process, can avoid oxygen-containing gas from entering the device and prevent leakage of alcohol media to ensure the safety of equipment and environment.
The centrifuge control system is arranged with a fully automatic cleaning procedure. The multi-step mode of high-speed cleaning→low-speed cleaning (multi-stage)→high-speed multi-level cleaning ensures that it is thoroughly washed per mechanical cleaning.
Based on the characteristics of the above centrifuge, a complete set of inert gas protection device is also provided, which, in the production process, can avoid oxygen-containing gas from entering the device and prevent leakage of alcohol media to ensure the safety of equipment and environment.
* Explosion-proof technology features (core) of explosion-proof centrifuges
1.Inert gas to prevent explosion

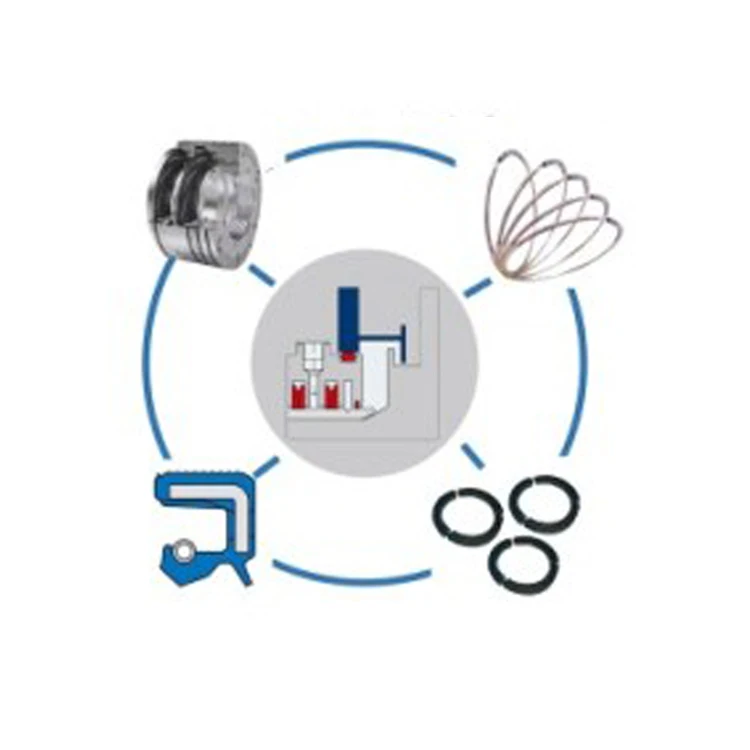

2.Rotating shaft sealing technology
1.Inert gas to prevent explosion
2.Rotating shaft sealing technology
*Combination of multiple electrical control and mechanical protection means
1.Equipment nitrogen filling and automatic comparison of pressure of each pipeline and position. The centrifuge can be started after self-test is passed;
2.High and low nitrogen pressure protection, effective measures such as sound and light alarm and delay shutdown;
3.Double-seal ring protection for static sealing;
4.Oxygen meter (optional), which can monitor the oxygen inside the centrifuge in real time to realize the interlocking protection of start and stop;
1.Equipment nitrogen filling and automatic comparison of pressure of each pipeline and position. The centrifuge can be started after self-test is passed;
2.High and low nitrogen pressure protection, effective measures such as sound and light alarm and delay shutdown;
3.Double-seal ring protection for static sealing;
4.Oxygen meter (optional), which can monitor the oxygen inside the centrifuge in real time to realize the interlocking protection of start and stop;
III. Technical parameters of medicine & health grade centrifuges
| Centrifuge model | Drum diameter mm | Length-diameter ratio mm | Speed rpm | Separation factor | Differential speed rpm | Main moter power kW | Ancillary motor power kW | Throughput m3/h | Weight kg | Boundary dimension mm |
| LW(F)250×l025C | 250 | 4.1 | 5000 | 3500 | 1~50 | 7.5-11 | 3~4 | 1~5 | 1250 | 2500× 800×1150 |
| LW(F)350×l435C | 350 | 4.1 | 4000 | 3136 | 1~35 | 15-12 | 4-5.5 | 5~8 | 2500 | 3500× 1050×1200 |
| LW(F)450×l845C | 450 | 4.1 | 3500 | 3087 | 1~34 | 30-37 | 7.5-11 | 10-15 | 4200 | 4500× 1150×1450 |
| LW(F)520×2150C | 520 | 4.1 | 3500 | 3567 | 1~34 | 45-55 | 11-15 | 15-20 | 5200 | 5100× 1250×1600 |
Note: The throughput is related to material characteristics;

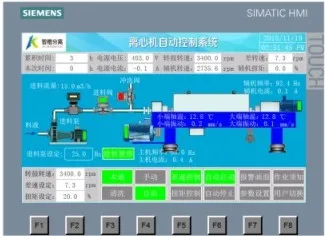

Control method: 1. direct control using an inverter (double-motor double-frequency conversion mode); 2. PLC+ touch screen control (intelligent control mode);
Material: AISI321, AISI316, AISI316U, SAF220S, etc.
Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.
"F" in the centrifuge model indicates explosion-proof centrifuge equipped with an inert gas protection system.
Control method: 1. direct control using an inverter (double-motor double-frequency conversion mode); 2. PLC+ touch screen control (intelligent control mode);
Material: AISI321, AISI316, AISI316U, SAF220S, etc.
Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.
"F" in the centrifuge model indicates explosion-proof centrifuge equipped with an inert gas protection system.
Company Profile
Packaging & Shipping
FAQ
1. Are you a manufacturer or a trading company?
We are manufacturer in China.We specialize in manufacturing separation control equipment over 20 years.
2. How long is the warranty of your products?
The warranty is 12 months after install at site or 14 months after machine leaving factory. Our machine service life is more than 10 years as USA quality.
3. What kind of service u can provide?
We can give 24hrs online services and 1hurs fast feedback, please add our trade manger or Skype(Skype ID: leihonghermes) or whechat(Wechat: 0086-13882202428) once u buy our machine, we can supply spare more than 20years.
Похожие товары

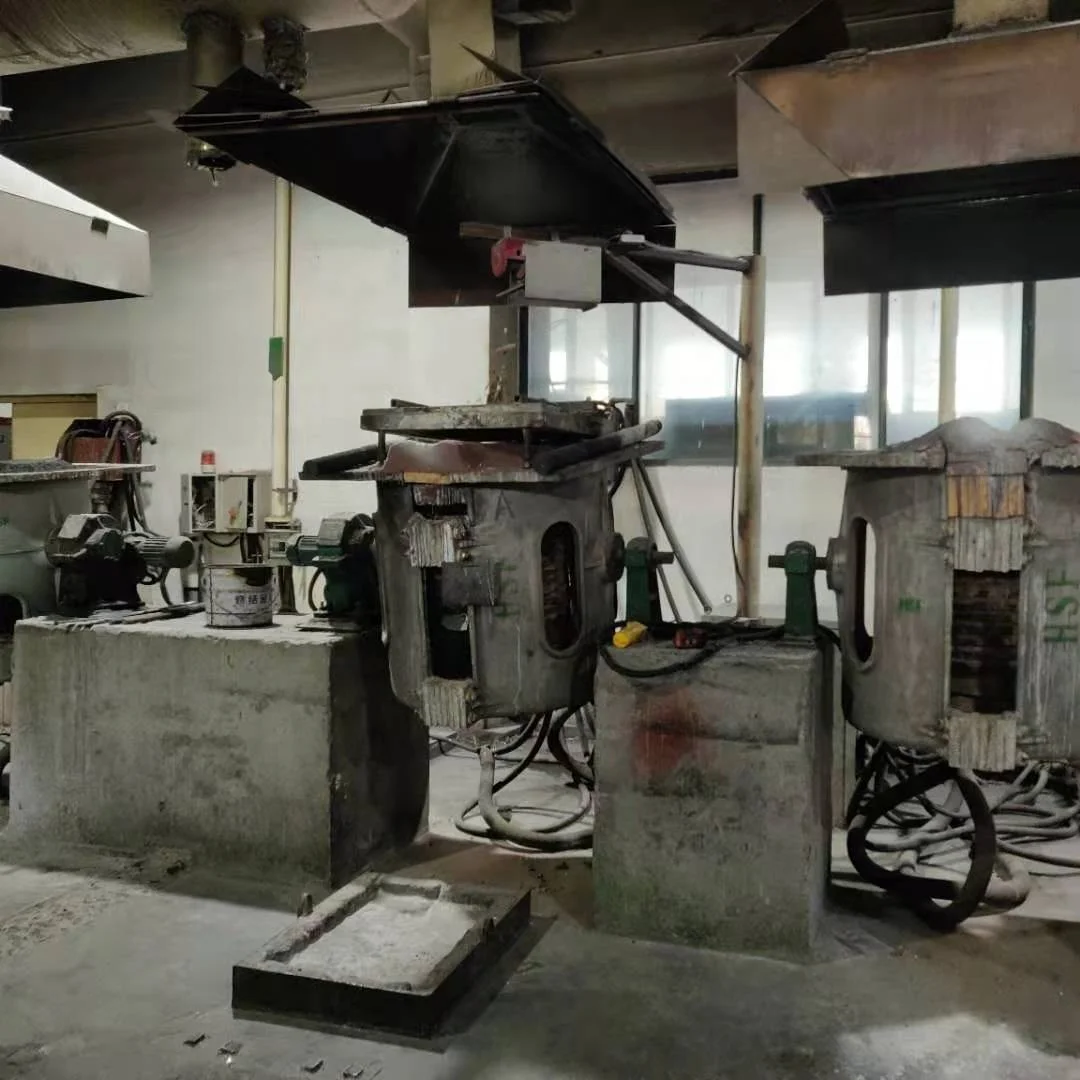

Небольшая индукционная плавильная печь для производства железа RXS 150 кг 250 кг 300 кг 500 кг
8 500,00 $ - 8 999,00 $

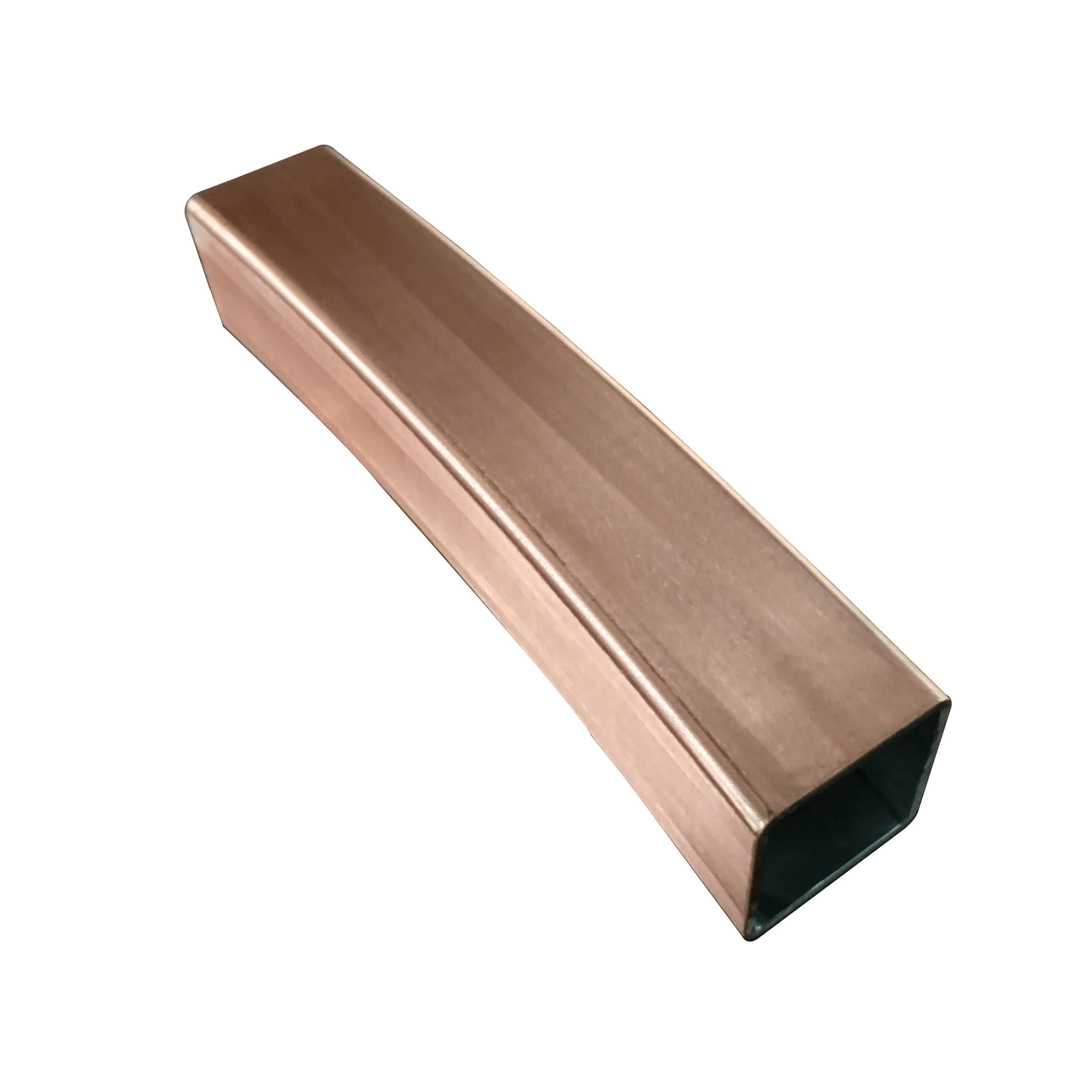

11 мм медная форма для Ccm квадратной непрерывной литейной машины медные формы
Медный сплав, Горизонтальное непрерывное литье, полная для медной d-ленты, трубы Ccm

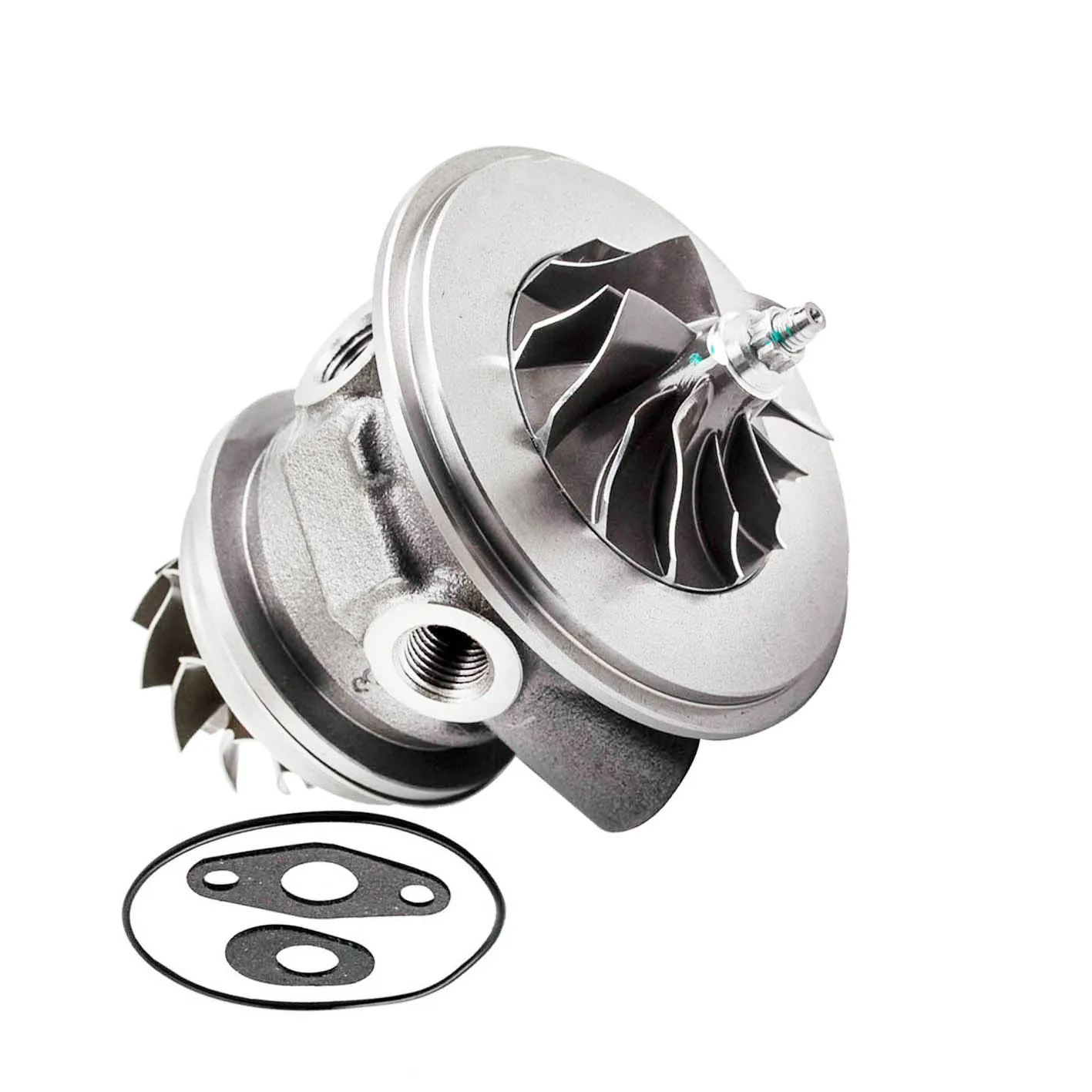

Купить RHB31CW мини Турбокомпрессор Core VZ21 VC110069 картридж для небольшого двигателя
61,00 $
Горячая продажа машина для склеивания для CCM модуль камеры с надежной производительностью точность дозирования и вафли загрузки штамповки
34 300,00 $ - 57 200,00 $

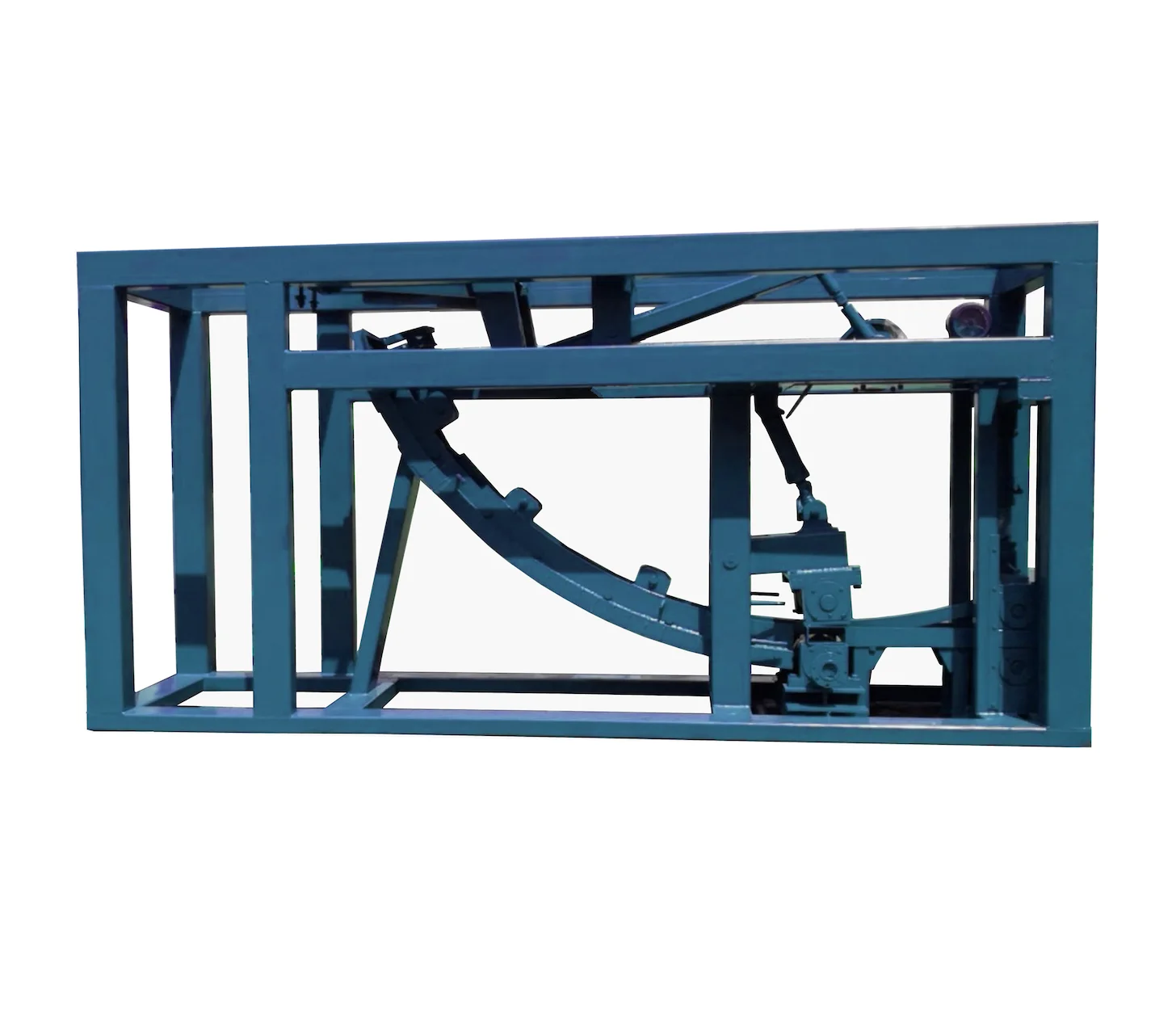

Малая Стальная Заготовка Ccm/стальная заготовка машина для непрерывного литья
