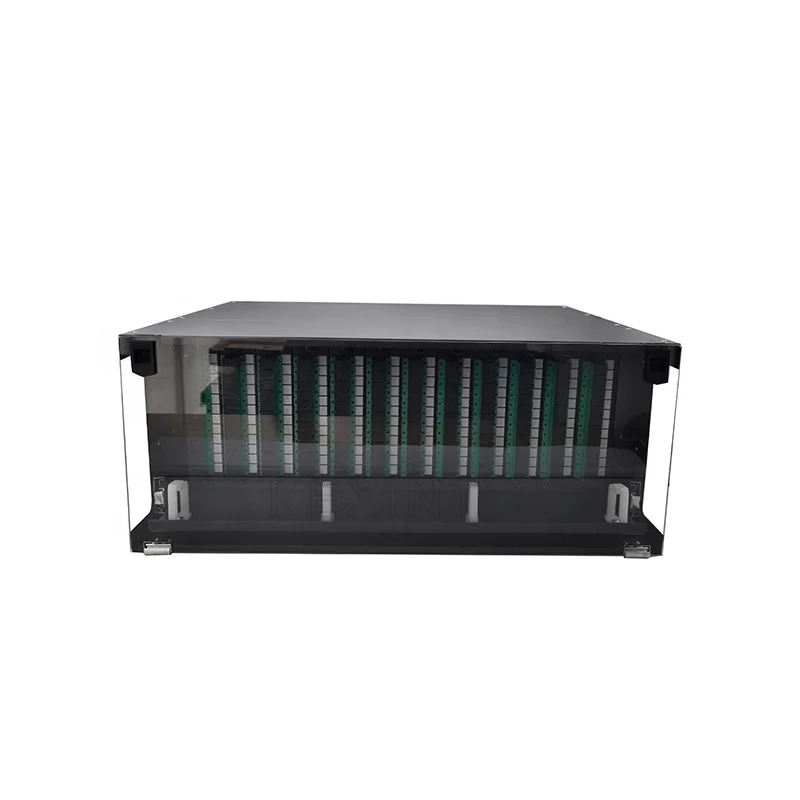

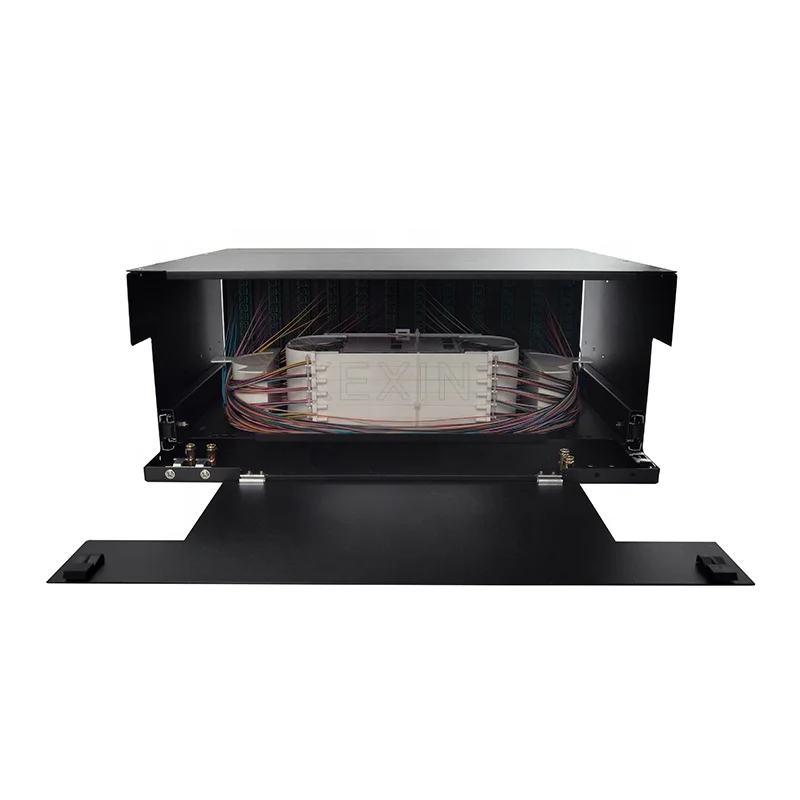

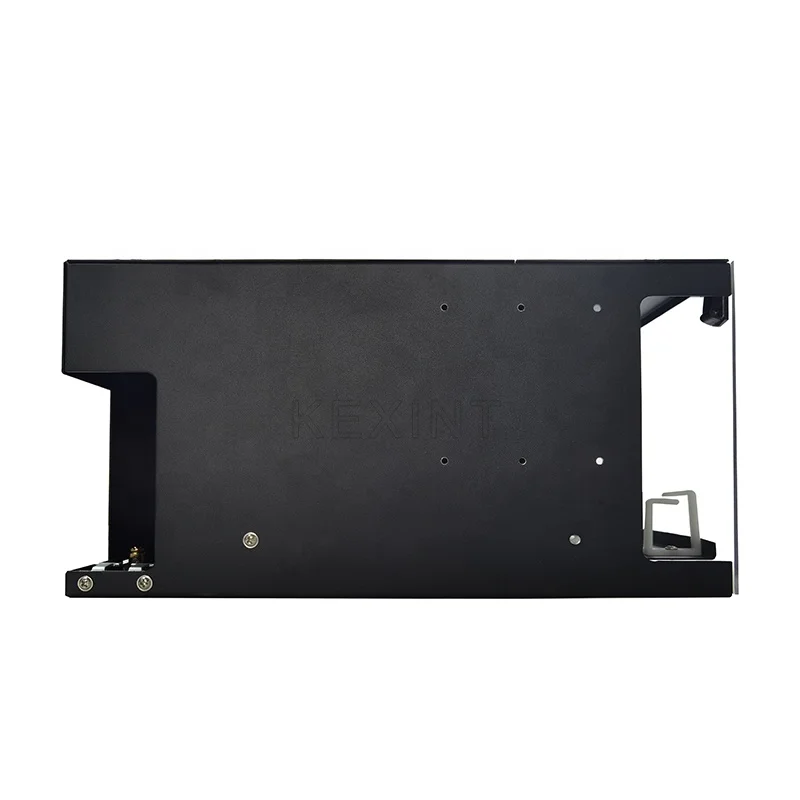

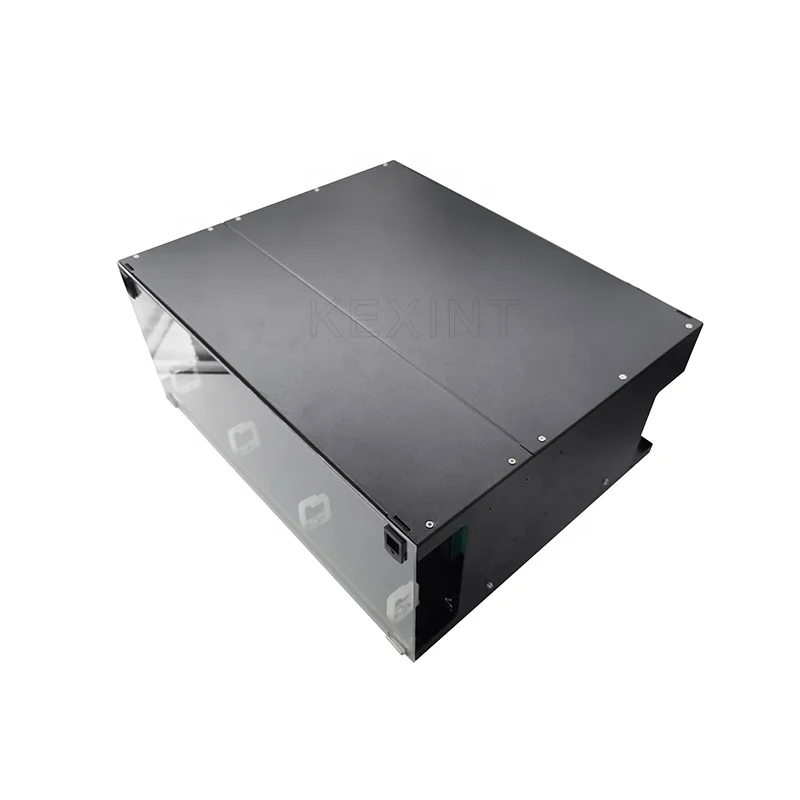

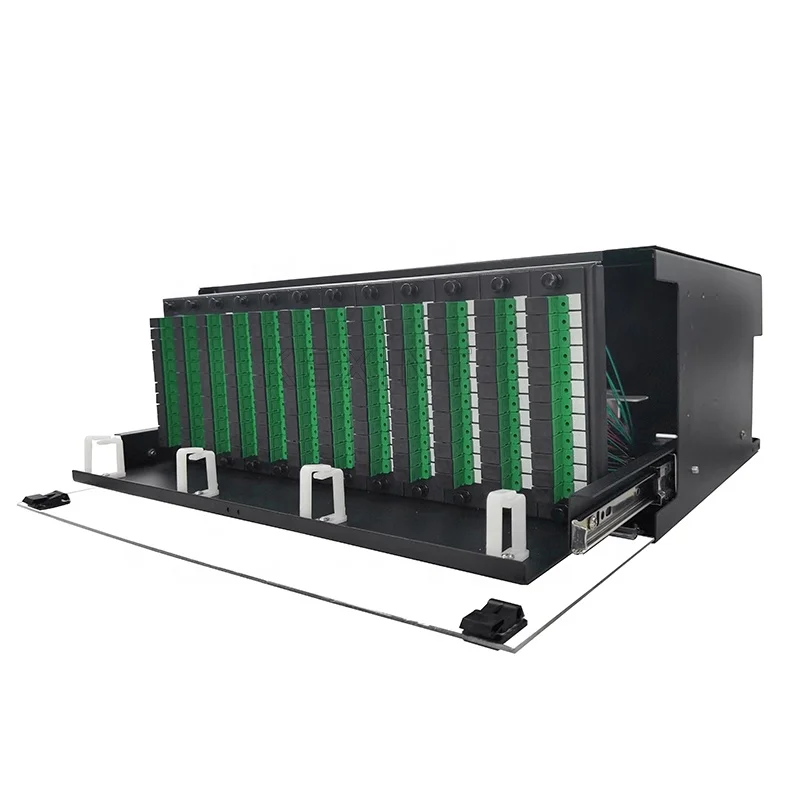

FTTH стойка с полной нагрузкой ODF оптоволоконная распределительная рама 144 портами SC/APC Соединительный шнур отрезок
- Категория: Telecom Parts >>>
- Поставщик: Shenzhen Kexint Technology Co. Ltd.
Сохранить в закладки 1600425052937:
Описание и отзывы
Характеристики
Products Description
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.
Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C 144C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
We support fiber capacity | 12/24/48/72/96/144 cores |
Fiber Port | FC, SC, ST and LC |
Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
Working temperature | -10 °C ~ +40 °C |
Storage temperature | -25 ° C ~ +55 ° C |
Relative humidity | ≤ 85% (+30 ° C) |
Atmospheric pressure | 70Kpa~106Kpa |
Nominal operating wavelength | 850nm, 1310nm, 1550nm |
Insertion loss | ≤ 0.5dB |
Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
Electrical strength | ≥3KV(DC)/1min without breakdown |
Insulation resistance | ≥1000MΩ/500V (DC) |
Life | ≥1000 times |
Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
Advantage:
1. UL certificate makes the quality lever be the best.
2. Independent research and development, Can be modified according to customer requirements
3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton
Company Profile
Our team
work shop
Certifications
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
Q5:Can I visit you？
A5:Sure,our factory is in Shenzhen ,China.Please contact us to make an appointment.
Q6:Can I negotiate the prices?
A6:Yes,we may consider discounts for multiple container load of mixed goods.
Q7:How much will the shipping charges be?
A7:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q9. What is your terms of packing?
A9: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q10. What is your terms of delivery?
A10: EXW, FOB, CFR, CIF, DDU，DDP.
Q11.How about the Warranty?
A11: There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
Q5:Can I visit you？
A5:Sure,our factory is in Shenzhen ,China.Please contact us to make an appointment.
Q6:Can I negotiate the prices?
A6:Yes,we may consider discounts for multiple container load of mixed goods.
Q7:How much will the shipping charges be?
A7:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q9. What is your terms of packing?
A9: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q10. What is your terms of delivery?
A10: EXW, FOB, CFR, CIF, DDU，DDP.
Q11.How about the Warranty?
A11: There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
Похожие товары

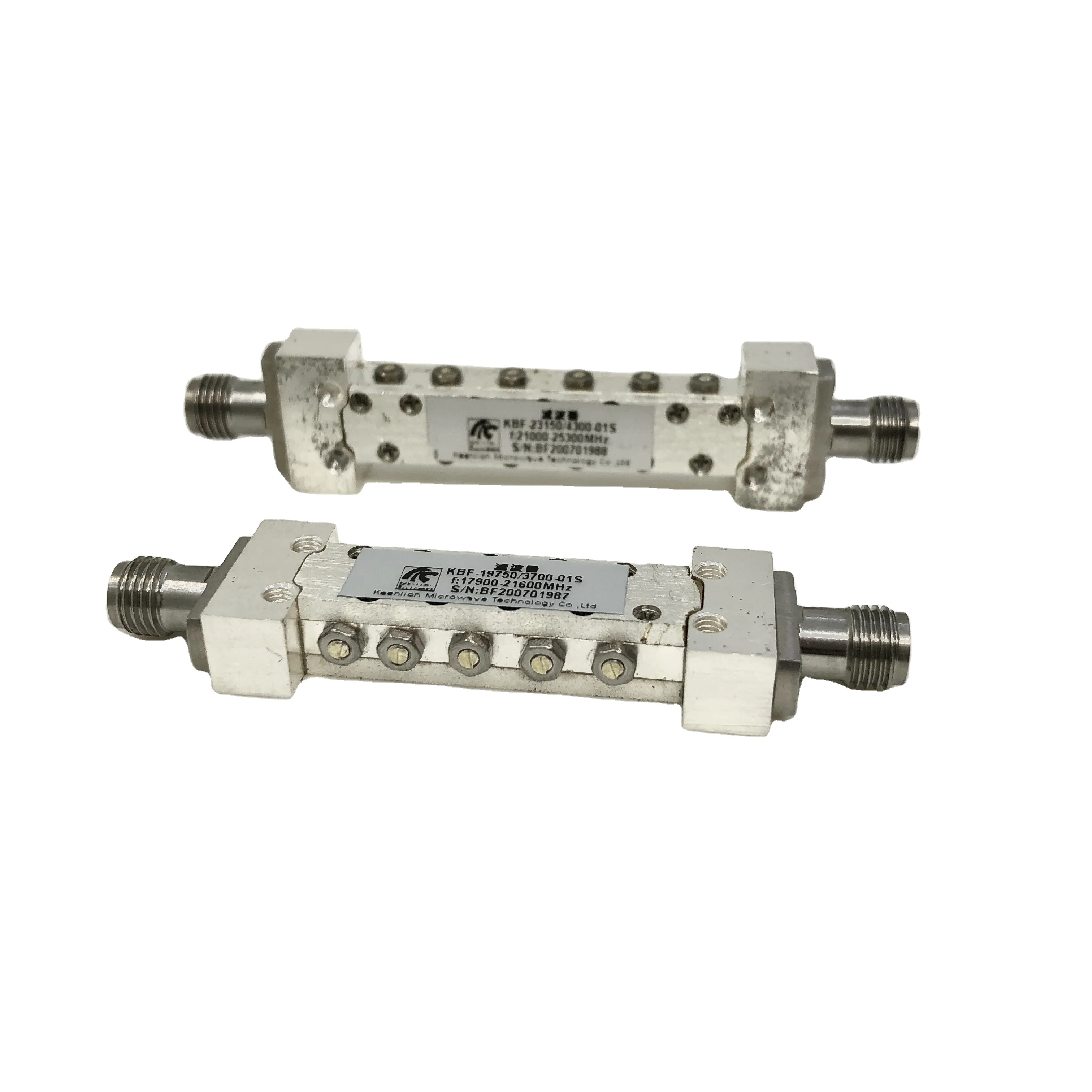

# Заводская цена #19750 ^ 3700 МГц полочный фильтр и микроволновый

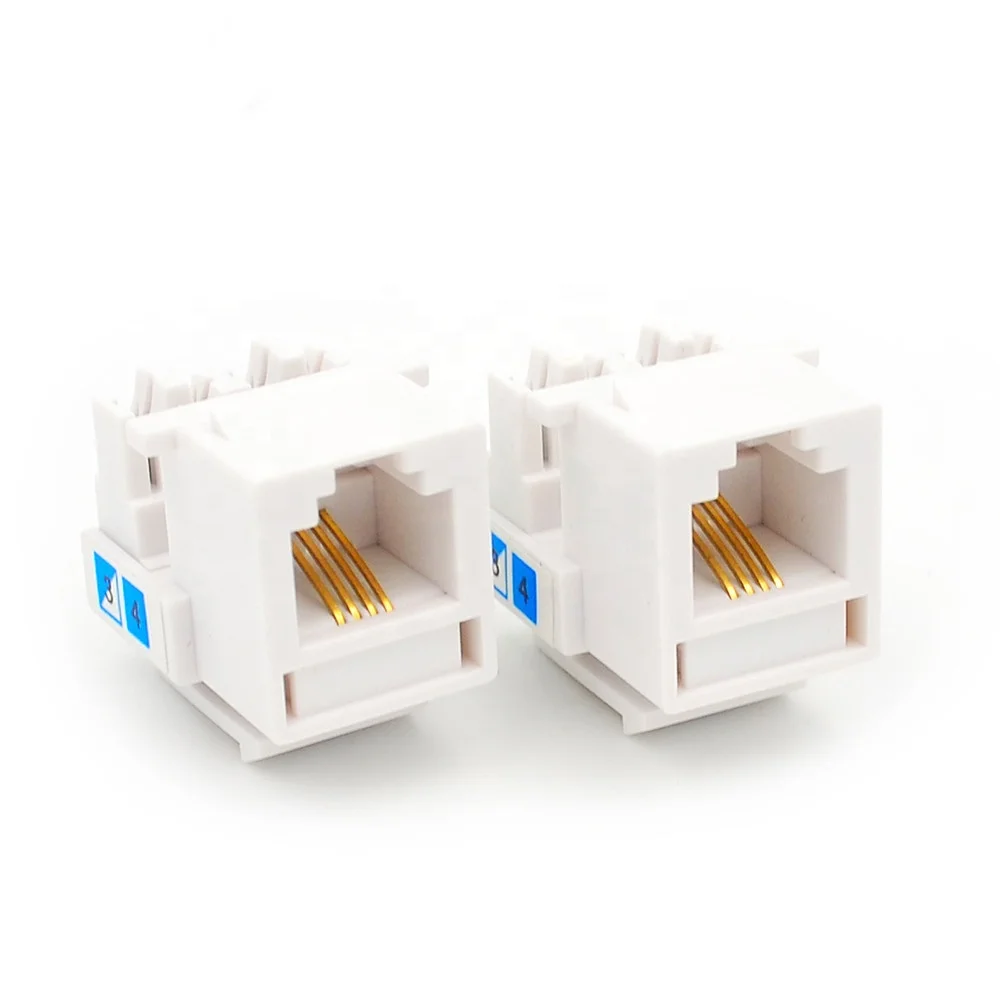

CAT3 телефон UTP No-shield 4P4C RJ9 Keystone

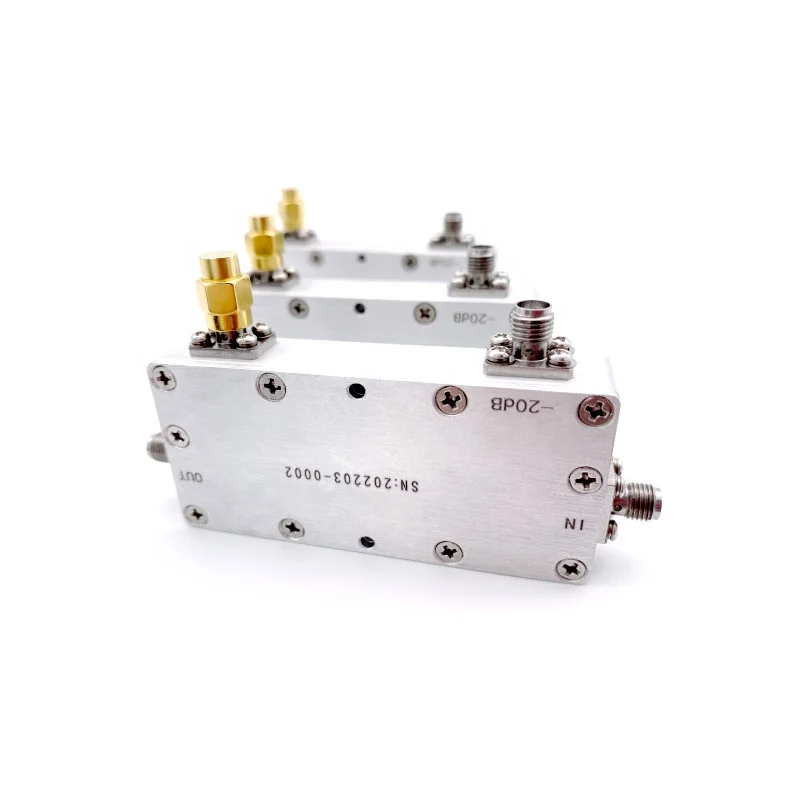

Усилитель сигнала IBS DAS 5G широкополосный 2-4 2 ГГц гнездовой разъем SMA 5 6 7 10 20 30 дБ направленный радиочастотный
65,00 $ - 75,00 $

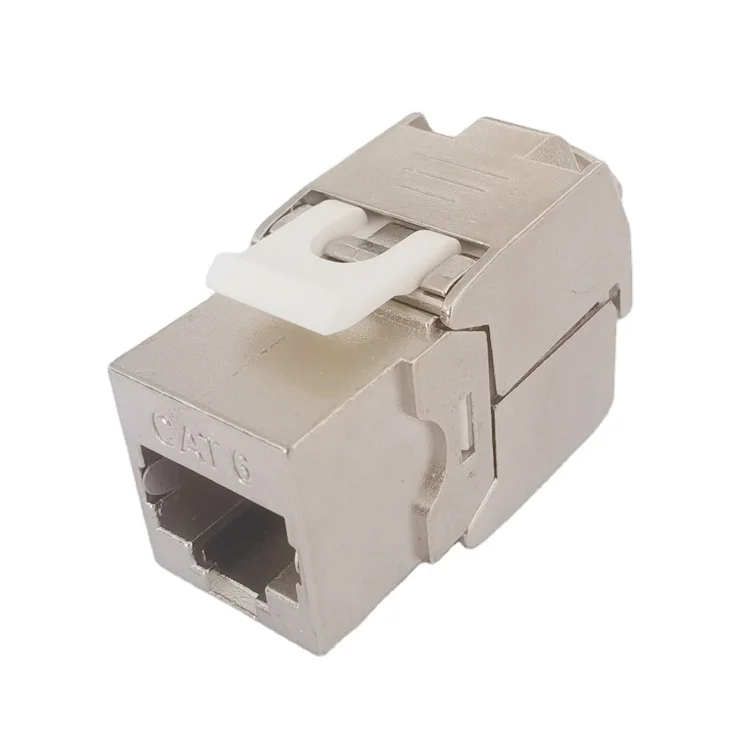

DG-KJ034 STP Cat.6A Cat.8 180 градусов вверх и вниз] RJ45 инструмент Бесплатная Keystone Jack для телефонной связи
0,85 $ - 0,90 $

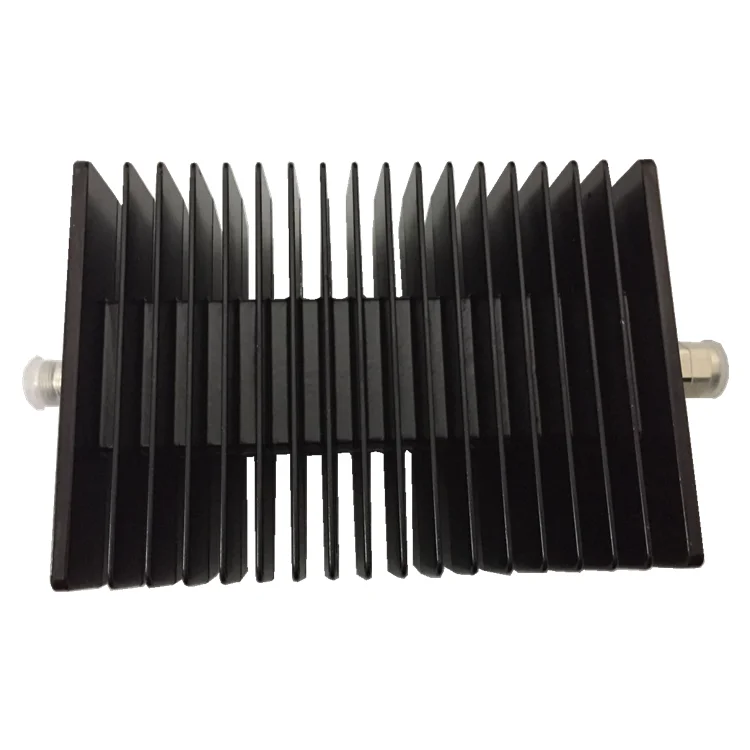

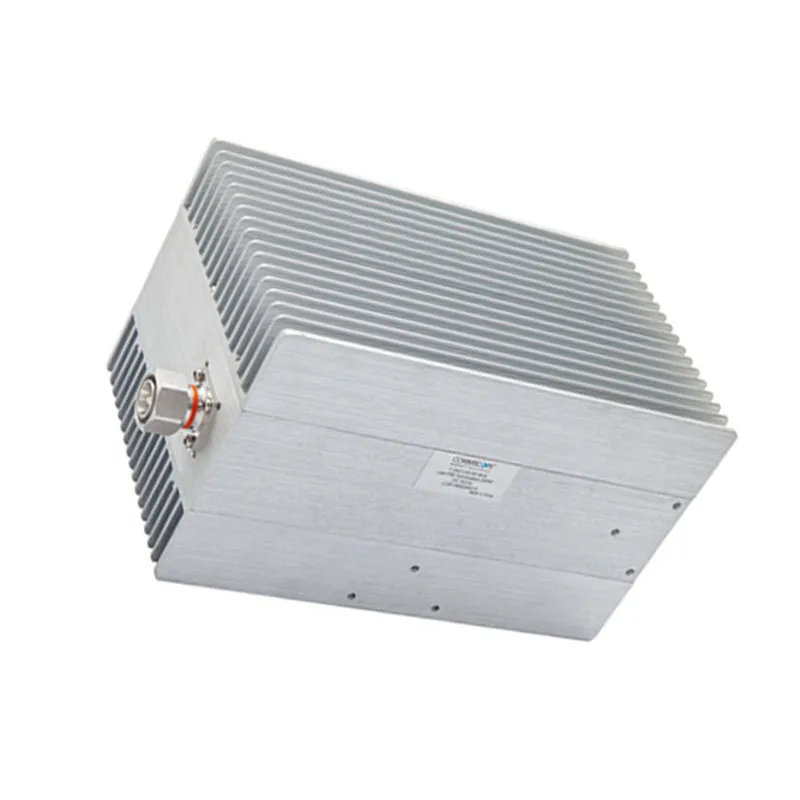

200 Вт 50 ом 0-6000 Гц эндрозный комкомскоп с низкой нагрузкой на клемму

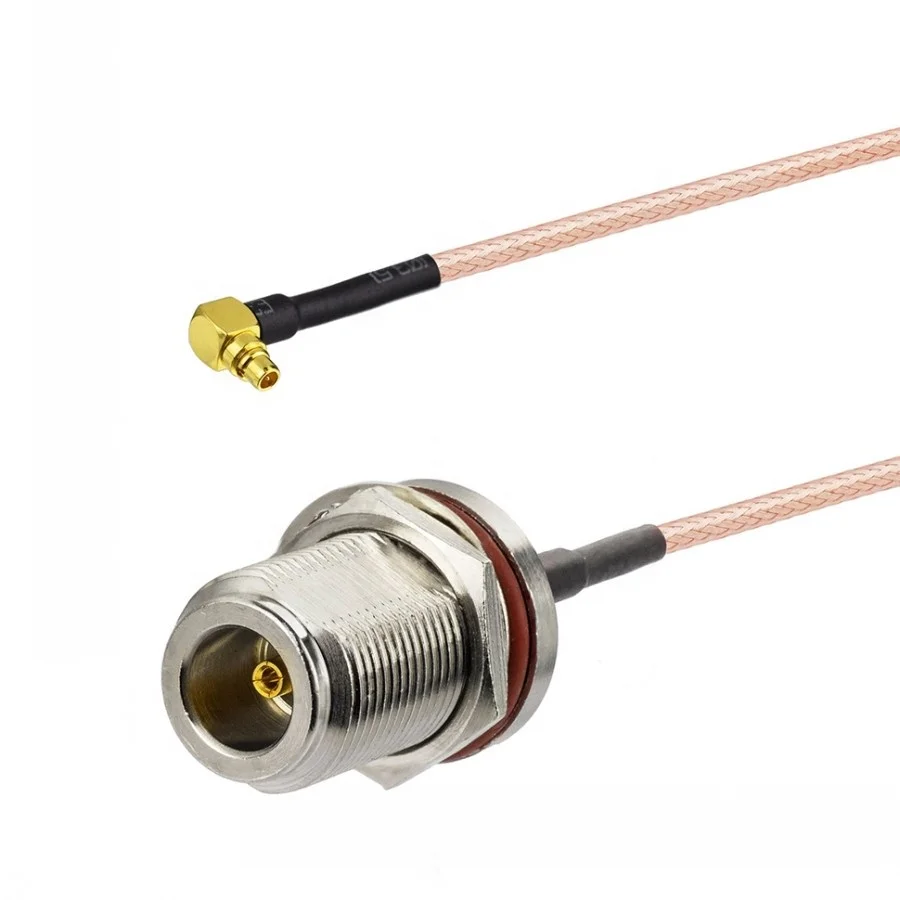

N мама перегородка к MMCX прямоугольный RF ОТРЕЗОК кабеля в
