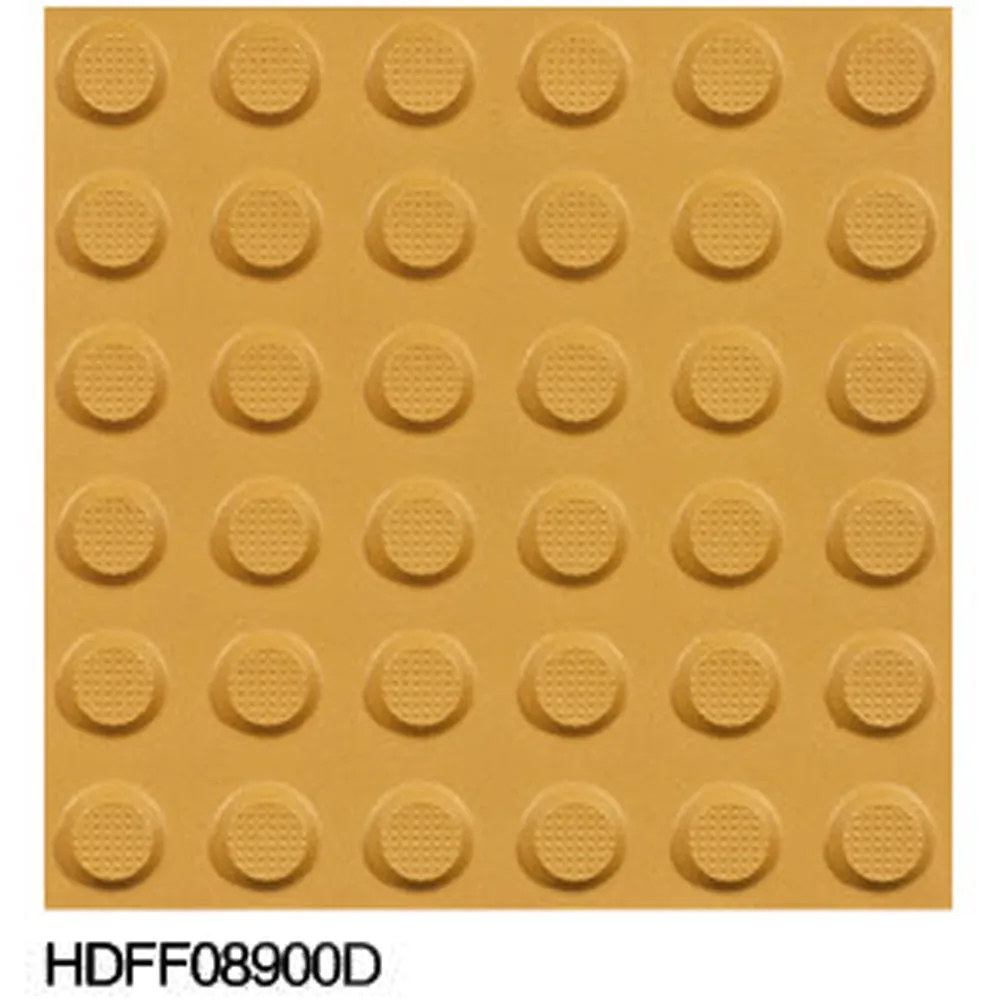

Обнаруживаемые предупреждающие потайные керамические плитки для отключения людей
22,25 $ - 29,32 $
42BLF01 023AG13 заводская цена планетарный редуктор с низким уровнем шума и высоким крутящим моментом
- Категория: >>>
- Поставщик: Changzhou Hetai Motor And Electrical Appliance Co. Ltd.
Сохранить в закладки 1600425178858:
Описание и отзывы
Характеристики
Product Description

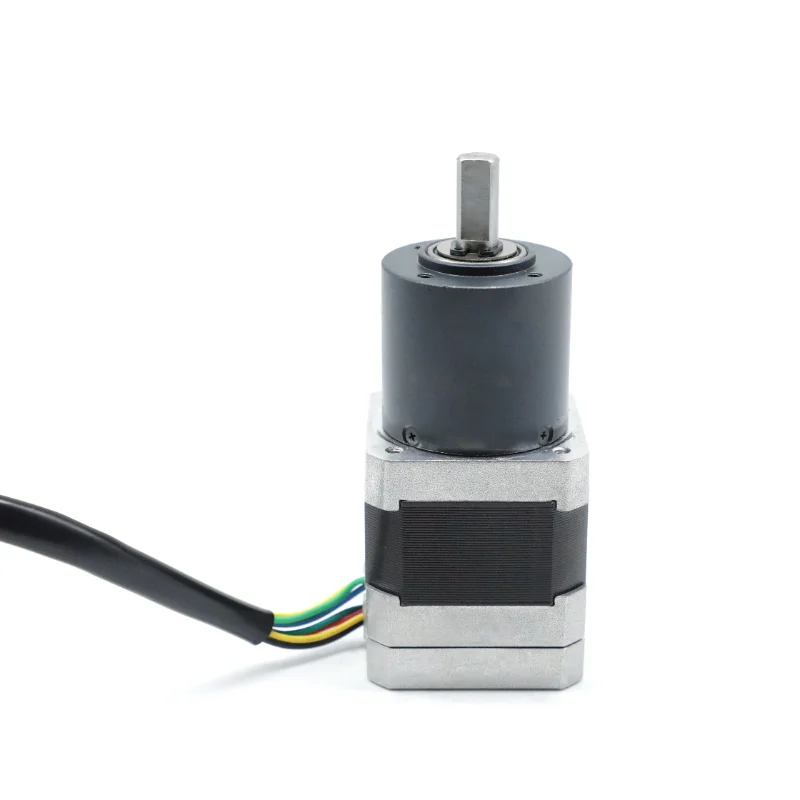

42BLF01-023AG13
Planetary Gearbox Product
Factory Price Low noise High Torque

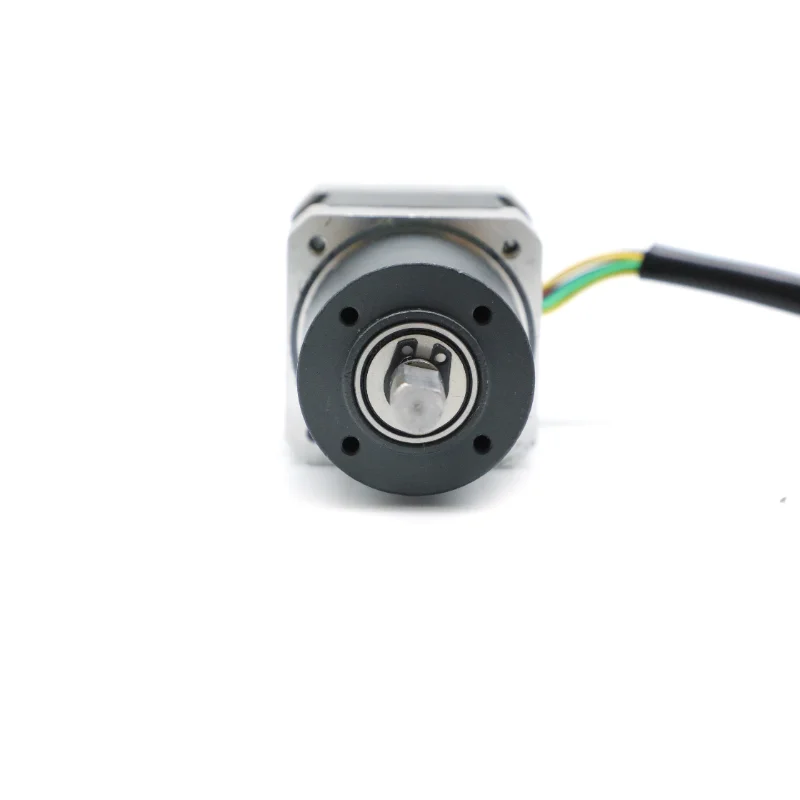

42BLF01-023AG13 planetary gearbox product
Related Products
42BLF01-027AG16
42BLF01-035AG25
42BLF01-036AG53

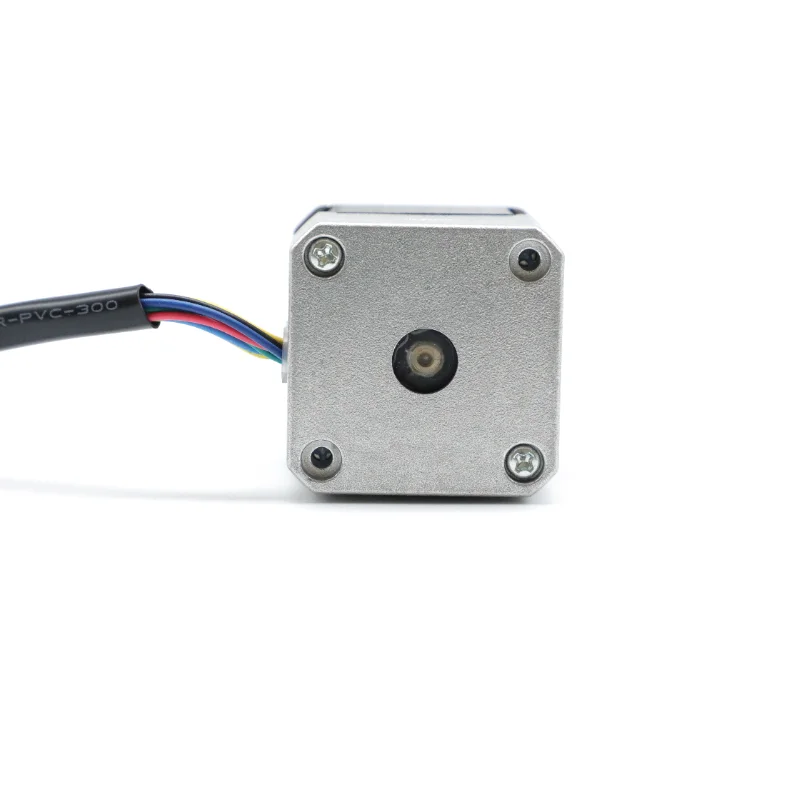

42BLF01 series BLDC gearbox motor
Specification
Product Name | Brushless Gearbox Motor |
Model | 42BLF01-023AG13 |
Reduction Ratio | 1：13 |
Voltage （V） | 24 V |
Rated Speed（RPM） | 307 |
Rated Torque （N.M） | 0.66 |
Power （W） | 21 |
Insulation class | B |
Other Gearbox Ratio
NEMA 17 BRUSHLESS MOTOR CAN MATCH FOLLOWING GEARBOX
Planetary gearbox 36mm | ||||||
Reduction ratio | Momentary allowable load（Nm） | Length（mm） | Number of gear trains | |||
1:4 | 1.0 | 24.8 | 1 | |||
1:5 | ||||||
1:16 | 3.5 | 32.4 | 2 | |||
1:20 | ||||||
1:25 | ||||||
1:53 | 7.5 | 41.9 | 3 | |||
1:62 | ||||||
1:76 | ||||||
1:94 | ||||||
1:117 | ||||||
Planetary gearbox 42mm | ||||||
Reduction ratio | Momentary allowable load（Nm） | Length（mm） | Number of gear trains | |||
1:4 | 3.0 | 32.5 | 1 | |||
1:6 | ||||||
1:15 | 12 | 46.3 | 2 | |||
1:18 | ||||||
1:25 | ||||||
1:36 | ||||||
1:54 | 25 | 60.1 | 3 | |||
1:65 | ||||||
1:90 | ||||||
1:112 | ||||||
1:155 | ||||||
1:216 | 30 | 60.1 | 3 | |||
Wiring diagram
Product Application
Certificate
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Stepper motor ROHS report
Lab No. (2421)133-0096
Date: June 09, 2021
BLDC Motor ROHS report
Lab No. (2421)133-0095
Date: June 09, 2021
CE certificate
Certificate No. IT1445HT10041802
Test Report No: SCC(18)-600393S-EMC
Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Registration No. 10460/0
Valid until: 02 June 2024
IATF 16949:2016
Registration No. 02452/0
Valid until: 02 June 2024
Invention patents（2 products）
※brushless servo control system and driving installation
based on BLDC motor
※a simple and high efficient hybrid stepper motor driving installation
8 utility model patents（6 products)
※a hybrid stepper motor driving installation
※a stepper motor subdivision driving installation
※brushless servo control system and driving installation based on
PM BLDC motor
※PM BLDC motor used in servo system
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

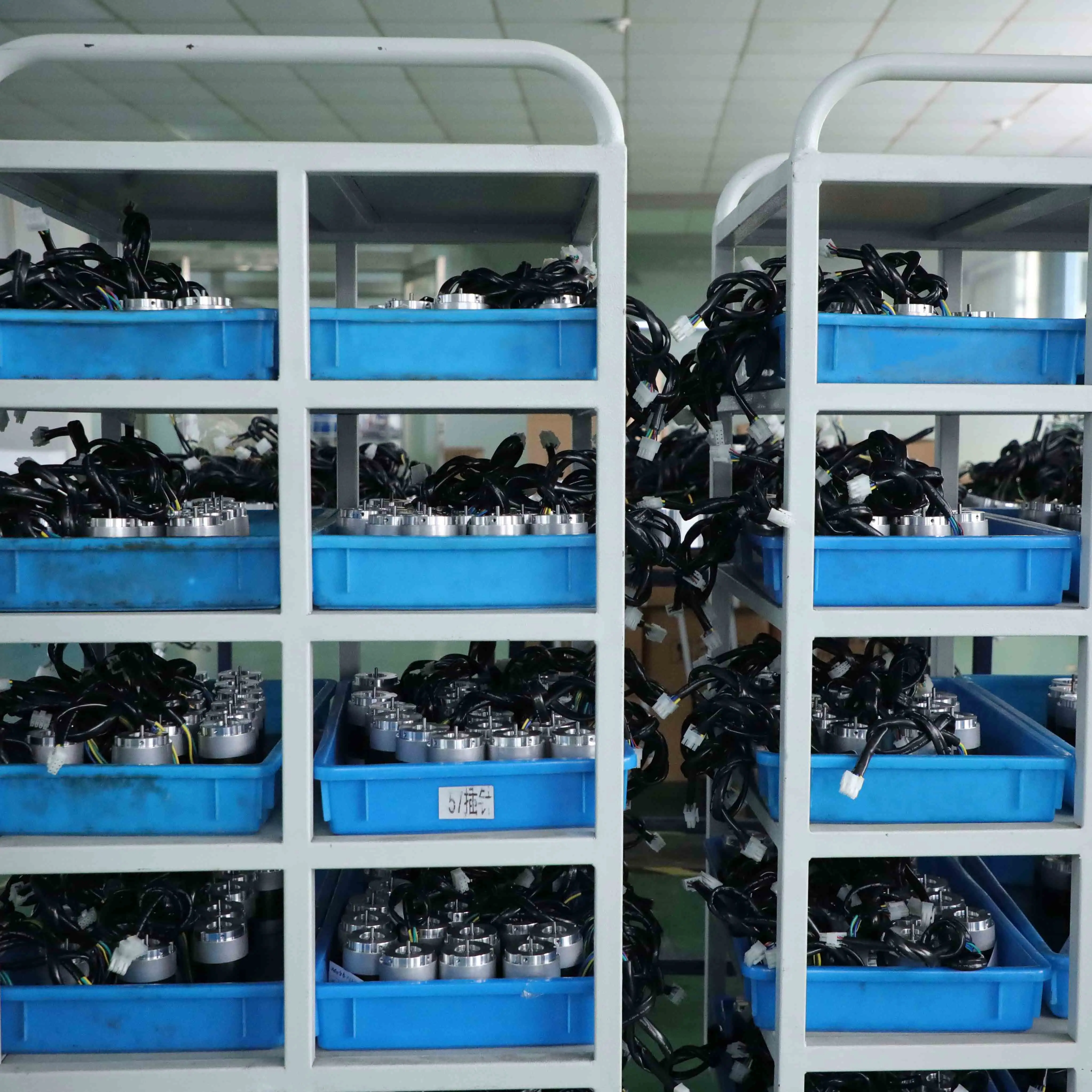

Hetai Production Process
Market Range
FAQ
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
Похожие товары
Подарочная упаковочная бумага, подарочная оберточная бумага, салфетка для рождественских праздников
0,12 $ - 0,15 $

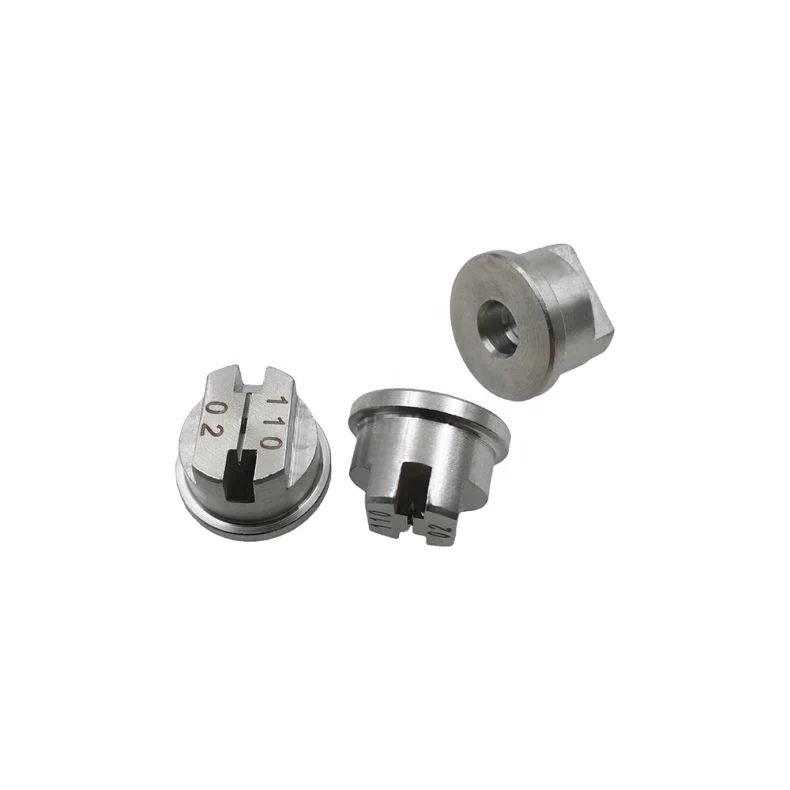

YS Female; Фабричный фирменный дизайн; Новые TPU-11002-SS UNI JET плоская струя
1,30 $ - 4,50 $

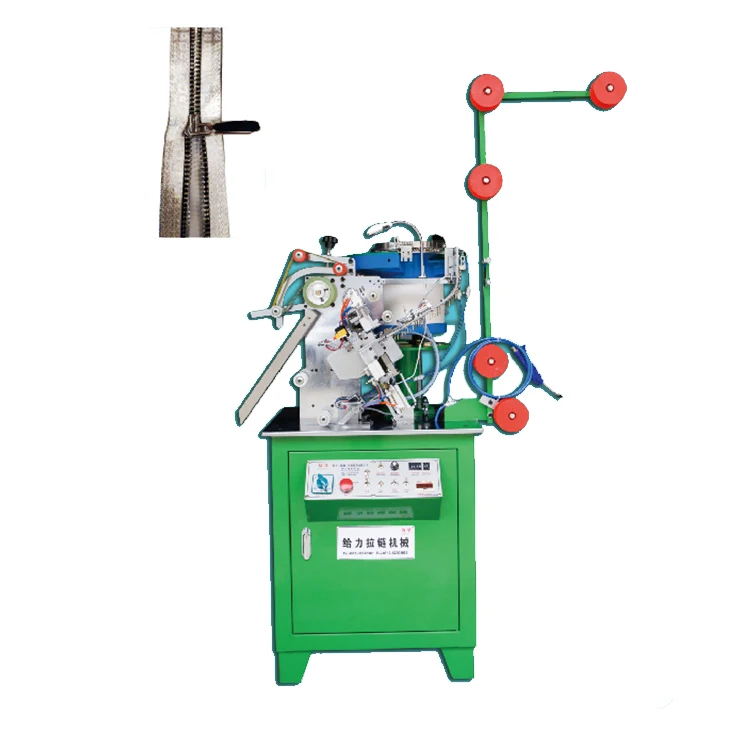

Полная Автоматическая установка для монтажа на молнии с несколькими вытяжными головками с ЧПУ
4 323,00 $ - 5 199,00 $

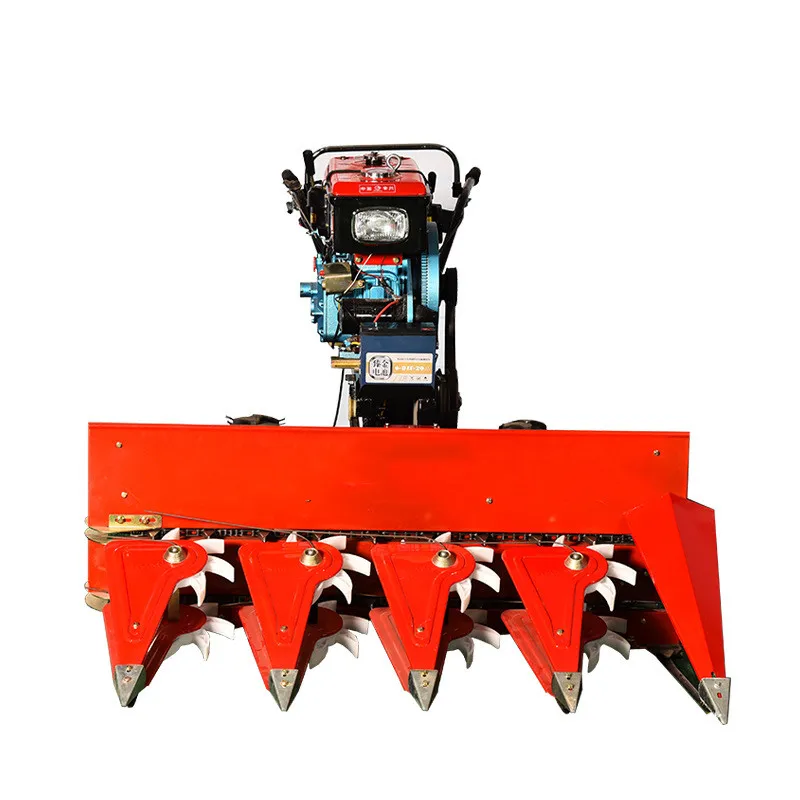

Новейшая сельскохозяйственная машина, соевая пшеница, рис, комбинированный небольшой кукурузный комбайн, мини-комбайн для кукурузы

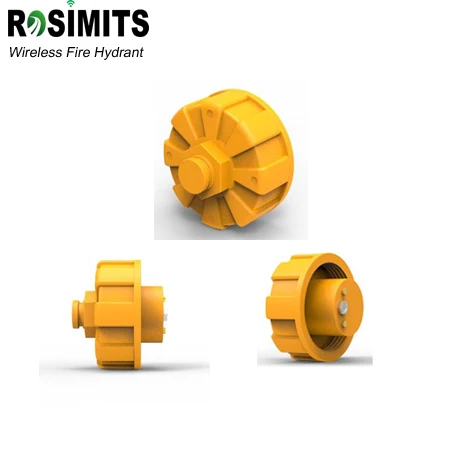

Интеллектуальная пожарная гидравлическая система управления
140,00 $

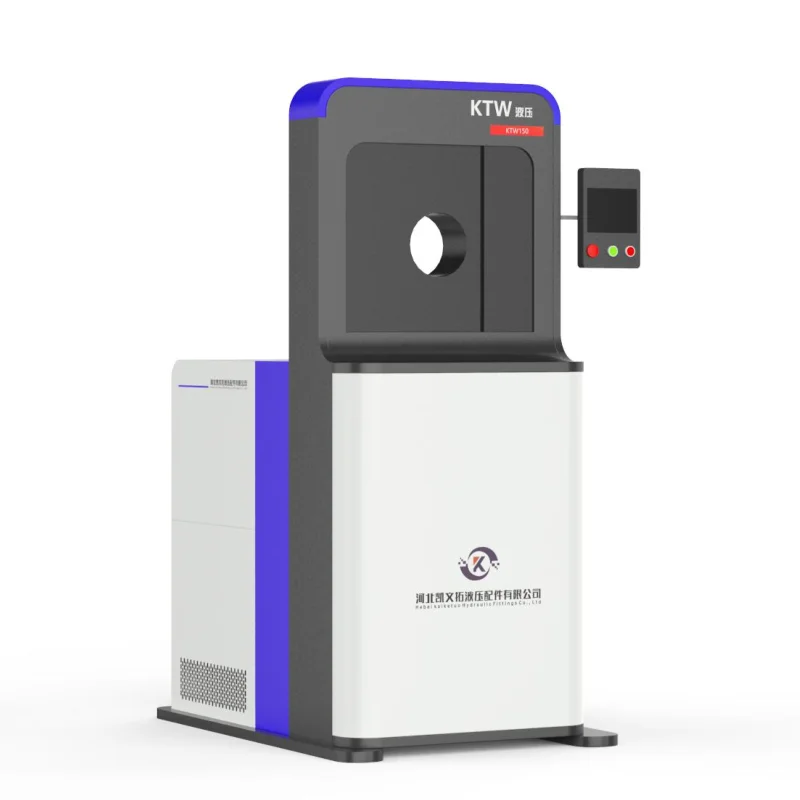

Полуавтоматический гидравлический шланг uniflex ОБЖИМНАЯ машина для продажи в Индии
