Product Description
Products Characteristic :
Plastic GMT Fiber Pallets For Brick Block Making Machine is our new type of block pallet, it is made from glass fibre and plastic, glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century.
(1)Parameter of Plastic GMT Fiber Pallets For Brick Block Making Machine
Items | Characteristics | Technical Indicator | Outstanding Performance | Comparing with other Materials Pallet |
1 | Rigidity | Elasticity Modulas 3.7 GPa | No Deformation | More Rigid than same thickness solid wood pallet |
2 | High Load Bearing | Max load 2.0 kn,Bending Strength 51.0 MPa | Stand big pressure, high load, and brings no rupture | Higher Load Bearing than same thickness PVC and solid wood Pallet |
3 | Anti-abrasion | Shore Hardness 72 | Long Life Span | Better Performance than plywood and bamboo wood Pallet |
4 | Anti-impact | Withstand Impact of 20KJ/m2 | Vibration Resistant, Anti-fall, and no Cracking | Better Performance than plywood and solid wood Pallet |
5 | Weather Resistant | Operating Temperature between -40°C--90°C | Insolation Resistant, Anti-aging, and Suit for Steam Curing | Better Performance than PVC, steel and bamboo wood Pallet |
6 | Erosion Resistant | Resistance of most Acid, Alkali, and Salt | Protect inner steel and bamboo against rust and mildew | Better Performance than bamboo wood and steel Pallet |
7 | No Water Immersion | Water Immersion Rate <0.5% | Protect inner bamboo(wood) board | Better Performance than bamboo wood Pallet |
8 | Light Weight | ensity<1 | Effort Saving and Friction Reducing | Lighter than PVC and Steel Pallet |
9 | Life Span | Life Span can reach 8 years | Low Cost | Better Performance than PVC and bamboo wood Pallet |
10 | High Performance | High Performance and Low Cost | Extremely Low Cost during long time using | Better than all other |
Advantages of Plastic GMT Fiber Pallets For Brick Block Making Machine
GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by method of heating and pressurizing. It becomes widely used composite material in the world and is considered as one of the most prospective development new material in the 21st century.
1.Light weight
Taking one pallet size 850*680 for example, with same thickness, our GMT pallet is lighter; for same weight, our GMT pallet is thinner. GMT pallet is lightest with high strength.
2.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions.
Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
3.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa. The following diagram: GMT plate bending effect compared with the PVC plate under the same stress conditions
4.Not Easily Deformed
5.Waterproof
Water absorption rate <1%
6.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed, surface wear is about 0.5mm.
7.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won't deform or crack.
GMT pallet is able to withstand high temperature of 60-90℃, won't easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree
8.Long Service Life
Theoretically, it can be used more than 8 years
1.Light weight
Taking one pallet size 850*680 for example, with same thickness, our GMT pallet is lighter; for same weight, our GMT pallet is thinner. GMT pallet is lightest with high strength.
2.High Impact Resistant
Impact strength of PVC plate is less than or equal to 15KJ/m2, GMT pallet is greater than or equal to 30KJ/m2, comparing the impact strength under the same conditions.
Drop hammer experiment in the same height shows that: when GMT pallet slightly cracked, PVC plate has been breakdown by drop hammer. ( Below is the laboratory drop tester: )
3.Good Rigidity
GMT plate elastic modulus 2.0-4.0GPa, PVC sheets elastic modulus 2.0-2.9GPa. The following diagram: GMT plate bending effect compared with the PVC plate under the same stress conditions
4.Not Easily Deformed
5.Waterproof
Water absorption rate <1%
6.Wear-resisting
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. Brick machine screw off, pallet is not destructed, surface wear is about 0.5mm.
7.Anti-high And Low Temperature
Being used at min 20 degrees, GMT pallet won't deform or crack.
GMT pallet is able to withstand high temperature of 60-90℃, won't easily deform, and suitable for steam curing, but PVC plate is easy to deform at high temperature of 60 degree
8.Long Service Life
Theoretically, it can be used more than 8 years

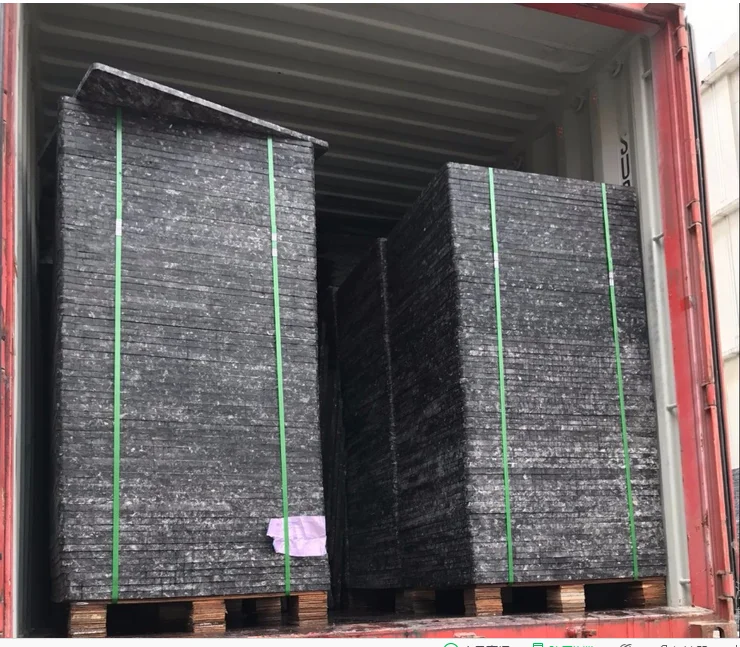

Packing & Delivery
Our Company
DONGYUE MACHINERY GROUP PROFILE
Dongyue Machinery Group was built in 1994,and now Dongyue is a national large-scale designated building materials machinery manufacturer, a coalition of researching, producing and marketing, and services with registered asset of 234 million RMB, total asset of 1 billion RMB, total area of 1,332,000square meters, and over 1500 staff.
