Product Description
Applications of the milling machine plastic grinder plastic pulverizer
SMF series Plastic Milling machine is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP,EVA, PLA, ABS etc, with high output and thin powder.
The SMF series plastic automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Features of miller grinder:
1.The machine is adapt for heat-sensitive material processing by circulating water cooling
2.The machine is using two grind disc to smash material. Collision two disc and change input material into powder.Without sieve.
3.The disc is made of wear-resistant steel,which is through heat treatment.
4.High tight-compact,small size,maintenance should be happen before opening cover.all-sealed,dust-free spill.
5.The machine is equipped with wind blow device to ensure cool average.fast cooling characteristic.
6.The machine is equipped with vibra sieve which can select material according to diameter of material.
7.Equipped with dust-free device to decrease dust.
This machine is used for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber.
The Equipment characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation, the host has the wind and water cycle cooling system, automatic feeding device,dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.
Our factory developed the SMF Series rotor automatic plastic milling machine on the basis of advanced Foreign technology, mainly used in plastics, mining, chemical, and metallurgical industries for micro-milling equipment. Especially, used for recycled PVC plastic grind. Improved by the plastic manufacturer in practice, add 20% -30% of its grinding powder in the process, the chemical and physical data keep the same as 100% first hand raw material.
SMF series Plastic Milling machine is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP,EVA, PLA, ABS etc, with high output and thin powder.
The SMF series plastic automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Features of miller grinder:
1.The machine is adapt for heat-sensitive material processing by circulating water cooling
2.The machine is using two grind disc to smash material. Collision two disc and change input material into powder.Without sieve.
3.The disc is made of wear-resistant steel,which is through heat treatment.
4.High tight-compact,small size,maintenance should be happen before opening cover.all-sealed,dust-free spill.
5.The machine is equipped with wind blow device to ensure cool average.fast cooling characteristic.
6.The machine is equipped with vibra sieve which can select material according to diameter of material.
7.Equipped with dust-free device to decrease dust.
This machine is used for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber.
The Equipment characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation, the host has the wind and water cycle cooling system, automatic feeding device,dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.
Our factory developed the SMF Series rotor automatic plastic milling machine on the basis of advanced Foreign technology, mainly used in plastics, mining, chemical, and metallurgical industries for micro-milling equipment. Especially, used for recycled PVC plastic grind. Improved by the plastic manufacturer in practice, add 20% -30% of its grinding powder in the process, the chemical and physical data keep the same as 100% first hand raw material.
Specification
Characteristics of the milling machineplastic grinderplastic pulverizer
With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.
With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.
Model | SMF-380 | SMF-450 | SMF-500 | SMF-600 | SMF-800 | ||||||
Blade diameter | 380mm | 450mm | 500mm | 600mm | 800mm | ||||||
Lade disk quantity | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | ||||||
Rotated speed | 4500rpm | 4500rpm | 4500rpm | 4200rpm | 3700rpm | ||||||
Power | main motor | 30Kw | 30Kw | 37Kw | 37Kw | 45Kw | |||||
blower | 3Kw | 4Kw | 3Kw | 4Kw | 5.5Kw | ||||||
Shaker size | 800mm | 800mm | 800mm | 1000mm | 1200mm | ||||||
Output size | 10-100 mesh 140μm-1400μm | ||||||||||
Cooling type | Air and Water | ||||||||||
Capacity (For 30mesh) | PVC: 200kg | PVC: 250kg | PVC: 250kg | PVC: 350kg | PVC: 500kg | ||||||
P E: 150kg | P E: 180kg | P E: 200kg | P E:250kg | P E: 300kg | |||||||
P P:70kg | P P: 80kg | P P: 100kg | P P: 160kg | P P: 200kg | |||||||
Dimensions (mm) | 2500x2000x3000 | 2600x2100x3000 | 2600x2100x3000 | 2800x2300x3000 | 3200x2800x3200 | ||||||
Machine details
Advantages of the milling machine plastic grinder plastic pulverizer
The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
Installation and maintenance easy, open the door to cover clean-up.
Milling process of the whole seal, without dust leakage.
Full automatic feeding, the materials and sorting.
Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
Installation and maintenance easy, open the door to cover clean-up.
Milling process of the whole seal, without dust leakage.
Full automatic feeding, the materials and sorting.
Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
Compenents
1. high capacity
2. Working stably
3. Lower energy consumption
It is applied for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber

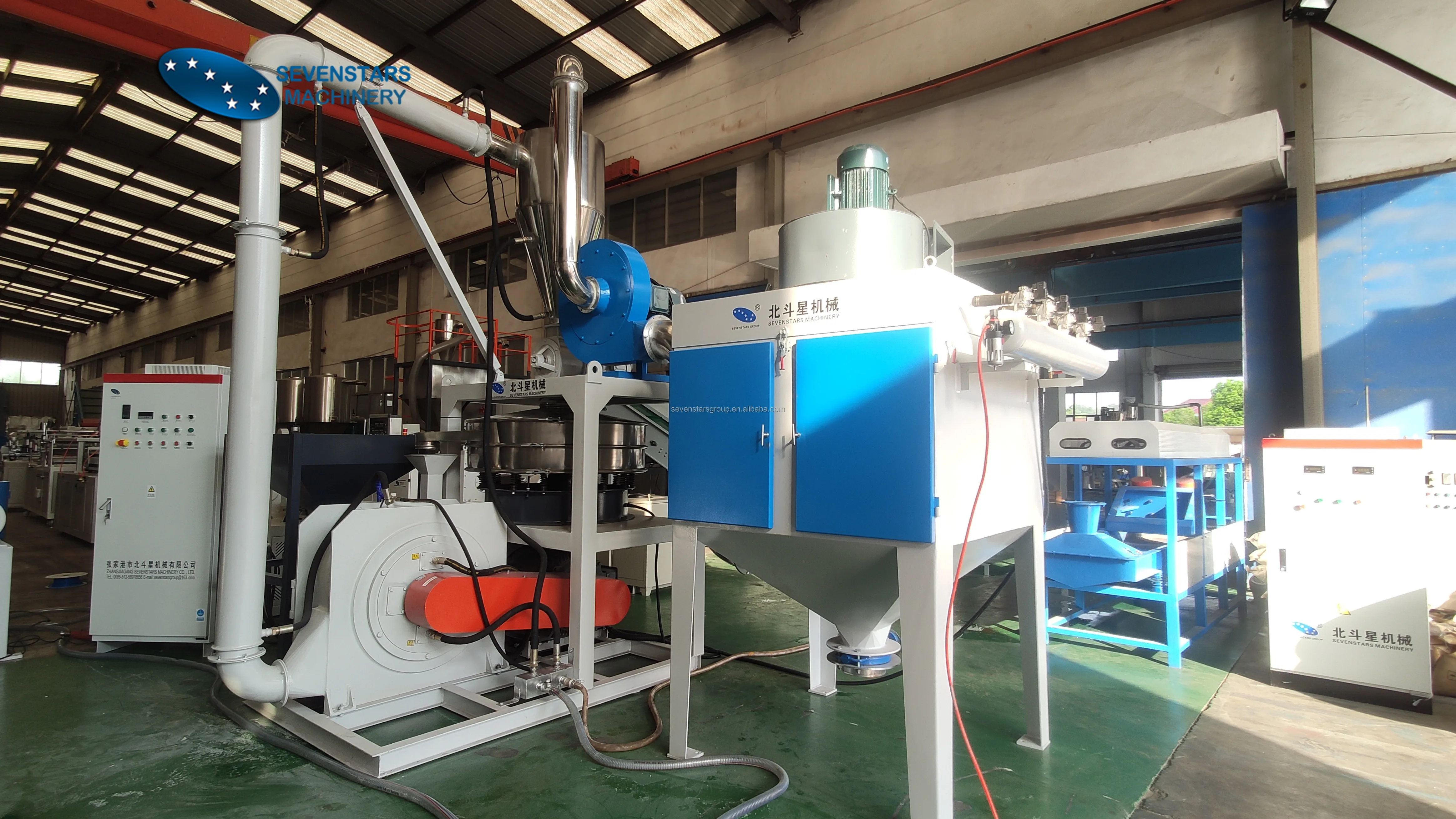

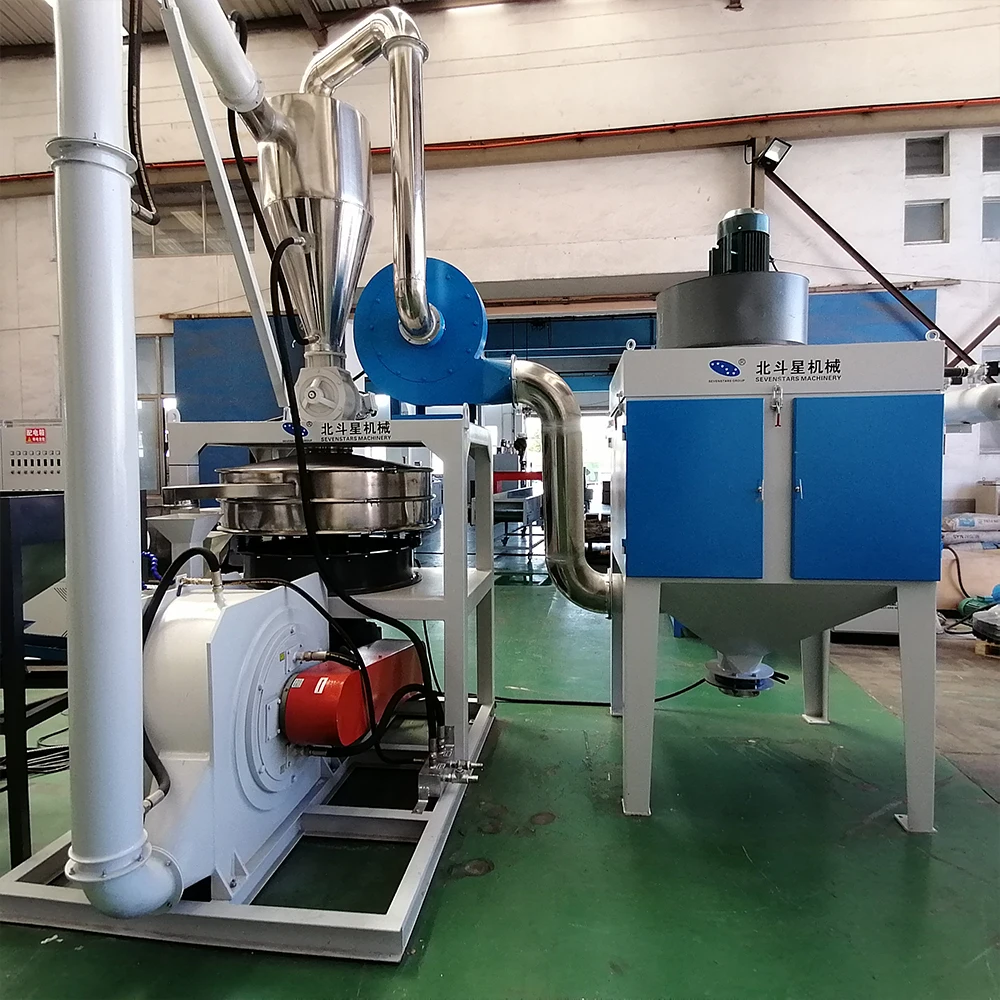

components:

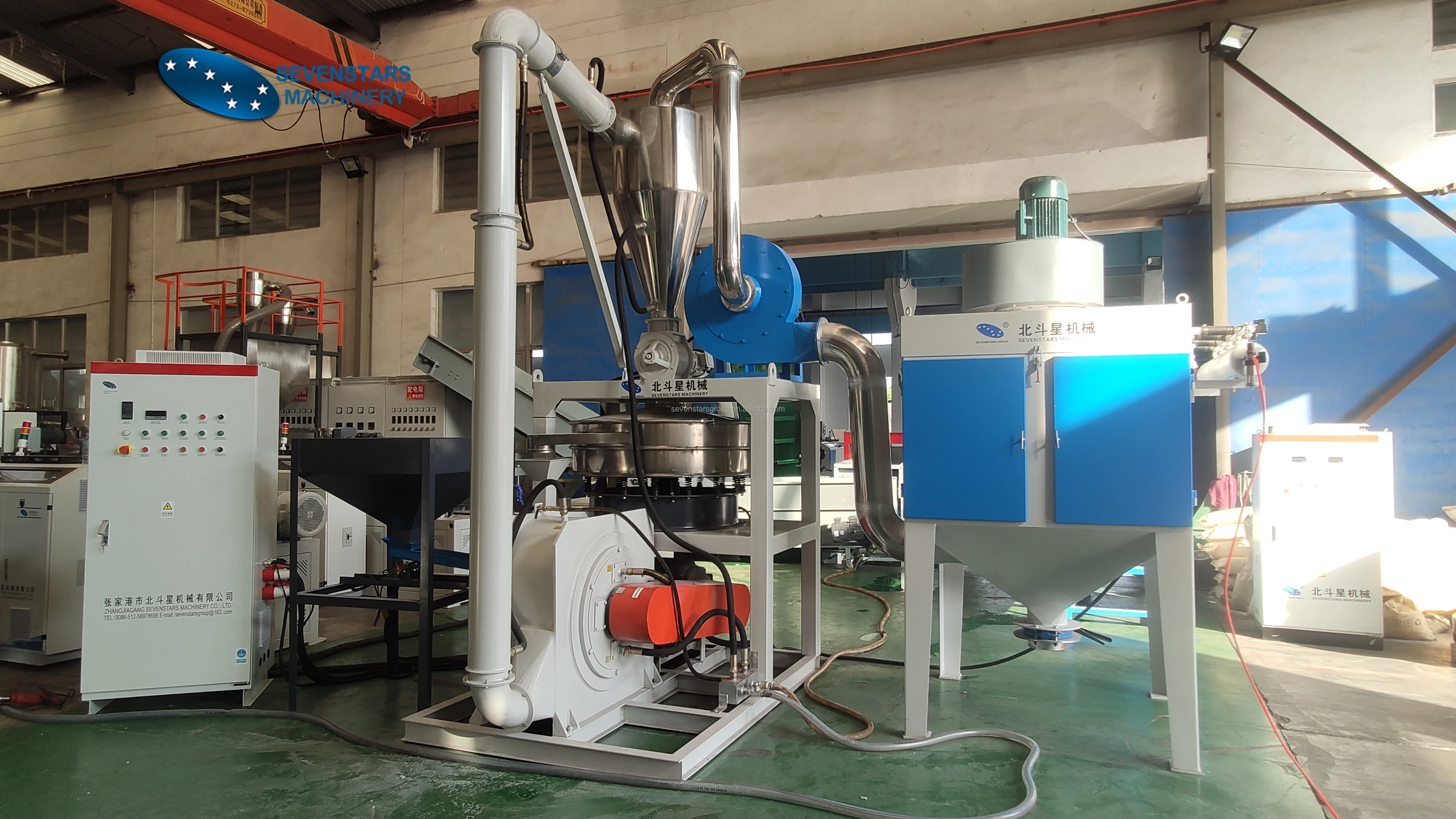

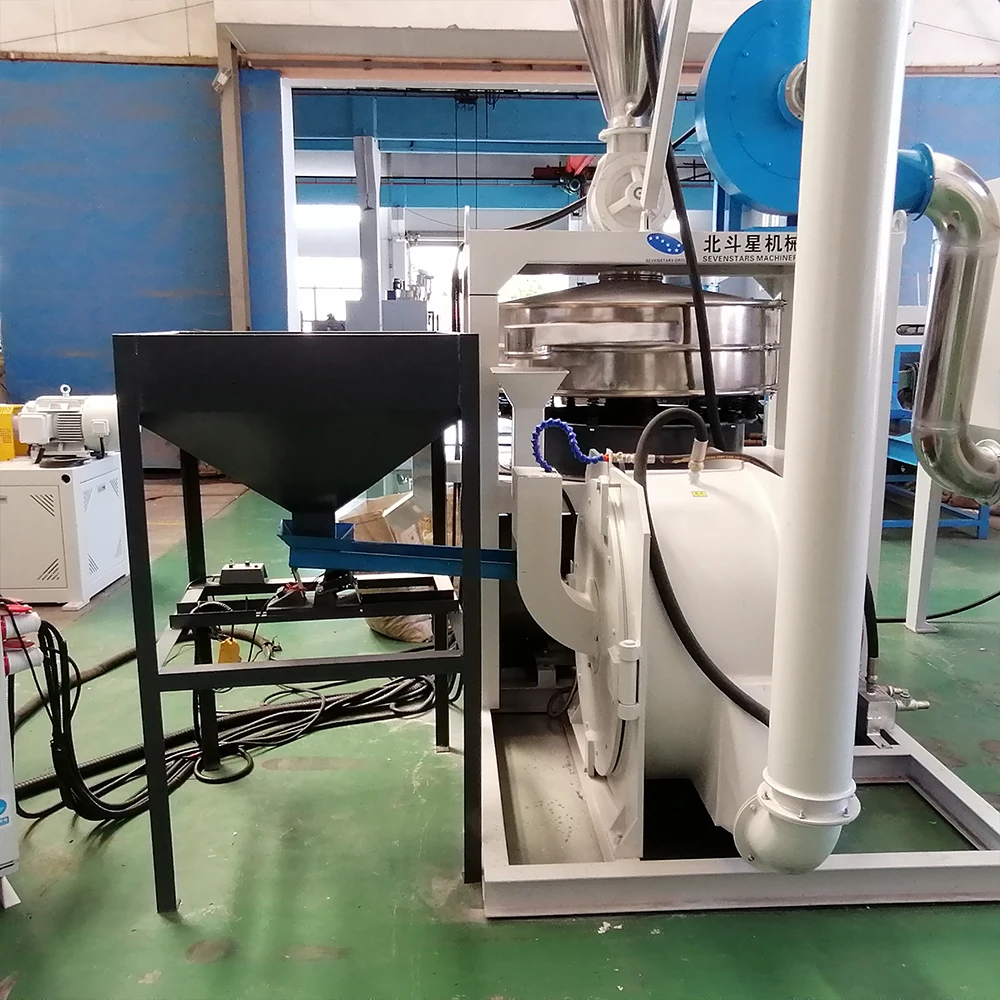

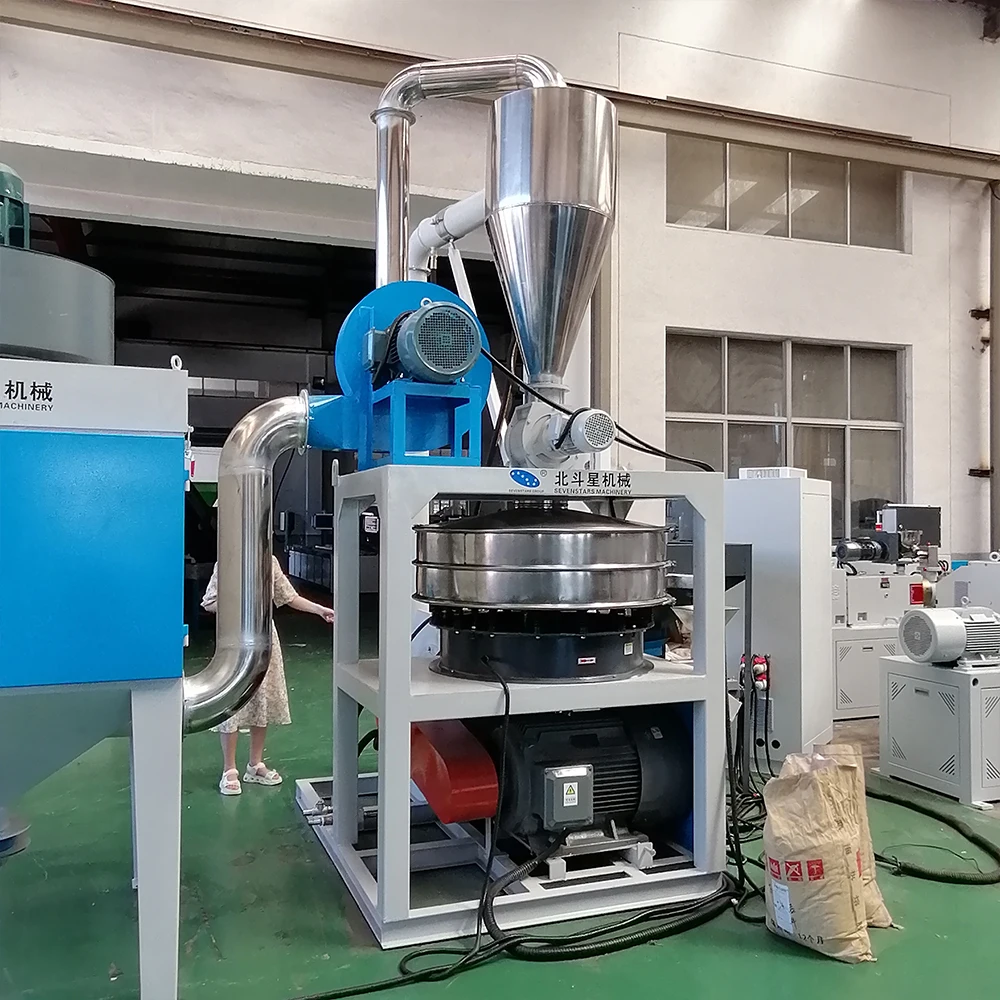

1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust catcher.
2. Working stably
3. Lower energy consumption
It is applied for PVC, PE, LDPE, LLDPE, ABS, EVA, PS, PET and rubber
components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shaking feeder
6. Rotundity vibrating sieve
7. Cyclone wind butterfly valve
8. Cyclone separater
9. Blower
10. Electrical control cabinet
11. Dust catcher.
Company Profile
FAQ
1- How to choose proper products you want?
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want ?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always update the new technology to every customer.
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want ?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always update the new technology to every customer.
Похожие товары

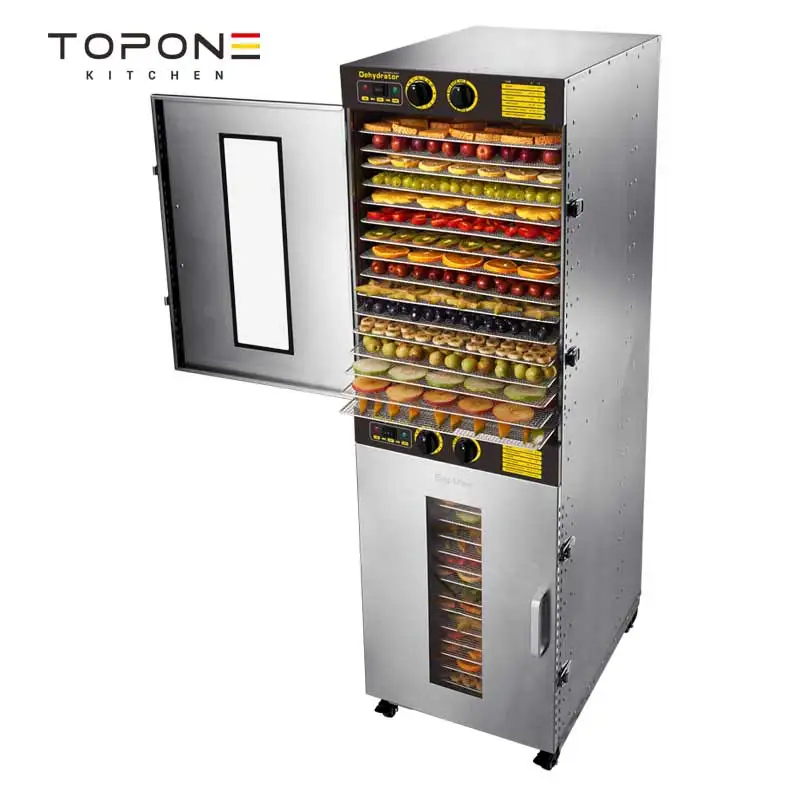

Сухие Имбирные машины для фруктов и овощей сушилка имбиря Дегидратор
423,00 $ - 465,00 $

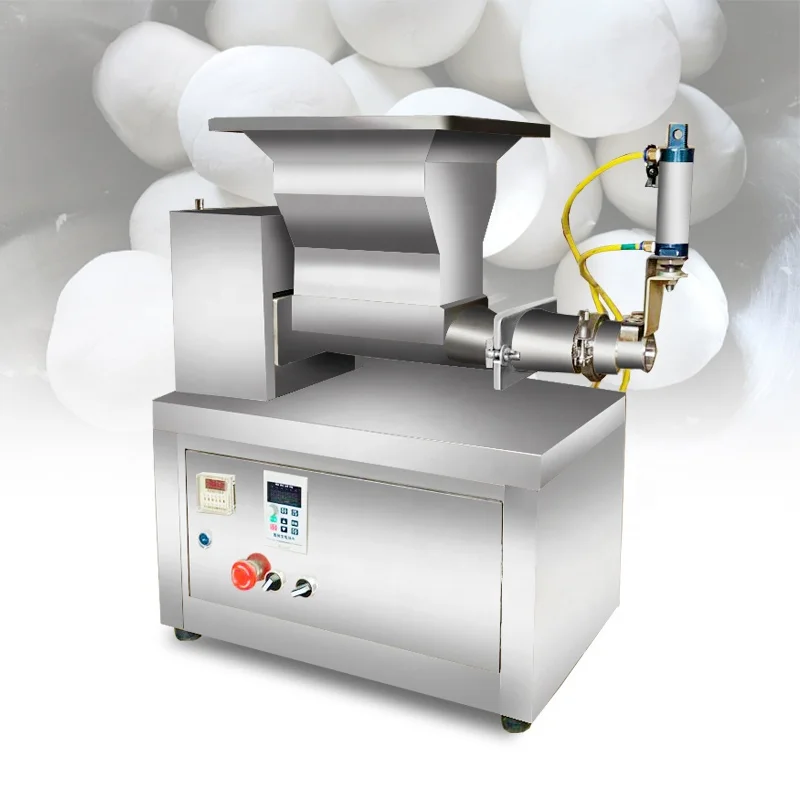

Электрическая автоматическая машина для рассекателя теста печенья/машина для рассекивания теста для шаровой квадратной круглой ленты
699,00 $ - 999,00 $

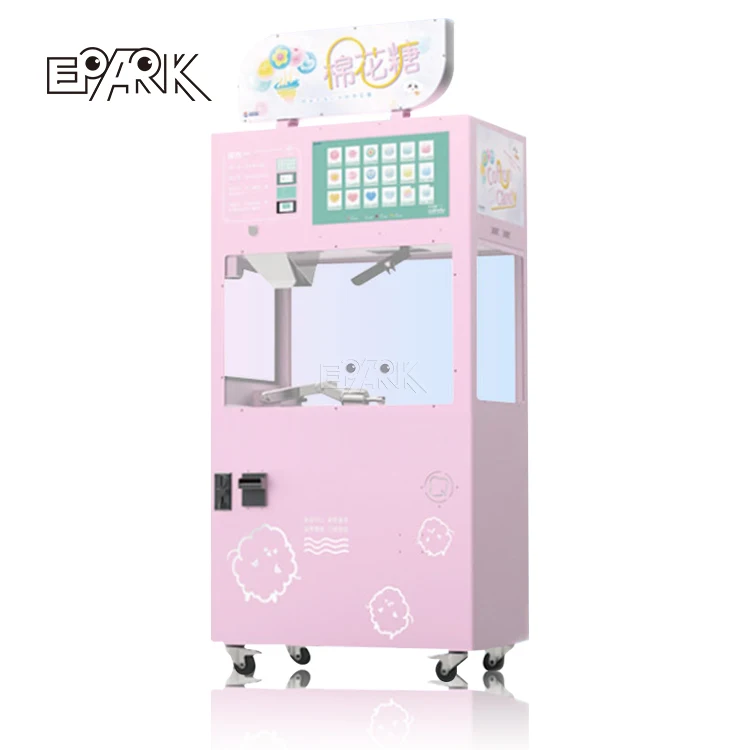

2021 автоматический торговый автомат нового типа для производства хлопчатобумажных
2 200,00 $ - 2 500,00 $

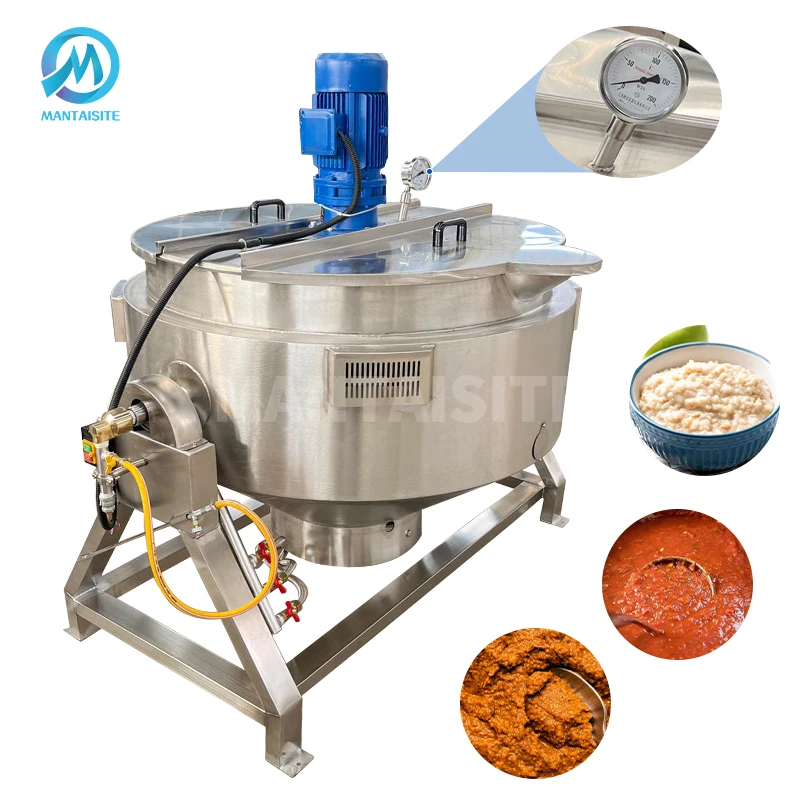

Газовый паровой Электрический нагревательный чайник с рубашкой из нержавеющей стали смеситель наклонная паста соус кухонный 100 л 200 300
820,00 $ - 1 320,00 $

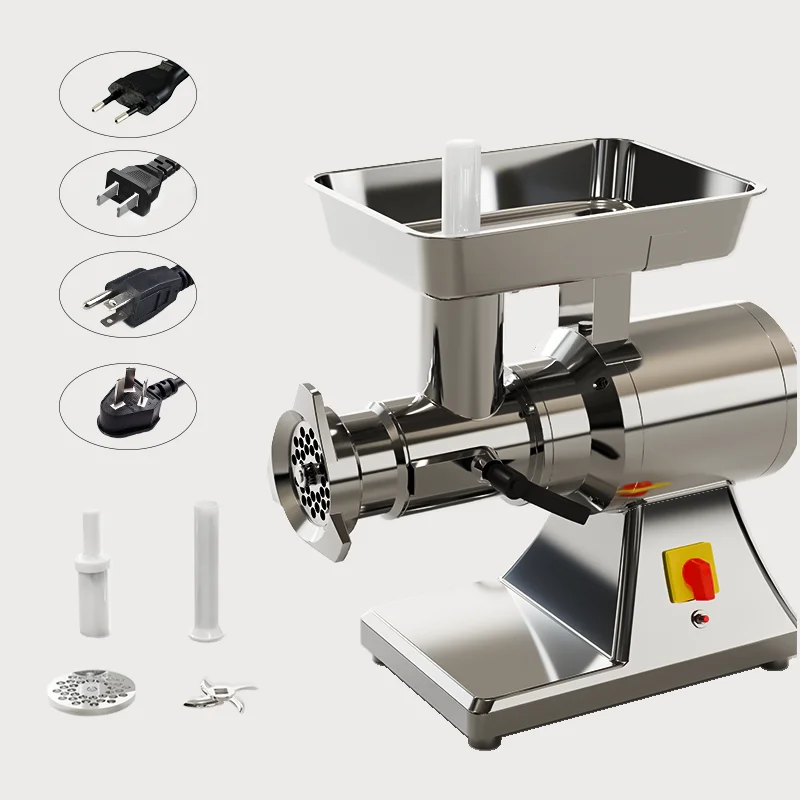

Замороженная электрическая промышленная мясорубка машина для резки
105,00 $ - 109,38 $

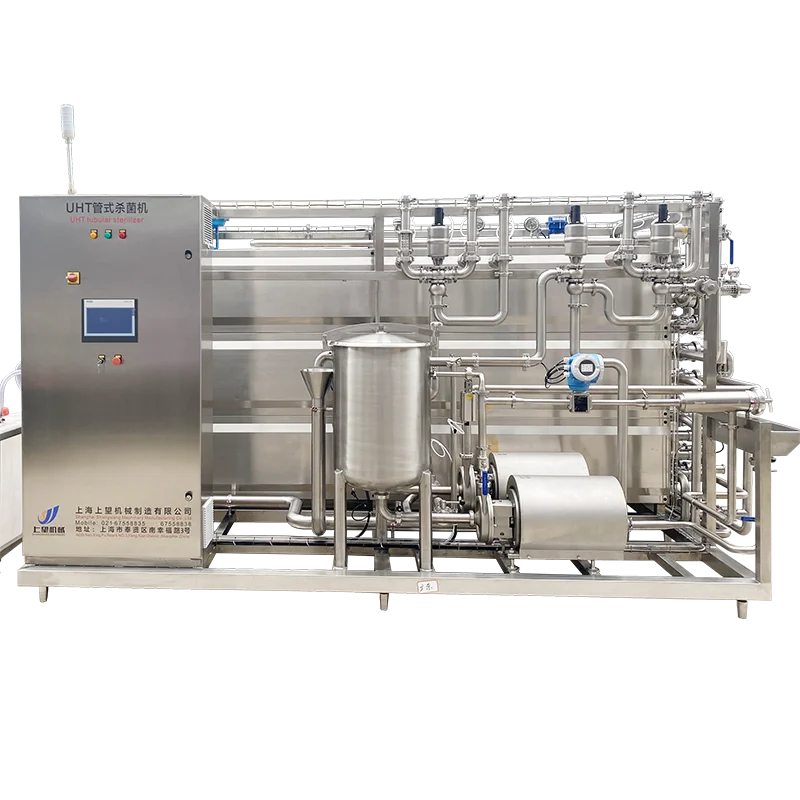

Заводская индивидуальная машина для стерилизации сока
9 000,00 $ - 9 500,00 $

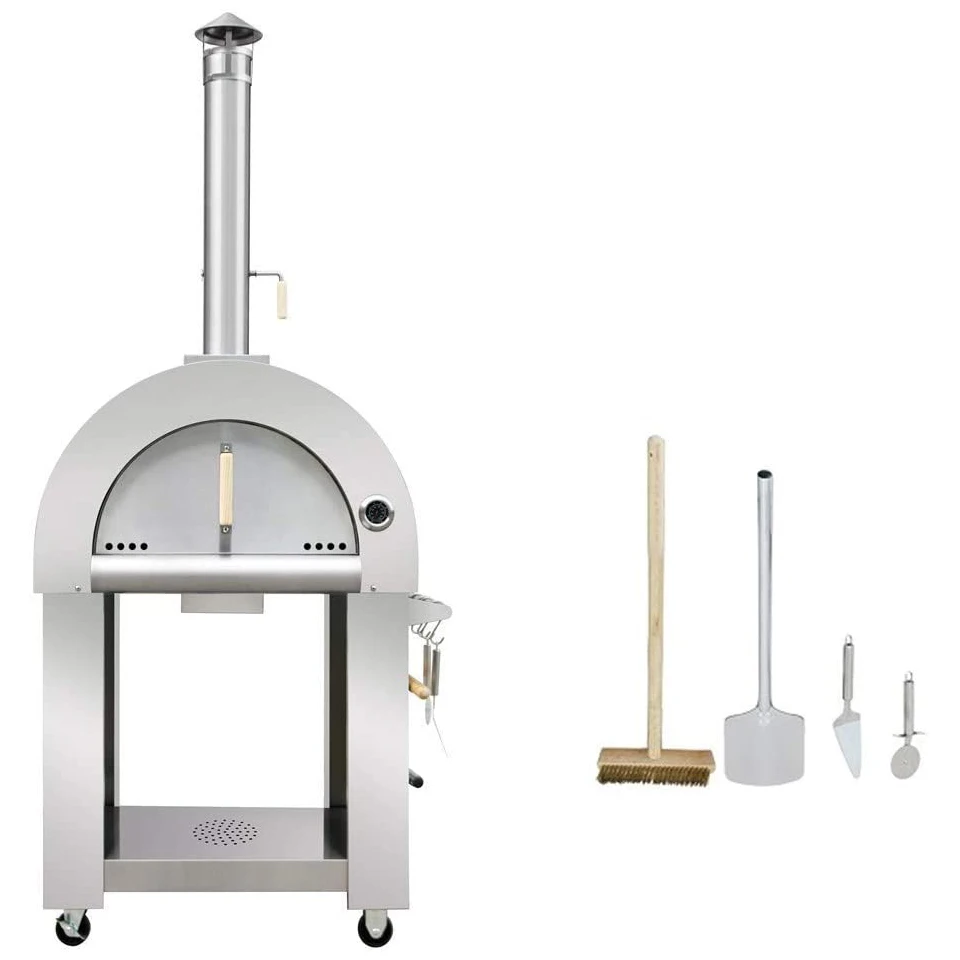

Печь Lycan для пиццы из нержавеющей стали приготовления на заднем дворе работает как газе так и
