Герконовый переключатель с импульсным выходом и длительным сроком службы ультразвуковой измеритель воды сенсорным экраном

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..

System structure diagram as follows

· server send commands to the data concentrator through network;

· concentrator transforms the received commands into radio signal and send the signal to the water meters;

· water meters respond and execute the commands accordingly;

· Water meters deliver the result or data back to the management center as per the original route after the actions finished.

Service

· Quality Gurantee: Water meter for 1 year;

· Support install guide & test in site;

· Date sheet can be sent to other management system easily.

Overview

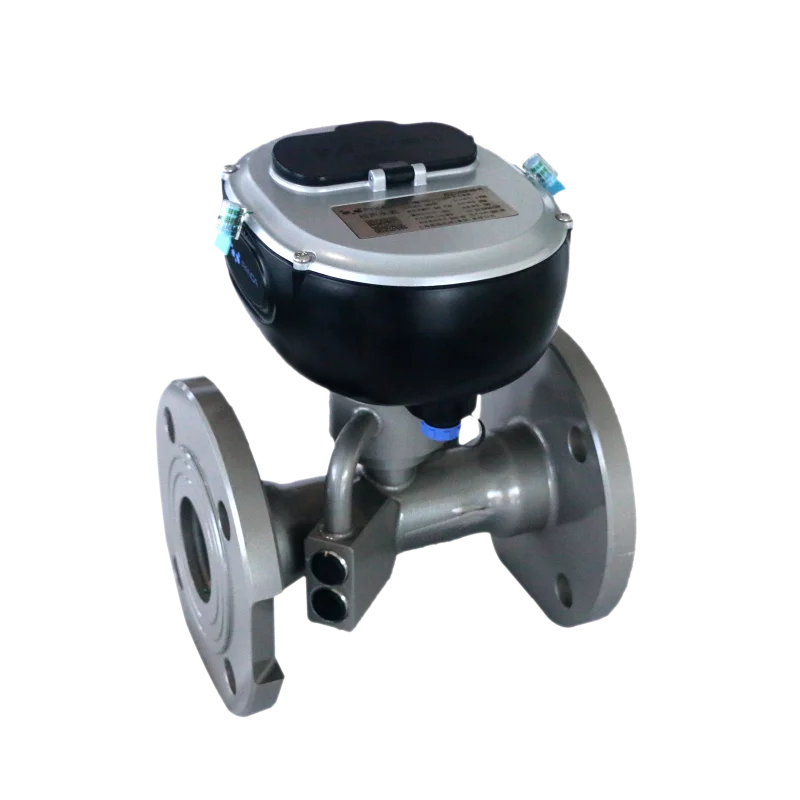

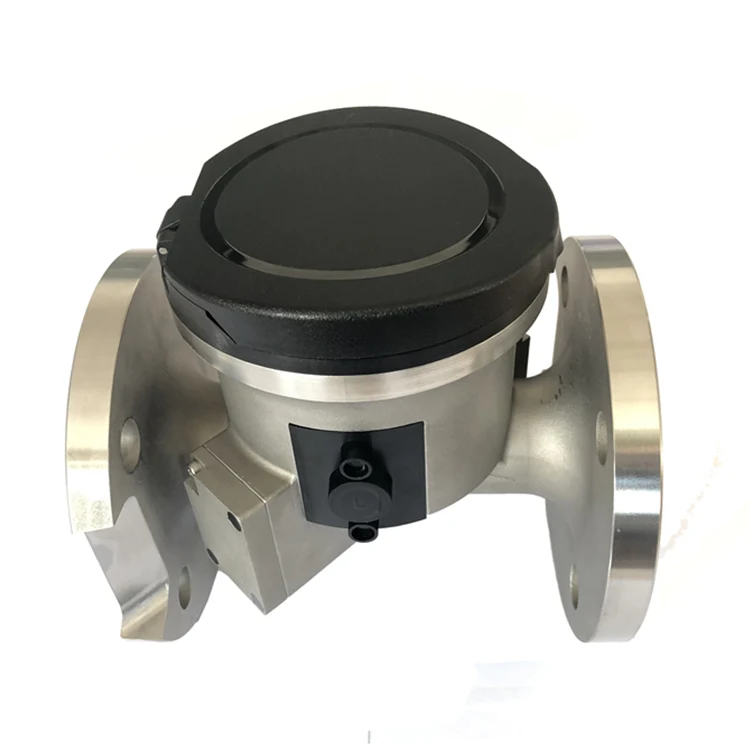

·Ultrasonic water meter's intelligent measuring instrument is consist by the temperature sensor , flow sensors and calculators.

·Could provide important application and data for many applications in the pipeline.

·Ultrasonic water meter is suitable for application environments requiring high range ratio(Q3/Q1)and forward and reverse metering.

·Calculator used sensor and through the time difference to collect temperature differences and sound waves to complete accurate measurement of water flow. And can provide important application and data for many applications.

·Features long service time and high accuracy

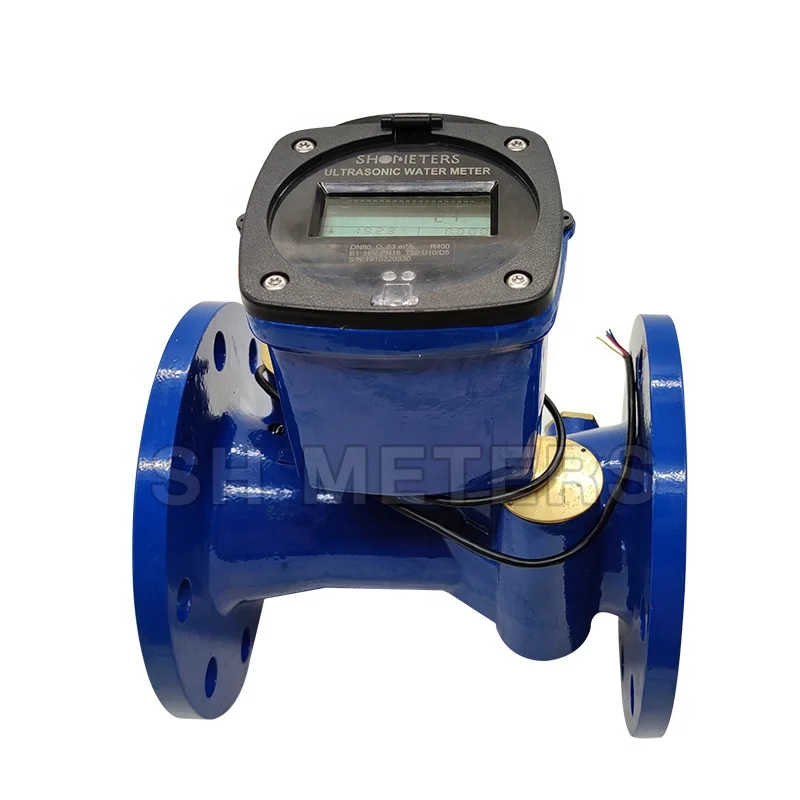

·Double-flange dry-type digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output

·With remote transmission system software to support reading and monitoring

·Provide a complete software metering and charging solution

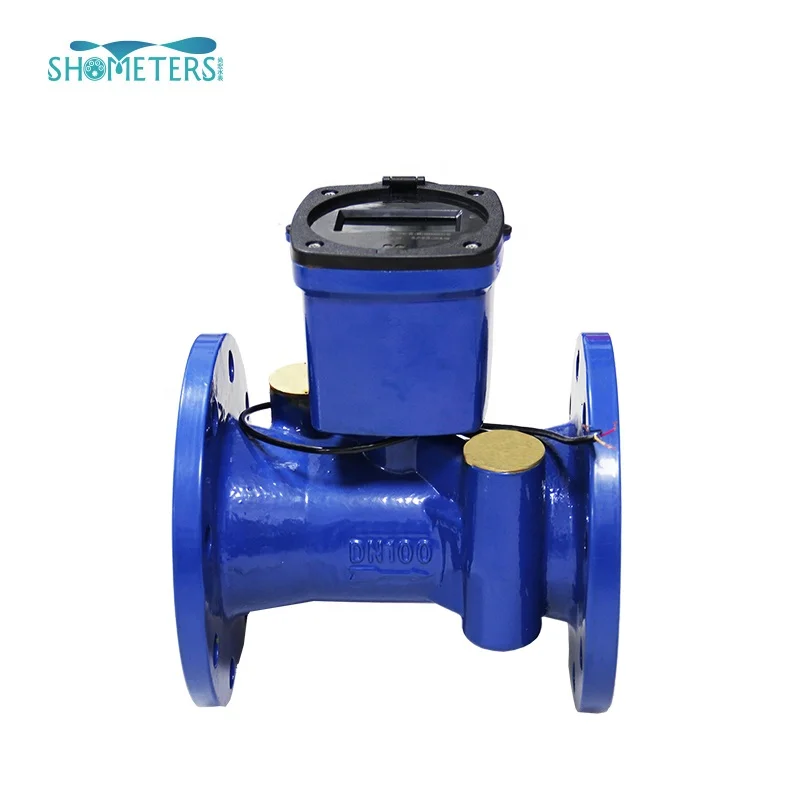

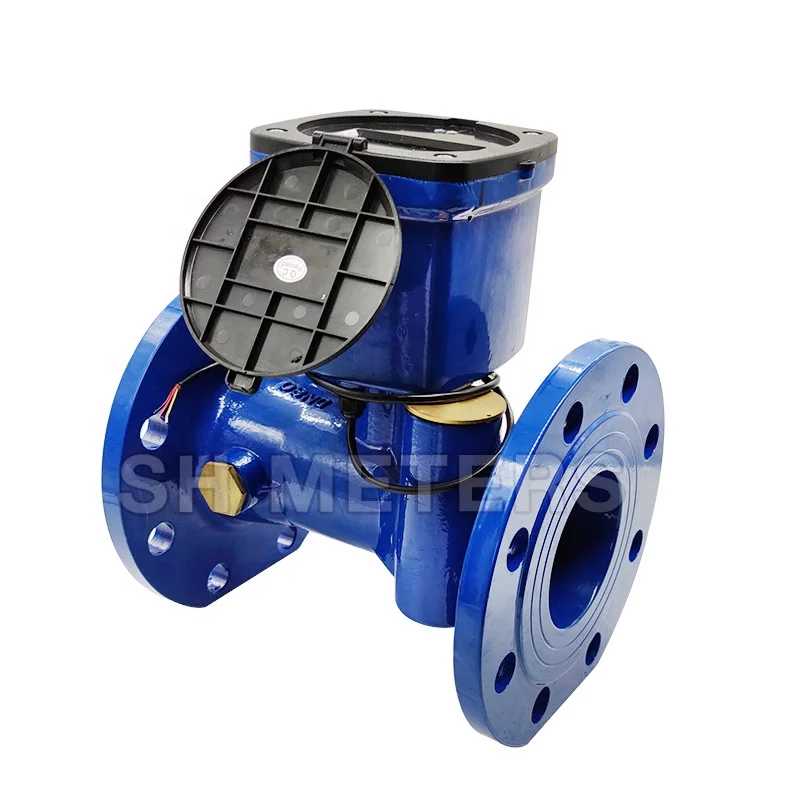

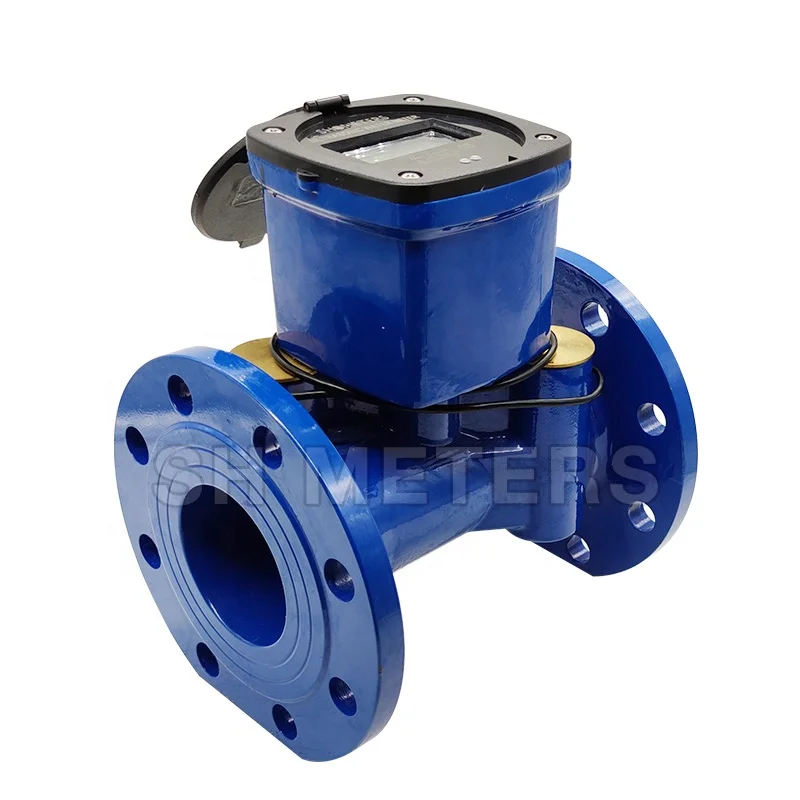

·Bulk Water Meter

Automatic leak measurement

Features

·Material:cast iron/ductile iron

·Applicable scene:home main pipe/apartment main pipe/domestic residential water supply main/leak/treatment plant/domestic residential/agriculture/irrigation/agricultural/irrigation /ground/aquaculture/commercial/general household/residential building/industrial/school/potable

·Technical data conform to international standard ISO 4064.

·communication:rs485 modbus/GPRS

·fitting:Pressure sensor/battery/lcd display/reading device/data logger/Flange set/liquid turbine/user interface unit

Working principle

The meter comprises the quality temperature sensor ,the flow sensor and the calculator. The temperature sensor to measure the temperature of water and the flow sensor to measure the volume of water that flow through the pipelines by the transit time difference.

The two data is sent to the calculator after being collected, the consumption water quantity is worked out, stored and indicated on the LCD finally.

Outline dimensional drawing

Outline dimension

Technical parameter
