Products Description
Machine Feature

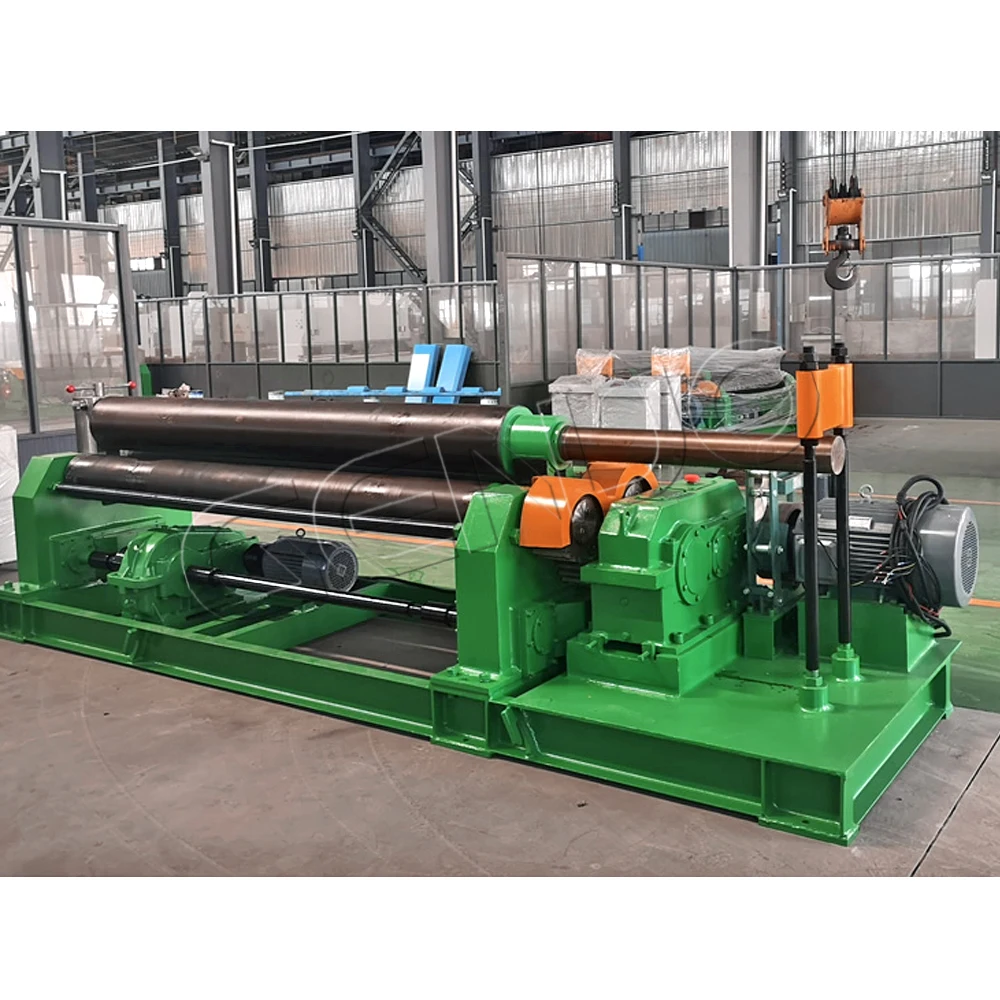

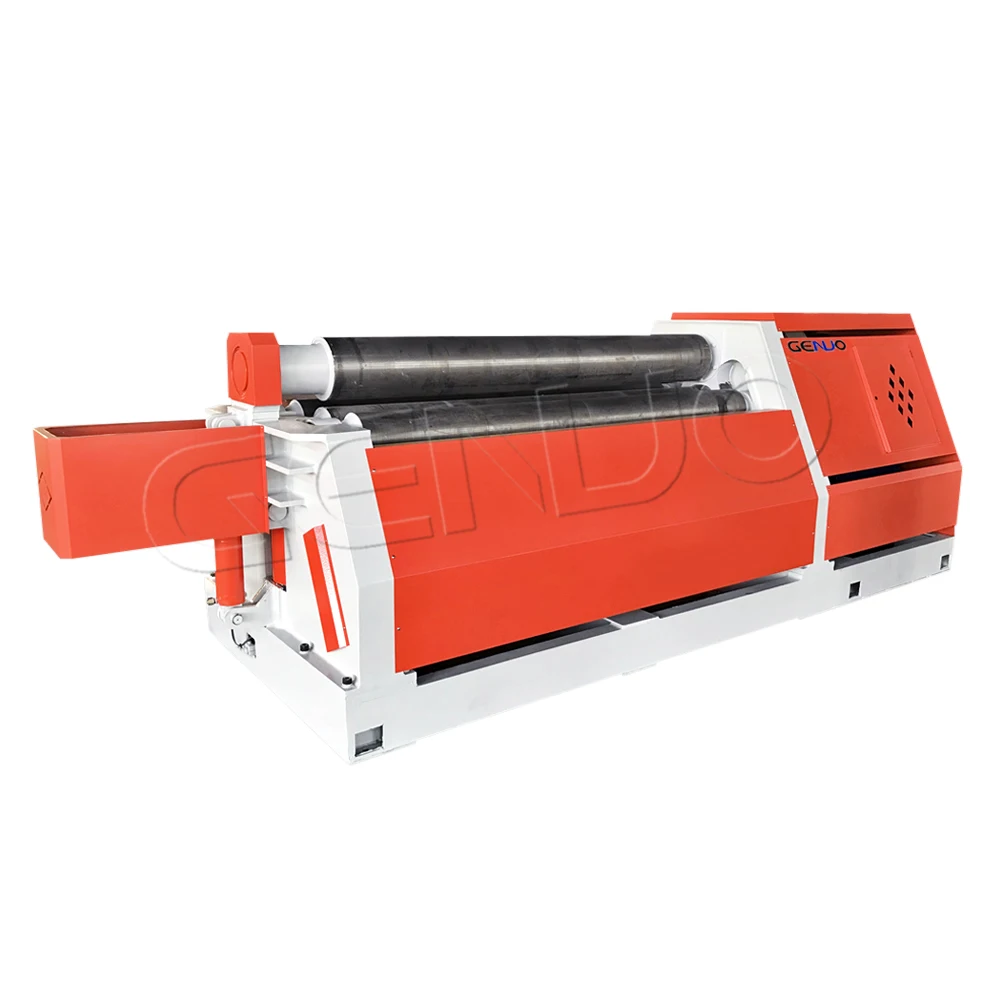

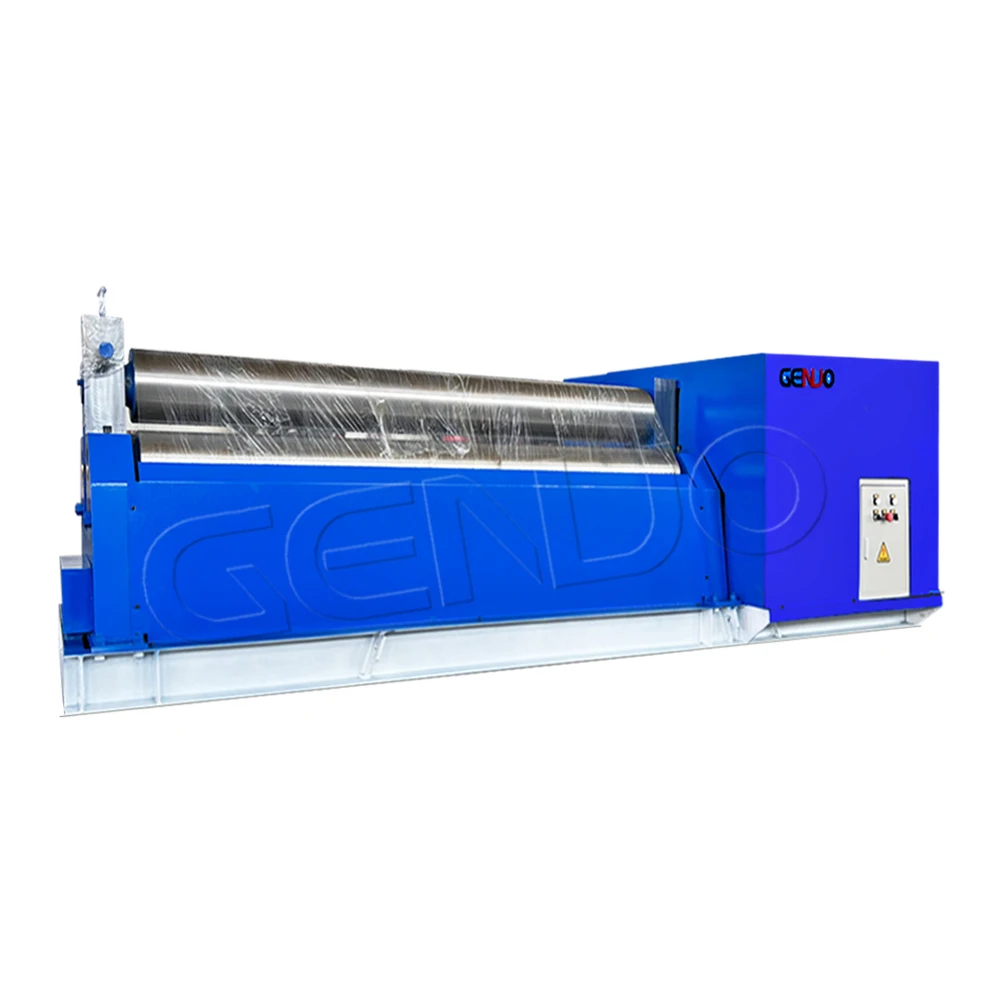

GENUO Mechanical symmetry MS3R Series 3 Roller plate Rolling Machine .
MR3R series plate rolling machine with mechanical drive and adopts 3-roller symmetrical structure with the upper roiler moving vertically in the center between
MR3R series plate rolling machine with mechanical drive and adopts 3-roller symmetrical structure with the upper roiler moving vertically in the center between
the two lower rollers, which is achieved through the drive of the screw,the nut,the
worm and the lead screw,The two lower rollers rotates,and provides the plate
materials with torque through the
engagement of the output gear of the moderator with the gear of the lower rollers.
When take away workpieces, upper roller can be separated.
Upon request, we can install kinds of side wheels to bend different types metal sheet.
This machine has the advantages of simple structure, stability and easy operation.
When take away workpieces, upper roller can be separated.
Upon request, we can install kinds of side wheels to bend different types metal sheet.
This machine has the advantages of simple structure, stability and easy operation.
It is an economical plate bending machine with high cost performance.
• Note:specification which above 25×2500 adopt hydraulic overturn discharge.
• Special specifications can be customized; length between 1000-4000 mm is optional.
• Note:specification which above 25×2500 adopt hydraulic overturn discharge.
• Special specifications can be customized; length between 1000-4000 mm is optional.
Standard Equipment | Optional Equipment | ||||||||

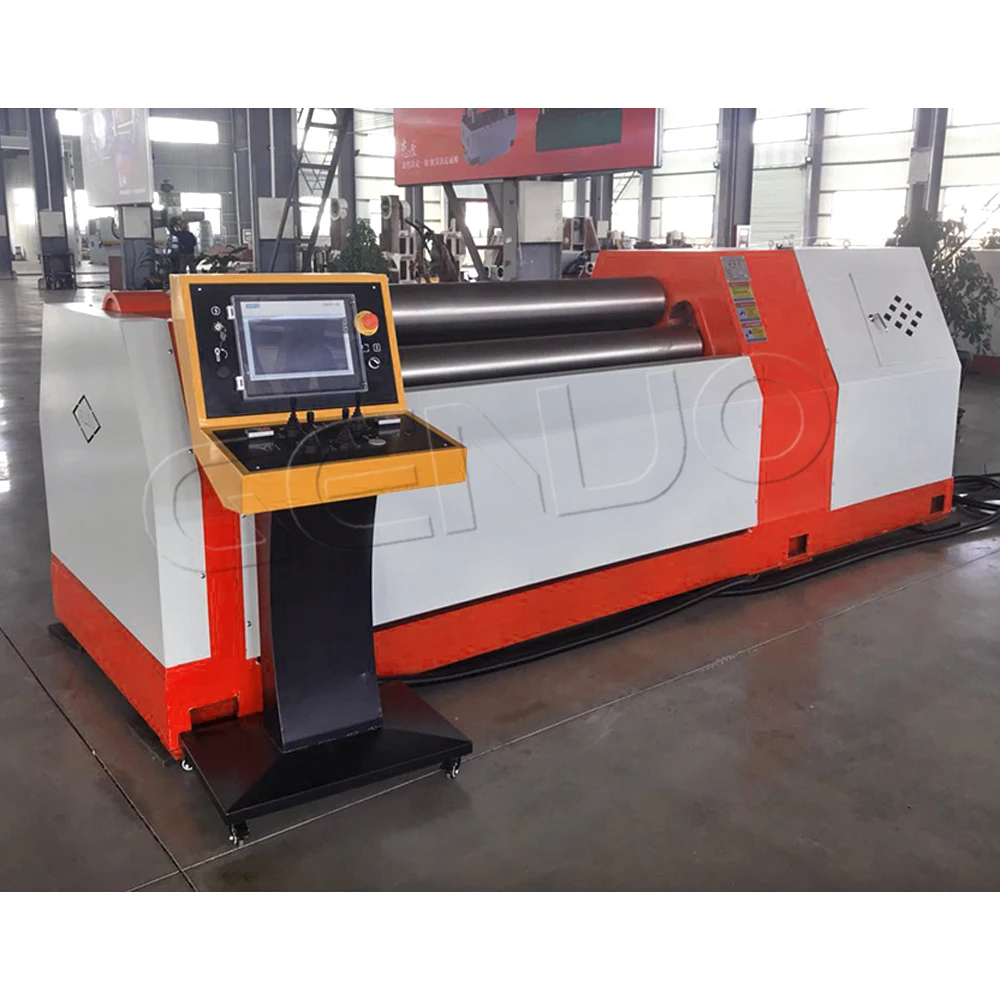

Wireless button remote control | Digital screen display control console | ||||||||
C45 hard quenching & tempering roller | 42CrMo solid forging roller | ||||||||
Schneider & Omron electrical components | Side motorised rolls | ||||||||
Copper alloy anti-wear gear | Segmental inlay roller ring | ||||||||
NSK Double row self aligning bearing | Centralised manual lubrication | ||||||||
Enclosed sheet metal cover | Customized colors | ||||||||
Working Roller
Roller is the most important components
of the rolling machine, its quality and performance has a direct impact on the service life of the rolling machine and the precision of rolling.
Working rollers are made of high-strength high-quality steel 42CrMo material, after forging, roughing, quenching and tempering, HB240 ~ 300, finishing after the intermediate frequency quenching HRC47-58, according
to JB/ZG4289-86 roll steel standards.
Strictly in roller manufacturing, to ensure its comprehensive mechanical properties.
Electrical Components
Schneider Electric components ensure the
stable operation of the machine.
Reasonable line connection and arrange-
ment greatly reduces the failure rate.
The integrated control module of hydraulic
valve group makes the sliding block move
smoothly and accurately. And the operator
and all parts of the machine played a good
protection. Low Noise and Powerful motor
guarantee the machine service life and
improve the machine working stability.
Roller Rotation
Stepper Motor ⇨ Planetary Gearbox ⇨ Working Roll
Symmetric geometry in the roll movement featured by the 3-roll bending rolls of the series assures optimal traction.
The upper roll can bend the plate by moving up and down, while the fixed lower roll can realize the plate rolling by
turning forward and backward. The row self aligning bearing of the upper roll with low resistance plays a strong
role in supporting and preventing the sheet from slipping to the maximum extent.

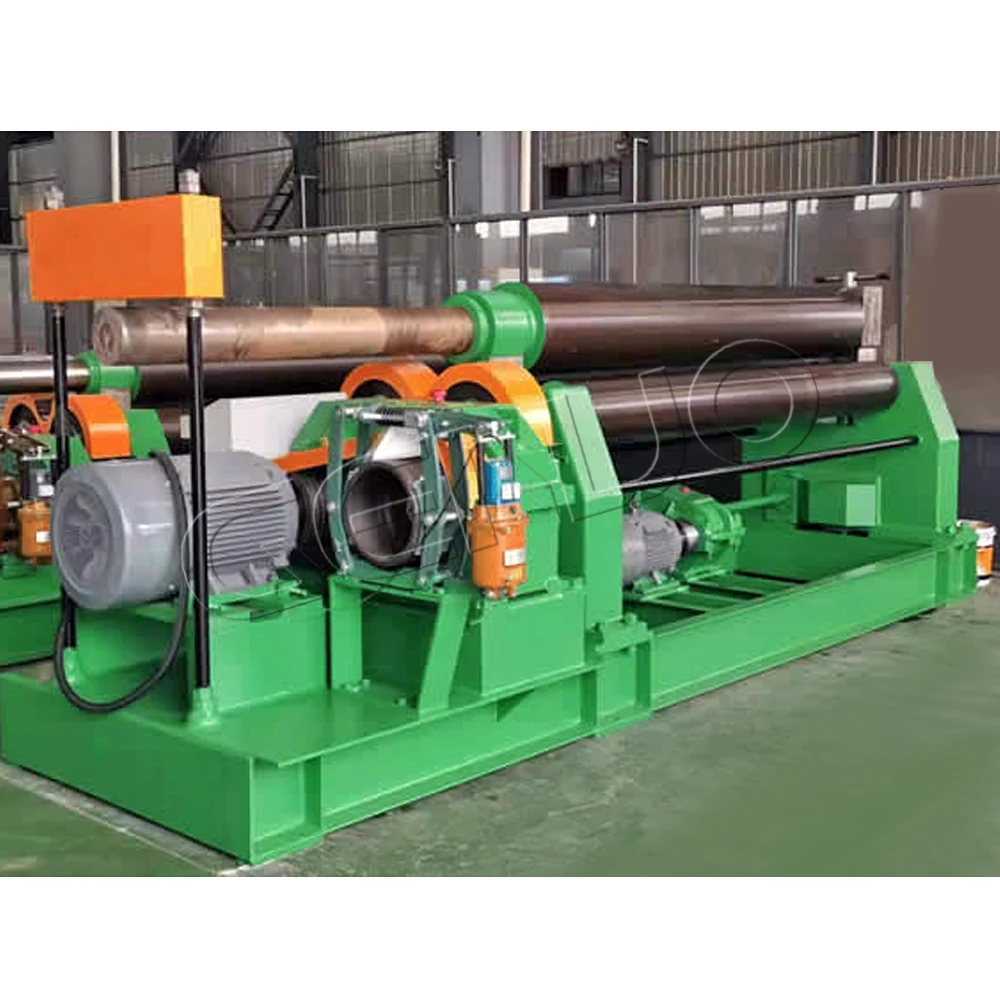

The machine is a three - roll symmetrical mechanical structure. The upper roller moves up and
down in the center of the two lower rollers. Both nuts and worm gear act as drives.
The two bottom rollers serve as the main driving rollers. By engaging, it rotates between the
output gear of the transmission and the bottom roll, thus providing torque to the bending plate.
Simple operation, convenient maintenance, high cost performance.
Techical Specification
MS3R | 6x | 8x | 12x | |||||||||||||||
MS3 | 1500 | 2000 | 2500 | 3200 | 2000 | 2500 | 2000 | 2500 | 3000 | |||||||||
Max Thickness of Plate | 6 (mm) | 6 (mm) | 6 (mm) | 6 (mm) | 8 (mm) | 8 (mm) | 12 (mm) | 12 (mm) | 12 (mm) | |||||||||
Max Width of plate | 1500 (mm) | 2000 (mm) | 2500 (mm) | 3200 (mm) | 2000 (mm) | 2500 (mm) | 2000 (mm) | 2500 (mm) | 3200 (mm) | |||||||||
Rolling Speed | 7.16 (min-1) | 7.16 (min-1) | 7.16 (min-1) | 6.45 (min-1) | 7.16 (min-1) | 6.46 (min-1) | 5 (min-1) | 5 (min-1) | 5 (min-1) | |||||||||
Min Dia. of Plate in Full Load | 380 (mm) | 380 (mm) | 500 (mm) | 500 (mm) | 450 (mm) | 500 (mm) | 500 (mm) | 750 (mm) | 650 (mm) | |||||||||
Dia. of Upper Roller | 180 (mm) | 180 (mm) | 190 (mm) | 240 (mm) | 190 (mm) | 240 (mm) | 240 (mm) | 260 (mm) | 280 (mm) | |||||||||
Dia. of Lower Roller | 160 (mm) | 160 (mm) | 170 (mm) | 200 (mm) | 170 (mm) | 200 (mm) | 200 (mm) | 220 (mm) | 240 (mm) | |||||||||
Space Between of Two Lower Rollers | 210 (mm) | 220 (mm) | 260 (mm) | 310 (mm) | 260 (mm) | 310 (mm) | 310 (mm) | 330 (mm) | 360 (mm) | |||||||||
Main Motor | 5.5 (kw) | 5.5 (kw) | 7.5 (kw) | 11 (kw) | 7.5 (kw) | 11 (kw) | 11 (kw) | 11 (kw) | 15 (kw) | |||||||||
Dimension (LxWxH) (mm) | 3310 x 1210 x 1330 | 3810 x 1210 x 1330 | 4310 x 1210 x 1330 | 5200 x 1400 x 1200 | 3800 x 1210 x 1330 | 4500 x 1420 x 1610 | 4050 x 1420 x 1610 | 5000 x 1500 x 1300 | 5500 x 1500 x 1300 | |||||||||
The above data is only for reference only,to prevail in kind. More specifications available. Please click here! | ||||||||||||||||||
Recommend Products
Company Profile
FAQ
Q1: Are you manufacturer or trading company ?
A2: We are factory with more than 20 years of technology and experience.
Q2: How long is your delivery time ?
A2: General speaking, if the machines is in stock, we can delivery them with 3-7 days, If the quantity is 1-2 container, we can give you with 25-35 days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce your goods.
Q3: Do you provide samples ? Is it free or extra ?
A3: For new customer, We can provide charge samples for standard fastener. For old customer,We will send you free samples But the clients will pay the express charges.
Q4: What is your terms of payment ?
A4: We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q5. How about your machine quality?
A2: We are factory with more than 20 years of technology and experience.
Q2: How long is your delivery time ?
A2: General speaking, if the machines is in stock, we can delivery them with 3-7 days, If the quantity is 1-2 container, we can give you with 25-35 days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce your goods.
Q3: Do you provide samples ? Is it free or extra ?
A3: For new customer, We can provide charge samples for standard fastener. For old customer,We will send you free samples But the clients will pay the express charges.
Q4: What is your terms of payment ?
A4: We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q5. How about your machine quality?
A5:Our machines distribute worldwide to about 50 counties where there are metal plate ind ustry ,there are Brilliant machines And where there are our machines,there are good reputation and terminal user satisfaction.
Q6.How about your after-sale service?
A6:1.Technical solutions: we can provide technical solutions within one day.
2.Online video: Show you machine working video in factory.( update every week)
3.Installation service: This is available with all of our machines,live video can be provided. We can also dispatch technician to customer's factory for installation machines.
Q6.How about your after-sale service?
A6:1.Technical solutions: we can provide technical solutions within one day.
2.Online video: Show you machine working video in factory.( update every week)
3.Installation service: This is available with all of our machines,live video can be provided. We can also dispatch technician to customer's factory for installation machines.
(Customers only need to pay for the airfare and hotel expense.)
4.Training service: Our technician will teach you how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5.Quality guarantee: 2 years warranty, we provide lifetime service. We arrange final test before shipment, After making sure machine is the best performance, then make shipments.
6.100% response rate: we will reply your questions within 12 hours.
4.Training service: Our technician will teach you how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5.Quality guarantee: 2 years warranty, we provide lifetime service. We arrange final test before shipment, After making sure machine is the best performance, then make shipments.
6.100% response rate: we will reply your questions within 12 hours.
