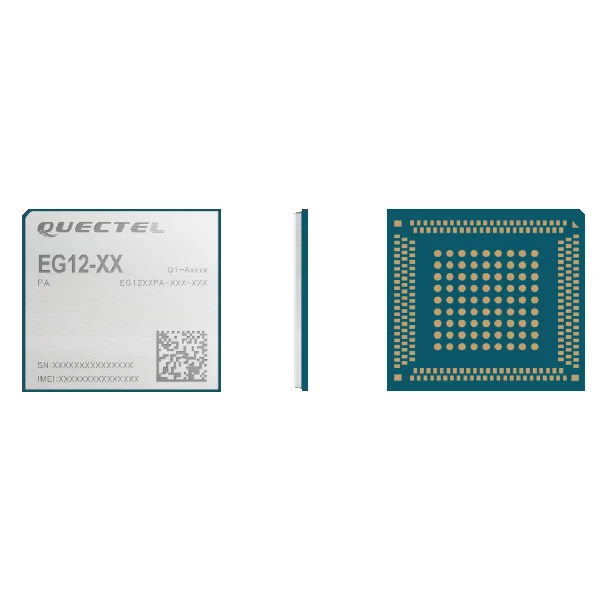

Quectel LTE A кошка 12 модуль EG12 EA EG12 NA EG12 GT LTE 4G с LGA форм фактор
- Категория: >>>
- Поставщик: Suzhou Tianhoo Communication Technology Co. Ltd.
Сохранить в закладки 1600425722784:
Описание и отзывы
Характеристики
Product Description
Brand Name | Quectel |
Model Number | EG12 |
Application | M2M and IoT applications |
Product name | LTE-A Cat 12 module |
Frequency | Worldwide LTE-A and UMTS/HSPA+ coverage |

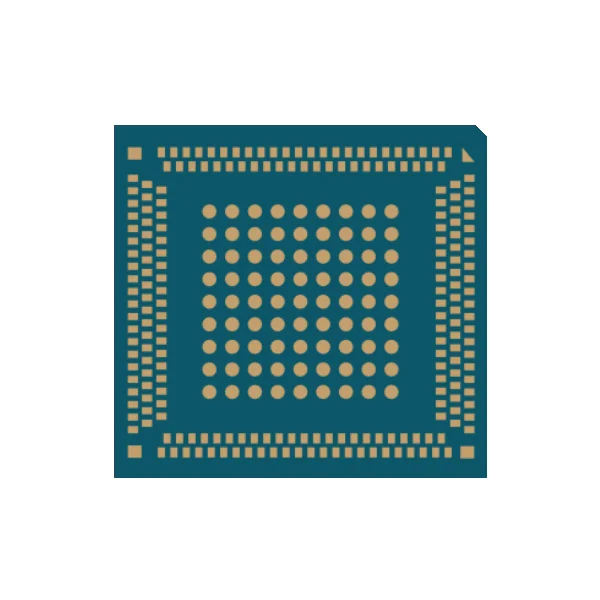

Package | LGA form factor |
GNSS | YES |
Data rates | Max. 600Mbps downlink / 150Mbps uplink under LTE |
USB DriversUSB | Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.15, Android 4.x/5.x/6.x/7.x/8.x/9.x |
Dimensions (mm) | 37.0 × 39.5 × 2.8 |
Supply Voltage Range | 3.3 to 4.3 V, 3.8 V Typ. |
Temperature Range | -40 °C to +85 °C |
Condition | 100% Original Brand |
Warranty | 1 Year |
Product Introduction
Quectel EG12 is a series of LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates. Designed in an LGA form factor, EG12 is compatible with Quectel Cat 6/18 module EG06/EG18, which will help customers to migrate between different categories.
EG12 supports Qualcomm® IZat™ location technology Gen9HT-Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux,Android) extend the applicability of the module to a wide range of M2M and IoT applications such as 4G router, CPE, wireless POS terminal, consumer laptop, industrial PDA, rugged tablet PC and video surveillance.
Key Features
●LTE-A Cat 12 module with LGA form factor, optimized for M2M and IoT applications
●Support DL 3CA, 256QAM and 4x4 MIMO
●Worldwide LTE-A and UMTS/HSPA+ coverage
●Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
●Feature refinements: supports DFOTA and DTMF
●MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
LTE Cat 6 | EG12-EA | EG12-GT | |||
Region | EMEA/APAC①/Brazil | North America | Global (TDD 3.5GHz Network) | ||
Frequency Bands | |||||
LTE-FDD | B1/B3/B5/B7/B8/B20/B28 | B2/B4/B5/B7/B12/B13/B14/B17/B25/ B26/B29/B30/B66/B71 | - | ||
LTE-TDD | B38/B40/B41 | B41 | B42/B43/B48 | ||
2×CA (UL) | B3+B3; B7+B7; B38+B38; B40+B40; B41+B41 | B7+B7; B41+B41 | B42+B42 | ||
2×CA (DL) | B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41; B3+B3/B5/B7/B8/B20/B28/B38/B40/B41; B7+B5/B7/B8/B20/B28; B20+B38/B40; B38+B38; B40+B40; B41+B41 | B2+B2/B4/B5/B7/B12/B13/B14/B17/B29/B30/ B66/B71; B25+B5/B12/B25/B26/B41; B4+B4/B5/B7/B12/B13/B17/B29/B30/B71; B66+B5/B7/B12/B13/B14/B29/B30/B66/B71; B7+B5/B7/B12; B30+B5/B12/B14/B29; B26+B41 | B42+B42; B48+B48 | ||
3×CA (DL) | B1+B3+B3/B5/B7/B8/B20/B28/B38/B41; B1+B40+B40; B1+B41+B41; B1+B7+B20; B3+B3+B7/B20/B28; B3+B7+B7/B8/B20/B28; B3+B40+B40; B3+B41+B41; B7+B7+B20/B28; B40+B40+B40; B41+B41+B41 | B2+B4+B5/B13/B71; B2+B5+B66; B2+B12+B30; B2+B13+B66; B2+B7+B12/B66; B4+B30+B5/B12/B29; B4+B7+B12; B30+B66+B5/B12/B29; B2+B2+B5/B12/B13/B29/B66; B5+B5+B2/B30/B66; B7+B7+B2/B4/B5; B66+B66+B2/B5/B13/B66; B41+B41+B25/B26/B41 | B42+B42+B42; B48+B48+B48 | ||
DL 4×4 MIMO | LTE-FDD: B1/B3/B7 | LTE-FDD: B2/B4/B25/B66/B7 | LTE-TDD: B42/B48 | ||
WCDMA | B1/B3/B5/B8 | B2/B4/B5 | - | ||
GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS | GPS/GLONASS/BeiDou/Galileo/QZSS | GPS/GLONASS/BeiDou/Galileo/QZSS | ||
Notes:
* Under Development
① Excluding Japan and CMCC.
