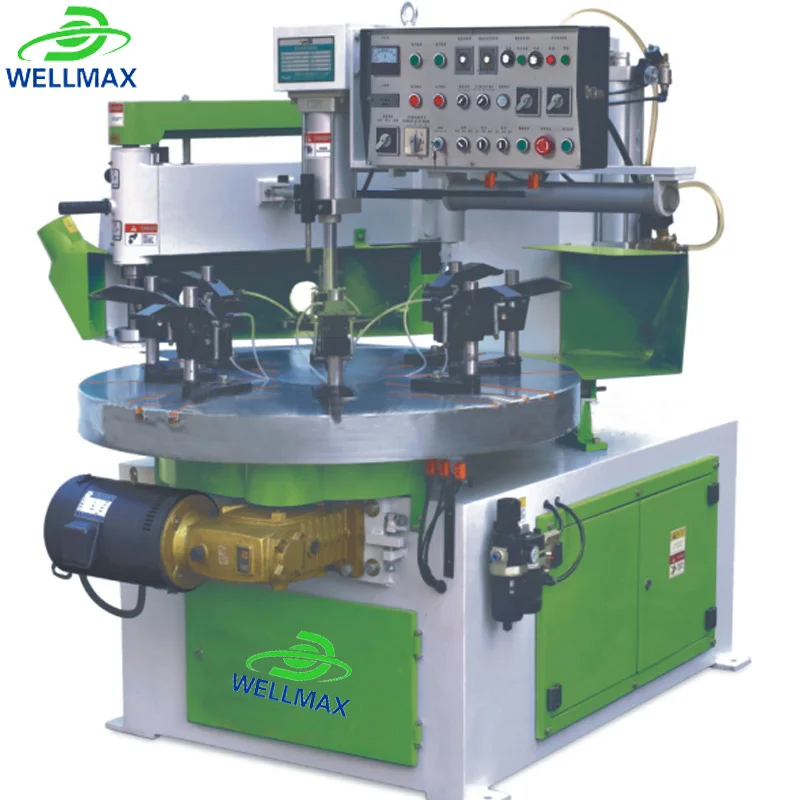

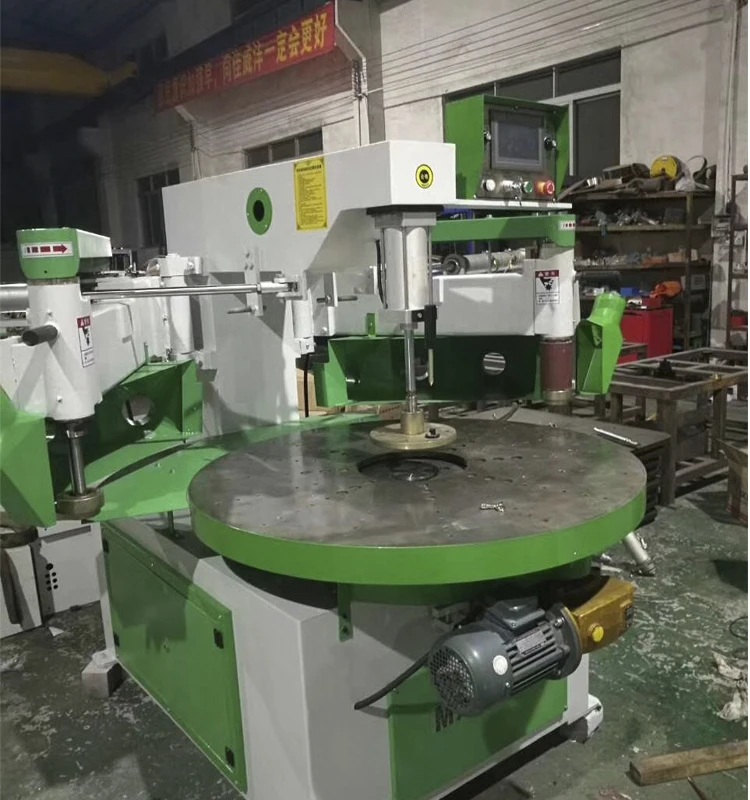

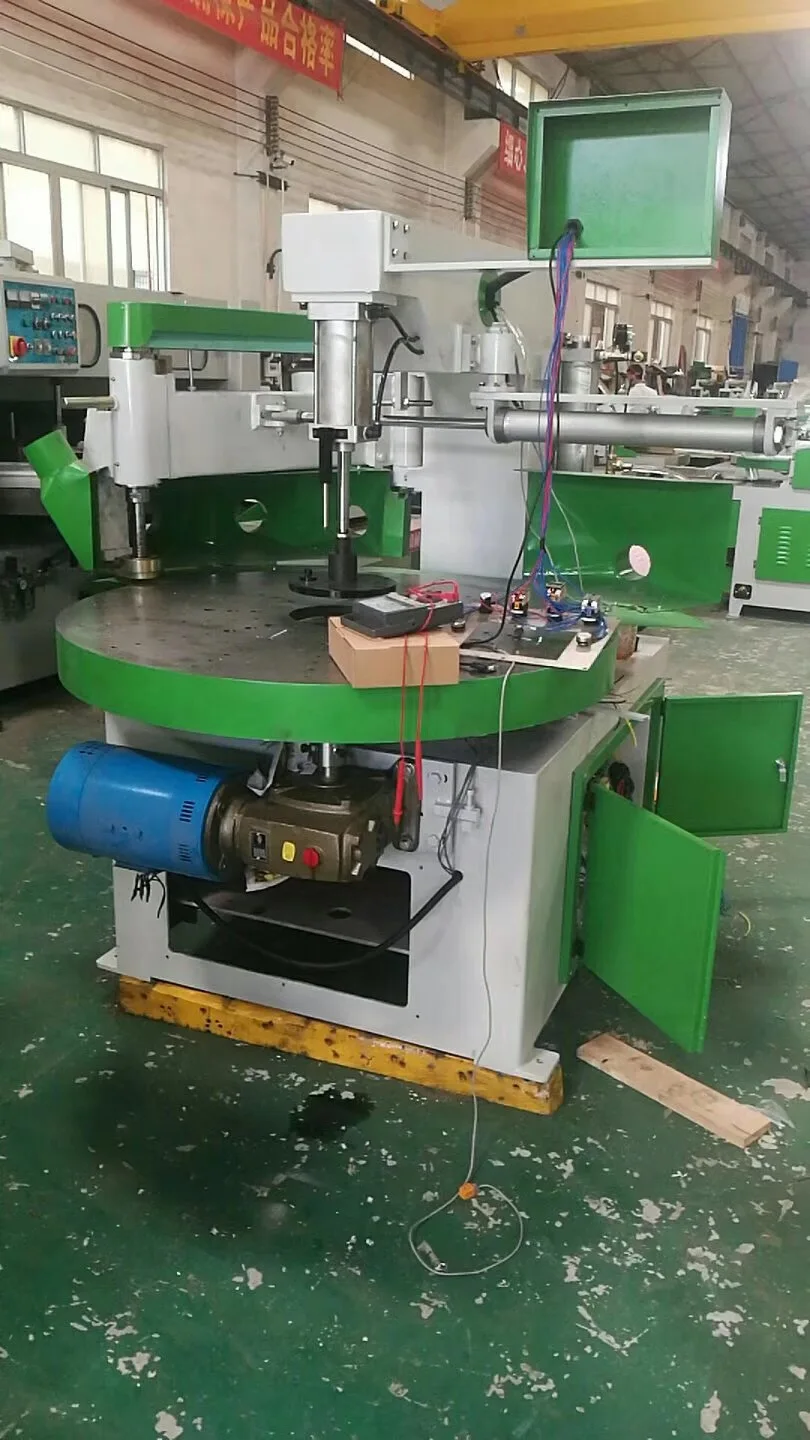

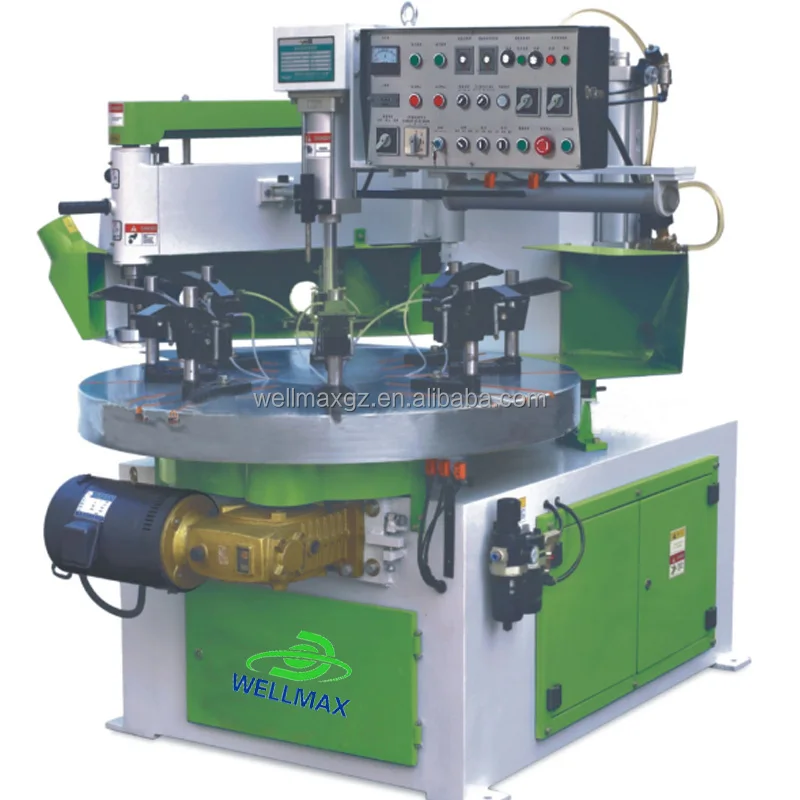

MX7516 double-shaft automatic wood copy shaper used milling machines for wood cutting board products

Still looking for one excellent machine for maching round, rectangular, oval and other shapes workpicese copy milling such as chair, seat surface, kitchen cutting board ,coffe table etc.?Here we have Molde MX7516 automatic wood copy shaper machine recommended to you.

Usage application:

This model wood copy shaper machine are widely used for processing different small wooden wares such as round, rectangular, oval and other shapes workpicese copy milling such as chair
seat surface, kitchen cutting board ,coffe table etc.

Introduction:

1.This is a fully automatic wood copy shaper,electronic-hydraulically controlled machine with hopper feed,its a newly developed version of our successful designed for machining different shapes small wooden wares such as round, rectangular, oval and other shapes workpicese copy milling such as chair seat surface, kitchen cutting board ,coffe table etc.shapes workpieces.

2.This model wood copy shaper achine uses wooden boards roughly cut to size and planed to the required thickness.

A particular advantage offered by this wood copy shaper machine is that the machine feeding is automaticlly and one worker can operate at least 3 sets machines,this will great improve your workshops production capacity and save more labour cost to creat more values for you.

3.The infeed and outfeed of the cutters is facillitated by a special system allowing the working point of the cutter to be modified relative to the axis of the workyable.This feature makes it possible to machine various shapes wooden wares faster with the
corresponding increase in production.

4.The cutter are template-controller,oild pressure holds the template follower roller against the preshapes form.The pressure on the form can be regulated so as to ensure that is will be constant throughout,even when intricate shapes are being produced.

5.The wood copy shaper machine cutter spindle rotate at 11000 rpm and are driven by a 4.0kW motor,providing the necessary power to cope with the heaviest cuts.This wood copy shaper machine can be fitted with 25.4 diameter cutter spindle.

6.The rotation speed of the hydraulically driven worktable is electronically controlled from the swith console.

In addtion ,the worktable can be set to make different cycle speed,depending on the complexity of the work.In prodcuting comparatively thin parts up to 2 blanks can be stacked one on top of the other and shapes together in one continuous cycle.

Set-up is faciliated and change-over times are reduced owing to the electronic-hydraulic control system and the im-provement of a nnumber of driving and operating elements.

7.The output of this wood copy shaper machine,being largely controlled by the shapes and size of the workpieces,ranges from 3-6 pcs per minute.

This wood copy shaper machine is furnished complete with the following motors:
Main cutter spindle cuttermotor,4.0kW
Rotary motor,0.75kW

Technical Parameters:

3.Easy to operate Automatic wood copy shaper is operated by a touch screen
2.Reliable quality and good performance,All main parts are using famous brand products to make sure machine quality durable.
1.Fully automatic,Automatic feeding and out feedingPLC control,automatic and manual operation all availableMain features:

For different shapes wooden ware will choose different cutter tools.

4.High efficient Auto copy shaper machine can process 3-6 workpieces in one minute and one worker can operate 3-5 set machines.
5.Easy to maintainAutomatic copy shaper adopted high quality steel structure with rust proof paiting,and all electric parts are reliable brand.

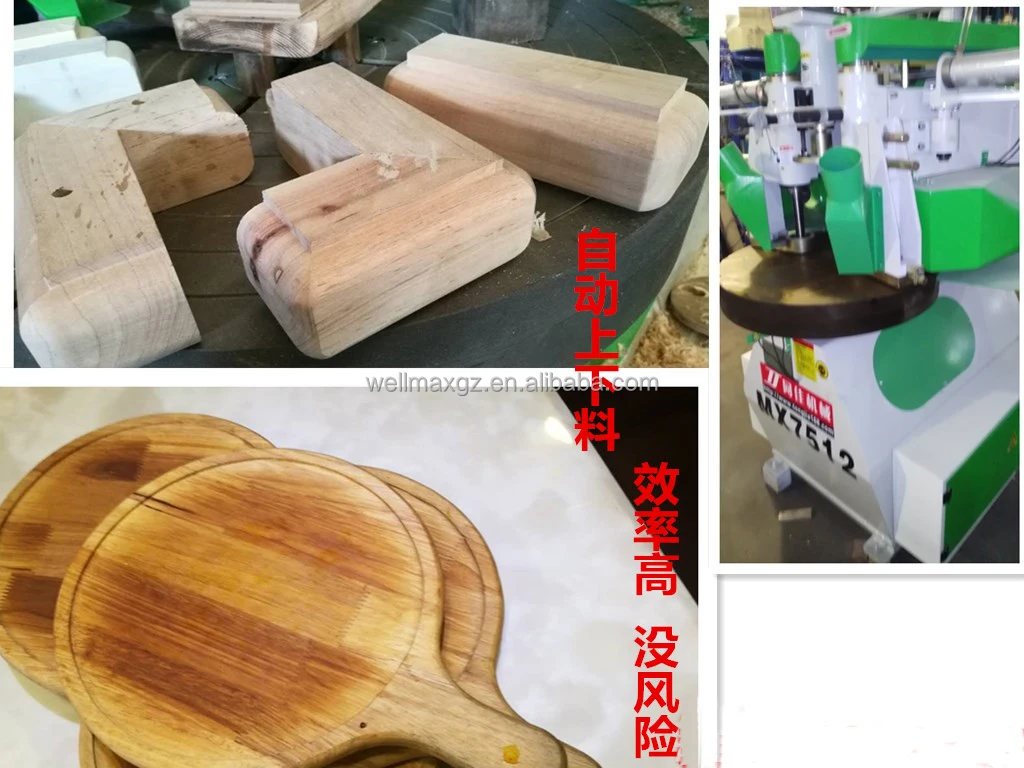

6.Widely application,Suitable for processing small woodware such as round cover,knife handle,brush handle,post caps,cup cover,pizza plate,spoon,wood handiworks,artware and other shape woodwares.

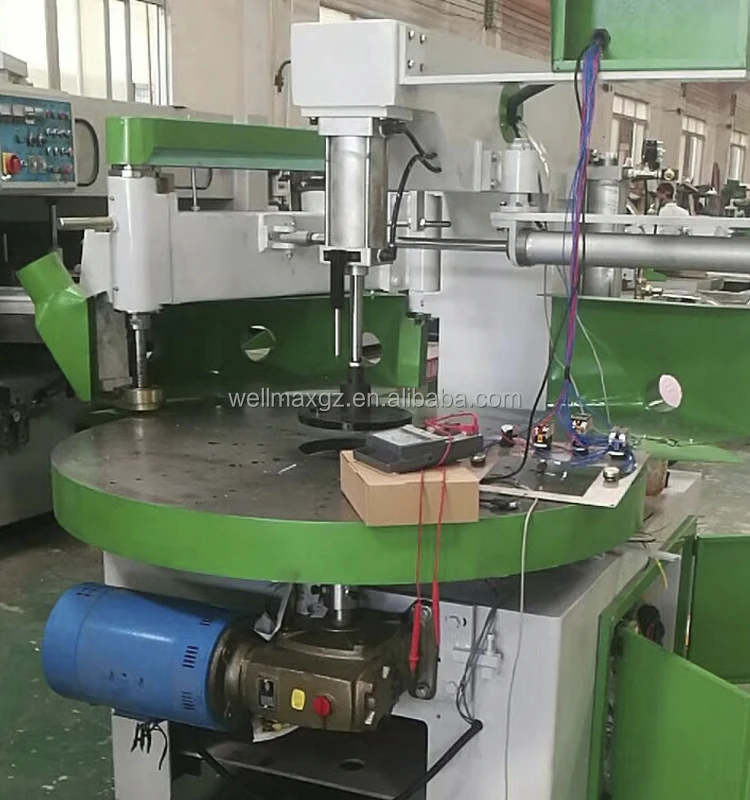

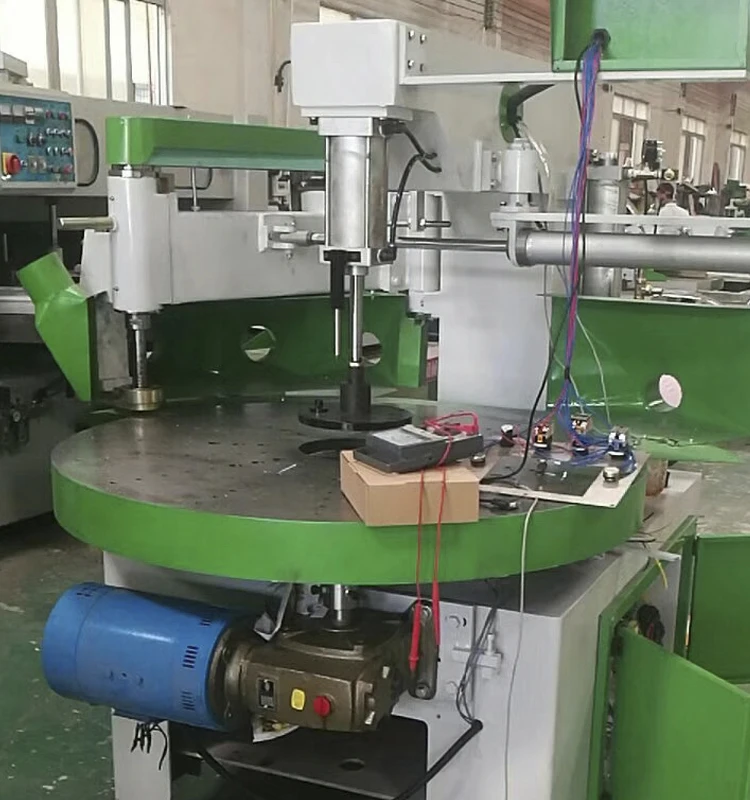

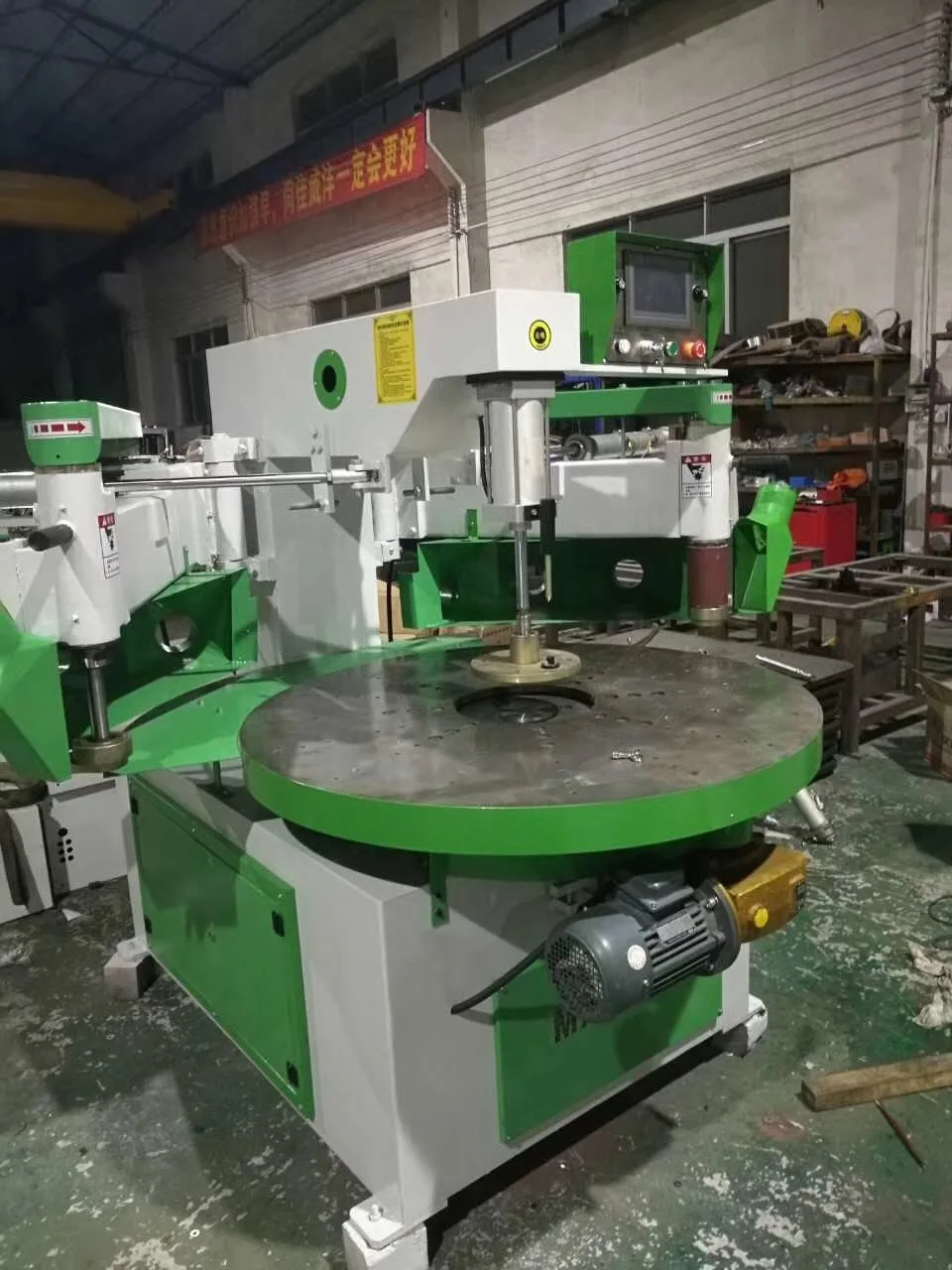

Detail pictures :

Packing & Shipping:

 Our Service

FAQ

1. Can I visit your company?
Warmly welcome to visit our factory, please contact us to make an appointment before coming.


2. How many days the machine can be delivered?
If machine in stock we can deliver it within 3 days,if no stock available the standard delivery time is 15 days.

3. What is your price term and payment term?
Price term: EXW,FOB,CIF ect.
Payment term: T/T, ect.

4. Whats the shipping cost?
This is decided by your import port and machine quantity,different size,different quantity,different port the shipping cost will be different.

5. Whats your company warranty policy?
The machine have standard one year warranty,during warranty period if machine meet quality issue we will send spare parts to replace or sending engineer to fix it.

6.How to install and operate the machine?
We will provide installation and operating manual book,you can follow the manual book to install and operate,also we can provide video for you to follow with.
