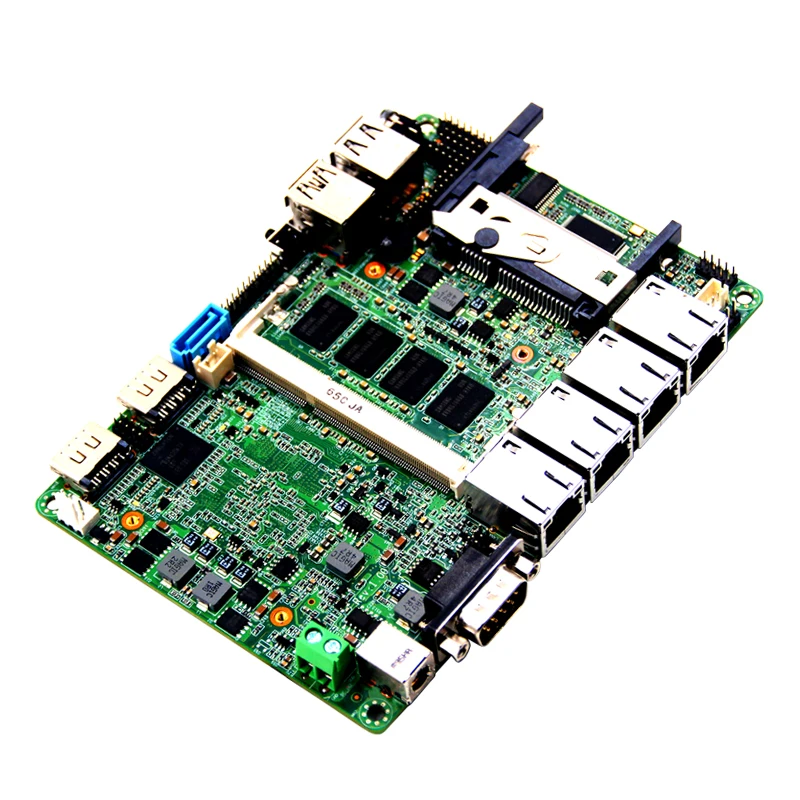

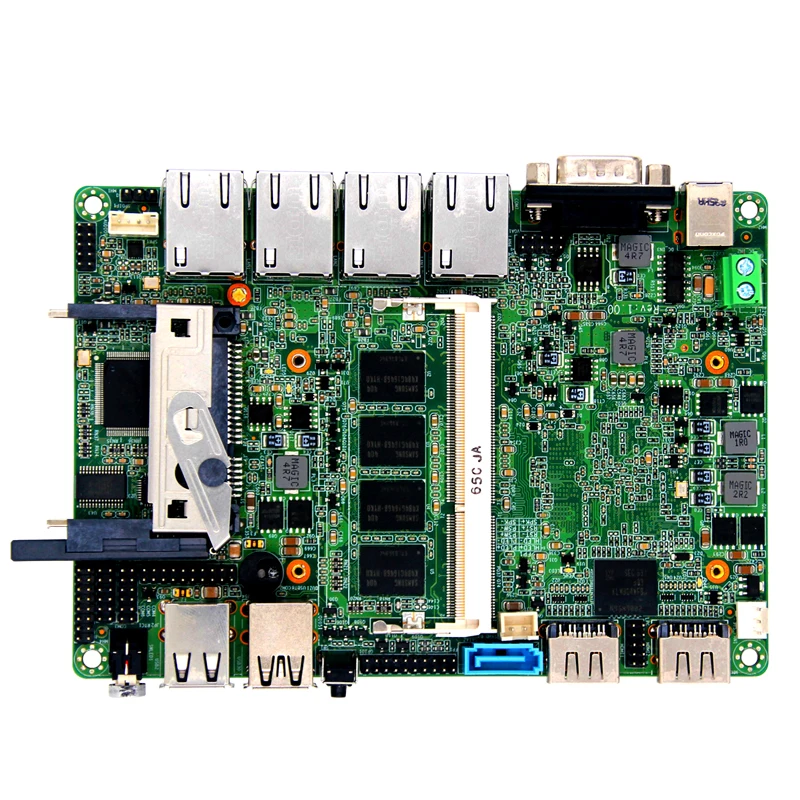

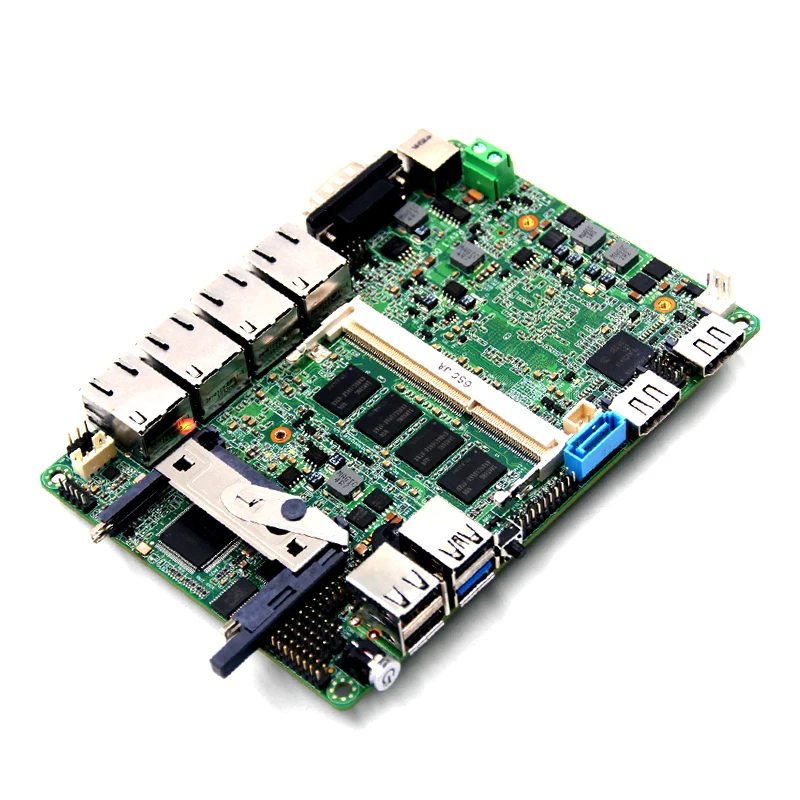

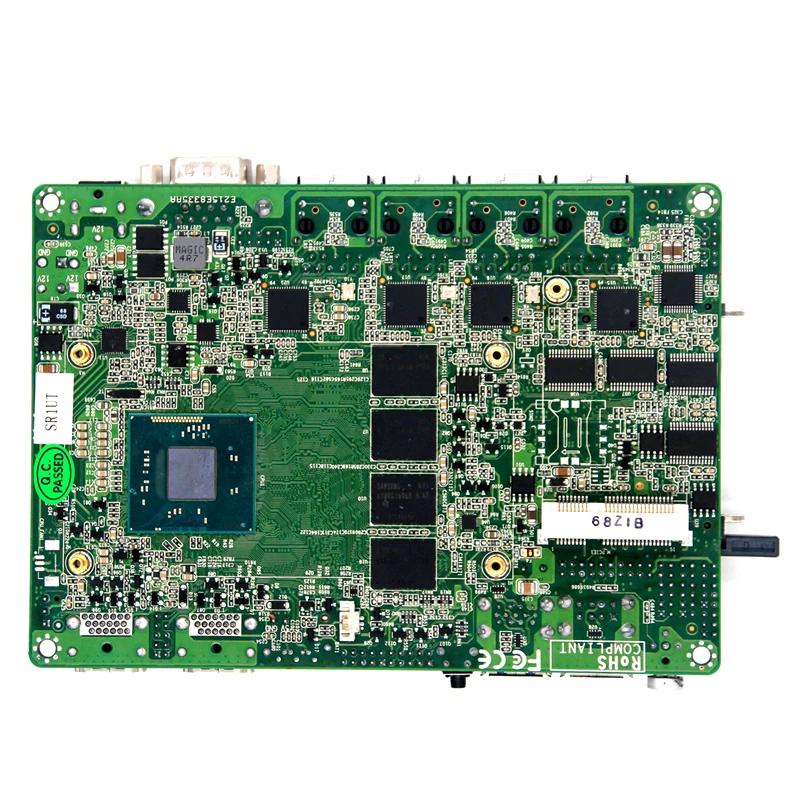

Промышленная материнская плата x86 ЦП J1900 3 5 дюйма 146*102 мм 4 I211AGbE компьютерная для робота
- Категория: Motherboards >>>
- Поставщик: Shenzhen Piesia Electronic Technology Co. Ltd.
Сохранить в закладки 1600425831389:
Описание и отзывы
Характеристики
Products Description
x86 industrial motherboard J1900 CPU 3.5 inch 146*102mm industrial motherboard 4 I211AGbE computer motherboard for robot
◆ Baytrail-D/I/M series processor；
◆ J1900\\J1800\\N2806\\N2900\\E3845；
◆ Onboard 2G\\4G memory；
◆ 5*RS-232，1*RS-485/RS-422；
◆ 4*Intel I211 Gigabit Ethernet；
◆ Onboard 32/64/128G EMMC chipset（optional）；
◆ 1*Cfast storage interface；
◆ Single-input DC power supply，DC12V；
◆ Size: 145 x 102mm；
◆ J1900\\J1800\\N2806\\N2900\\E3845；
◆ Onboard 2G\\4G memory；
◆ 5*RS-232，1*RS-485/RS-422；
◆ 4*Intel I211 Gigabit Ethernet；
◆ Onboard 32/64/128G EMMC chipset（optional）；
◆ 1*Cfast storage interface；
◆ Single-input DC power supply，DC12V；
◆ Size: 145 x 102mm；
Processor | CPU | Support Baytrail-I/D/M serial Processor (J1900 N2900 J1800 N2806 E3845) |
CPU package | BGA | |
Chipset | Support Baytrail-I/D/M serial Processor | |
BIOS | EFI BIOS | |
Memory | Technology framework | Singel channel DDR3 1066/1333/1600MHz |
Capacity | Onboard 2GB\\4GB DDR3 | |
Socket | Can add 1*RAM socket，Max support 8GB Ram | |
Video | Graphic controller | Intel HD Graphics |
Dual LVDS | Support dual channel 24bits display,mac resolution :1920 x 1080 | |
VGA | VGA Resolution maximum2048x1536(VGA port is pin header) | |
HDMI | 2*HDMI Resolution maximum 1920x1080 | |
Dual display | HDMI+HDMI,HDMI+VGA sync or asynchronous display | |

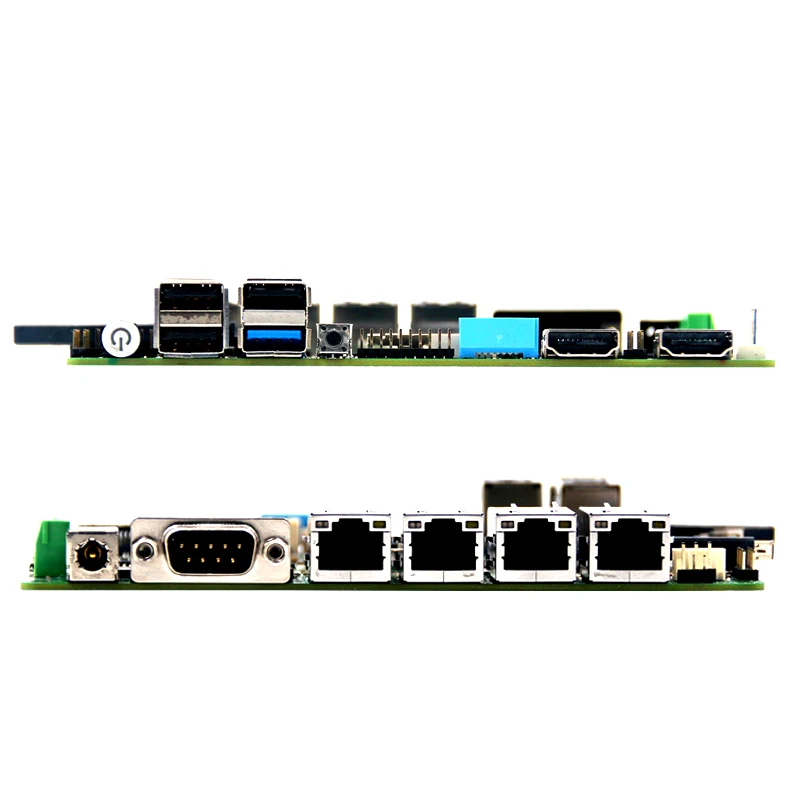

I/O panel | Ports | 1*COM, 2*HDMI 1*USB3.0 3*USB2.0 4*LAN 1*Quick start button with indicator light ,1 *Restart button |
Network | Controller | 4*Intel I211AT high performance Gigabit Ethernet Port，RJ45 Port |
Audio | Controller | Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
Super I/O | Controller | NCT6106D |
Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
Cooler | Aluminum heat sink with fan(or fanless) | |
Input/Output Interface | USB | 6*USB2.0,Max support +5V/1A |
Serial ports | 5*RS-232, 1*RS422/485,RS485 Support automatic flow control | |
GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA | |
EXPANSION BUS | Mini-PCle | 1*Mini-PCIe slot ,support USB equipment |
Storage | SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s |
Cfast | 1*Cfast storage interface | |
Power Supply | Power Type | Single-input DC power supply，DC12V，+/-5% |
Power consumption | 20W | |
Working environment | Working temperature | -20℃ ~ +60℃ |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90%(non-condensing) | |
Storage humidity | 0% ~ 90%(non-condensing) | |
Support System | Windows7 Windows8.1 Windows10 Linux When using EMMC to install the system J1900, J1800 CPU only supports Windows8.1 Windows10, E3845 CPU supports Windows8.1 Windows10 Linux | |
Dimension | Size | 145 x 102 mm |
Weight | 0.5KG | |
Certifications | CE,ROSH,FCC |
company information
Shenzhen Piesia Electronic technology Co., Ltd is a collection of various types of industrial motherboards and embedded products,research, development,production, sales and service as one of the national high-tech enterprises of industry specific computer products.Products related to industrial CPU card,embedded industrial motherboard, industrial chassis, integrated workstation.The tablet computer industry (PPC), network safety of machinery system,Disk array, passive backplane,Industrial power and industrial computer accessories and other products.
Company products are widely used in industrial automation,communication equipment, power equipment, network security,intelligent
transportation, video surveillance, health care,military / aerospace equipment, self-service terminal,storage device, digital
signage, on-board computer,3C applications and many other fields.
Company products are widely used in industrial automation,communication equipment, power equipment, network security,intelligent
transportation, video surveillance, health care,military / aerospace equipment, self-service terminal,storage device, digital
signage, on-board computer,3C applications and many other fields.
Certifications
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order.
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order.
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
Похожие товары

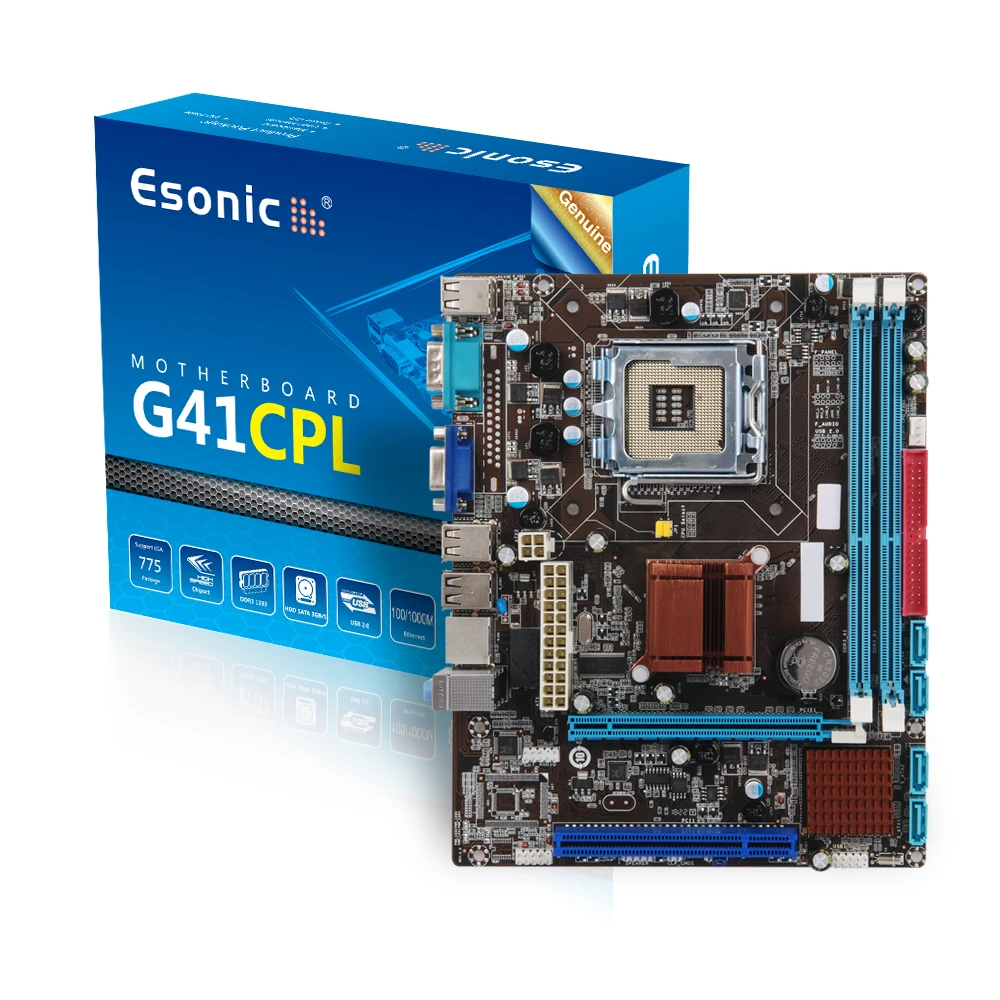

Материнская плата ESONIC intel G41 775, DDR2 или DDR3, проектирующий дом, крупнейший производитель

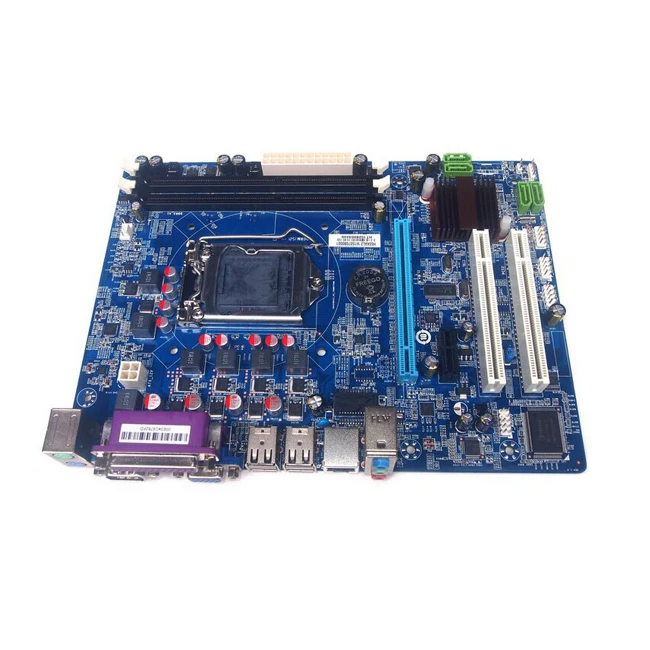

Встроенный графический процессор H55 материнская плата lga 1156
Высокопроизводительный чипсет 1150 двухканальный DDR3 1600 1333 МГц материнская плата для ПК
27,00 $

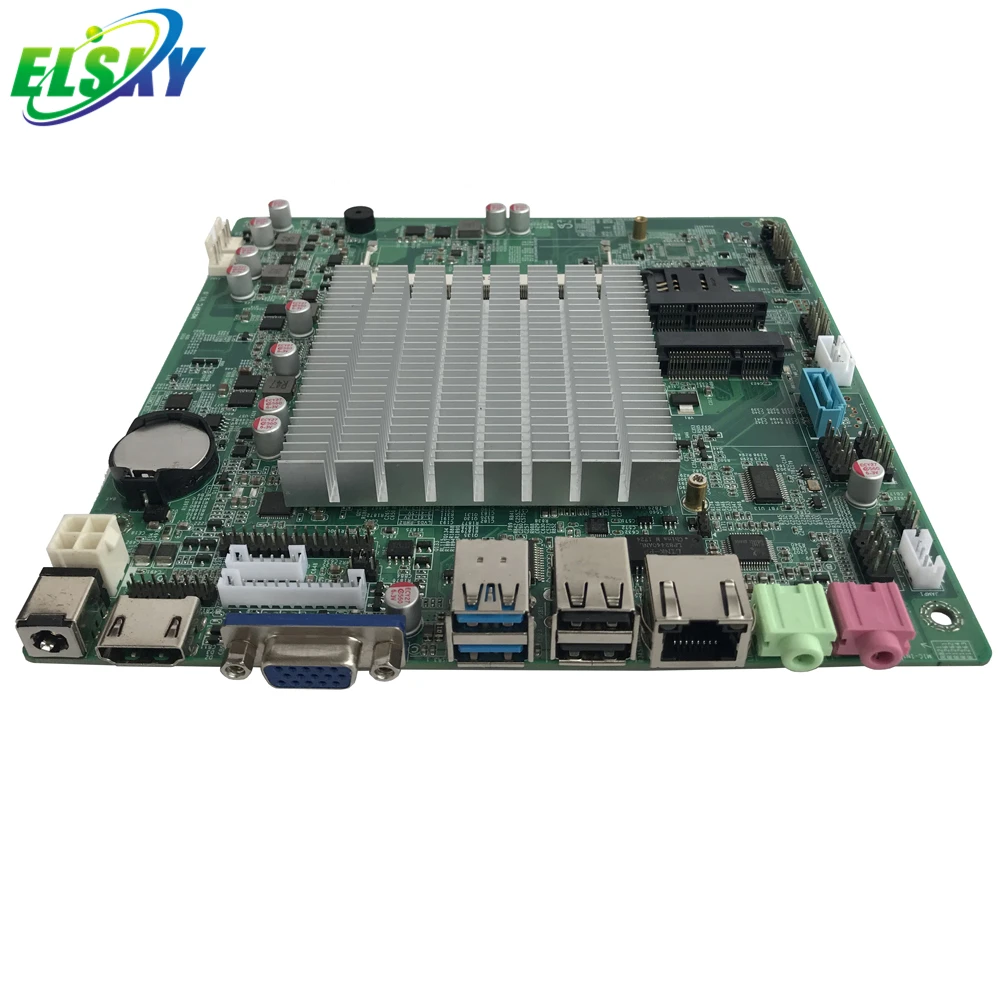

Горячая распродажа дешевый процессор J1800 J1900 J2900 четырехъядерный 2,66 ГГц GPIO SIM-карта LVDS RS232COM безвентиляторная Встроенная мини-материнская плата ITX
78,00 $ - 80,00 $

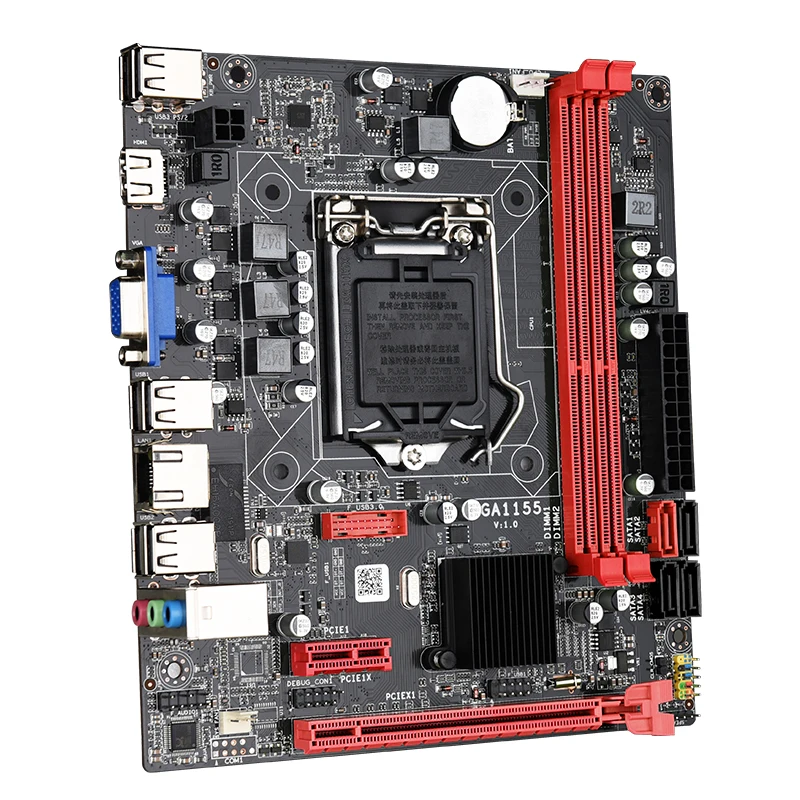

Материнская плата b75 lnteI lga 1155 с поддержкой процессора lnteI Core i7/i5/i3
29,57 $ - 32,00 $

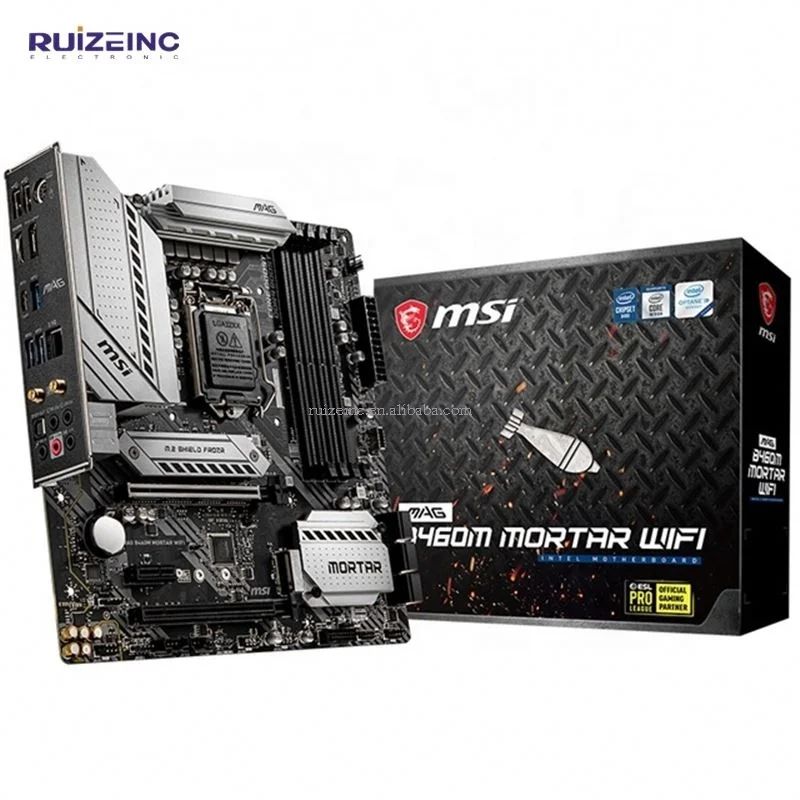

Материнская плата MSI B460M для игровых настольных ПК, материнская плата B460 по хорошей цене

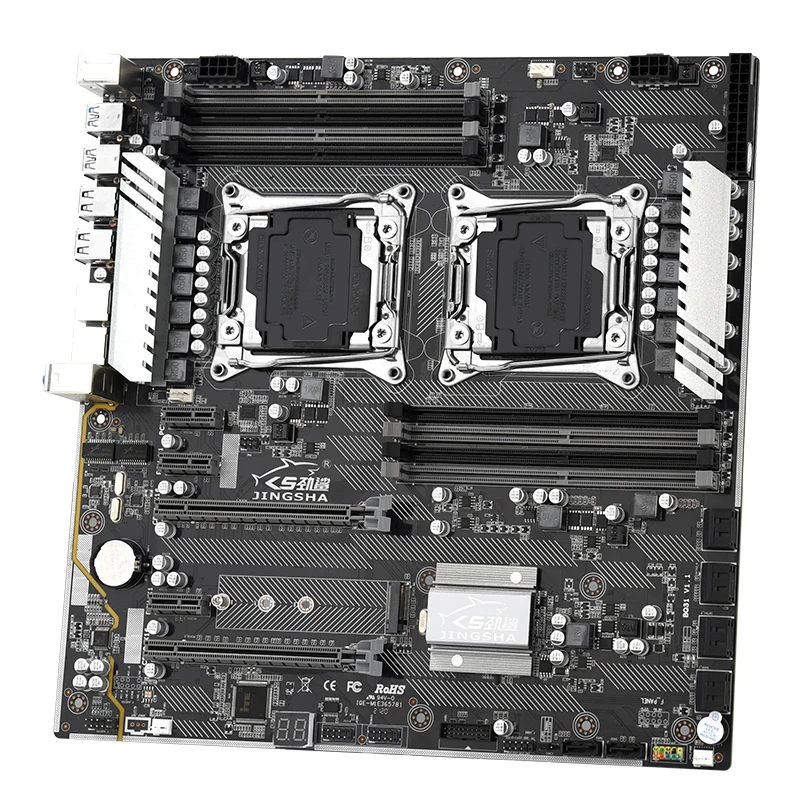

JINGSHA высокое качество 2020 новый бренд производитель настольных lnteI розетка lga2011-3 ddr4 x99 двойной ПК материнская плата
