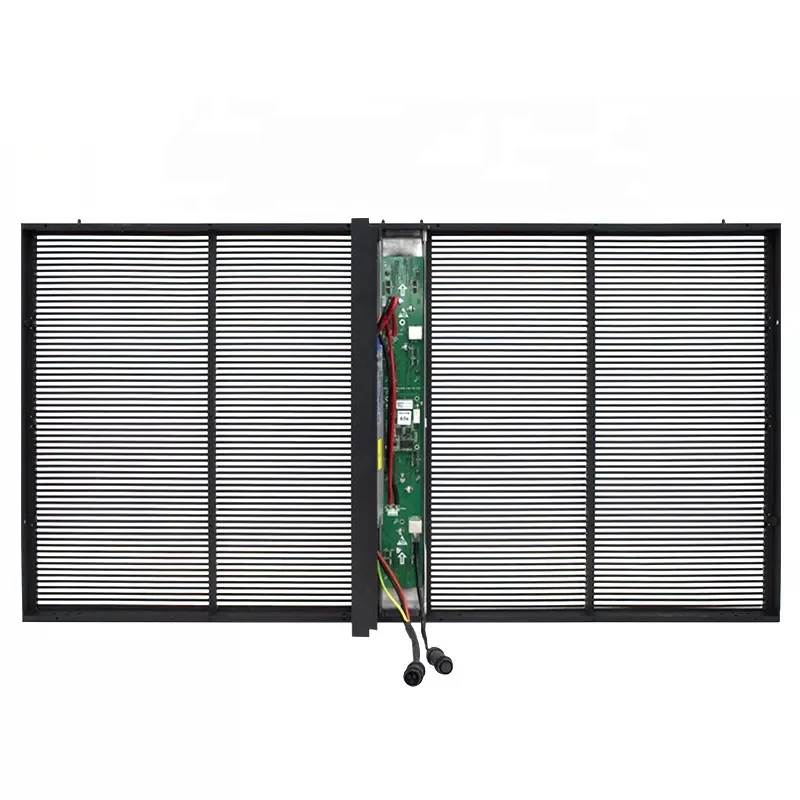

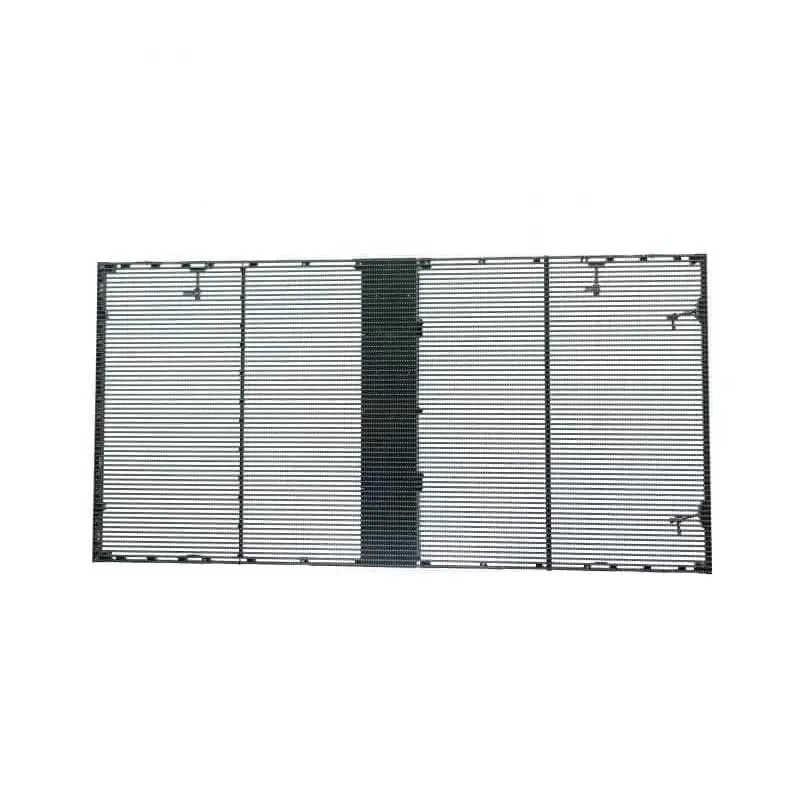

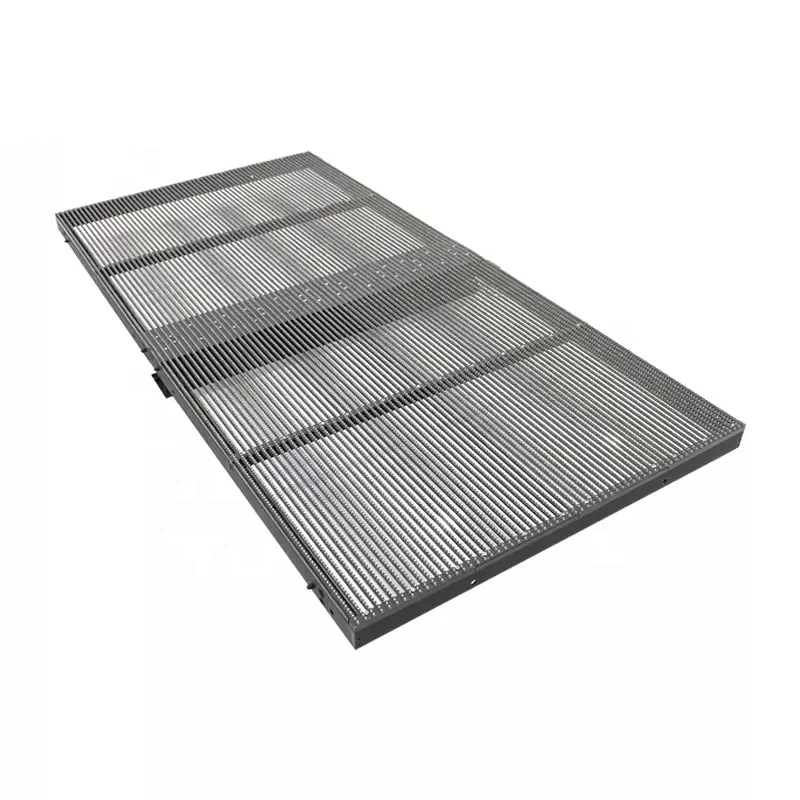

Горячая Распродажа P3.91 внутренняя занавеска оконные стеклянные рекламные ТВ панели светодиодный сетчатый дисплей прозрачный СВЕТОДИОДНЫЙ экран
- Категория: >>>
- Поставщик: Chipstar LED Co. Ltd.
Сохранить в закладки 1600425887027:
Описание и отзывы
Характеристики
Product Description
Application

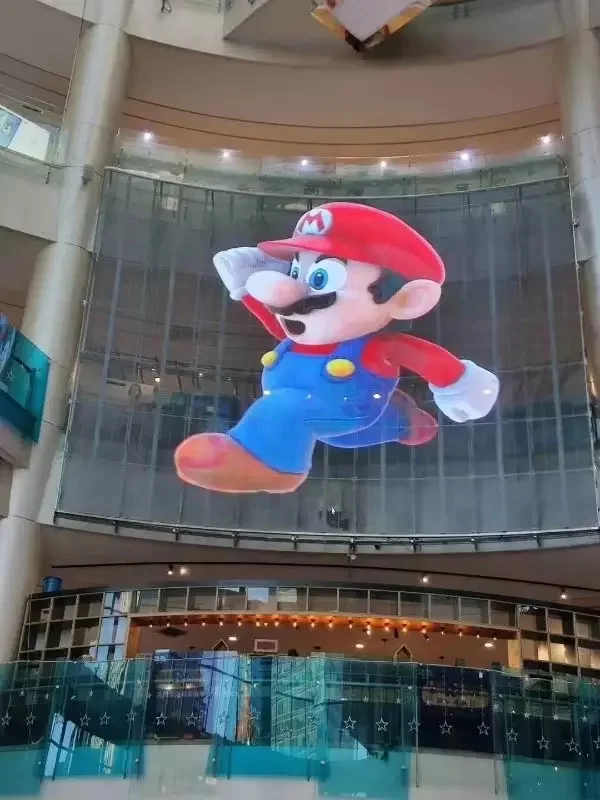

Widely Application for shopping mall, large building glass wall, stage background led display, casino, carnival, concert,exhibition,chain shops and clothes shop, even in Bank window, etc. It is installed inside but with very high brightness for outside.
Installation Instructions
Specification
Model | P2.6-5.2 | P3.4-7.8 | P3.9-7.8 |
Pixel Pitch | 2.6x5.2 | 3.4x7.8 | 3.9x7.8 |
Lamps | 1921 | 1921 | 1921 |
Chip composition | 1R1G1B | 1R1G1B | 1R1G1B |
Solder craft | Side mounted, positive-glowing | Side mounted, positive-glowing | Side mounted, positive-glowing |
Piexls/m² | 73728dot/m² | 41472dot/m² | 32768dot/m² |
Module resolution | 384x96dot | 288x64dot | 256x128dot |
Driving mode | Constant current driving | Constant current driving | Constant current driving |
Cabinet size(W*H*D) | 1000*500mm | 1000*500mm | 1000*500mm |
Material of cabinet | Cast aluminum | Cast aluminum | Cast aluminum |
Weight/m² | <16KG/m² | <16KG/m² | <16KG/m² |
Brightness/m² | 1000-6000CD/m² | 1000-6000CD/m² | 1000-6000CD/m² |
Max consumption/m² | ≤800W/m² | ≤800W/m² | ≤800W/m² |
Control system | Novastar | Novastar | Novastar |
Refresh rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
Gray scale | ≥14bit | ≥14bit | ≥14bit |
Transparency rate | ≥75% | ≥75% | ≥75% |
Working voltage | DC5V | DC5V | DC5V |
Power supply cooling method | Self-cooling+aluminum alloy | Self-cooling+aluminum alloy | Self-cooling+aluminum alloy |
Input voltage rage | AC 100V-230V | AC 100V-230V | AC 100V-230V |
Protection level | IP30 | IP30 | IP30 |
Installation method | Hanging/stacking/fixed/customized | Hanging/stacking/fixed/customized | Hanging/stacking/fixed/customized |
Temperature range | -35°~65° | -35°~65° | -35°~65° |
Humidity range | 10%-90% No condensation | 10%-90% No condensation | 10%-90% No condensation |
Company Profile
Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display. Have the advanced technology production equipment and standard production line, all our products had passed ETL, FCC, CCC, RoHs and CE certificates.We strive to provide world-class service for every client. We guarantee you will receive only the superior quality between the similar products in domestic market at the most preferential price. Hope to start a good relationship with you from here.
Packing & Delivery
Packaging and Shipment
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing
Shipping Method:by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
Shipping Method:by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
