Газовый Электрический преобразователь PEN-M5 8625
150,00 $ - 170,00 $

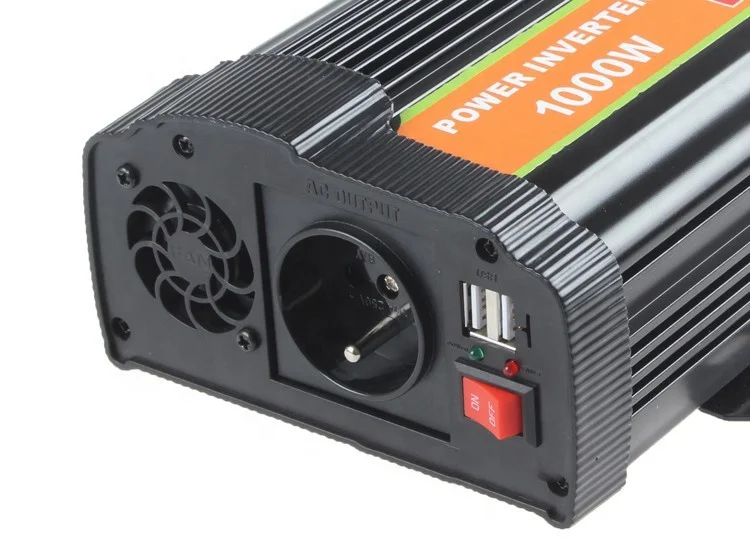

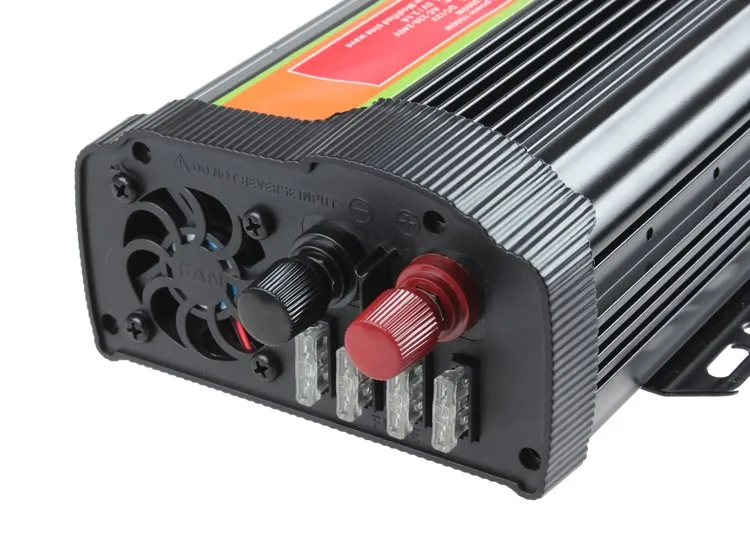

Новый продукт высокоэффективный дешевый инвертор 1000 Вт от 12 В до 220 постоянного тока преобразователь переменного 1 кВт
- Категория: >>>
- Поставщик: Exliporc New Energy (Shenzhen) Co. Ltd.
Сохранить в закладки 1600425995343:
Описание и отзывы
Характеристики
1000w inverter modified sine wave
12v to 220v dc ac converter 1kw

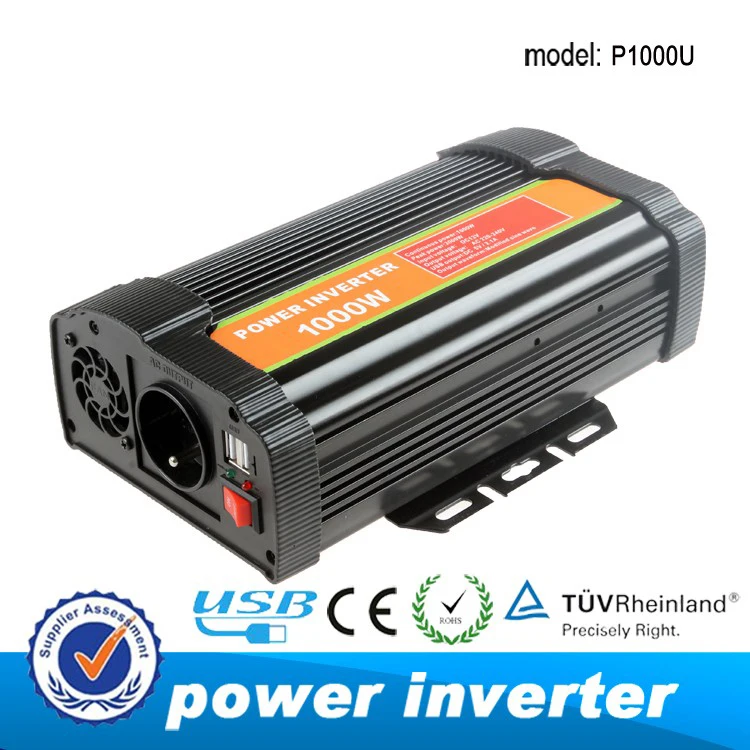

P1000U inverter has adopted the international lead circuit design, with the advantage of small size,
light, stable,and high conversion efficiency. It has five kind of protect function such as: input under
voltage protection, input over voltage protection, overload protection, over temperature protection,
output short circuit protection.
Features
-Small size . Light weight and portable
-Easy to use and high efficiency
-Green LED indicates power on . Red LED indicates wrong
-Input & output isolation
-Muti-protection function
-USB output port 5V 500mA
-Built-in Cooling Fan
light, stable,and high conversion efficiency. It has five kind of protect function such as: input under
voltage protection, input over voltage protection, overload protection, over temperature protection,
output short circuit protection.
Features
-Small size . Light weight and portable
-Easy to use and high efficiency
-Green LED indicates power on . Red LED indicates wrong
-Input & output isolation
-Muti-protection function
-USB output port 5V 500mA
-Built-in Cooling Fan
Parameters | ||||
NO. | Testing project | Test standard | ||
1 | continue power | 1000W | ||
2 | rated voltage | 12.8V-13.2V | ||
3 | work voltage | 11V-15V | ||
4 | No-load current (with the rated voltage ) | <0.3A | ||
5 | USB output current | 500MA | ||
6 | No-load output voltage (with the rated voltage ) | 220V-240V | ||
7 | output voltage(12V-14V) with regulating load(10W-500W) | 210V-240V | ||
8 | Fan | start work when the load is 60-160w | ||
9 | frequcncy | 50/60Hz±3Hz | ||
10 | over voltage cut off voltage (no-load) | 15.5V±0.5VDC | ||
11 | low voltage alarm voltage (no-load) | 10.5V±0.3VDC | ||
12 | low voltage turn off voltage (no-load) | 9.5V±0.3VDC | ||
13 | recover voltage after turn off (no-load) | 12V±0.3VDC | ||
14 | over load protection(5-15s) | 58A--64A | ||
15 | short-circuit protection | the inverter will not be broken with several times short-circuit (cold mode) | ||
16 | indicator light | work mode:green light lights, red light unlights; production mode:red light lights, green light lights. | ||
17 | environment temperature | 25°C±1°C | ||
18 | Miniature fuse | 35A*2(inside) | ||
19 | Load efficiency (rated input voltage) | ≥80% | ||
20 | Maximum efficiency (in rated input voltage) | ≥85% | ||
How to choose a power inverter:
If you want to know whether the power inverter can be used to drive the electric appliance,you
should see the rated power.
If the rated power of the electric appliance is lower than or equal to the one of power inverter, you can
choose it.
But to the inductive load, the peak power of the electric appliance must be lower than the peak
power of power inverter,otherwise the inverter can’t drive it.The peak power of our company’s power
inverter is twice its rated power generally.
Notice:
1.Take care that the anode and cathode can’t be connected wrong, or the inverter will be short,but the power
inverter wouldn’t be burnt out except fuse, to back to work ,just change the fuse.
2.Please use the matched wire.
3.Our power inverter is DC input,DO not use AC input,otherwise the inverter will be burnt out.
4.The sockets on the power inverter is used for AC output, insert the AC input into the sockets
is strictly prohibited, or the power inverter will be burnt out.
If you want to know whether the power inverter can be used to drive the electric appliance,you
should see the rated power.
If the rated power of the electric appliance is lower than or equal to the one of power inverter, you can
choose it.
But to the inductive load, the peak power of the electric appliance must be lower than the peak
power of power inverter,otherwise the inverter can’t drive it.The peak power of our company’s power
inverter is twice its rated power generally.
Notice:
1.Take care that the anode and cathode can’t be connected wrong, or the inverter will be short,but the power
inverter wouldn’t be burnt out except fuse, to back to work ,just change the fuse.
2.Please use the matched wire.
3.Our power inverter is DC input,DO not use AC input,otherwise the inverter will be burnt out.
4.The sockets on the power inverter is used for AC output, insert the AC input into the sockets
is strictly prohibited, or the power inverter will be burnt out.
SHIPPING
DHL/UPS/Fedex express takes about 3-7 working days,
5-10 working days by EMS/TNT. China Post Air Mail and Post Parcel takes 7-30days to ship to worldwide.
1. We will send one sample order within 3 business days after the payment.
2. For bulk order, please confirm it with us before your order.
3.The dc converter will be marked as “gift” or “sample” for your easy customs clearance and less charge.
PAYMENT
1.We accept T/T, Paypal, Western Union, Alibaba Escrow, and others. You can choose the one you like. If
you want other payment terms please let us know before your order.
2.If pay online, make sure that you have completed all the detailed information like contract person, address,
post code, telephone number.
DHL/UPS/Fedex express takes about 3-7 working days,
5-10 working days by EMS/TNT. China Post Air Mail and Post Parcel takes 7-30days to ship to worldwide.
1. We will send one sample order within 3 business days after the payment.
2. For bulk order, please confirm it with us before your order.
3.The dc converter will be marked as “gift” or “sample” for your easy customs clearance and less charge.
PAYMENT
1.We accept T/T, Paypal, Western Union, Alibaba Escrow, and others. You can choose the one you like. If
you want other payment terms please let us know before your order.
2.If pay online, make sure that you have completed all the detailed information like contract person, address,
post code, telephone number.
Похожие товары
Usb-флеш-накопитель с полной емкостью 3,0, 4 ГБ, 8 ГБ, 16 ГБ, 32 ГБ, 64 ГБ, 128 ГБ
Повышающий Модуль SPEEDEN 22awg, постоянный ток 5 В в постоянный ток 12 В, штекер 2,1x5,5 мм на разъем USB A, преобразователь, маршрутизатор, микрофон, Змеиный кабель, xlr 40 градусов
1,34 $ - 1,38 $
BELTTT оригинальный продукт, портативный автомобильный преобразователь 500 Вт от 12 В до 230 В, мини-Инвертор постоянного тока переменного тока
12,00 $ - 18,80 $
Интеллектуальный автомобильный инвертор, инвертор постоянного тока в переменный ток, с дисплеем, 12 В, 24 В, 48 В, 60 в
Новые товары преобразователем напряжения постоянного тока 12V/24V до 5V 40a для электрический гольф-мобиль
23,00 $ - 25,00 $

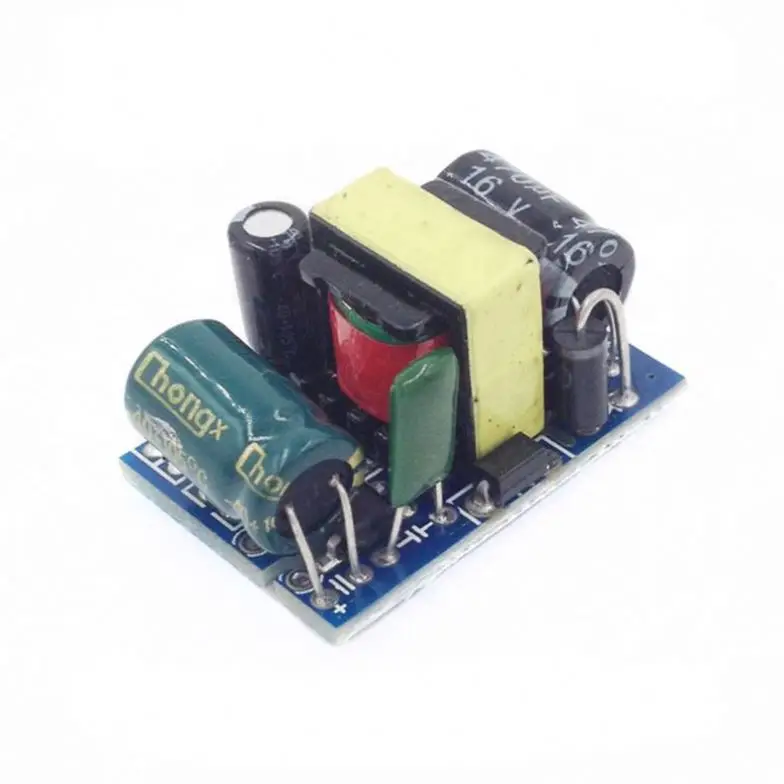

AC-DC преобразователь переменного тока 85-265V 110V 220V 230V постоянного тока до DC3.3V 500mA зарядное мини-устройство работающее от прикуривателя с зарядного блока управления печатная плата Модуль гибкий кабель инструмента импульсного источника питания

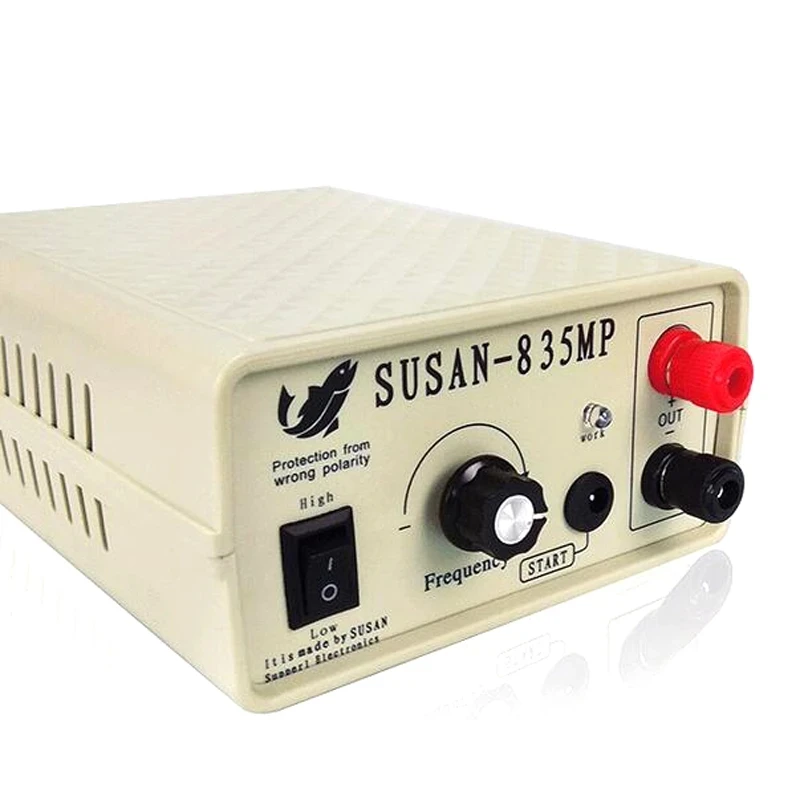

SUSAN-835MP электрические источники питания смешивания высокой мощности инвертор электронный усилитель мощности конвертер Трансформатор Машина рыбной ловли
