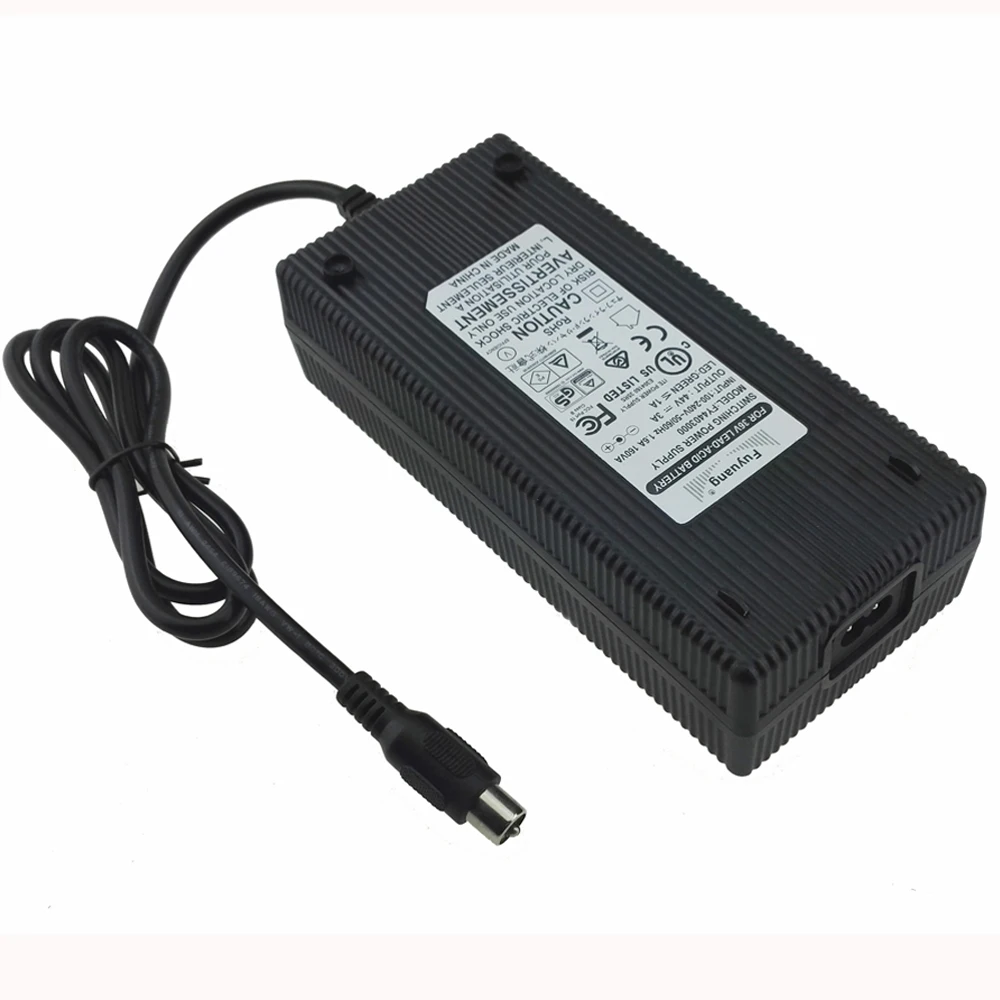

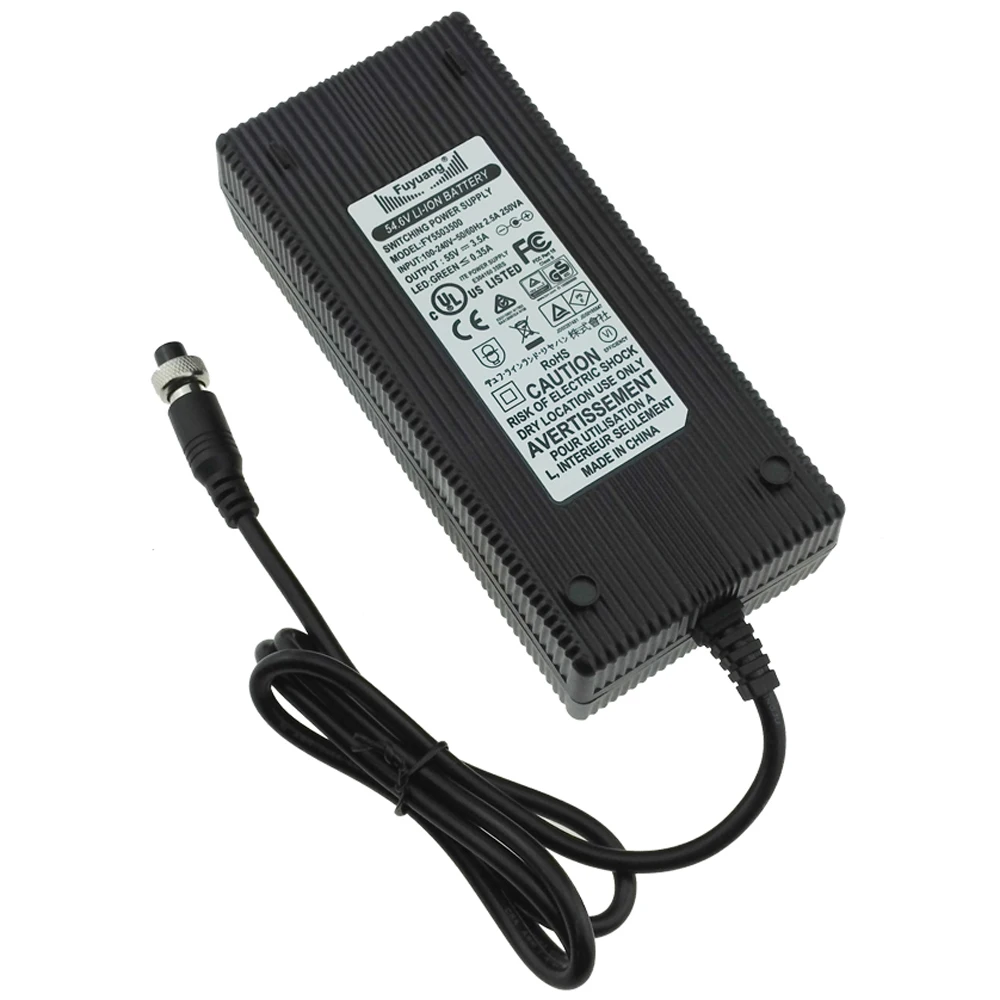

Литий ионное зарядное устройство Fuyuan technology UL CE PSE KC ac к dc для электрического велосипеда 24 В 4a 29 4 в

Сохранить в закладки 1600426164477:


Цена:33,00 $ - 35,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

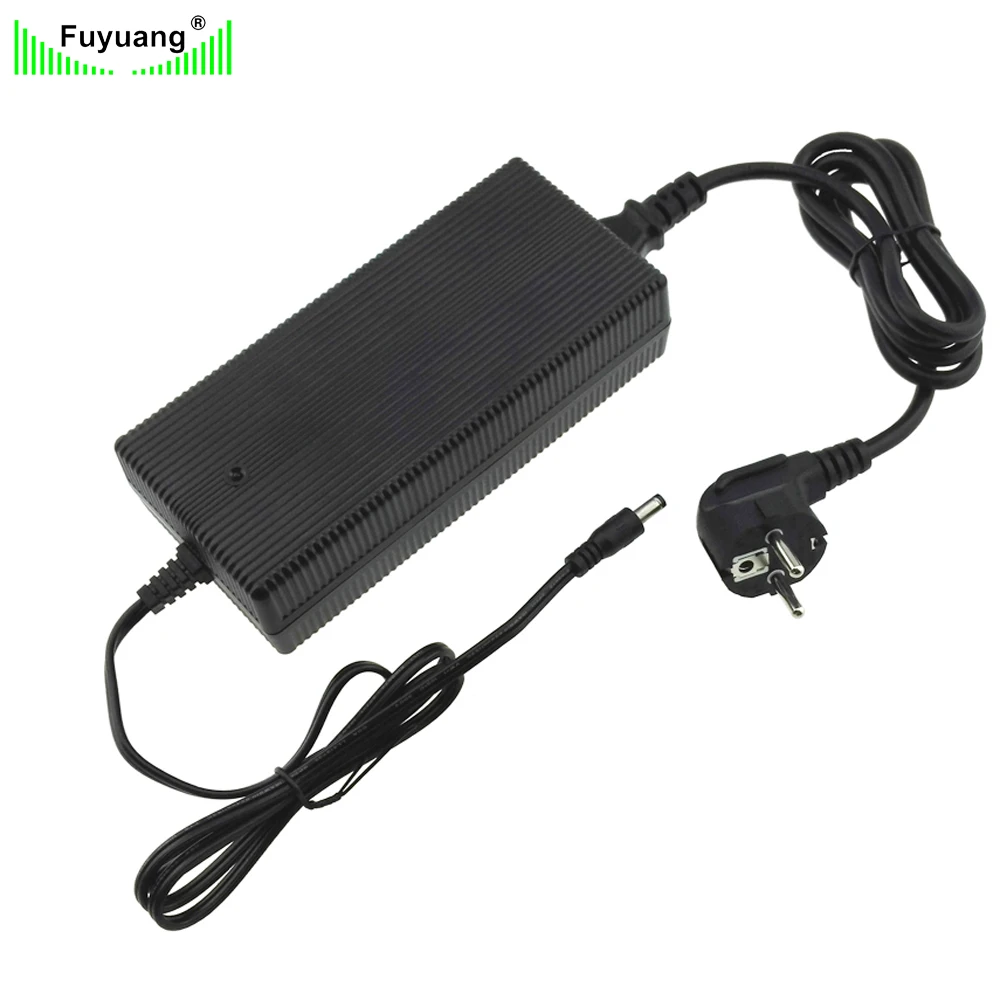

Fuyuan technology UL CE PSE KC ac to dc electric bike lithium 24v 4a li-ion battery charger 29.4v


23_01








1) We certify battery charger,power adapter and LED power supply at the highest levels, earning UL, FCC, cUL,  TUV/GS, EMC, CE, LVD, CB, RoHs, SAA, REACH,C-Tick, RCM, KC, PSE, CCC.


2) Protections: Short Circuit/ Over Current/ Over Voltage/ Over Temperature


3) 3 years warranty
4) Built-in active PFC function
5) Automatically shut off
6) Fireproof PC plastic case
7) OEM and ODM are available,customize AC and DC plug--what you want,what we do.




Produce Description


















































































































1c8f5d7d997f40099db38f1ebd3d55221ec45028911a4d3d95987df79f590085



Fuyuan technology UL CE PSE KC ac to dc electric bike lithium 24v 4a li-ion battery charger 29.4v



Features



·Universal AC input / Full range



·Plastic or metal case optional



·Cooling by free air convection



·MTBF:30000 hours



·Provide 3 years warranty



·Install fuses on both ends of the Input and Output for double safety



·Protections:Short circuit / Over load / Over voltage / Over temperature



·Certification:UL,ETL,CUL,GS,CE,BS,SAA,KC,PSE,CB,FCC,EMC,RoHS,REACH



SPECIFICATION



OUTPUT



MODEL NO.



FY2944000



OUTPUT VOLTAGE



29.4V



OUTPUT CURRENT



4A



OUTPUT POWER



117.6W



PFC (MIN.)



0.9



INPUT



VOLTAGE RANGE



100 ~ 240VAC



FREQUENCY RANGE



50 / 60Hz



TEMPERATURE RISING



CASE 75 ℃ MAX .℃ FOR RATED OUTPUT



EFFICIENCY (MIN)



88%



DIELECTRIC WITHSTAND TEST



5mA 3000VAC FOR 60 SECOND



PROTECTION



SHORT CIRCUIT:



CAPABLE OF WITHSTANDING CONTINUOUS SHORT CIRCUIT AND RECOVER AUTOMATICALLY



SAFETY          & EMC



SAFETY STANDARDS



UL62368  EN60335



EMI



CISPR22 CLASS



INSULATION



B



OTHERS



MTBF



THEVDESIGN AND CONSTRUCTION OF THIS PRODUCT EXHIBIT A MINIMUM MEAN TIME BETWEEN FAILURE OF 30000 HOURS FULL RATED LOAD OPERATION AT 25 ℃



CONNECTOR



PLUG



5521, 5525, RCA, XLR, XT60, M16, C14.



CABLE



UL2464 SPT-1, UL1015, SJT, UL2468, 1185 18# 1M length






80W 3





23_06


23_02


23_07

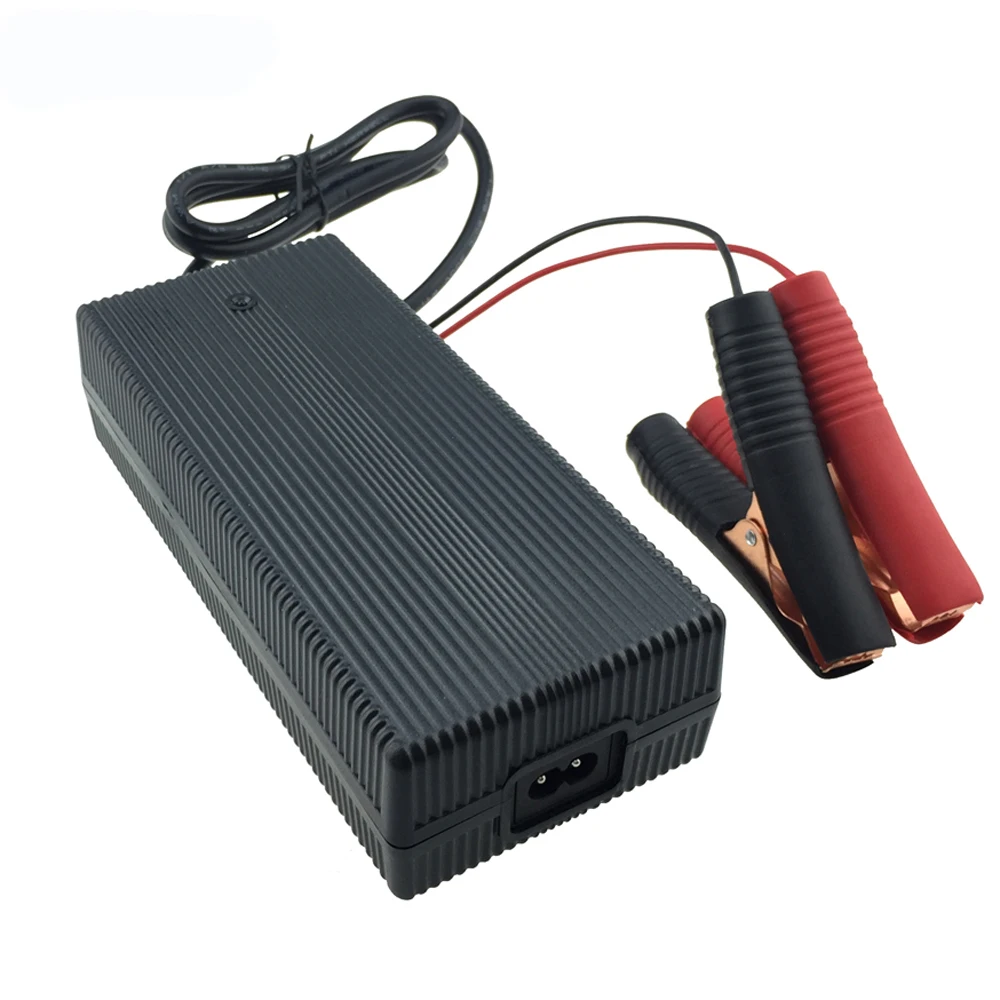

DC plug customized as per your demands


5.5*2.1mm / 5.5*2.5mm / 3.5*1.35mm / 4.0*1.7mm / 2.5*0.7mm / 7.9*5.0mm / 4 Pin / Cigarette Lighter, Anderson Connector, Canon Connector, XLR Connector, Inline Plug, XT60, TX40/60, M8/M12/M16, etc.



If you can't find the product you expect, please send an inquiry and tell us the sapcifications.
We will provide you with detailed information and quotation.



04



*Fuyuan Electronic Co.,Ltd is certified by ISO 9001, ISO 14001 and QC 080000.
* Fuyuang Battery Chargers are approved by UL1012 & IEC-60335: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang Power Adapter are approved by UL62368 & IEC 62368: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.


* Fuyuang LED Power Supply are approved by UL1310 & IEC-61347: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.






Company Information


Fuyuan Electronic Co.,Ltd, established in 2005, is a professional manufacturer of Battery Charger, Power Adapter and LED Power Supply.



  • Set up in 2005 .

  • Located in Guangdong China.

  • We have a self-built factory of 8000sqm ,existing staff 200 people.

  • Certified by ISO 9001: 2015, ISO14000: 2015 and QC080000: 2015.

  • With a 30-year senior engineer team, the company is integrated with product design, R&D and production as a whole, it only takes

  • 10 days to design and develop a brand-new product.









At present, Our 60 watt to 1000 Watt high power products take the leading position in the switching power supply industry, our company is the preferred supplier for Batteries, Electric Vehicles, LED Lights, Medical Equipment, Robots, Audio, Electrical Tools etc. Industries.





paste-pic-dp_uuid_h67xm


_02 (2)





Why Chooes us



  • Self-built factory, with 20 years of professional switching power supply production experience.

  • 30 Years Experience Senior Engineer Team, can provide excellent design customization services.

  • Currently, more than 20,000 samples have been producing for 5,000 companies around the world.

  • Focus on product quality and service, providing a 3-year warranty.

  • All products have passed global certification (UL,ETL, CUL, GS, CE,SAA,KC,PSE,CB,FCC,EMC,ROSH,REACH).

  • Fanless high-efficiency design, meet CEC, DoE Level VI, Energy Star, ErP stage 2, CoC Tier 2, NRCan & GEMS.

  • Passed ISO9001:2015. ISO 14001:2015 & QC080000:2015 system certification.


23_12


23_13





Packaging & Shipping




PACKING DETAILS:




1. Regular package.
2. Individual package.

3. Customized package is accepted.






SHIPPING WAY:




1. By express/courier(Door to Door): FedEx / DHL/UPS,etc.

2. By Air or by Sea shipment.

3. Customers specifying freight forwarders and negotiable shipping methods.

0
