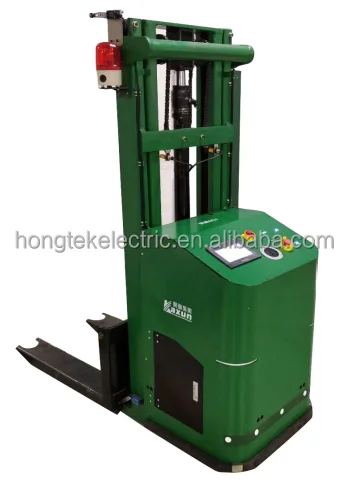

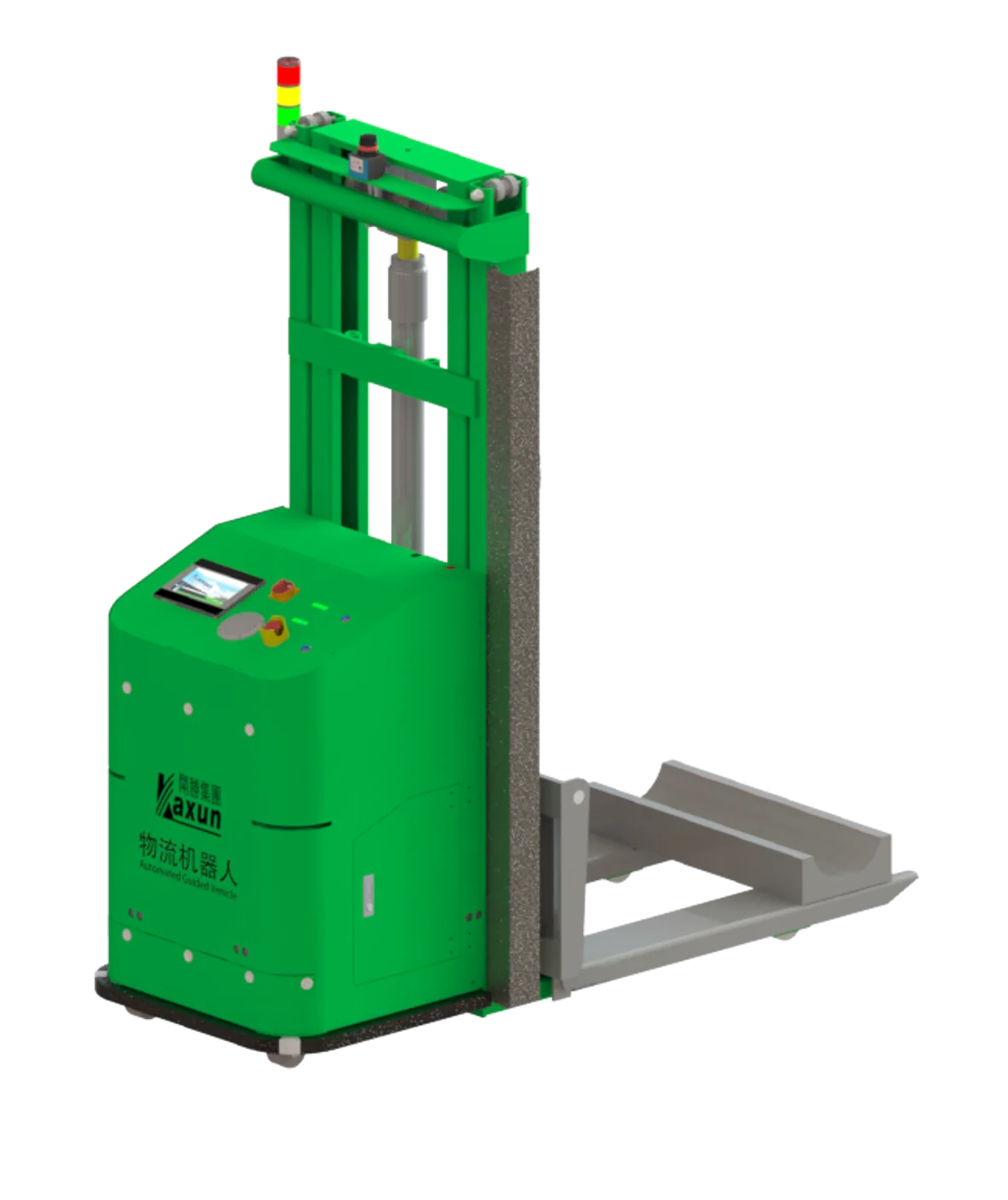

1500 кг Штабелируемый вилочный погрузчик AGV штабелеукладчик
- Категория: Other Material Handling Equipment >>>
- Поставщик: Shenzhen Hongyi Electronics Co. LTD
Сохранить в закладки 1600426411686:
Описание и отзывы
Характеристики
Product Overview
KXAGV-11-1
Autonomous Pallet Stacking Forklift AGV Truck
1. The Pallet Stacking Forklift AGV Truck adopted Laser Navigation technology.
2. Omini-directional movement are avaiable.
3. Control walking routine through preset program which can be modified according to necessary.
4. Support remote control or dispatching system control.
5. Can provide I/O interface or API interface docking.
6.OEM or ODM is acceptable, including software and hardware integration according to customer's requirement.
3. Control walking routine through preset program which can be modified according to necessary.
4. Support remote control or dispatching system control.
5. Can provide I/O interface or API interface docking.
6.OEM or ODM is acceptable, including software and hardware integration according to customer's requirement.
PRODUCT SPECIFICATIONS
Item | Value / Specification | |
Product Name | 1500kg Pallet Stacking Forklift AGV Truck | |
External dimensions | L1800mm*W800mm*H2000~2200mm (for reference only) | |
Net Weight | 700kg (for reference only) | |
Loading method | Lifting pallet and stacking | |
Loading Capacity | Lifts up to 1500kg. Can be customized. | |
Lifting Height | 1500mm. Can be customized. | |
Navigation mode | Laser navigation ( Magnetic stripe or QR code navigation for option） | |
Number of sites | 30×30 points. Can be customized. | |
Site Identification | RFID mode | |
Wheels | 6 wheels. Among them, four are universal driven wheels, and the other two are driving wheels (using solid rubber tires) | |
Running direction | Omni-directional movement. | |
Running speed | 15~30 m/min (9 speeds adjustable) | |
Gradeability | Max 3°. Can be customized | |
Battery | High-quality maintenance-free power lithium battery | |
Power display | Analog quantity display according to percentage example | |
Manual charging via power adapt. Input: AC 220V Output: DC24/3A Working Current: 0.8A Power consumption: 210W | ||
Safety device | Automatic deceleration of obstacle avoidance, radar obstacle avoidance, voice warning, mechanical collision avoidance, emergency stop button | |
Safety sensing distance | No more than 1000mm, emergency braking ±20mm (can be customized) | |
Braking method | High-performance electronic brake device | |
Braking accuracy | ±2CM (Can be customized ) | |
Application | Handling in Warehouses | |
Work time | Max 8hrs | |
HMI | Touch screen | |
Work environment | Indoor. Temperature: 0～45℃, relative humidity: 20%～80% | |
Packaging | Including： Wooden box*1 KXAGV-11-1 Small Cattle Forklifting AGV *1 Power adapter with cable *1 User manual *1 Small Cattle Forklifting AGV size: main body L1800*W800*H2000~2200mm. | |
Note: The quotation on the web page does not include the costs involved in going to the customer's site to install, such as visa fees, travel expenses, hotel expenses, etc. Since most application scenarios are different, please contact our sales managers before placing order. The sales managers will provide the accurate and discount quotations according to the your specific requirements. Thank you! | ||
FEATURES AT A GLANCE
Multi Safety Devices
Program control
Easy Maintenance
Wide Range of Applications

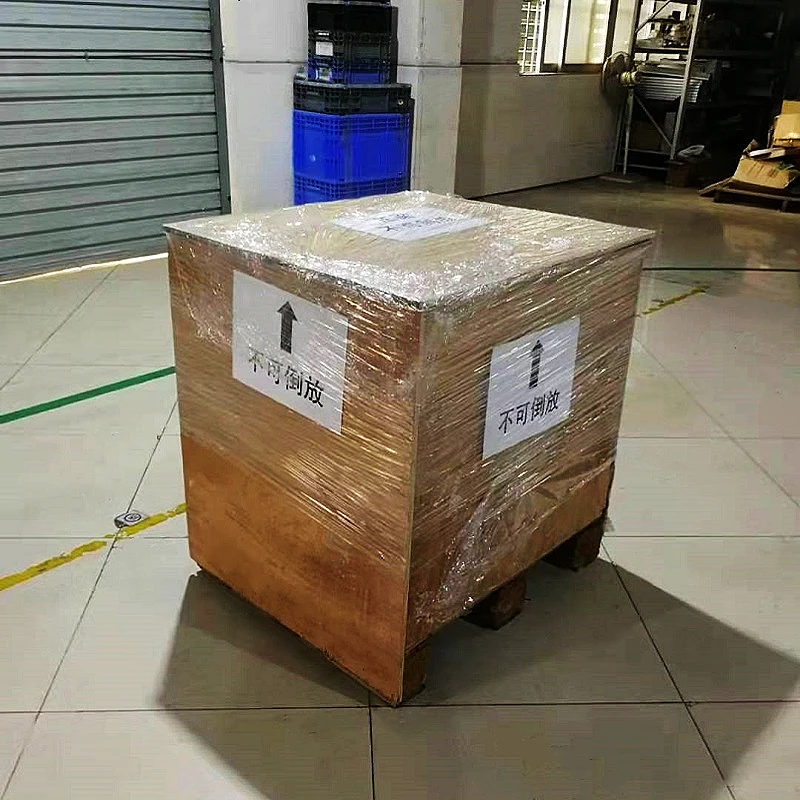

Product packaging
Packaging including：
Including：
Wooden box*1
KXAGV-11-1 AGV *1
Power adapter with cable *1
User manual *1
Wooden box*1
KXAGV-11-1 Small Cattle Forklifting AGV *1
Power adapter with cable *1
User manual *1
Small Cattle Forklifting AGV size: main body L1800*W800*H2000~2200mm.
Wooden box*1
KXAGV-11-1 AGV *1
Power adapter with cable *1
User manual *1
Wooden box*1
KXAGV-11-1 Small Cattle Forklifting AGV *1
Power adapter with cable *1
User manual *1
Small Cattle Forklifting AGV size: main body L1800*W800*H2000~2200mm.
SIMILAR PRODUCTS
Company Profile
During the past ten years, more than 170 models of AGV products have been successfully developed, with navigation methods such as magnetic stripe navigation, two-dimensional code navigation and laser navigation.
The material carrying method covers various models such as piggyback type, towing type, jacking type, forklift type, traction type, roller type, conveyor type, holding type, latent type and lifting type, etc,.
Products have been applying in dozens of industries, such as automobiles, home appliances, clothing, food, machinery molds, and new energy, etc,.
Product and System Security Assurance.
(1)software protection: deviation from the route protection, coordinate loss protection, component failure protection, communication failure protection.
(2) sensor protection: obstacle sensor can detect obstacles within 0~260° in the forward direction of the AGV, and the distance is adjustable from 0-3M, divided into three levels of safety protection range.
(3) Mechanical protection: When the safety touch edge touches the obstacle, the AGV will stop immediately, and when the obstacle is moved away, the AGV needs to be started manually.
(4) Reminder function: When the AGV is running normally, there will be a tricolor light or music horn to remind pedestrians to pay attention to avoid, and when the AGV is malfunctioning, the LCD screen on the AGV panel will display the corresponding Chinese fault tips to facilitate maintenance personnel to quickly carry out maintenance.
(5) Emergency stop: The AGV operation panel is equipped with an easy-to-see emergency stop switch; when the emergency stop switch is pressed, the power to each drive motor is disconnected and the motor is locked, and manual intervention is required to start.
(6) Circuit protection: When there is a fault that causes excessive current, the circuit protector can immediately stop working and cut off power to avoid damage to the motor, drive, controller, etc.
(7) Other functions: With reserved alarm setting and modification functions, such as the combination of display panel and landmark magnetic stripe to shield specific alarm signals at the set position so that the trolley can pass through a specific operating area.
(2) sensor protection: obstacle sensor can detect obstacles within 0~260° in the forward direction of the AGV, and the distance is adjustable from 0-3M, divided into three levels of safety protection range.
(3) Mechanical protection: When the safety touch edge touches the obstacle, the AGV will stop immediately, and when the obstacle is moved away, the AGV needs to be started manually.
(4) Reminder function: When the AGV is running normally, there will be a tricolor light or music horn to remind pedestrians to pay attention to avoid, and when the AGV is malfunctioning, the LCD screen on the AGV panel will display the corresponding Chinese fault tips to facilitate maintenance personnel to quickly carry out maintenance.
(5) Emergency stop: The AGV operation panel is equipped with an easy-to-see emergency stop switch; when the emergency stop switch is pressed, the power to each drive motor is disconnected and the motor is locked, and manual intervention is required to start.
(6) Circuit protection: When there is a fault that causes excessive current, the circuit protector can immediately stop working and cut off power to avoid damage to the motor, drive, controller, etc.
(7) Other functions: With reserved alarm setting and modification functions, such as the combination of display panel and landmark magnetic stripe to shield specific alarm signals at the set position so that the trolley can pass through a specific operating area.
Successful Project
Project in Thailand
Project in Malaysia
Project in Philippines
FAQ
Q1: Are you factory manufacturer or trade company?
A: Our manufacturer has focused on AGV robots nearly 10 years, and OEM & ODM are available.
Q2: What is the lead time?
A: As you know, almost all of the AGV robots need to be customized. In generally the producing time is about 30 days, basing on the actual requirements.
Q3: Is it all right to make customer's Logo?
A: Surely, customer's logo are available.
A: Our manufacturer has focused on AGV robots nearly 10 years, and OEM & ODM are available.
Q2: What is the lead time?
A: As you know, almost all of the AGV robots need to be customized. In generally the producing time is about 30 days, basing on the actual requirements.
Q3: Is it all right to make customer's Logo?
A: Surely, customer's logo are available.

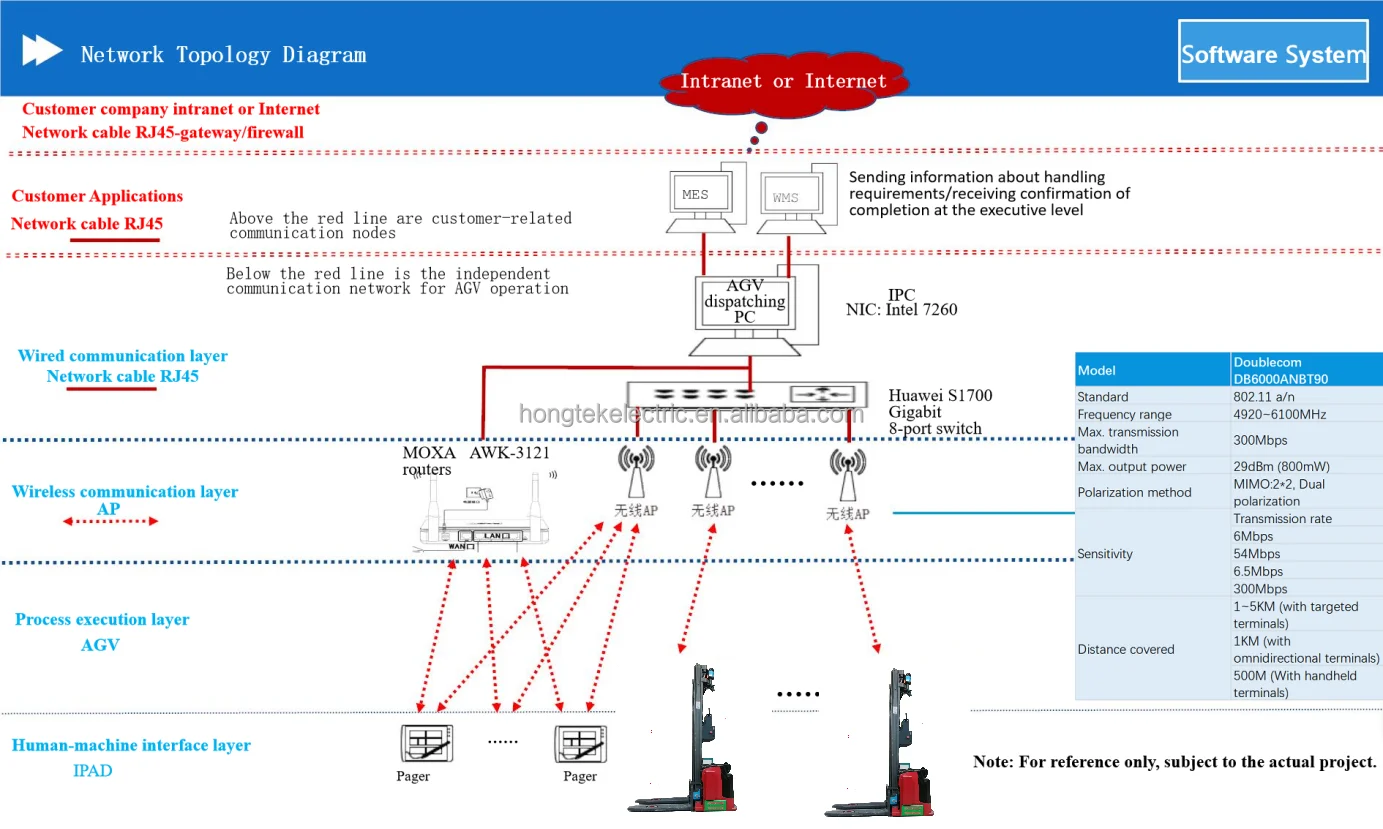

Q4: Is there a controlling management software to control the AGV robots?
A: Yes. There is an industrial control computer with a central scheduling & controlling software system to manage the AGV robots.
Q5: How does the AGV controlling software system to communicate with customer's MES, WMS or ERP ?
A: There is a solution by Intermediate table of SQL interfacing between AGV central system and MES, WMS or ERP.
Q6: Where is your loading port?
A: Shenzhen Port, or Hongkong Port, China.
Q7: What are your payments terms?
A: T/T, PayPal, Western Union or by Alibaba Trade Assurance
Q8: How about the warranty?
A: 1 Year.
Q6: Where is your loading port?
A: Shenzhen Port, or Hongkong Port, China.
Q7: What are your payments terms?
A: T/T, PayPal, Western Union or by Alibaba Trade Assurance
Q8: How about the warranty?
A: 1 Year.
Похожие товары
Электрические буксиры с несколькими моторами для продажи
Без пыли, пшеничная мука, порошок, маленький мешок, самосвал для 25 кг, 50 кг, 75 кг, пакеты
6 150,00 $ - 6 360,00 $
DFLIFT гидравлический подъемник 30 м дизельный мобильный телескопический подъемник платформа для продажи
Single deck mobile food grade automatic bag dump station and vibro flour sieving machine
5 380,00 $ - 5 550,00 $

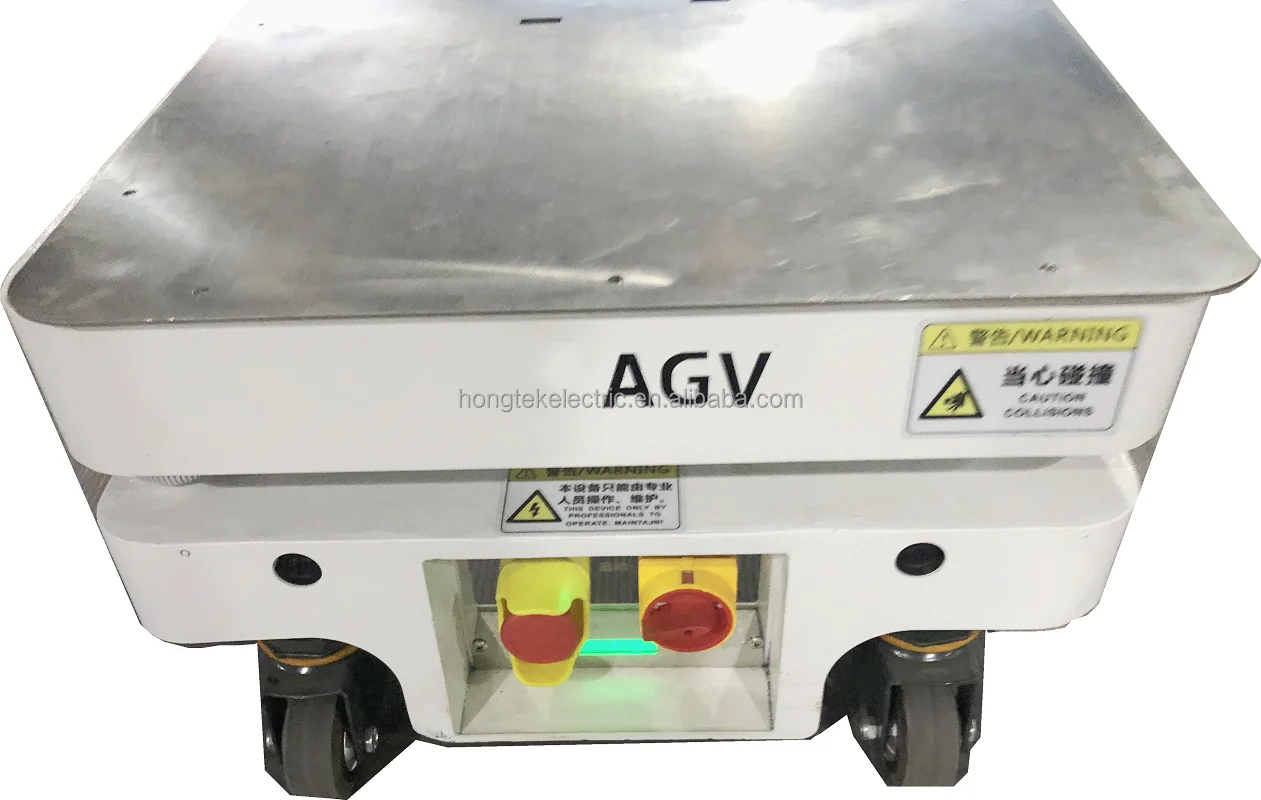

Прячущийся AGV-робот, лазерная навигация AGV, транспортная тележка для обработки материалов AGV, мобильный робот-Трансфер AGV без следов
7 880,00 $ - 8 080,00 $
2021 подъемный трос грузоподъемностью 80 кг с присоской, крюк-расширитель, поддон типа, складной рычаг, интеллектуальный подъемник

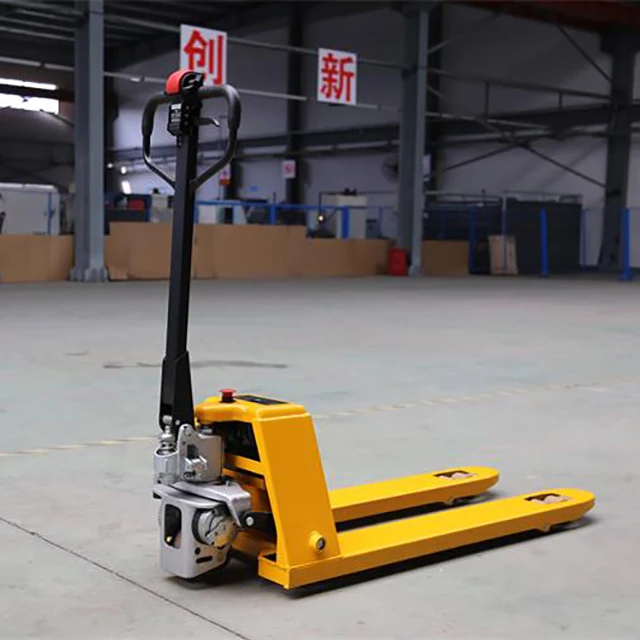

Полуэлектрическая тележка для поддонов, транс-поддон, электрическая тележка
