Производитель IFAN, водопроводный ПВХ шаровой клапан PN16 SCH40 SCH80 UPVC компактный шаровой клапан
5,47 ₽ - 16,41 ₽
Описание и отзывы
Характеристики
Products Description
Feature:
● Available in T port and L port with excellent diverter performance
● PVC material ball valve with features of lightweight and low cost. Offering a cost-effective solution for your project.
● True union quick connection with features of easy to install and easy to repair
● High torque up to 4000Nm
● Available in ON/OFF type, modulating type and intelligent type for your choice to meet your requirements
● PVC material ball valve with features of lightweight and low cost. Offering a cost-effective solution for your project.
● True union quick connection with features of easy to install and easy to repair
● High torque up to 4000Nm
● Available in ON/OFF type, modulating type and intelligent type for your choice to meet your requirements

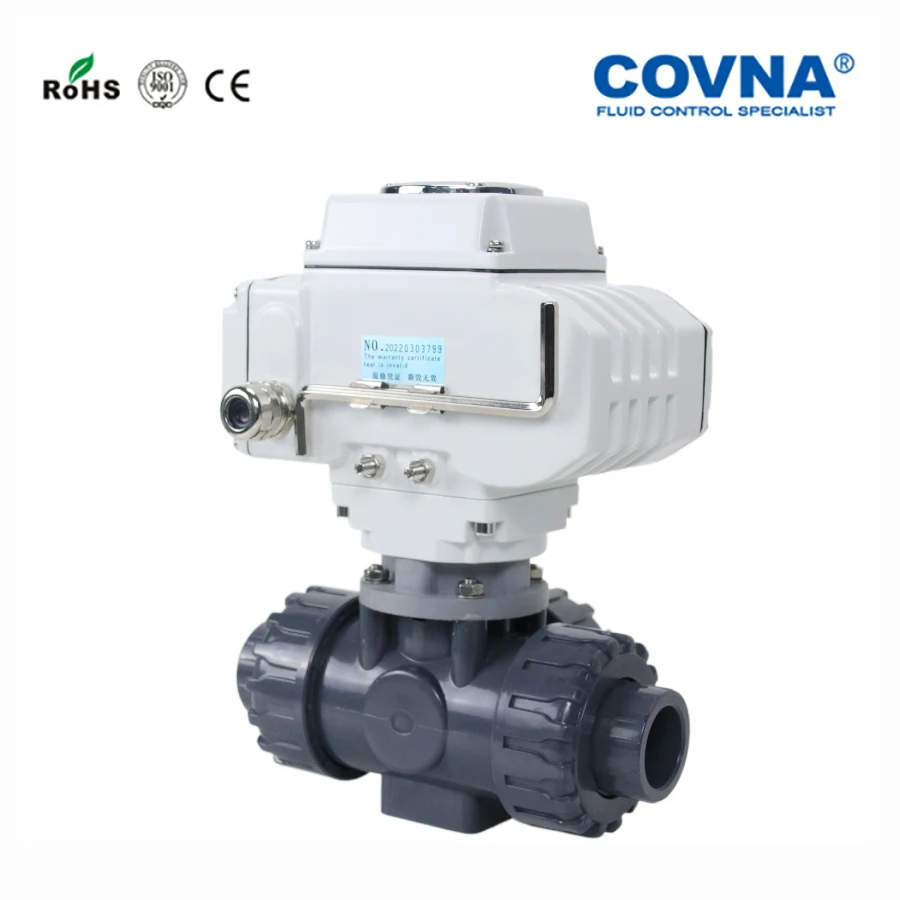

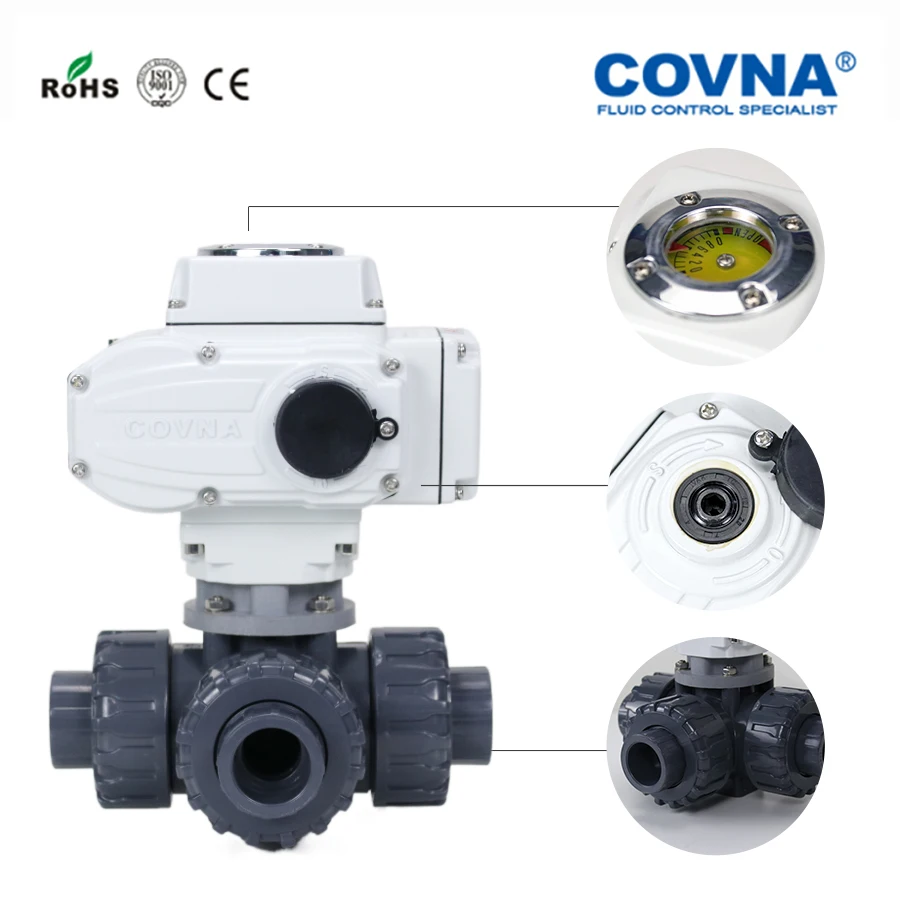

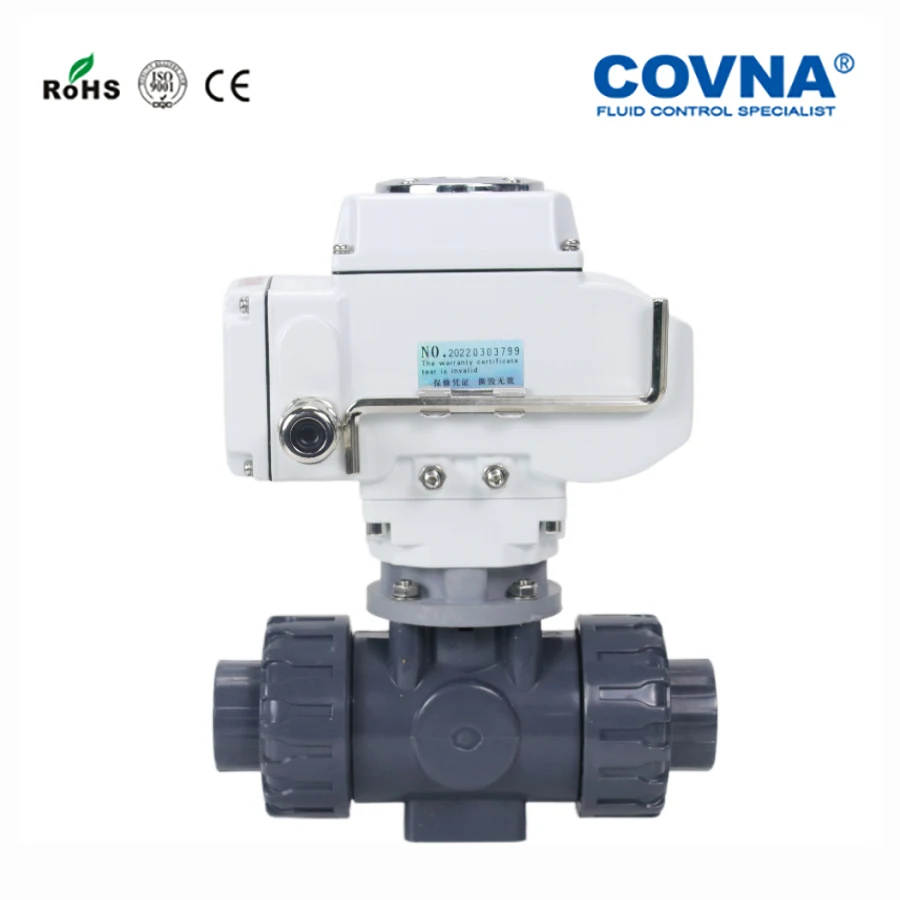

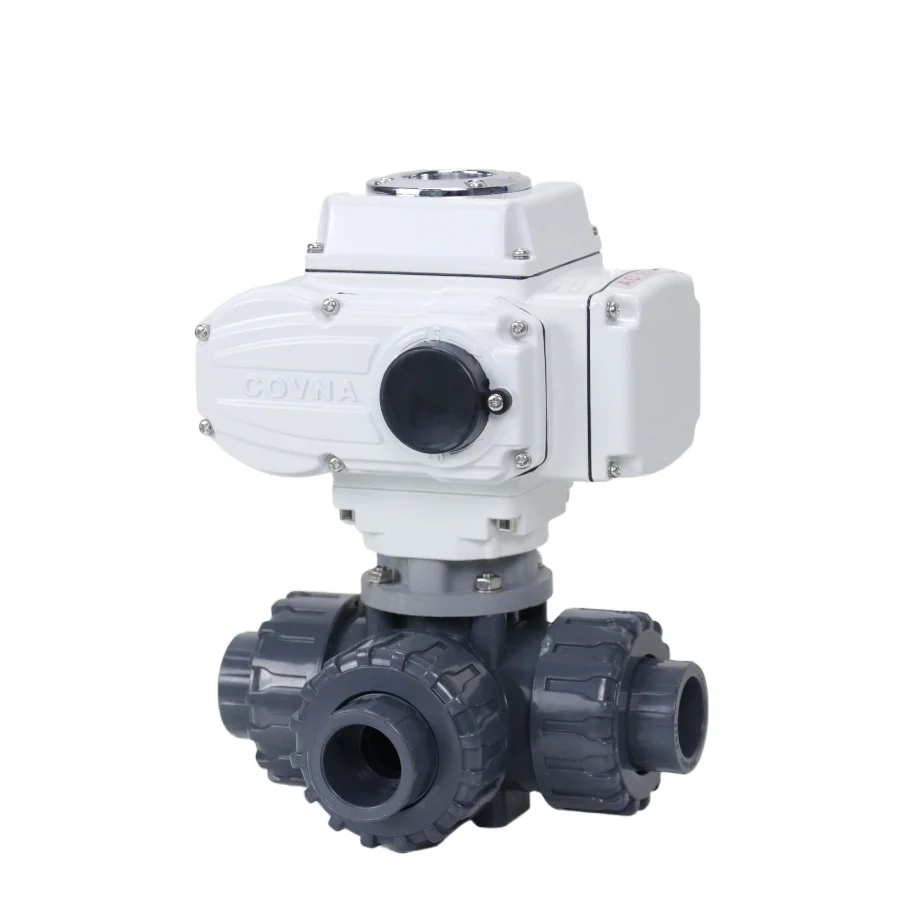

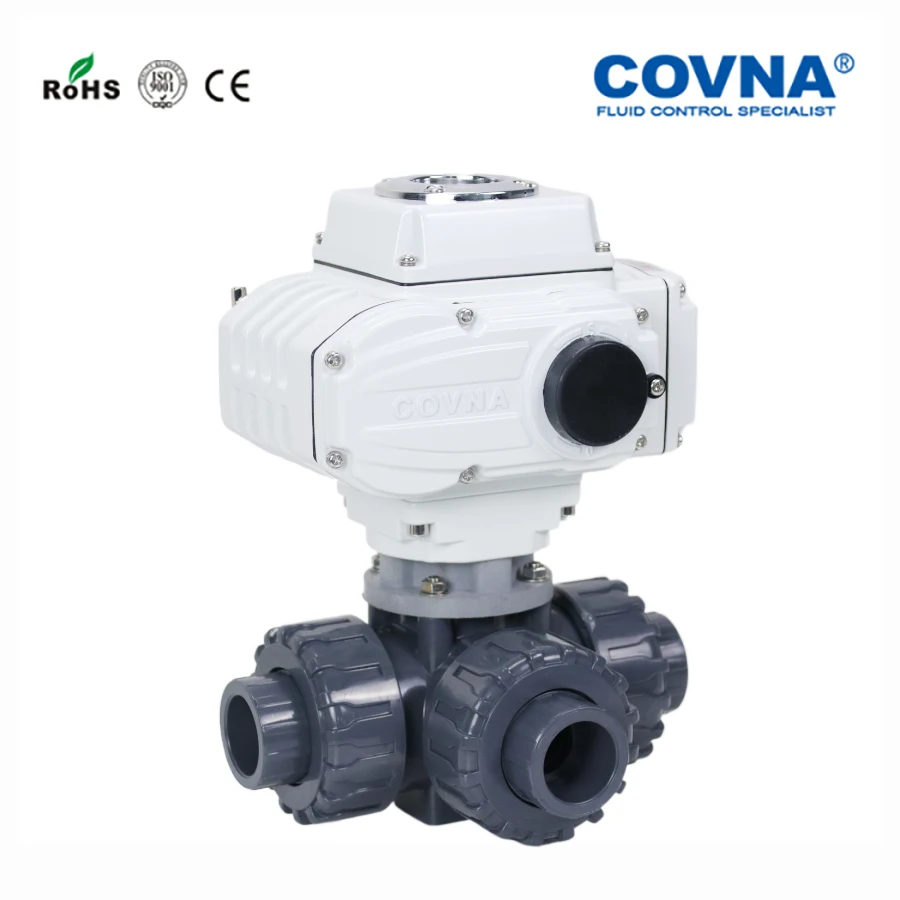

Item | COVNA 3 way T Port PVC Electric Actuator Ball Valve Plastic Electric Ball Valve | ||||||
Size Range | 1/2"~2", DN15~DN50 | ||||||
Operating Pressure | 0~1.0MPa | ||||||
Control Mode | Control Mode | ||||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||||
Body Material | Plastic, PVC, UPVC | ||||||
Core Material | Plastic, PVC, UPVC | ||||||
Sealing Material | NBR: -5℃~80℃, EPDM: -5℃~120℃, PTFE: -30°C~180°C | ||||||
Structure | 3 Way L Port, T Port are Available | ||||||
Threaded Connection | Double Union, Threaded | ||||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid | ||||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||||
Dimension:
Electric Actuator
On/Off Type | Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA | ||||||
Modulating Type | Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V | ||||||
Field Operation | The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus | ||||||
Voltage Optional | AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized | ||||||
Protection Class | IP65; Explosion Proof Construction Are Available: EX d II BT4 | ||||||
Features Of COVNA Quarter-Turn Electric Actuator:
●90 degree rotation
●Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier• AC/DC power supply, signal control and manual override
●High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
●Offering online technical support to help you install the actuator and valve
● 1 Year warranty
●Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier• AC/DC power supply, signal control and manual override
●High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
●Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Technical Parameter of Valve Body
Port size range | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″ | Orifice(mm) | 15, 20, 25, 32, 40, 50, 65, 80, 100 |
End Connection | True Union, Double Union Thread | Structure | T Port / L Port |
Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz | Voltage Tolerance | ±10% |
Suitable Media | Corrosive media, Water, Air, etc | Temperature Of Media | -5~80℃ (23℉~176℉) |
Working Pressure | 1.0 / 1.6 MPa (10 / 16 bar) | Body Material | PVC, UPVC |
Buyer Feedback
Company Profile
Factory Strength:
Exhibition&Finished Project
Packaging & Delivery
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
The detailed timing would be as the following:
·COVNA-05(50Nm)-20 seconds
·COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
·COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
·COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator?
IP65, IP68, Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override.
You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
Похожие товары
Электрический керамический шлаковый запорный клапан, Электрический Керамический запорный клапан, запорный клапан для сухой золы
218,79 ₽
Фабрика DONJOY, бестселлер, санитарная пищевая нержавеющая сталь, трехкомпонентный шаровой клапан для слива контейнера
1 167,23 ₽ - 1 342,26 ₽
304 большой железный шаровой клапан из нержавеющей стали, 200 литр, оцинкованная смола, гидравлическая смазка, химический разрядный переключатель
Высокий шаровой клапан давления конкурентный гидравлический шаровой клапан
492,28 ₽ - 525,09 ₽
FSZV прочный керамический поворотный уплотнительный клапан, высокоточный Регулируемый поворотный уплотнительный Керамический клапан
Оптовая продажа, 304/316 шаровой клапан с внутренней резьбой, 2 шт., dn 20 pn 40, нержавеющая сталь с замком для продажи
446,33 ₽ - 501,03 ₽

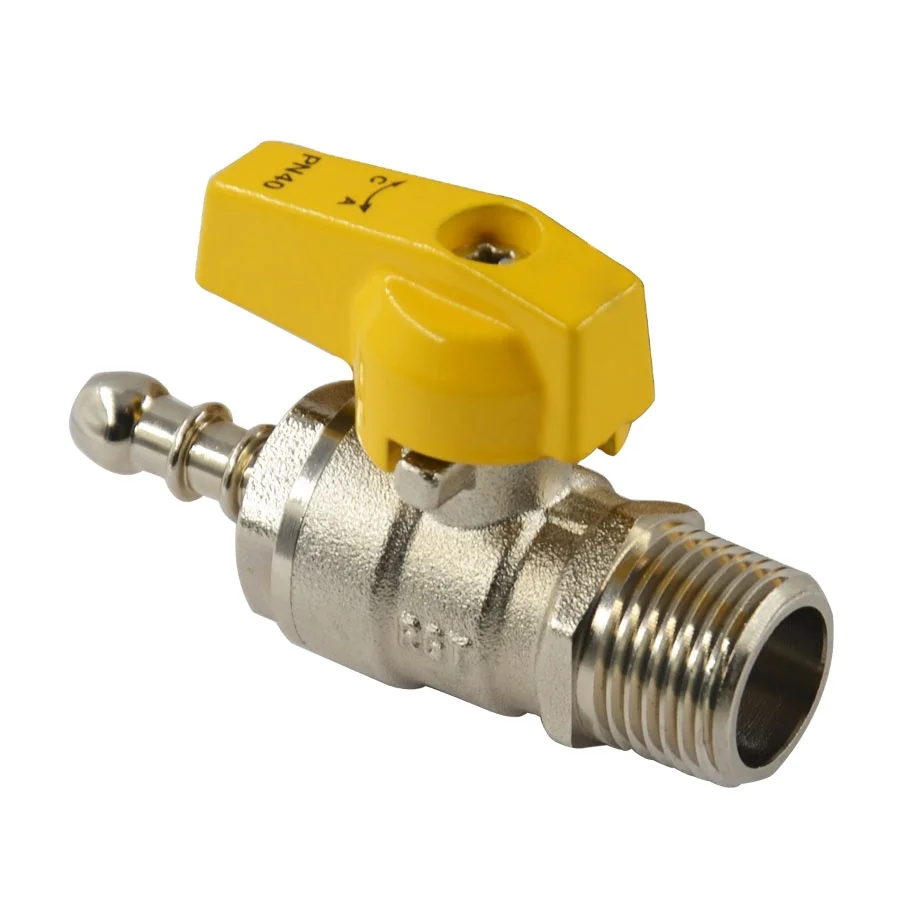

Хорошую репутацию 1/2 дюймов до 2 дюймов никелирование мужчин латунь газовый шаровой кран pn40
