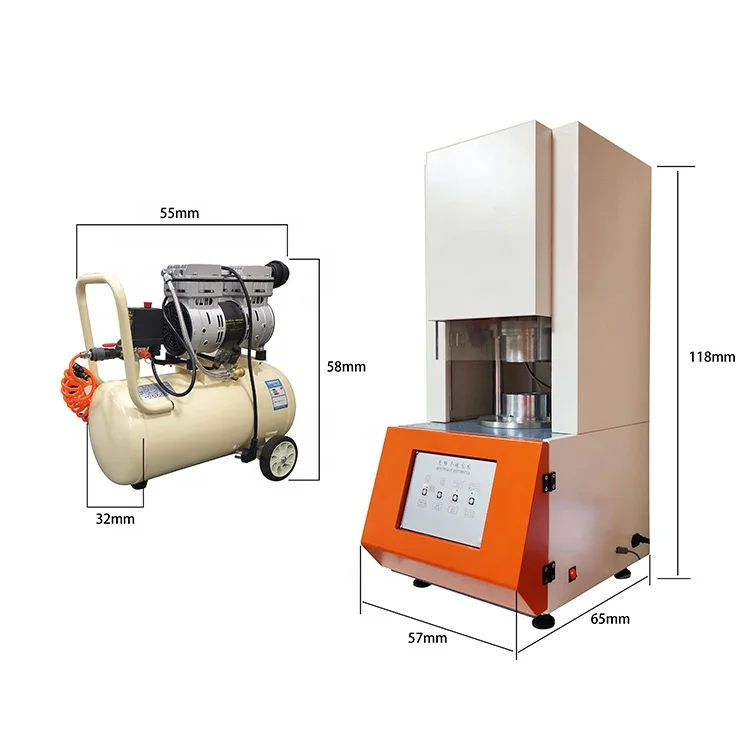

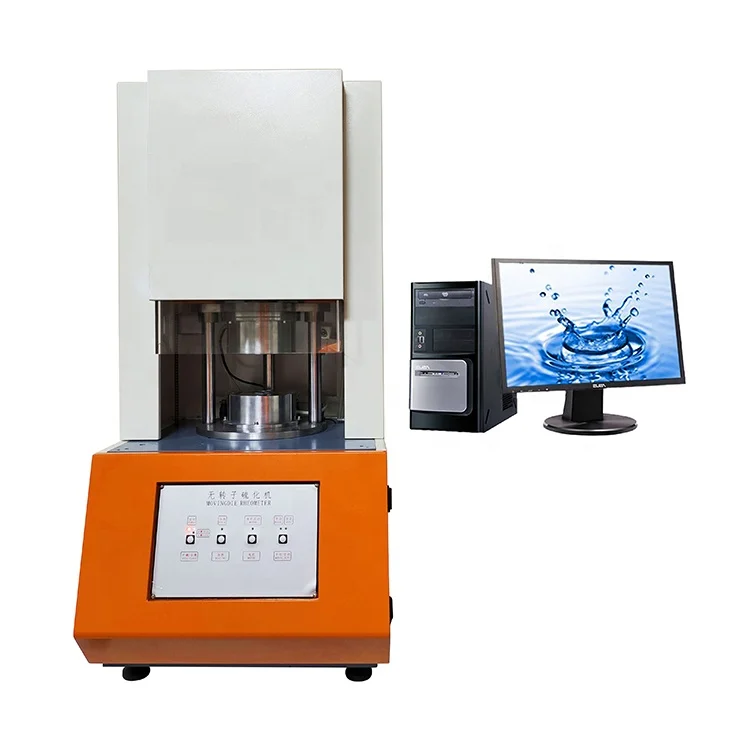

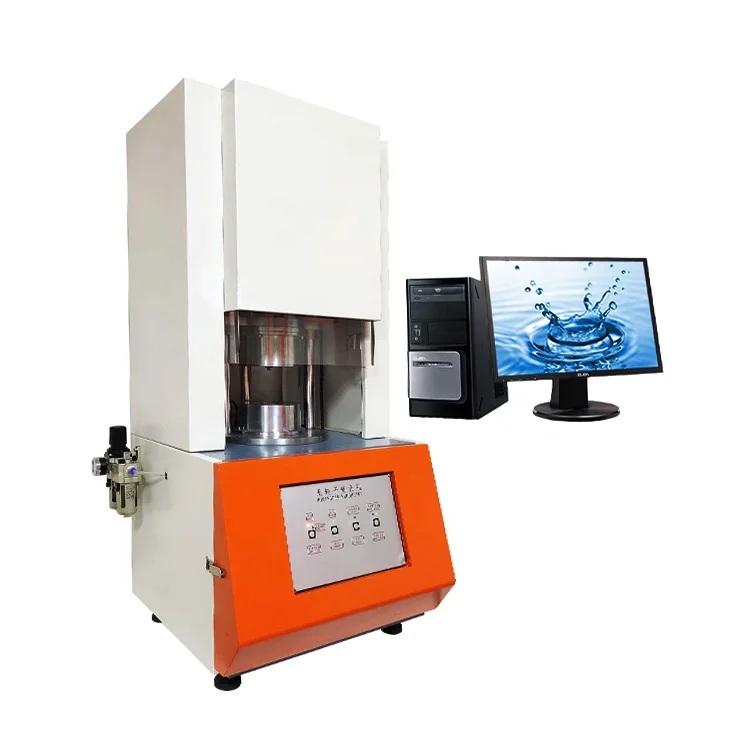

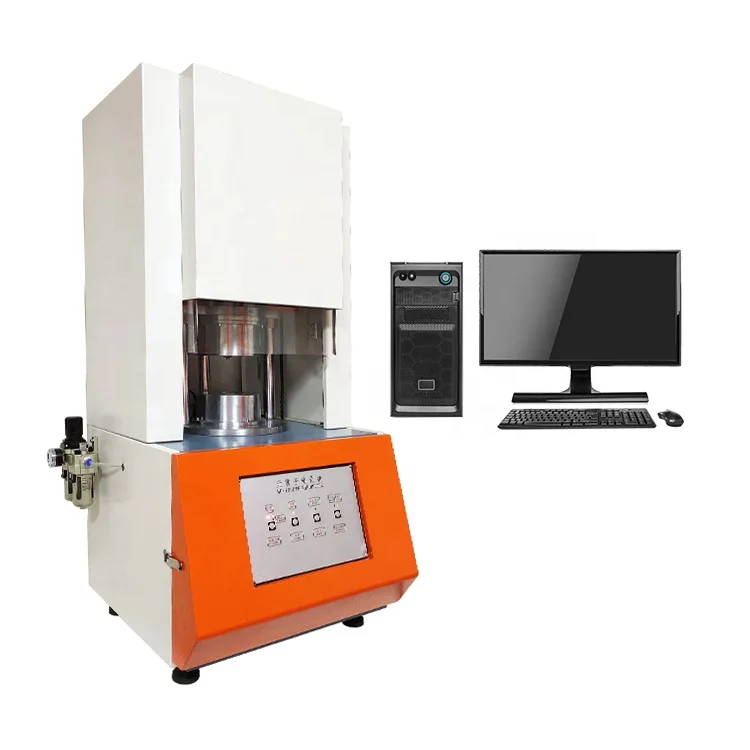

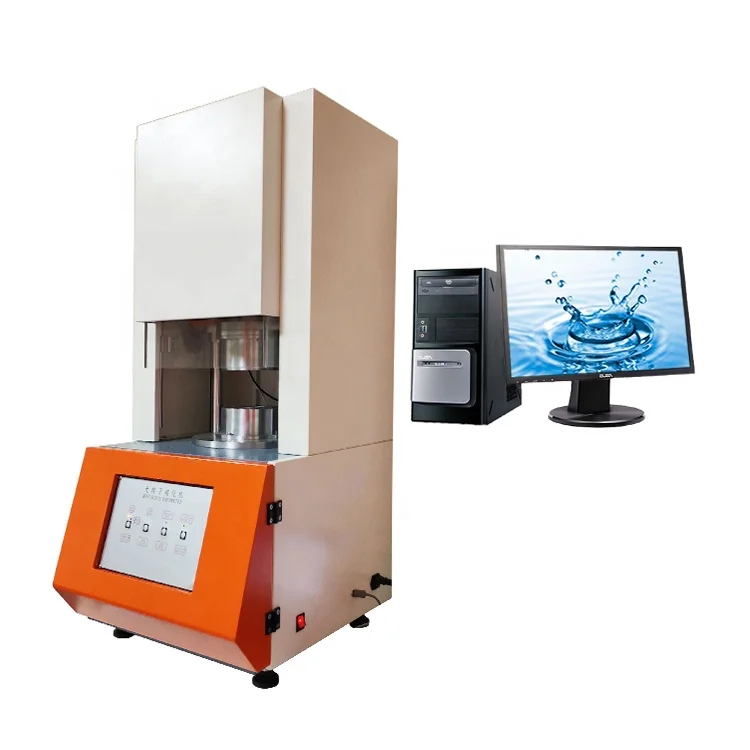

Лабораторный резиновый тестер высокого качества Реометр без ротора подвижный

Summary :

Moving Die Rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.. Moving Die Rheometer For Rubber Compound Testing With Adjustable Oscillation Amplitude applied to rubber, tires, reclaimed rubber factory.

Test Standards:

ISO 6502 / GB/T16584: Rubber—Measurement of Vulcanization Characteristics with Rotorless Cure Meters

ASTM D5289-95 : Standard Test Method for Rubber Property—Vulcanization Using Rotorless Cure Meters

DIN 53529 : Testing of rubber and elastomers; measurement of vulcanization characteristics (curometry)

And ETC...

Test theory:

Put the rubber sample into the almost completely closed mold cavity and keep it at the test temperature. The mold cavity has upper and lower parts, of which the lower part moves back and forth in a small linear manner (swing and oscillation). The oscillation causes the sample to produce shear strain. Measure the reaction torque (force) of the sample to the mold cavity. The magnitude of this torque (force) depends on the shear modulus of the rubber.

After the vulcanization test, the shear modulus of the sample increases, and the computer displays and records the torque (force) in real time. When the torque (force) rises to the stable value or maximum value or even returns to the state, a relationship curve between torque (force) and time is obtained, that is, the shape of the vulcanization curve is related to the test temperature and the characteristics of the compound.

Main Features:

1. Optimum Test Data: The comparison test can be done on the same interface for any secondary vulcanization test. The multiple vulcanization curves drawn can be compared to find out the best experimental data

2. Mature Technology: The instrument development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor).

3. Scientific Design: This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate .

4. High Accuracy:  Using imported high-precision sensors

Technical Specifications:

We have professional packing team and shipping forwarder to pack and deliver your products!

Packing:

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Shipping:

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

During the whole business process, we offer Consultative Selling service.

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.

1.Are your company a trading one or a factory ?

Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience.

OEM&ODM both support.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specifications.

3.What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

4.Do you accept customize service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.
