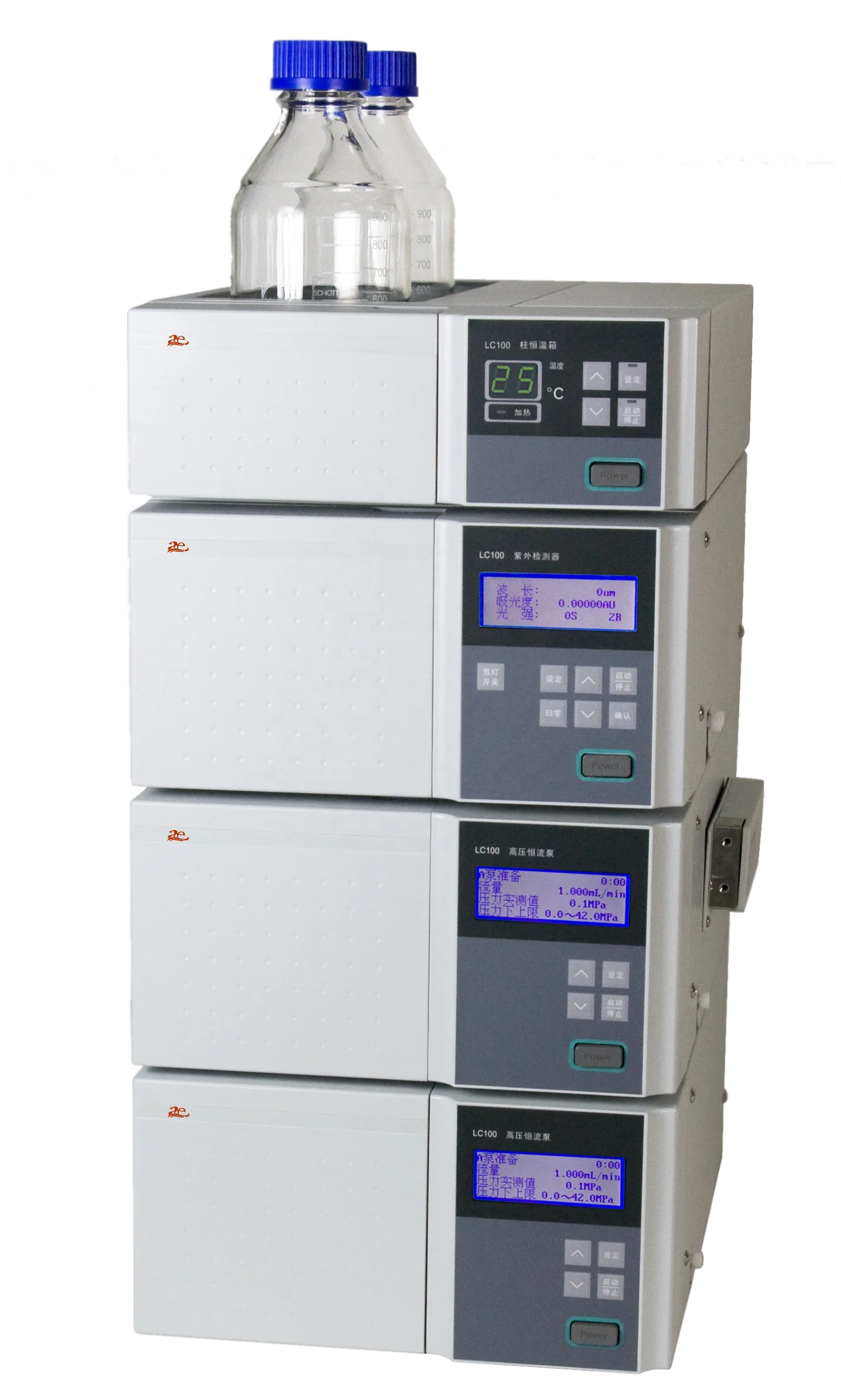

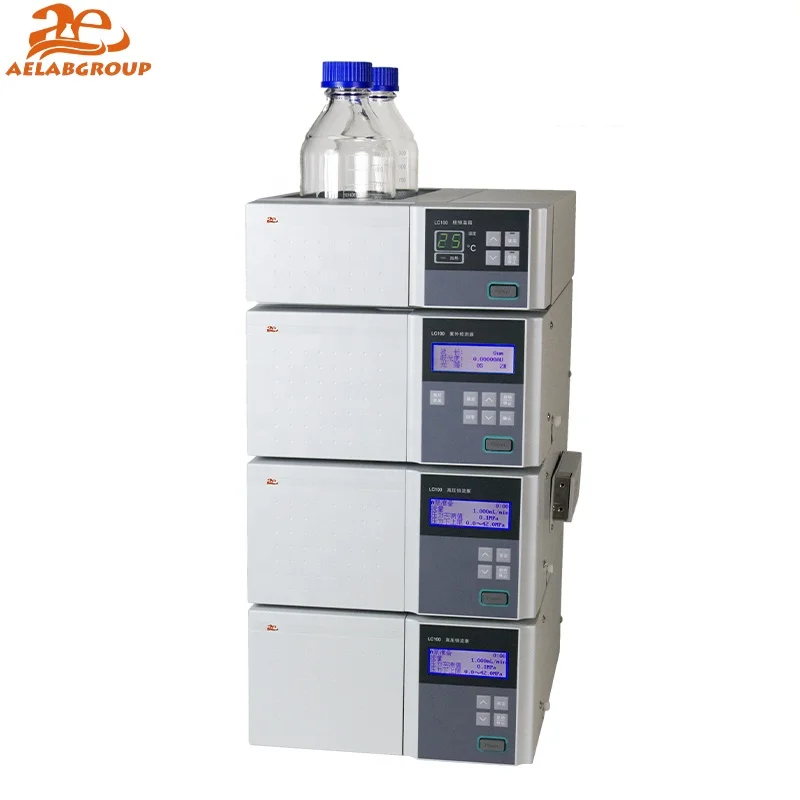

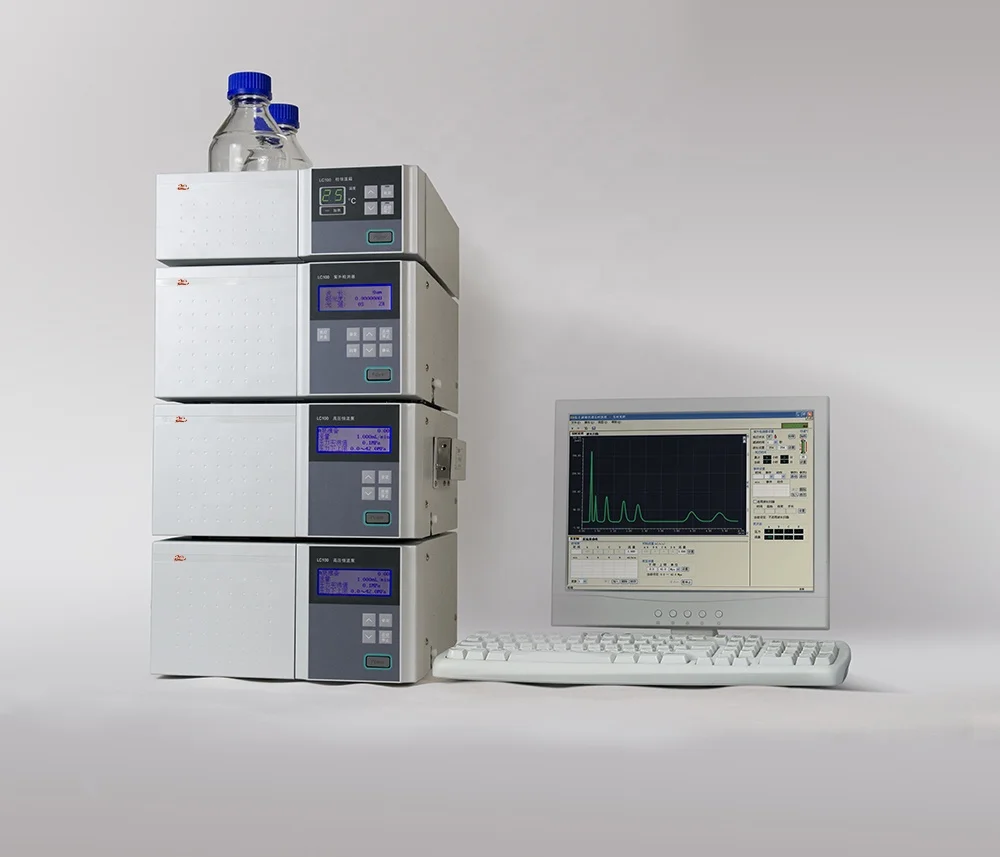

Aelab препаровочных Высокоэффективная Жидкостная хроматография Хроматография системы
- Категория: >>>
- Поставщик: AELAB GUANGZHOU CO. LTD
Сохранить в закладки 1600426886973:
Описание и отзывы
Характеристики
Product Description
Specifications of Infusion Unit
Analytical system | ||||
Model | P100 | |||
Liquid Infusion System | Dual-piston reciprocating parallel pump, equipped with a binary high-pressure mixer | |||
Flow Rate Range | 0.001-10 mL/min | |||
Max Output Pressure | 42 MPa | |||
Flow Accuracy | <±1% | |||
Flow Precision | RSD<0.07% | |||
Qualitative Repeatability | RSD6 w 0.1% (naphthalene/methanol standards) | |||
Quantitative Repeatability | RSD6 < 0.3% (naphthalene/methanol standards) | |||
Pressure Fluctuation | 0.1Mpa | |||
Power Supply | 220V/110V | |||
Semi-preparation system | ||||
Model | P100SP (40 mljsemi-preparation system | |||
Flow Rate Range | 0.01 -40 mL/min | |||
Prsssure Range | 0-25 MPa | |||
Flow Accuracy | ±2% | |||
Flow Rate Accuracy | RSD<0.1% | |||
High pressure semi-preparation system and High pressure preparation system | ||||
Model | PlOOHSP(SOmL) high pressure semi-preparation System | Pl00HP(120mL) high pressure preparation system | ||
Flow Rate Range | 0.01-50 mL/min | 0.01-120 mL/min | ||
Prsssure Range | 0-42 MPa | |||
Flow Accuracy | ±2% | |||
Flow Rate Accuracy | RSD | |||
Detector Specifications
Model | UV-100UV detector | UV-VIS100 detector | UV-100S preparative UV detector | |||
Flow Cell Volume | 8ul | 8ul | 6ul | |||
Light Source | D2 lamp | D2 lamp+W lamp | D2 lamp | |||
Wavelength Range | 190-680 nm | 190-900 nm | 190-680 nm | |||
Spectrum Bandwidth | 8nm | |||||
Wavelength Accuracy | 士1nm | |||||
Wavelength Precision | Below 0.1 | |||||
Noise | <0.25 x 10 5AU (static)/士 1x1 OSAU (dynamic, under given conditions) | |||||
Drift | < 0.4x10 4AU/h (static) / < 2 x 10 4AU/h (dynamic, under given conditions) | |||||
Minimum Detectable Concentration | 3xl09g/mL(naphthalene/methanol solution) | |||||
Rl Detector | ||||||
Model | RI 100 | |||||
Effective range for refractive | 1.00-1.75 RIU | |||||
Temperature control optical bench | 7°C above ambient temperature 35 °C up to 55 °C in 1 °C steps | |||||
Noise (Analog signal) | 7nRIU(±7uV) | |||||
Noise (Digital output) | 3nRIU(±3uV) | |||||
Drift | < 1uRlU/h (< 1 mV/h) | |||||
Signal range (recorder) | Selectable: 10 mV, 100 mV, 1000 mV | |||||
Flower cell volume | 4 ul/ Micro , 9 uL/Analytically , 13 uL / Semi-preparative | |||||
Max Pressure | 6 bar (0.6 MPa) | |||||
Max Flow rate | 0.1 - 3.0 mL/min | |||||
DAD100 Detector | ||||||
Wavelength Range | 200-900nm (200-600*) Above 600 nm just for W lamp | |||||
Arrays | 512 | |||||
Spectrum Bandwidth lOnm | 10nm | |||||
Light Source | D2 lamp + W lamp | |||||
Noise | ±5x105AU | |||||
Drift | 5x10-4AU | |||||
Sample Rate | max 100Hz | |||||
Interface | LAN USB R232 | |||||
ELSD Detector | ||||||
Model | ELSD 100 | |||||
Light Source | Laser diode with correction optical mirror, 670 nm, and maximum output being less than 5mW, in compliance with FCC safety standards | |||||
Detection Element | Silicon photoelectric diode | |||||
Temperature Range | Room temperature to 110°C | |||||
Nebulizer Gas | Nitrogen is optimal, maximum 3.0L/min | |||||
Pressure Range | 15-90 psi | |||||
Mobile Phase Flow Rate | 0-5 mL/min | |||||
Analog Output | 0-1 V or 0-10 mV | |||||
Parameter | Use keyboard to enter operation parameters | |||||
Display | LCD | |||||
FLD100 Detector | ||||||
Flow Cell Volume | 16uL | |||||
Excitation Wavelength | 200-890 nm | |||||
Emission Wavelength | 210-900 nm | |||||
Wavelength Precision | 3nm | |||||
S/N | ＞720 | |||||
Application
Recommend Products
Packing & Shipping
Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: All of our products have 1-2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
