Многофункциональная автоматическая машина для подачи проволоки аргоновая дуговая сварочная проволочная фидер
77 145,88 ₽ - 88 166,72 ₽
Оборудование для сварки газовым давлением Трубная орбитальная сварка с сварщиком lincon
- Категория: >>>
- Поставщик: Luoyang Deping Technology Co. Ltd.
Сохранить в закладки 1600428267972:
Описание и отзывы
Характеристики
Company profile
Established in Year 2005, as an ISO9001/IS014000/OHSAS18001 accredited company and high-tech enterprise, Luoyang Deping Technology Co., Ltd (DP pipe machine) is specialized in manufacturing pipeline construction equipment and providing automatic welding solution onshore & offshore.
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
Membership:
IPLOCA member (International Pipe Line & Offshore Contractors Association)
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
Membership:
IPLOCA member (International Pipe Line & Offshore Contractors Association)
Product Overview

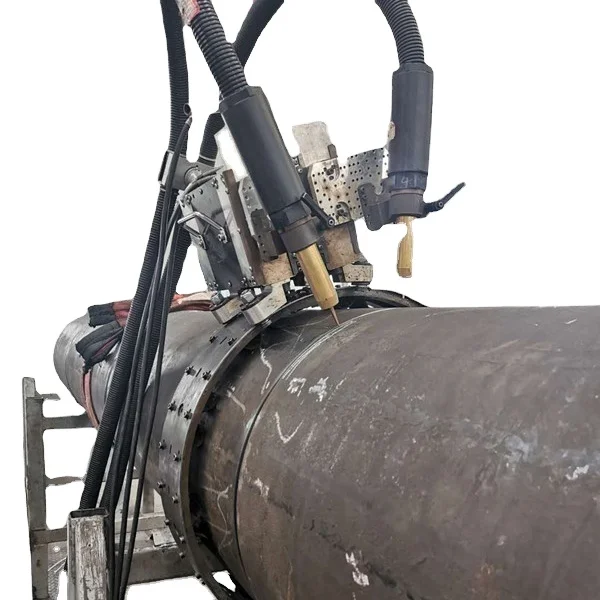

Dual torch auto steel pipe orbital welding machine ZDP800D applies to welding of pipe with a steel grade above X60 and a minimum pipe diameter of 6” or above, and has high efficiency and excellent environmental adaptability. The whole system is equipped with a good water cooling system and heating system to ensure adaptation to extremely cold and hot areas.
The ZDP800S uses the welding arc waveform tracking to maintain the welding torch and the molten pool in an optimal position by computerized monitoring and control, and uses the 360° absolute inclination sensor to achieve automatic selection of the welding process during welding, ensure the maximum welding efficiency and quality, and achieve automation of welding.

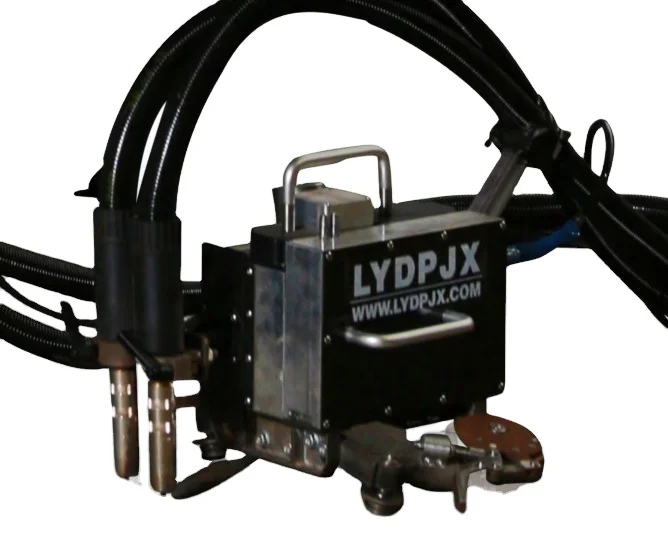

The lightweight welding bug body is easy to install and greatly reduces the physical exertion of the staff. The entire control system is simple to use and has self-diagnosis function to ensure the reliability of use. It is equipped with multi-permission restrictions to ensure the uniformity and reliability of welding parameters.
ZDP800D series pipe outer welding machine system can realize a variety of process welding, can achieve single torch welding and double torch welding, can achieve flat characteristic GMAW and pulse GMAW welding. The editing of working parameters can be edited through the PC and control system man-machine interface, which is easy to operate and can be transplanted between different models. The control system has a logging function that records welding real-time data
Advantages:
1.Both vertical tracking and cross tracking arc welding, ensure that the machine possess high precise of welding.
2.Totally automatic arc tracking, no need of labour consumption, greatly increased the working efficiency.
1.Both vertical tracking and cross tracking arc welding, ensure that the machine possess high precise of welding.
2.Totally automatic arc tracking, no need of labour consumption, greatly increased the working efficiency.
3.Two torch is controlled separately or simultaneously, different diameter steel pipe request different control ways
Configuration of ZDP800 welding bug
1 pc of controller
1 pc gas mixture ratio device
1 pc of welding bug
2 pcs of single wire welding torch or 1 pc of double wire welding torch
2 pcs of Fronius welding power source
2 pcs of Fronius wire feeder
1pc of Miller high-capacity water tank
Configuration of ZDP800 welding bug
1 pc of controller
1 pc gas mixture ratio device
1 pc of welding bug
2 pcs of single wire welding torch or 1 pc of double wire welding torch
2 pcs of Fronius welding power source
2 pcs of Fronius wire feeder
1pc of Miller high-capacity water tank
PRODUCT SPECIFICATIONS
MODEL | ZDP800S | ZDP800D |
PRODUCT SIZE | 512X350X315 | 520X254X315 |
WEIGHT | 13KG | 14.5KG |
LONGITUDINAL TRAVEL | 50MM | 50MM |
LATERAL TRAVEL | 30MM | 30MM |
ANGLE ADJUSTMENT RANGE | ±0-180 | ±0-180 |
SWING FREQUENCY(WITH WAVEFORM RATIO OF 0.99, SWING WIDTH OF 12MM) | 240OSC/MIN | 240OSC/MIN |
SWING WIDTH | 0-30MM | 0-30MM |
RATIO OF SWING WAVEFORM | 0-1 | 0-1 |
LEFT RIGHT RESIDENCE TIME | 2S | 2s |
WIRE FEED RATE | 1.3-19.8M/MIN | 1.3-19.8M/MIN |
WALKING SPEED | 0-2.5M/MIN | 0-2.5M/MIN |
ANGLE SENSOR | 360±0.1 | 360±0.1 |
WIRE FEED MOTOR | ENCODER CONTROL | ENCODER CONTROL |
WALKING MOTOR | ENCODER CONTROL | ENCODER CONTROL |
HORIZONTAL MOTOR | 1 STEPPING MOTOR | 2 STEPPING MOTOR |
VERTICAL MOTOR | 1 STEPPING MOTOR | 2 STEPPING MOTOR |
MIN PIPE DIA | 168MM | 168MM |
WELDING WAY | SINGLE/DOUBLE WIRE | SINGLE/DOUBLE TORCHES |
WORKING TEMPERATURE | -40-75℃ | -40-75℃ |
SALES AND SERVICE NETWORK
OUR PRODUCTS HAVE EXPORTED TO MORE THAN 50 COUNTRIES SUCH AS SAUDI ARABIA, RUSSIA, INDIA, SOUTH KOREA, MALAYSIA, TURKEY, THE UNITED STATES, etc;
Successful Project
Domestic Projects:
west-east natural gas transmission project line-1, line2, line3.
China Myanmar oil and gas pipelind,
Shan-jing line1,
Sichuan east gas transmission project,
Puguang gas project,
Weizhou oilfiles development project,
LW3-1(South China sea deepwater project),
LW3-1(South China sea deepwater project),
Oriental offshore pipeline project, . etc
Global Projects:Sino-Russia
Vishita project in India (offshore)
NFA WHP3 project in Qatar (offshore)
SSSGEP project in Nigeria (onshore)
Bekapai Project-Total Indonesia (offshore)
The fifth transmission pipeline project phase 2 (5TP2) in Thailand (onshore)
TANAP project in Turkey (onshore)
Vishita project in India (offshore)
NFA WHP3 project in Qatar (offshore)
SSSGEP project in Nigeria (onshore)
Bekapai Project-Total Indonesia (offshore)
The fifth transmission pipeline project phase 2 (5TP2) in Thailand (onshore)
TANAP project in Turkey (onshore)
ETC....
Exhibition
Certifications
Related products
Main Products:
Pneumatic internal line up clamp; Pipe facing machine; Automatic internal welding machine
Automatic orbital welding machine; Paywelder; Roller cradle
Pipe bending mandrel; External line up clamp
Pneumatic internal line up clamp; Pipe facing machine; Automatic internal welding machine
Automatic orbital welding machine; Paywelder; Roller cradle
Pipe bending mandrel; External line up clamp
