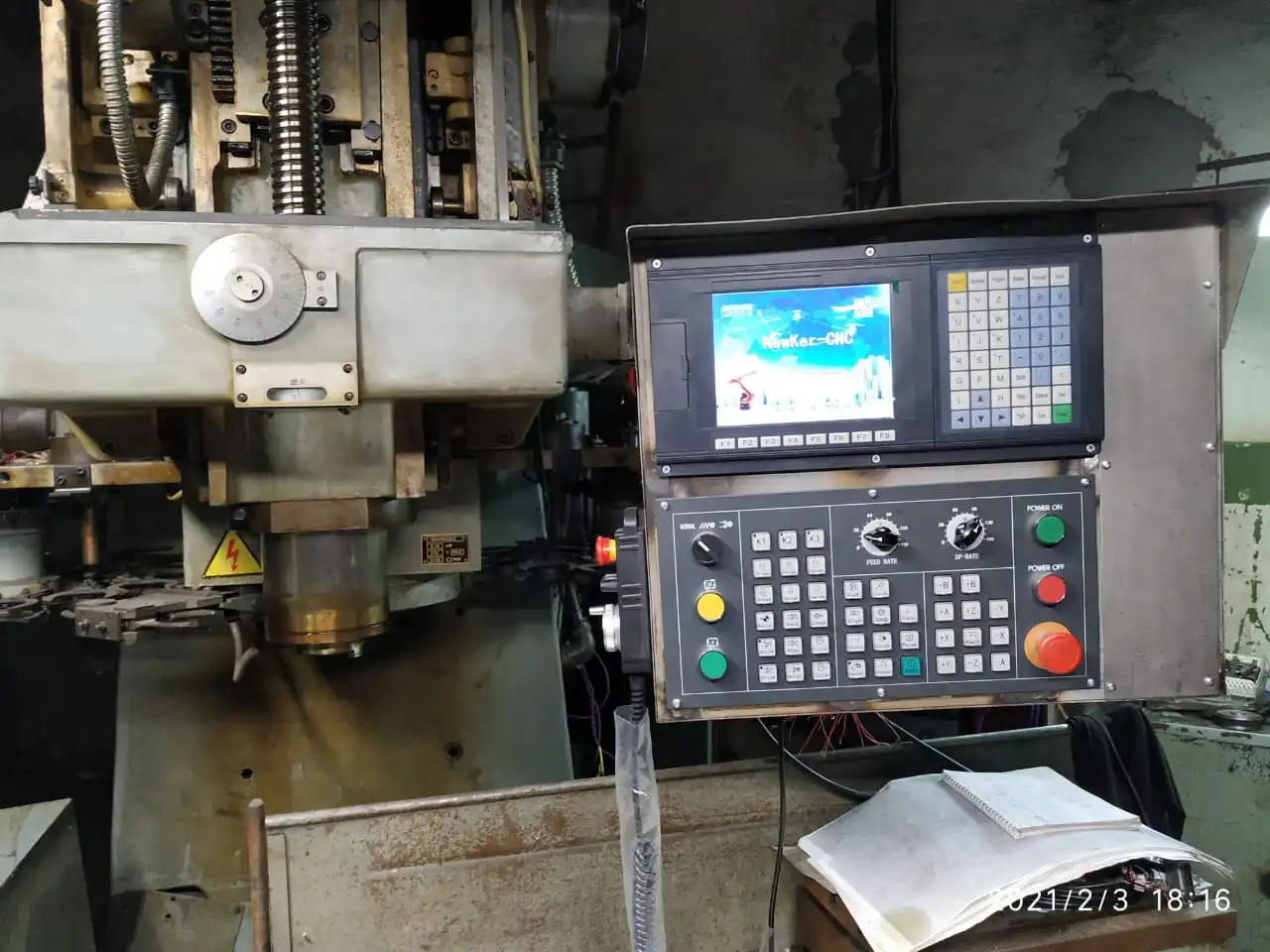

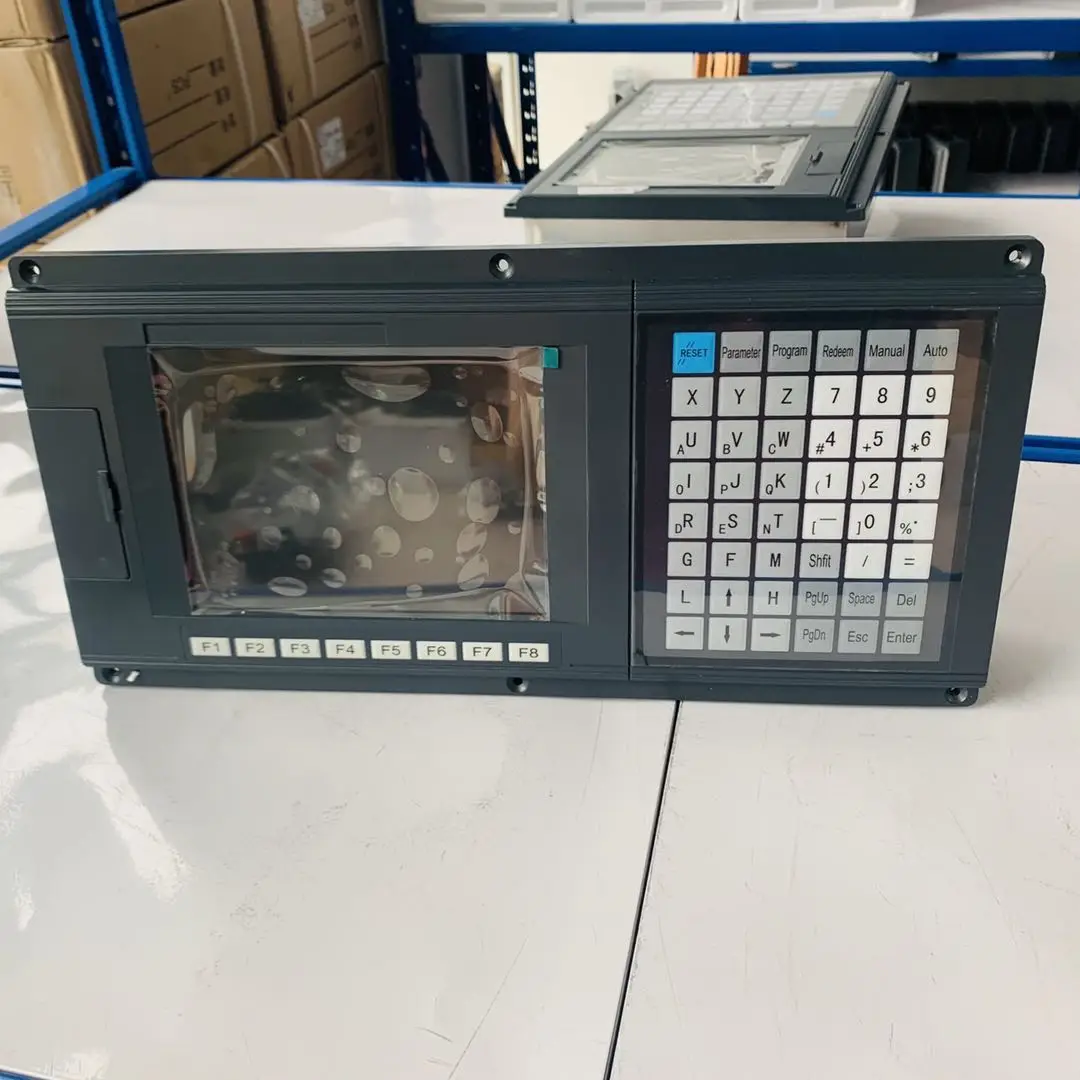

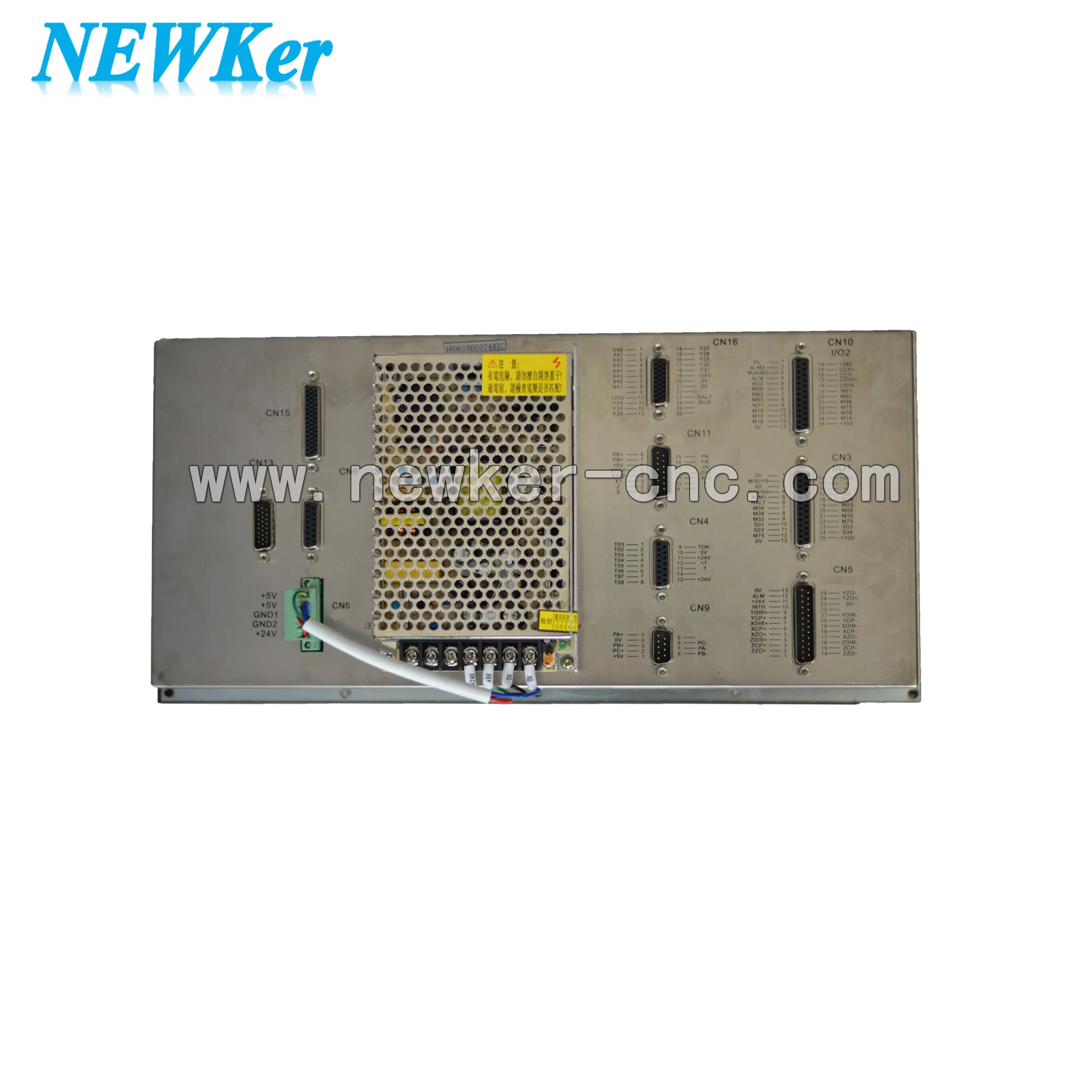

4 оси плазменной резки контроллер и 5 осевой обрабатывающий центр с ЧПУ серводвигателей c Типа cnc наборы подобный наполнитель ФИО фрезерный станок
- Категория: >>>
- Поставщик: Chengdu Newker CNC-Technology Co. Ltd.
Сохранить в закладки 1600428476098:
Описание и отзывы
Характеристики
Parameter details | ||||||
System Function | G code shows | |||||
number of control axis | 3~8(X,Y，Z,A,B,C,Xs,Ys) | Locate rapidly: | G00 | |||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | |||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | |||
Feed speed: | 0.001~30m/min | Thread cut: | G32 | |||
Continuous manual: | one axis or multiple axis at the same time | Cycle of cutting cyliner or cone: | G90 | |||
Line interpolation: | Straight line, arc, screw thread interpolation | Cycle of cutting end face: | G94 | |||
Cutter compensation: | vLength of the compansation、nose of tool compensation | cycle of cutting thread | G92 | |||
Cutter compensation input: | Try to cut measuring input mode | Fixed cycle of tapping | G93 | |||
Spindle function: | gear、Double analog control、Rigid tapping | Cycle of rough cut in excircle | G71 | |||
Handwheel function: | panel、handheld | Cycle of rough cut at end face: | G72 | |||
handwheel processing: | The handwheel processing function | Cycle of closed cut | G73 | |||
Screen protection: | The screen protection function | Cycle of drill deep hole at end face | G74 | |||
Communication function: | RS232、USB interface | Cycle of cutting groove with external diameter | G75 | |||
Compensation function: | Tool compansation、Space compensation、Screw pitch compensation、Radius compensation | Cycle of cutting compound thread | G76 | |||
Edit program: | Metric/Imperial、Straight thread、taper thread and so on | Cycle of program | G22,G800 | |||
Preread function: | Preread 10,000 short straight lines | Local coordinate system: | G52 | |||
limit position function | hard limit, soft limit | Detect the instruction of skip | G31,G311 | |||
Password protection: | Multilevel password protection | Pole coordinate | G15,G16 | |||
Input/output: | I/O 56*24 | Metrical/Imperial programme: | G20,G21 | |||
PLC programme: | All open PLC design | Set coordinate, offset | G184,G185 | |||
Acceleration and deceleration control: | Straight line、Index | Workpiece coordinate system: | G54~G59 | |||
Number of encoder: | any setting | Tool radius C | G40,G41,G42 | |||
User macro program: | Have | Accurate locating/continuous path process: | G60/G64 | |||
Electrical gear function: | Have | Constant linear cutting: | G96/G97 | |||
Subpanel | A type with handwheel; B type with band switch; C type with both A and B, E type | Feeding mode: | G98,G99 | |||
Application: | VMC, grinding, special machine | Backing to start point of program: | G26 | |||
Tool rest function: | Row tool rest、Electric too post 99 knife | Backing to the fixed point: | G25,G61,G60 | |||
Backing to the datum point: | G28 | |||||
Macro Program: | G65,G66,G67 | |||||
Auxiliary function: | S、M、T | |||||
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Why Choose Us
Company Profile
Product packaging
Other Products
FAQ
Contact Us
4 axis plasma cutting controller and 5-axis machining center cnc servo kits similar with gsk cnc 4 axis plasma cutting controller and 5-axis machining center cnc servo kits similar with gsk cnc 4 axis plasma cutting controller and 5-axis machining center cnc servo kits similar with gsk cnc 4 axis plasma cutting controller and 5-axis machining center cnc servo kits similar with gsk cnc 4 axis plasma cutting controller and 5-axis machining center cnc servo kits similar with gsk cnc
5-axis machining center 5-axis machining center 5-axis machining center 5-axis machining center 5-axis machining center 5-axis machining center
4 axis plasma cutting controller 4 axis plasma cutting controller 4 axis plasma cutting controller 4 axis plasma cutting controller 4 axis plasma cutting controller 4 axis plasma cutting controller
cnc servo kits cnc servo kits cnc servo kits cnc servo kits cnc servo kits cnc servo kits
gsk cnc gsk cnc gsk cnc gsk cnc gsk cnc gsk cnc gsk cnc
Похожие товары
Плюшевая игрушка-Дельфин
2,10 $ - 3,80 $
Порошок Буры бура пентагидрат индейка
930,00 $ - 1 000,00 $
25 тонн Китай тяжелый колесный подъемник 3 секции для
25 000,00 $ - 26 000,00 $

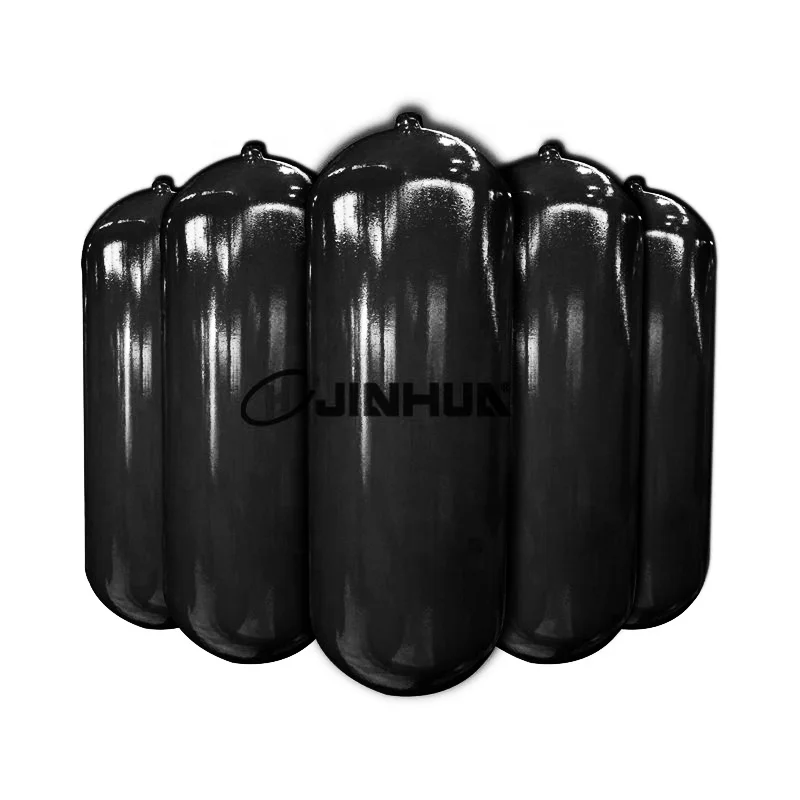

50l/65l/80l/90l/100l Iso Ece R Сертифицированный стальной цилиндр Cng для автомобилей Cng цилиндр
110,00 $ - 155,00 $

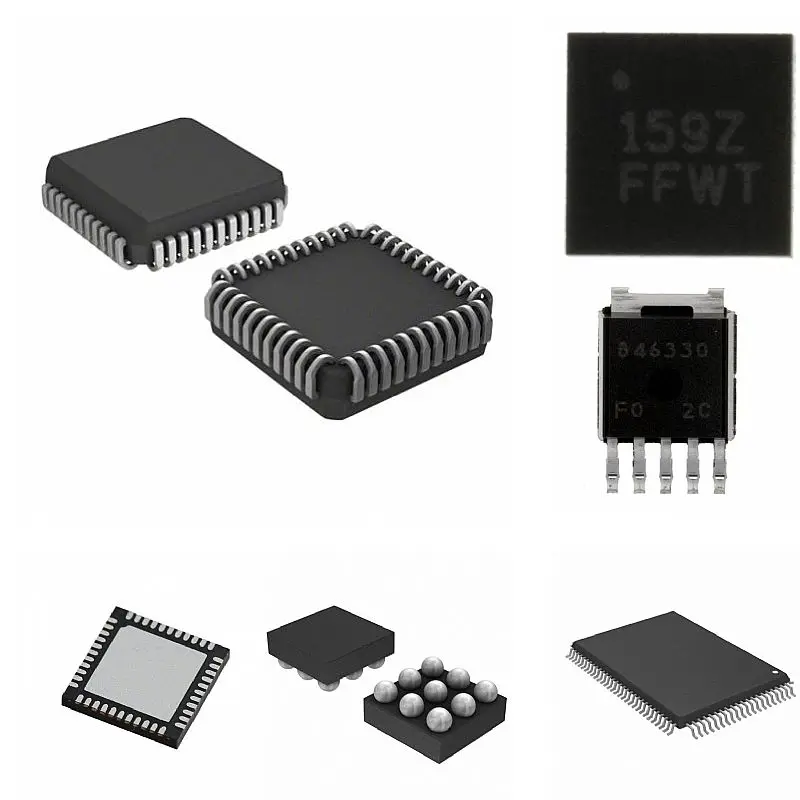

GRP1555C1H5R6BZ01E na ic chip Drivers Receivers Transceivers Frequency Synthesizers
1,90 $ - 3,90 $

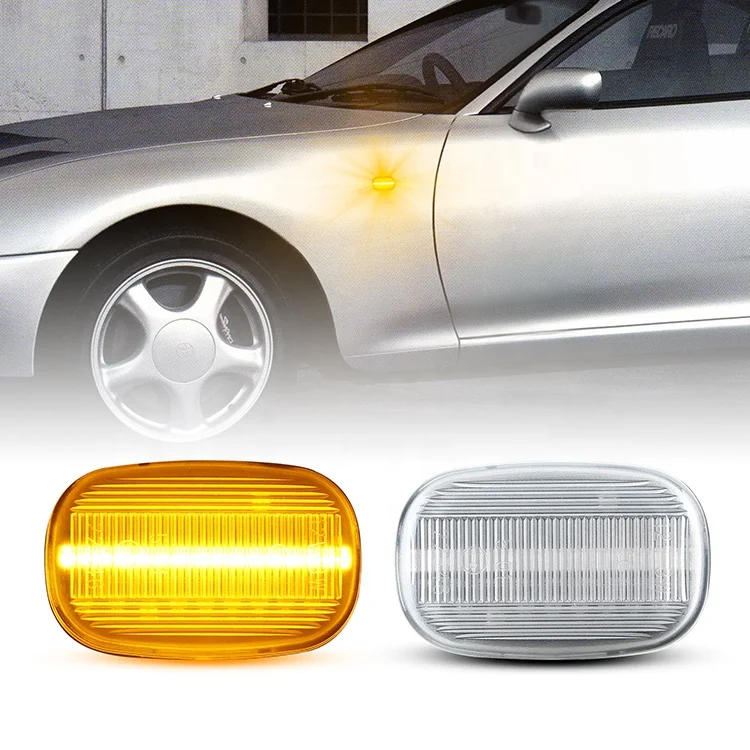

Световой сигнал поворота для Toyota Yaris Gaia Supra для Lexus RX 300 350 330 400 светодиодный боковой маркер прозрачные линзы
