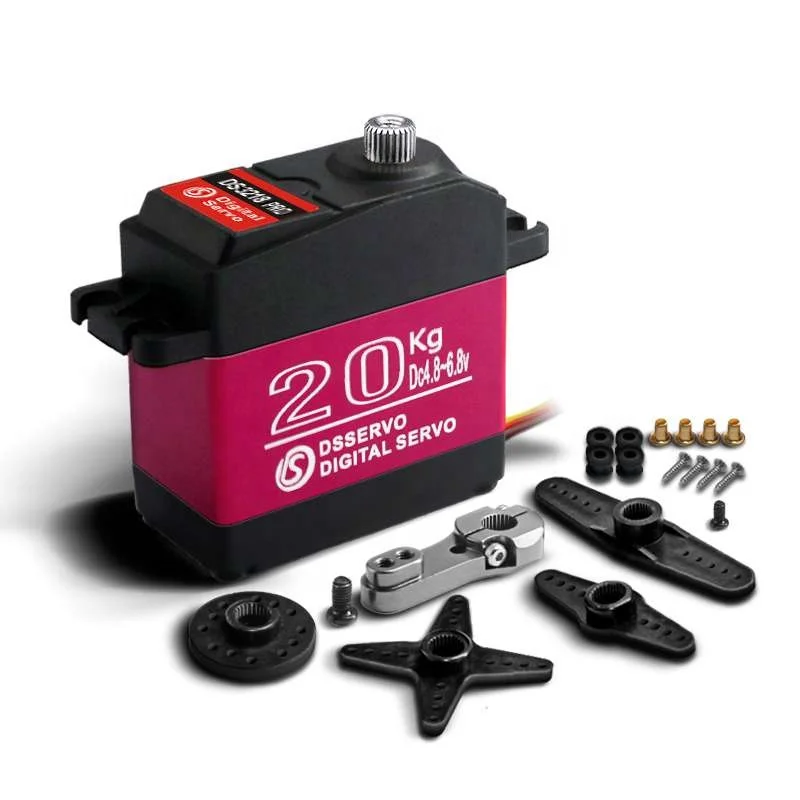

RCmall DS3218 PRO цифровой сервопривод 20 кг шестерни из нержавеющей стали IP66 водонепроницаемый RC для 1/8 1/10 весов автомобиля (270 /180 градусов)
10,13-10,50 $
DD 64 мм EDF 11 лезвий импеллер с 3500KV RC бесщеточный мотор баланс тестирование в течение 3 секунд изменение языка (/4S реактивный самолет
- Категория: >>>
- Поставщик: Shenzhen Diamond Dynamics Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600428536502:
Описание и отзывы
Характеристики

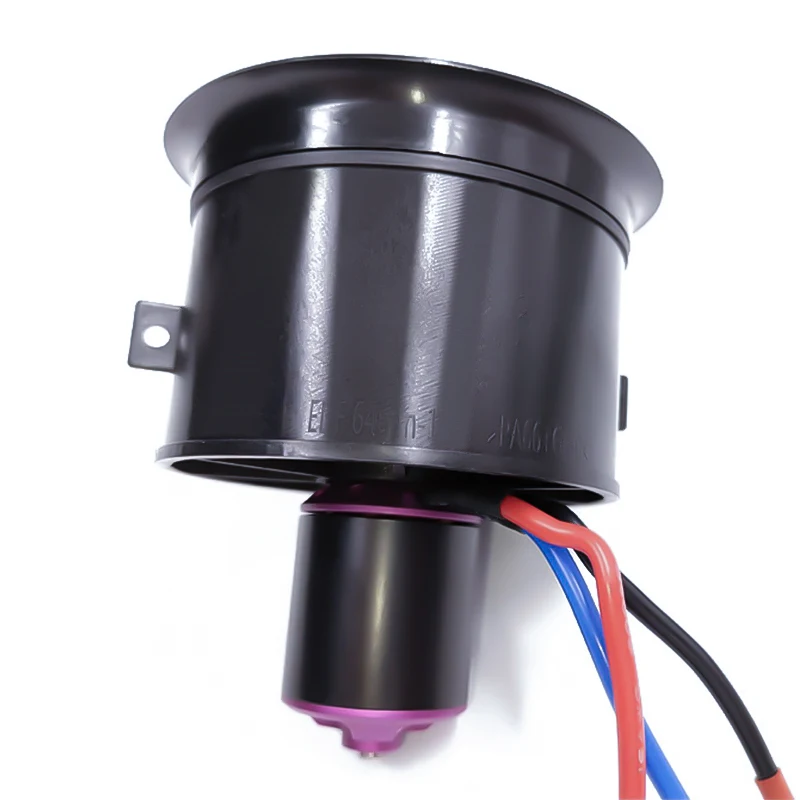

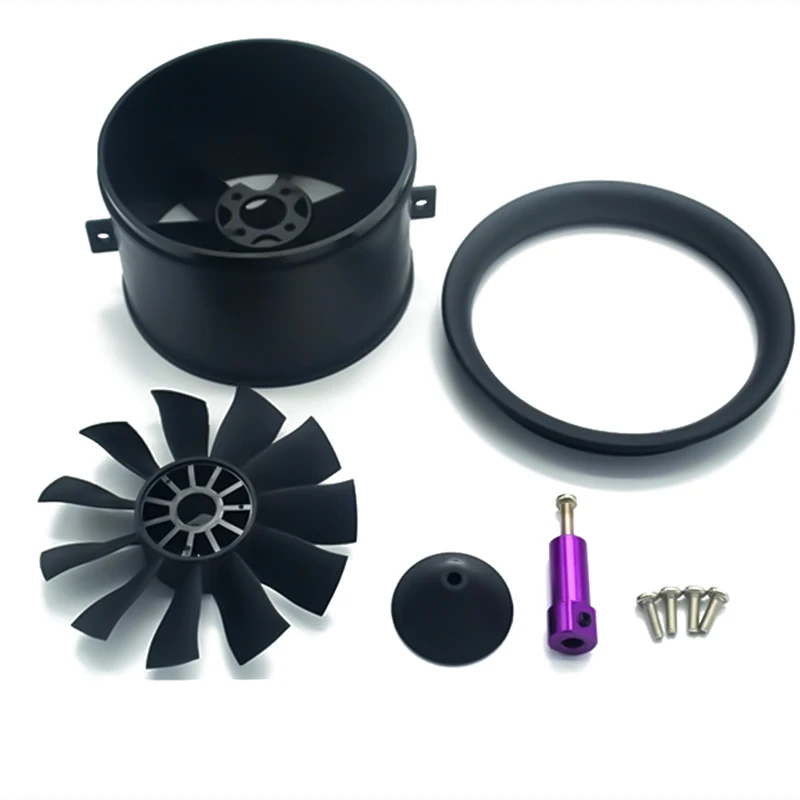

DD 64mm EDF 11 Blades Ducted Fan with 3500KV RC Brushless Motor Balance Tested for 3S/4S RC Jet Airplane
Advantages:All the EDF with motor have already dynamic balance tested.Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.All the motor have already soldered the banana plug.
Main Parameter: 64mm EDF with 3500KV 3S/4S motor:3S max continuous current is 33A, 3S max thrust is 900g; 4S max continuous current is 52A, 4S max thrust is 1460g.Motor weight 102g.Thus we recommend 50A ESC and 3S/4S battery.
motor:motor Continuous operation, high temperature resistance,wear resistance and stable,it’s more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.

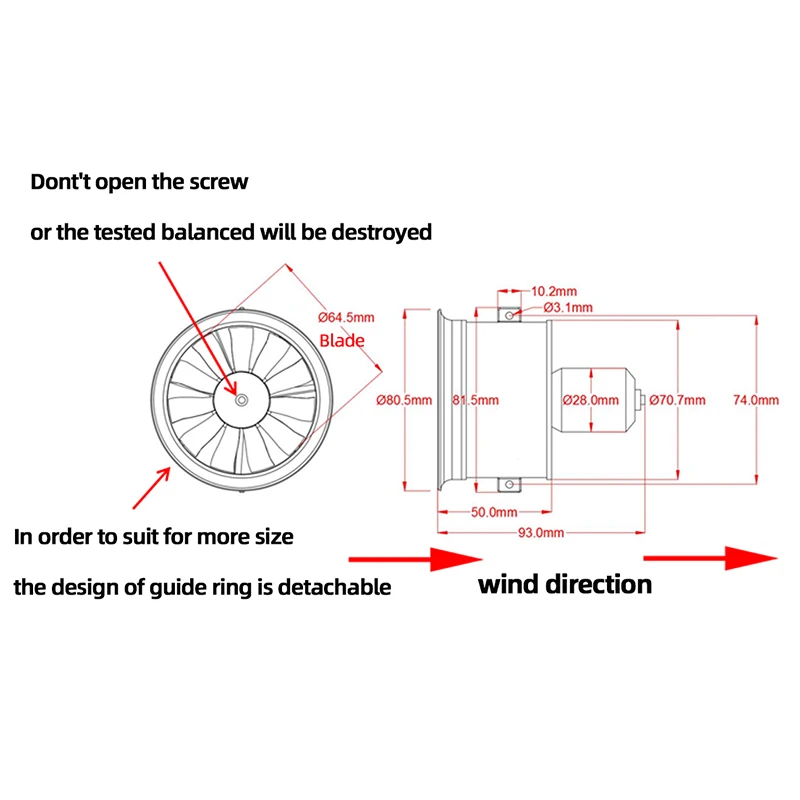

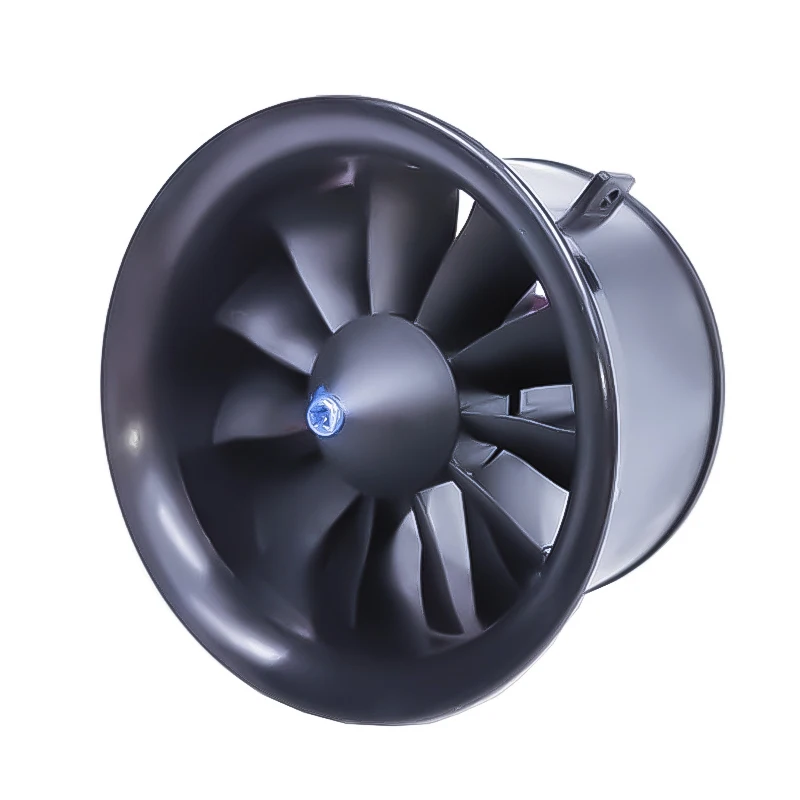

High-Quality ducted fan:fan make of high-quality engineering materials,Sturdy body,stable structure.Removable guide ring design,Adapt to a variety of models.
Pure copper wire: strong conductive, fast heat dissipation, high temperature resistant silicone wire.
Advantages:All the EDF with motor have already dynamic balance tested.Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.All the motor have already soldered the banana plug.
Main Parameter: 64mm EDF with 3500KV 3S/4S motor:3S max continuous current is 33A, 3S max thrust is 900g; 4S max continuous current is 52A, 4S max thrust is 1460g.Motor weight 102g.Thus we recommend 50A ESC and 3S/4S battery.
motor:motor Continuous operation, high temperature resistance,wear resistance and stable,it’s more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.
High-Quality ducted fan:fan make of high-quality engineering materials,Sturdy body,stable structure.Removable guide ring design,Adapt to a variety of models.
Pure copper wire: strong conductive, fast heat dissipation, high temperature resistant silicone wire.

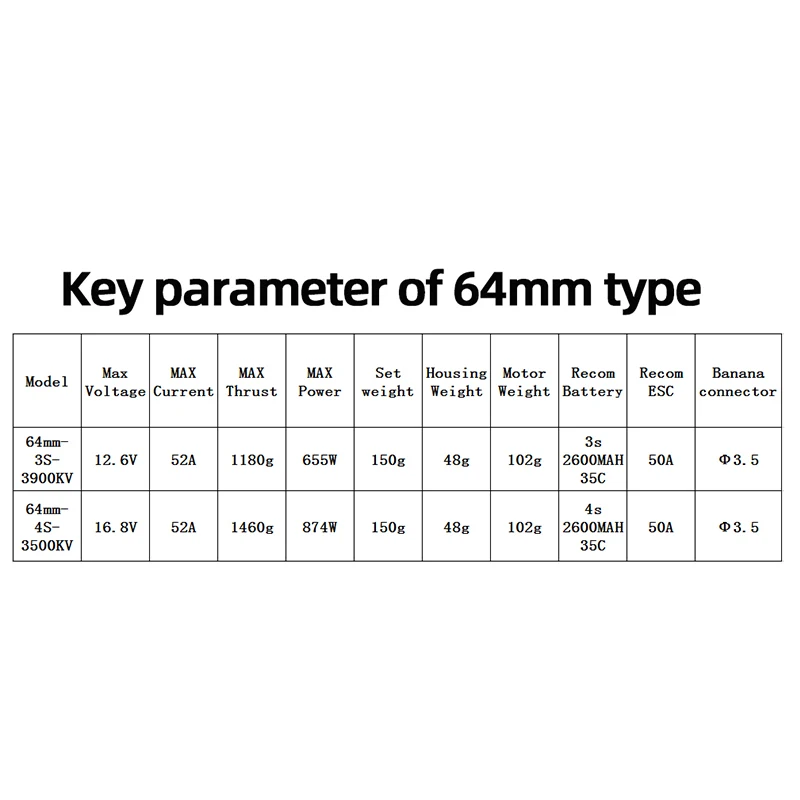

Specification
Material | PA66+GF |
Gold plated connector | Φ3.5 |
KV | 3500KV |
Motor Weight | 102g |
Housing Weight | 48g |
Max Voltage | 16.8V |
Max Current | 52A |
Max power | 874W |
Max Thrust | 1460g |
Set Weight | 150g |
Recom.Battery | 4s 2600MAH 35C |
Recom.ESC | 50A |
Details Images
Company Profile
Formally established in February, 2021- Shengzhen Diamond Dynamics Technology Co.,LTD specializes in the R&D, production and sales of DC brushless motors, thrusters and intelligent motor control systems.
The mission of Diamond Dynamics is to "Energize the world".
With an innovative spirit, Diamond Dynamics builds high-quality power systems fit for the global market.
Since its establishment, Diamond Dynamics launched core product lines including brushless motors for robotic and RC applications; underwater thrust systems and UAV motor control systems.
Diamond Dynamics products are utilized in a wide range of applications, including but not limited to: marine thrusters, radio controlled models, agricultural/logistics/police/firefighting/surveying and other industrial level drones, light transportation (2 and 4 wheeled), electric boating (lure boats and sightseeing boats), Automobile (cars and buses) and domestic appliances.
The mission of Diamond Dynamics is to "Energize the world".
With an innovative spirit, Diamond Dynamics builds high-quality power systems fit for the global market.
Since its establishment, Diamond Dynamics launched core product lines including brushless motors for robotic and RC applications; underwater thrust systems and UAV motor control systems.
Diamond Dynamics products are utilized in a wide range of applications, including but not limited to: marine thrusters, radio controlled models, agricultural/logistics/police/firefighting/surveying and other industrial level drones, light transportation (2 and 4 wheeled), electric boating (lure boats and sightseeing boats), Automobile (cars and buses) and domestic appliances.
FAQ
Q1: Are you a manufacturer ?
Yes, we are the headoffice & manufacturer of DD brand .
We can do both OEM and ODM. We have our own R&D team.
Q2: What shipping method ?
DHL Express is the default delivery method. It usually takes 5-7 days to get to your location. We accept UPS, FedEx and other ways you need, if you have a forwarder in China, we can also send to your Chinese forwarder
Q3: How is your warranty service?
We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.
Q4: What's of payments method?
We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .
Yes, we are the headoffice & manufacturer of DD brand .
We can do both OEM and ODM. We have our own R&D team.
Q2: What shipping method ?
DHL Express is the default delivery method. It usually takes 5-7 days to get to your location. We accept UPS, FedEx and other ways you need, if you have a forwarder in China, we can also send to your Chinese forwarder
Q3: How is your warranty service?
We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.
Q4: What's of payments method?
We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .
Похожие товары

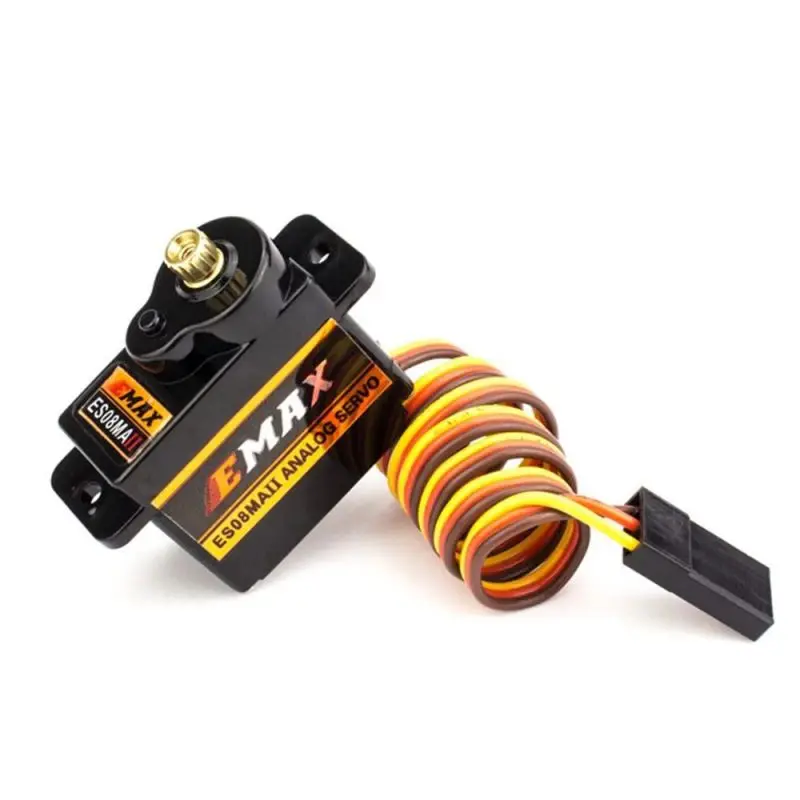

Оригинальный металлический Аналоговый сервопривод 12 г
6,86-9,98 $

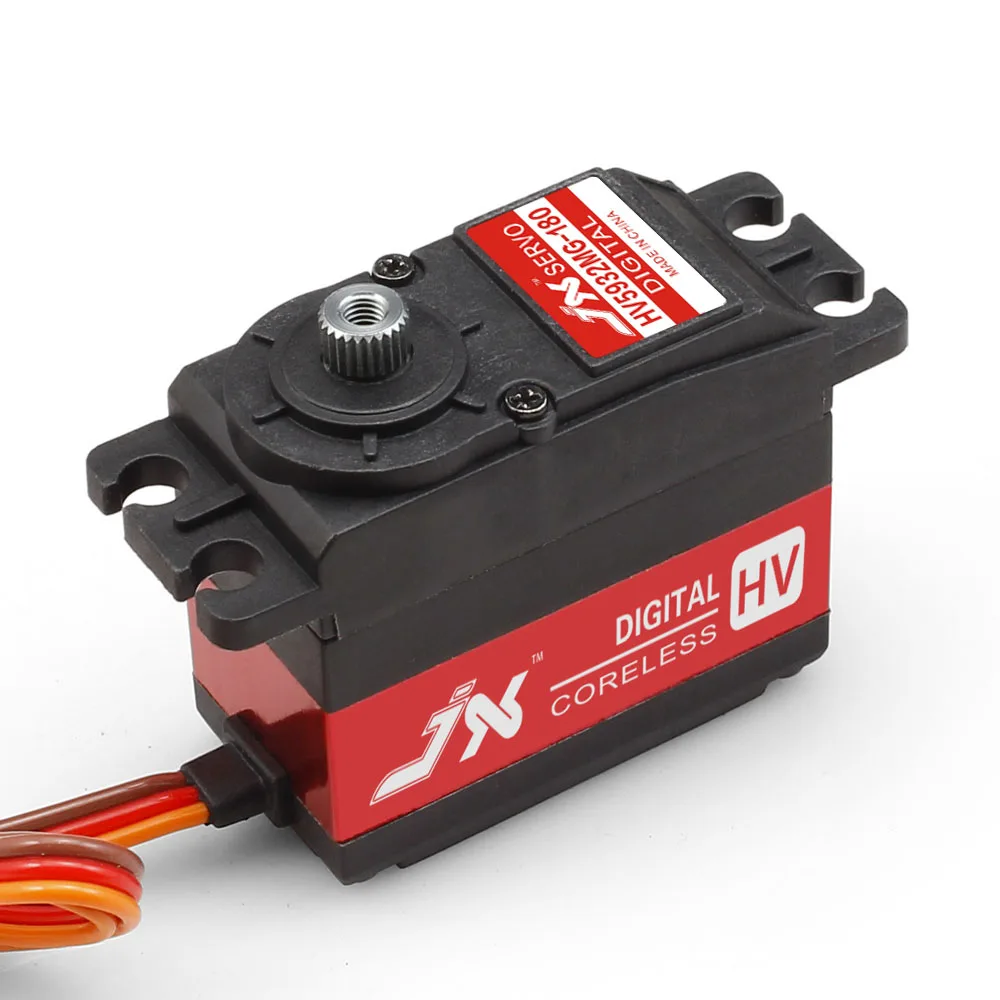

JX сервопривод PDI-HV5932MG-180 32 кг 180 градусов Высокоточный металлический редуктор высокого напряжения цифровой безсердный стандарт
20,00-22,00 $

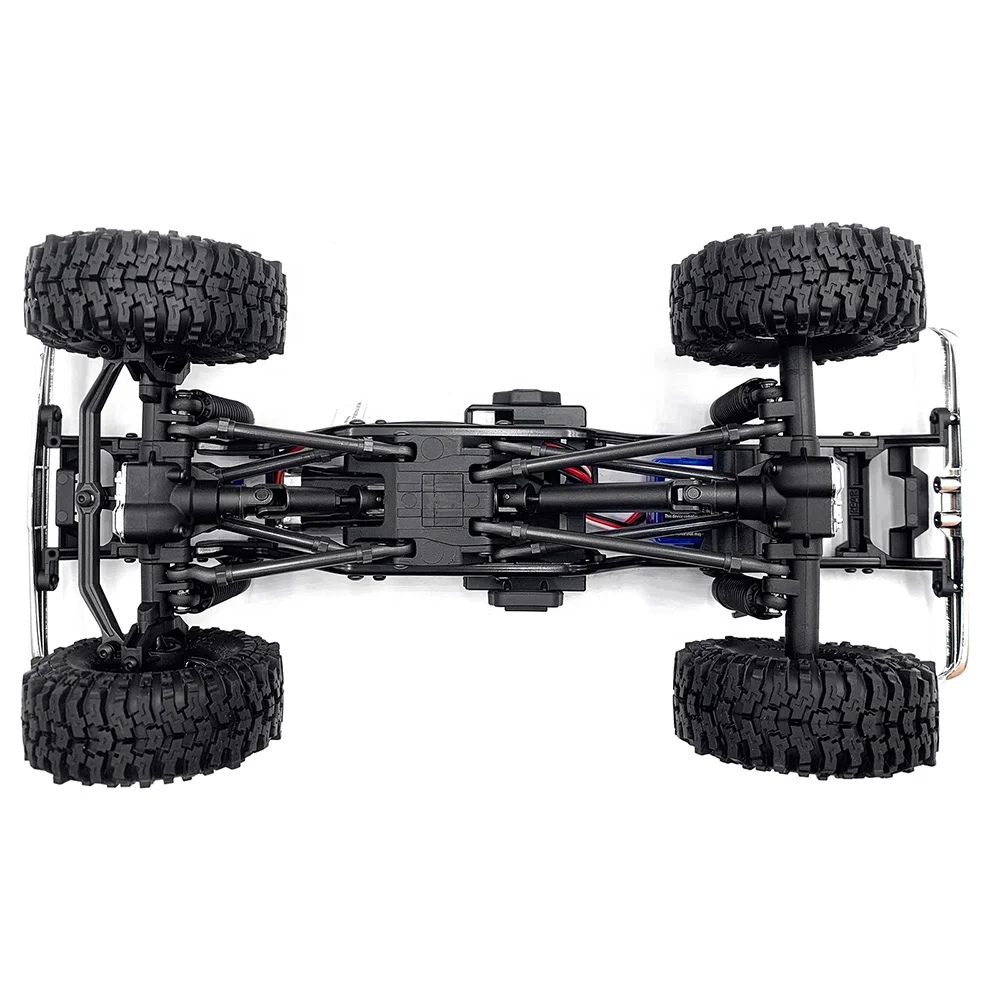

1 пара модернизированных стальных 1144 приводной вал CVD TRX4-M центрального карданного вала шасси для 1/18 RC гусеничного автомобиля TRX4M K10
9,25-9,50 $

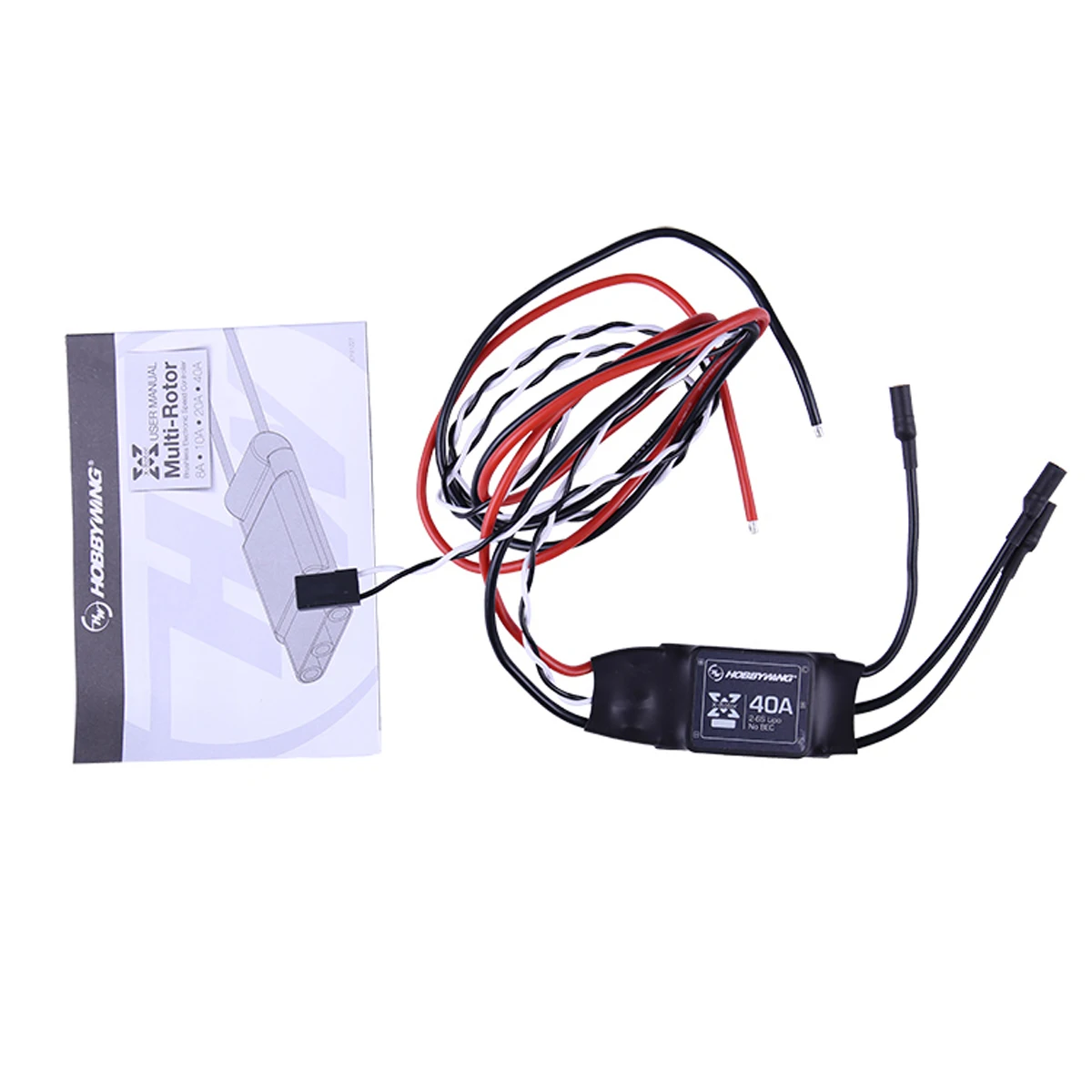

HOBBYWING XROTOR электронный регулятор скорости серии ESC бесщеточный прочный 40A длинный и расширенный выпуск 60 см
10,05-10,17 $

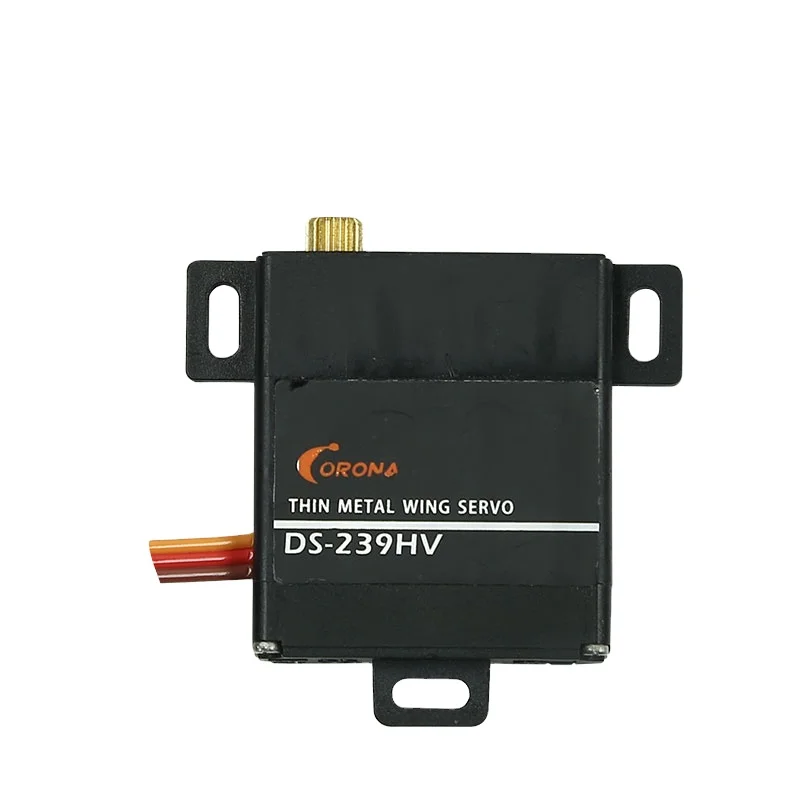

Corona DS239HV 22 г 4 6 кг цифровой сервопривод для радиоуправляемого вертолета игрушки серводвигатель
7,50-8,00 $

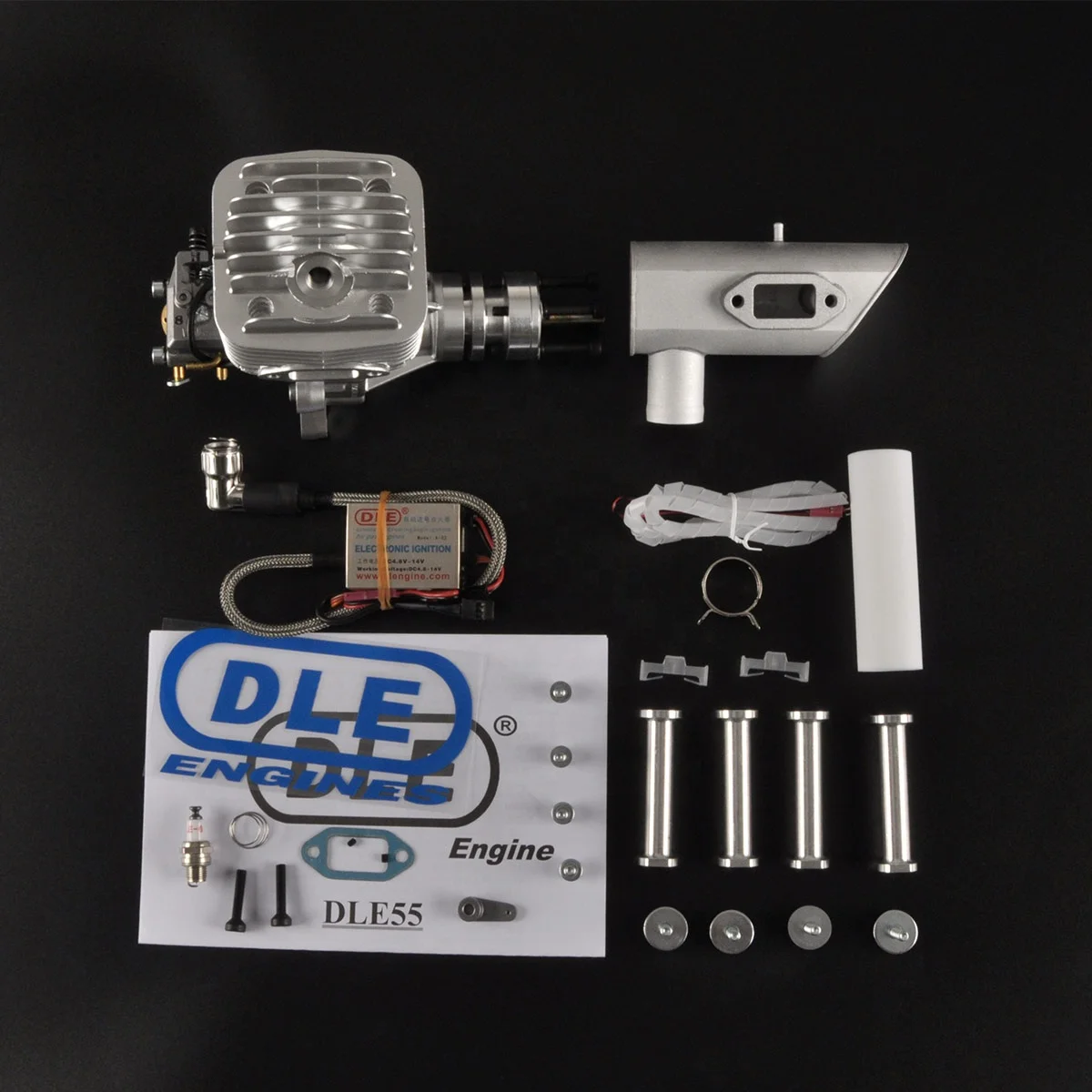

Модель DLE55 самолета бензиновый двигатель одноцилиндровый двухтактный боковой выхлоп для 50 куб. См
389,00-426,00 $

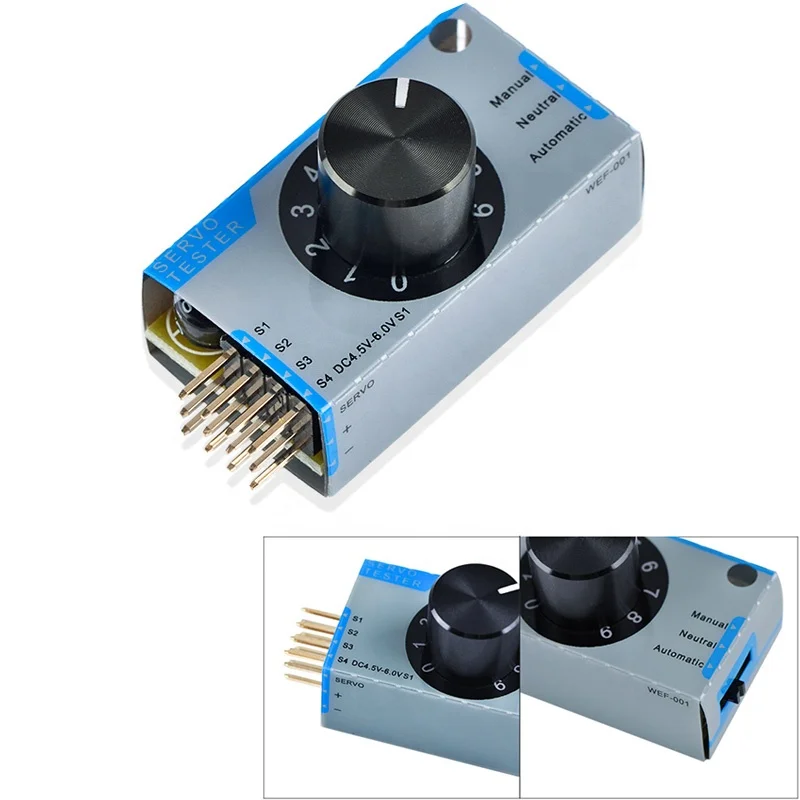

Обновленный сервер сервотестера для дистанционного управления самолетом электронный контроль скорости
