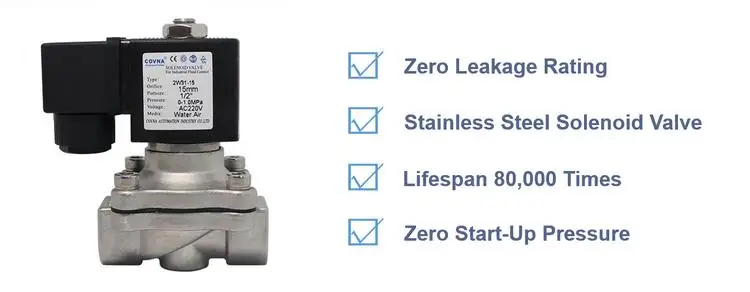

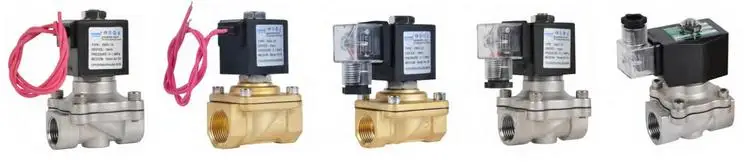

COVNA 1/2 inch 2 Way 12 Volt 24 Volt Normally Closed Diaphragm Solenoid ValveStainless Steel Water Solenoid Air Valve
Products Description
| Size Range | DN15 to DN50, 1/2" to 2" |
| Valve Operation Type | Normally Closed (NC) or Normally Open (NO) |
| Connection | G, BSP, NPT, FLANGE |
| Structure | Diaphragm Solenoid Valve |
| Voltage | DC12V, DC24V, AC24V, AC110V, AC220V |
| Coils | Y32B, 40VA(AC), 18W(DC), IP65, 100%ED Y42B, 50VA(AC), 20W(DC), IP65, 100%ED |
| Operating Temperature | NBR: 0~80℃, VITON: 0~120℃, PTFE: 0~180℃ |
| Operating Pressure | 0~1.0MPa |
| Duty Cycle | 50% |
| Material | Body Material: Brass or Stainless Steel Seal: VITON, NBR, PTFE Armature Tube: Stainless Steel304 Stop: SS403F Springs: SS304 Shading Rings: SS304 |
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |

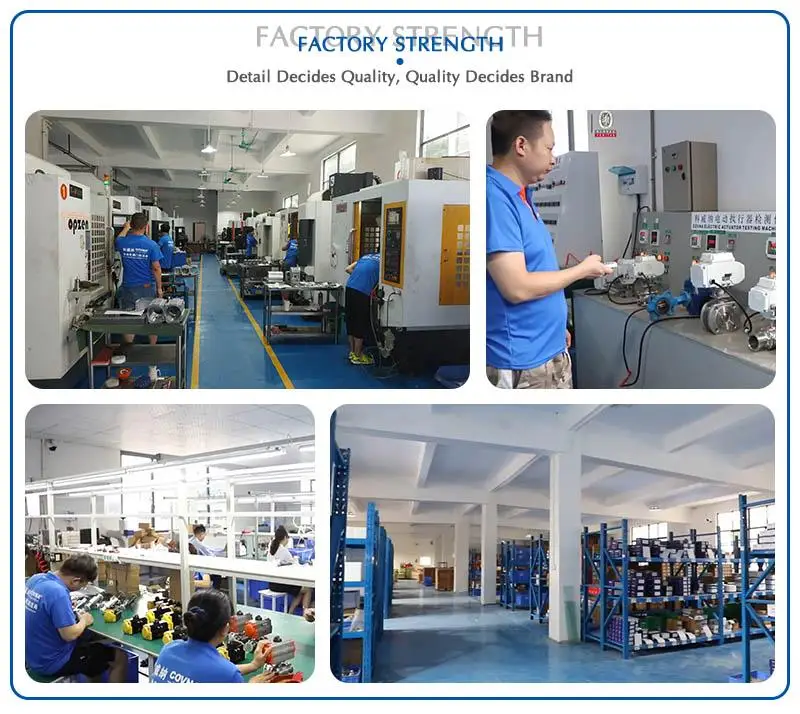

Company Profile
Certification
Exhibition
Cooperation Customers

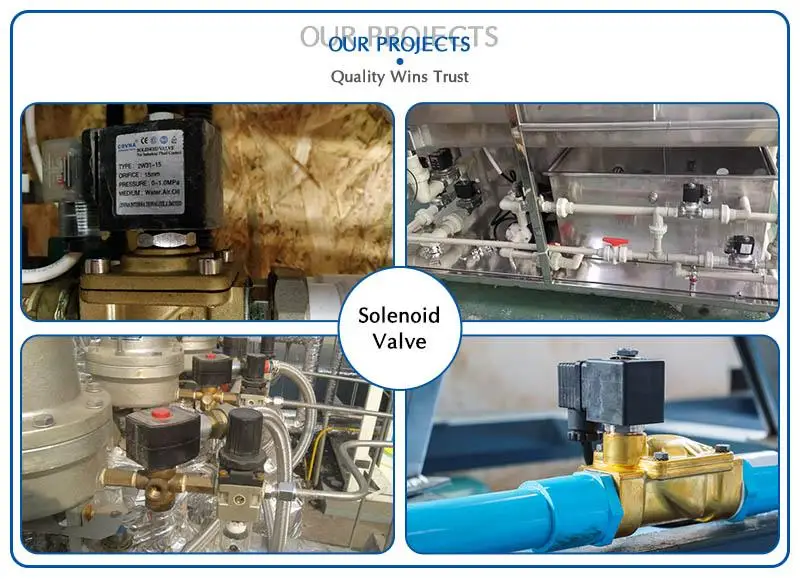

Finished Project
Packaging & Delivery
FAQ
Q: What type of diaphragm used in oil media?
A: Usually, Nitrile, Viton, PTFE, and EPDM diaphragms are applicable in oil media.
Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.
Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, motorized valve and pneumatic valve, the lever valve provided
also.
Q: I have a drawing for customized valve, can you do it?
A: Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.
A: Usually, Nitrile, Viton, PTFE, and EPDM diaphragms are applicable in oil media.
Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.
Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, motorized valve and pneumatic valve, the lever valve provided
also.
Q: I have a drawing for customized valve, can you do it?
A: Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.
Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.
Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs online once you contact.
Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.
Q: Can my order be expedited?
A: Yes, after you’ve added items to your cart you can calculate expedited options for your order. You can also call us for a
shipping estimate.
Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the
valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot
pressure. The coil in this case is used to control the pilot for the pilot piston.
Q: How many materials can be used apply to solenoid valve from COVNA?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.
Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs online once you contact.
Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.
Q: Can my order be expedited?
A: Yes, after you’ve added items to your cart you can calculate expedited options for your order. You can also call us for a
shipping estimate.
Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the
valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot
pressure. The coil in this case is used to control the pilot for the pilot piston.
Q: How many materials can be used apply to solenoid valve from COVNA?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.
