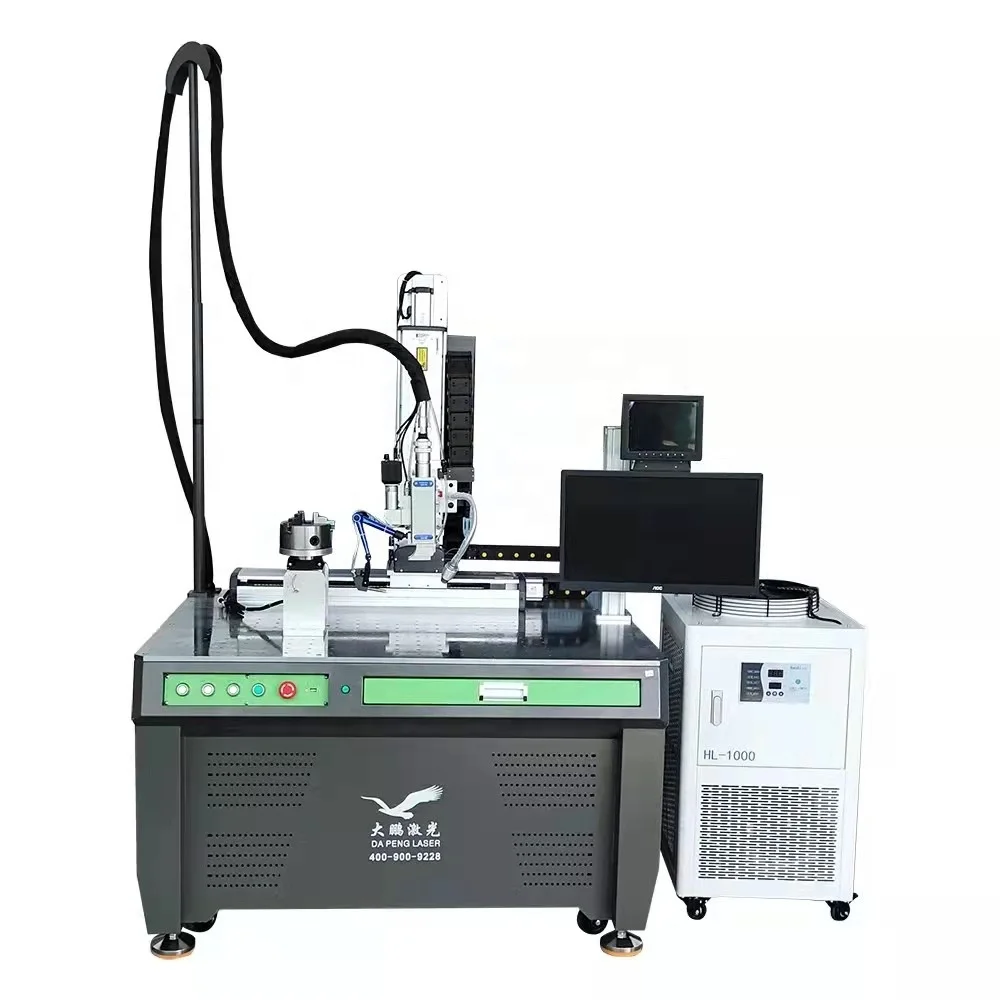

4-осевой 5-осевой призматический ионно-литиевая аккумуляторная батарея алюминиевый никель Автоматическая идентификация металлических непрерывного волокна лазерный сварочный аппарат
975 923,10 ₽ - 1 192 794,90 ₽
Ультразвуковой точечный сварочный аппарат по заводской цене для аккумуляторной батареи медной проволоки статора
- Категория: Other Welding Equipment >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 1600428575331:
Описание и отзывы
Характеристики
Ultrasonic Metal Welding Machine for Copper Armature Wire to Copper Commutator Bar
Ultrasonic Metal Spot Welding is a well-developed and established production method for joining non-ferrous metals. Especially in the automobile industry, this reliable and trend-setting technology has been used in the production of wire harnesses for decades now. Ultrasonic metal welding is a cold, friction welding process, i.e. no liquid-melt phase occurs. The parts being joined are rubbed together at their contact surfaces under slight pressure.
Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control and process data management.
Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control and process data management.
Products Description
Ultrasonic Welding Principle:
Ultrasonic metal welding machine use ultrasonic frequency vibration principle to change ultrasonic vibration energy into
friction energy and transfer to the metal surface to be welded ,while the friction produces heat under the pressure, the metal structure of molecules fully activation of the fusion between the molecular layer of the formation of the new equipment.
Features:
Microcomputer control, electronic tuning frequency.
Power adjustable, operate simple, and run stable and reliable.
LED display keeps the machine visible in operation and regulation.
Imported components, good performance in energy output.
Overcurrent protection and soft start can keep the machine safe.
Easy installation and operation.
Ultrasonic metal welding machine use ultrasonic frequency vibration principle to change ultrasonic vibration energy into
friction energy and transfer to the metal surface to be welded ,while the friction produces heat under the pressure, the metal structure of molecules fully activation of the fusion between the molecular layer of the formation of the new equipment.
Features:
Microcomputer control, electronic tuning frequency.
Power adjustable, operate simple, and run stable and reliable.
LED display keeps the machine visible in operation and regulation.
Imported components, good performance in energy output.
Overcurrent protection and soft start can keep the machine safe.
Easy installation and operation.
Advantages:
High-quality ultrasonic transducer, strong power, good stability. Good conductivity and resistivity very low or almost near to zero. Oxidation or plating metal can be welded. Short weld time, no need additional flux, gas, solder. No welding sparks,
environment protection and safety. Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude. Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation. Welding material does not melt non-fragile metal properties.
High-quality ultrasonic transducer, strong power, good stability. Good conductivity and resistivity very low or almost near to zero. Oxidation or plating metal can be welded. Short weld time, no need additional flux, gas, solder. No welding sparks,
environment protection and safety. Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude. Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation. Welding material does not melt non-fragile metal properties.
Application area:
Multi-layer positive and negative electrode welding for dynamic power battery welding material does not melt, non-fragile metal properties.
Li-ion battery and polymer battery: Copper foil welds nickel sheet; Aluminum foil welds aluminum sheet; Aluminum foil welds Nickle sheet.
Auto splice welding, Formation of electric wire end, Welding for electric wires; Multiple electric wires bond welding.
Solar panel battery, flat solar plate , copper and aluminum plate joints.
Solenoid switch, fuseless switch: big currency joint point welding and dissimilar metal welding.
Refrigerator and air conditioner copper tube sealing. Vacuum parts of copper tube and aluminum tube sealing.
Refrigerator and air conditioner copper tube sealing. Vacuum parts of copper tube and aluminum tube sealing.
item | value |
Condition | New |
Machine Type | Welding machine |
Applicable Industries | Manufacturing Plant |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | none |
Showroom Location | none |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | PLC |
Place of Origin | Guang dong,China |
Brand Name | Mindert |
Certification | CE Certificate |
Warranty | 1 Year |
After sales service | Field installation, commissioning and training, Video technical support, Online support |
Key Selling Points | High Productivity |
Weight (KG) | 60 |
Voltage | 110v / 220v |
Rated Capacity | 4KVA |
Dimensions | 510 * 250 * 400mm |
Usage | Ultrasonic Metal welding |
Rated Duty Cycle | 50-100% |
Max. Welding Thickness | 8mm |
Power(W) | 4000W |
Frequency | 20KHZ |
Welding Time | 0.01-9.99 Sec |
Color | Blue |
Packing & Delivery
Usually, we use PP film and wooden boxes for packaging. The complete set of equipment that needs to be purchased for the production line can be customized and packaged according to personal requirements to ensure that the goods will not be damaged during transportation.
Feature
1. Deluxe desk type high power ultrasonic machine.
2. Mechanical limit adjustment, high precision.
3.Welding head with the overall design limits to ensure that welding is not offset.
4.Four point level with adjustable flange structure, convenient transfer mode.
5. NTK vibrators, output strong stability.
6. Steel horn, durable.
7.Automatic frequency tracking system.
8.A full set of high-quality imported parts assembly, reliable performance.
2. Mechanical limit adjustment, high precision.
3.Welding head with the overall design limits to ensure that welding is not offset.
4.Four point level with adjustable flange structure, convenient transfer mode.
5. NTK vibrators, output strong stability.
6. Steel horn, durable.
7.Automatic frequency tracking system.
8.A full set of high-quality imported parts assembly, reliable performance.
Our services
1. Help customer analyze product project and provide welding solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
FAQ
1.Why do customers choose to cooperate with us?
Our company has many years of production experience, with superior quality and good after-sales service.
2. How long does it take to respond to customer inquiries?
We have multiple online business people, the response is usually <8 hours
3. How do we control product quality? What is the satisfaction of after-sales service?
We will guarantee the quality of the machine, and perform a second test on the machine before leaving the warehouse to ensure that each set of equipment runs well, and provide long-term after-sales service to 100% customer satisfaction.
4. Can I customize the machine?
Yes, you can. We can provide you with customized services according to your needs, but we need to provide detailed design documents.
Our company has many years of production experience, with superior quality and good after-sales service.
2. How long does it take to respond to customer inquiries?
We have multiple online business people, the response is usually <8 hours
3. How do we control product quality? What is the satisfaction of after-sales service?
We will guarantee the quality of the machine, and perform a second test on the machine before leaving the warehouse to ensure that each set of equipment runs well, and provide long-term after-sales service to 100% customer satisfaction.
4. Can I customize the machine?
Yes, you can. We can provide you with customized services according to your needs, but we need to provide detailed design documents.
Похожие товары
8018 450 Вт, 220 В/110 В, с ЖК-дисплеем
2 168,72 ₽ - 3 253,08 ₽

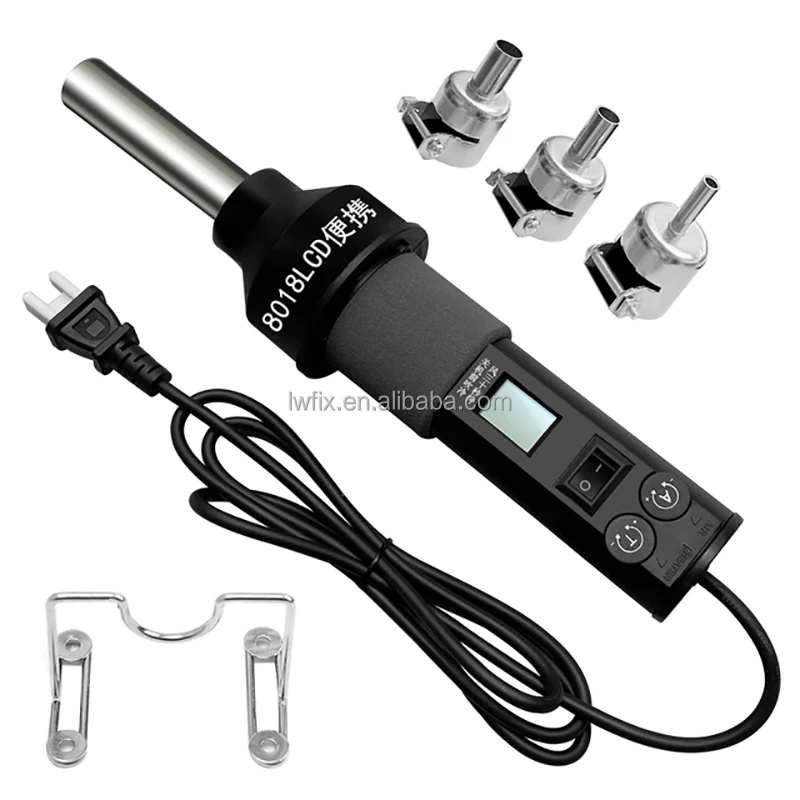

8018 450 Вт ЖК-дисплей горячий воздушный пистолет паяльная станция 220 В/110 В регулируемая температура для ремонта SMD
2 168,72 ₽ - 3 253,08 ₽

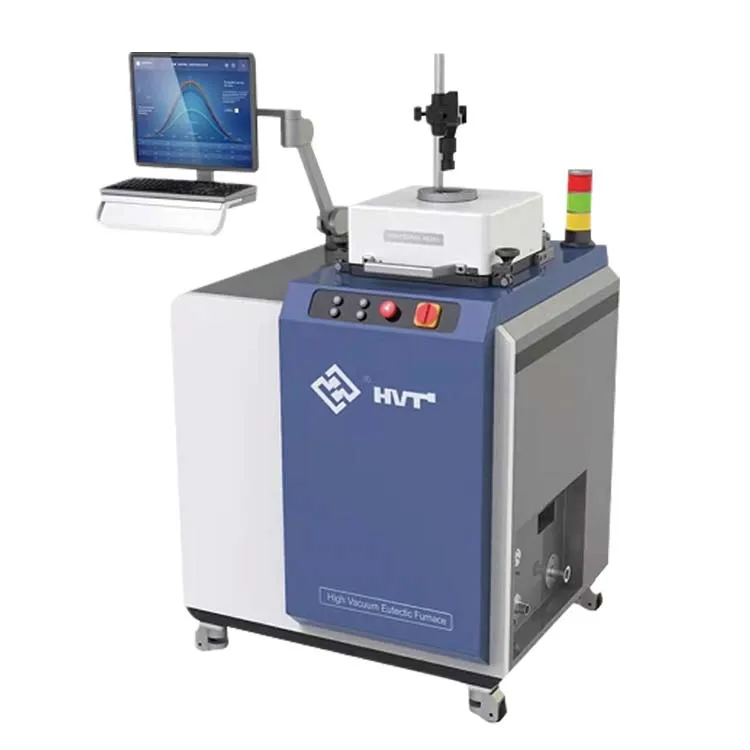

Лабораторная вакуумная система пайки оплавильная печь инфракрасная вакуумная эвтектическая печь
3 036 205,20 ₽ - 3 188 015,46 ₽

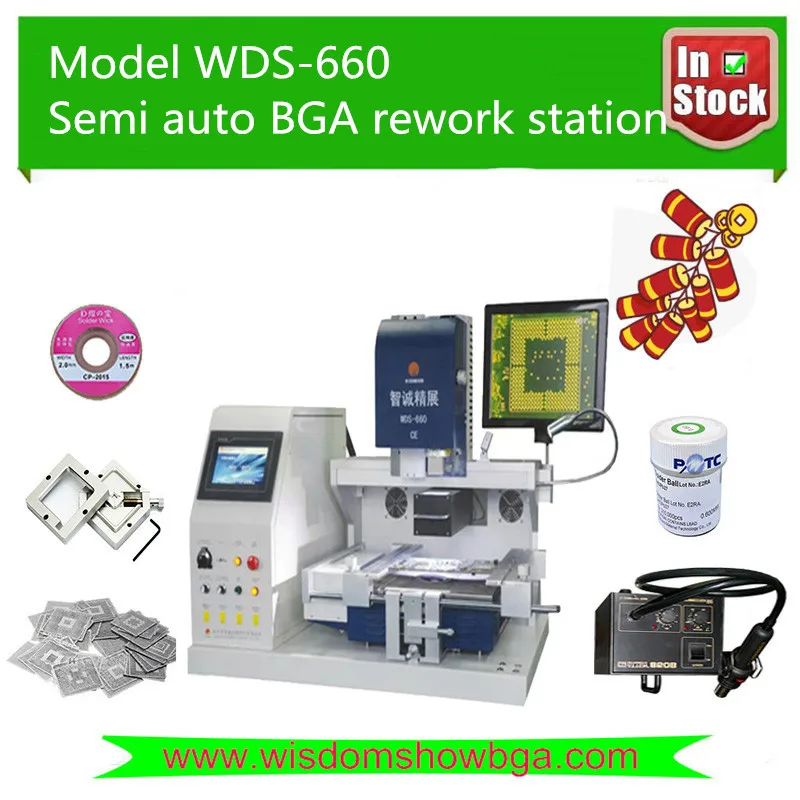

WDS-660 автоматическая лучше стабилизированный инфракрасная bga ремонт машины для планшет / ноутбук материнская плата
8018 450 Вт, 220 В/110 В, с ЖК-дисплеем
2 168,72 ₽ - 3 253,08 ₽

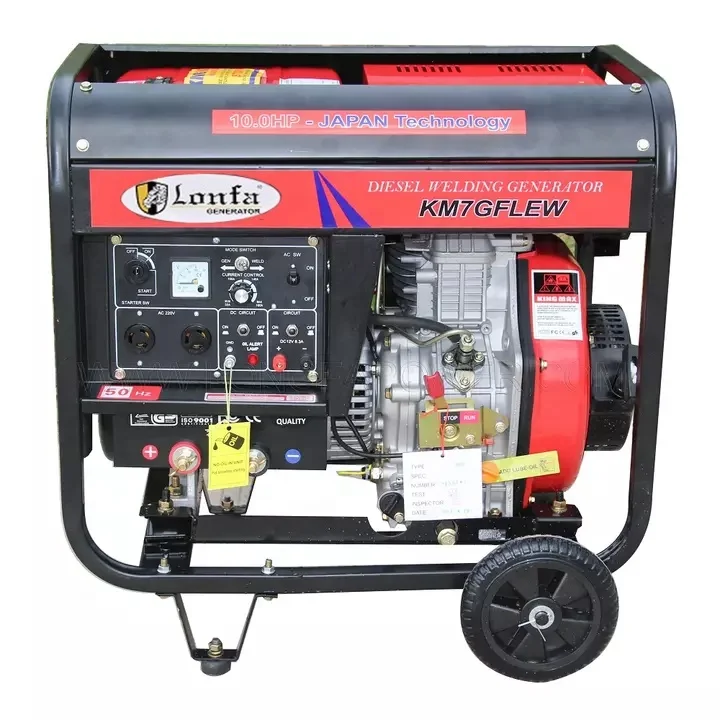

Дизельный сварочный генератор с двумя функциями, 10 л.с., портативный дизельный сварочный генератор, сварочный аппарат 5 ква 6 кВА
