KONNWEI KW510 Прямая продажа с завода портативное автомобильное зарядное устройство для свинцово кислотных батарей

Сохранить в закладки 1600428804515:


Цена:2 881,90 ₽ - 3 103,76 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

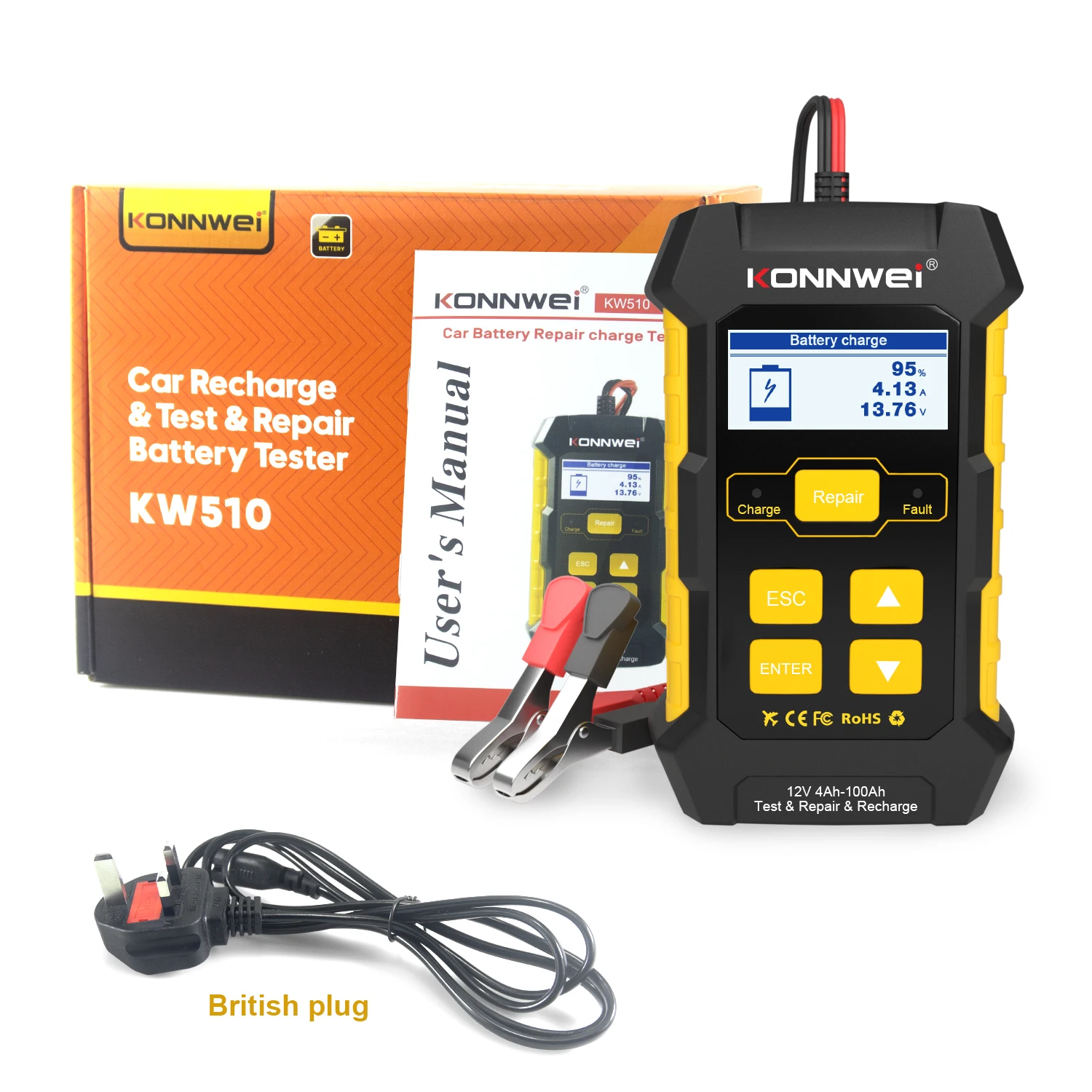

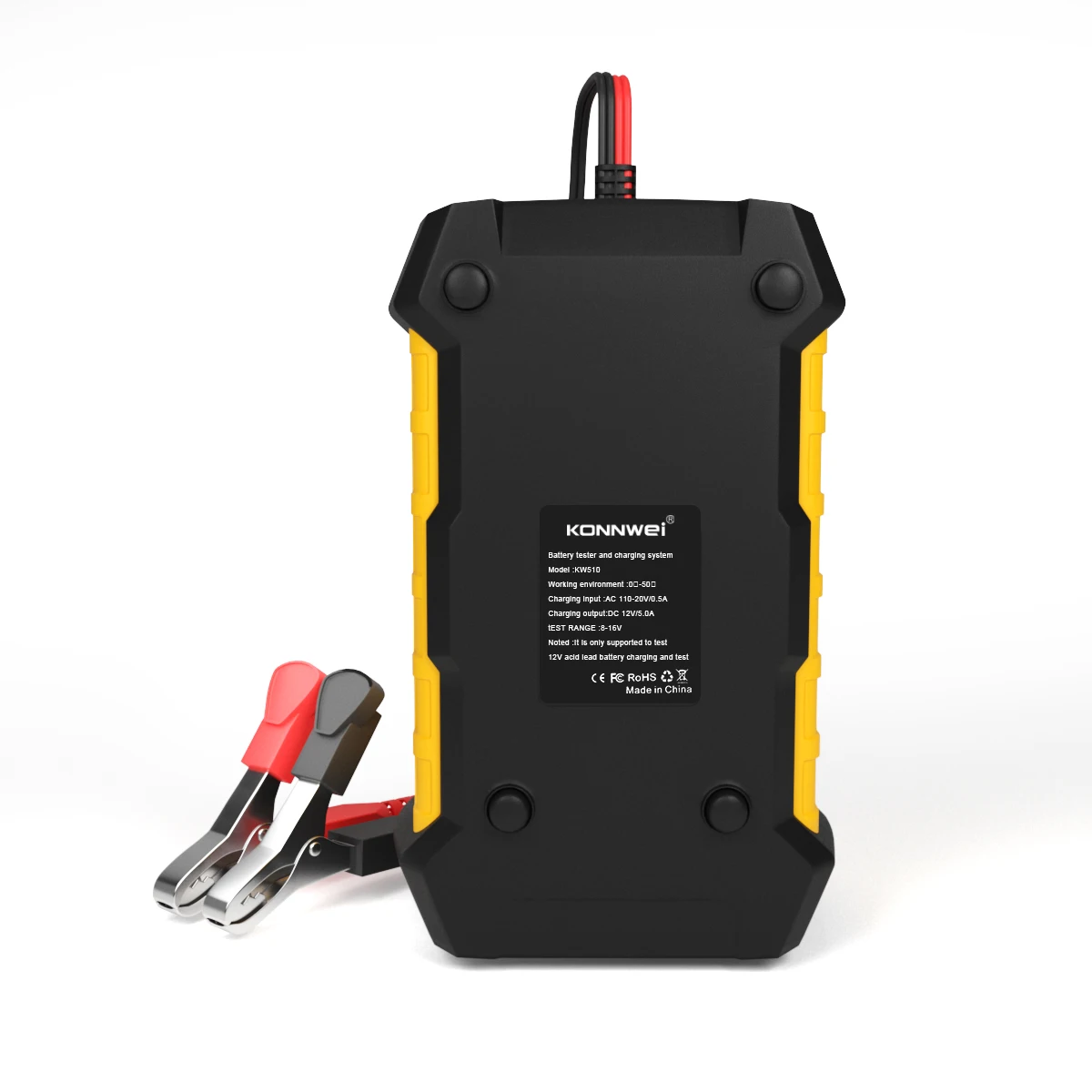

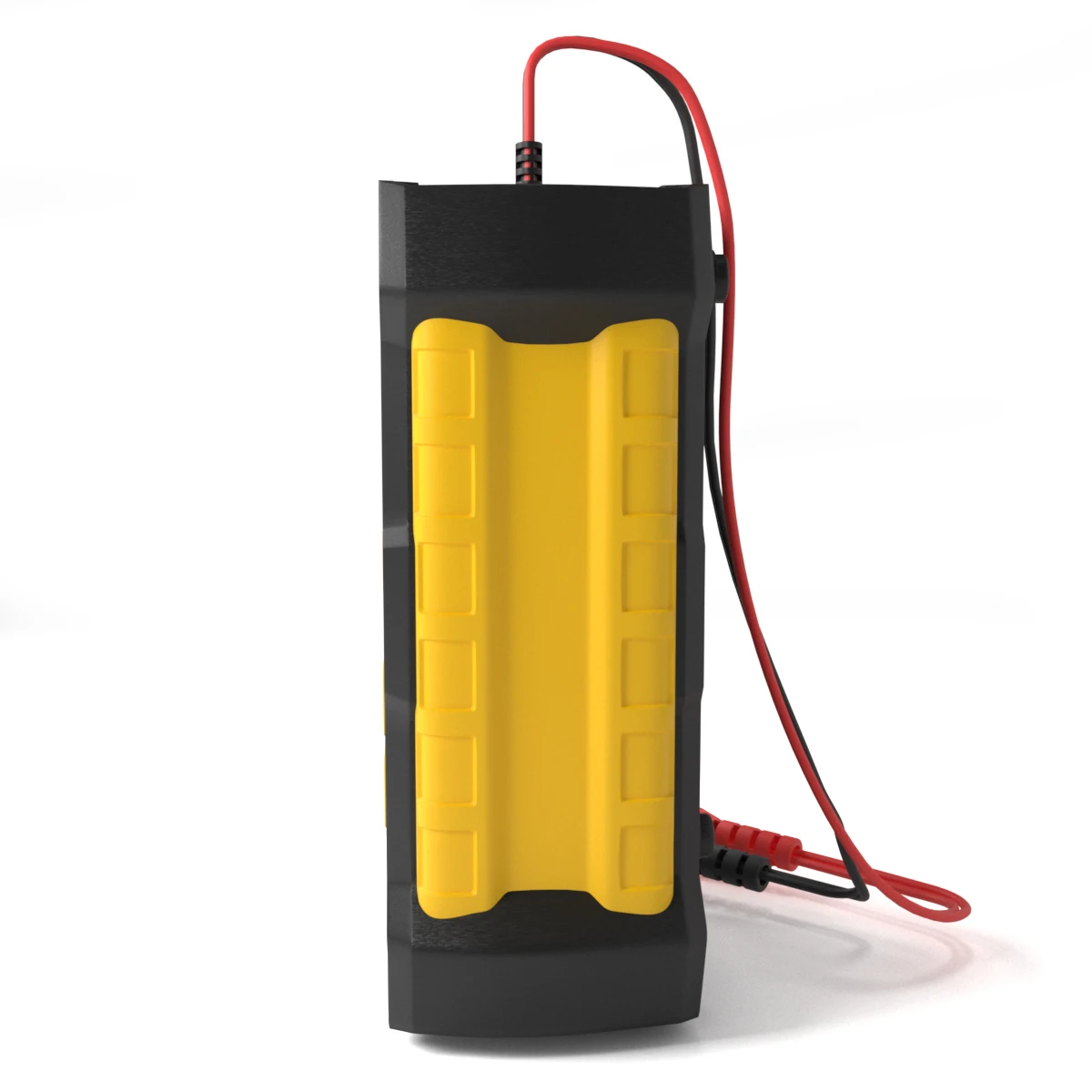

KONNWEI KW510  Factory direct sale Portable car battery charger for Lead acid Battery






Product Description








KONNWEI KW510 is a professional battery load tester, battery charger, battery maintaine (pulse repair), trickle charger and battery desulfator. With KONNWEI  battery tester high accuracy features, KW510 is combing the battery charging and repairing function and re-design the products, makes the all-in-one battery maintenance tool, which is greatly helpful and shorten your working and it's a must have tool for all car owners.




























































































Brand konnwei
 Keyword Car Battery Charger
Battery Testing and Charging System
Item name Car Battery Charger 12V5A Pulse Repair  Battery Charger For Car Motorcycle Lead Acid Battery fast Charge
Model KW510 KONNWEI Brand
Application  Test & charge & repair For all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, EFB and Gel battery, etc.
Feature 3 in one function , only konnwei available
Function  Battery voltage currenct lifetime test , battery charger , battery repair
Language English, German, French, Dutch, Russian, Spanish, Italian ,Portuguese  etc
Warranty  2 YEARS , long life-time technology supporting
Carton infopackage size (cm):19*15*7
Item Net weight(kgs):0.46
Package Gross weight(Kg):0.7
qty/cn : 30pcs/cn
Carton size (cm): 39.5x35.7x46
Carton Weight :22KG/carton
charge plug  British Standard , American Standard , National Standard and so on . Please mark it when you place an order .
 Color Yellow , OEM
 Working Environment   -20 ℃ ~ 50 ℃ / -4° F ~ 122 F
 Charging Input AC 110-230V
 Charging Output:  DC 12V/ 5A
 Test Range8-16V


 KW510 car repair tester.png3.jpg




 Application :


KW510 konnwei Battery tools can Apply for all 12V car battery include battery from gasoline, diesel, hybrid electric vehicles, motorcycle batteries , and emergency batteries.












        KONNWEI KW510 12V car battery testeris able to effectively analyze andread important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.  It provides accurate results, calculates thecold cranking capability of the battery and the aging extent, allowingfor a quicker, more precise car repairing.Test results display in both text and graphing, but the real-time battery voltage showing in a waveform.



Function :

System voltage 12 Volts and Voltage test in waveform


Test Result Good, Recharge or Replace


Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mΩ) and Life in percentage (%)


Cranking system and Charging system


Record and re-play battery data, Life-time free update service


Battery test, cranking test, charging test and other additional functions.


The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,DIN and IEC are supported








Why we need KONNWEI KW510


1. Support car battery health and status check, charging, and repairing all in one.


2. High Accuracy battery tester and testing range from 100-2000CCA.


3. Pulse Repair function helps you to fix and increase your battery life and performance, can be verified from KW510 battery testing SOH


4. Logical key operation settings, convenient and quick


5 .2.4 inch large LCD screen, the display result is clear and readable even in bright sunny days.


6.  Multilingual operation interface, multilingual user friendly manual including RU, FR, ES, DE, EN


7. protections from AC to DC charging, over-heat and over current protection.


8.100% safe and green, fireproof materials made, high quality self-designed PCB.


9.. Life-time free supports and 2 Years Warranty from manufactures and distributors.





Easy 3 Steps, Get your battery like brand NEW


KONNWEI KW510 Battery Test-Accurate Battery Tester has your battery running for years but no idea about its status? KW510 12v battery tester provides you an overall analysis of battery health by checking its voltage charge, internal resistance then tells you whether the battery needs to be recharged or not.


1.System voltage 12 Volts and Voltage test, give you results about the Status of Charge(SOC) and Status of Health (SOH)


 2.Test Result Summary Good, Recharge or Replace


 3.Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. Internal resistance value (mΩ) and Life in percentage (%) SOH


4.Cranking system test Test and analyze the starting motor. Testing the actual required cranking current and cranking voltage of the starting motor is helpful to determine whether the starting motor works properly or not.


5. Charging system test Check and analyze the vehicle battery charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the output voltage of the generator is normal, the rectifier diode works properly and the abnormals.


6. Record and Review battery data.


7. The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,DIN and IEC are supported





KW510 Testing Standards.


KONNWEI KW510 Powerful 12V Battery Charger and Repairing Tool


Fully Automatic Battery Tool: charge batteries as low as 2-volt, max output 12-volt 5-amp. KW510 battery charger not only helps you charge the batteries but also adapts the newest pulse repair technology, one-click repair and automatically detects battery sulfation and acid stratification to bring the batteries back to life and restore their performance.





KONNWEI KW510 support charge all 12V Lead-acid batteries


1. Large LCD clearer display screen


2..Automatic detecting of ambient temperature, so that winter is plentiful, summer is not plentiful


3.Max output 12-volt 5-amp, input 100-230-volt, charge dead batteries as low as 2-volt 4.MULTIPLE PROTECTION Short circuit / Overcurrent protection / Overheat protection / Fireproof material / Low pressure protection / Overpressure protection / Mislink protection / Electrification protection the charger will automatically turn off the power supply to protect the battery and charge

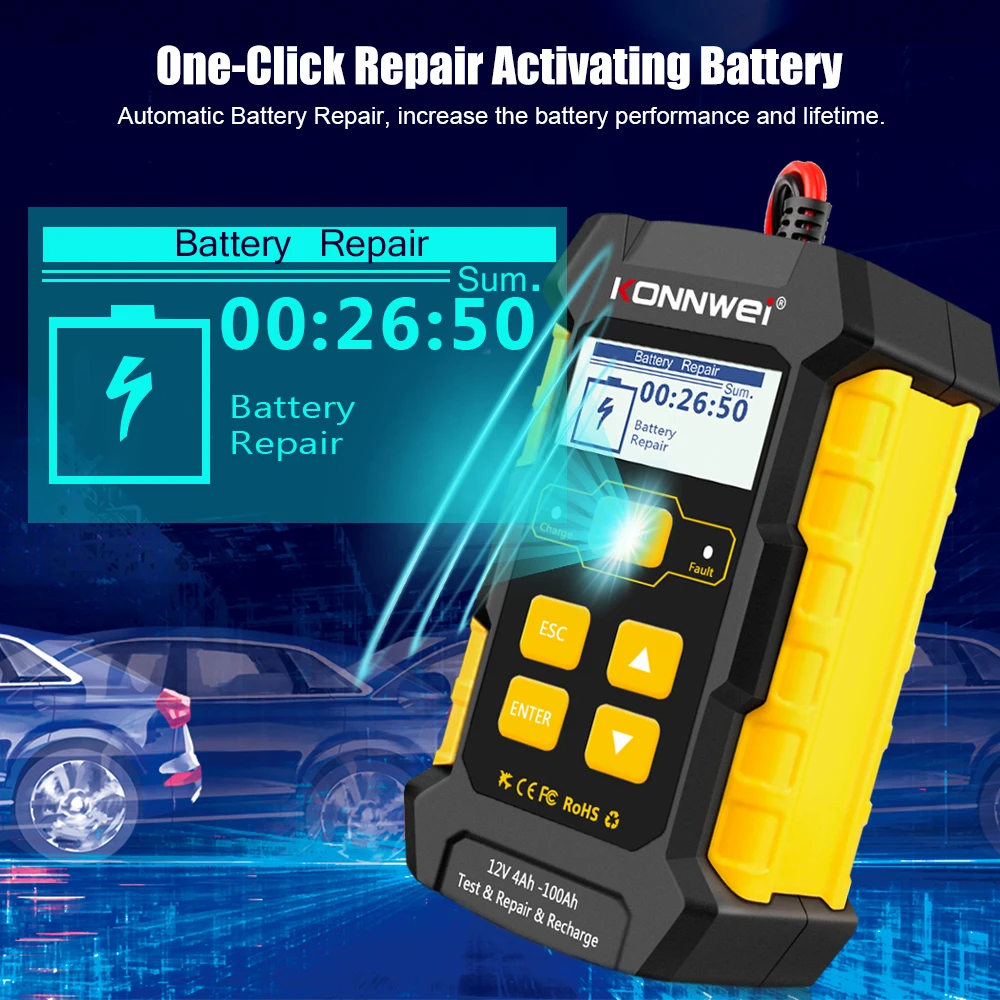

KONNWEI KW510 support one-click repair fixing the aging battery


ENHANCED PULSE REPAIR Automatic sulfating and acid stratification detection, the KONNWEI KW510 advanced repair mode can repair and reverse the damaging effects when batteries are left uncharged for extended periods to improve battery performance and longevity. (Note: The pulse repair function can only be used when the car battery is disconnected from the car).





FITS FOR MOST 12V Batteries


Designed for testing and charging 12-volt lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries. Compatible with all types of vehicles - charge and maintain cars, motorcycles, lawn mowers, ATVs, lawn tractors, trucks, SUVs, boats, PWCs, classic cars, and more.





Battery charger specification:


AC input: 100-240V/50-60Hz


Output: Voltage 12V


Output: Current 5A


Output Volt No Load: 13.8V


Minimum Start Volt: >2.0V


 Input Power with Load: Max 80W


Input Power No Load: 3W


Cooling: Fan


Charging Capacity Range :4AH-100AH


 emperature Compensation:Yes, Winter & Summer Mode Compatible


Battery Type: All types of Lead-acid batteries

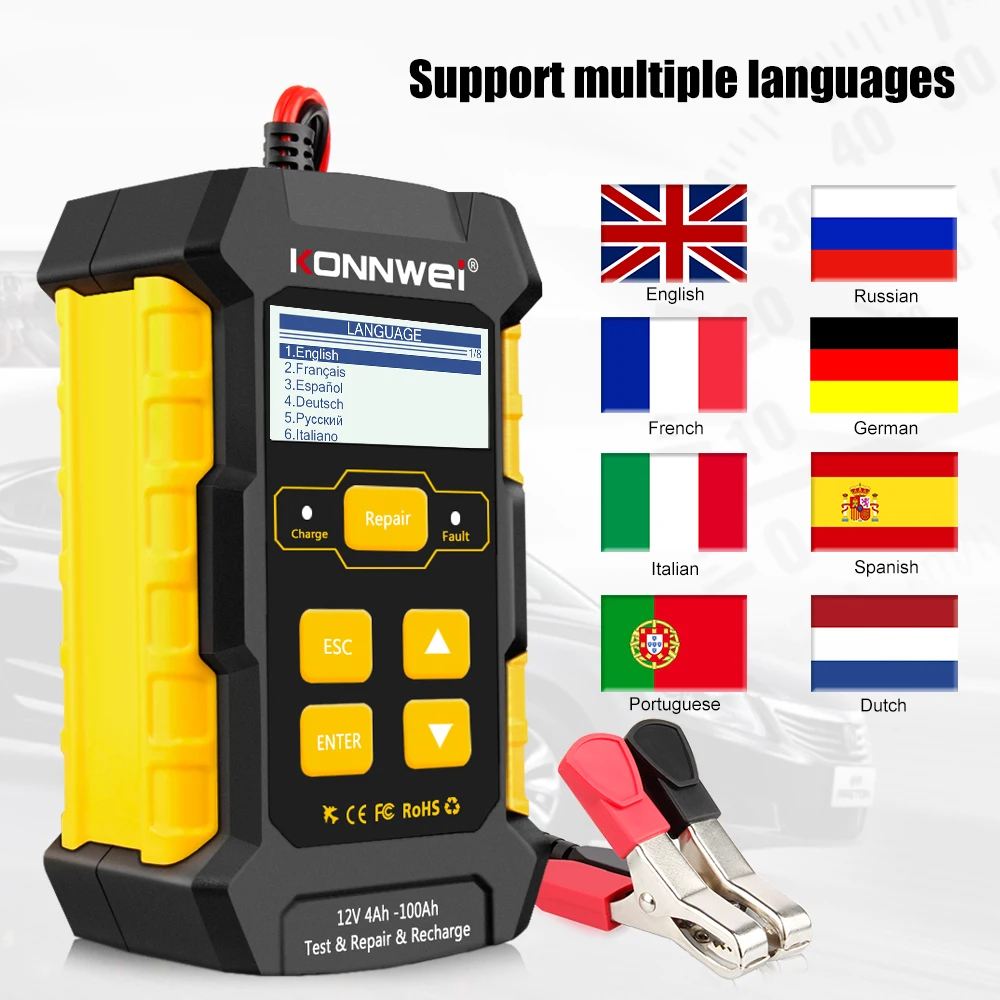

Battery charge and repair operationSupport Languages:English,Russian,French,German,Italian,Spanish,Portuguese,Dutch





Package Contents:


* KONNWEI KW510 battery test & charger & repair tool


 * Multi-language user manual


* Charging Cable (4 Choices)


* Retail Box





For more details , please check picture
