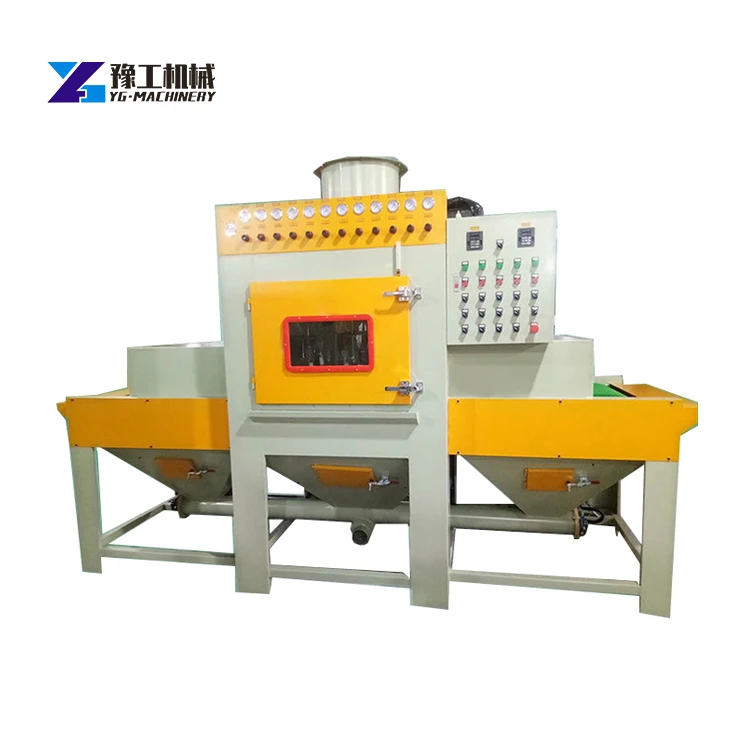

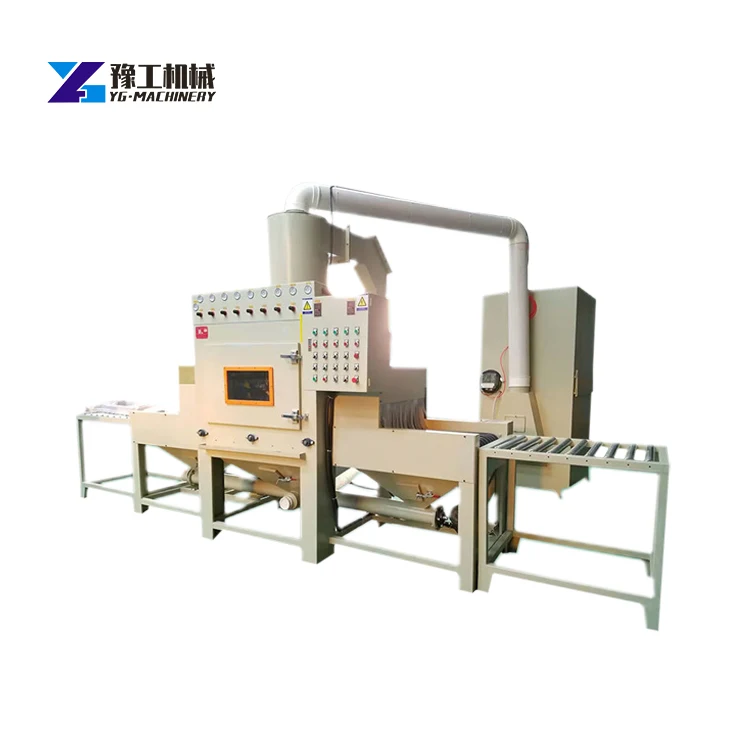

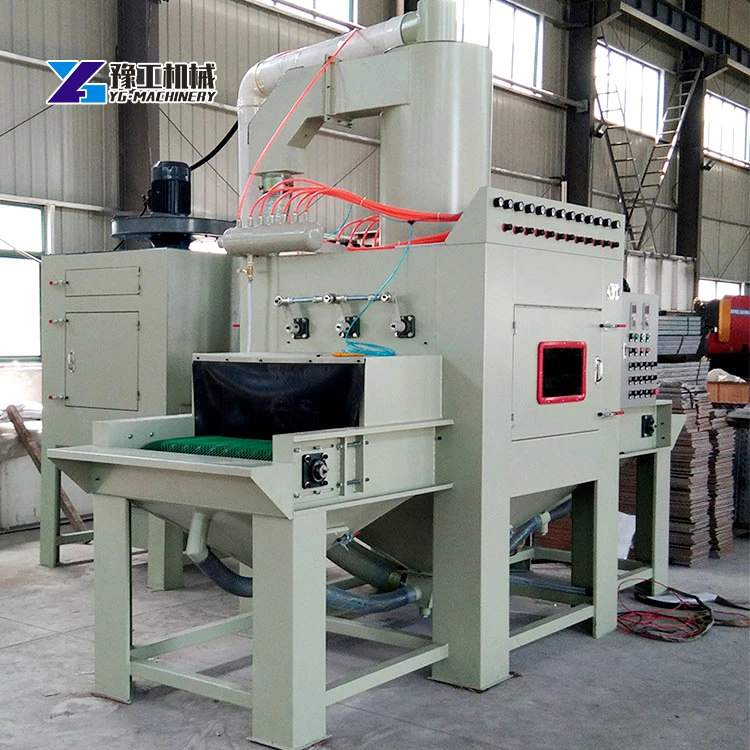

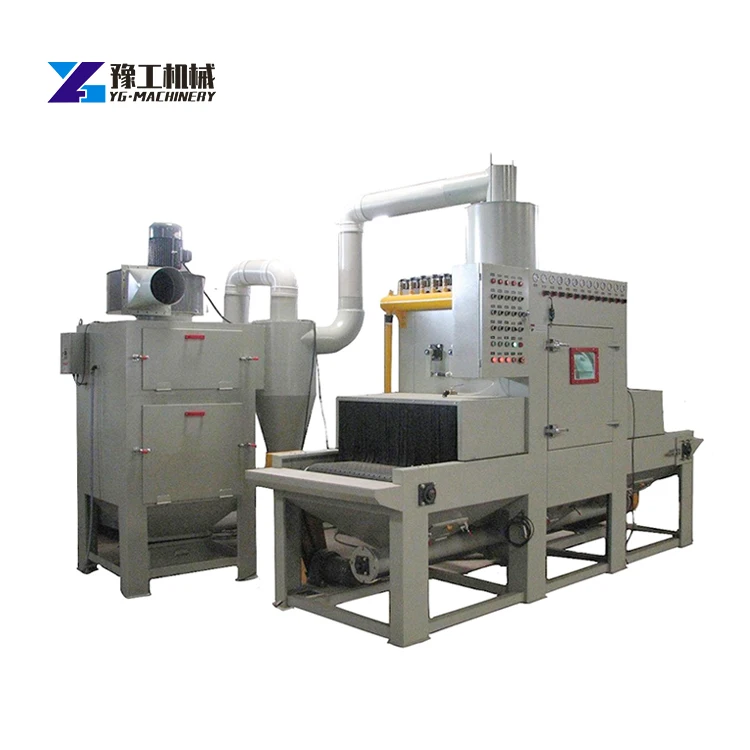

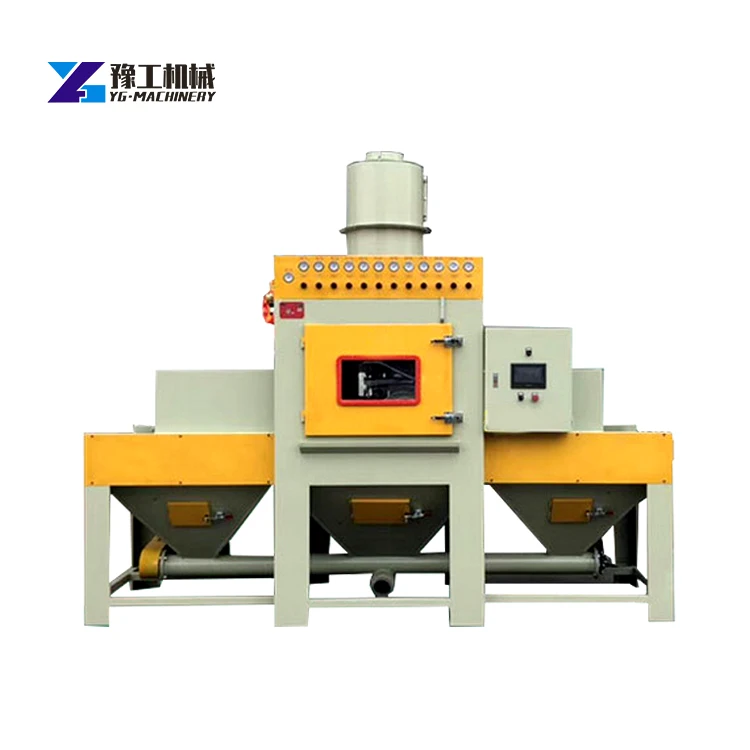

Yugong Автоматические пескоструйные машины пескоструйный аппарат высокого давления автоматический Пескоструйный

Сохранить в закладки 1600428907121:


Цена:17 000,00 $ - 17 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

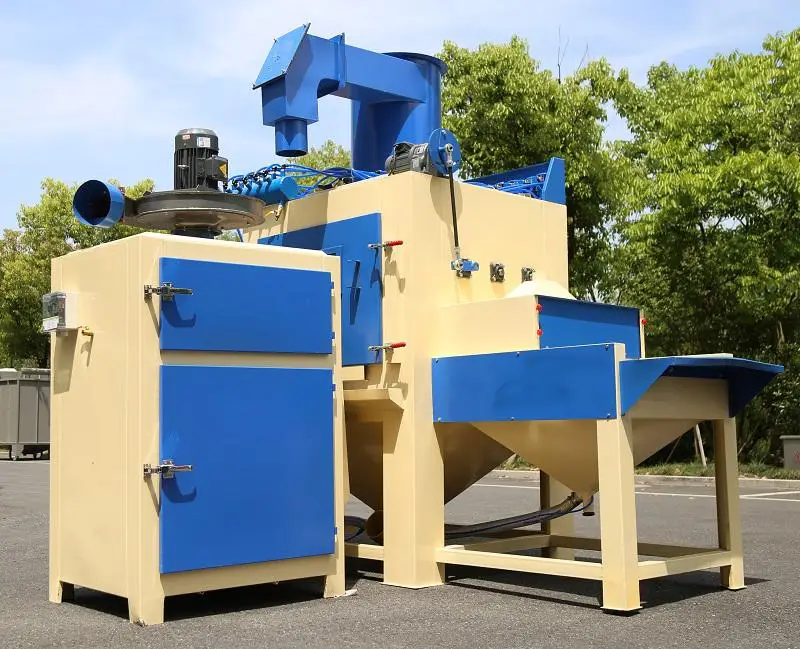

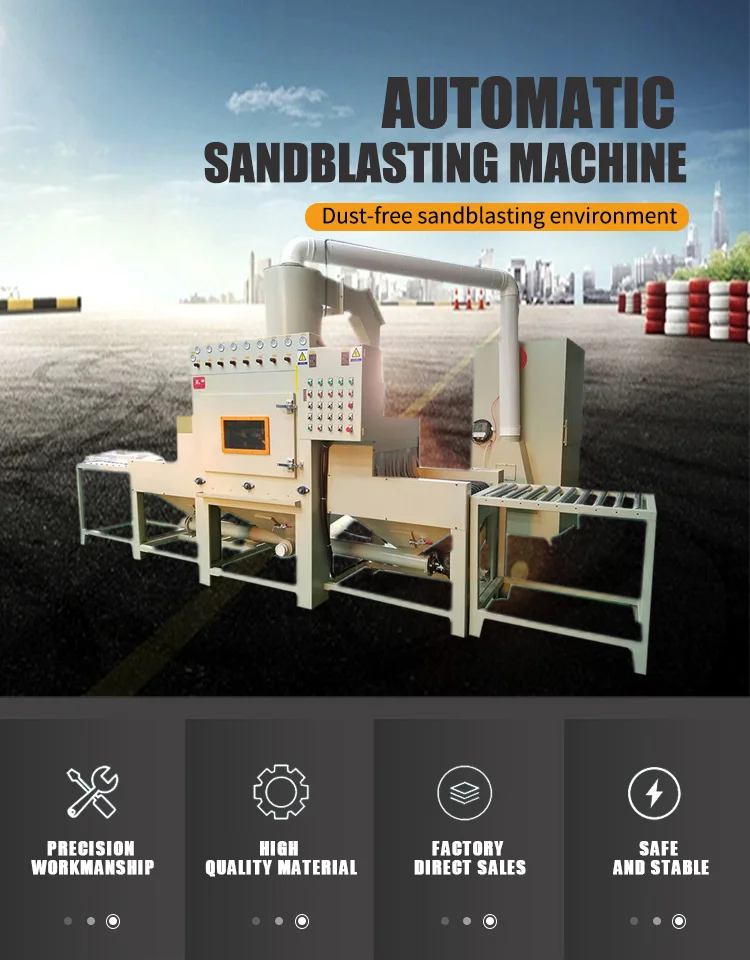

_01.jpgConveyor automatic sand blasting machine is also called plane automatic sand blasting machine and pipeline sand blasting machine. It is a high-yield automatic sand blasting machine, which needs sand blasting products on the side.


The automatic conveyor belt will automatically bring the sand blasting products into the sand blasting chamber.


After sand blasting, the conveyor belt will take the products into the blowing chamber and blow them out automatically.


Finally, the conveyor belt will automatically take the products out and take the products out manually. The whole process is completed automatically and continuously.


Users can also according to the actual situation of the factory, such as with pipelining operation, so that the entire production process can be achieved without manual operation.

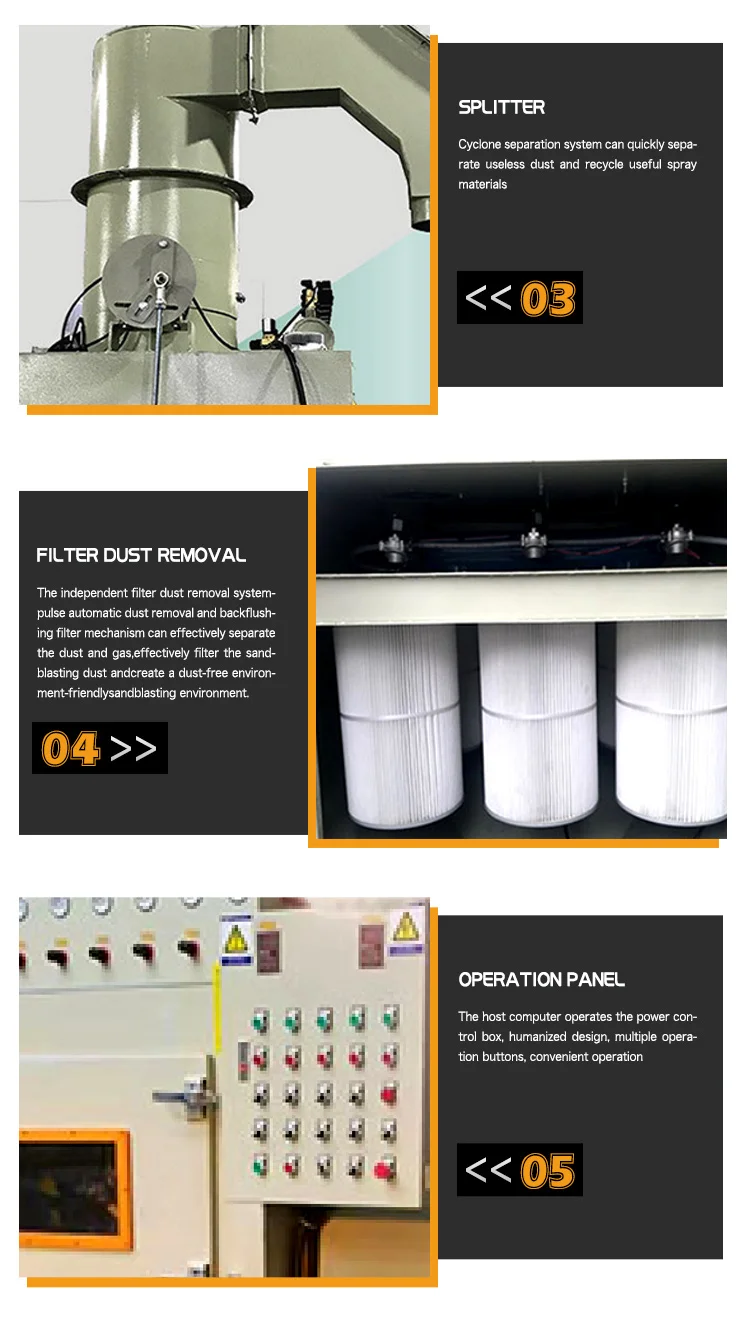

Features


(1) Separate structure, cold rolled steel plate;

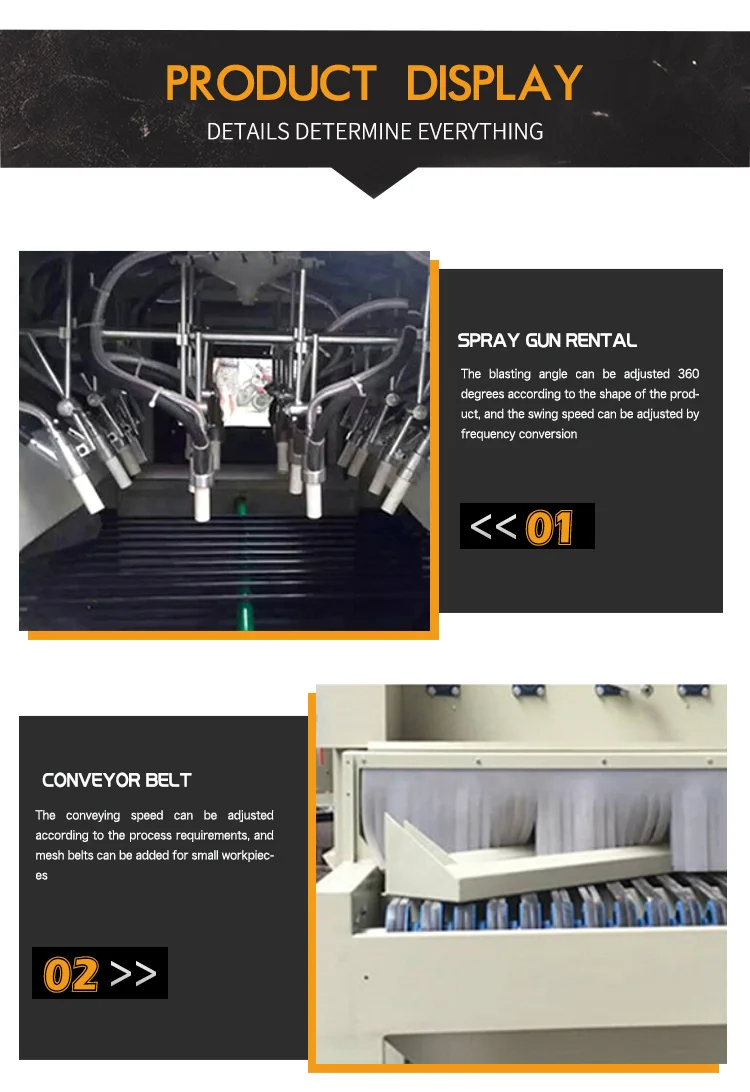

(2) The crawler type triangular rubber belt is used to transport the workpiece, and the linear speed is adjustable.
(3) Multi-gun automatic volley and adjustable swing frequency;
(4) The spray effect is uniform, stable and efficient;
(5) Suitable for high-volume sandblasting processing;

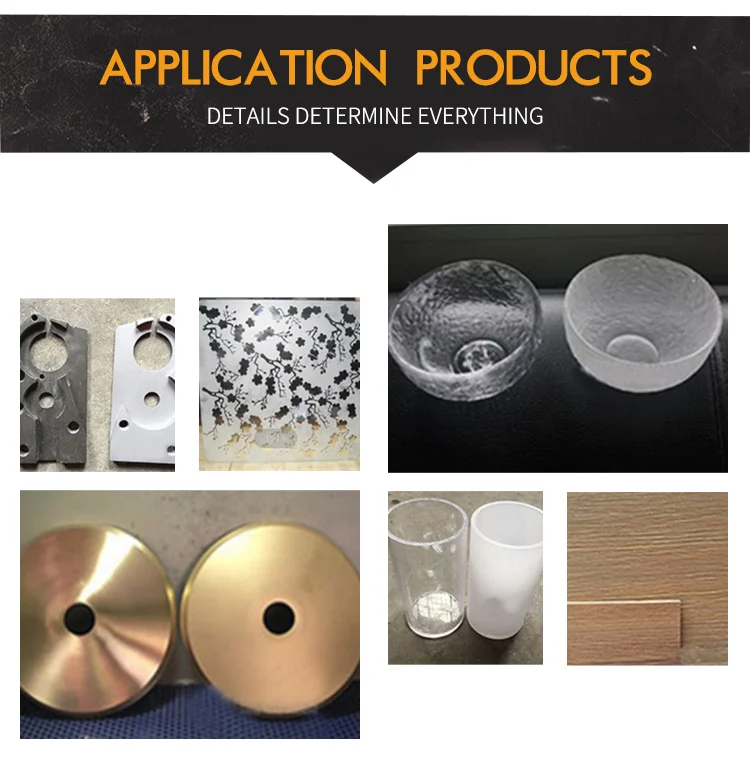

(6) Semi-sealed operation, environmental protection index._03.jpg





Conveyor automatic sand blasting machine is generally suitable for products such as: flat plate, plate, tetragonal, profiles and other heterosexual parts of the sand blasting process, such as: flat stainless steel plate, ordinary steel plate, glass sheet, stone, non-stick pan, baking pan, toaster, computer case, functional DVD panel, notebook, computer mainframe.

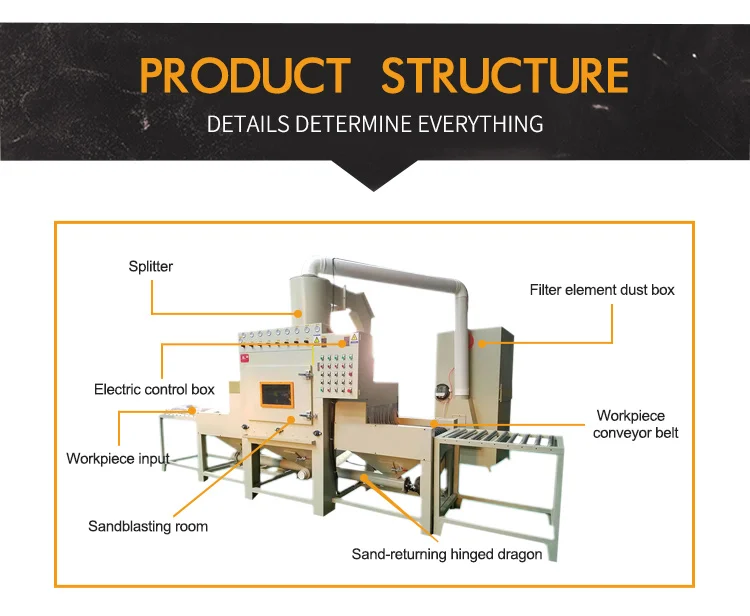

Plates, decorations, badges, communication equipment, aluminium sheets, profiles and other special-shaped parts, etc._04.jpg















































Fully automatic conveyor sand blasting machine
Host Size3800*1300*1900mm
Studio size1200*1200*800mm
Width of conveying workpiece100*250mm
Dimensions of filter cartridge1250*1200*2400mm
Number of filter elements6
Dust-removing motor with filter element5.5kw
Belt conveyor motor1.5kw
Swing motor0.4kw
Winch motor0.75kw



Feature




Company Introduction












Buyers visit







Certifications







Advantage



1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.

3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.

6.Factory and Competitive Price we offer.

7.Strong Research & Development technical team.

8.Various machinery to meet all your needs at our factory.

9.Engineeres are available to guide the installation and take care of other problems.

10.We offer OEM&ODM service to meet all your requirements.





Packaging & Shipping

















FAQ



1. Q: Are you trading company or manufacturer?


    A: We are original equipment manufacturer.


2. Q: How long is your delivery time?


    A: It is according to the model and quantity.


        Generally it is 3-5 days if the machines are in stock.


        It will be 15-30 days if you want to customize the machines.


3. Q: Do you provide samples? Is it free or extra?


    A: Yes, we could offer you the sample machine.


        But it's not free. You need to pay for the sample and the cost of freight.


4. Q: What is your terms of payment?


    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.


        Payment<=USD 5000, 100% in advance.


        Payment>=USD 5000, 30% T/T in advance, balance before shipment.





If you want to buy sand blasting machine, could you tell me the answers as follow?


Please indicate the following details:
1. What kind of workpiece will you clean? Material?


2. The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3. How heavy is each workpiece? Especially the weight of maximum workpiece?


4. How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference.
