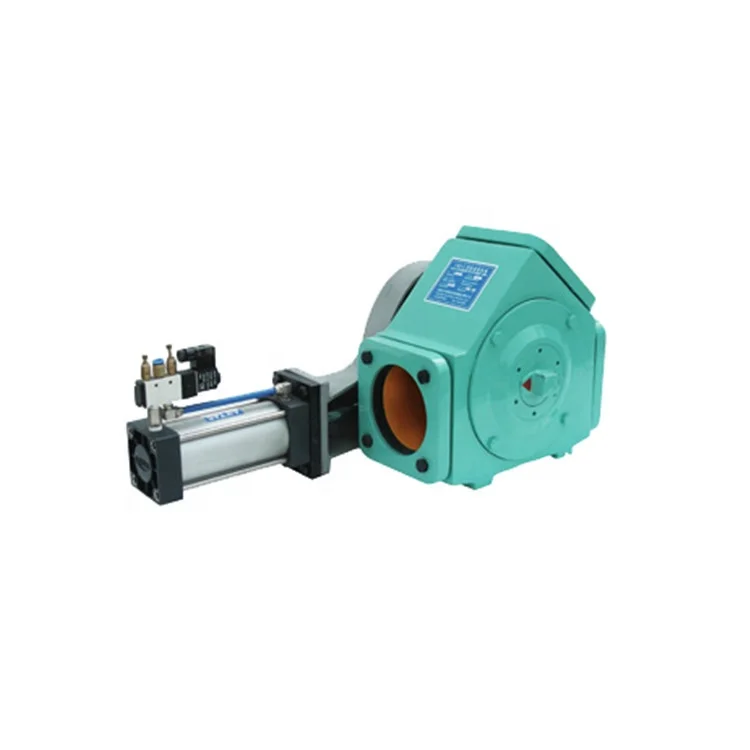

Bulk Solids Conveying Direction Changing Plug Diverter Valve

Production Description of Diverter Valve

1) The plug diverter valve (two way valve) is mainly used for changing the direction of powder materials or small granular materials in pipes by pneumatic conveying system.

2) The plug diverter valve (two way valve) can be sent the material to two different locations during incoming material conditions.

3) In the system line switching, the plug diverter valve (two way valve) provides two different lines to make the material into or bypass certain processing.

4) With pneumatic, electric and manual switching line way, the machine body material can be cast iron and stainless steel.

5) The plug diverter valve (two way valve) can be widely used in the pneumatic conveying system of flour, bran, starch, grain, feed, sugar, chemical products, plastics powder materials, or bulk solid materials in flour mills, food factories, chemical factories, feed mills, rice mills, etc.

Specification

1.Size: DN100-DN400

2.Pressure: +/-1bar Operation

3.Temperature: -10°C~400°C Suitable

4. Medium: Flour, Wheat, Cement, Husks, PE particles, Dust, Fly Ash, etc.

Standard

1.Standard Design Standard: GB/T 12238-2008

2.Structural Length: GB/T 12221-2005

3.Face to face dimensions: GB,DIN,BS4504,ISO,ANSI

4.Type of connection: Flange Type, Pipe Welding

Main materials

Application

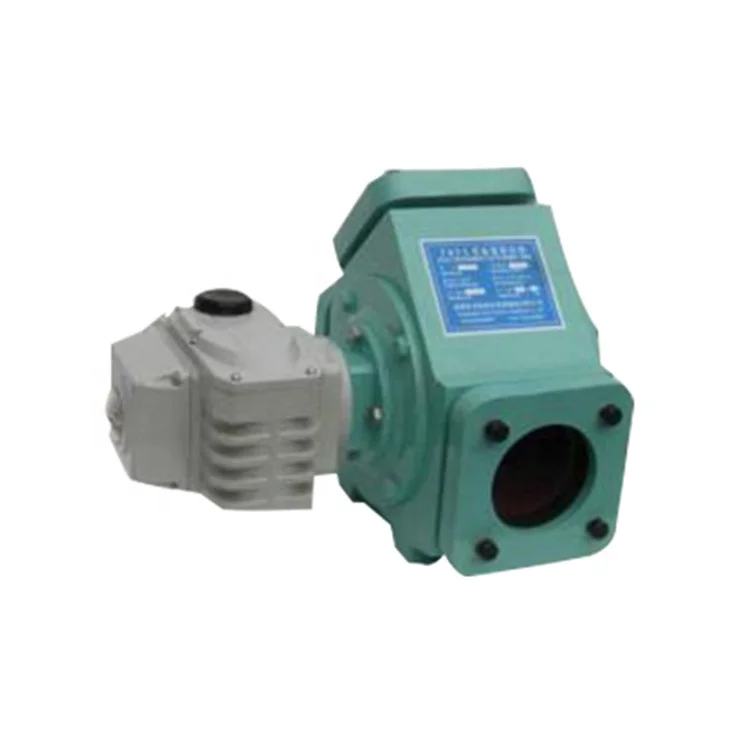

It is mainly used in pneumatic conveying to changing the conveying direction. It can reach two ways in and one way out, also can meet one way in and two ways out. We generally offer three drive types for the plug diverter valve, one is manual type, one is electric type, and the other one is pneumatic type.

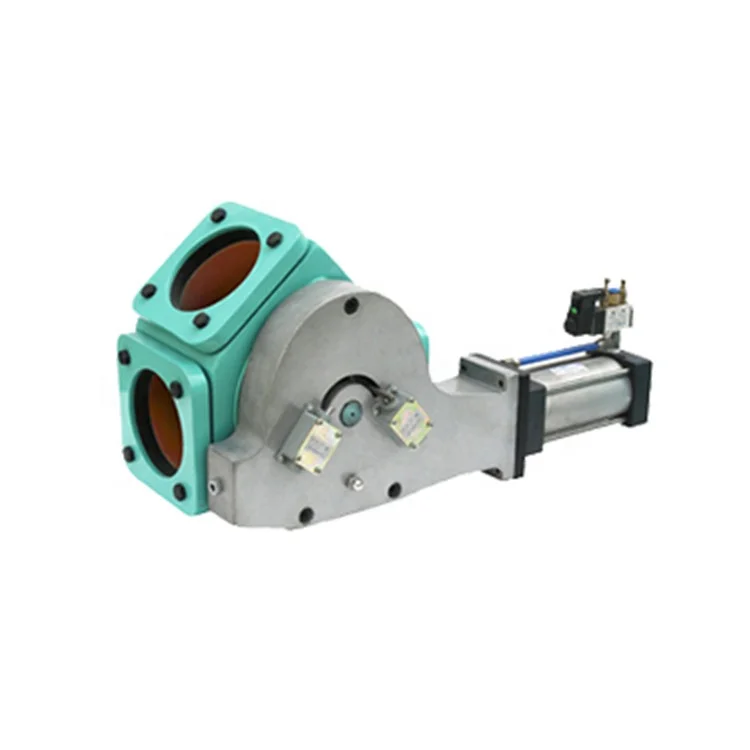

We offer AirTAC and Festo cylinder. The solenoid valve goes with cylinder is DV24V, double coils.

Dimension Display

Factory Overview

CHEEGERS is the professional manufacturer of rotary valves, magnetic separators, etc which are widely used in pneumatic conveying systems. We have a professional R&D team, they are able to meet various requirements raised by clients. After a thorough analysis of your system, the sales managers can select the best model for you. Plus complete after-sale services are completed, our technicians are always pleased to help with your malfunctions, overseas services can even be satisfied if necessary. Meanwhile, OEM/ODM is welcome.

With integrated cooperation, our products exported to over 30 countries and areas, like Germany, Italy, Canada, Southeast Asia, etc. we are striving to broaden the selling network and add service agency.

Our products and sales services both gained highly speak of from customers. Believe we can do better and better.

Handling Material

With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.

For different sizes, shapes handling material with different charateristics, we have professional plans and solutions to deal with them in pneumatic conveying system.
