Пневматический внутренний линейный зажим ILUC инструмент для выравнивания
- Категория: >>>
- Поставщик: Luoyang Deping Technology Co. Ltd.Luoyang Ltd.
Сохранить в закладки 1600429859921:
Описание и отзывы
Характеристики
Company profile
Established in Year 2005, as an ISO9001/IS014000/OHSAS18001 accredited company and high-tech enterprise, Luoyang Deping Technology Co., Ltd (DP pipe machine) is specialized in manufacturing pipeline construction equipment and providing automatic welding solution onshore & offshore.
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
With more than 20- year project experience onshore & offshore in 50 countries
Have long stable relationship with global top contractors
IPLOCA member (International Pipe Line & Offshore Contractors Association)
Have long stable relationship with global top contractors
IPLOCA member (International Pipe Line & Offshore Contractors Association)
Product Overview

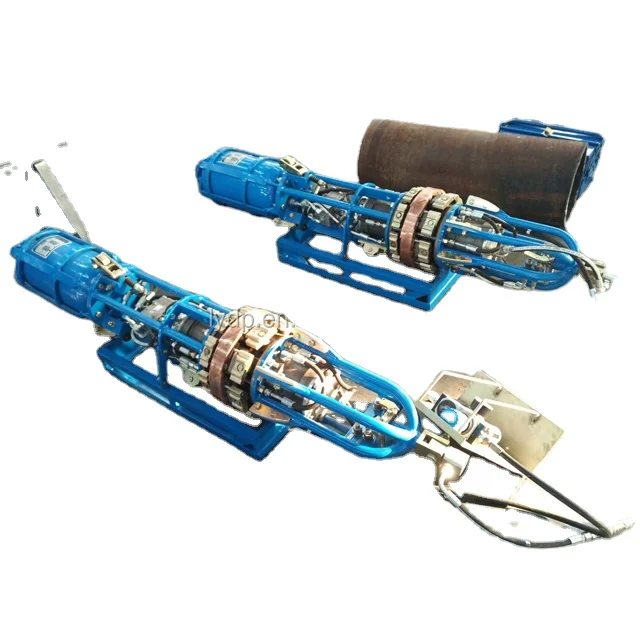

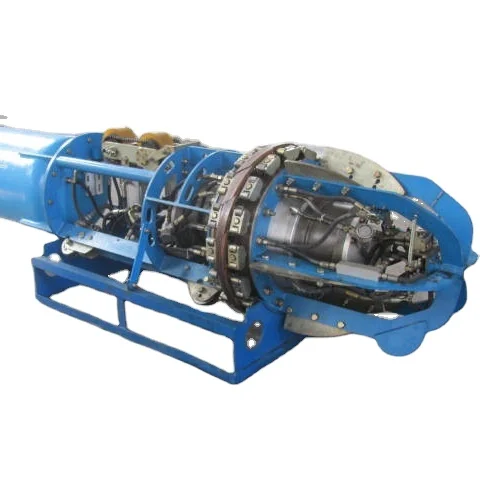

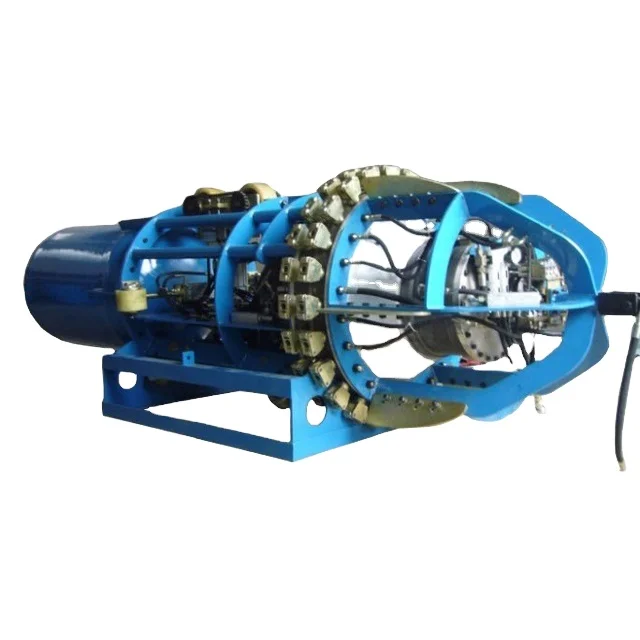

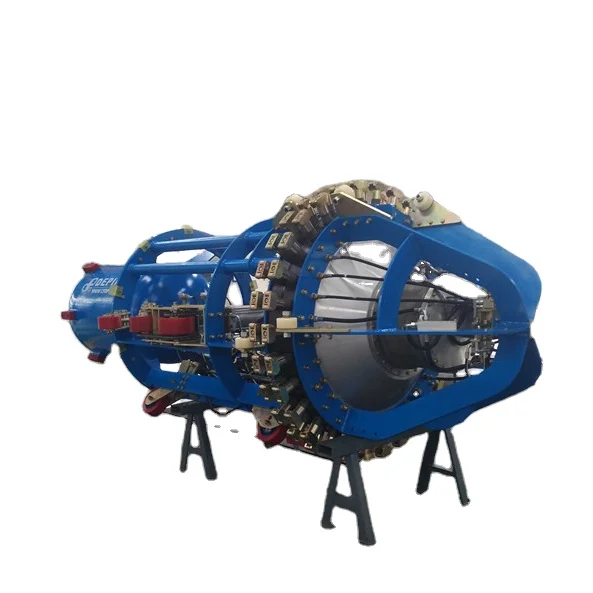

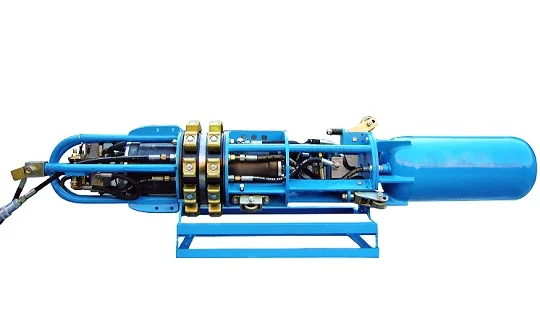

INTERNAL PIPE LINE UP CLAMP work inside the pipe to align two pipe joints for external welding
Technology specs:
Technology specs:
1.Applicable pipe size 6"-80"
2. All Pneumactid components of our clamps used are the German brand--FESTO,with 16 sets Valves and 3 sets cylinder
3.The drive motor we used are the American brand--Ingersoll with best quality.
4.The clamp shoes can be up to 36 pieces.
5.Our clamp can be used at ambient temperature of -30 to +80 degree and air humidity of 95%. Protection grade of air control valveis IP65.
6. All carbon steel force parts of the clamp are treated by nitriding rust proof. All standard parts are treated with nail rust
proof. All connections includes hose buckle at both ends are use of Dacro painting.
7. The frame painting of the clamp is made of one special paint which called salt spray resistance for three times.
3.The drive motor we used are the American brand--Ingersoll with best quality.
4.The clamp shoes can be up to 36 pieces.
5.Our clamp can be used at ambient temperature of -30 to +80 degree and air humidity of 95%. Protection grade of air control valveis IP65.
6. All carbon steel force parts of the clamp are treated by nitriding rust proof. All standard parts are treated with nail rust
proof. All connections includes hose buckle at both ends are use of Dacro painting.
7. The frame painting of the clamp is made of one special paint which called salt spray resistance for three times.
8. Can custom special line up clamp as the project request.
PRODUCT SPECIFICATIONS
Model | DKQ1016 |
Scope of application | Φ1016--Φ1118 (40"—44") |
Product size | Φ950×3200 |
Weight | 1400Kg |
Number of clamp shoes | 18×2 |
Support pressure | 650 T |
Input pressure | 1.5MPa |
Working pressure | 0.8 MPa |
Traveling speed | 0—1m/s |
Grade ability | 15° |
Driving mode | double wheels, self-propeled |
Brake mode | Double mechanism brake |
Main disposition | FESTO pneumatic components Ingersoll Rand pneumatic motor |
Joystick control, easy to operate.
Square pin connection between push rod and clamp shoe for securely fixing effect
With big diameter, the supporting cylinder has better performance.
With nitrogen treated, the supporting cylinder is abrasion resistant and rust-proof.
With nitrogen treated, the supporting cylinder is abrasion resistant and rust-proof.
FESTO or Norgren pneumatic component from Germany. Luoyang Deping own patented design for air discharge valve with easy operation and low equipment defect rate.
America Ingersoll Rand drive motor. ( Internal clamps up to 20 inch are installed with motor )
The hose connections utilize cone sealing, using compressed hose covered by a steel wire protective
layer. The hose and fittings adopt Eaton , Parker or equivalent brand.
layer. The hose and fittings adopt Eaton , Parker or equivalent brand.
Other Types of Line Up Clamp
Pipe line up clamp with copper backing shoes(T)
Pipe line up clamp double joint(Z)
Pipe line up clamp with purge system(Q)
SALES AND SERVICE NETWORK
OUR PRODUCTS HAVE EXPORTED TO MORE THAN 50 COUNTRIES SUCH AS SAUDI ARABIA, RUSSIA, INDIA, SOUTH KOREA, MALAYSIA, TURKEY, THE UNITED STATES, etc;
Successful Project
Domestic Projects:
west-east natural gas transmission project line-1, line2, line3.
China Myanmar oil and gas pipelind,
Shan-jing line1,
Sichuan east gas transmission project,
Puguang gas project,
Weizhou oilfiles development project,
LW3-1(South China sea deepwater project),
LW3-1(South China sea deepwater project),
Oriental offshore pipeline project, . etc
Global Projects:Sino-Russia
Vishita project in India (offshore)
NFA WHP3 project in Qatar (offshore)
SSSGEP project in Nigeria (onshore)
Bekapai Project-Total Indonesia (offshore)
The fifth transmission pipeline project phase 2 (5TP2) in Thailand (onshore)
TANAP project in Turkey (onshore)
Vishita project in India (offshore)
NFA WHP3 project in Qatar (offshore)
SSSGEP project in Nigeria (onshore)
Bekapai Project-Total Indonesia (offshore)
The fifth transmission pipeline project phase 2 (5TP2) in Thailand (onshore)
TANAP project in Turkey (onshore)
ETC....
Certifications
Related products
Main Products:
Pneumatic internal line up clamp; Pipe facing machine; Automatic internal welding machine
Automatic orbital welding machine; Paywelder; Roller cradle
Pipe bending mandrel; External line up clamp
Pneumatic internal line up clamp; Pipe facing machine; Automatic internal welding machine
Automatic orbital welding machine; Paywelder; Roller cradle
Pipe bending mandrel; External line up clamp
