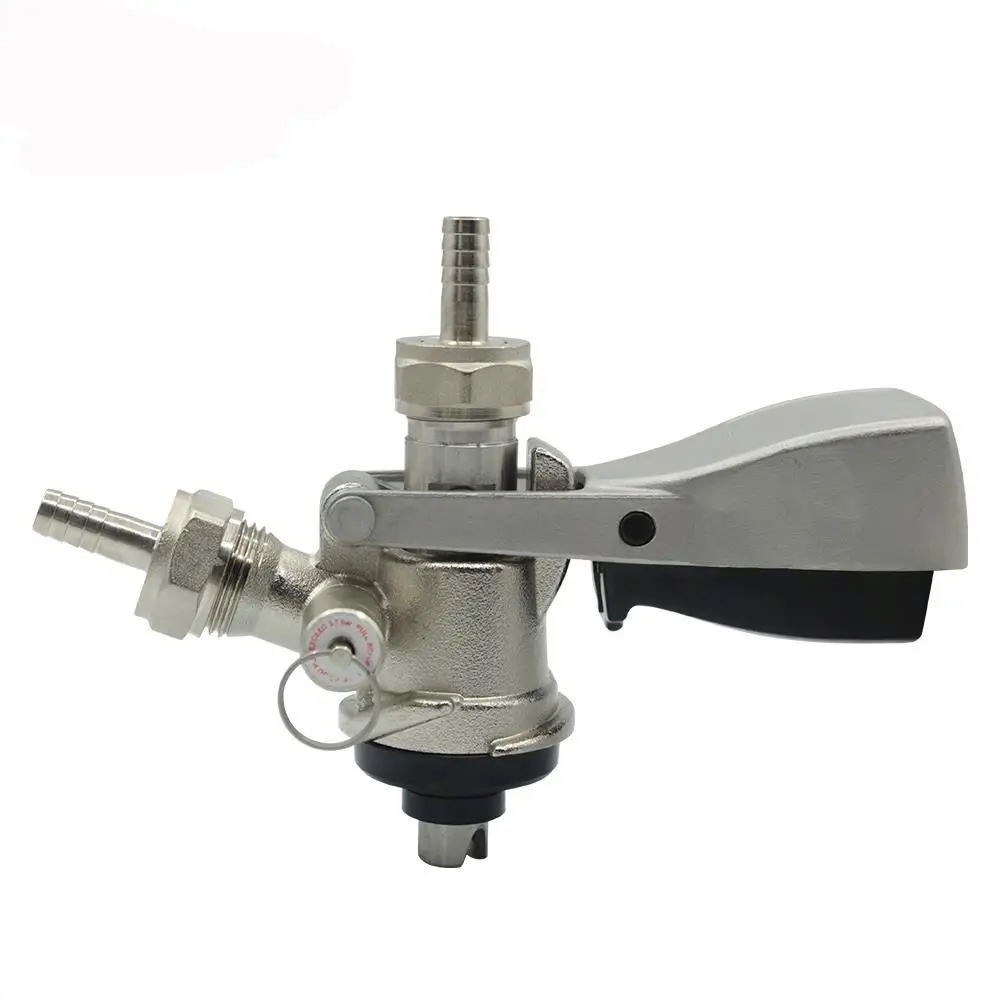

Стандартная головка для вина нержавеющая сталь пивной цилиндр антипенопластовый смеситель бочка бочки оборудование распределения пива
19,91 $ - 24,89 $

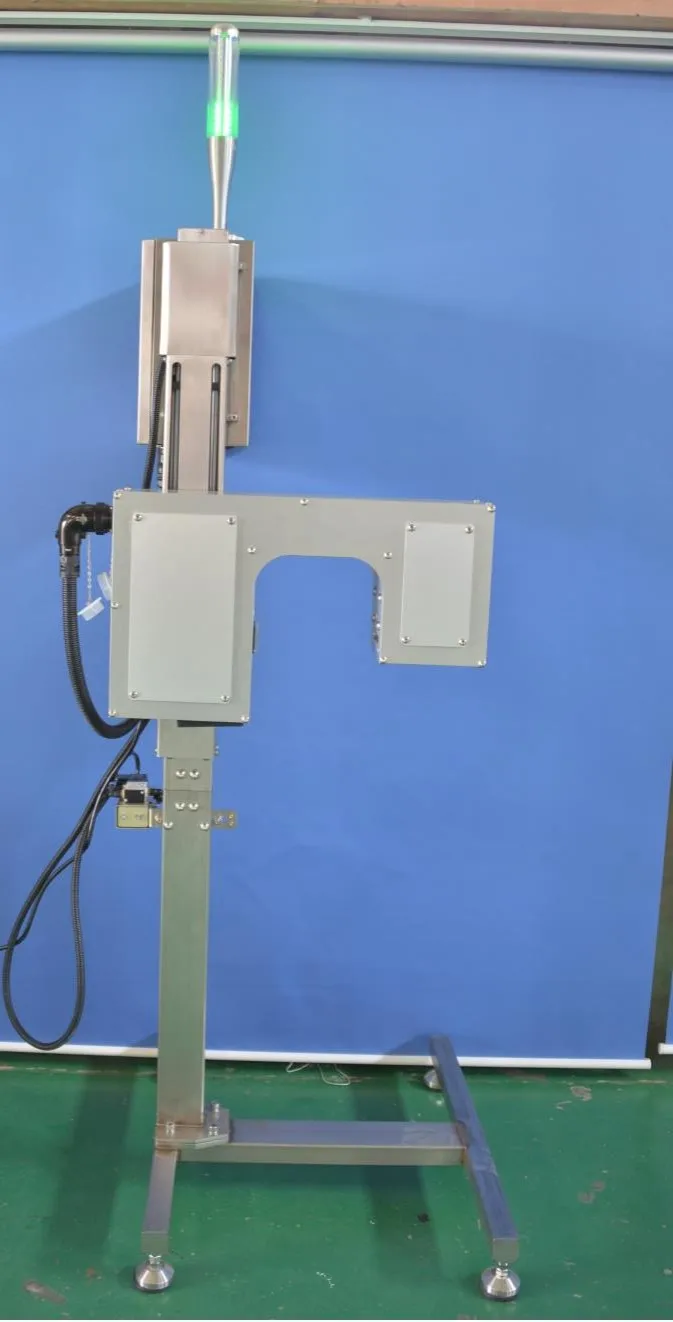

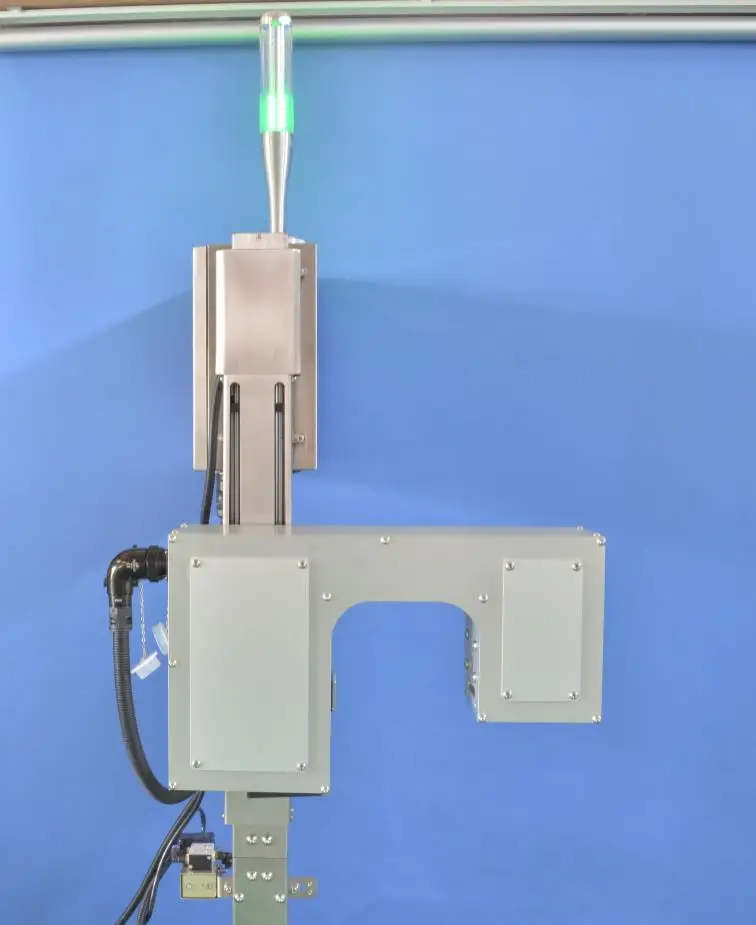

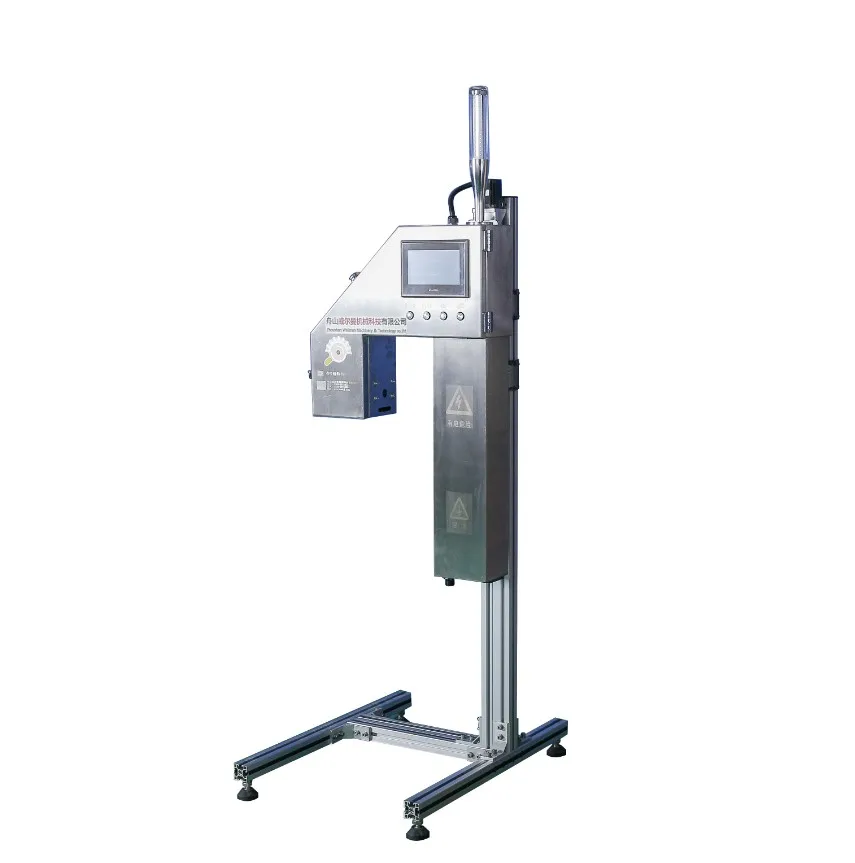

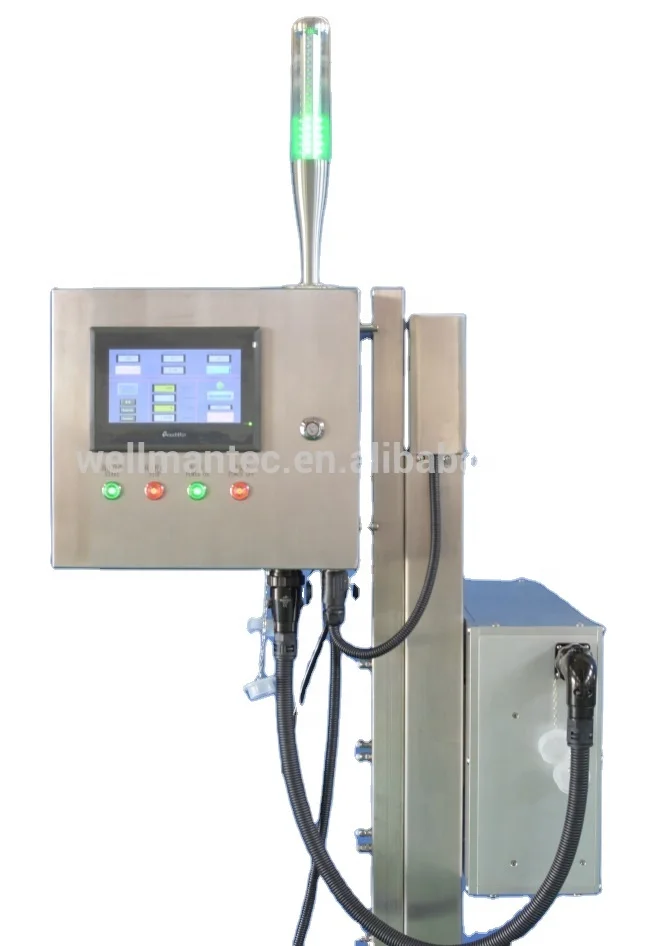

Автоматический онлайн инспектор проверка уровня жидкости в бутылках для напитков и пива рентгеновский контроль
- Категория: Beverage & Wine Machine Parts >>>
- Поставщик: Zhoushan Willman Machinery Technology Co. Ltd.
Сохранить в закладки 1600430138522:
Описание и отзывы
Характеристики
Product Description
type
the type filling liquid level detector is a kind of advanced liquid level detector which is researched, development and manufactured by our company, and reaches the advanced level of domestic and abroad. The principle of that “the ray intensity changes with the charge level change of detected material after interaction between low-energy photon source and detected material” is utilized to control and inspect the filling liquid material capacity. Given its non—contact measure way, the product basically solve the problem that the conventional weighing method cannot measure the filling liquid material capacity on production line, and it’s widely applied in the automatic online control of filling liquid material production lines(both bottling and filling) of food, medicine, chemistry, weapon and etc.
Major technological indicators
(1)Band carrier linear speed of production: ≤1.8M/s
(2)Container diameter:20MM-100MM
(Different detectors for different containers concentrations and diameters)
(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)
(4)Static liquid level detection accuracy: ≤0.5MM(water)
(5)Static l detection stability of 8 hours: ≤0.15MM(water)
(6)Unqualified container remove ratio: ≥99%(detection speed:1200 can/min)
(7)Temperature error:0-40 ℃
≤0.25MM for the temperature error of the detection value of 20 ℃
(8)Working requirements:10MS minimum time width (both with and without can)
(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%
(2)Container diameter:20MM-100MM
(Different detectors for different containers concentrations and diameters)
(3)Dynamics container resolution: ±2MM(bubble and shaking may influence the accuracy)
(4)Static liquid level detection accuracy: ≤0.5MM(water)
(5)Static l detection stability of 8 hours: ≤0.15MM(water)
(6)Unqualified container remove ratio: ≥99%(detection speed:1200 can/min)
(7)Temperature error:0-40 ℃
≤0.25MM for the temperature error of the detection value of 20 ℃
(8)Working requirements:10MS minimum time width (both with and without can)
(9)Usage environment: 0-40 ℃ temperature, relative humidity≤95%
Technological characteristics
(1)Without warming-up, the detection can be conducted directly after starting up the product.
(2)Non-contact inspection, fast inspection speed, and high accuracy.
(3)The product can automatically fit to the different production line speed and realize dynamics detection.
(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.
(5)The radiation of high-frequency ray will be automatically interdicted at free time.
(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.
(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.
(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.
(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.
(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.
(2)Non-contact inspection, fast inspection speed, and high accuracy.
(3)The product can automatically fit to the different production line speed and realize dynamics detection.
(4)The product is manufactured with stainless steel shell and seal design mainframe, which is anti-fog, anti-water drop and possesses strong environmental suitability.
(5)The radiation of high-frequency ray will be automatically interdicted at free time.
(6)The product employs hardware circuit implementation and built in operate system, which can ensure long-term stable operation.
(7)Simultaneous alarm of sound and light, automatic remove of unqualified container.
(8)The 9 inch touch screen display provides simple and reliable man-machine operate interface, which is flexible and convenient to change bottle type.
(9)Large screen Chinese display, LED backlit liquid crystal, clear and bright character, man and machine communicate method operation.
(10)Without isotope radioactive source, the product employs soft ray design while its ray protection is safety and reliable.
Related Products
Contact Us
Company Profile
zhoushan willman machinery technology Co, Ltd is a professional manufacturing enterprise of a high-tec equipment, integrates research and development, design, manufacture, sales and service We are specialed in canned food beverage canning machienry and liquid nitrogen dosing machine including aseptic liquid dosing machine and food products detection machine like vacuum detection machine, inner pressure detection mahcine ect. Our skilled team will provide you professional service including layout design. Adhering to energy saving, labor saving, and capacity increasing, we pay more attention the quality in our products we produce.
Our Advantages
Packing & Delivery
FAQ
1, You are trading company or manufacturer？
are ALIBABa vertifid manufacturer of canned food and beverage machinery. Our main products are: Filling machine, Seaming machine, Liquid nitrogen dosing machine (Non aseptic or aseptic one), Vacuum detection machine, Labeling machine, Pasteriliza-tion Machine, Palletizing /Depalletizing Machine.
2.What is lead time of your products?
About 15-20 days for single machine; About 60-70 days for whole production line cording to the project scale.
3, Do you have reference project?
We have reference project in most countries, If we get the permission of the customer who has brought the machines from us, we can tell you their contact imformation, you can go to ist their factory. And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the airport in our city. Contact our
sales people you can get video of our reference running machine.
4, Do you provide customized service?
Yes, sure. We can design the machines according your requirements(material, power, filling type so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.
5, How long time for installation?
According your machines order, we will send one or two engineers to your plant, it will take about 7 days to 25 days.
6, How can you guarantee quality?
1. Production managing is responsibility system Each operator in our workshop are responsibile for each part of working process.
2. We file all the problems we met when producing.
3. Skill internal and external training.
4. Follow quality system managment.
5. Test all the machine before shippment.
7, Why choose us?
1. Professional manufacturer.
2. A certain amount of inventory available which makes short lead time.
3. Delivery fast.
4. Skilled production team.
5. Qualified machines.
6. Over 15 vears experience.
7. Excellent before- sales and after-sales services.
are ALIBABa vertifid manufacturer of canned food and beverage machinery. Our main products are: Filling machine, Seaming machine, Liquid nitrogen dosing machine (Non aseptic or aseptic one), Vacuum detection machine, Labeling machine, Pasteriliza-tion Machine, Palletizing /Depalletizing Machine.
2.What is lead time of your products?
About 15-20 days for single machine; About 60-70 days for whole production line cording to the project scale.
3, Do you have reference project?
We have reference project in most countries, If we get the permission of the customer who has brought the machines from us, we can tell you their contact imformation, you can go to ist their factory. And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the airport in our city. Contact our
sales people you can get video of our reference running machine.
4, Do you provide customized service?
Yes, sure. We can design the machines according your requirements(material, power, filling type so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.
5, How long time for installation?
According your machines order, we will send one or two engineers to your plant, it will take about 7 days to 25 days.
6, How can you guarantee quality?
1. Production managing is responsibility system Each operator in our workshop are responsibile for each part of working process.
2. We file all the problems we met when producing.
3. Skill internal and external training.
4. Follow quality system managment.
5. Test all the machine before shippment.
7, Why choose us?
1. Professional manufacturer.
2. A certain amount of inventory available which makes short lead time.
3. Delivery fast.
4. Skilled production team.
5. Qualified machines.
6. Over 15 vears experience.
7. Excellent before- sales and after-sales services.
Похожие товары
Небольшая токарная
Черная пластиковая Вакуумная бутылка-захват для бутылки с
Полный Концентрированный Фруктовый яблочный сок делая производственную линию обрабатывающей
21 500,00 $ - 25 000,00 $

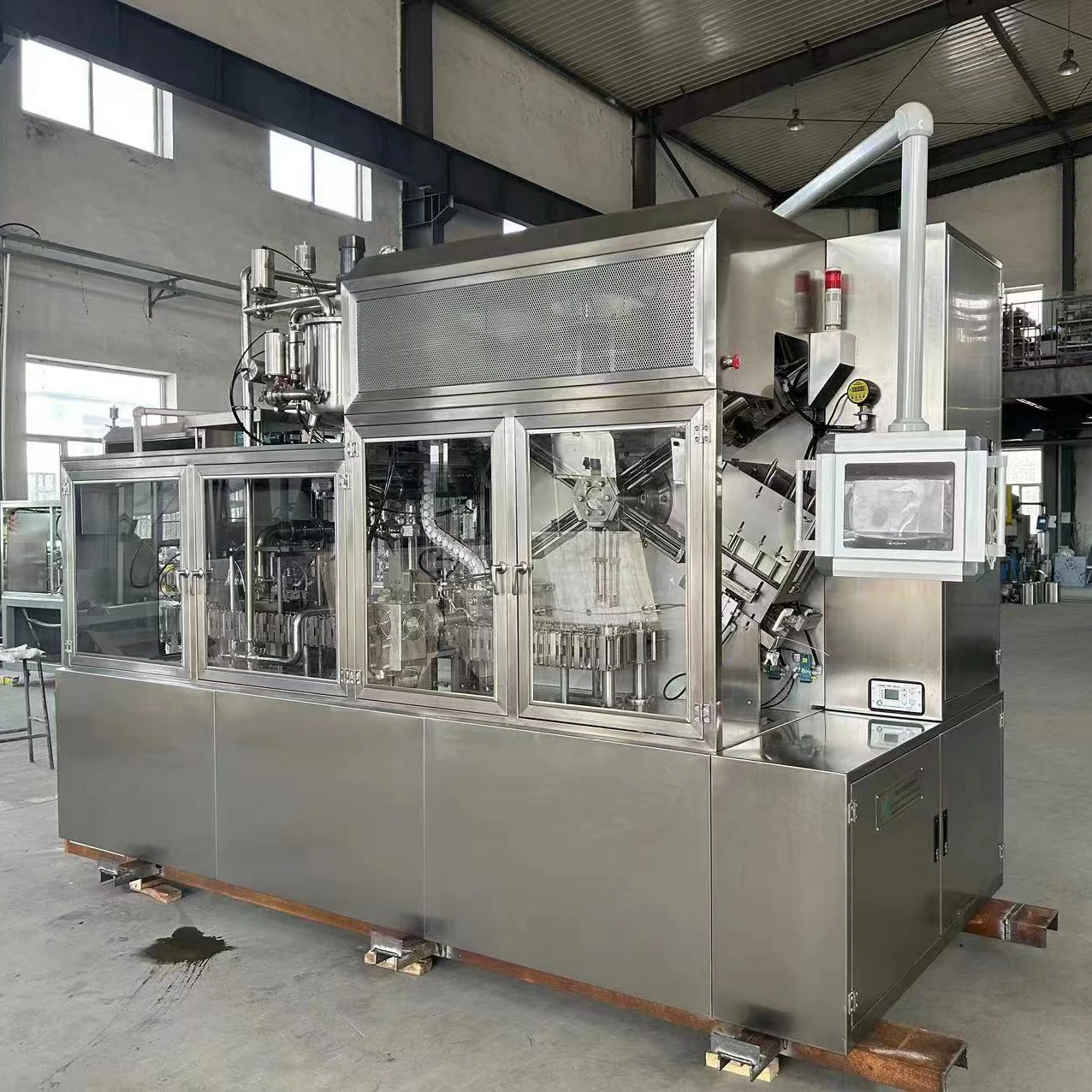

Автоматическая машина для розлива напитков 250 мл Для асептической кирпичной
8 000,00 $ - 8 888,00 $

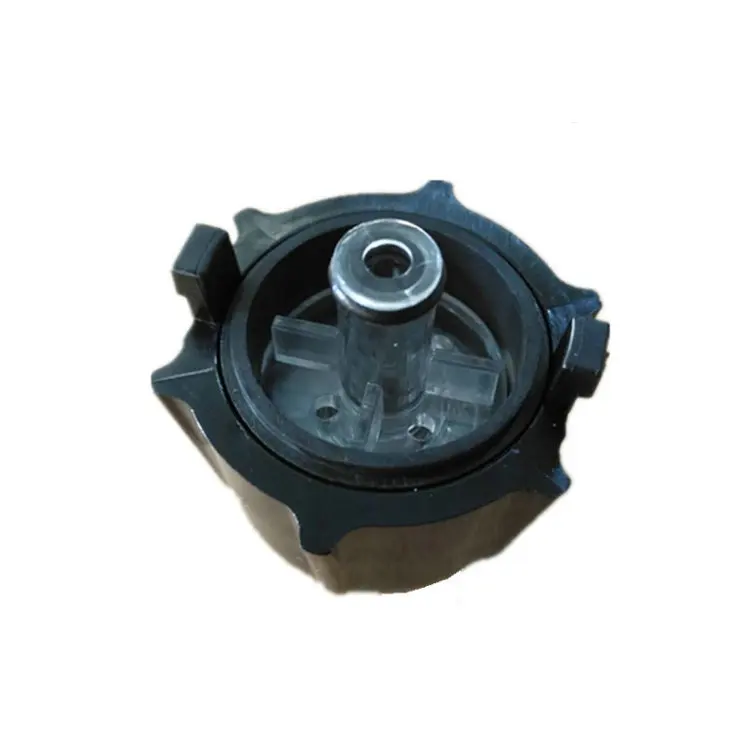

Пластиковая часть диффузора фломатического клапана для водяных
3,00 $ - 5,00 $
BKC1007 S система бочонок копье соединитель ствол Соединитель с безопасным
10,00 $ - 30,00 $

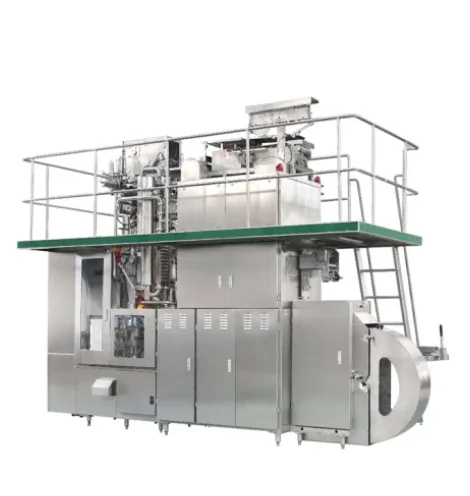

Автоматическая машина для наполнения коробок яблочного сока молока
