Профессиональный дизайн 140HP XGMA автогрейдер SG14 3C с дешевой
- Категория: Motor Graders >>>
- Поставщик: Cruking Engineering Equipment (Xiamen) Co. Ltd.
Сохранить в закладки 1600430319343:
Описание и отзывы
Характеристики
Professional Design 140HP XGMA Motor Grader SG14-3C With Cheap Price
Contact Way
Products Description
Technical Features
The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation. The 6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability and flexibility are guaranteed.
The rear axle is 3-section drive axle with NO-SPIN self-locking differential.
Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.
The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is guaranteed.
The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible steering.
The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.
The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.
Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.
The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation. The 6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability and flexibility are guaranteed.
The rear axle is 3-section drive axle with NO-SPIN self-locking differential.
Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.
The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is guaranteed.
The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible steering.
The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.
The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.
Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.
Product Paramenters
Comparison item | SG14-3C |
Performance parameter | |
Working quality of the whole machine (kg) | 10870 |
Wheelbase (mm) | 5813 |
Wheel base (mm) | 2050 |
Minimum ground clearance (mm) | 430 |
Front wheel steering angle (°) | ±45 |
Articulated steering angle (°) | ±25 |
Maximum traction force (kN) | 64 |
Turning radius (mm) | 6600 (outside of front wheel) |
Maximum climbing ability (°) | 20 |
Blade width (mm) | 3660 |
Blade height (mm) | 615 |
Swivel angle of blade (°) | 360 |
Blade cutting angle (°) | 30-68 |
Maximum cutting depth of blade (mm) | 500 |
Length (mm) | 7921 |
Width (mm) | 2380 |
Height (mm) | 3170 |
engine | |
engine model | WP6G140E22 |
emission | Ku--ji |
form | In-line, water-cooled, four-stroke, turbocharged |
Rated power/rated speed (kw/rpm) | 105/2200 |
Transmission system | |
Torque converter | Single-stage single-phase three-element |
Gearbox | Fixed axis power shift |
Gear | First six and last three |
Backward speed of second gear (km/h) | 13.2 |
Backward speed of third gear (km/h) | 29.6 |
Braking System | |
Service brake type | Hydraulic brake |
Parking brake type | Mechanical brake |
Brake oil pressure (MPa) | 10 |
Hydraulic system | |
Working pump | Quantitative gear pump, displacement 25ml/r |
Working valve | Integral multi-way valve |
Set pressure of safety valve (MPa) | 16 |
Steering Pump | Quantitative gear pump, displacement 25ml/r |
Set pressure of safety valve (MPa) | 12.5 |
Oil filling | |
Fuel tank (L) | 220 |
Working hydraulic oil tank (L) | 85 |
Engine (L) | 13.3 |
Gearbox (L) | 28 |
Drive axle (L) | 25 |
Balance box (L) | 2X23 |

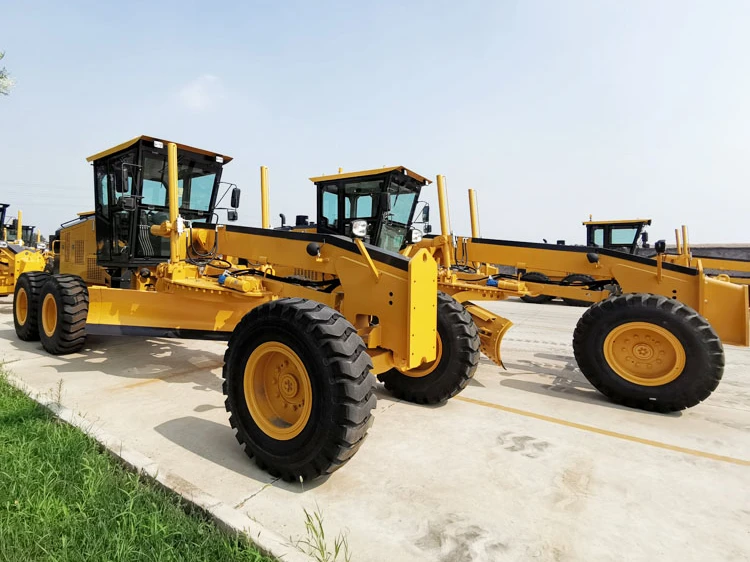

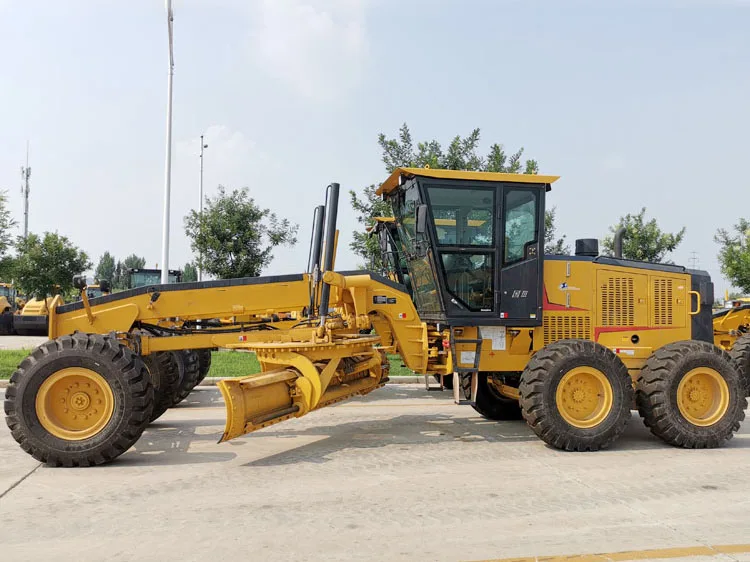

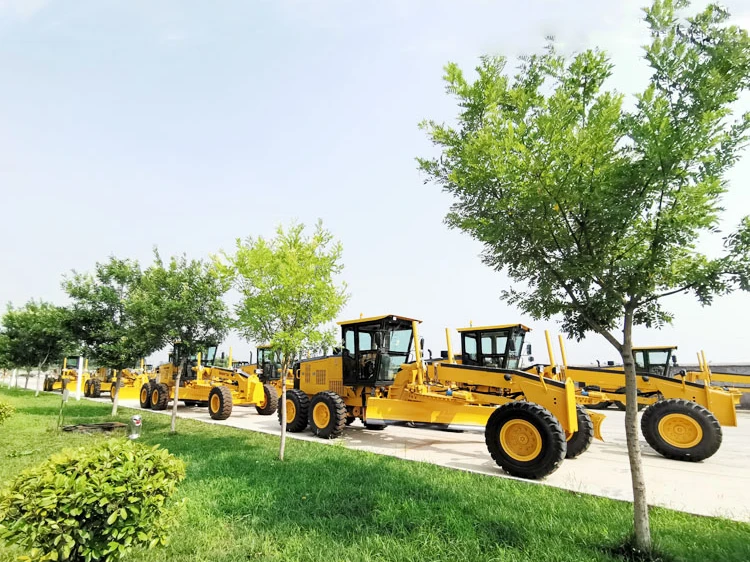

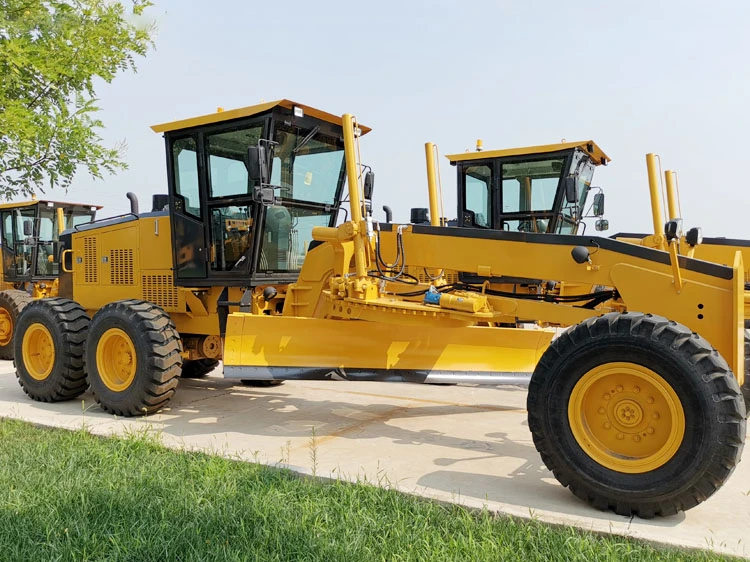

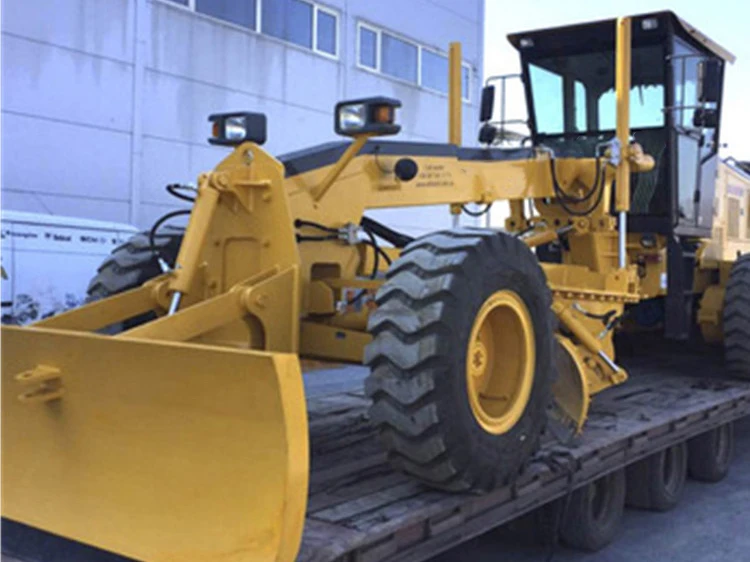

Details Images
