2012 Новый G.Weike LF3015GH высокоэффективный ЧПУ волоконно лазерный режущий станок 3015GH для листового металла
- Категория: >>>
- Поставщик: Gweike Tech Co. Ltd.
Сохранить в закладки 1600430712064:
Описание и отзывы
Характеристики
Product Overview

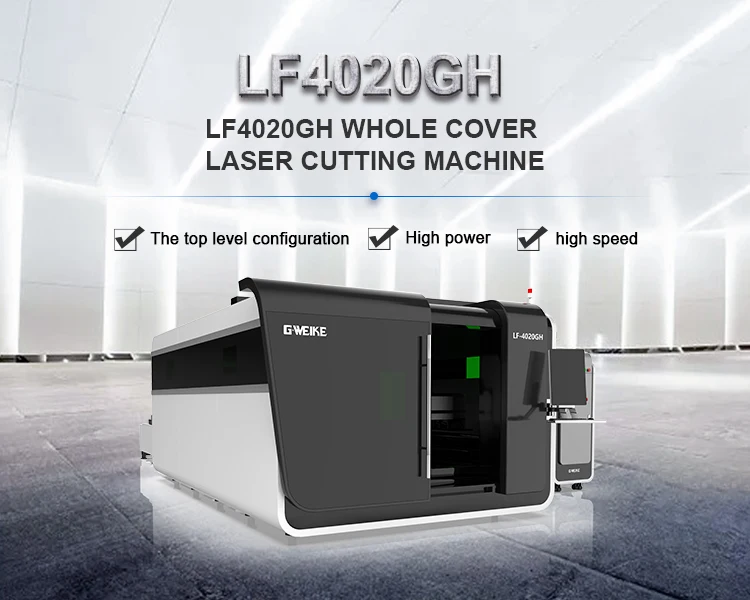

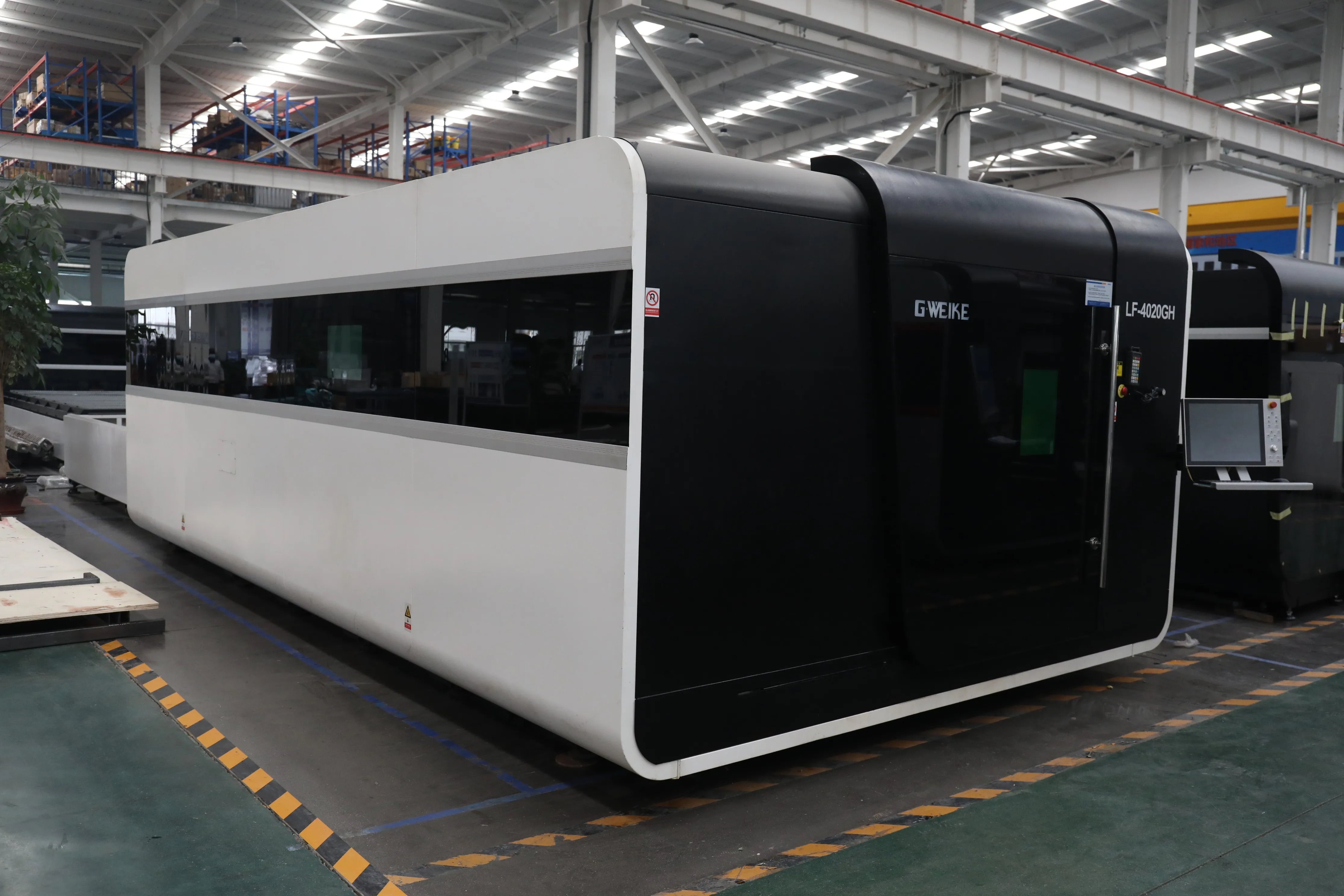

G.Weike LF4020GH Enclosed Exchange Table Fiber Laser Cutting Machine 8000w for Carbon Stainless Aluminum
Advantages:
1.Monitored control system
In the processing process, each dead comer area can be monitored at any time, the process can be conntrolled.
2.Segmented smoke extraction
The bed adopts segmented smoke exhaust design, axial flow fan, negative pressure exhaust.
3.Automatic obstacle avoidance
Intelligent Anti-collision, improve work efficiency.
Intelligent Anti-collision, improve work efficiency.
Machine Model | LF4020GH |
LF4020GH/LF6025GH/LF10025GH/LF12025GH | 8000W 12000W 15000W 20000W(Optional) |
Working area | 4000mm*2000mm |
Laser source | Raycus/IPG |
Motor and driver | Yaskawa servo motor |
Repeat positioning accuracy | ±0.02mm |
Max speed | 200m/min |
Max acceleration | 2.5G |
Voltage and frequency | 380v 50hz/60hz/60A |
Product Configuration

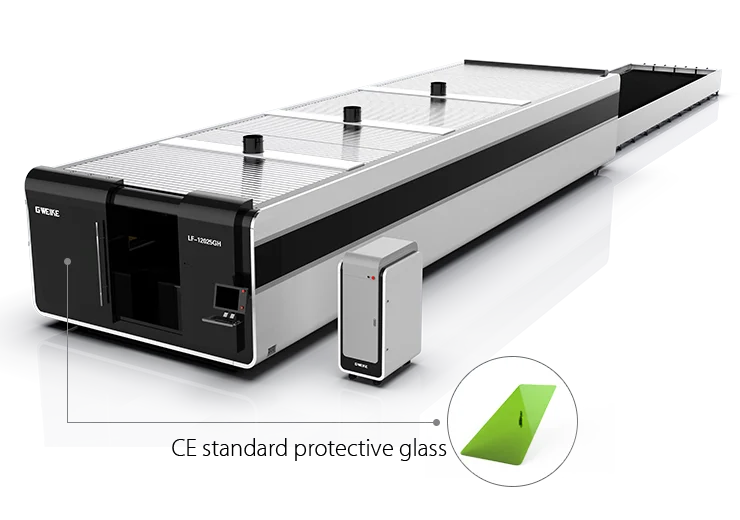

Safety and No Pollution
* With a fully enclosed design
* The observation window adopts an European CE Standard laser protective glass;
* The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
* The weight of machine is 7500kg.
* The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
* The weight of machine is 7500kg.
12000W IPG Fiber Lasers
* World Famous Brand
GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.
* Long Service Life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the
equipment can be guaranteed safely.
* Stable Cutting Performance
Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.
GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.
* Long Service Life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the
equipment can be guaranteed safely.
* Stable Cutting Performance
Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.

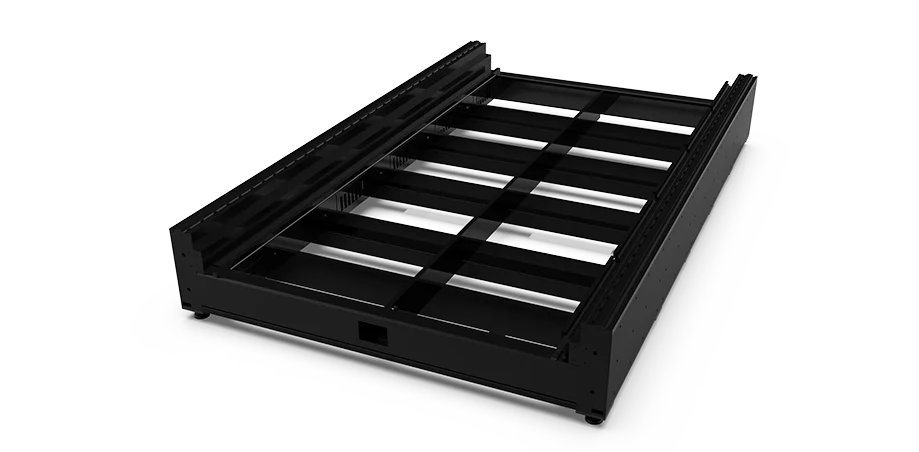

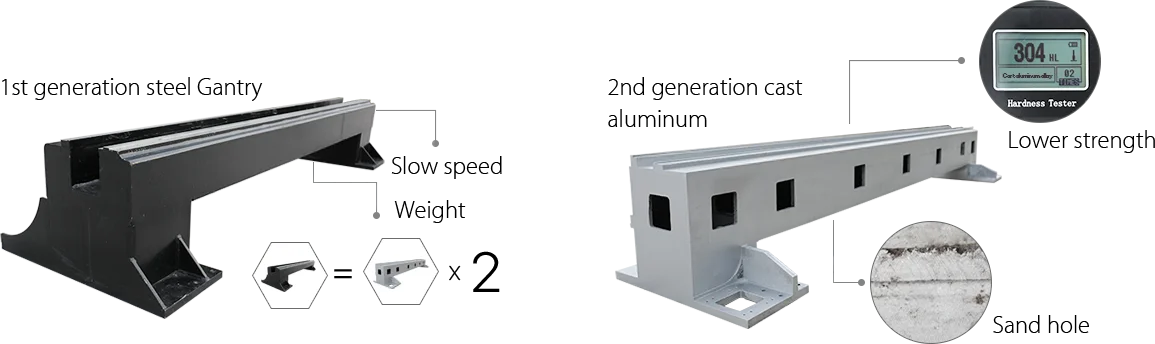

Plate Welding Heavy Work Bed
* Annealed And Heat Treated
Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in
weight is very beneficial to the laser cutting machine cutting speed.
Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in
weight is very beneficial to the laser cutting machine cutting speed.
* Innovative Four Slings Working Bed
For reducing damage to the work bed during laser working, G.WEIKE Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled
For reducing damage to the work bed during laser working, G.WEIKE Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled

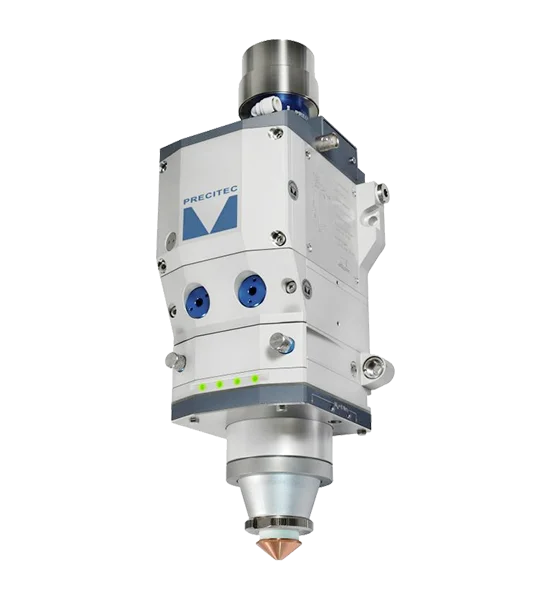

* Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different
thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
* Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
* Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve
the life of the cutting head.
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different
thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
* Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
* Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve
the life of the cutting head.

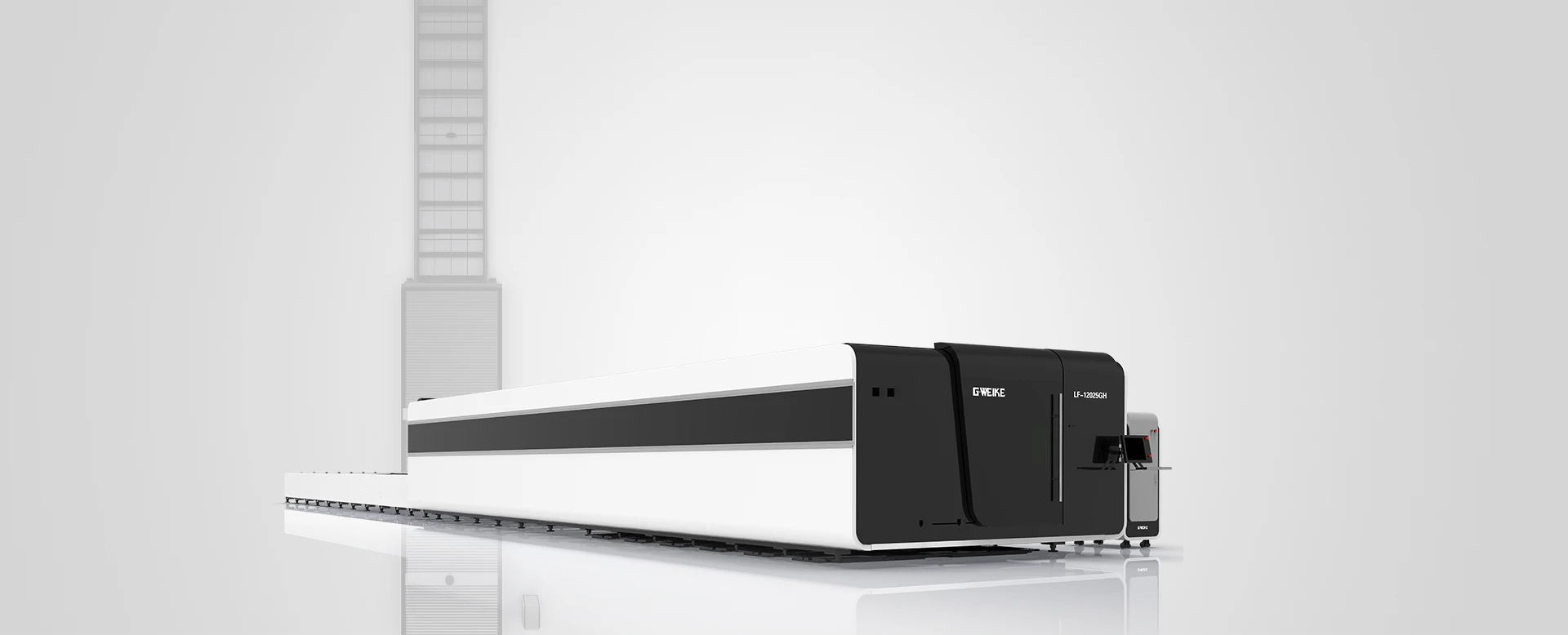

12M Full-page Thick Plate Cutting: Fast,
Stable And High QualityGweike laser large format equipment includes 12025G (12m*2.5m), 10025G (10m*2.5m) The overweight bed process meets the diverse
needs of the global market for large sheet metal cutting High-end, high-precision, high-speed, high-format and cost-effective.
The Third Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strengthcan reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness,light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

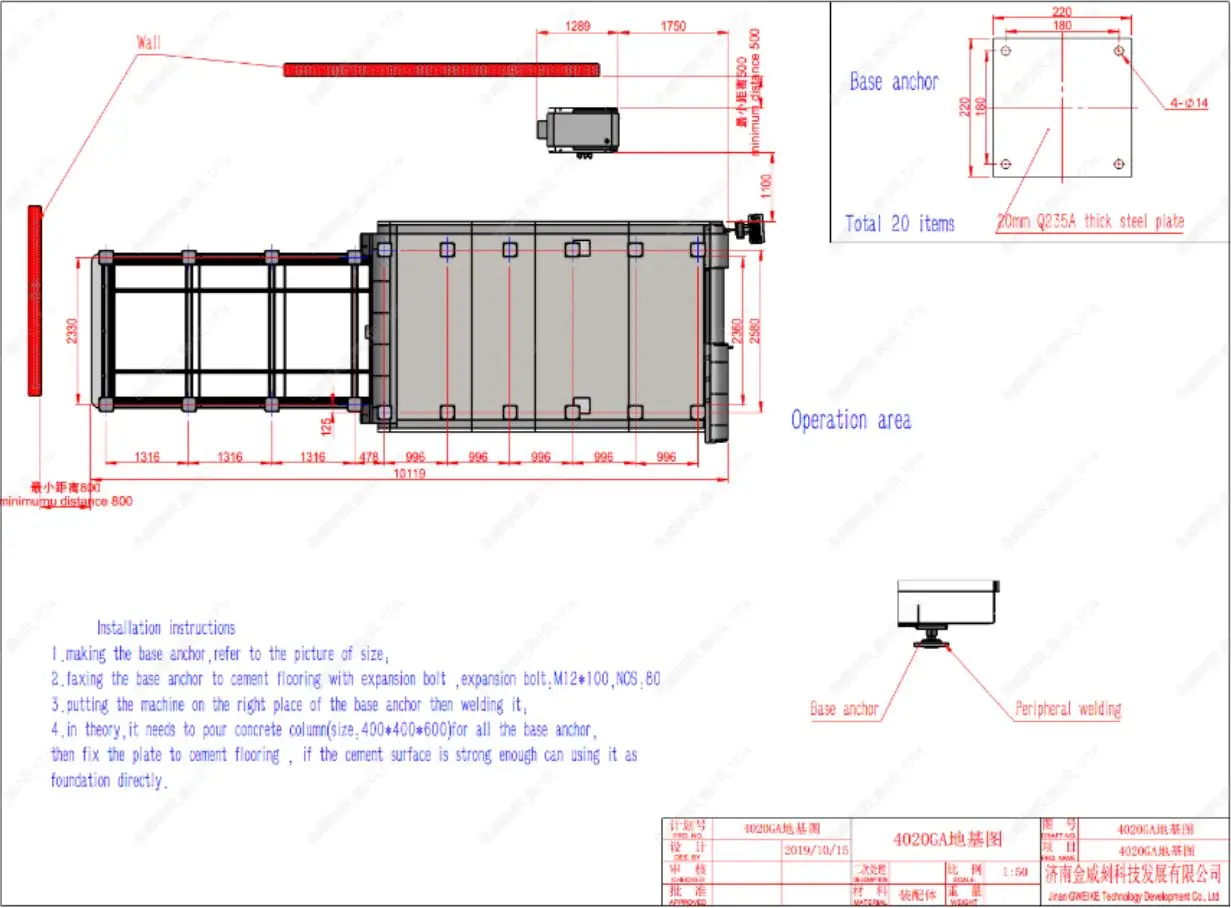

Machine Dimensions

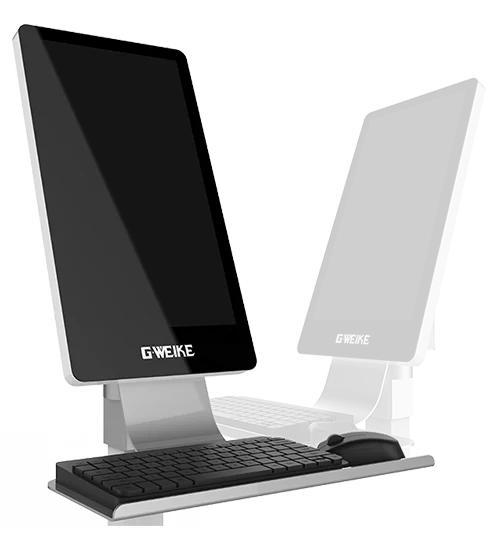

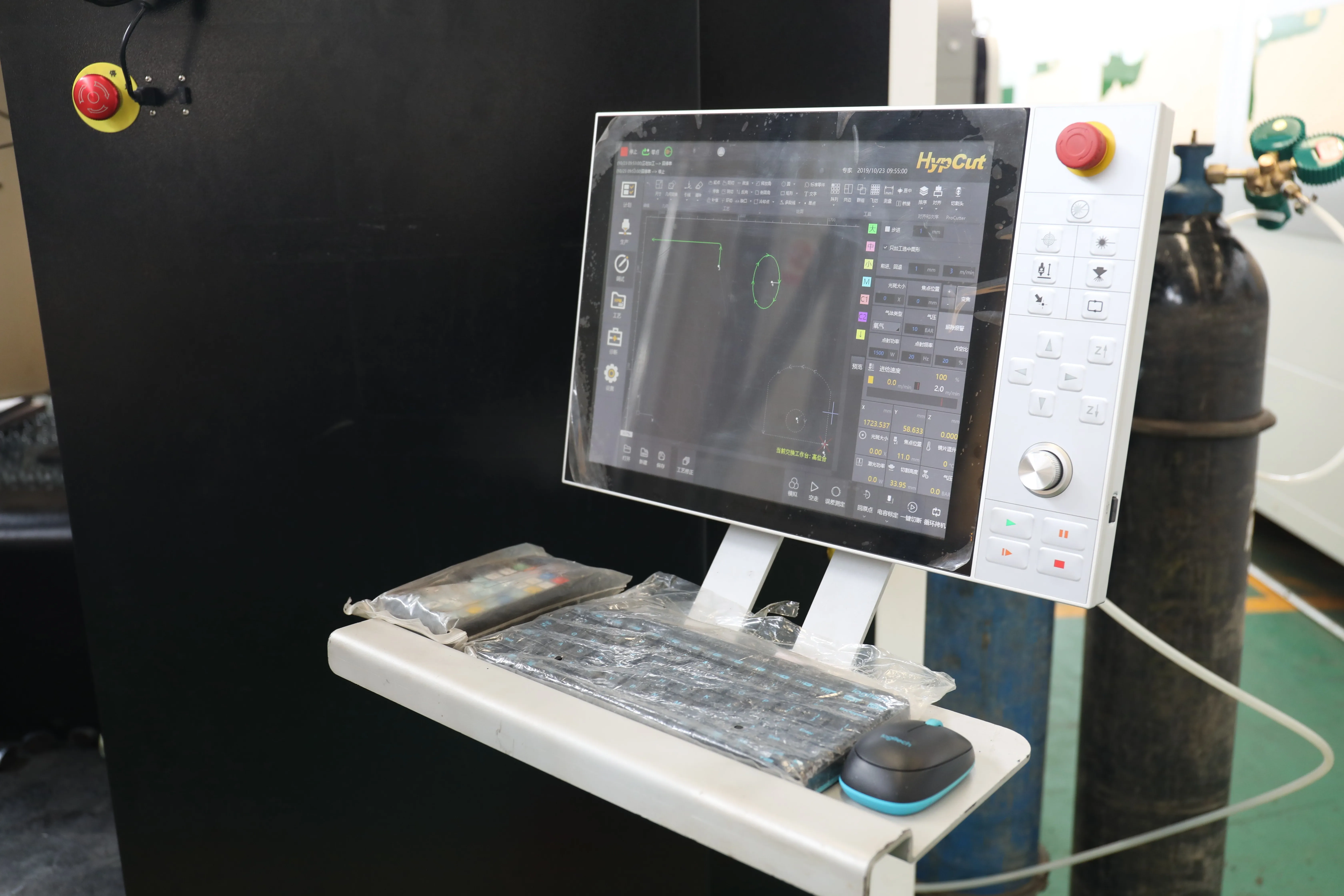

* Apple pad design, vertical screen display, wide viewing angle, low power consumption, high resolution and high contrast.
* The use of high-definition tempered glass, intelligent touch control and fast response speed make the screen more delicate and
smooth, and the operation is smoother.
* The use of high-definition tempered glass, intelligent touch control and fast response speed make the screen more delicate and
smooth, and the operation is smoother.

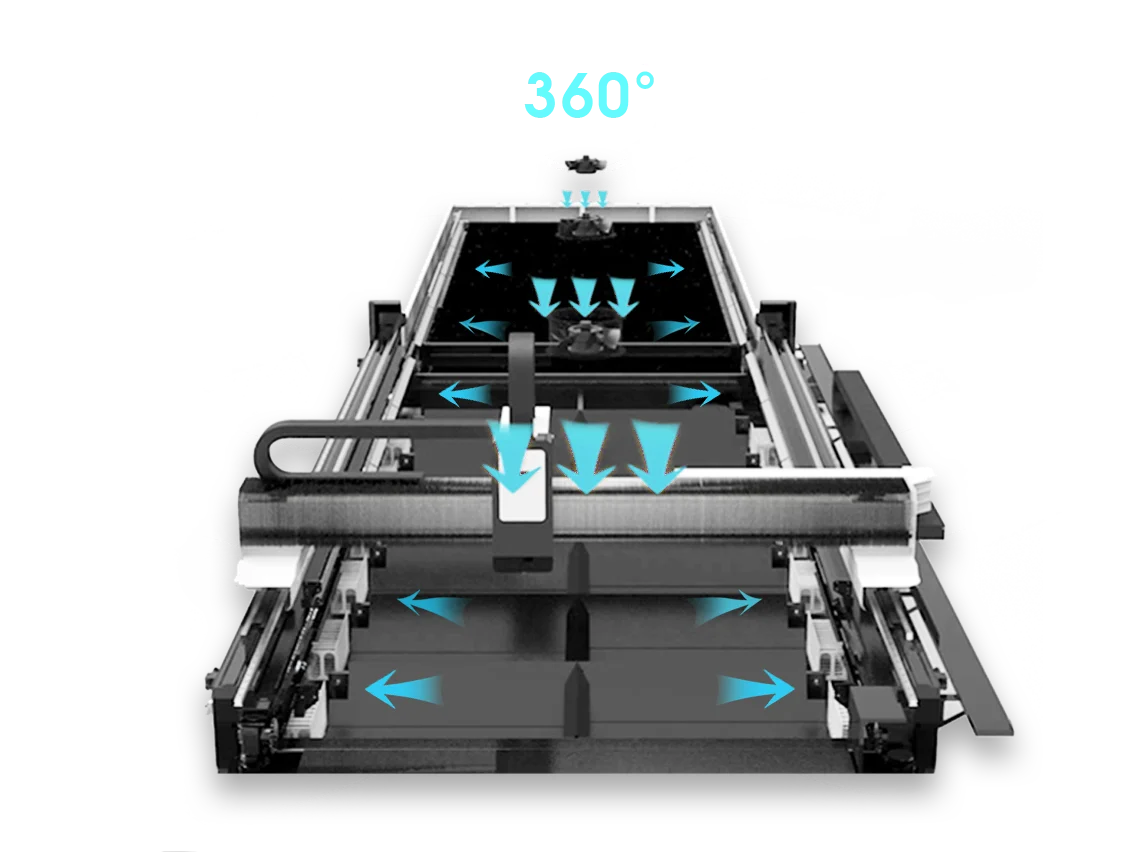

Segmented smoke exhaust-create a smokeless clean world
* Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology Each section of the bed has a smoke exhaust device
* Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward Full 360° strong adsorption and consistent smoke exhaust Effectively purify the smoke and dust on the top of the enclosed cutting platform Improve purification efficiency and reject lens contamination
* Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke
Adopt the latest cutting-edge tobacco control technology Each section of the bed has a smoke exhaust device
* Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward Full 360° strong adsorption and consistent smoke exhaust Effectively purify the smoke and dust on the top of the enclosed cutting platform Improve purification efficiency and reject lens contamination
* Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke
Transmission and Precision
*German Tech Quality
G·WEIKE fiber laser cutting machine is equipped with Taiwan YYC rack, Japanese Yaskawa motor and French Motoreducer. The repeatpositioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 2.5G. The working life is up to 10 years.

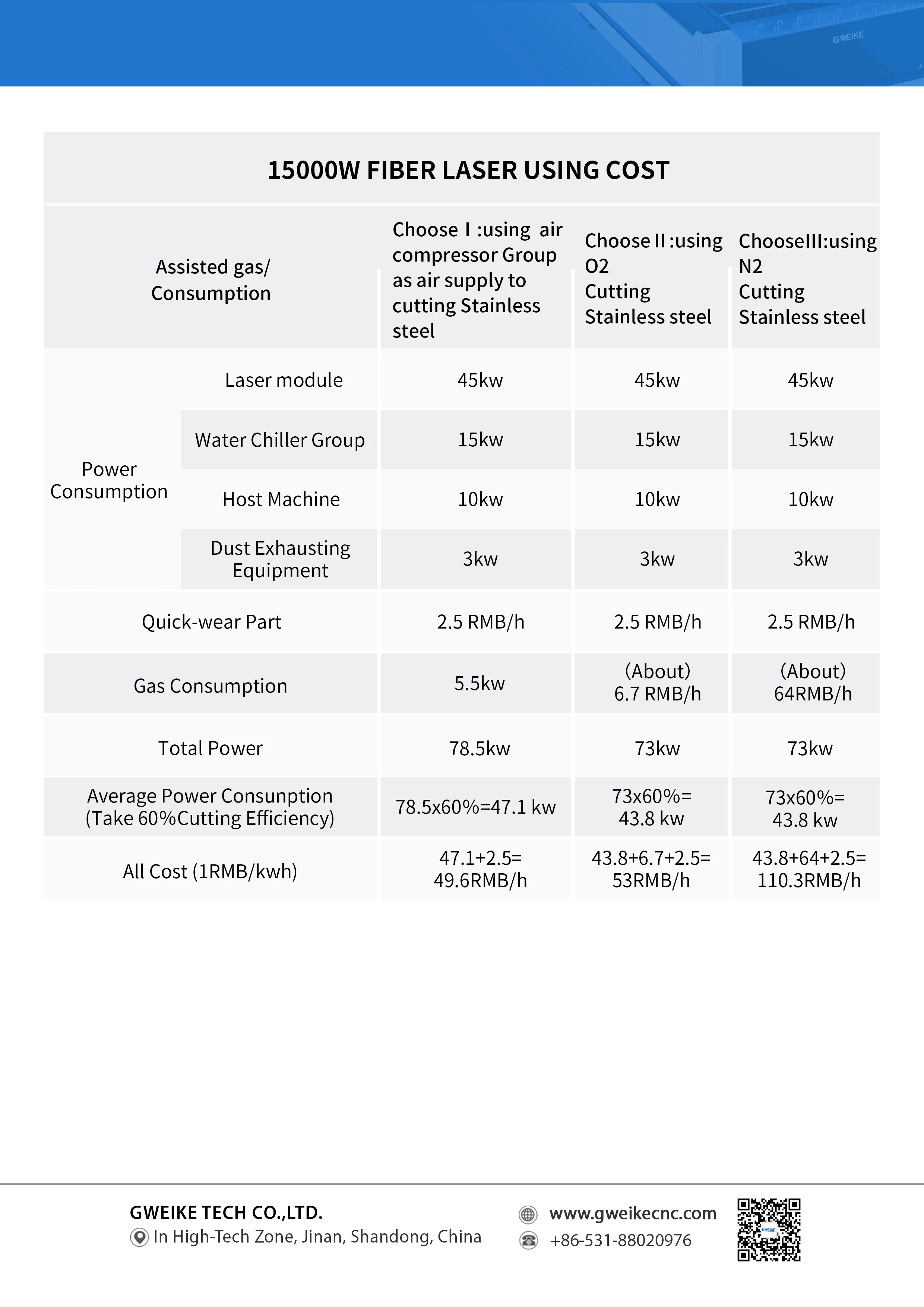

Using cost
Samples
Company Profile
Jinan G. Weike Science & Technology Co., Ltd. is an advanced modern enterprise specializing in the research and development, production and sales of the optic, mechanical and electronic products.we established in July 2004 , owns more than 1000 square meters of researching and office space, more than 32000 square meters factory.
We have established long stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing so that we can always improve our products and meet the demands of many customers.
On the basis of absorbing the international advanced CNC technology, our company has developed many laser engraving machines, laser cutting machines, laser marking machines, engraving machines, and cutting plotters. They are widely used in advertising, engraving, shoes samples, garments, rubber molding, and arts and crafts fields.
We have established long stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing so that we can always improve our products and meet the demands of many customers.
On the basis of absorbing the international advanced CNC technology, our company has developed many laser engraving machines, laser cutting machines, laser marking machines, engraving machines, and cutting plotters. They are widely used in advertising, engraving, shoes samples, garments, rubber molding, and arts and crafts fields.
Packing&Delivery
Packaging Details:
1.Anti-collision package edge:
All parts of the machine are covered with some soft materials, mainly the use of pearl wool .
2.Fumigation wooden box:
2.Fumigation wooden box:
Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine:
3.Whole film packaging machine:
Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
4.Wooden box at the bottom of a solid iron socket for easy handling.
Delivery Detail:
Shipped in 20-30 working days after payment.
Service & Feedback
Guarantee and After-sale service:
1. 3 years warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Certifications
FAQ
1.Are you manufacturer ?
Yes,We are factory since 2004.
owns more than 1000 square meters of researching and office space,
more than 32000 square meters factory.
2.Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
3.This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
We have 24 hours online English engineers, overseas engineers in more than 30+ countries and regions.
4.What’s your MOQ and delivery?
Our MOQ is 1 set machine.
We could send machine to your country port directly, please tell us your port name.
There will be best shipping freight and machine price send to you.
5. How is your warranty?
Whole machine 3 years warranty
The warranty of laser source according to the source manufacturer’s policy, usually 1-2 years
The warranty of laser source according to the source manufacturer’s policy, usually 1-2 years
6. If my machine is broken. Can you repair it for me?
Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
And we can select the nearest repair service point to provide you with technical support
