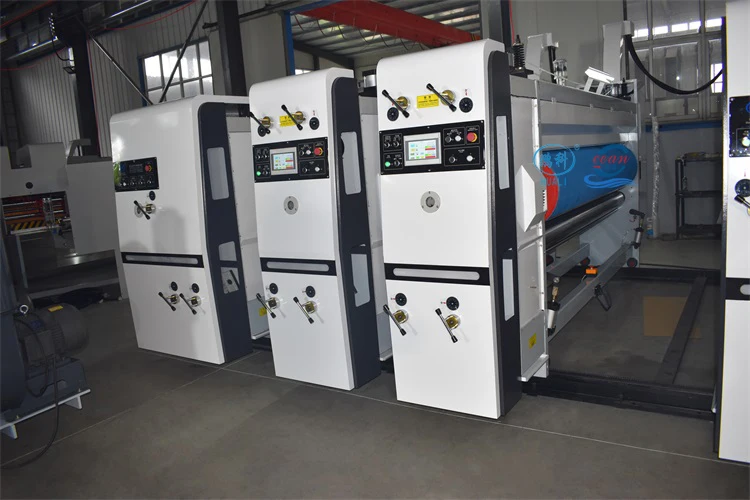

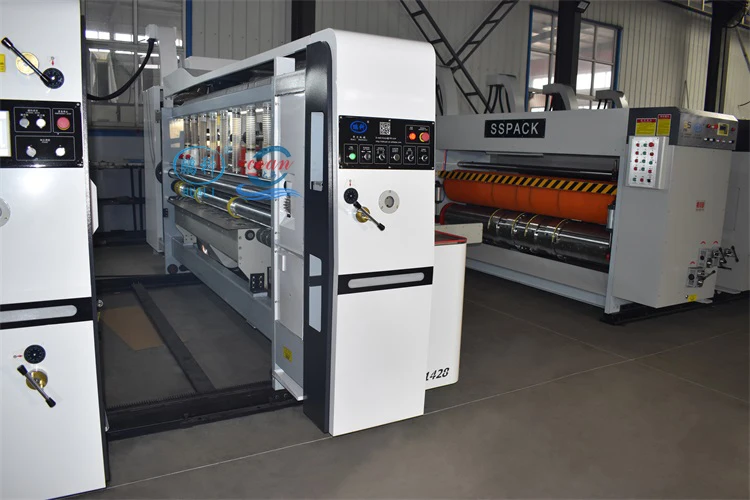

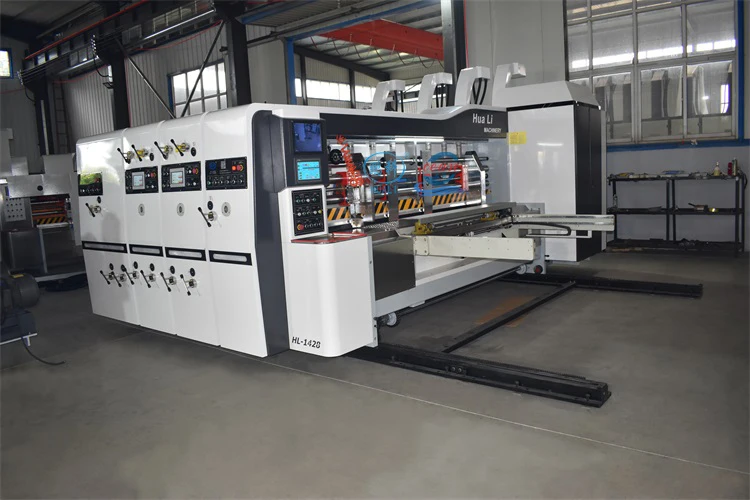

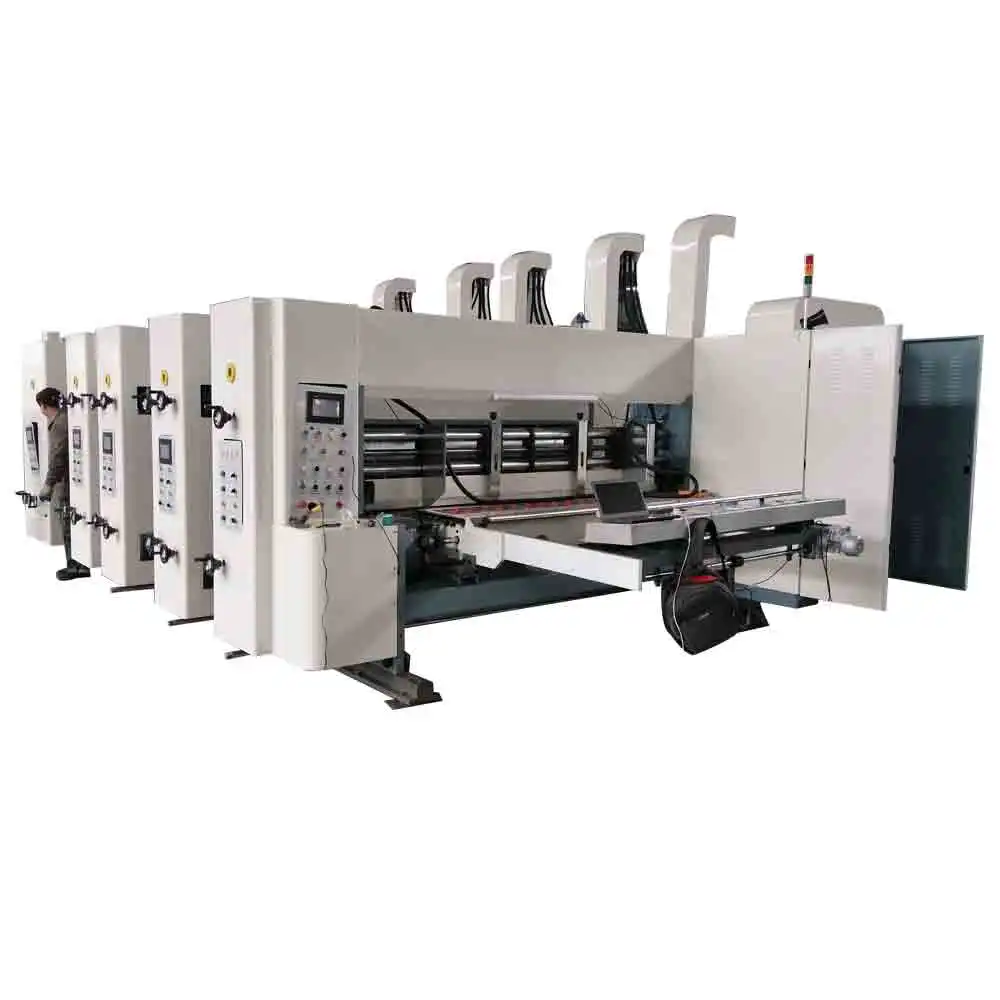

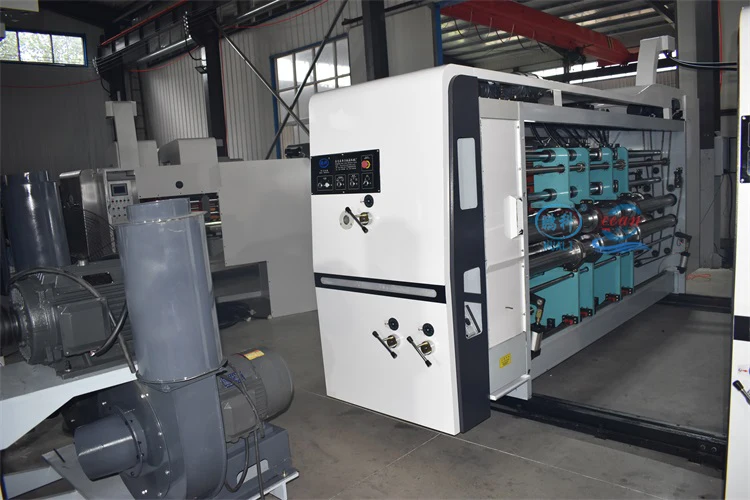

best sale automatic high speed 4 colors flexo printing die cutting machine price
1,Touch-screen and electrical dual control system;Lead edge is vacuum feeding system,no pressure type lead feeder
2,Key free connection decrease the connection clearance, maintain the overprint's precision of long-term printing;
3,Transmission structure with double oil pump circulating ubrication.
4,Main control electrical devices are DELTA from Taiwan,SCHNEIDER from France and other international famous brands
5,Equipped with a 10-inch high-definition color touch screen from VIEW from Taiwan with the prominent features of clear display, easy operation, large amount of order memory and automatic order replacement

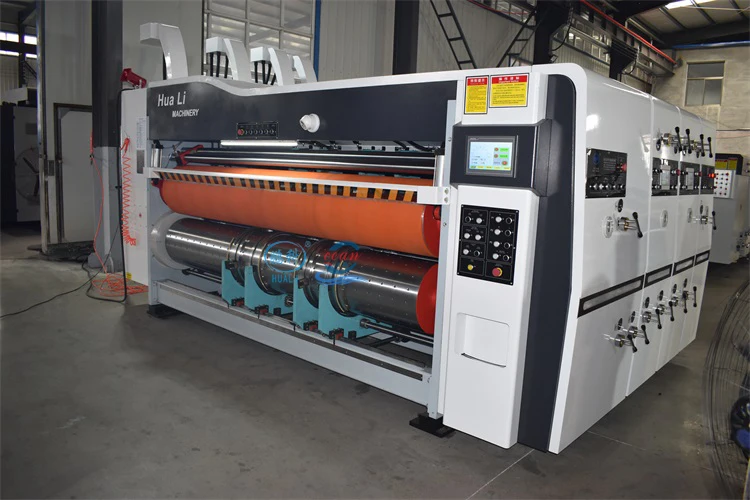

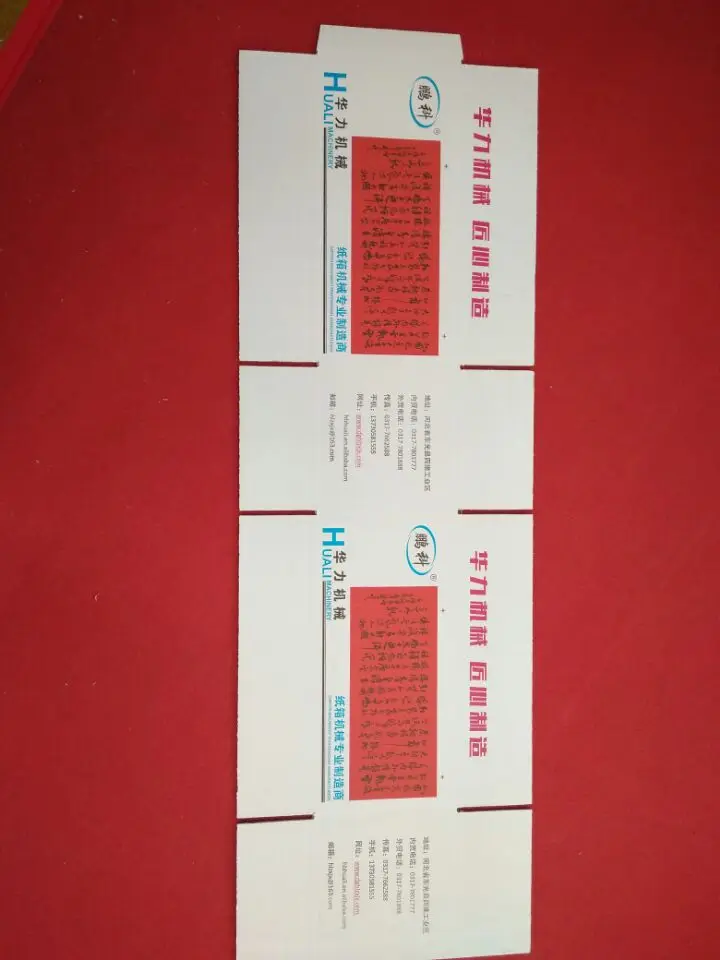

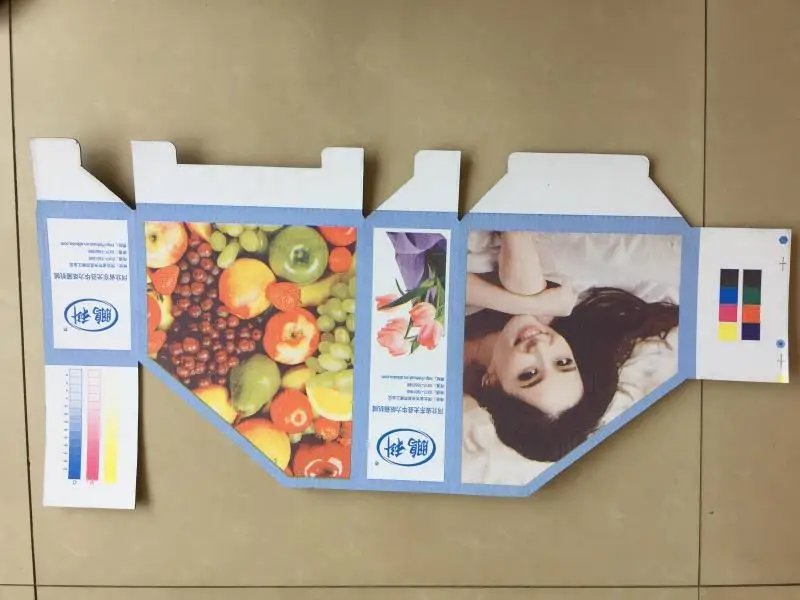

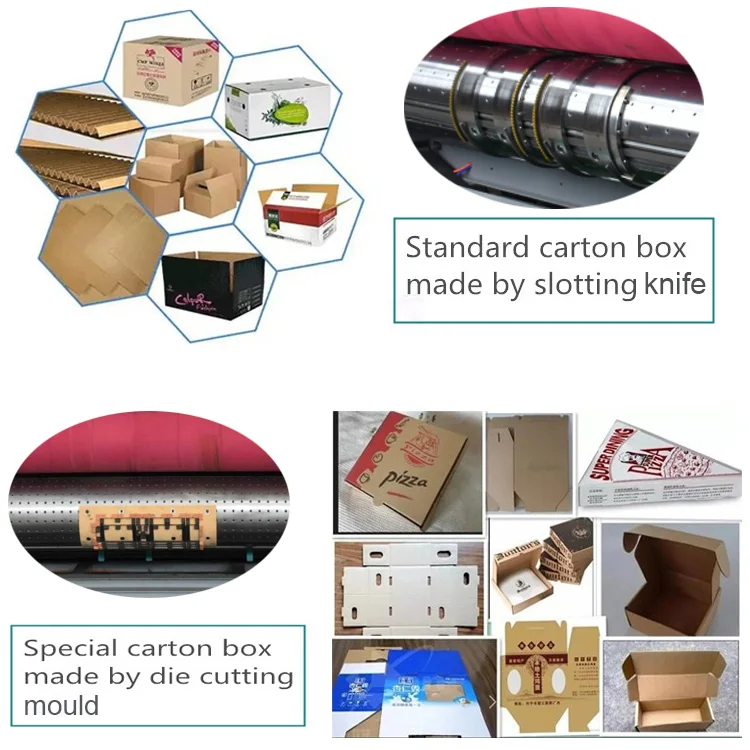

This machine,the die cutting unit has four slotting knife, can make standard carton box ,the down die cutting roller add the wooden die mould can do special shape carton box
four slotting knife slot standard carton die cutting mould cut special shape carton
Model of best sale automatic high speed 4 colors flexo printing die cutting machine price | DH-A-0920 | DH-A-1224 | DH-A-1426 | DH-A-1628 |
Max.feeding size(mm) | 900×2100 | 1200×2500 | 1400 ×2700 | 1600x2900 |
Max.printing size(mm) | 900×2000 | 1200×2400 | 1400 ×2600 | 1600x2800 |
Skip feeding size(mm) | 1100×2100 | 1400×2500 | 1600 ×2700 | 1800x2900 |
positive knife(mm) | 300×640 | 350×720 | 400×720 | 450×720 |
Max speed(sheet/min) | 200 | 180 | 180 | 160 |
Working speed(sheet/min) | 80-180 | 80-160 | 80-160 | 80-140 |
Max.slotting depth | 7 ×220 | 7×300 | 7×350 | 7x400 |
increase the blade, increase the slot depth |
| |||
Number of Colors for Printing | 1 color, 2 colors, 3 colors, 4 colors, 5 colors,6 colors,pls select the numbers of colors for printing at the time of inquiring | |||
