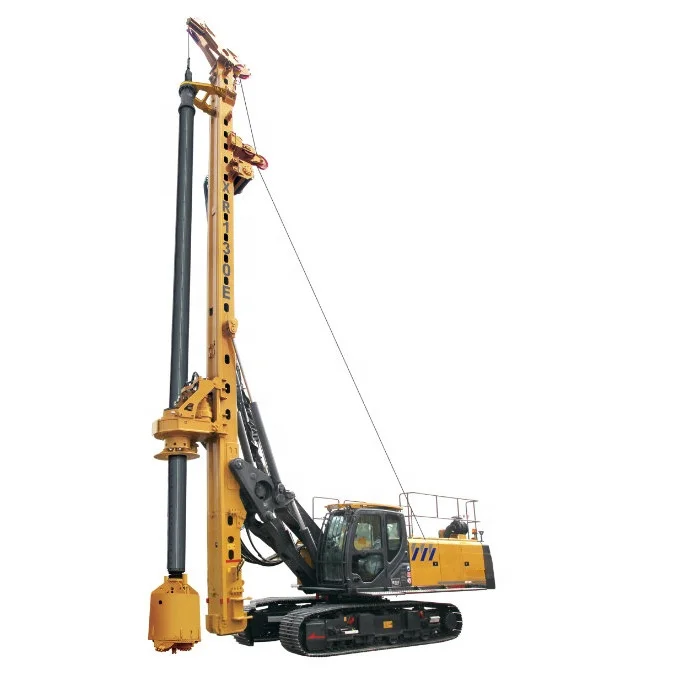

Буровая установка для глубокого бурения скважин XR130 продажи роторная буровая с аксессуарами на один год
14 975 212,50 ₽ - 16 306 342,50 ₽
Буровая установка для бурения сердечника 200 м/Буровая гидравлического исследования водяных скважин/бурение на дизельном топливе
- Категория: >>>
- Поставщик: Shandong Master Machinery Group Co. Ltd.
Сохранить в закладки 1600430907643:
Описание и отзывы
Характеристики
Product Description

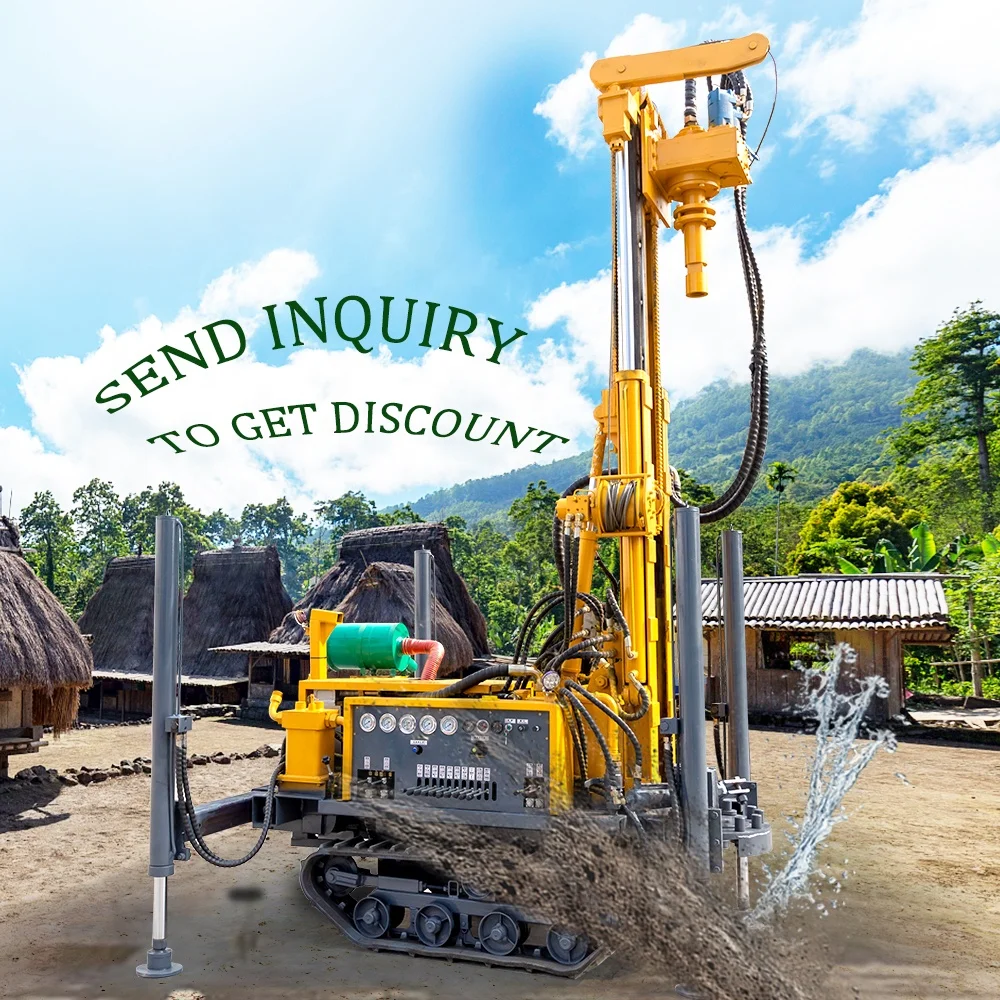

1. Brief introduction of CJD-200 crawler pneumatic water well
drilling rig
CJD-200 steel crawler chassis pneumatic water well drilling rig is a pneumatic water well drilling rig jointly developed by Shandong Master Machinery Group and Jining Master Machinery Research Institute. It is mainly used for drilling operations in hilly, mountainous and other rocky areas. It has a large drilling diameter. , Drilling depth, fast footage, flexible movement, high efficiency and other advantages, has been widely used in industrial and civilian drilling, ground temperature drilling, environmental monitoring drilling and other occasions.
2. Features of CJD-200 crawler pneumatic water well drilling rig
Using the principle of pneumatic impact, the drilling footage is fast and efficient.
Equipped with steel crawler chassis, it has strong cross-country performance and can easily cope with various complex work sites.
It is equipped with hydraulic high outriggers, which is convenient for loading and unloading trucks, saving lifting costs, and can be used for drilling rig leveling to maintain the stability of the fuselage.
Equipped with high-power diesel engine with strong power, which can effectively meet work needs.
Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
Centralized operating handles, reasonable layout, safe and feasible.
Excellent workmanship, durable, and low maintenance costs.
Equipped with steel crawler chassis, it has strong cross-country performance and can easily cope with various complex work sites.
It is equipped with hydraulic high outriggers, which is convenient for loading and unloading trucks, saving lifting costs, and can be used for drilling rig leveling to maintain the stability of the fuselage.
Equipped with high-power diesel engine with strong power, which can effectively meet work needs.
Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
Centralized operating handles, reasonable layout, safe and feasible.
Excellent workmanship, durable, and low maintenance costs.
Specification
No | Parameter | Units | Value |
1 | Drilling diameter | mm | 140-305 |
2 | Drilling depth | m | 200 |
3 | Drill rod diameter | mm | φ76、φ89 |
4 | Drill rod length | mm | 1.5、2.0、3.0 |
5 | One-time advance length | mm | 3300 |
6 | Propulsion | t | 7 |
7 | Lifting force | t | 15 |
8 | Working pressure | mpa | 1.7-3.0 |
9 | Air consumption | m³/min | 17-30 |
10 | Main engine power | kw | 70 |
11 | Walking speed | km/h | 2.5 |
12 | Gradeability | max. | 30° |
13 | Rotation speed | rpm | 50-70 |
14 | Rotation torque | n.m | 5000-6500 |
15 | Dimensions | mm | 4000*1750*2450 |
16 | Overall weight | t | 5.8 |
Product display
Packing & Delivery
Packing Details : Full Container Load or Export Wooden Box Packing
Delivery Details : 3-15 days after order
As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
Delivery Details : 3-15 days after order
As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
Company Profile
Shandong Master Machinery Group ("Master Group" for short) is headquartered in Jining, Shandong, China, which is known as the "Hometown of Confucius and Mencius, and the State of Ceremony".
Master Group is dedicated to providing the machinery equipment for engineering and mining construction. We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements. We are a leading company in the machinery industry in China. We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes. And we have participated in a number of national key projects and earned our reputation. As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
Master Group is dedicated to providing the machinery equipment for engineering and mining construction. We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements. We are a leading company in the machinery industry in China. We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes. And we have participated in a number of national key projects and earned our reputation. As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.
FAQ
1. Who are we?
We are based in Shandong, China, start from 2014,sell to South Asia(12.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Southern Europe(10.00%),Domestic Market(6.00%),Eastern Europe(6.00%),South America(6.00%),Eastern Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Water well drilling rigs, Geological exploration drilling rigs, Core drilling rigs, Mine drilling rigs, Engineering drilling rigs and so on.
We are based in Shandong, China, start from 2014,sell to South Asia(12.00%),North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Southern Europe(10.00%),Domestic Market(6.00%),Eastern Europe(6.00%),South America(6.00%),Eastern Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 501-1000 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Water well drilling rigs, Geological exploration drilling rigs, Core drilling rigs, Mine drilling rigs, Engineering drilling rigs and so on.
4. Why should you buy from us not from other suppliers?
The group company mainly provides solutions for engineering and mine construction.With high quality products, good service and honest reputation,our company has established a solid material supply relationship with several universities.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C, Cash;
Language Spoken:English, Chinese
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C, Cash;
Language Spoken:English, Chinese
Related product
Похожие товары
Известный бренд Kaishan KT9D интегрированная Шахта dth буровая установка с воздушным компрессором
7 653 997,50 ₽ - 7 709 461,25 ₽
Китай установка для бурения скважин
1 331 128,90 ₽ - 1 774 838,90 ₽

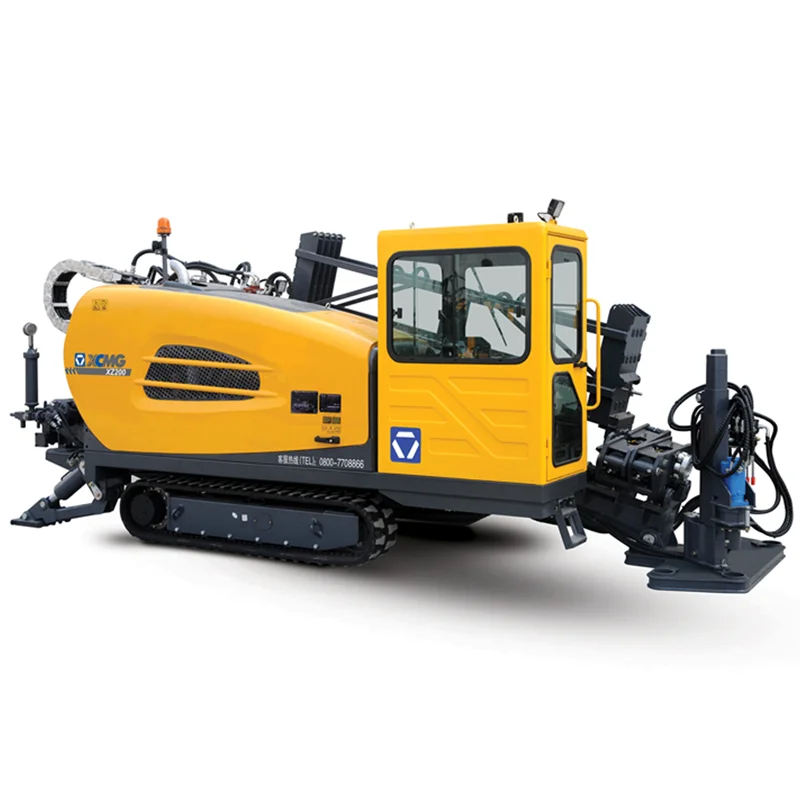

Известный бренд HDD XZ430E гусеничная Горизонтально направленная буровая установка с запасными частями
6 988 432,50 ₽ - 7 653 997,50 ₽

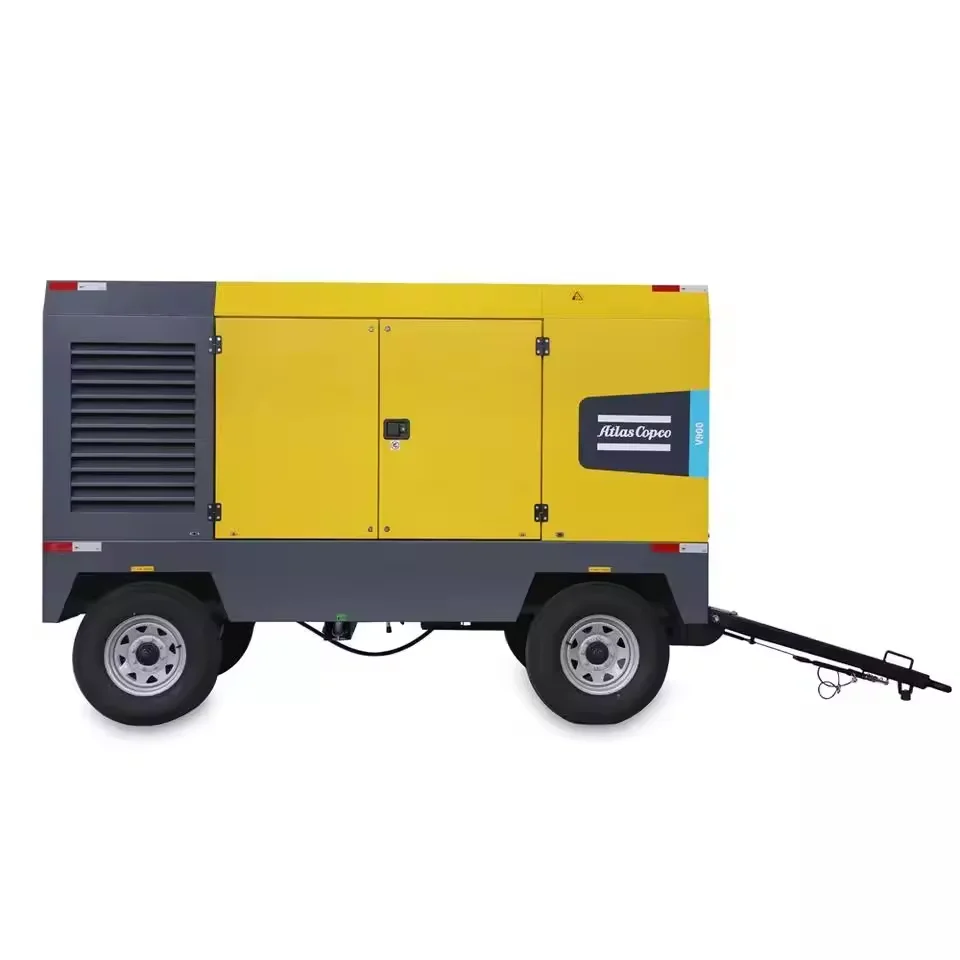

Atlas Copco винтовой воздушный компрессор 25 бар дизельный для воды хорошо
T4BH/роторная трехшарошечная дрель/буровые установки/роторная буровая установка бластола/ATLAS COPCO

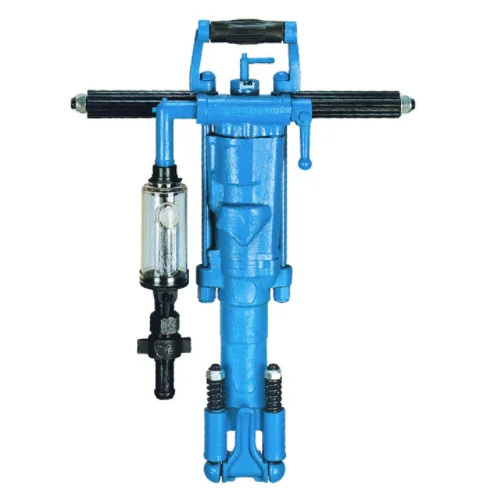

Высокоэффективная портативная бурильная машина Y20LY пневматический молоток
