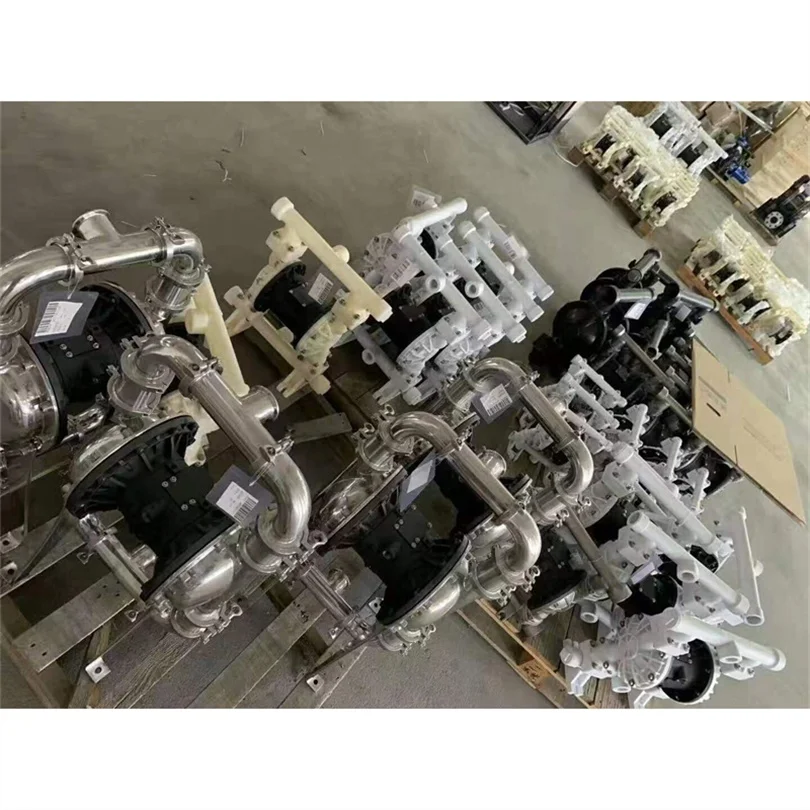

Воздушный двойной диафрагменный насос материал пластиковый пневматический
- Категория: >>>
- Поставщик: Wenzhou Yinuo Machinery Co. Ltd.
Сохранить в закладки 1600430919306:
Описание и отзывы
Характеристики
Products Description
Diaphragm Pump Air Operated Diaphragm Pump Pneumatic Diaphragm Pump Air Driven Diaphragm Pump Membrane Pump
pneumatic diaphragm pump due to without electrical motor ,so it can be used in the explosion-proof room which have restricted with
the electrical .
also it without the mechanical seal ,so it can be working under the solution transfer which is not continous flow .
Working principle:
In the two symmetrical working chambers of the diaphragm pump, each is equipped with an elastic diaphragm, and the coupling rod
forms the two diaphragms into a whole. After the compressed air enters the air distribution valve from the air inlet joint of the
pump, the diaphragm in the two working chambers is pushed to drive the two diaphragms connected by the coupling rod to move
synchronously. At the same time, the gas in the other working chamber is discharged out of the pump from the back of the
diaphragm. Once the end of the trip is reached. The air distribution mechanism automatically introduces the compressed air into
another working chamber and pushes the diaphragm to move in the opposite direction, thus forming the synchronous reciprocating
motion of the two diaphragms. Each working chamber is equipped with two one-way ball valves. The reciprocating motion of the
diaphragm changes the volume of the working chamber, forcing the two one-way ball valves to open and close alternately, so as to
continuously suck and discharge the liquid.
Performance characteristic :
1. There is no need for irrigation and water diversion. The suction head is up to 5m, the lift is up to 50m, and the outlet
pressure is ≥ 6kgf / C ㎡;
2. The flow is spacious and the passing performance is good. The maximum particle diameter allowed to pass is up to 10 mm. When
pumping mud and impurities, there is little wear on the pump;
3. The head and flow can be adjusted steplessly through the opening of the air valve (the air pressure can be adjusted between
1-7 bar):
4. The pump has no rotating parts, shaft seal, diaphragm j| and other pumped media are completely separated from the moving
parts and workpiece media of the pump, and the transmitted media will not leak out. Therefore, when toxic, easy to play or
corrosive media are pumped, environmental pollution and personal safety will not be caused;
5. No need to use electricity. It is safe and reliable to use in inflammable and explosive places;
6. It can work in the medium:
7. It is convenient to use, reliable to work, and it only needs to open and close the gas valve to start and stop. Even if
there is no medium operation for a long time due to an accident or the pump stops suddenly, it will not be damaged. Once it
is overloaded, the pump will stop automatically, with self-protection performance. When the load returns to normal, it can
start and run automatically;
8. The pump has simple structure, few wearing parts, simple structure, convenient installation and maintenance. The medium
transported by the pump will not contact with the moving parts such as the valve and the connecting rod. Unlike other types
of pumps, the performance of the pump will gradually decline due to the wear of the rotor, piston, gear, blade and other
parts:
9. It can transport viscous liquid (viscosity is below 10000 centipoise):
10. This pump does not need oil lubrication, even if it is idle, it has no effect on the pump, which is the biggest feature of
this pump
pneumatic diaphragm pump due to without electrical motor ,so it can be used in the explosion-proof room which have restricted with
the electrical .
also it without the mechanical seal ,so it can be working under the solution transfer which is not continous flow .
Working principle:
In the two symmetrical working chambers of the diaphragm pump, each is equipped with an elastic diaphragm, and the coupling rod
forms the two diaphragms into a whole. After the compressed air enters the air distribution valve from the air inlet joint of the
pump, the diaphragm in the two working chambers is pushed to drive the two diaphragms connected by the coupling rod to move
synchronously. At the same time, the gas in the other working chamber is discharged out of the pump from the back of the
diaphragm. Once the end of the trip is reached. The air distribution mechanism automatically introduces the compressed air into
another working chamber and pushes the diaphragm to move in the opposite direction, thus forming the synchronous reciprocating
motion of the two diaphragms. Each working chamber is equipped with two one-way ball valves. The reciprocating motion of the
diaphragm changes the volume of the working chamber, forcing the two one-way ball valves to open and close alternately, so as to
continuously suck and discharge the liquid.
Performance characteristic :
1. There is no need for irrigation and water diversion. The suction head is up to 5m, the lift is up to 50m, and the outlet
pressure is ≥ 6kgf / C ㎡;
2. The flow is spacious and the passing performance is good. The maximum particle diameter allowed to pass is up to 10 mm. When
pumping mud and impurities, there is little wear on the pump;
3. The head and flow can be adjusted steplessly through the opening of the air valve (the air pressure can be adjusted between
1-7 bar):
4. The pump has no rotating parts, shaft seal, diaphragm j| and other pumped media are completely separated from the moving
parts and workpiece media of the pump, and the transmitted media will not leak out. Therefore, when toxic, easy to play or
corrosive media are pumped, environmental pollution and personal safety will not be caused;
5. No need to use electricity. It is safe and reliable to use in inflammable and explosive places;
6. It can work in the medium:
7. It is convenient to use, reliable to work, and it only needs to open and close the gas valve to start and stop. Even if
there is no medium operation for a long time due to an accident or the pump stops suddenly, it will not be damaged. Once it
is overloaded, the pump will stop automatically, with self-protection performance. When the load returns to normal, it can
start and run automatically;
8. The pump has simple structure, few wearing parts, simple structure, convenient installation and maintenance. The medium
transported by the pump will not contact with the moving parts such as the valve and the connecting rod. Unlike other types
of pumps, the performance of the pump will gradually decline due to the wear of the rotor, piston, gear, blade and other
parts:
9. It can transport viscous liquid (viscosity is below 10000 centipoise):
10. This pump does not need oil lubrication, even if it is idle, it has no effect on the pump, which is the biggest feature of
this pump
Technical Data Related
Product name | Diaphragm Pump |
Material | Metal |
Color | AS Picture |
Quality | High |
MOQ | 1pcs |
Related Products
Our factory
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 year warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the running.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale service ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
Похожие товары
Полипропиленовый корпус высшего качества с полипропиленовым центром GF и диафрагмой PTFE для керамической промышленности
Оптовая продажа, белая поздравительная открытка с надписью Thank You, печать цветов, штамп из фольги, американские поздравительные открытки с конвертами

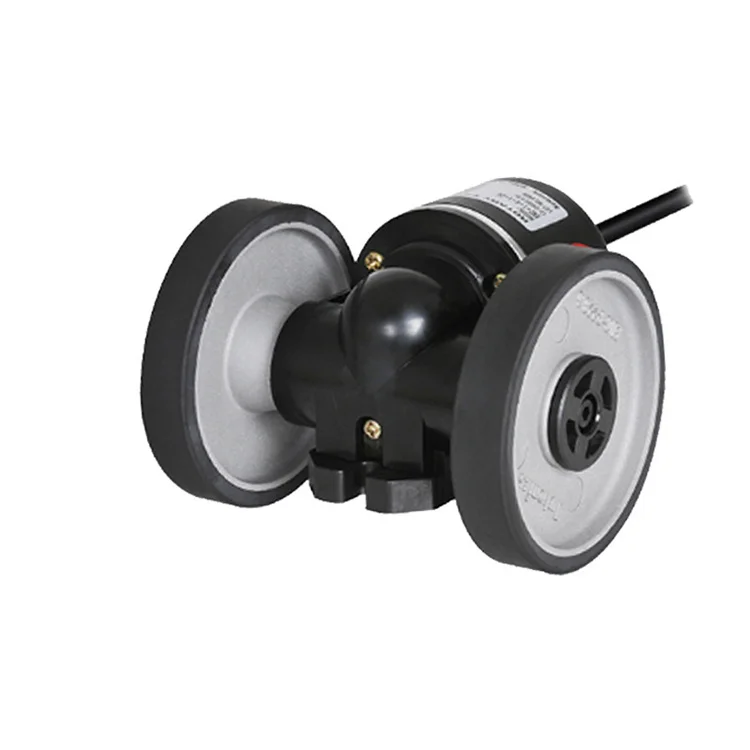

Высокоточный роликовый счетчик колес серии ENC, двухколесный кодировщик, инкрементные поворотные кодировщики
65,50 $ - 84,50 $
Техническое программное обеспечение для связи DxpServer V6 OPC, продажа промышленного сервера для клавиатуры оптом

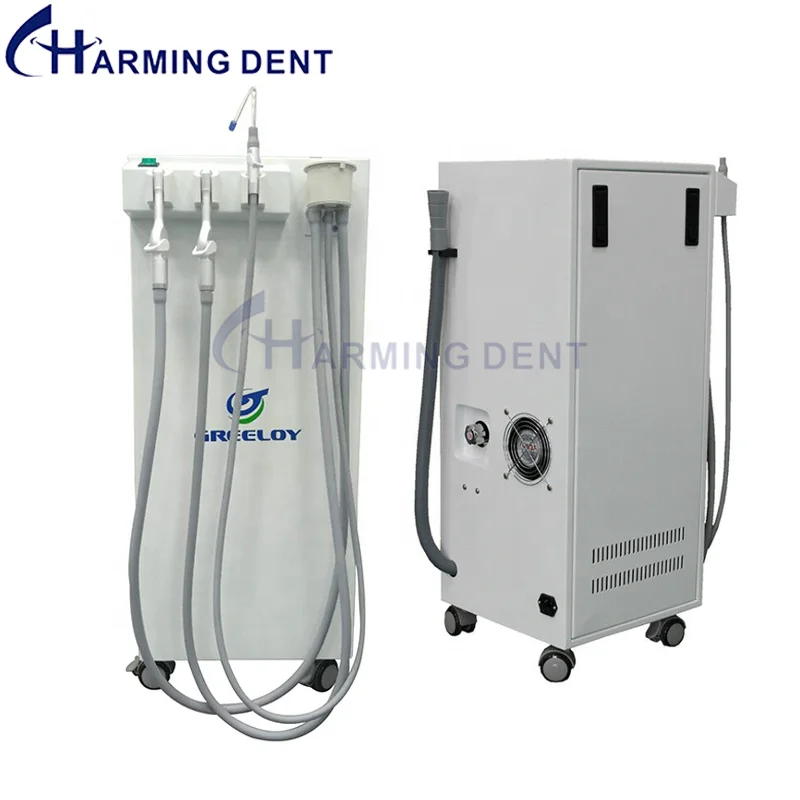

Портативный подвижный стоматологический всасывающий блок, вакуумный насос для стоматологического всасывания, двойной слюнявчик, стоматологический всасывающий насос, всасывающий двигатель
