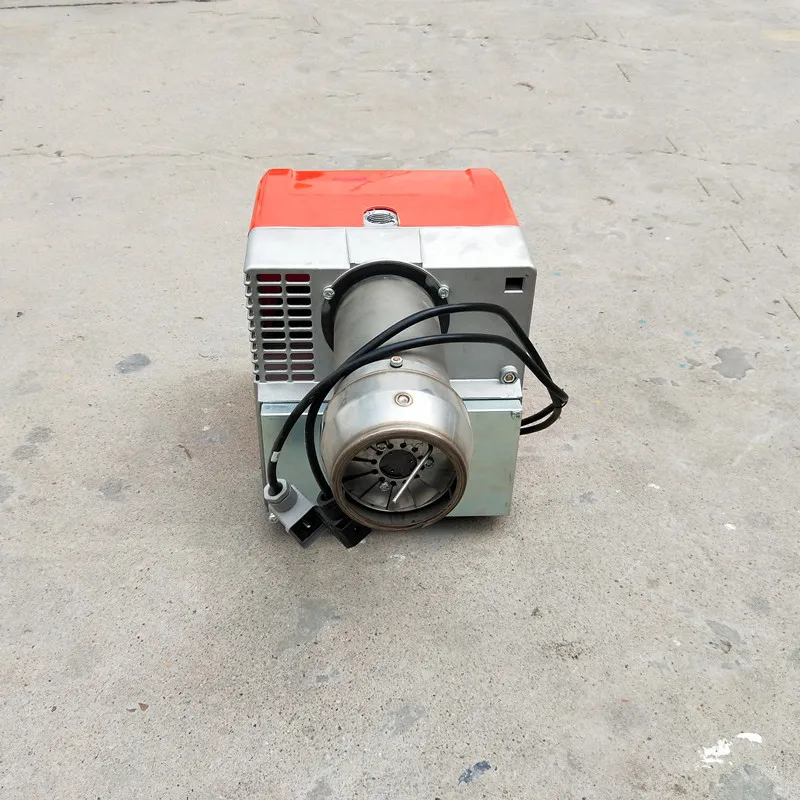

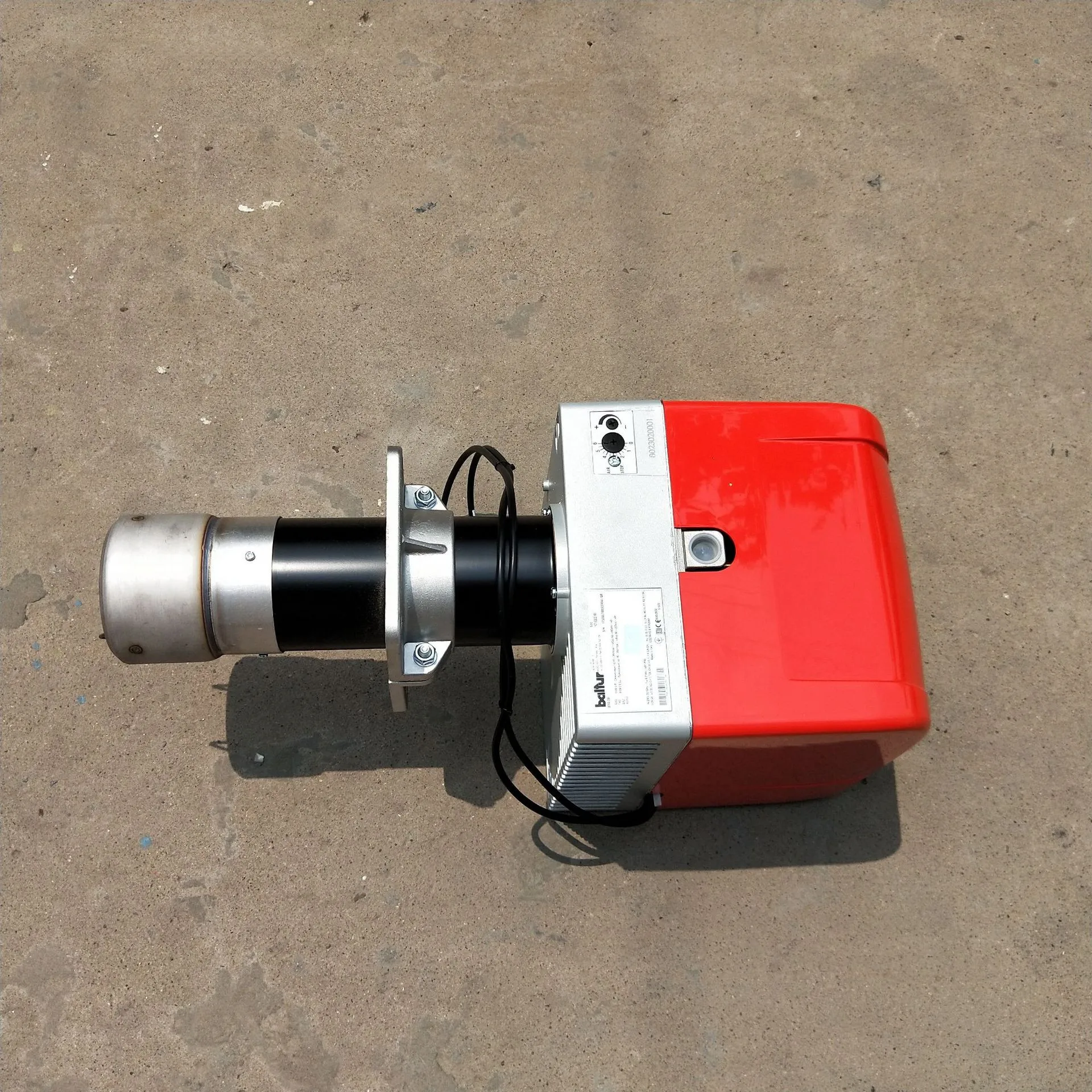

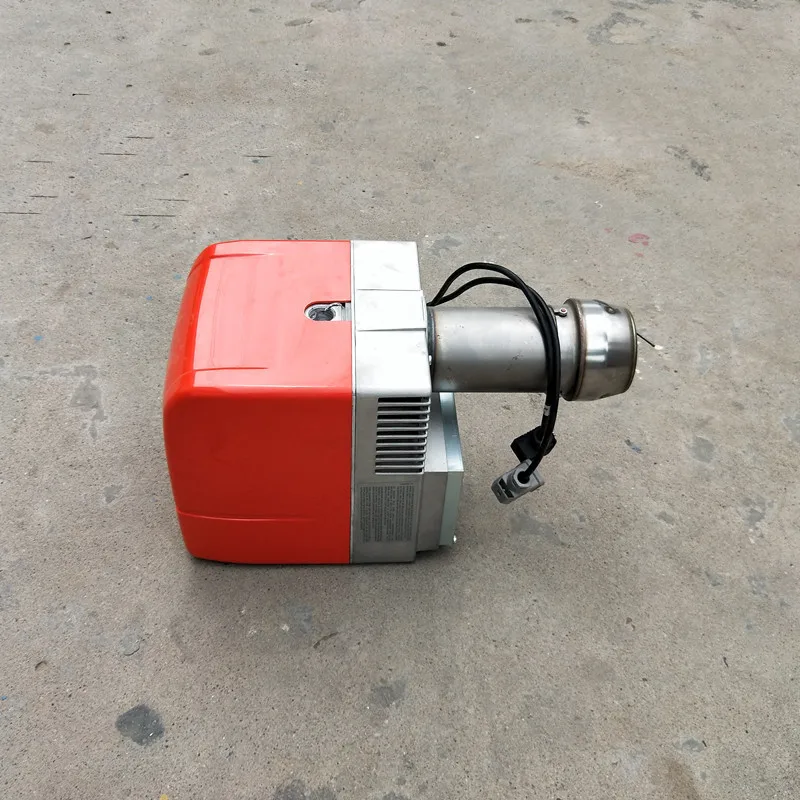

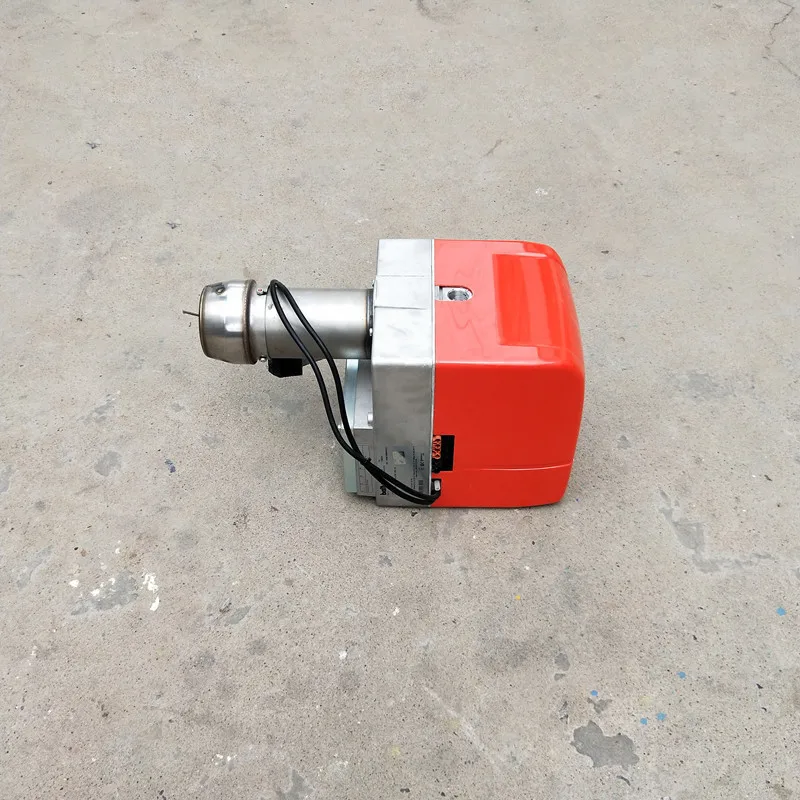

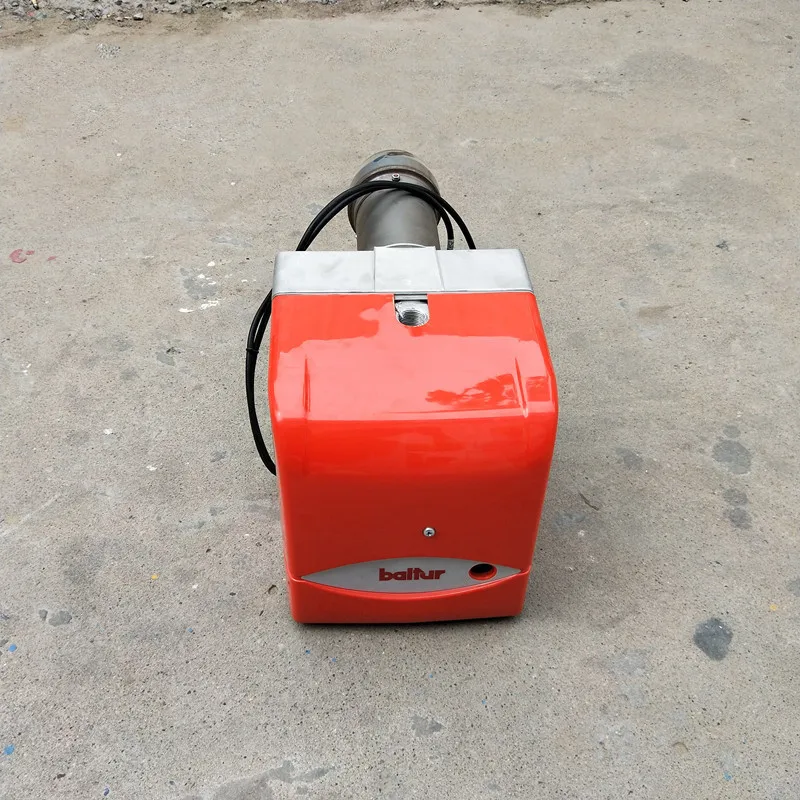

Дизельная масляная горелка Baltur с хорошей производительностью
- Категория: >>>
- Поставщик: Henan Zhongde Environmental Protection Technology Co. Ltd.
Сохранить в закладки 1600431105193:
Описание и отзывы
Характеристики
Product Description
(Baltur) burner is a general term for devices that enable fuel and air to be ejected and burned in a certain way. Burners are divided into industrial burners, combustors, civil burners and special burners according to types and application fields. Made of high temperature resistant material. The burner has the properties of high atomization efficiency, low noise, stable flame, high absorption sensitivity and determination precision.
Structural Diagram
Product Details
Burner model | Power (kW) | Light oil flow (kg/h) | Power Supply | Motor power (kW) | Package size (L x P x H mm) | Weight (kg) |
BTG 20 | 60~205 | 6 ~ 20.5 | 1N AC 50Hz 230V | 0.18 | 780 x 370x 410 | 18 |
BTG 20 P | 60~205 | 6 ~ 20.5 | 1N AC 50Hz 230V | 0.18 | 780 x 370x 410 | 18 |
BTG 20 LX | 60~205 | 6 ~ 20.5 | 1N AC 50Hz 230V | 0.18 | 780 x 370x 410 | 18 |
BTG 20 ME | 60~205 | 6 ~ 20.5 | 1N AC 50Hz 230V | 0.18 | 780 x 370x 410 | 18 |
Technology and performance characteristics
BTG 20 / BTG 20P
● single section operation (on / off) (BTG 20)
● two stage operation (high / low fire) (BTG 20P)
● burner discharge reaches the European standard class III.● manually adjust the air flow.
● gas valve group with leak detection can be selected.
● combustion air inlet with flow regulator; Automatically close the damper.
● ionization electrode detects flame.
● provide seven hole connection outlet for burner electrical and temperature controller.
● silencing plastic protective cover.● pipeline position: upward.
● the motor meets the electrical protection grade IP40 of European standard IE1. If required, the electrical protection grade can be improved.
BTG 20 LX
● two stage progressive operation.
● sliding flanges matched with various boiler flanges,the position of the burner extending into the boiler can be adjusted.
● air and gas are mixed in the combustion head.
● burner discharge reaches the European standard class III.
● proportional adjustment can be carried out through automatic p.i.d regulator section operation. (ordered separately with adjustment Kit)
● when the burner is suspended, the damper is closed to reduce the heat loss in the furnace.
● sliding flanges matched with various boiler flanges,the position of the burner extending into the boiler can be adjusted.
● air and gas are mixed in the combustion head.
● burner discharge reaches the European standard class III.
● proportional adjustment can be carried out through automatic p.i.d regulator section operation. (ordered separately with adjustment Kit)
● when the burner is suspended, the damper is closed to reduce the heat loss in the furnace.
● pneumatic regulating valve group, regulation, maintenance and operation line is faster, simpler and safer.
● made of sound-absorbing materials to reduce fan noise device.
● silencing plastic protective cover.
● ionization electrode detects flame.
● pipeline position: upward.
● the fan motor meets the European standard IE1.
● the electrical protection grade of standard configuration is IP40, such as if required, the electrical protection level can be improved.
● made of sound-absorbing materials to reduce fan noise device.
● silencing plastic protective cover.
● ionization electrode detects flame.
● pipeline position: upward.
● the fan motor meets the European standard IE1.
● the electrical protection grade of standard configuration is IP40, such as if required, the electrical protection level can be improved.
BTG 20 ME
● two stage progressive operation.
● proportional regulation operation can be carried out through automatic p.i.d regulator. (ordered separately with adjustment Kit)
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler.
● air and gas are mixed in the combustion head.
● burner discharge reaches European standard class III.
● independent servo motor regulates the opening of air baffle. The air baffle is automatically closed during suspension to reduce heat loss in the furnace.
● proportional regulation operation can be carried out through automatic p.i.d regulator. (ordered separately with adjustment Kit)
● the sliding flange matched with various boiler flanges can adjust the position of the burner extending into the boiler.
● air and gas are mixed in the combustion head.
● burner discharge reaches European standard class III.
● independent servo motor regulates the opening of air baffle. The air baffle is automatically closed during suspension to reduce heat loss in the furnace.
● air inlet with flow regulator.
● the program controller has built-in valve leakage detection control.
● independent stepping servo motor controls fuel and air flow respectively.● ionization electrode detects flame.
● connect the electrical and temperature controller with the burner and control the second flame, or provide the connection terminal for the electronic output regulator.
● pipeline position: upward.
● the fan motor meets the European standard IE1.
● electrical protection grade of standard configuration is IP40.
Company Profile
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
Certifications
CE
CE
Boiler Manufacturing License
ISO9001
ISO14001
ISO45001
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
FAQ
Q1:How many shops you have on Alibaba?
A1:Only one, when you buy Zhongde Boiler, please confirm Zhongde boiler, 1976.
Q2:How many days will get boiler after payment?
A2:According to boiler capacity, usually 10-45 days.
Q3: How to buy a good boiler?
A3: a.Choose a good supplier, A grade boiler manufacturer. b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on c. Price is not the only problem, quality and service also important.
Q4: What is your main product?
A4:Steam boiler, hot water boiler, thermal oil boiler. Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler. Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler, power plant boiler,textile mill boiler, garment industry boiler and so on.
Q5:Will your company accept L/C payment
A5: Yes, customer bank should be meet national standard. and L/C type should be at sight.
Q6:Why choose us?
A6: 1) We have enthusiastic business personnel to provide you with 24-hour online service to solve your doubts 2) We have professional designers and workers to design and produce your boiler products 3) We have a sound after-sales service system to ensure that you buy the most suitable boiler products for you
Other more questions please contact us online.
Похожие товары
HT-0375 оптовая продажа изготовленным на заказ логосом зимняя мягкая женская обувь; Новый дизайнер; Зимний шарф с леопардовым принтом, вязаная шапка с помпоном Роскошные вязаная шапка
5,70 $ - 7,15 $
Токарный станок с ЧПУ Hoston Tornos, фрезерный станок с ЧПУ
7 600,00 $ - 8 000,00 $
Лидер продаж с фабрики древесная доска из твердой древесины павловнии
Высококачественный новый урожай xinjing 185, необработанный тонкий орех по низкой цене

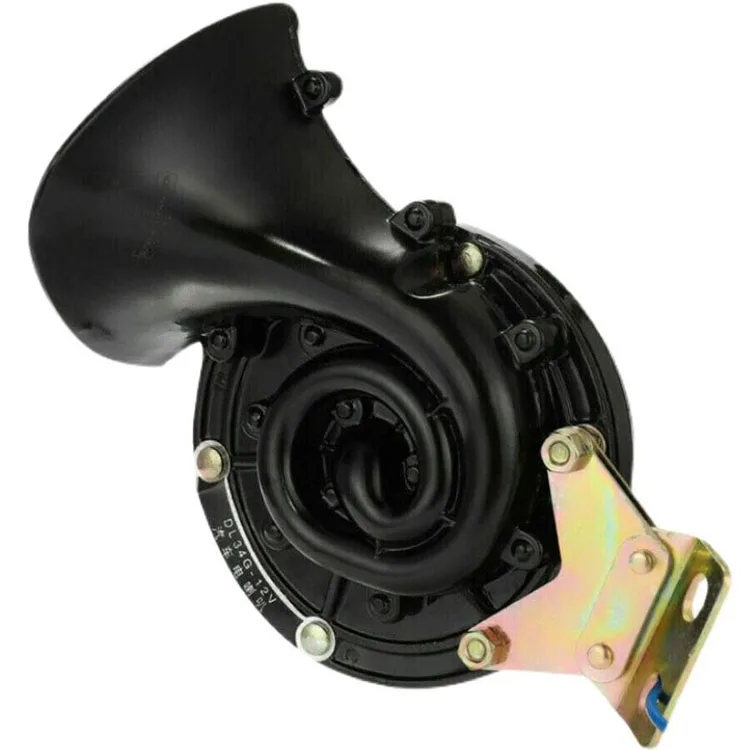

Башенный кран, улитчатый гудок, башенный кран, Электрический гудок улитки 12 В 24 В, Одноцветный Автомобильный Электрический гудок высокой мощности с сигнализацией
7,50 $ - 9,00 $

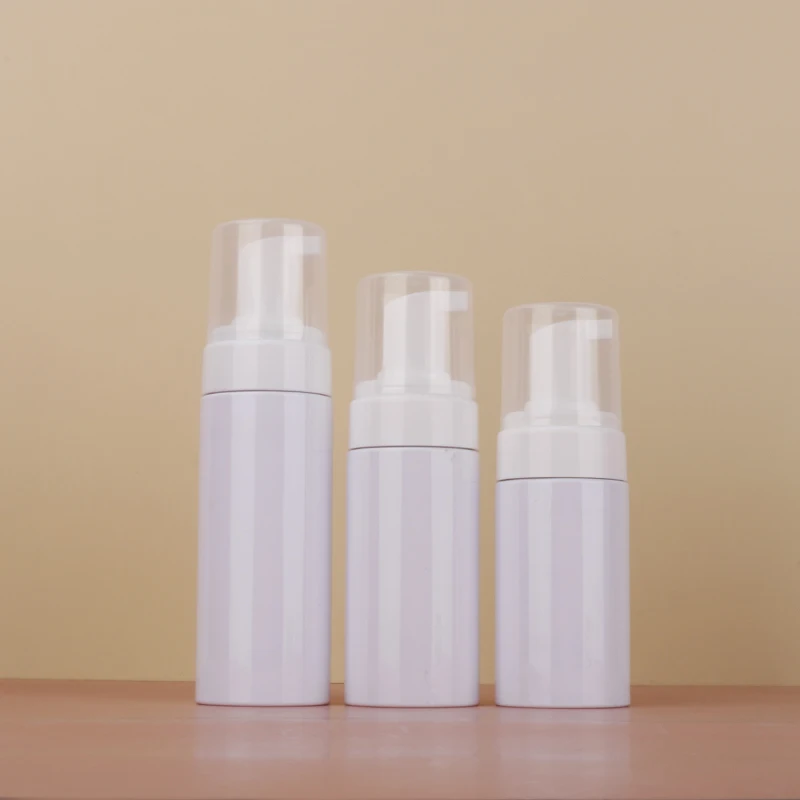

Под заказ, 100 мл, 120 мл, 150 мл, 180 мл, 200 мл, ПЭТ, пустой пластиковый насос, диспенсер для очистки лица, бутылка для мыла и пены
