Сделано в Китае, звуковой микшер Echo
US $68.50-$76.80
GAX CY12 Профессиональный 12 канальный микшерная консоль с Blueteeth dj микшер аудио 99 dsp эффекты фантомного питания 48V USB
- Категории: Professional Audio, Video & Lighting(old) >>>
- Поставщик: ENPING,RECORDIO,ELECTRONICS,MANUFACTURER
Сохранить в закладки:
Описание и отзывы
Характеристики

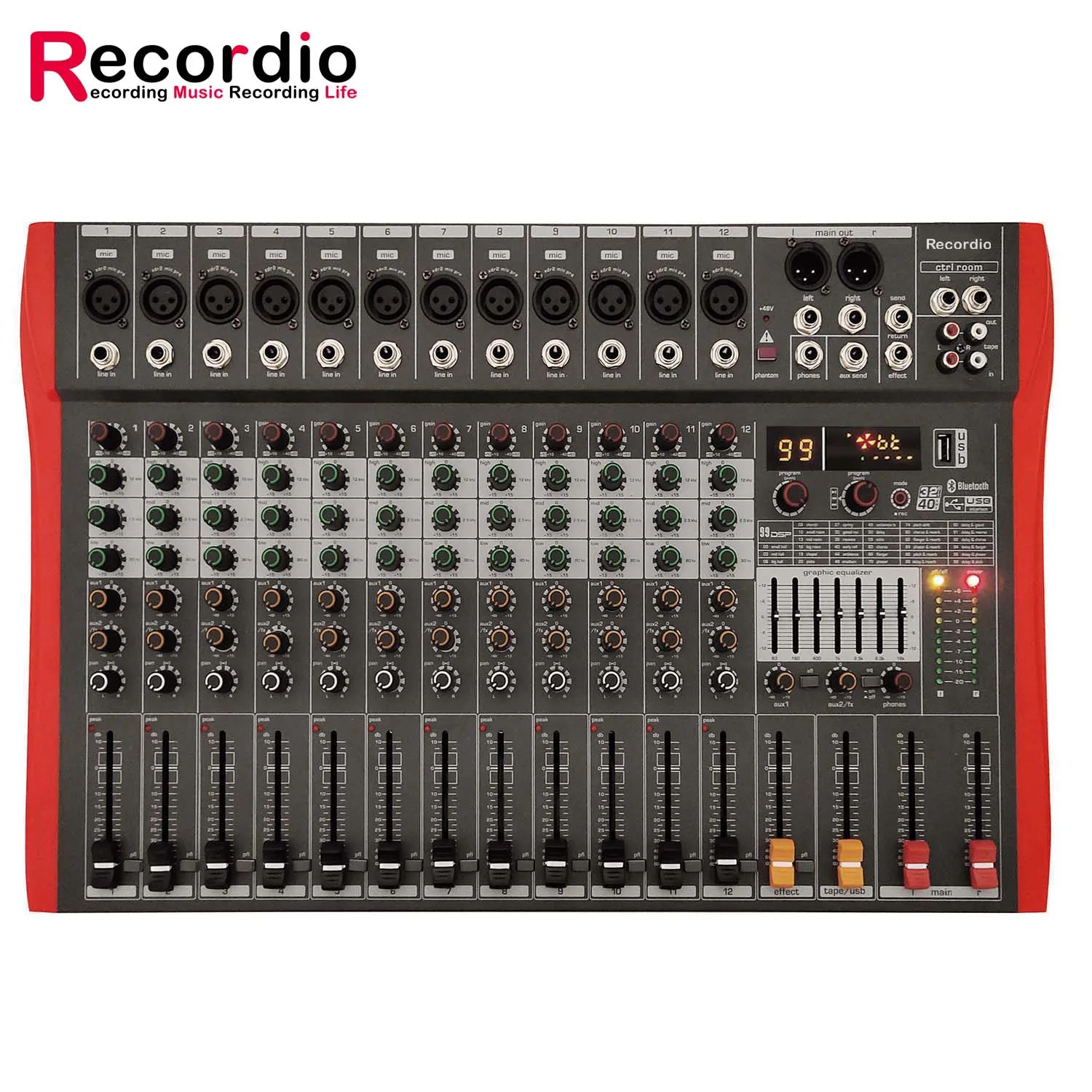

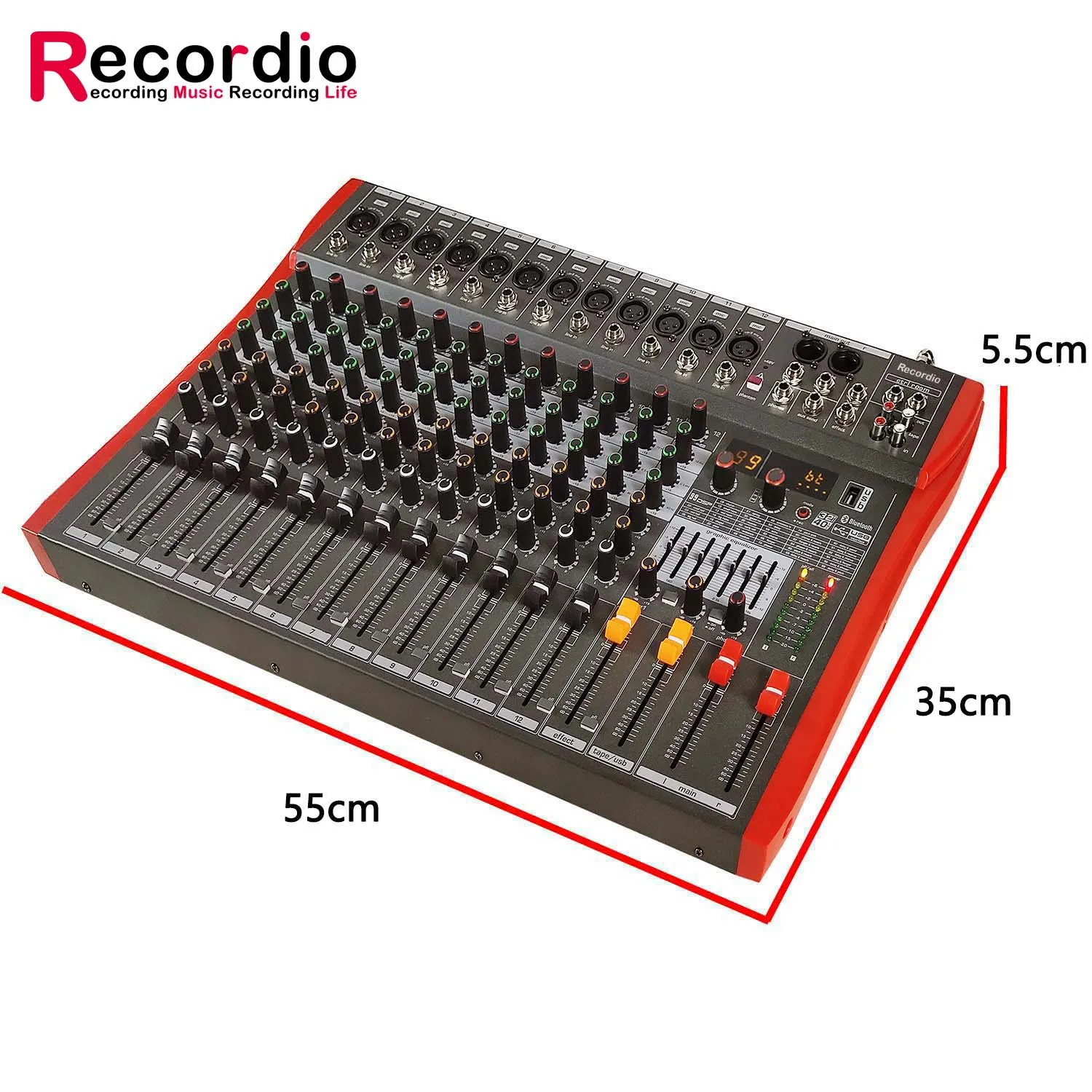

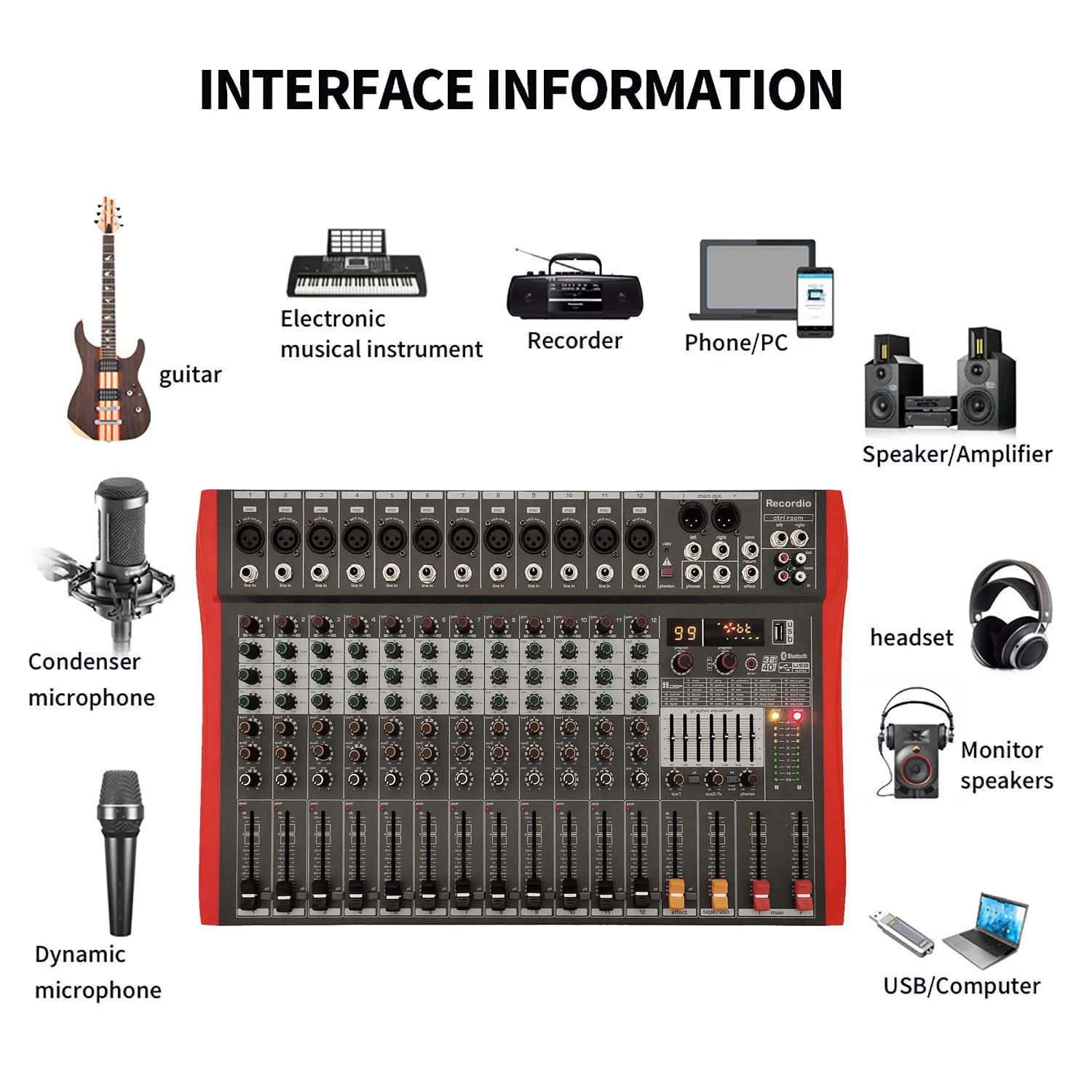

GAX-CY12 Professional 12-channel Sound Mixing Console With Blueteeth Sound Mixer Audio 99 DSP Effects Phantom Power 48V USB Jack
Product Description
Introducing brief functions:
6,8,10,12 channel frame.
LR main mix
2 Aux sends
Recording
Responsive 3 band EQ
Individual phantom power
Channel and master meters
60mm dust protected faders
2-Track monitoring and replay to LR
Headphones and local monltor outputs
Dedicated stereo, peak-retaining monitor meters
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low noise mix head amp design
BLUETEETH & Mp3 player/recorder with concise human-machlne interactive interface Digital effect processor
Metal jacks, gold-plated XLRs, sealed pots and switches
External power adapter power supply
LR main mix
2 Aux sends
Recording
Responsive 3 band EQ
Individual phantom power
Channel and master meters
60mm dust protected faders
2-Track monitoring and replay to LR
Headphones and local monltor outputs
Dedicated stereo, peak-retaining monitor meters
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low noise mix head amp design
BLUETEETH & Mp3 player/recorder with concise human-machlne interactive interface Digital effect processor
Metal jacks, gold-plated XLRs, sealed pots and switches
External power adapter power supply
Specification
Maximum input level | MIC +24dBu, Line +24dBu, Other Line +20dbu |
Maximum output level | XLR +26dBu, TRS +20dBu |
Master meters | 10 segment -24dB to CLIP |
Channel meters | 1 LED signal indication |
Frequency response | 20Hz to 30KHz 0.5dB |
CMRR (MIC 1kHz) | >75dB |
THD+N | <0.01 % (Channel to mix out) |
Crosstalk at 1kHz | Fader shutoff > 85dB，Mute shutoff > 85dB，Inter channel > 82dB |
Noise, rms 22Hz to 22KHz: EIN-122dBu; Residual output noise | |
MONO EQ | LF, shelving, +/-15dB, 12KHz; HM, peak/dip, +/-15dB, 2.5KHz; LF, shelving, +/-15dB, 80Hz |
Mono channel | XLR balanced, pin2 hot, 2K ohm, Sensitivity -40 to +14 dBu; TRS balanced, tip hot, 10K ohm, Sensitivity -20 to+14 dBu; XLR, phantom +48V |
2-track return | RCA, unbalanced, <4K ohm, -2 dBu |
2-track send | RCA, unbalanced, <75 ohm, -2 dBu |
L/R output | XLR balanced, pin2hot, <75 ohm, +4 dBu, Max +22 dBu |
FX/AUX output | TRS unbalanced, tlp hot, <75 ohm, -2 dBu, Max. +18 dBu |
Headphones | TRS, tipL, ring R, 30 to 600 ohm headphones recommended |
Max. Power input power | 40 watts |
Packing & Delivery
